HINGTAI R134A Valve Core Remover & Installer Kit — 31‑Piece High/Low Pressure Set with Ball‑Valve Quick‑Connect and Replacement Co

HINGTAI 31-piece R134A valve core remover and installer kit is a complete high- and low-pressure service set designed to remove, replace and seal AC valve cores quickly and safely.

This all-in-one kit combines two quick-connect valve cores (high and low), multiple replacement cores, service port caps and handheld tools so technicians and DIY mechanics can work on automotive and HVAC R134A systems without losing refrigerant. Built from brass, stainless steel and aluminum, the components are made to resist wear and provide consistent alignment during removal and installation of valve cores. The set's ball-valve control and textured grips let you minimize leaks while you change valve cores in confined engine bays or field service locations.

How does the kit prevent refrigerant loss while replacing a valve core?

The quick-removal connectors feature an integrated ball-valve that you open or close by turning a side control, allowing you to trap refrigerant and avoid uncontrolled discharge. The connectors mate directly to standard R134A service ports so you can operate under pressure safely.

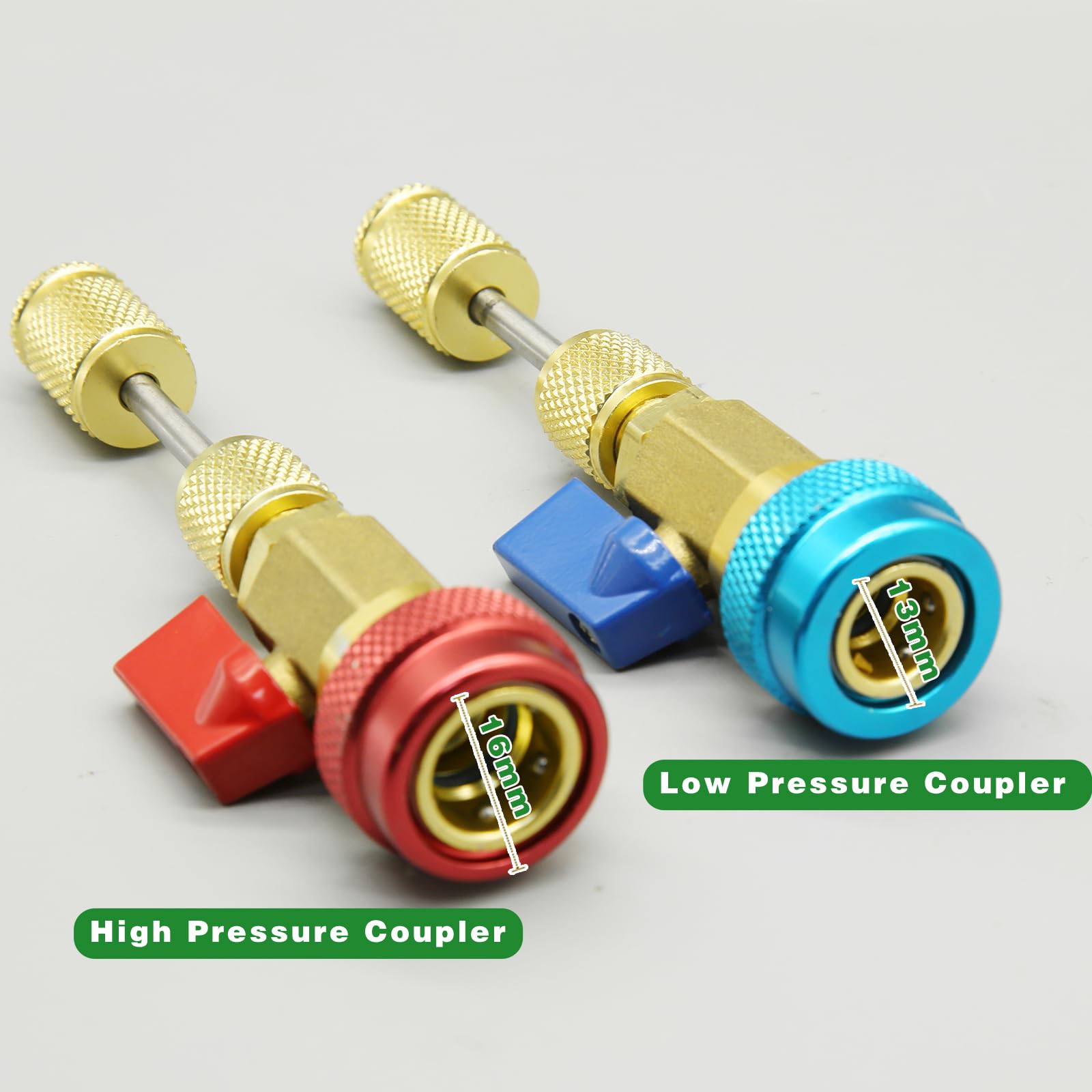

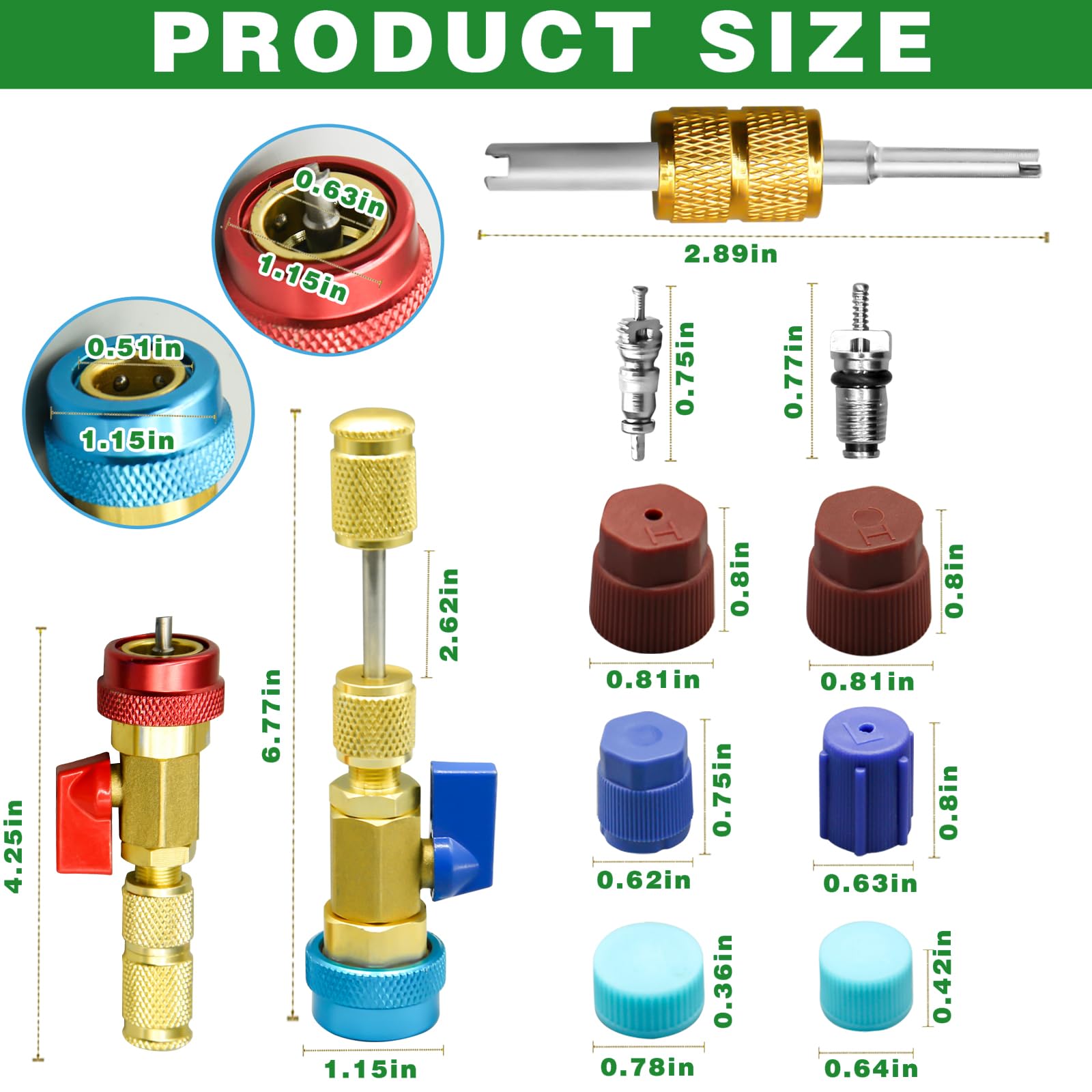

• Two color-coded quick connectors: blue for low pressure (13mm ID), red for high pressure (16mm ID)
• Ball-valve on each connector to stop flow before pulling the core
• Textured exterior for secure grip when operating under load

What materials and construction ensure durability for frequent shop use?

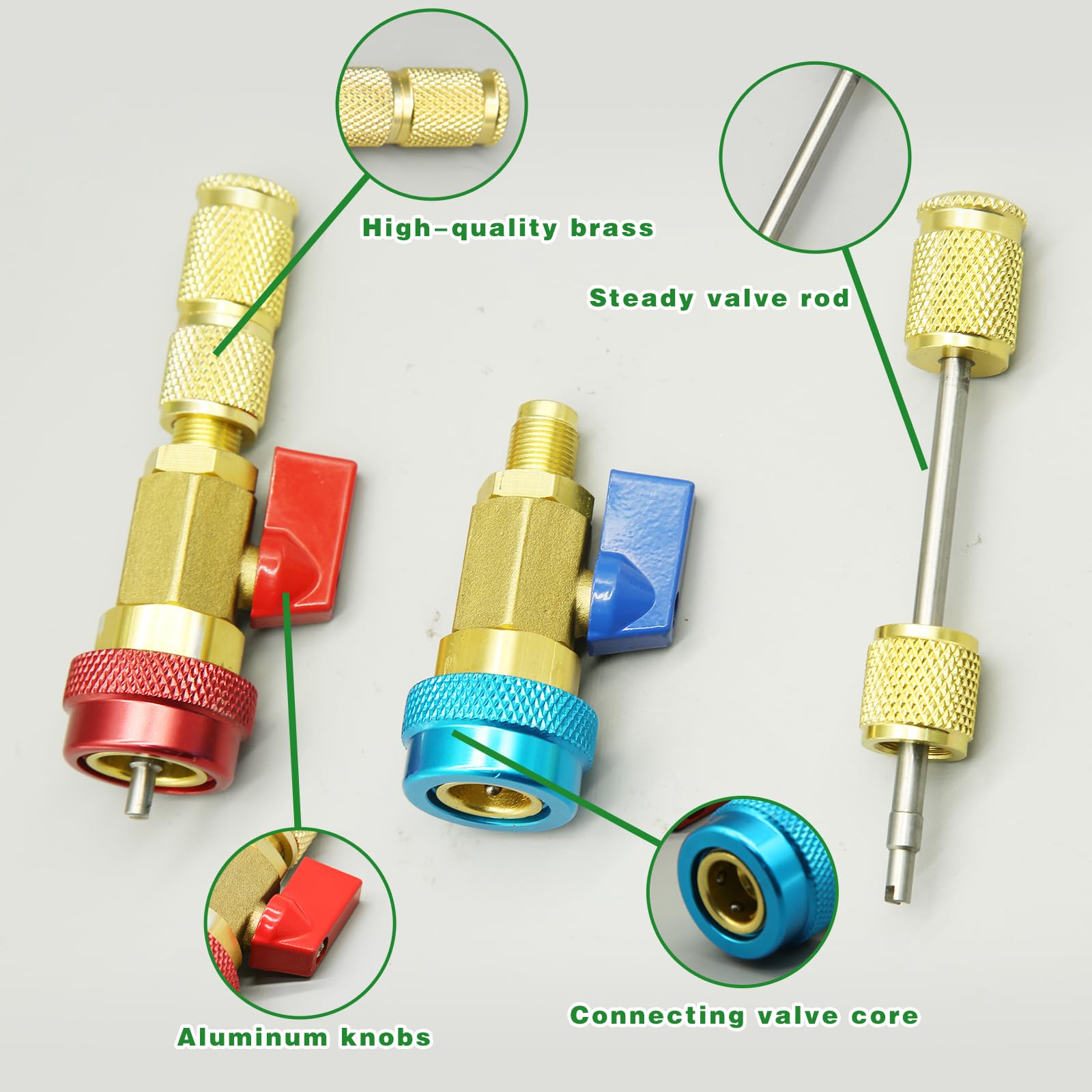

Major load-bearing parts are brass for impact resistance and longevity, while valve stems use stainless steel to resist corrosion from refrigerant and oils. Aluminum knobs reduce weight without sacrificing control, keeping the tool set serviceable in demanding environments.

• Brass bodies for strength and reliable sealing
• Stainless-steel valve stems for corrosion resistance
• Aluminum knobs with anti-slip texture for ergonomic handling

Which components are included and how do they cover different valve types?

The kit includes a range of replacement valve cores and caps so you can match most R134A service fittings found on vehicles and HVAC equipment. A double-ended valve stem remover and multiple port caps let you adapt quickly to different threads and core designs during maintenance.

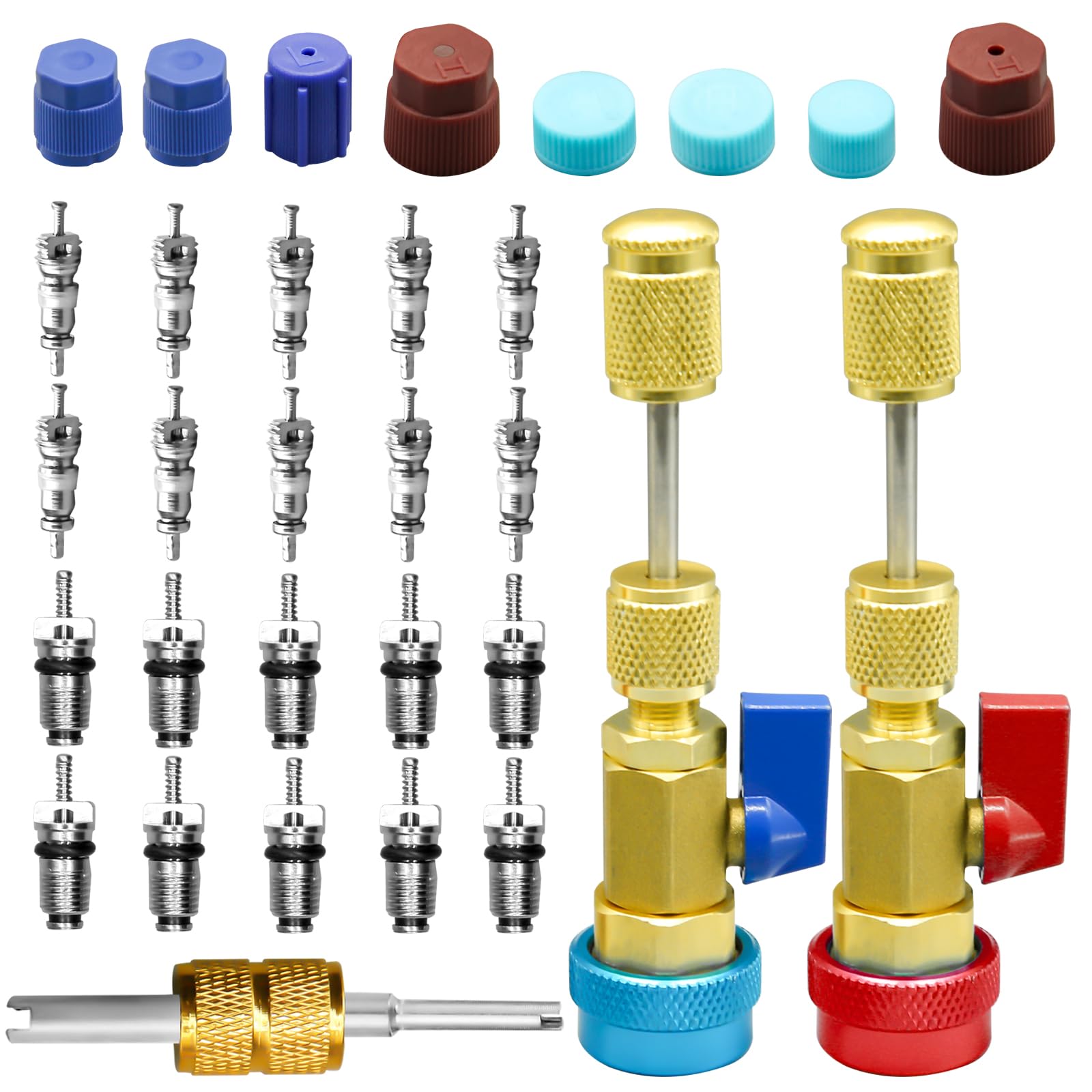

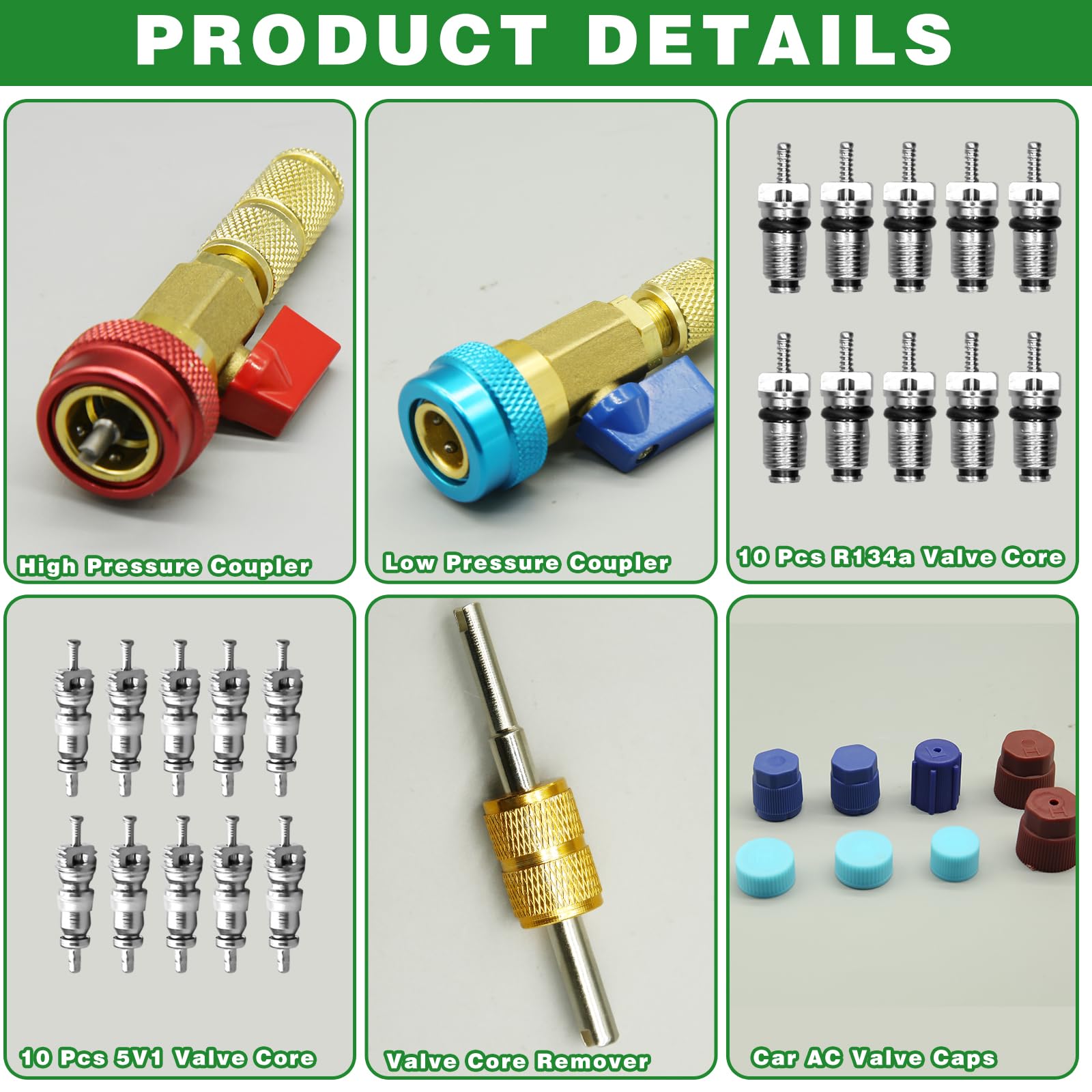

• 2 R134A quick-removal tools (high and low pressure)
• 10 standard R134A valve cores and 10 5V1 valve cores for varied fittings
• 8 AC service port caps and a double-ended valve stem removal tool

How easy is it to use this kit for DIY or professional repairs?

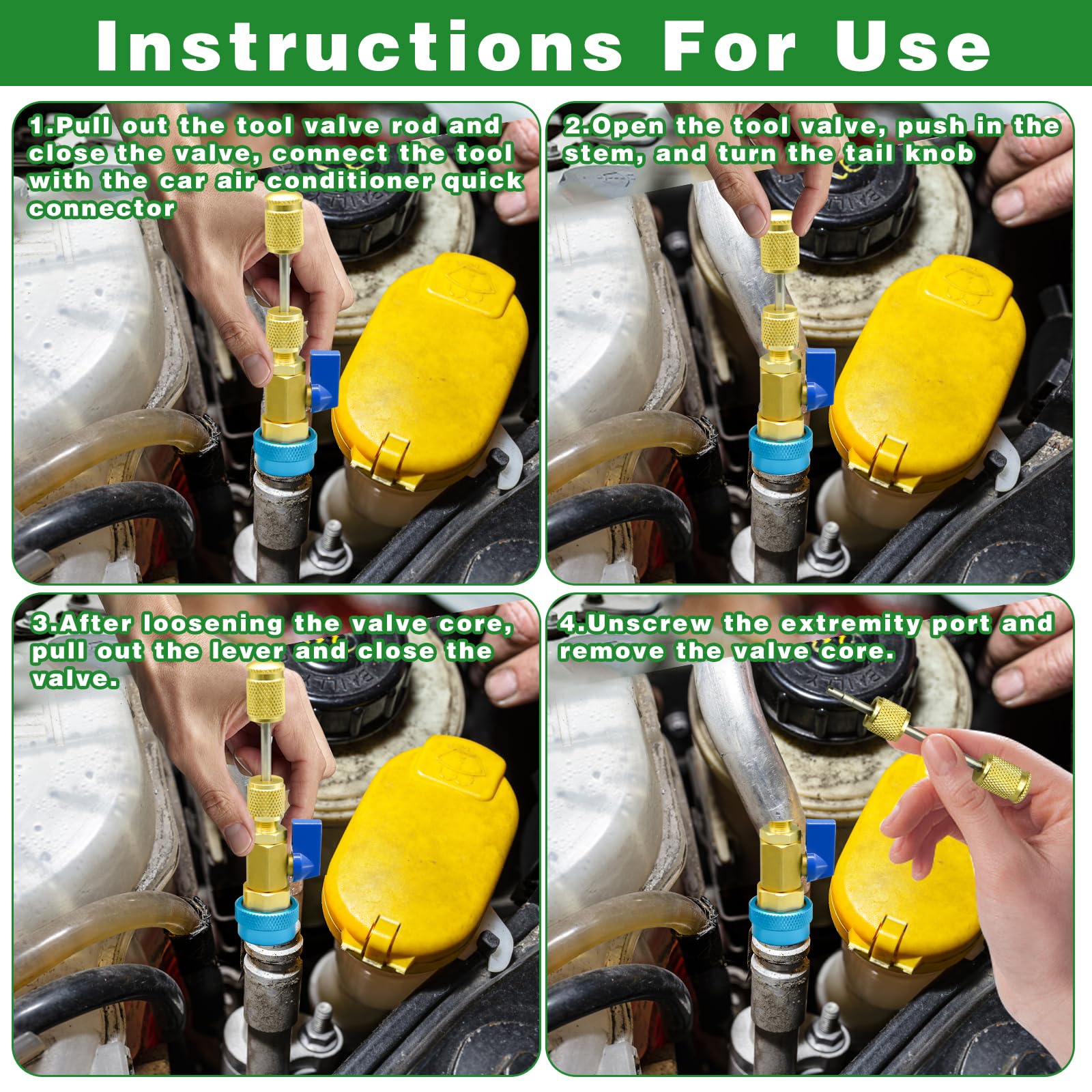

Operation is straightforward: attach the color-coded connector, close the ball valve, extract the old core with the control tool, install the replacement core and re-open. The kit is designed to reduce fumbling in tight spaces and speed up routine valve-core maintenance.

• Rotating ball valve controls opening and closing for leak prevention
• Quick-grab valve core control helps align and remove cores rapidly
• Compact parts organized for field service and garage work

Who is this for: The HINGTAI 31-piece kit is suited to auto technicians, HVAC service professionals and informed DIYers who work on R134A refrigeration lines. If you need a portable, corrosion-resistant set that covers most common valve core styles and minimizes refrigerant loss during service, this kit was made to make those valve-core swaps faster and safer.
