Hromee Fuel Pump and Vacuum Tester Gauge Kit — 4-inch Dial, Carburetor Diagnostics & Molded Case

The Hromee Fuel Pump and Vacuum Tester Gauge Kit is a handheld diagnostic set for measuring fuel pump pressure and engine vacuum to locate leaks, weak pumps, and carburetor or intake issues.

If you service older vehicles, classic cars, or any machine with a mechanical fuel pump, this compact kit gives clear pressure and vacuum readings so you can quickly narrow down problems without guesswork. The set combines a large, color-coded gauge with a flexible hose, multiple adapters, and a molded carrying case so technicians and DIYers can test fuel delivery, vacuum lines, and related components on the spot.

How does this kit reveal fuel delivery problems?

The gauge reads low-pressure fuel pump output and highlights conditions like stuck valves, worn pump diaphragms, or clogged filters. By connecting to the fuel line, you can compare measured PSI against expected values and isolate the failing part.

• Measures 0–10 psi (0–0.7 kg/cm²) for mechanical fuel pumps.
• Large 4-inch dial with color-coded zones for fast reading.
• Includes hose and fittings to connect to standard fuel line ports.
• Max working hose pressure 40 PSI for durable, safe testing.

Can I use it to find vacuum leaks and carburetor faults?

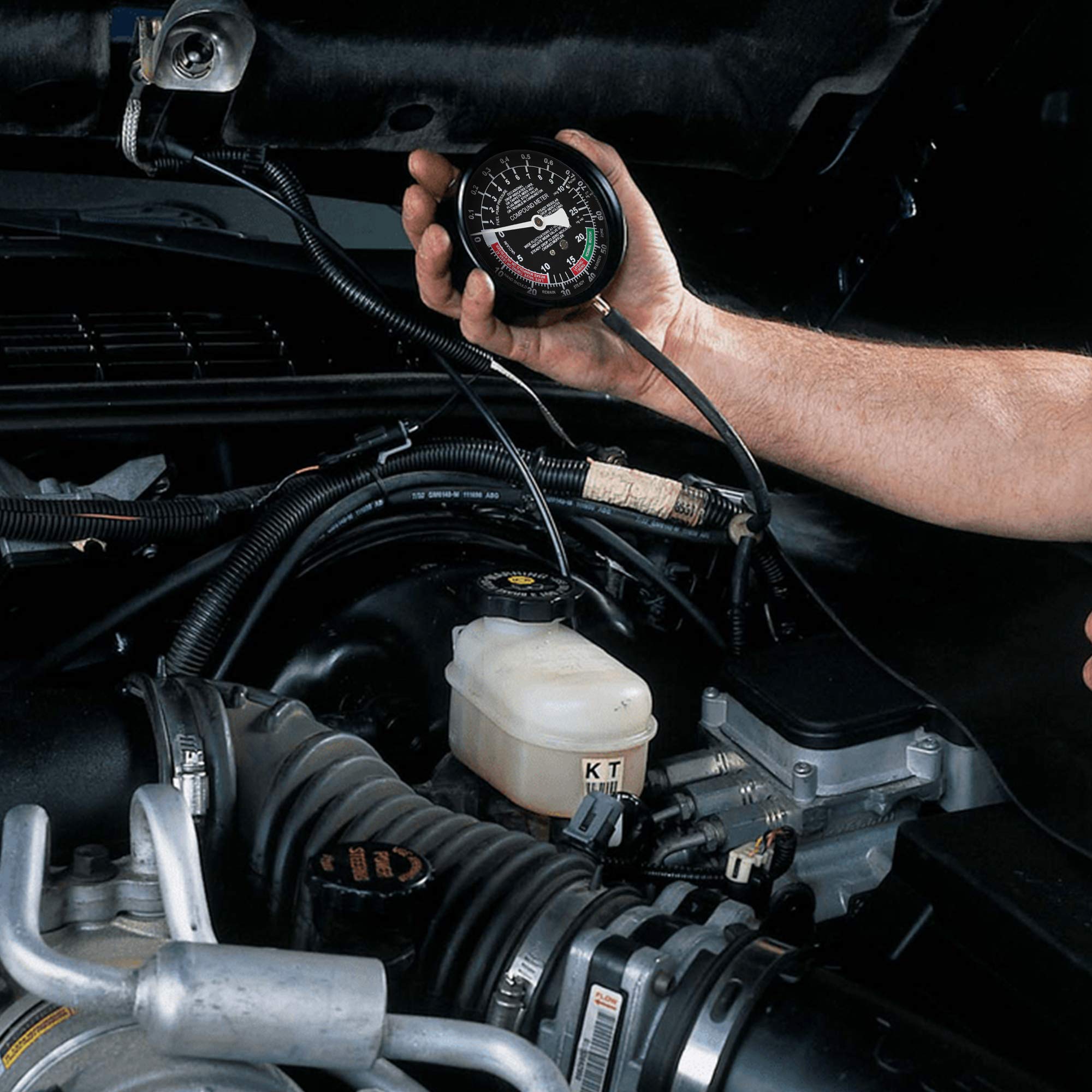

Yes — the tool doubles as a vacuum tester to check intake manifold, carburetor, and vacuum hose integrity. It detects pressure loss or leaks that cause poor idle, stalling, or reduced brake assist performance.

• Vacuum range 0–28 in/Hg (0–70 cm/Hg) for accurate readings.
• Adapters included for common vacuum port sizes and carburetor fittings.
• Useful for testing brake assist vacuum and intake manifold sealing.
• Quickly identifies leaking gaskets, cracked hoses, or faulty carburetor seals.

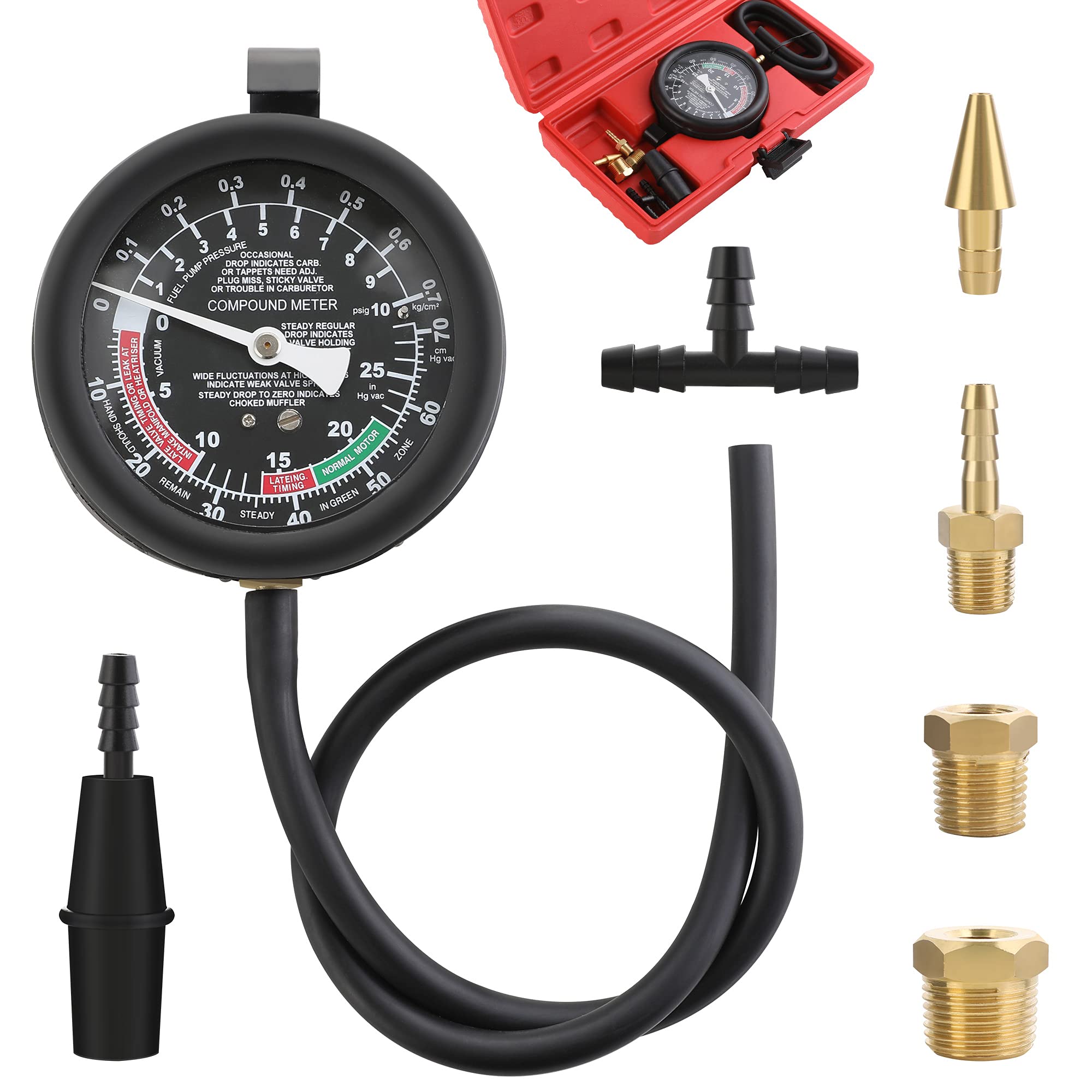

What components are included and how do they help practical testing?

The kit arrives organized in a molded carrying case and provides adapters to fit a variety of vehicles. The assortment ensures you can attach the gauge to small vacuum ports, fuel line fittings, and carburetor spouts without improvising makeshift connections.

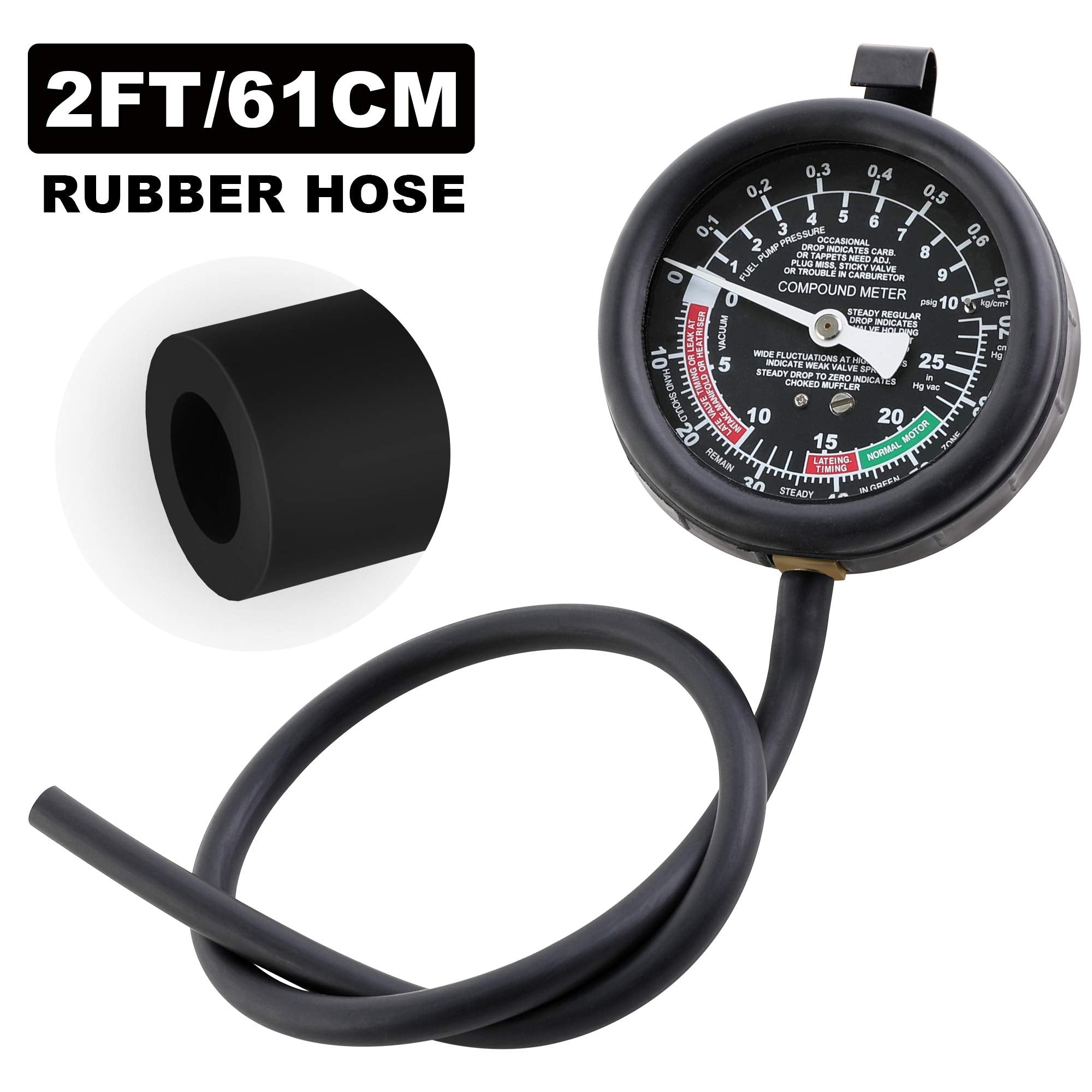

• 2 ft (61 cm) rubber hose, 13/64" ID, 23/64" OD for flexible reach.

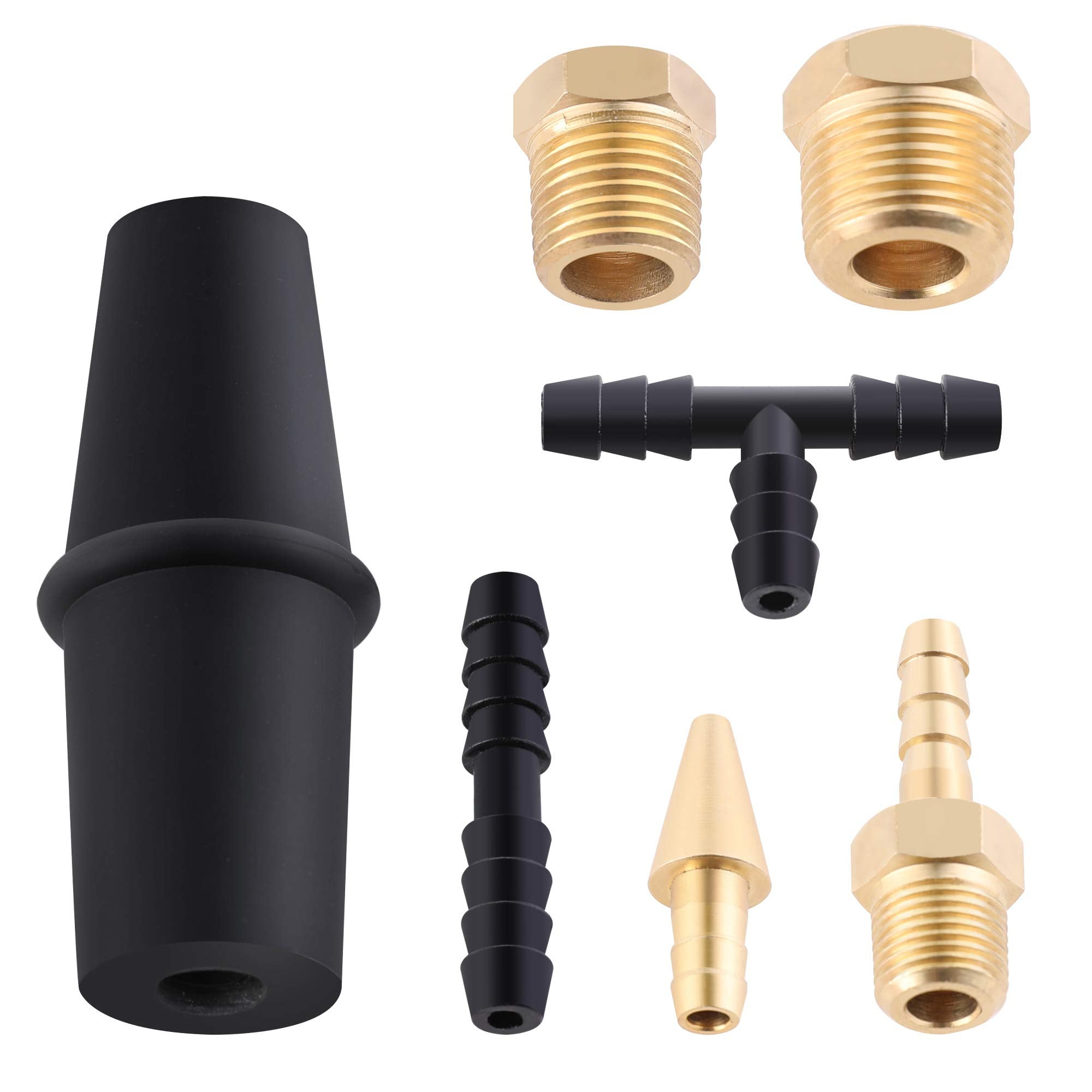

• Conical adapter, plastic connector, and multiple thread/barbed adapters for common fittings.
• 1/4"x18 male to 1/8"-27 female and other thread adapters included.

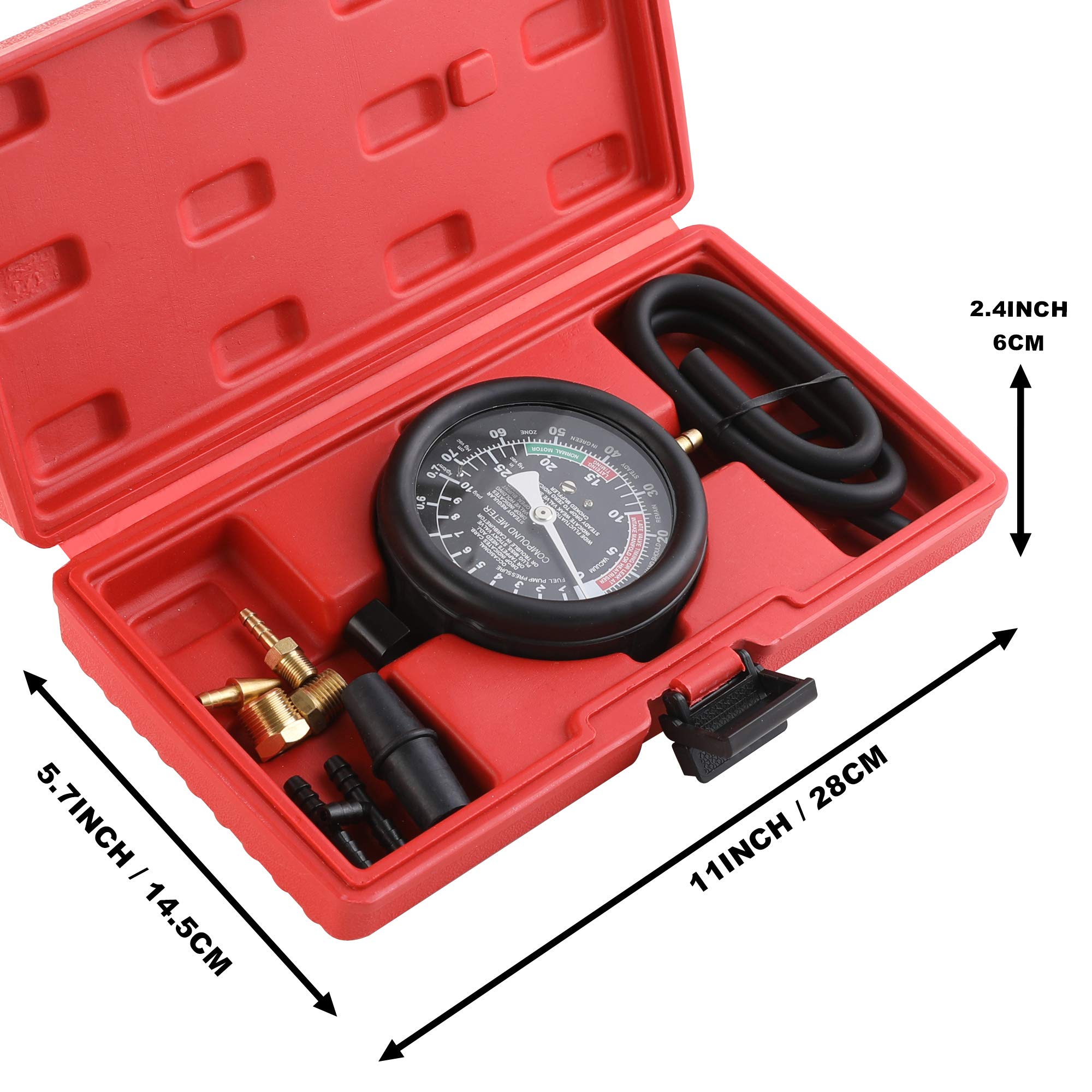

• Durable blow-molded case (11" x 5.7" x 2.4") for storage and transport.

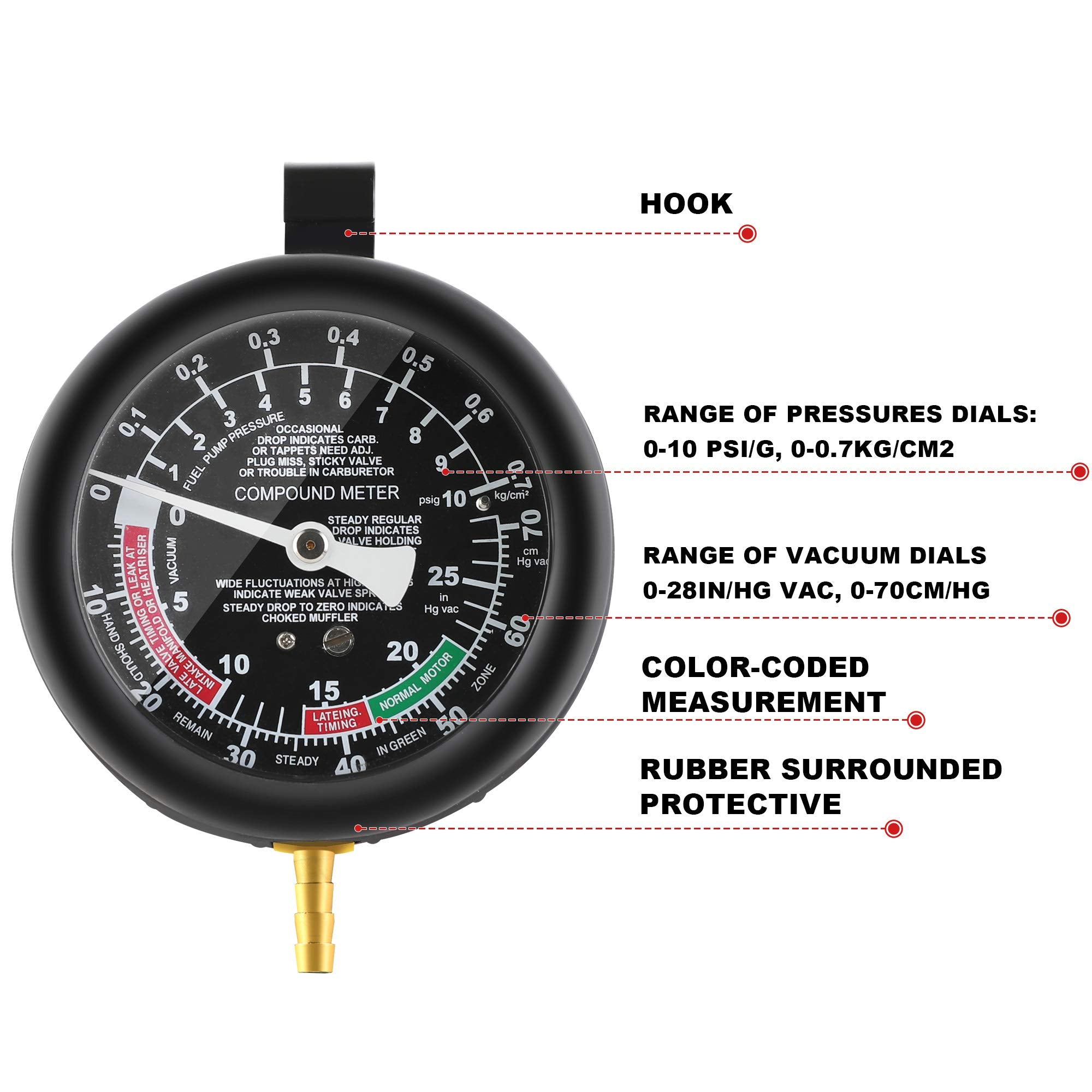

How easy is it to read and protect the gauge in a shop environment?

The large 4-inch dial uses color-coding to help you interpret vacuum and pressure at a glance, while a rubber surround and top hook protect the instrument and let you hang it near the engine during testing. Readings are stable for repeatable diagnostics.

• Color-coded scale separates vacuum and low-pressure zones for clarity.
• Rubber-covered housing resists shop impacts and grit.
• Top hook for hands-free viewing while running the engine.
• Gauge design suited for quick, repeatable measurements.

Who this is for: The Hromee Fuel Pump and Vacuum Tester Gauge Kit is built for independent mechanics, restoration hobbyists, fleet maintainers, and home DIYers working on carbureted engines or vehicles with mechanical fuel pumps. It’s especially useful when you need portable, straightforward diagnostics to confirm fuel pressure, find vacuum leaks, test brake assist systems, or verify carburetor performance before replacing parts.
