HZ CH440 Pull Start Recoil Starter for Kohler CH440 / Command Pro 429cc — OEM-fit replacement with mounting bolts

Replacement pull-start recoil assembly for Kohler CH440 engines (models using 17 165 11-S / 17 165 22-S) that restores manual starting function with OEM-equivalent fit and components.

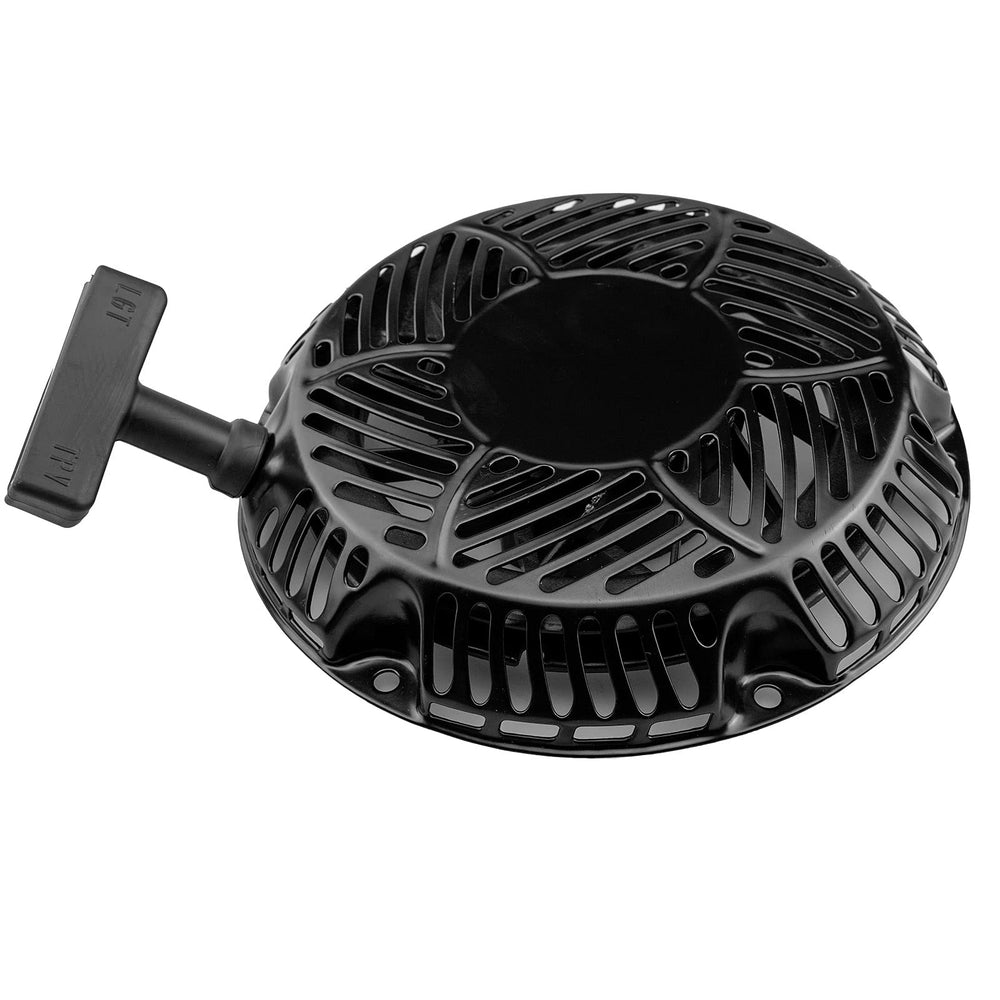

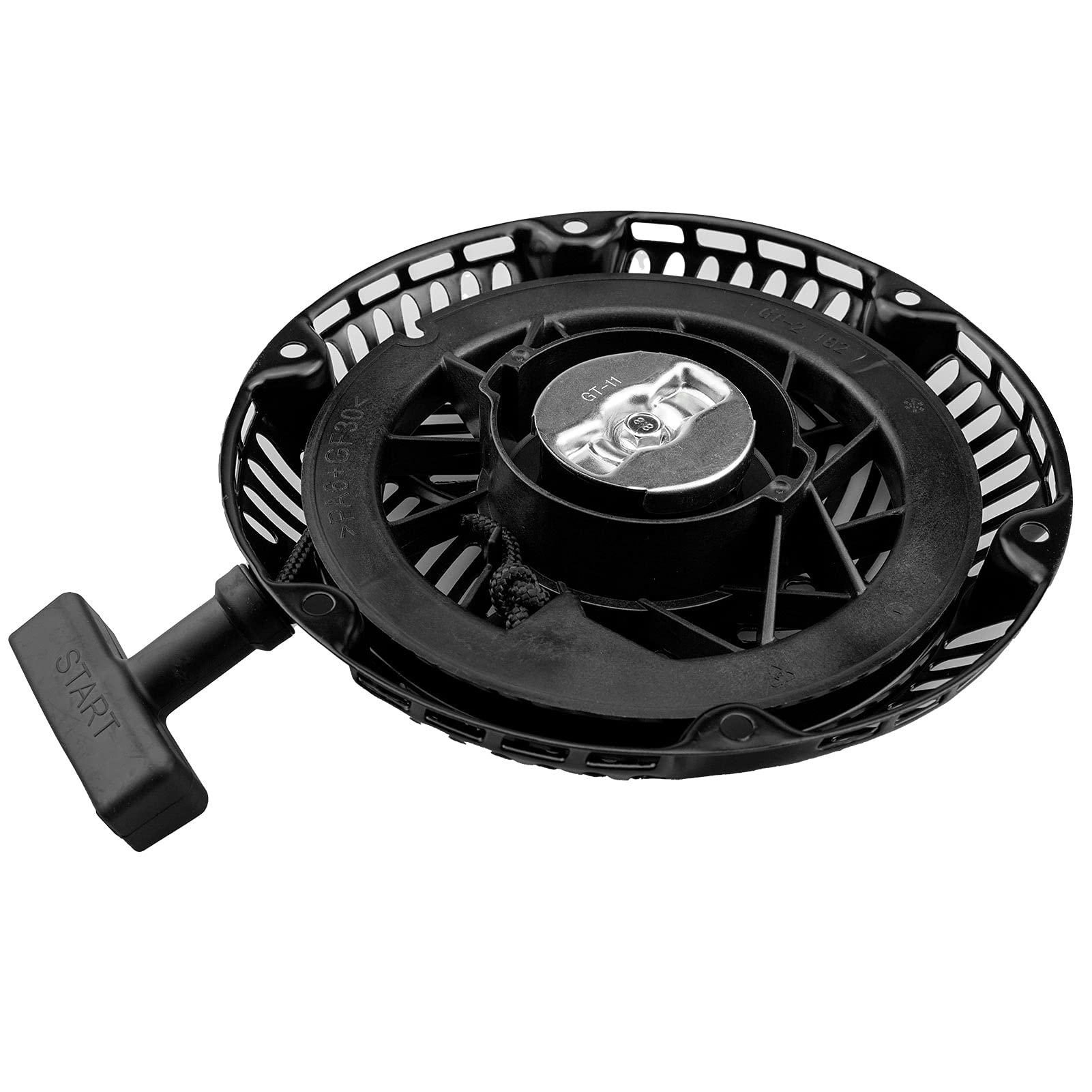

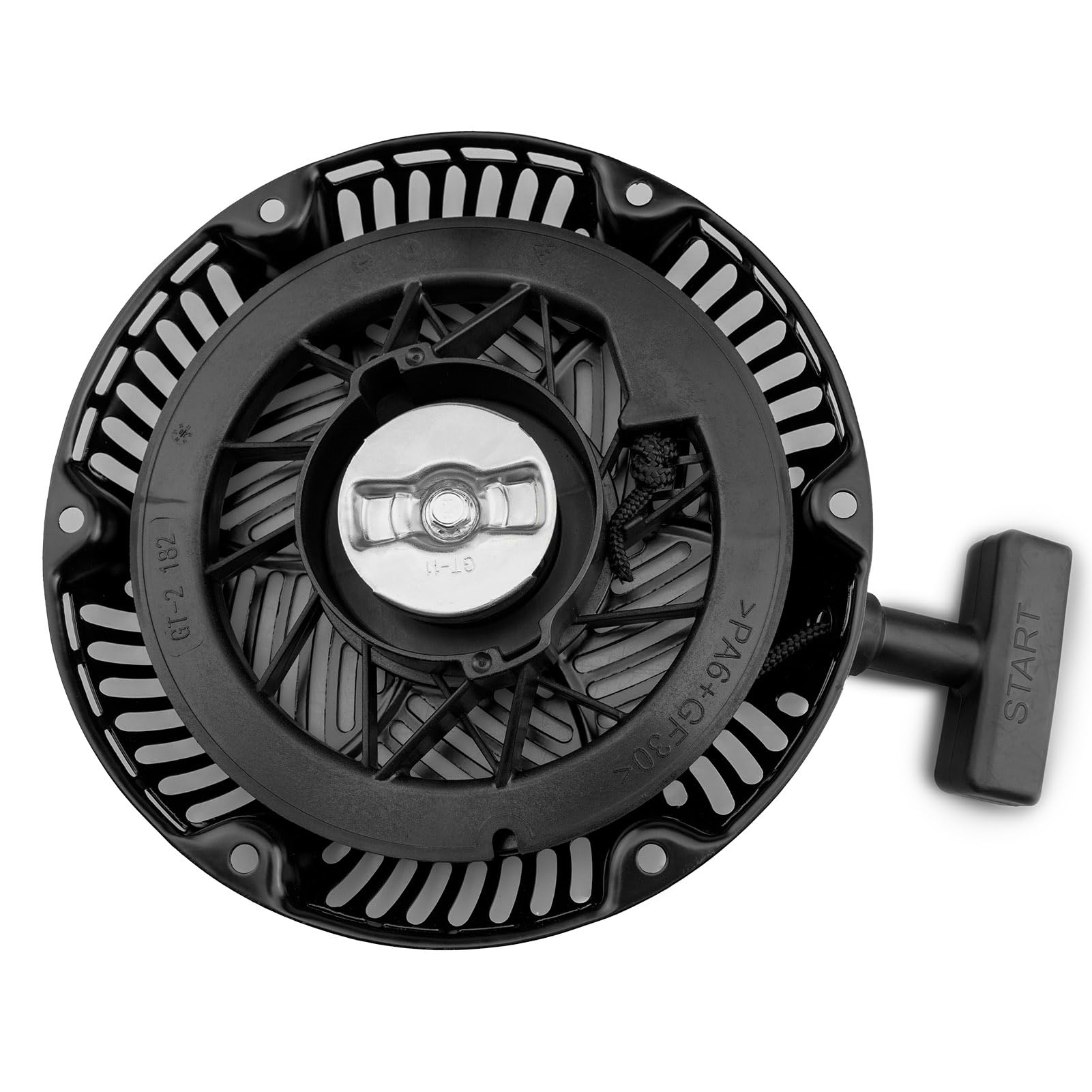

This HZ CH440 pull start recoil starter assembly is designed to match the original Kohler CH440 starter (part numbers 17 165 11, 17 165 11-S, 17 165 22-S and equivalents). Built with the same mounting pattern, cord length, recoil spring and pulley layout, it installs in place of the factory unit to get CH440-powered equipment running again. The assembly ships with mounting bolts and is compatible with many Command Pro 429cc horizontal-shaft engines and the common brands that use them.

Will this recoil starter fit my Kohler CH440 or Command Pro 429cc engine?

Yes — the HZ unit is made to replace OEM Kohler CH440 starters that use the 17 165 11 / 17 165 11-S / 17 165 22-S family of part numbers. It follows the same bolt pattern and engagement design, so it will bolt onto the same housing and engage the flywheel as the original.

• Fits Kohler CH440 series and Command Pro 429cc horizontal-shaft engines.
• Compatible with many CH440 chassis codes (examples include CH440-0011, -0021, -0034, -0105, and more).
• Replaces OEM numbers 17 165 11, 17 165 11-S, 17 165 22-S and equivalent Kohler references.

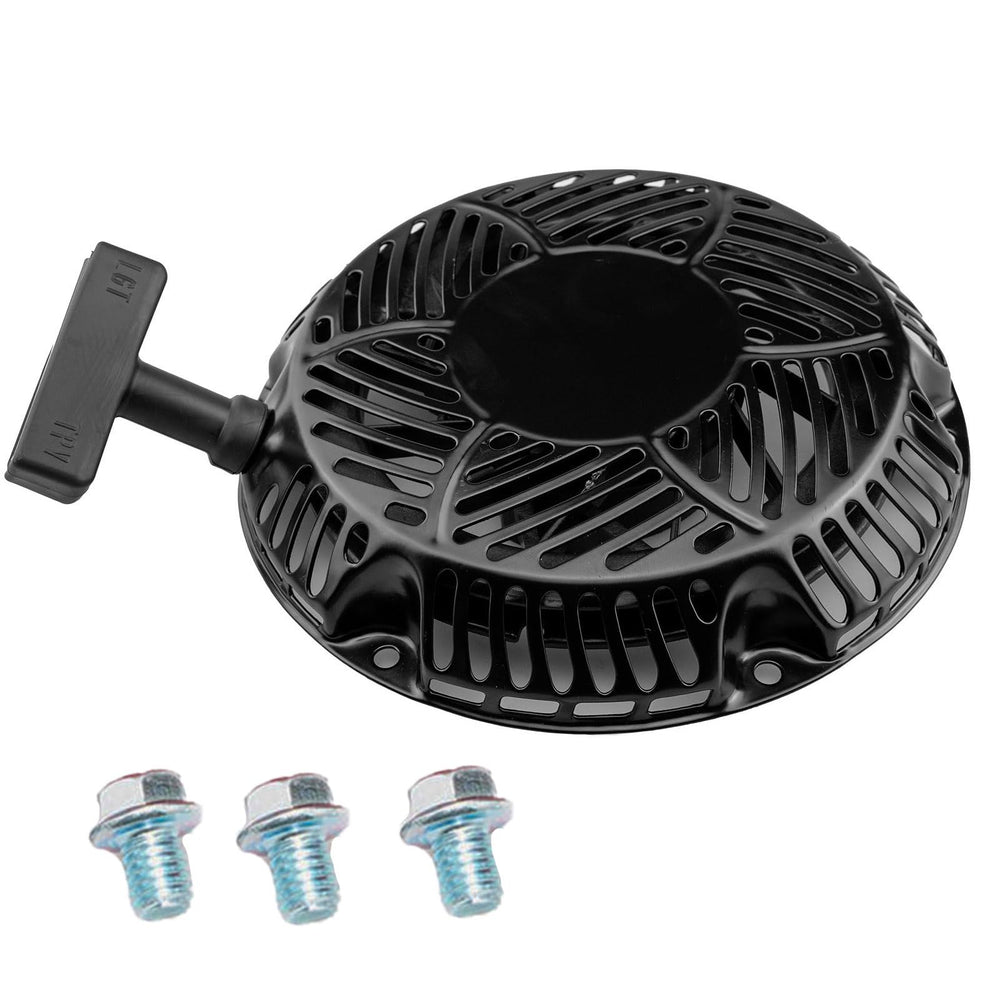

• Includes mounting bolts for a direct swap with the factory starter.

How durable is this replacement pull-start compared to the original?

The assembly is manufactured with the same key components — recoil spring, rope, pulley and housing — to mirror the original performance. Materials and construction are selected to withstand normal outdoor and equipment use, with emphasis on a reliable rewind action and cord longevity.

• Durable recoil spring and molded pulley for consistent rewind action.

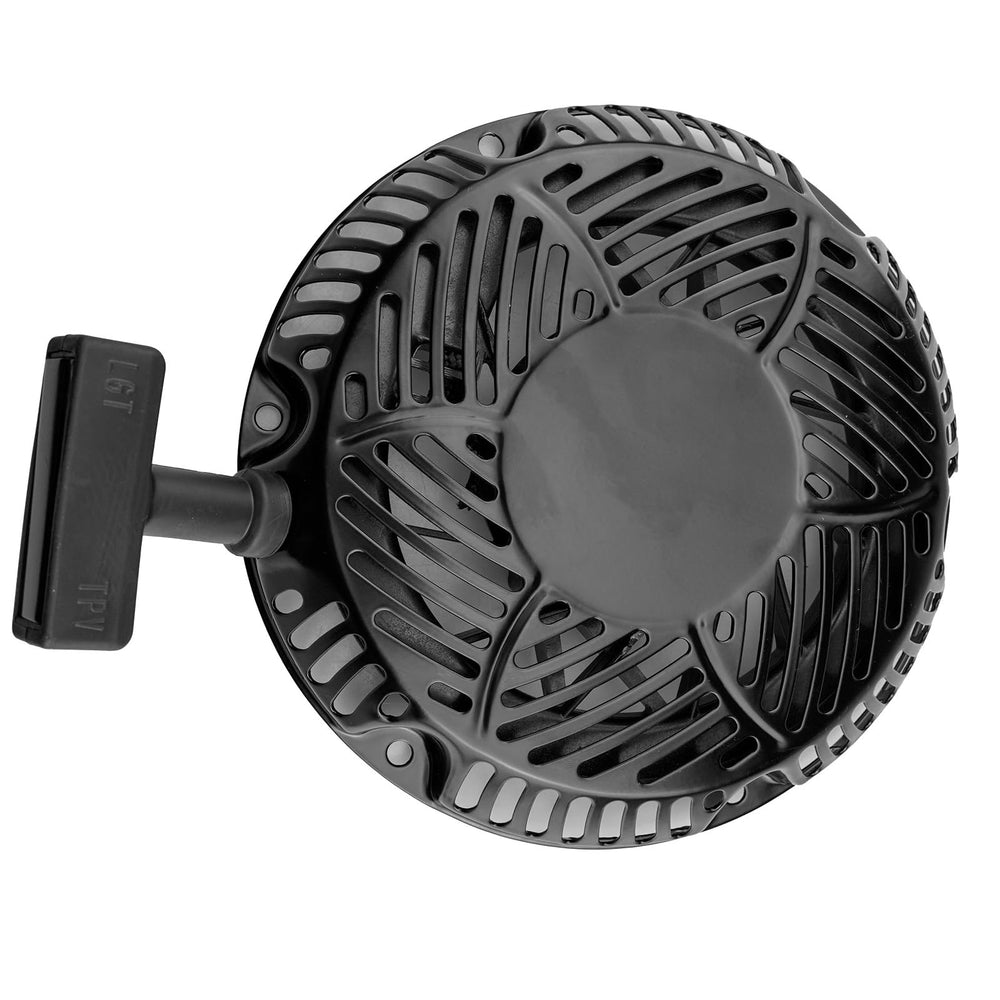

• Strong pull cord and handle designed to resist fraying during repeated starts.
• Reinforced housing mounts to maintain alignment and engagement over time.

What equipment and brands commonly use this starter assembly?

This starter is used widely across pressure washers, generators, pumps and chipper-shredders that use Kohler CH440 engines. OEM users include well-known equipment manufacturers that spec the CH440 Command Pro engine for high-torque, small-engine applications.

• Pressure washers (models rated around 4000–4400 psi and up to 6000 psi in some builds).
• Portable generators, water pumps, air compressors and chipper/shredders.
• Brands like Mi-T-M, BE Power, Power King, Simpson, NorthStar and others that use Kohler CH440.

How easy is it to install this recoil starter on my engine?

Installation is straightforward for anyone comfortable with basic small-engine work: remove the old starter, transfer any needed hardware or use the supplied bolts, and align the new assembly with the flywheel engagement. No special tooling beyond standard hand tools is required for the swap.

• Ships with mounting bolts to simplify the replacement process.
• Direct-fit design removes the need for modifications or shims.
• Typical install time: 15–30 minutes depending on access and experience.

Who is this for: owners, repair shops and fleet managers working with Kohler CH440 or Command Pro 429cc engines who need a dependable, OEM-equivalent pull starter to return equipment to service quickly. It’s appropriate for maintenance on pressure washers, generators, pumps, chipper/shredders and other small-engine machines using the CH440 family where original starter parts are worn, broken or missing.
