HZ-MONSTAR BPV-31 Piercing Valve Kit 4-Pack — Compact Refrigeration Tap Valves with Hex Keys & 5 SAE Access Ports

HZ-MONSTAR BPV-31 Piercing Valve Kit is a compact 4-pack bullet-style refrigerator piercing valve set with included hex keys, plus five 1/4" SAE access/service valves for easy vacuuming, charging, and pressure checks.

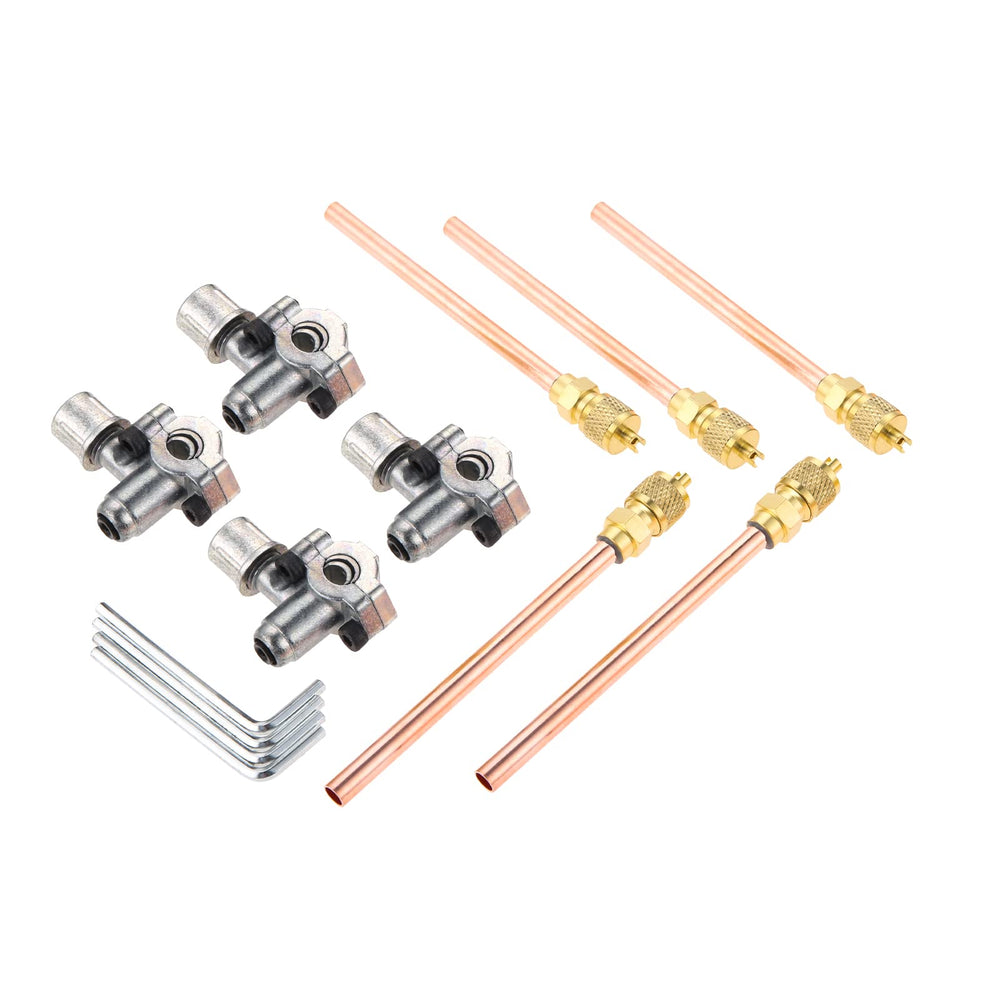

This kit bundles four BPV-31 bullet piercing tap valve assemblies and five 1/4" SAE access valves to give HVAC and refrigeration technicians a ready-to-use selection of service ports. Every piercing valve kit includes a hex key and adapters so you can install in tight spaces with just two inches of clearance. All metal parts are corrosion-resistant and the access caps come with rubber O-rings and core removers, tested before shipping.

How do these piercing valves work for refrigerator or HVAC lines?

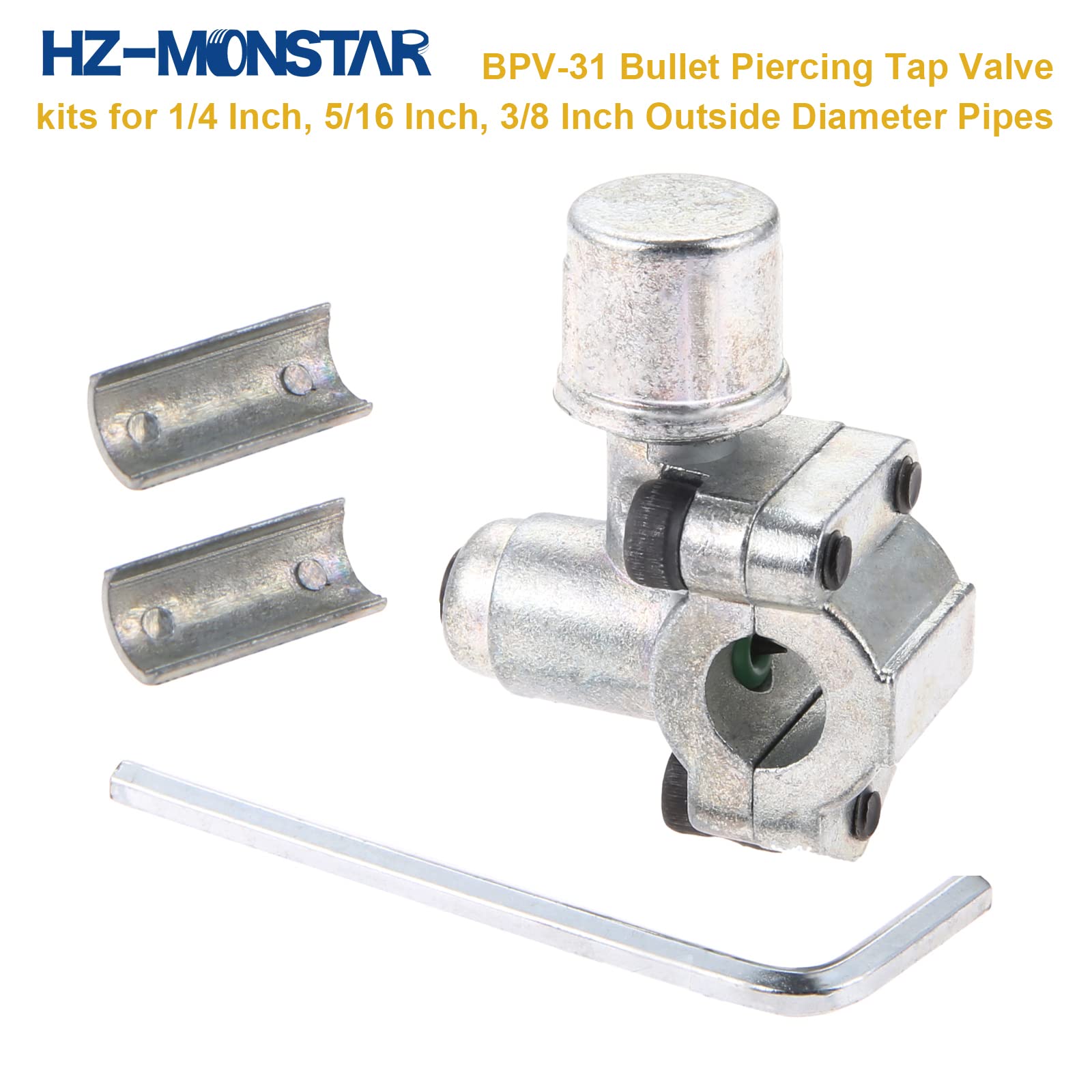

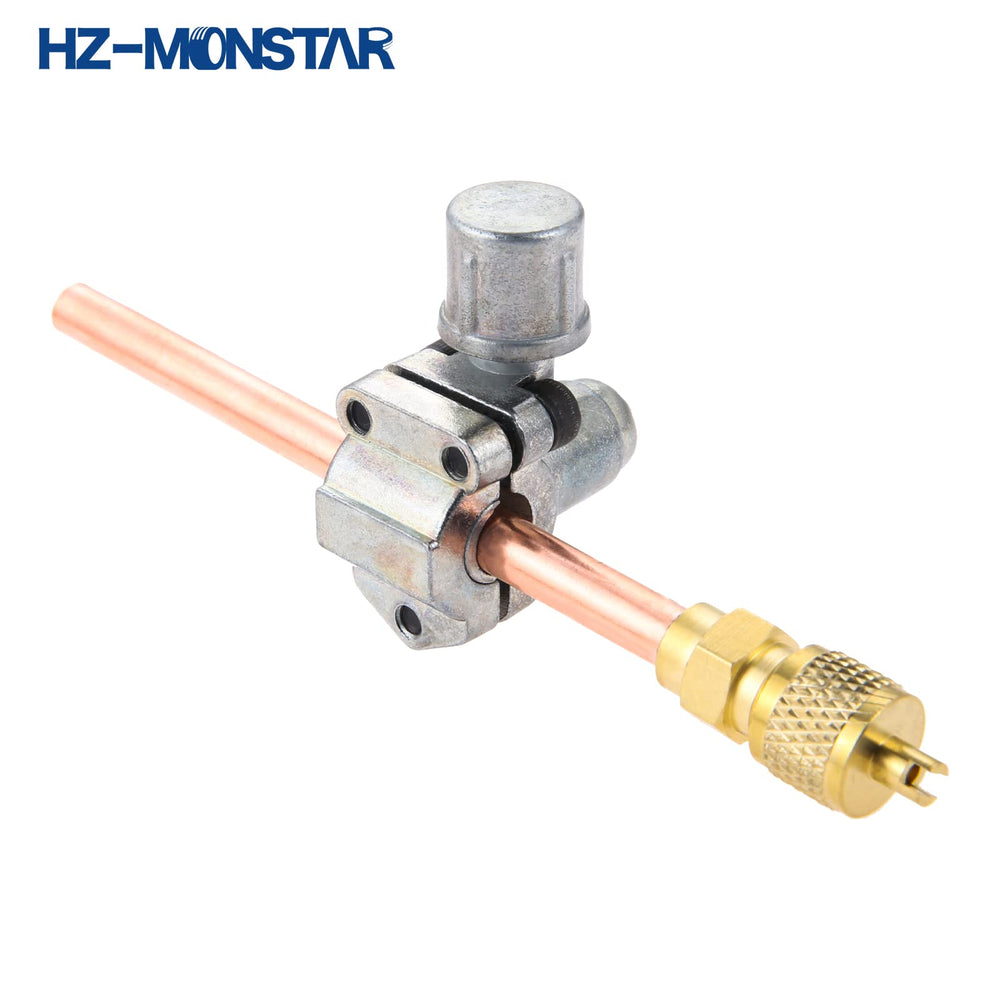

The BPV-31 piercing valves puncture tubing to create a sealed service port without removing sections of pipe. They thread and seat securely, allowing technicians to attach gauges, vacuums, or charging hoses quickly and reliably.

• Fits 1/4", 5/16", and 3/8" outside diameter tubing with included adapters
• Requires only the supplied hex key for installation
• Compact design needs about 2" clearance to install
• Replaces common part numbers like AP4502525, BPV31D, GPV14, GPV31

What are the access/service valves used for and what are their specs?

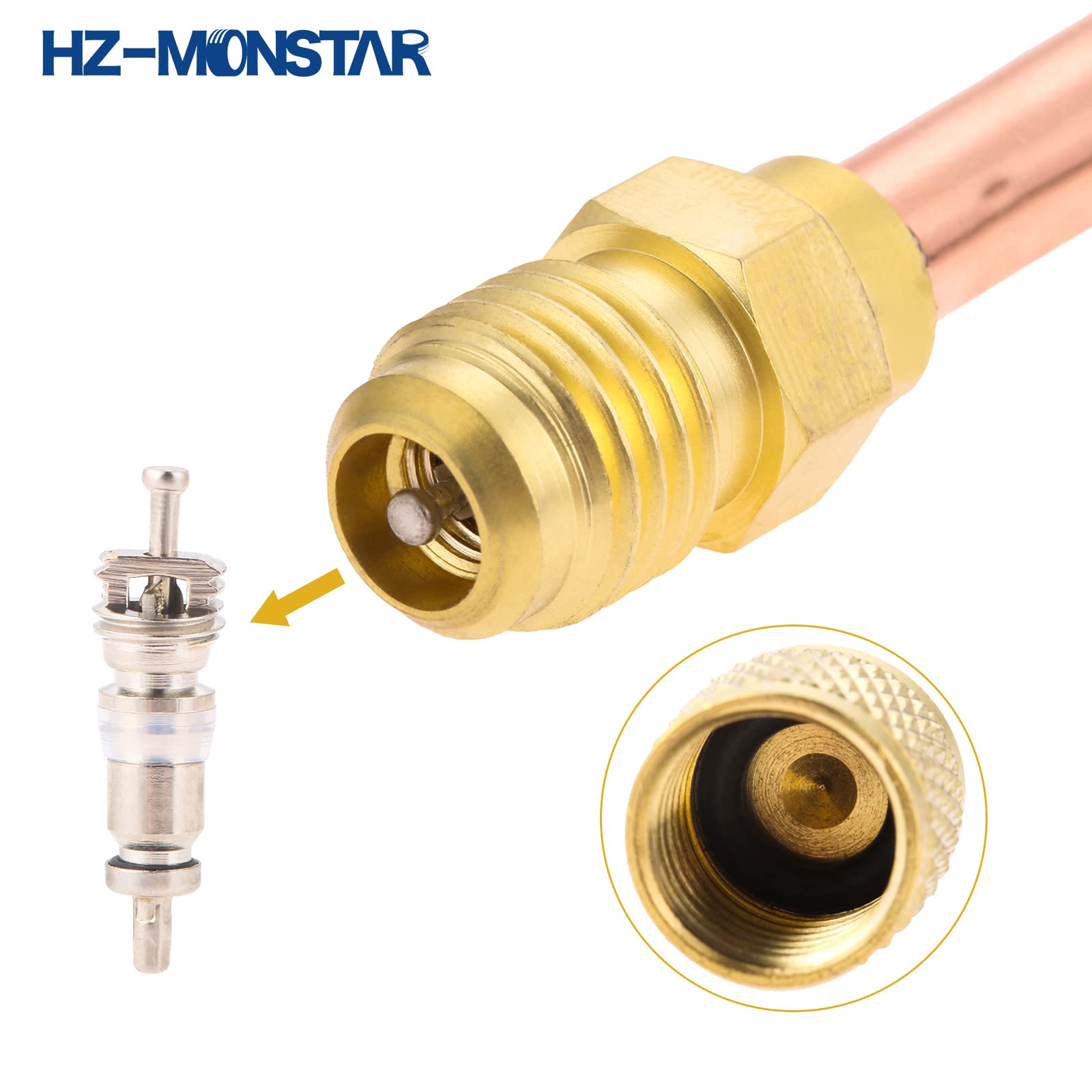

The five included access valves are 1/4" SAE threaded ports with a 1/4" tube OD stem and thin-wall tubing compatibility for vacuuming, pressure testing, and charging. Each valve has a copper cap with an inside rubber O-ring and a removable core tool for service convenience.

• Thread x OD: 1/4" SAE x 1/4" O.D. stem
• Stem length ~4" with 0.027" tube thickness compatibility

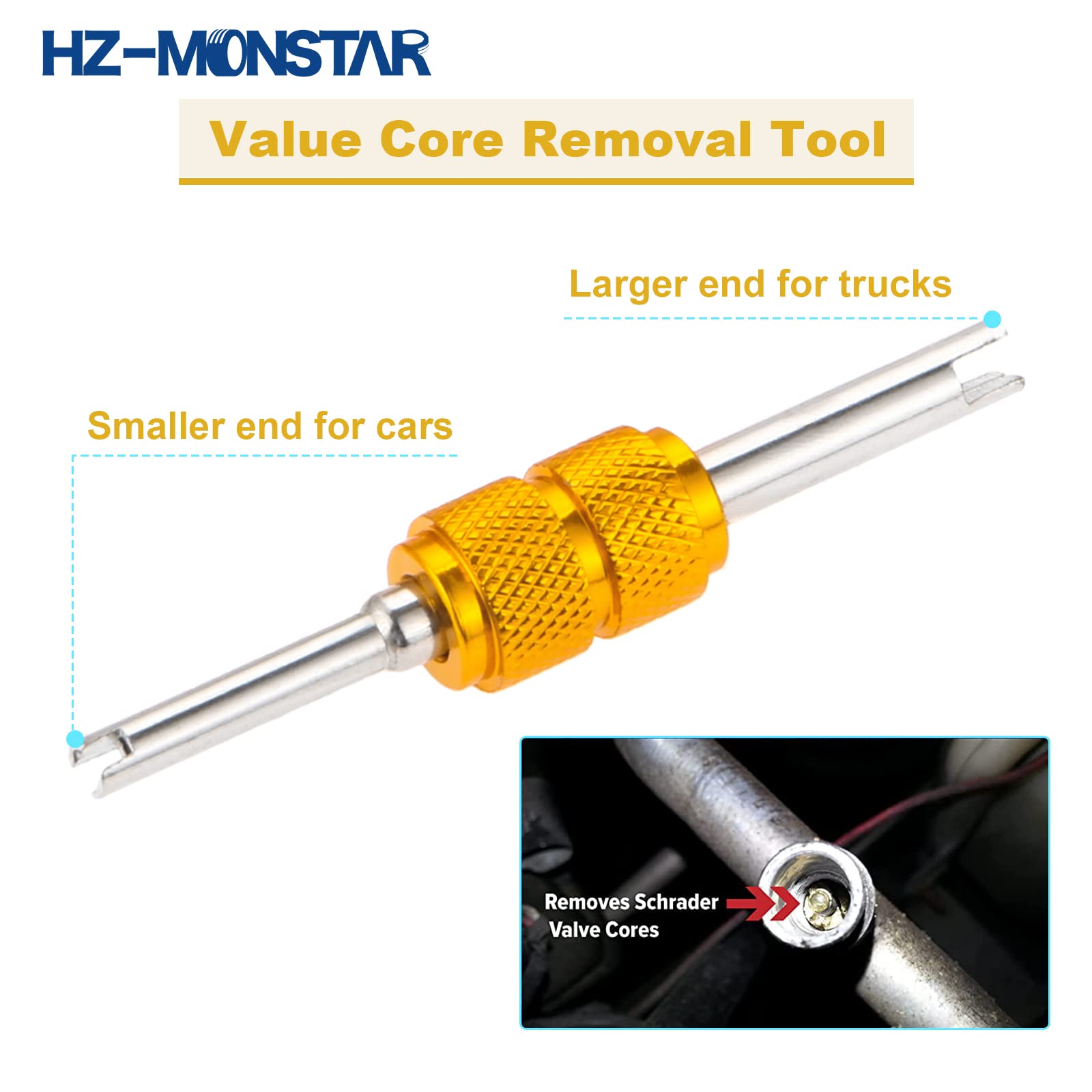

• Comes with core remover and copper caps with O-rings
• Tested for fit and seal before shipping

Are these parts durable and easy to maintain?

Yes—components are machined from corrosion-resistant metal to resist wear and rust during normal HVAC use. The access caps are copper with rubber O-rings to maintain a tight seal, and replacement cores are removable so service life is extended through maintenance.

• Corrosion-resistant valve bodies for long service life
• Copper caps and rubber O-rings prevent leaks
• Core remover included to replace or clean valve cores
• Quality-tested before dispatch to ensure reliability

Who is this for: The HZ-MONSTAR BPV-31 Piercing Valve Kit is intended for HVAC technicians, refrigeration service professionals, and experienced DIYers who need reliable temporary service ports for vacuuming, pressure checks, or refrigerant charging. If you work on systems that use 1/4", 5/16", or 3/8" tubing and want a compact, tested kit that includes adapters, hex keys, and extra access valves, this bundle saves time and reduces trips to the parts store.
