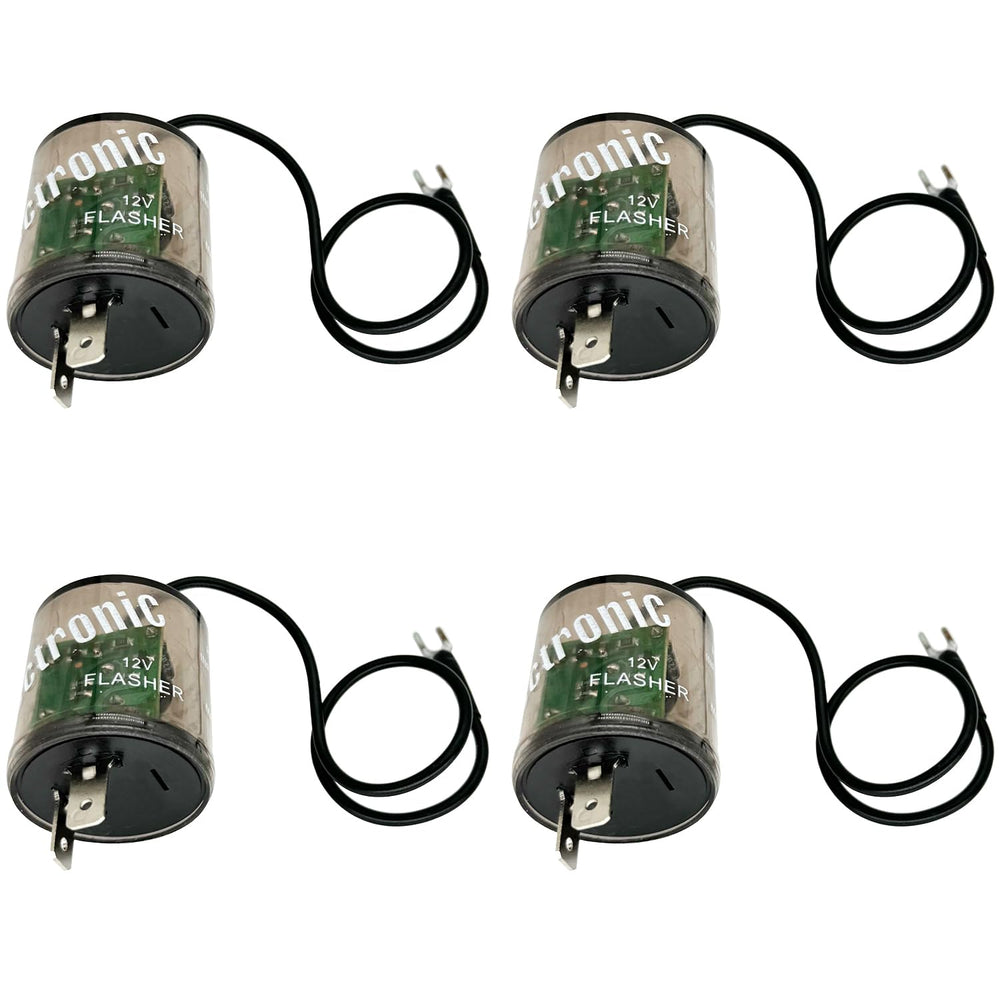

iRhapsody 12V LED Flasher Relay Pack of 4 — 2‑Pin with Ground Wire, 10A Fixed 85 FPM

These relays replace conventional thermal flashers to deliver consistent LED-compatible blinking at a rated current of 10A and a flashing frequency around 85 times per minute. Built for a broad operating voltage (11–15VDC) and extreme temperatures (−40°C to +80°C), they are intended for motorcycles, scooters, ATVs, trailers and other small vehicles that use 12V electrical systems. The relays are simple two-pin units with a ground lead and are not adjustable for flash rate.

How quickly will the indicators flash with these relays?

Each relay produces a fixed flash rate near 85 flashes per minute, suitable for many LED turn-signal setups where a stable, non-hyperflash rhythm is desired. Because speed is unadjustable, you get consistent timing without tuning.

• Typical flashing frequency: ~85 times per minute
• Fixed duty ratio range: about 30%–70%
• No user-adjustable potentiometer or settings
• Designed for steady LED blink rate without complex wiring

What electrical load and voltage range do these relays support?

These relays are rated for 12VDC electrical systems and handle a rated current of 10A, with maximum switching load up to 150W (roughly 20A peak). They operate reliably between 11V and 15V, covering common automotive and powersystem variations.

• Rated voltage: 12VDC; operating range: 11–15VDC
• Rated continuous current: 10A; max switching current capacity: up to 20A peak
• Switching load window: 0.1W–150W (0.02A–20A)
• Coil power consumption: 0.36W for low draw operation

How durable are these relays for outdoor and vehicle use?

They’re built to tolerate a wide temperature range (−40°C to +80°C) and are tested at nominal voltages to ensure stable performance in typical vehicle environments. The solid compact design minimizes exposure to mechanical stress when mounted correctly.

• Operating temperature: −40°C to +80°C
• Test voltage: 13VDC (±0.2V) for performance verification
• Simple two-pin body with ground wire reduces strain on connectors
• Pack of four gives spares or multiple-vehicle coverage

What should I know before installing these relays?

Installation is straightforward but orientation matters on first try: hold the black plastic housing upright and test before permanently mounting. If the relay doesn’t start flashing immediately, slightly rotate or move it until it operates, then secure it so it cannot shift and change contact position.

• Tip: test orientation (black box up) before final mounting
• Ground wire included for reliable circuit reference
• Two-pin footprint fits many standard flasher sockets or inline splices
• Unadjustable speed—match to application expectations before purchase

Who is this for: These iRhapsody relays are intended for riders, DIY mechanics and small-vehicle owners who need a compact, reliable LED-compatible flasher replacement without advanced programming. They suit projects where a fixed, consistent blink rate is acceptable and where simple installation and rugged temperature tolerance are priorities. Because they come in a pack of four, they’re also practical for workshops, fleets or multiple-vehicle households that prefer spare parts on hand.
