Joinfworld 500A Battery Disconnect Switch 12–36V - Heavy-Duty Lockable Cut-Off, Fixed Handle

The Joinfworld 500A Battery Disconnect Switch is a heavy-duty 12–36V battery cut-off with a fixed handle and lockable plate to safely isolate high-current battery systems.

This rugged isolator is designed to stop parasitic drain, provide a clear off position for servicing, and act as a theft/tamper deterrent across cars, trucks, RVs, boats and industrial equipment. Built from metal and copper with die-cast components, it handles continuous loads up to 500A and instantaneous surges to 5000A. The unit installs quickly using two M10 threaded studs and is suitable for 12V, 24V and 36V DC systems.

How does this switch protect my battery when a vehicle is unused?

Turning the dial to the OFF position physically severs the battery connection so no accessory or control draws current while a vehicle sits idle. That stops slow drains from alarms, stereos, control modules and bilge pumps, helping preserve battery charge and extend service life.

• Full isolation of positive or negative feed depending on installation
• Prevents parasitic discharge during storage or long layovers
• Simple manual operation—no wiring changes after installation

Can I rely on this switch for high-current starts and heavy-duty applications?

Yes. The Joinfworld model is rated for 500A continuous current and is built to withstand spikes up to 5000A, making it suitable for starter motors, winches and large electrical systems. Heavy copper conductors and a robust die-cast housing minimize heat and ensure consistent electrical contact under load.

• 500A rated current for continuous duty
• 5000A instantaneous surge tolerance for cranking operations
• Solid copper and metal internal construction for low-resistance connections

How is the switch installed and secured against tampering?

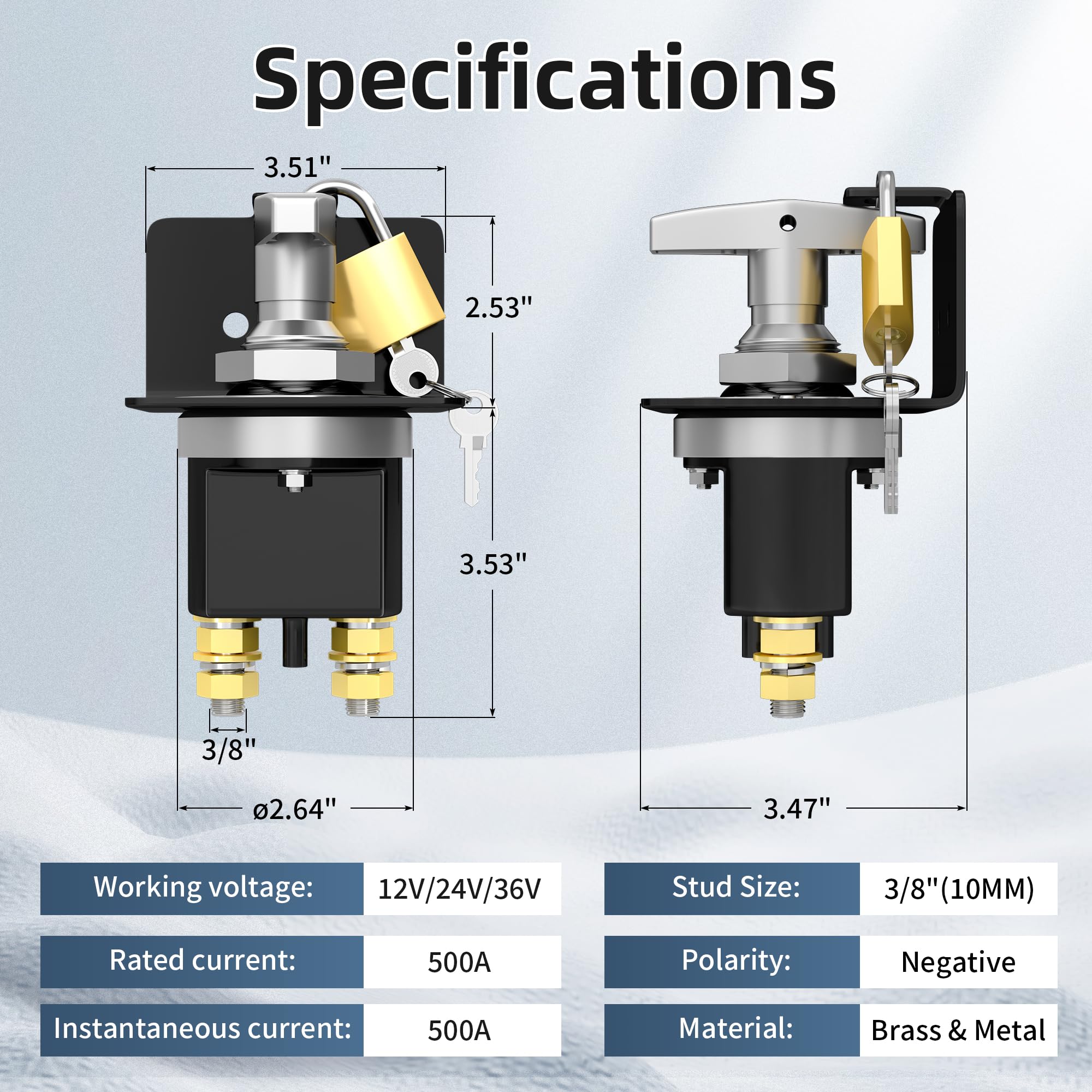

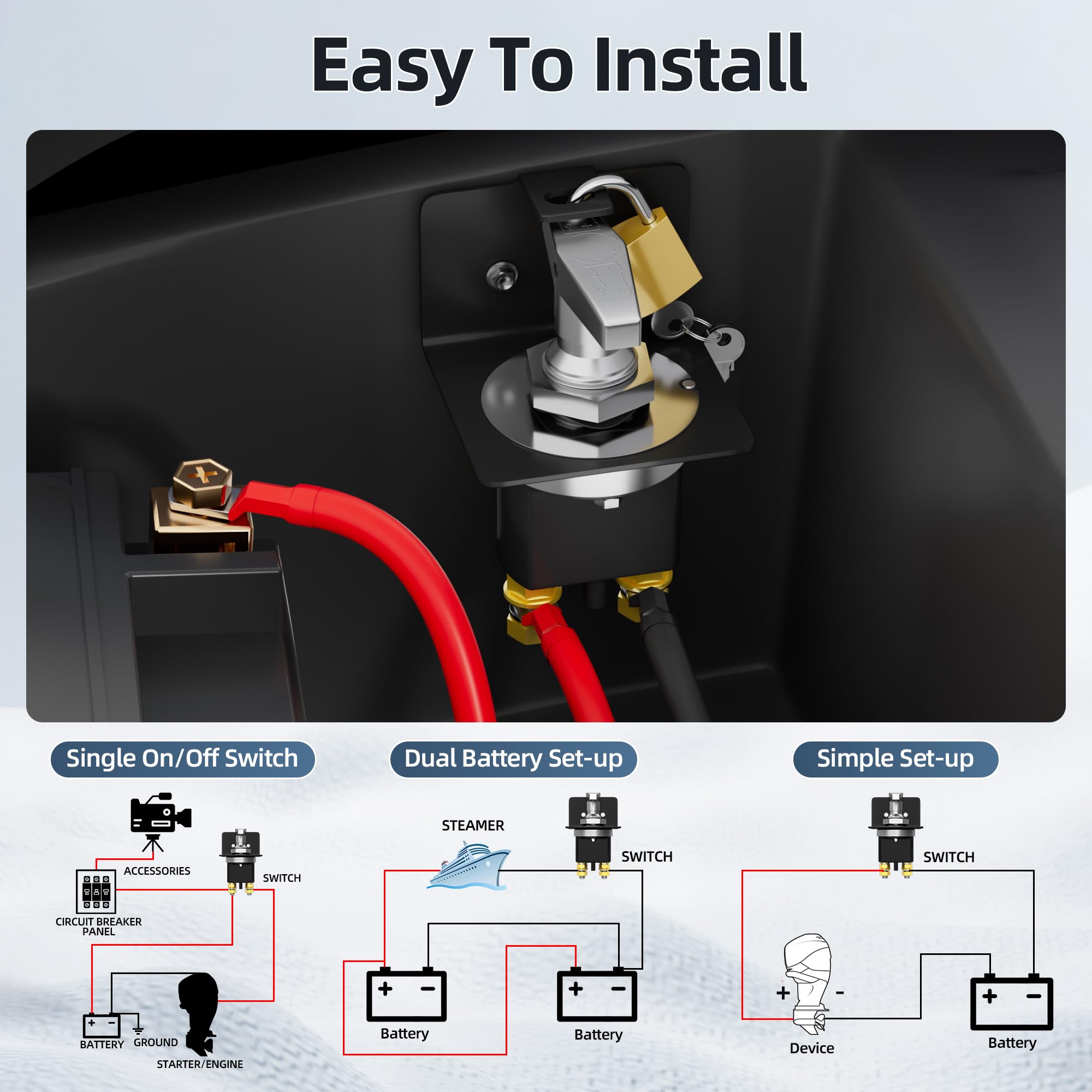

Installation uses two 3/8" (M10) threaded studs with nuts to attach battery cables; mounting through a panel is straightforward and requires only basic tools. The included lock plate and lock mechanism let you secure the knob in the OFF position to prevent accidental engagement or unauthorized use during maintenance or storage.

• Two M10 studs and nuts for secure cable termination

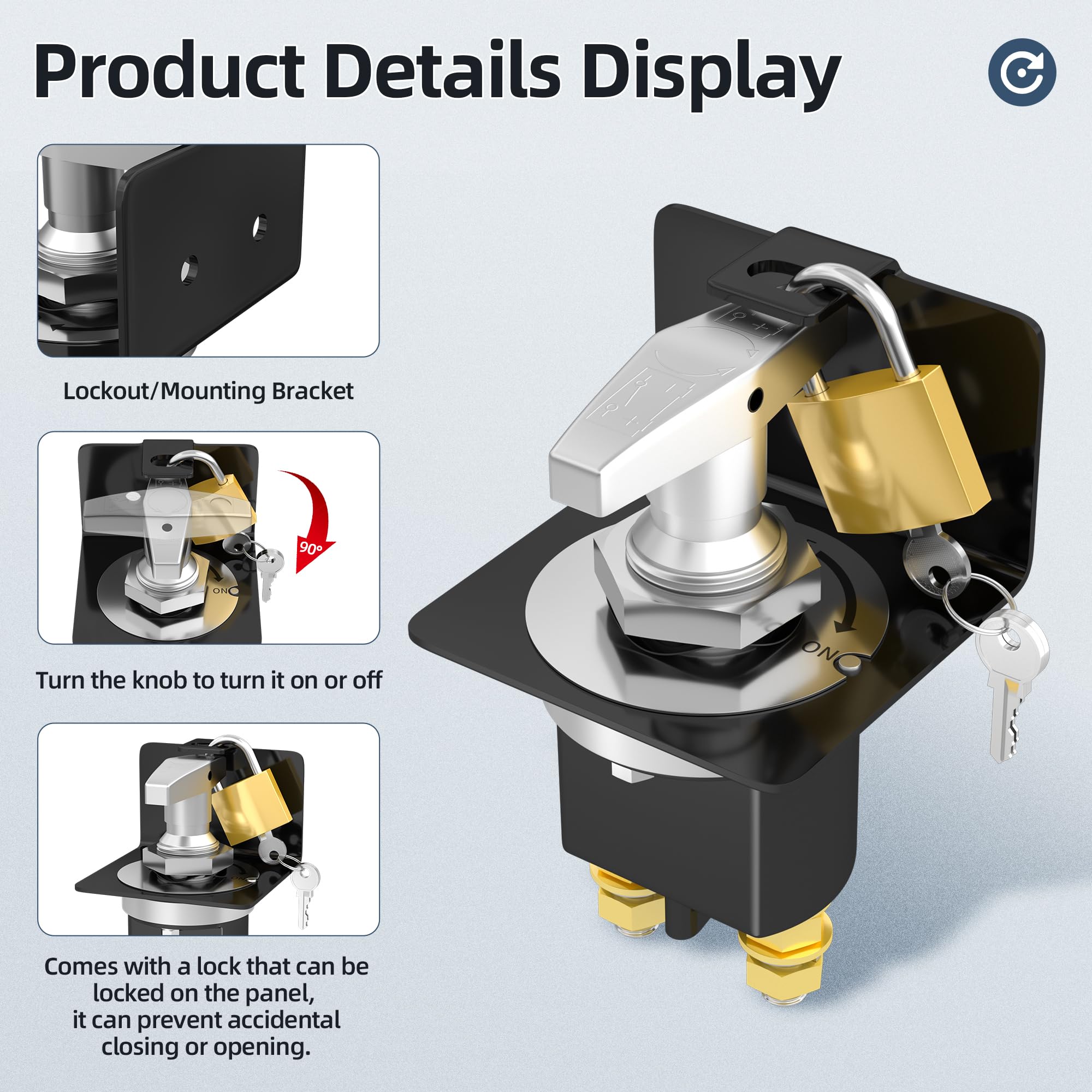

• Panel lock plate that keeps the knob from turning unintentionally
• Turn-to-operate fixed handle for fast disconnects during service

What vehicles and systems is this disconnect switch compatible with?

This disconnect is versatile for most DC systems from 12V to 36V, so it works across passenger vehicles, semi-trucks, RVs, boats, UTVs and various construction or agricultural machinery. Its heavy-duty rating makes it especially useful where high starting currents or extended idle storage are concerns.

• Compatible with 12V, 24V and 36V DC electrical systems
• Suitable for cars, trucks, RVs, boats, yachts, UTVs and equipment
• Works for both daily use and long-term storage scenarios

Who is this for? The Joinfworld 500A Battery Disconnect Switch is aimed at vehicle owners, fleet managers, boaters and equipment operators who need a dependable, high-current isolation device. If you want an easy-to-operate, lockable cut-off that reduces battery drain, simplifies maintenance safety, and stands up to heavy starting loads, this switch is built for those demands.
