JRready Molex Mini-Fit Jr Pin Extractor — Depinning Tool with Built-in Plunger and Hardened Tip

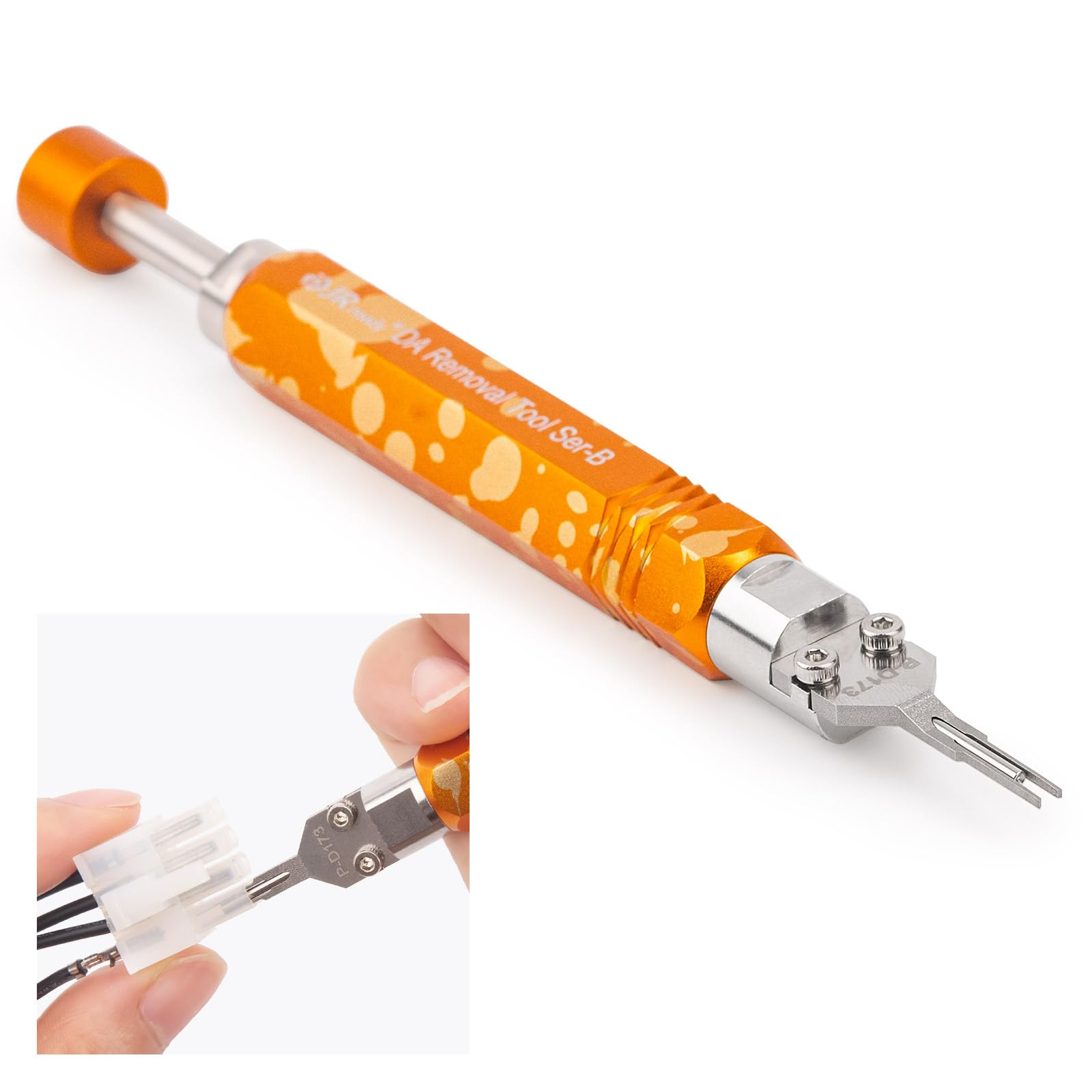

The JRready DAP-D173 is a compact Molex Mini-Fit Jr pin extractor with an integrated plunger that depresses locking tabs and pushes contacts out cleanly from ATX/EPS/PCIe housings.

The DAP-D173 is engineered for technicians and hobbyists who need a reliable way to remove Molex Mini-Fit Jr terminals without cutting wires or damaging connector housings. Built to match Molex part 11-03-0044, this depinning tool combines a hardened precision tip with an ergonomic aluminum handle and a built-in ejector rod, improving speed and control when servicing power connectors found in PCs, automotive harnesses, and electronic equipment.

How does this tool make removing Mini-Fit Jr pins easier?

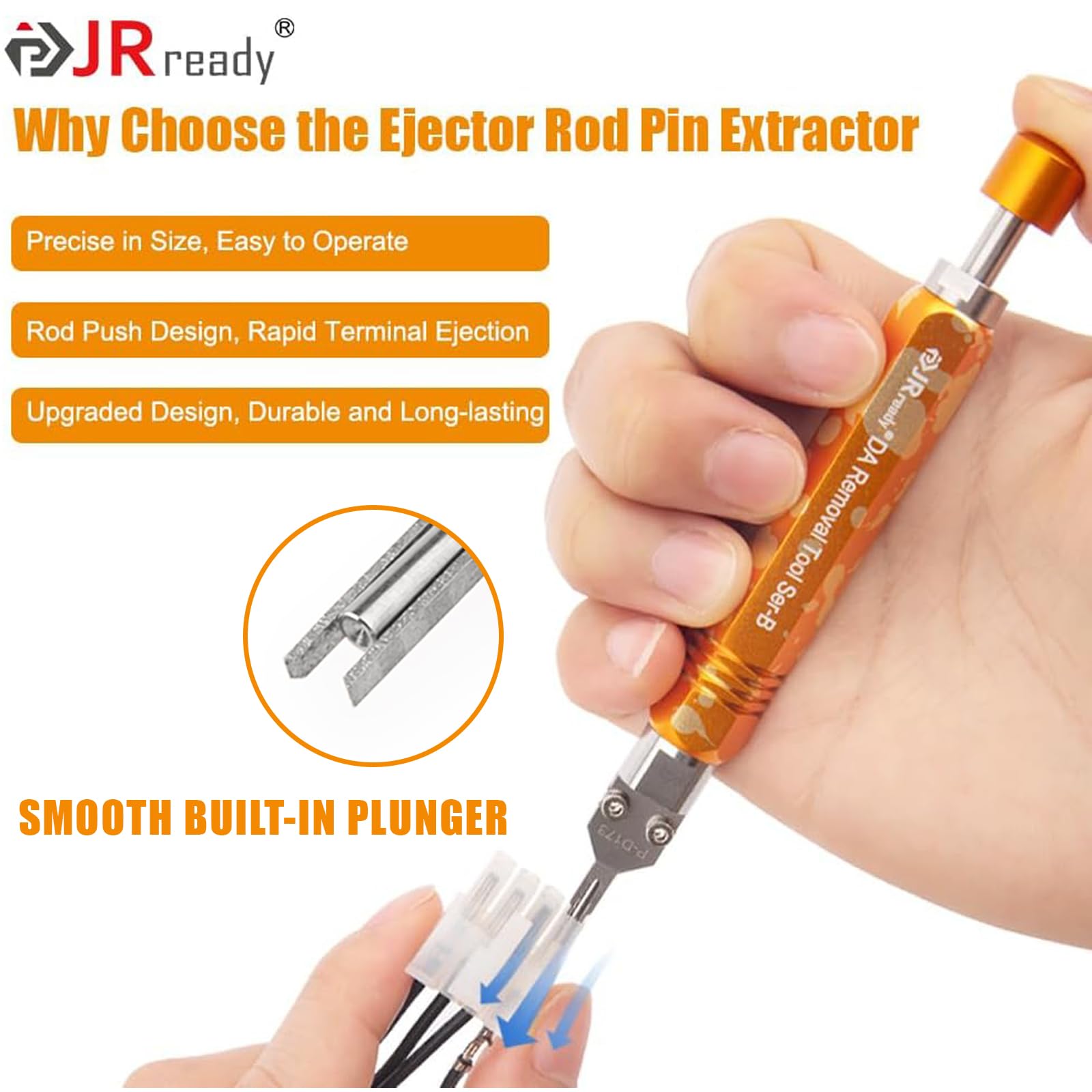

The built-in plunger lets you depress the terminal locking tang while the hardened tip releases the contact, so you can extract pins even when wires remain attached. That dual-action design reduces fumbling and the need for a second hand during depinning.

• Integrated ejector rod depresses locking tabs for smooth release
• Hardened alloy tip hooks and withdraws contacts without deforming them
• One-handed operation speeds up repeated extractions

Which connector types and terminals is the DAP-D173 compatible with?

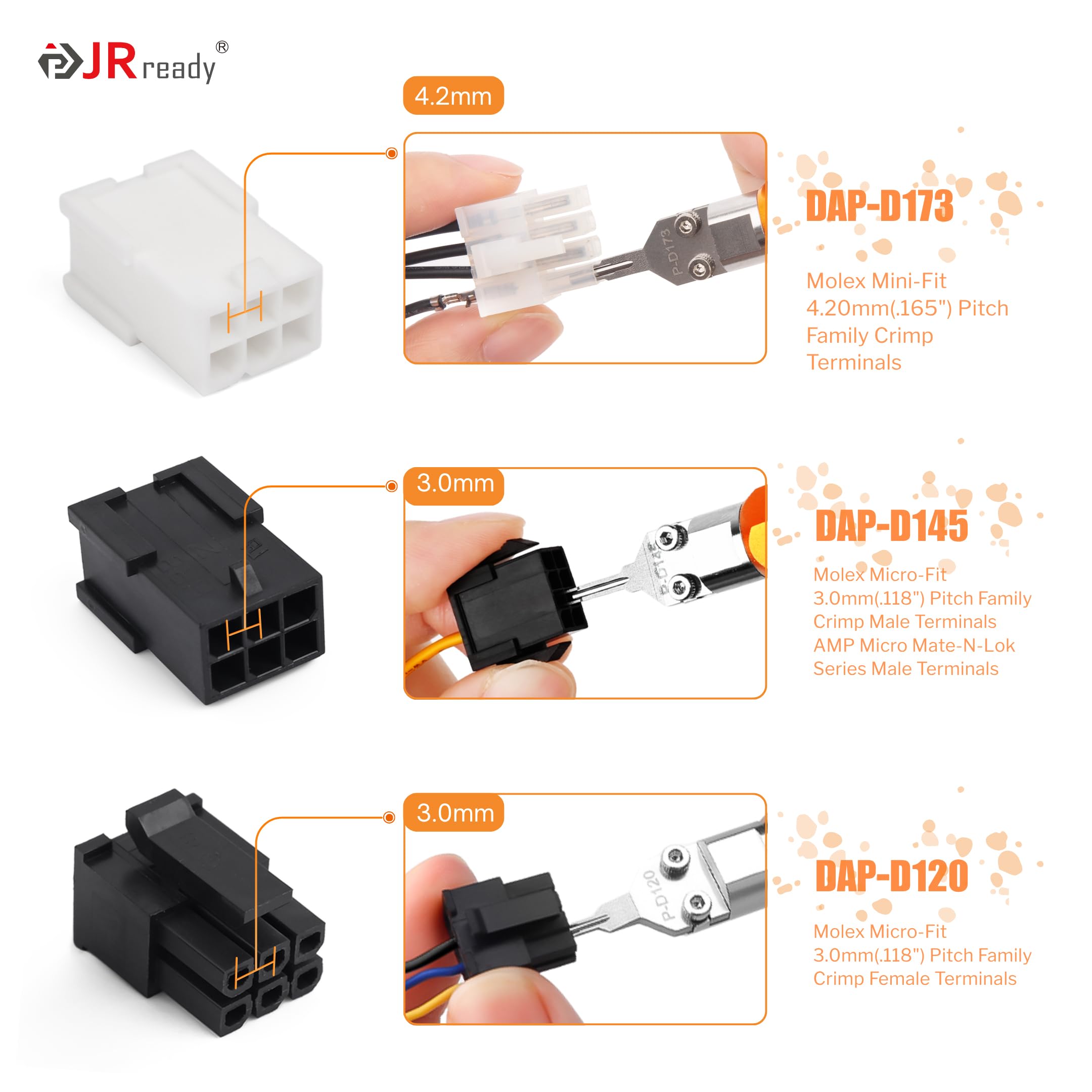

This extractor is sized specifically for Molex Mini-Fit Jr series terminals, including common 5556 and 5558 contacts used in ATX, EPS and PCIe power connectors. It replicates the functionality of Molex part 11-03-0044, so it’s suitable for repairs and modifications that require accurate Mini-Fit Jr depinning.

• Designed for Molex Mini-Fit Jr terminals (5556, 5558)
• Works with ATX, EPS and PCIe connector housings
• Appropriate for both virgin connectors and terminals with wires attached

What construction and features make this tool durable and precise?

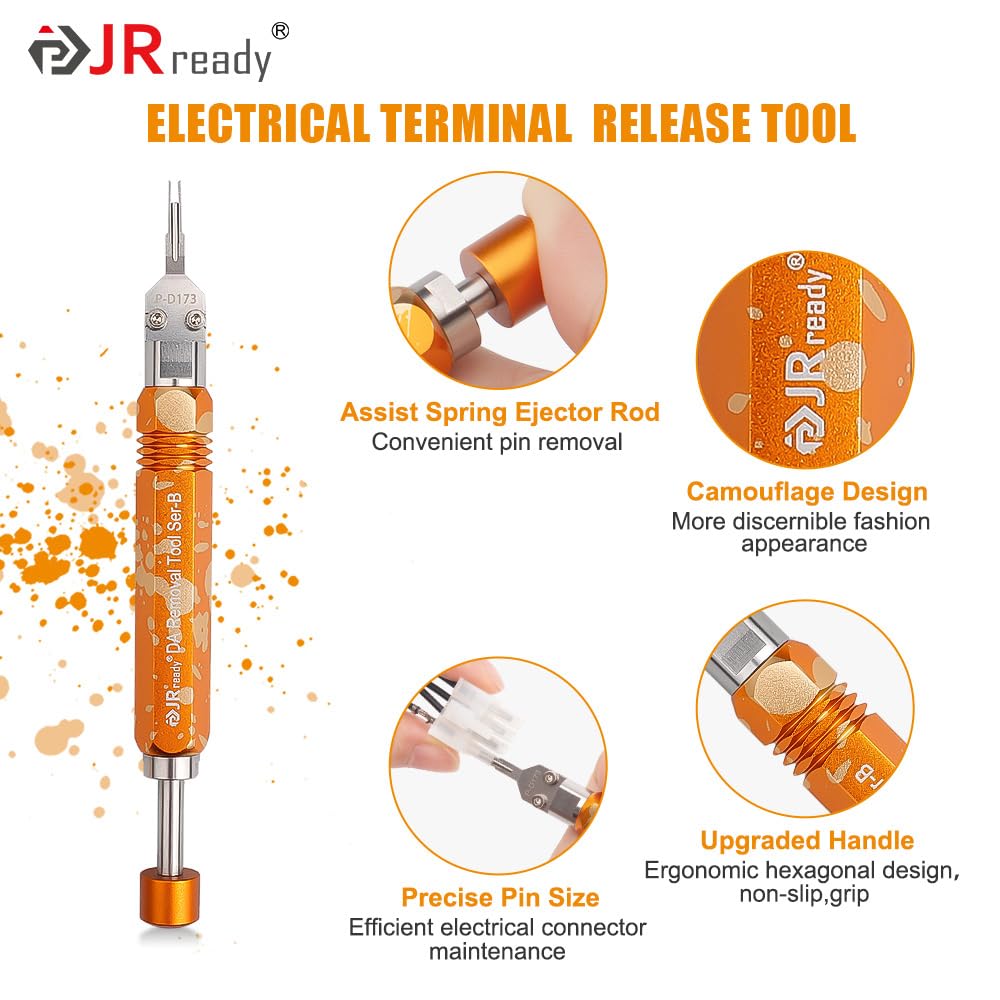

The extraction tip is made from hardened alloy steel for wear resistance and precise engagement with delicate terminal tangs. The handle uses an upgraded aluminum alloy with ergonomic shaping for better grip and control during repetitive depinning tasks.

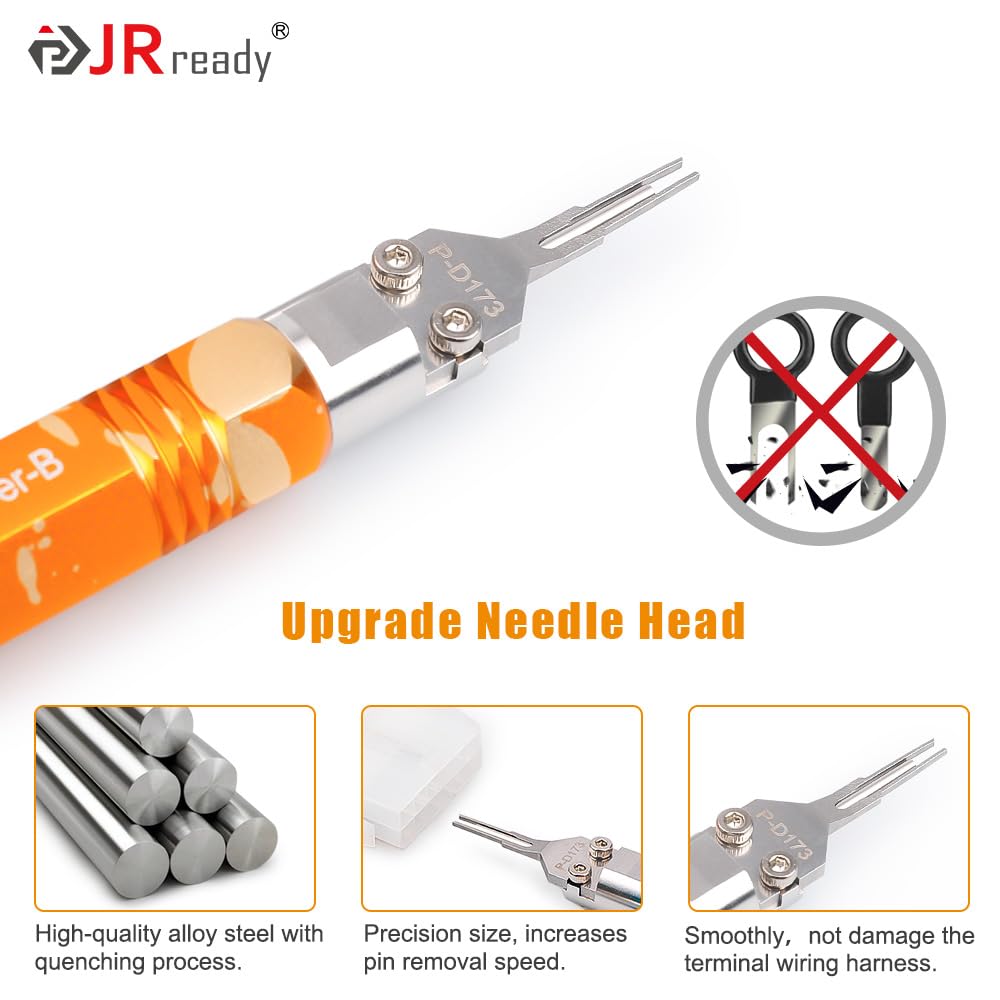

• Precision-hardened alloy steel tip minimizes wear and deformation
• Aluminum alloy handle for lightweight durability and improved grip
• Compact profile for use in crowded connector areas and tight workspaces

How should I use and care for the depinning tool to extend its life?

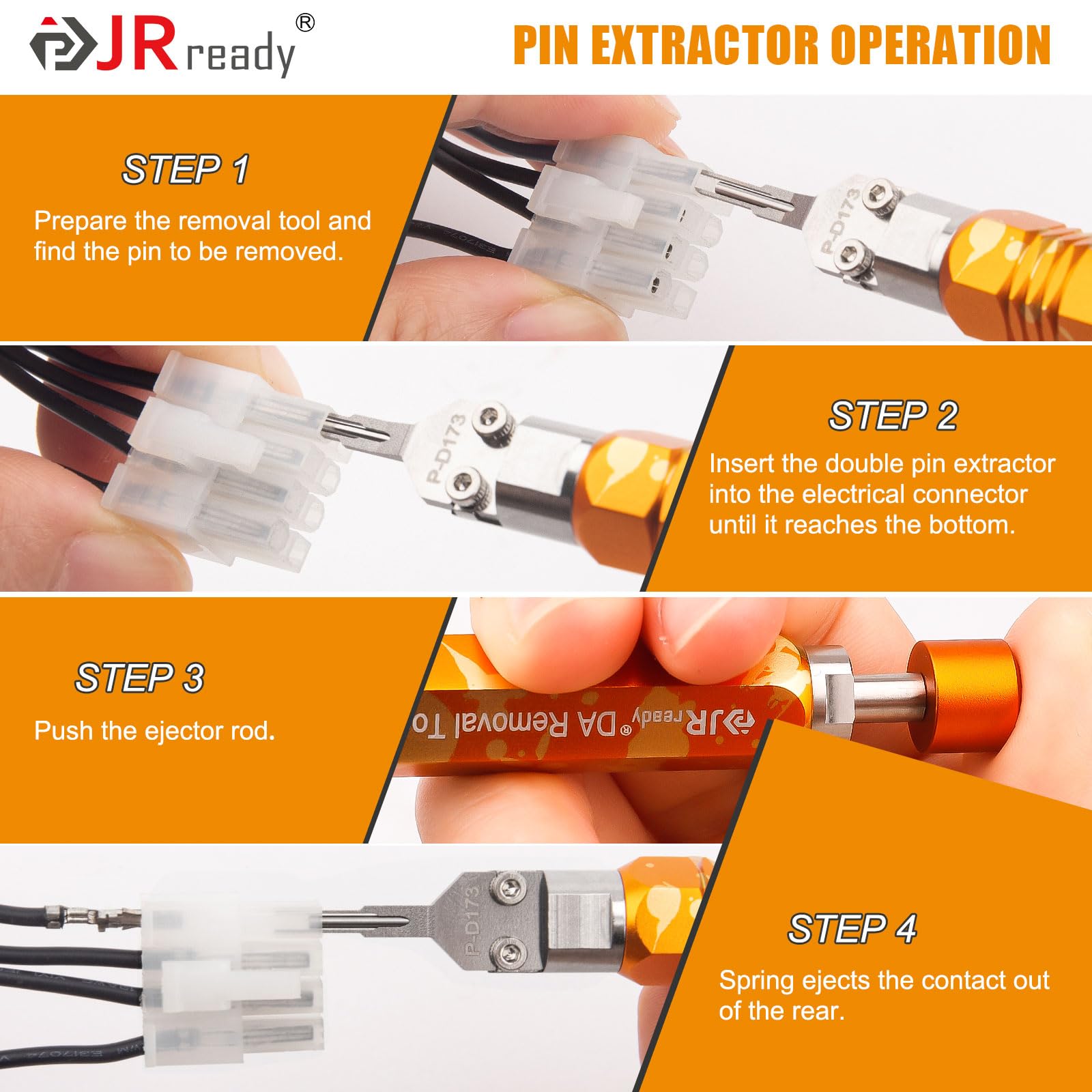

Use the tool to depress the terminal latch while gently pulling the contact through the housing; avoid applying excessive twisting or leverage that can bend the tip. After use, wipe the tip clean and store the tool in a dry pouch or toolkit to prevent corrosion and accidental damage.

• Depress latch, then withdraw contact along its insertion axis
• Clean tip after heavy use and keep tool dry to prevent corrosion
• Replace tool when tip shows significant wear to avoid connector damage

Who this tool is for: The JRready DAP-D173 is aimed at PC builders, electronics repair technicians, automotive wire harness technicians and hobbyists who need a dependable, compact depinning solution for Molex Mini-Fit Jr terminals. If you routinely service ATX/EPS/PCIe connectors or perform wire harness maintenance, this extractor offers a professional-grade balance of precision, durability and ergonomic handling without the cost or bulk of larger tool kits.
