JZYZQBX 6-Piece 6-inch Oval LED Trailer Tail Lights 4 Red 2 White, 10x2835 SMD, IP67 Dual-Intensity

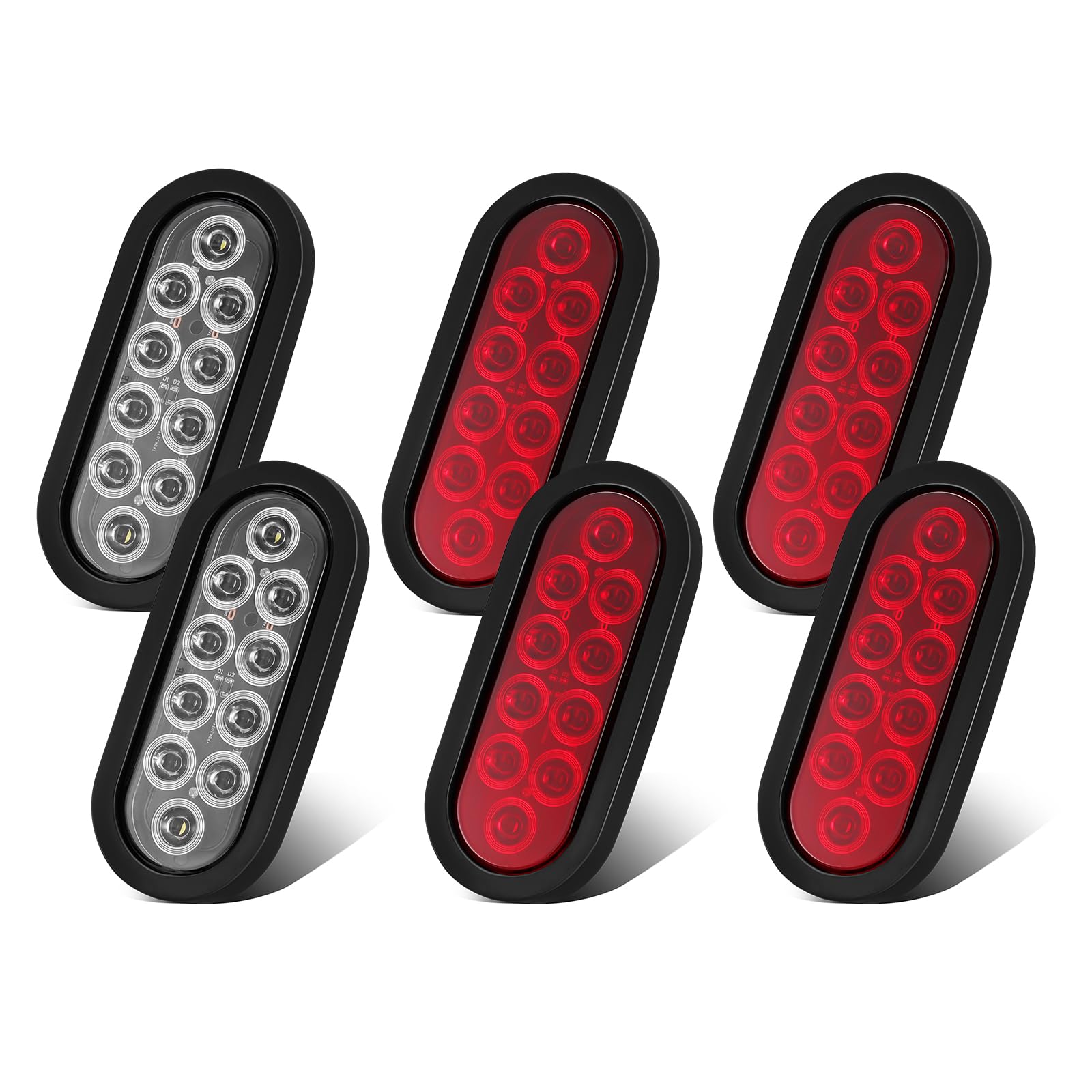

These JZYZQBX 6-inch oval LED trailer lights are a six-piece set (four red tail/stop/turn lights and two white reverse lights) designed to deliver bright, reliable 12V signaling and running illumination for trailers and trucks.

Built for straightforward flush-mount replacement or new installs, this kit combines 10 high-efficiency SMD LEDs per lamp, sealed housings rated to IP67, rubber grommets and standard 3‑prong pigtails so you can get back on the road quickly. The lights offer dual-intensity operation—bright for braking/turning/reversing and lower intensity for tail/running—while the robust sealing process and sonic-welded acrylic lenses increase resistance to vibration and moisture.

How bright are these lights and what modes do they support?

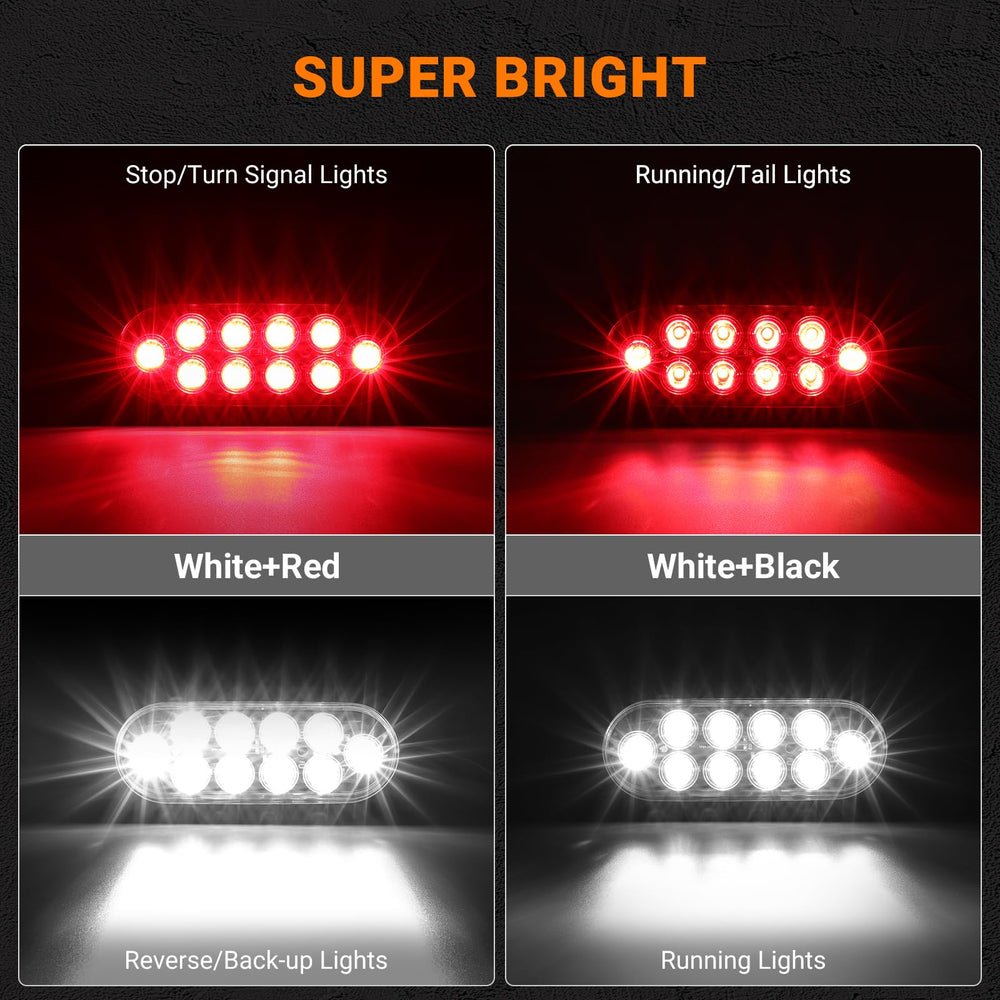

Each lamp contains ten 2835 SMD LEDs tuned for clear red or white output depending on the lens. The design provides a high-brightness mode for stop/turn/reverse signals and a reduced-brightness tail/running mode to maintain visibility without glare.

• 10 high-quality 2835 SMD LEDs per fixture for intense output.
• Two brightness levels: high for signaling, low for running lights.
• Red lamps for stop/turn/tail; white lamps for reverse/backup.
• Improved nighttime and daytime visibility versus incandescent bulbs.

What makes the housings waterproof and durable?

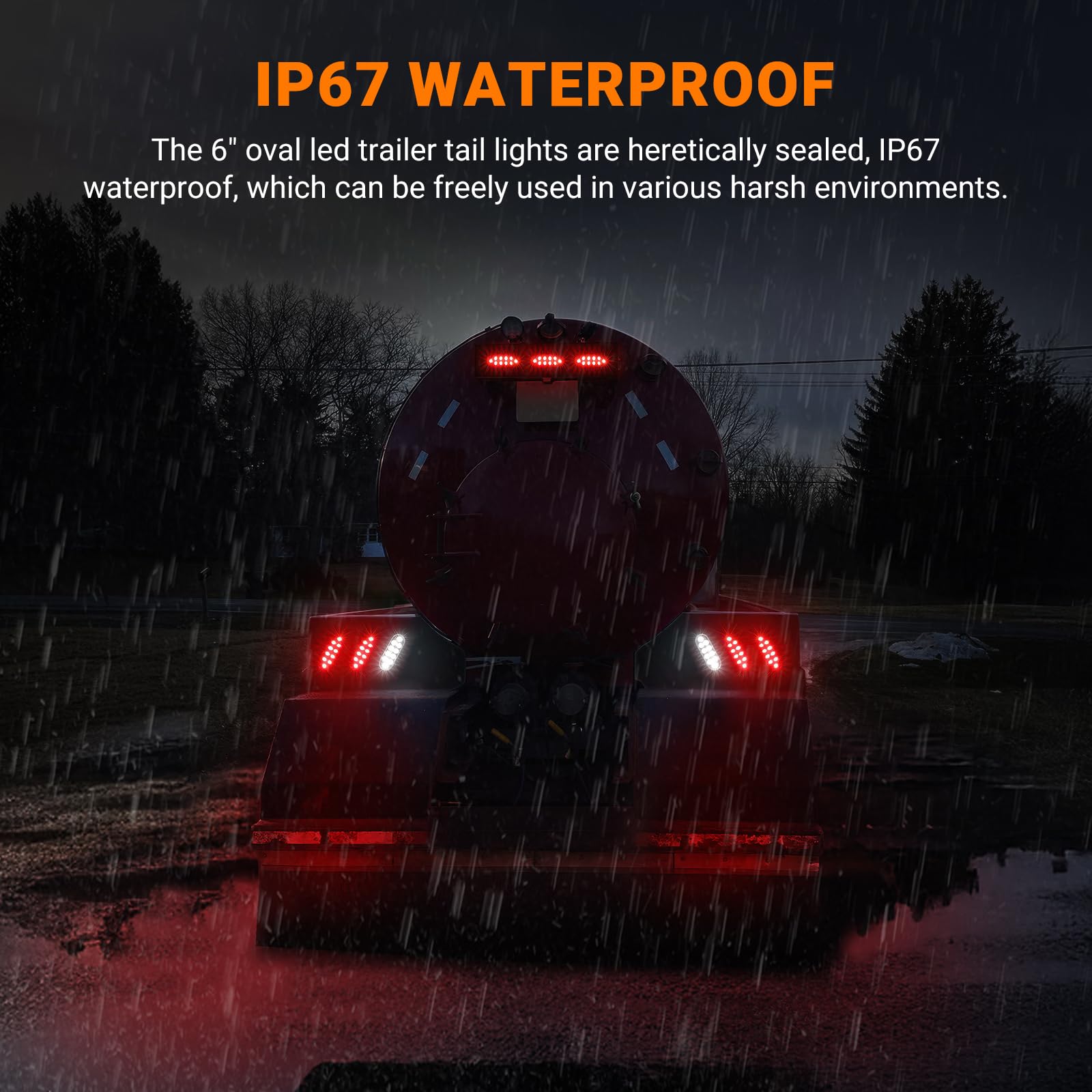

These lights achieve an IP67 rating through a multi-layer sealing approach: epoxy bonding between cover and base, sonic welding of the acrylic lens to the housing, and vulcanized silicone seals at the wiring outlet. That construction minimizes water ingress and resists separation from vibration or impact that can happen on rough roads.

• Epoxy-glued cover and base for long-lasting adhesion.
• Sonic-welded acrylic lens for increased structural strength.
• Vulcanized silicone seal for the wiring outlet to prevent moisture entry.
• IP67 protection suitable for exposure to rain and splashes.

How easy is installation and what wiring do I need?

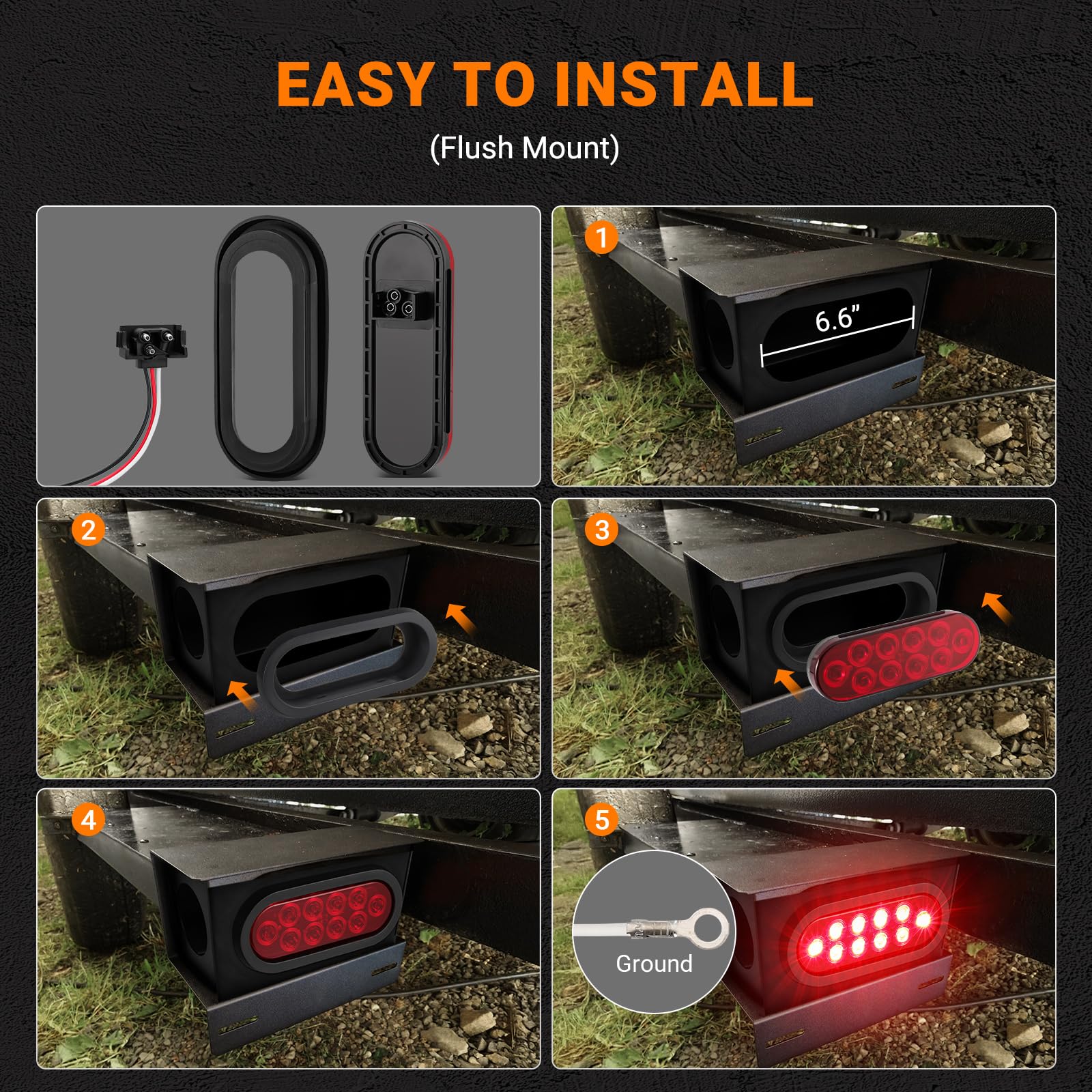

Installation is designed to be quick: the kit includes rubber grommets and standard 3-prong pigtails for flush mounting. Drill a roughly 6.6" hole for the assembly; the light with grommet measures about 7.2" overall and about 6.3" inner diameter.

• Comes with rubber grommets and 3-prong wire plugs for flush mount.
• Drill hole size recommendation: approximately 6.6 inches.
• Wire color functions: white = ground, red = high brightness (stop/turn), black = low brightness (tail/running).
• Compatible with standard 12V DC trailer wiring systems.

Which vehicles and applications are these lights suitable for?

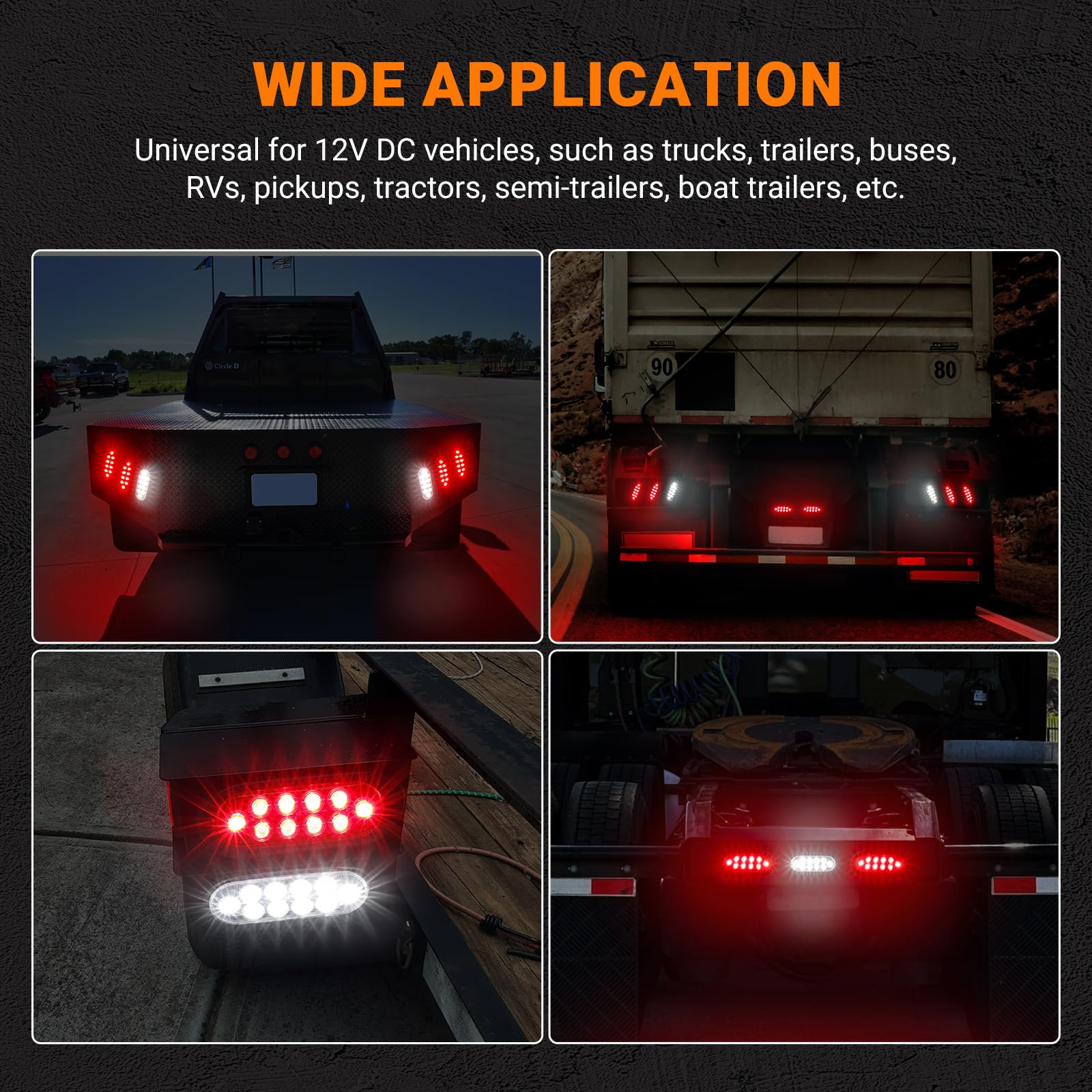

The lights are universal for 12V DC vehicles and trailers where a 6" oval lamp fits the mounting opening. They serve as stop, turn, tail, and reverse lamps on a wide range of equipment, from utility trailers and boat trailers to RVs, trucks and agricultural vehicles.

• Works on trailers, pickups, RVs, buses, tractors, and trucks.
• Functions: stop, turn, brake, tail, running, reverse/backup.
• Check hole size and mounting depth before purchase for a proper fit.
• Includes two white reverse lights for backing visibility.

Who is this for: owners, fleet managers and DIY mechanics who need a rugged, bright and easy-to-install lighting solution for 12V trailers and vehicles. Choose this JZYZQBX kit if you want clearly visible stop/turn brake signals plus dedicated reverse lamps, durable weather sealing for demanding conditions, and standard wiring for straightforward replacement or upgrade projects.
