LAIPZ Transmission Fluid & Filter Service Kit for ZF 8HP70 (6L OE-spec ATF, Preinstalled Pan)

Complete service kit containing a replacement transmission pan with filter, OE-spec ATF, bolts and seals designed for ZF 8HP70 8-speed transmissions in select RAM, Dodge and Jeep models.

This LAIPZ kit brings together the parts and fluid needed to perform a full transmission pan service on vehicles equipped with the ZF 8HP70 (8-speed) transmission. The package includes a preassembled pan with gasket and magnets, a new fill plug and seal ring, necessary fasteners, and six 1L bottles of OE-spec automatic transmission fluid manufactured in Germany. It’s intended as a one-stop solution for routine maintenance and fluid replacement to help maintain shifting performance and internal cleanliness.

What exactly is included in the kit and how does it simplify the service?

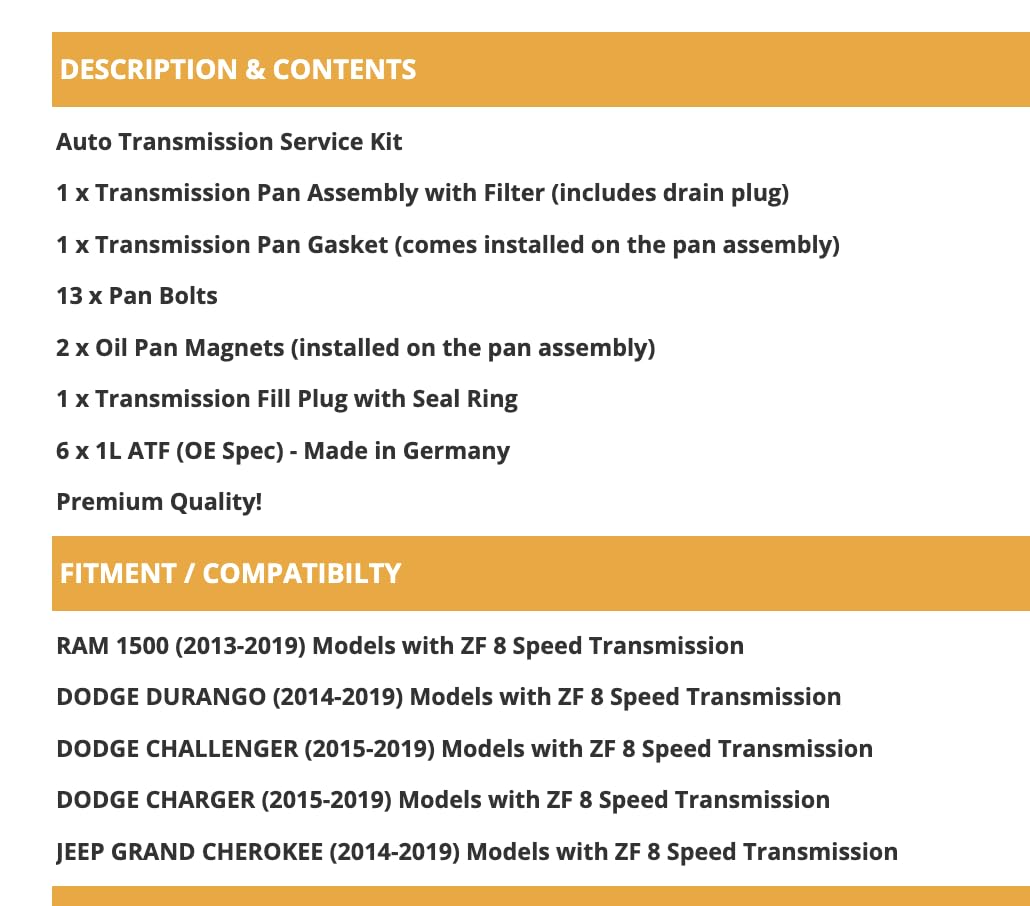

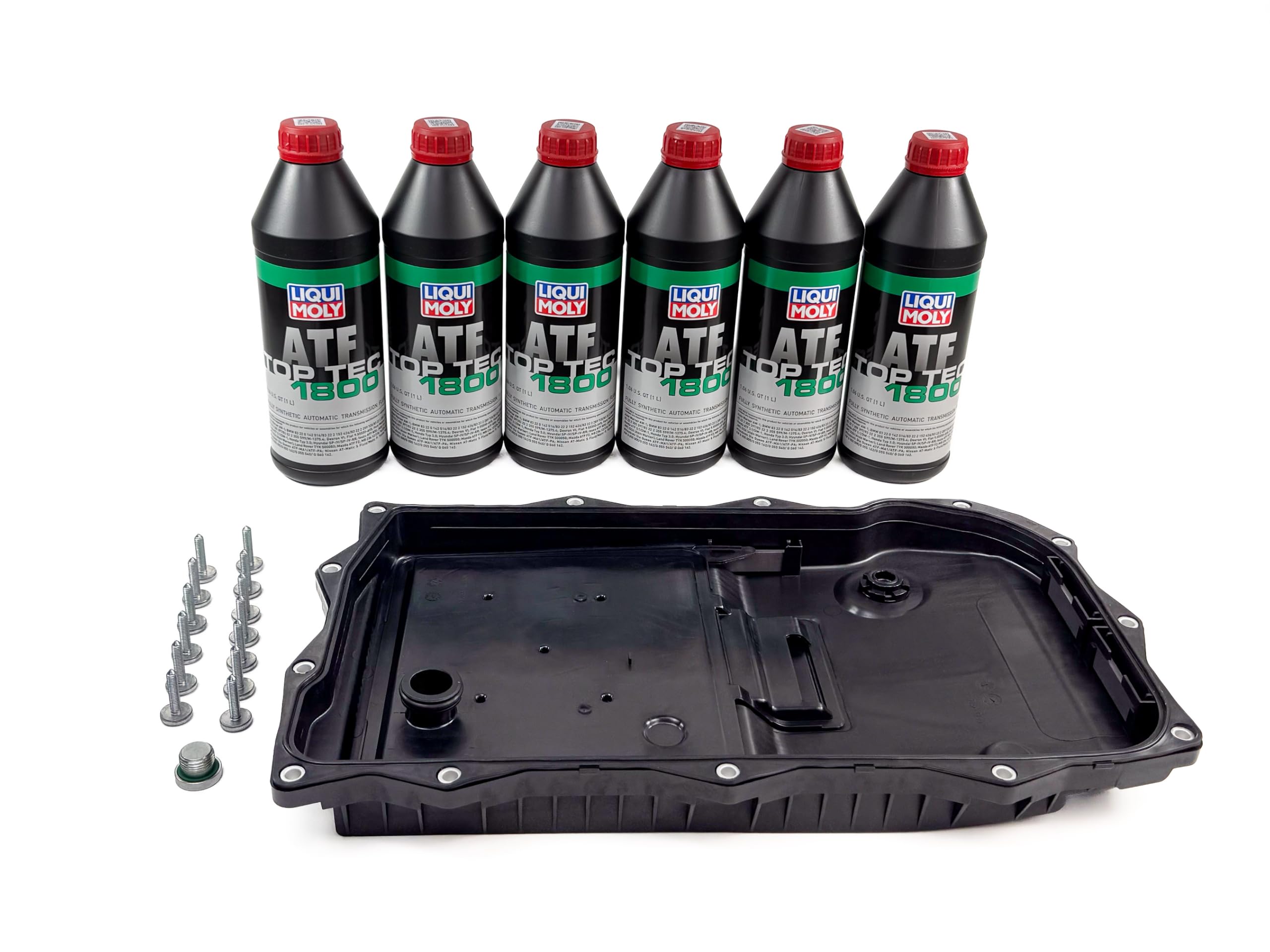

The kit ships with all core service items pre-packaged: a pan assembly with the filter installed, a transmission pan gasket fitted to the pan, two oil pan magnets, a drain plug, the fill plug and seal, 13 correct pan bolts, and six liters of OE-spec ATF. Because the filter is already installed on the pan and the gasket is pre-seated, teardown and reassembly are faster and less error-prone.

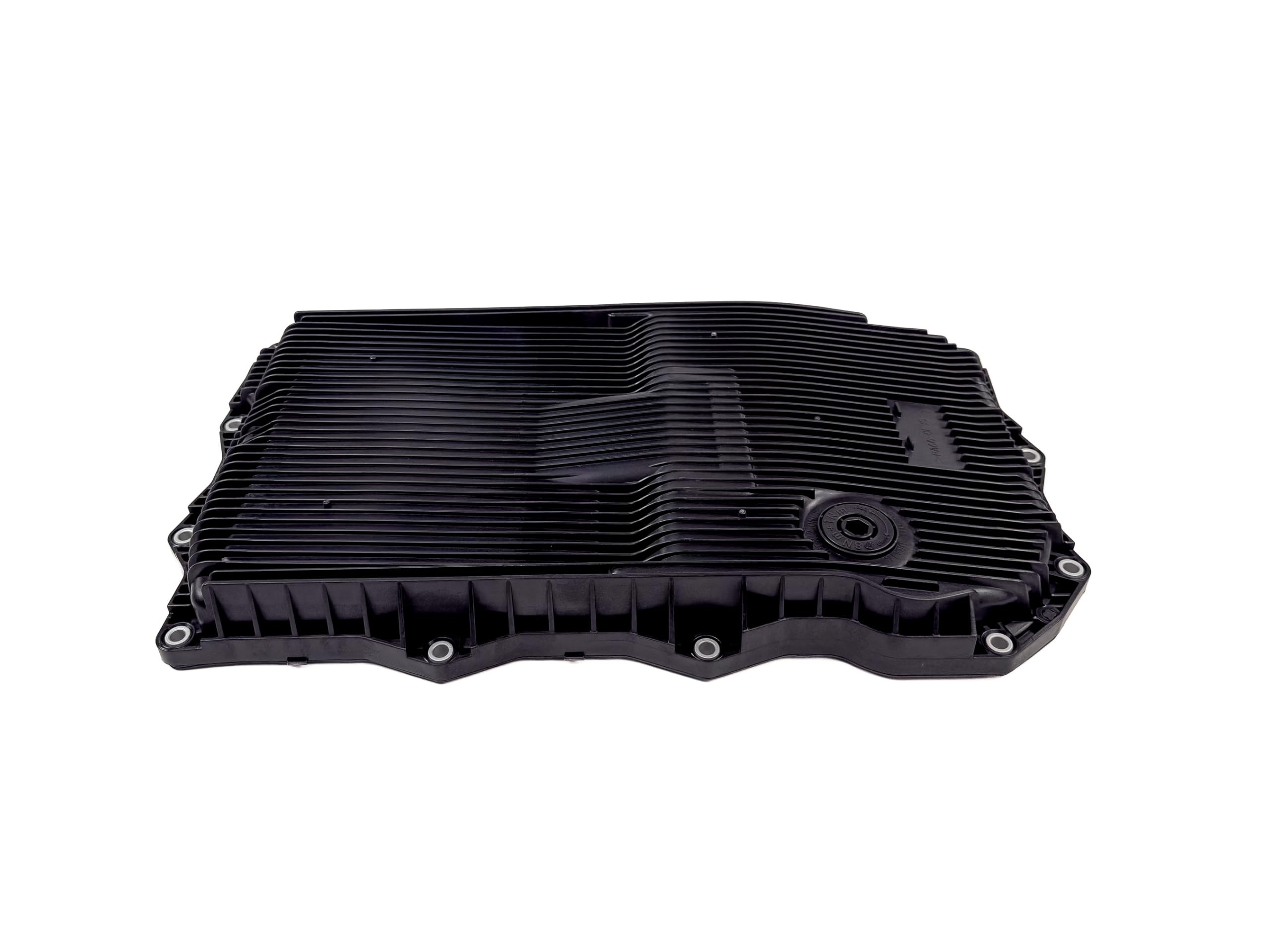

• 1 transmission pan assembly with filter and installed gasket
• 2 oil pan magnets and a drain plug to capture metal particles

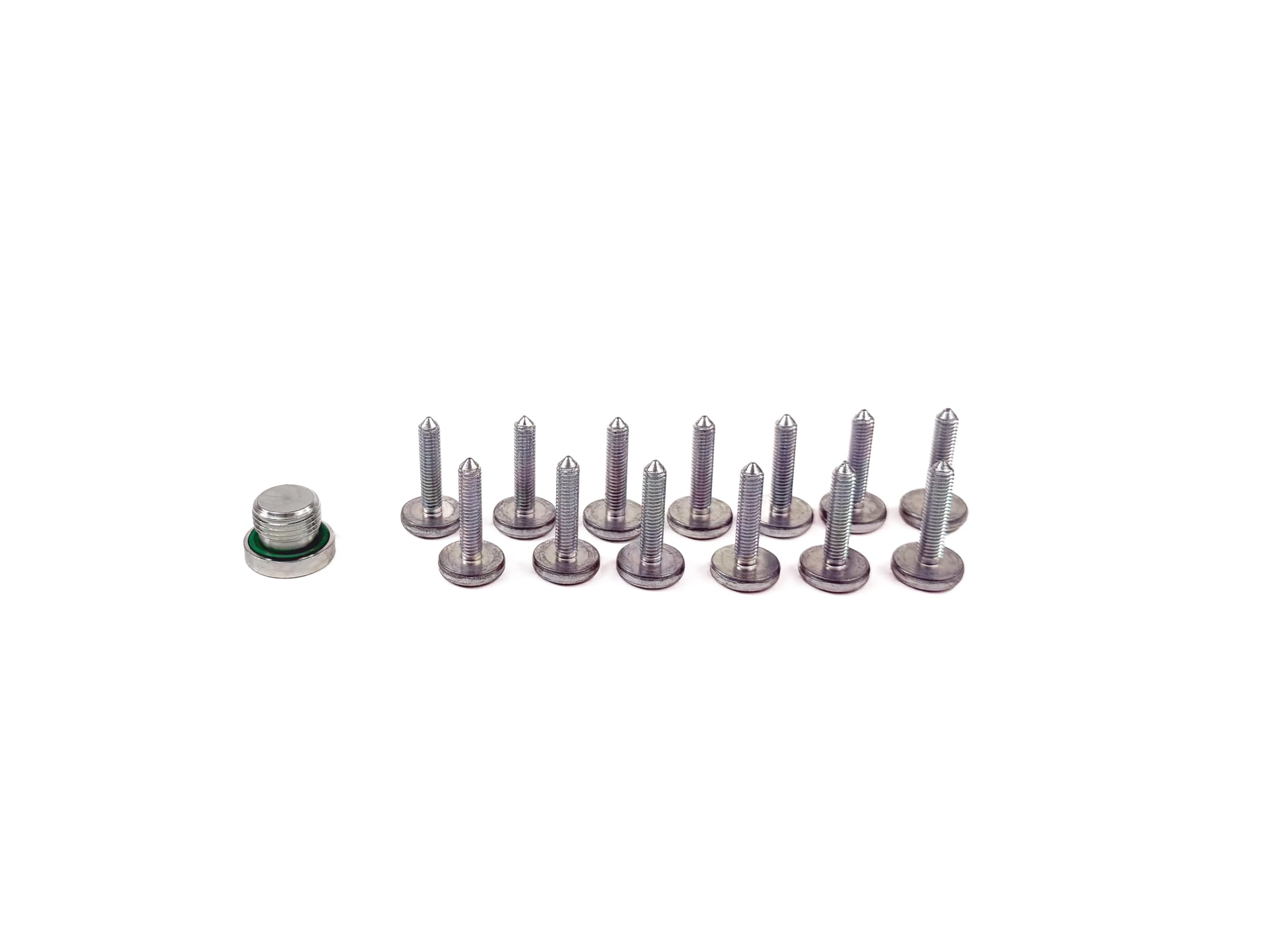

• 13 pan bolts plus a transmission fill plug with seal ring

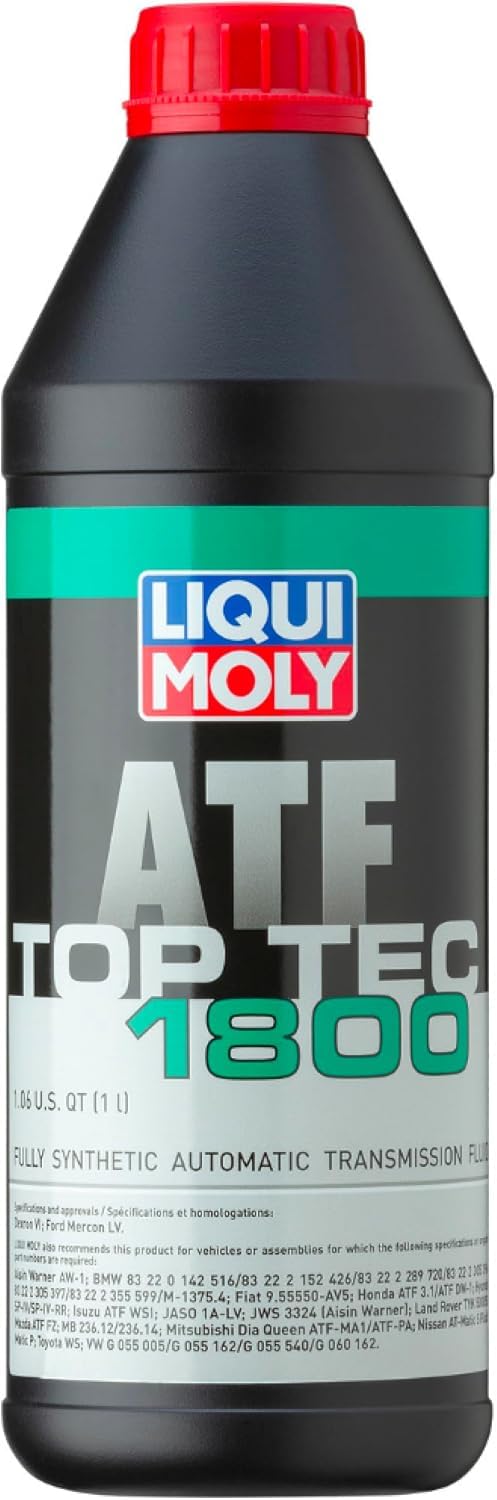

• 6 × 1L OE-spec ATF made in Germany for accurate fluid replacement

Which vehicles and transmissions are compatible with this LAIPZ kit?

This package is compatible with Dodge, Jeep and RAM models specified by year that use the ZF 8HP70 8-speed transmission. Confirm the transmission code in your vehicle before purchase—this kit is not compatible with the 845RE (deep pan) variant.

• RAM 1500: 2013–2019 models with ZF 8HP70
• Dodge Durango: 2014–2019 models with ZF 8HP70
• Dodge Charger & Challenger: 2015–2019 models with ZF 8HP70
• Jeep Grand Cherokee: 2014–2019 models with ZF 8HP70
• Not compatible with 845RE (deep pan) transmissions

How does the kit help preserve transmission performance during a service?

Replacing the pan and filter while refilling with OE-spec fluid removes contaminants and replenishes lubrication and hydraulic properties the transmission needs. The included magnets and a fresh filter trap metal particles and sludge, while the correct fluid ensures shift quality and component protection by matching manufacturer specifications.

• Preinstalled filter reduces the risk of installation mistakes
• Pan magnets capture ferrous debris to reduce wear
• OE-spec ATF maintains correct frictional characteristics for smooth shifting
• Complete hardware set avoids mismatched bolts or missing seals

Can I perform this service at home, and what tools or checks are recommended?

An experienced DIYer or a professional technician can complete this service. Basic tools include a torque wrench, appropriate sockets, a drain pan, and a clean fill pump or funnel for ATF; always follow the vehicle manufacturer torque and fill-level procedures to avoid overfilling.

• Torque wrench for correct pan bolt torque sequence
• Clean catch container and disposal plan for used ATF
• Transmission fill tool or pump for accurate fluid replacement
• VIN-based transmission code lookup is recommended before ordering

Who is this for: This LAIPZ transmission fluid and filter service kit is aimed at owners and technicians maintaining RAM 1500, Dodge Durango, Challenger, Charger and Jeep Grand Cherokee vehicles from the listed years that use the ZF 8HP70 8-speed transmission. It suits shop professionals wanting a ready-made parts-and-fluid package and capable DIYers who prefer a complete, OEM-spec solution to ensure proper fit, fluid compatibility and a cleaner service process. Verify your vehicle’s transmission code before purchase to ensure correct fitment.
