LiftMaster 29-NP712 Replacement 12V 7AH Battery — Compatible with LA400/LA412/LA500, CSW24 Access Systems

The LiftMaster 29-NP712 is a genuine 12V, 7AH replacement battery designed to restore backup power and reliable operation to compatible LiftMaster commercial gate and perimeter access systems.

If your LiftMaster operator or perimeter device is showing low-battery warnings, diminished backup runtime, or fails to operate during power interruptions, swapping in a fresh 29-NP712 battery gets the system back to designed performance. This battery is the LEOCH-manufactured 29-NP712 specified by LiftMaster for many commercial models, offering the right voltage and capacity to match factory expectations.

Which LiftMaster models work with the 29-NP712 battery?

The 29-NP712 is compatible with a range of LiftMaster commercial gate operators and access devices. Always cross-check your unit’s parts diagram or manual before ordering to confirm fit and terminal orientation. Below are the most common compatible units and families.

• LA400, LA412, LA500 commercial gate operators
• CSW24, CSL24, RSL12, RSW12 access and safety system models
• Additional compatible part numbers and controller assemblies such as MATDCBB3 and MADCBB3
• Various HDSW24, HDSL24, INSL24, IHSL24 and HCTDC series devices

How do I install the replacement battery safely?

Installation is straightforward if you follow basic safety steps and your operator’s instructions. Power down the operator, disconnect AC supply, and observe correct polarity and connector type when replacing the old battery. Use insulated tools where required and verify secure mounting to prevent vibration-related wear.

• Disconnect AC power and follow the unit’s lockout/tagout procedure

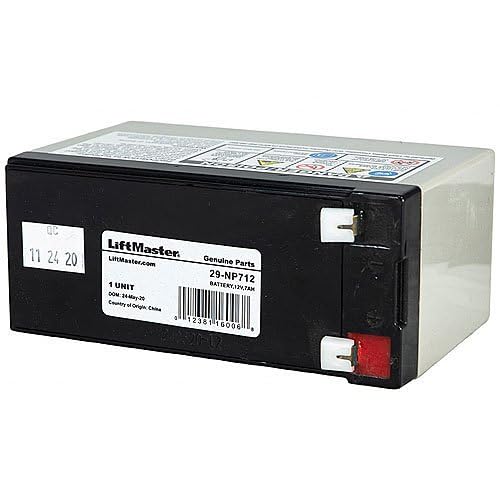

• Remove the old battery and note terminal polarity and connector style
• Install the 29-NP712, reconnect leads snugly, then restore power and test
• Dispose of the old sealed lead-acid battery at a proper recycling facility

What performance and specifications should I expect from the 29-NP712?

This is a sealed lead-acid (SLA) battery rated 12 volts and 7 ampere-hours (7AH), built to the physical and electrical specifications LiftMaster requires. It provides reserve runtime for access control, gate operation, and safety circuits during outages until AC power is restored. Runtime will vary with load, temperature, and the age of the battery.

• Nominal voltage: 12V; capacity: 7AH (ampere-hours)
• Sealed, maintenance-free lead-acid construction (recommended LEOCH manufacturer)
• Designed for use in LiftMaster commercial operators and access systems
• Expect reduced capacity in extreme cold and gradual capacity decline over years

How do I tell when the battery needs replacement?

Common signs include low-voltage warnings on the controller, noticeably shorter backup runtime, difficulty operating gates during power loss, or a battery that won’t accept charge. Regular inspection and periodic voltage checks help plan replacements before failures occur. Replace with the same type and capacity to maintain system reliability.

• Controller or operator displays a low-battery or service message
• Backup operation time is shorter than when the battery was new
• Battery shows physical swelling, corrosion, or refuses to hold charge
• Manufacturer-recommended replacement intervals or load testing indicates low capacity

Who is this for: Facility managers, gate service technicians, and property maintenance personnel who maintain LiftMaster commercial gate operators and perimeter access systems will benefit from keeping a 29-NP712 on hand. If you operate LA400/LA412/LA500 series operators or the listed access modules and need a factory-recommended, drop-in replacement to restore backup power and reliable operation, this genuine LiftMaster-labeled LEOCH 12V 7AH battery is the correct choice.
