Linkstyle 12V 2-Gang LED Dimmer Rotary Switch — 60W per Channel, PWM Quiet Stepless Control

The Linkstyle 12V 2-gang PWM dimmer is a compact rotary ON/OFF controller that delivers smooth, stepless brightness control for 12V LED, halogen and incandescent lighting up to 60W per gang.

If you need reliable, low-profile dimming for a camper, van, boat or truck, this dual-channel unit gives independent control of two lighting circuits. Built in a heat-dissipating aluminum housing, it uses pulse-width modulation (PWM) to vary light output quietly and efficiently. The compact panel fits into small switch banks and includes screws for quick installation, making it practical for both DIY upgrades and professional retrofits.

How does the dimmer deliver smooth, noiseless brightness changes?

The unit uses high-frequency PWM to modulate LED current without audible buzzing or visible flicker at typical lighting levels. Stepless rotary knobs let you fine-tune between full brightness and complete off, so transitions feel natural and precise.

• High-voltage PWM technology for quiet operation
• Stepless 0–100% control for precise setting
• Aluminum casing improves heat dissipation for stable performance

What electrical and load rules should I follow when installing it?

The dimmer is rated for 12V DC systems and a maximum of 5A (60W) per gang. Connect each channel to single-color LED strips, puck lights, halogen or incandescent loads that do not contain a constant-current driver; it’s not suitable for motor speed control or fixtures with built-in active current regulators.

• 12V DC input only — do not use on AC mains
• Max 5A / 60W per channel — observe total load limits
• Not for fans, motors, or fixtures with internal constant-current drivers

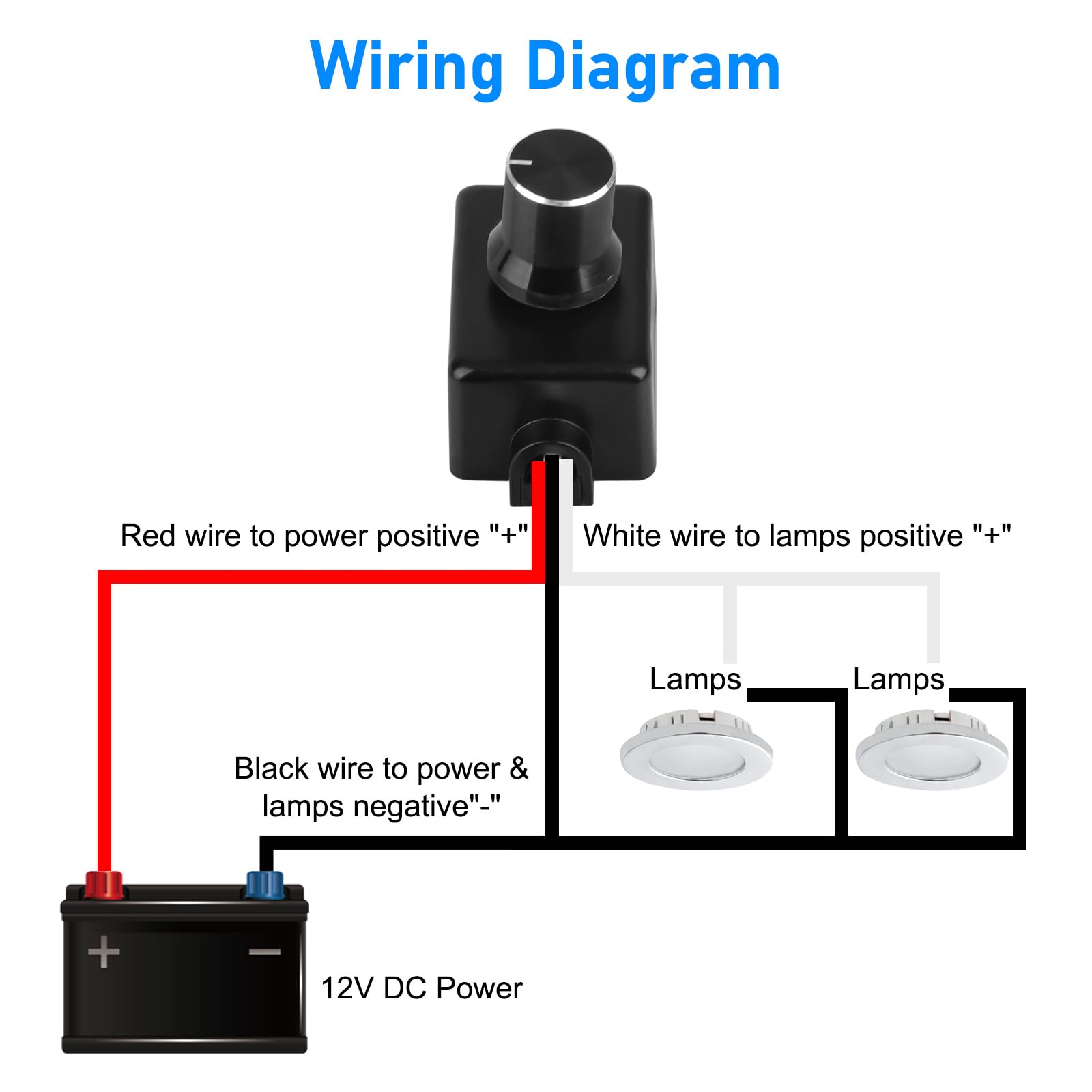

How straightforward is installation and wiring in a vehicle or boat?

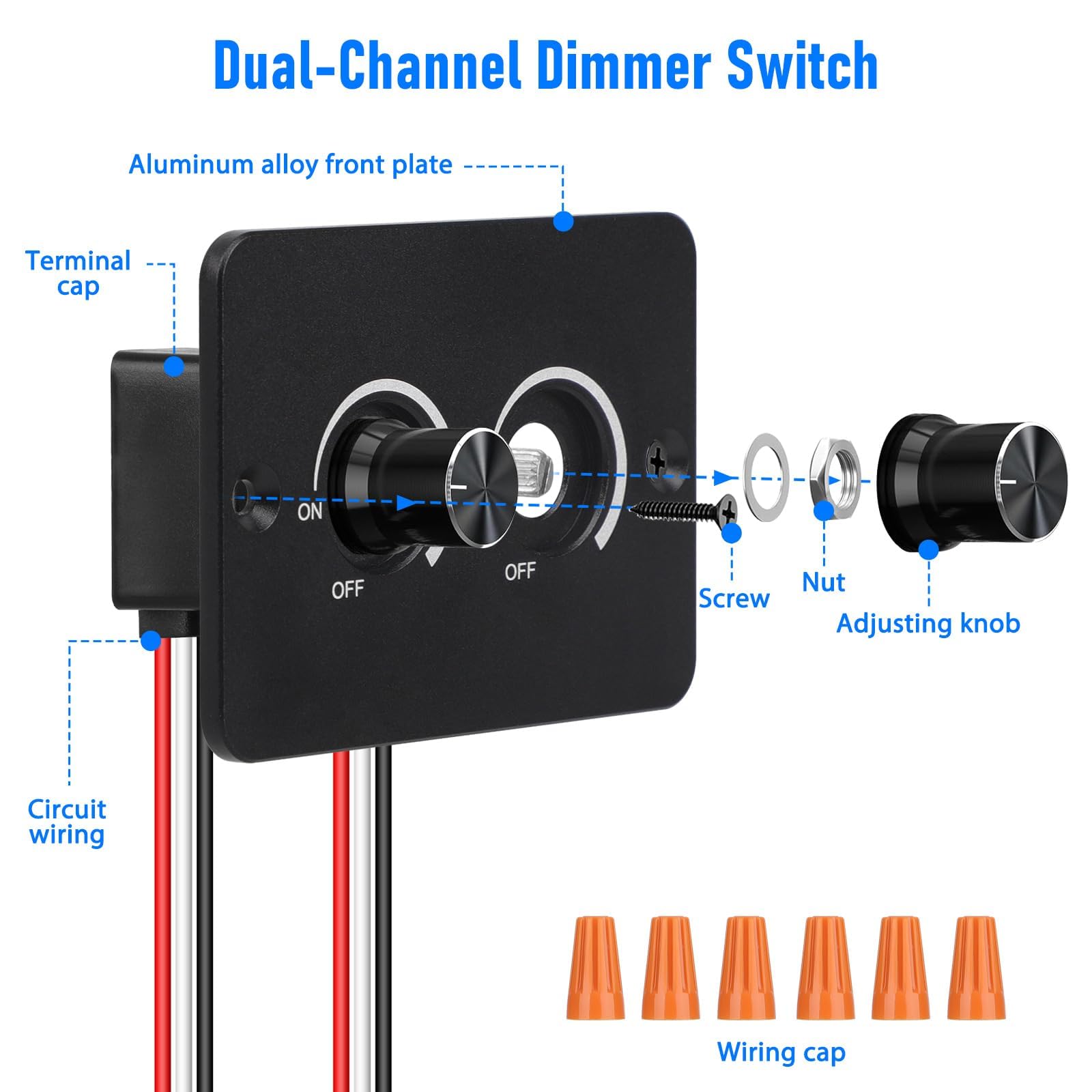

Installation is designed to be simple: panel-mount the unit using the supplied screws, then wire the positive and negative leads to each channel as labeled. Clear terminal markings (red "+", black "-") reduce guesswork, so a basic wiring knowledge or a quick consultation with an installer gets you up and running fast.

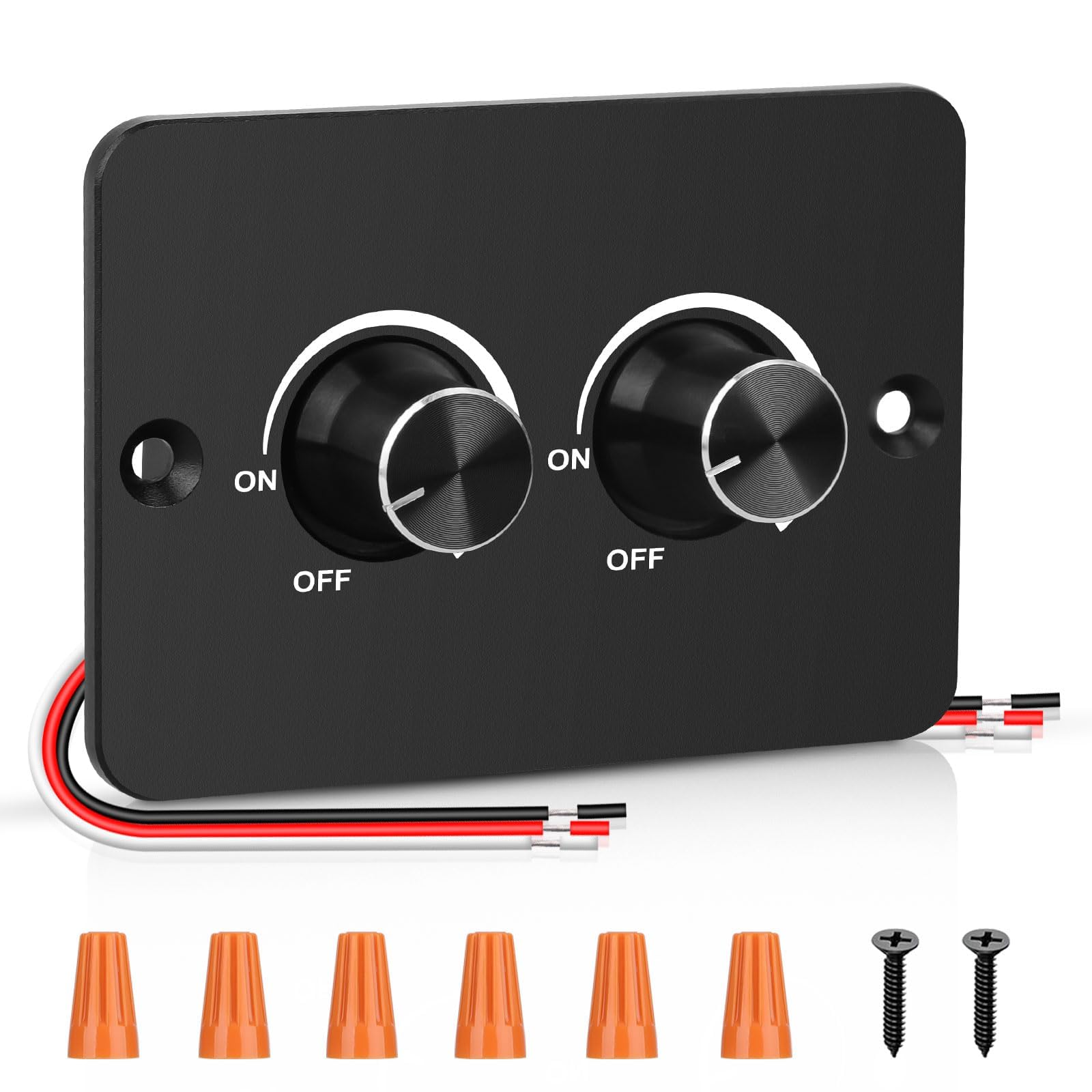

• Supplied screws for secure panel mounting
• Wire color guidance: red to "+", black to "-", white to "+" where applicable

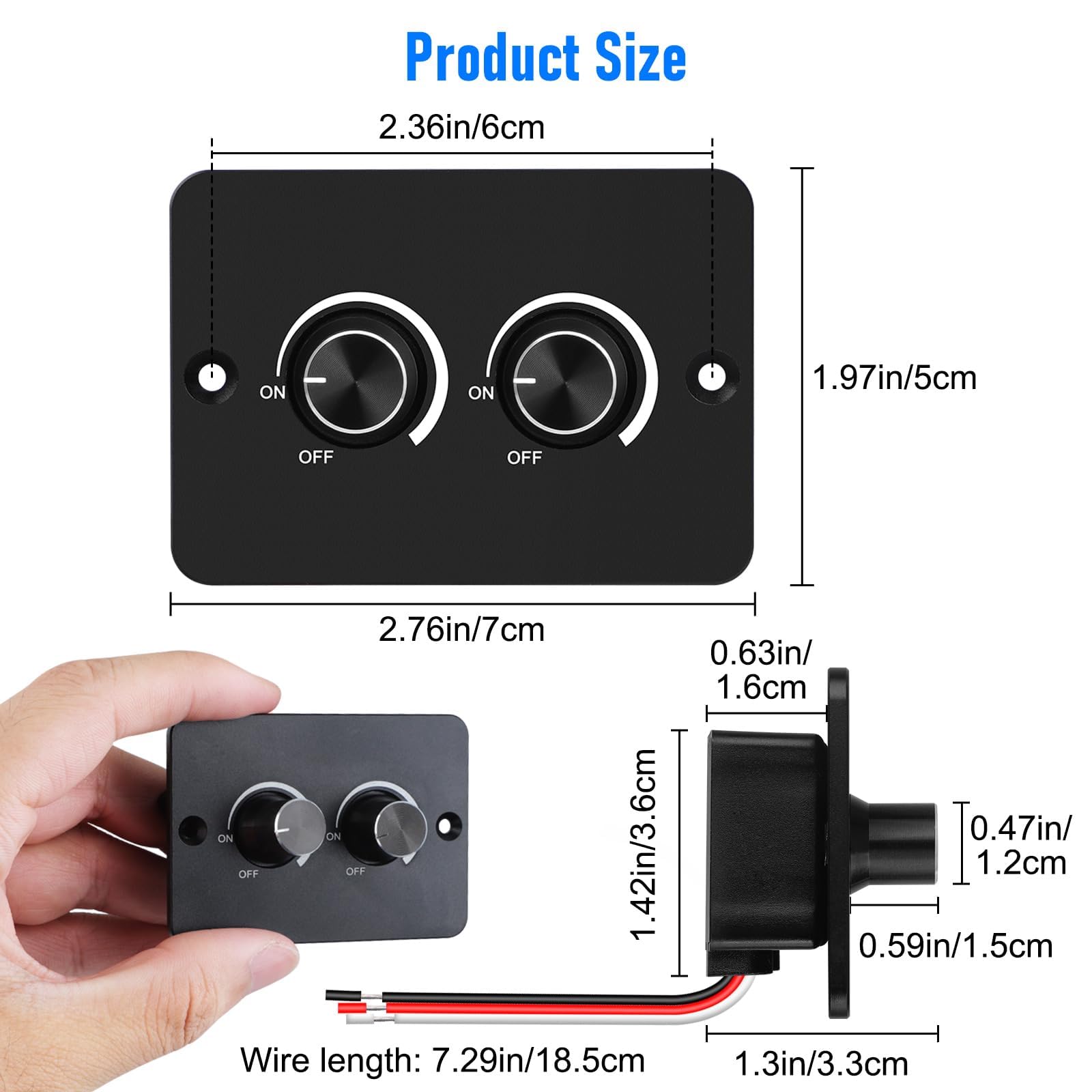

• Compact footprint suitable for switch panels and tight spaces

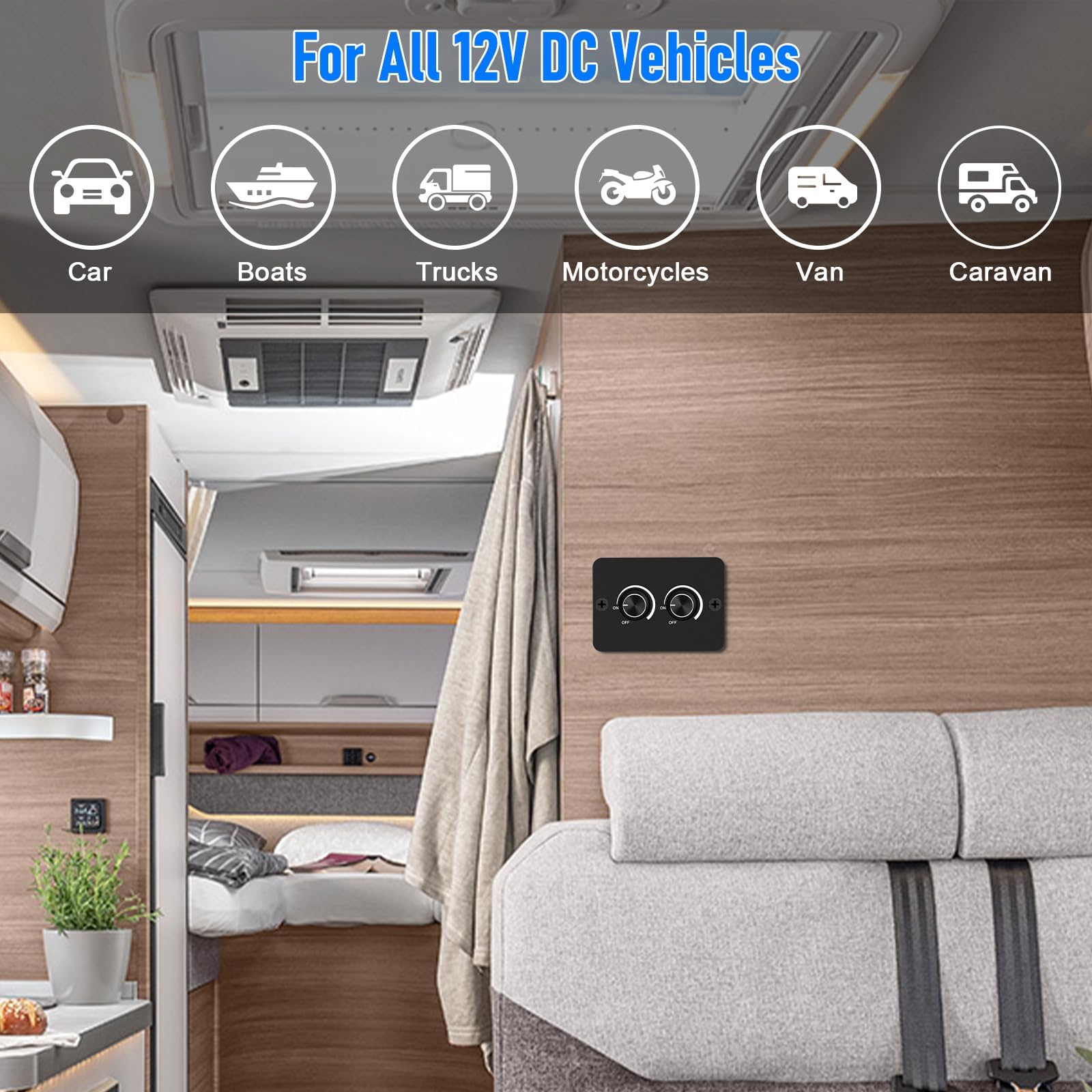

Which lights and environments is this dimmer best suited for?

Designed for low-voltage lighting, it pairs well with single-color LED strips, puck lights, halogen and incandescent fixtures commonly used in mobile and marine spaces. Its durable build and quiet PWM operation make it especially useful where space, heat management and subtle dimming are priorities.

• Works with 12V dimmable LEDs, halogen and incandescent bulbs
• Ideal for campers, RVs, vans, trucks, boats and yachts
• Compact for retrofit panels, consoles and cabinetry

Who is this for: Installers, vanlifers, boat owners and vehicle technicians who want dependable, noise-free dimming for 12V lighting will appreciate this Linkstyle dual-gang dimmer. It’s tailored to people fitting small spaces who need independent control of two lights or zones, want straightforward wiring and expect consistent thermal performance from a solid aluminum housing.
