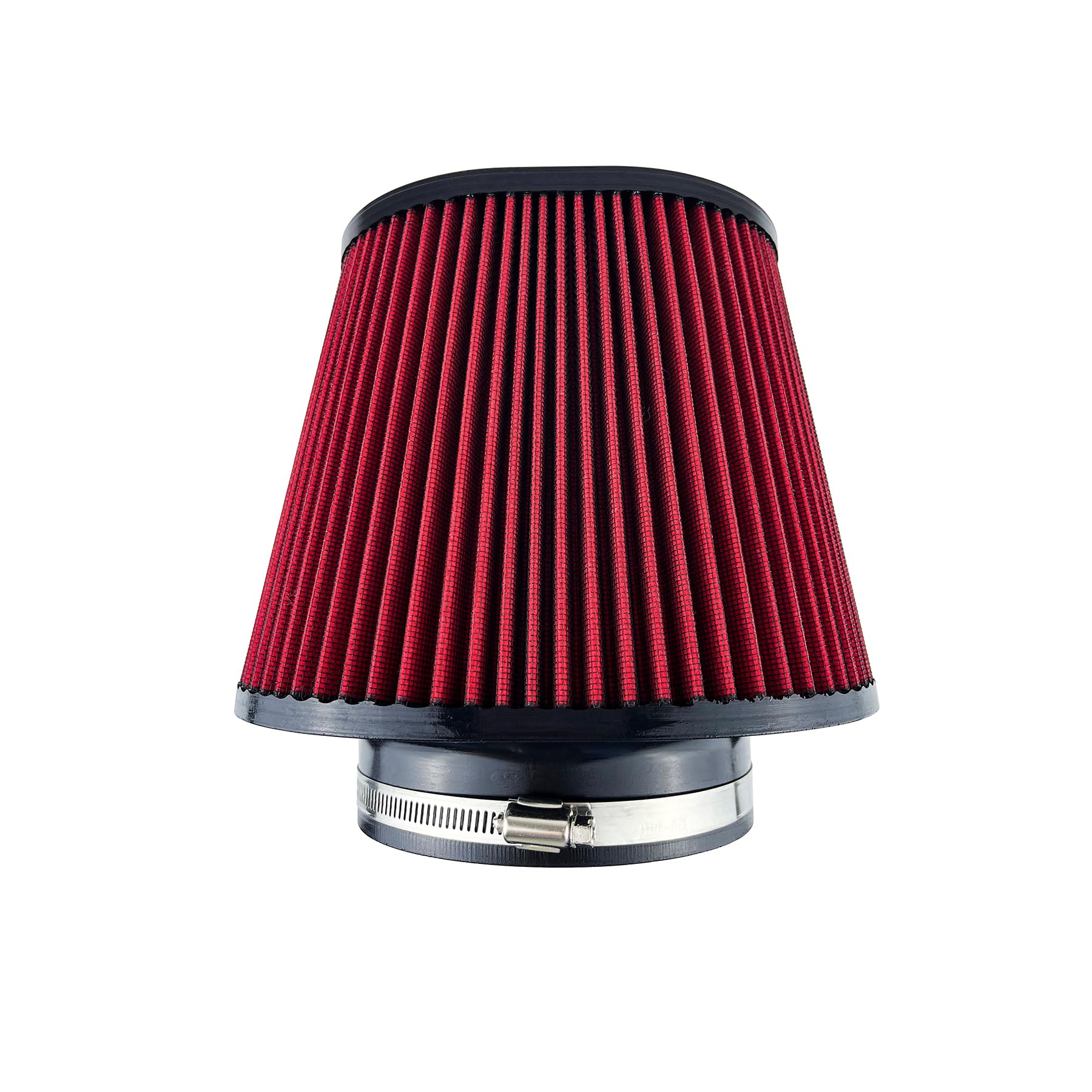

LOYALGLORY Cold Air Intake Filter 5" Inlet, 7" Tall Conical High-Flow Oiled Cotton Gauze

If you are building a custom intake or replacing an old conical element, the 24-91064 offers a balance of airflow and filtration for a wide range of trucks, SUVs and performance cars. Constructed with pleated, oiled cotton gauze media, this tapered filter is intended for open-element and custom box applications where a 5" inlet and roughly 7" vertical clearance are available. It does not include vehicle-specific adapters and is best suited to aftermarket systems that accept standard conical filters.

Will this filter fit my intake setup?

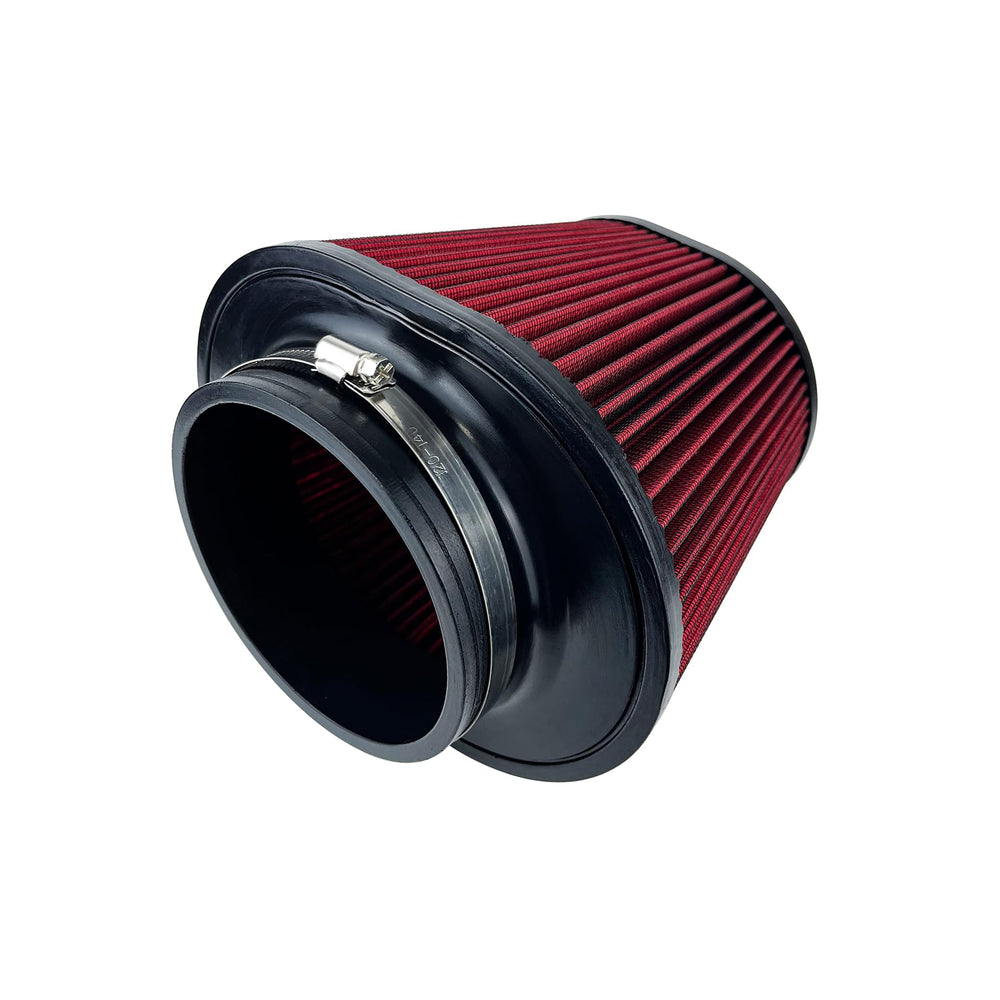

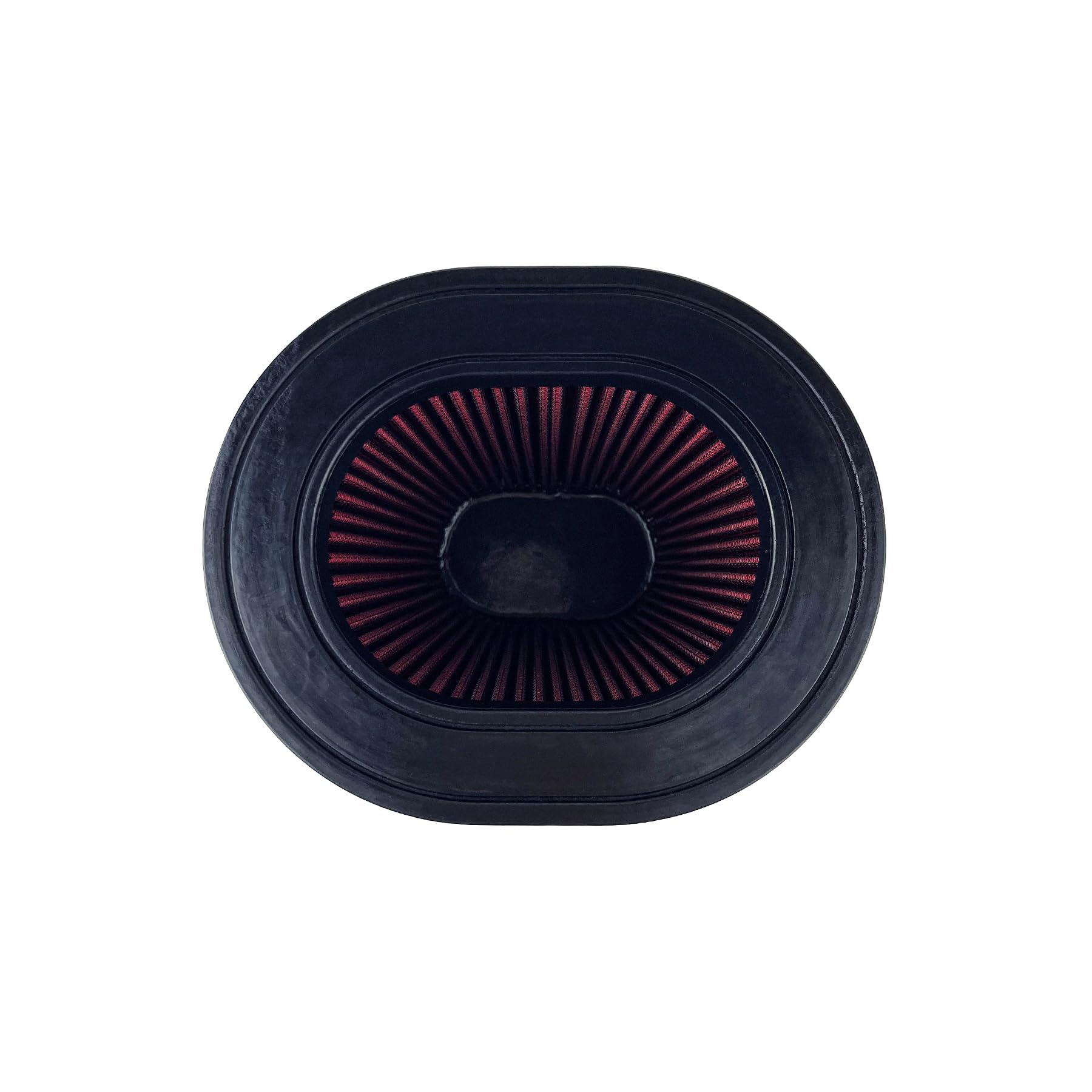

Compatibility depends on three simple measurements: inlet diameter, overall height, and the available footprint in your engine bay or fender well. The 24-91064 is built for a 5" inlet and stands 7" tall with a base about 9" x 7.5" and a top near 6.75" x 5.5"—confirm those clearances before ordering to avoid fitment issues.

• Inlet: 5 inches (clamp-ready for standard 5" tubes)
• Height: 7 inches total
• Base footprint: approximately 9" x 7.5"
• Top footprint: approximately 6.75" x 5.5"

How does this filter impact performance and protection?

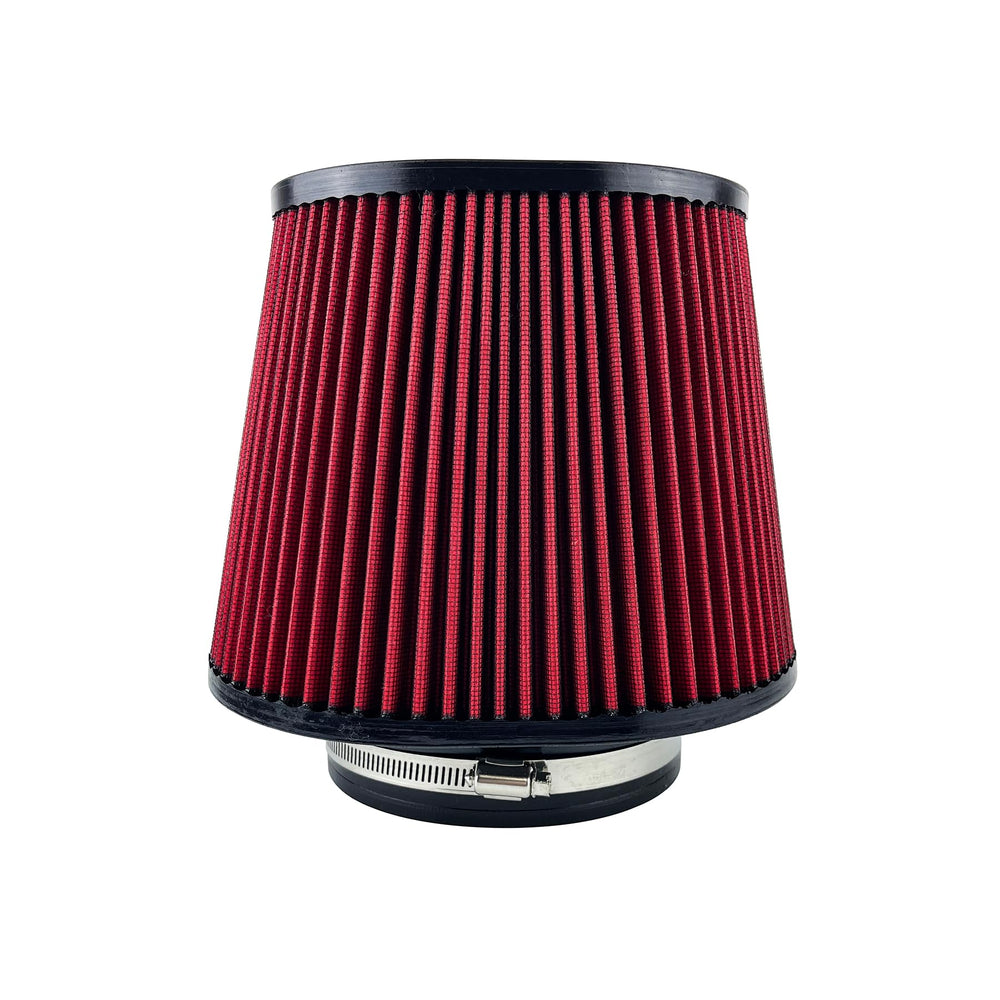

The filter’s pleated oiled cotton gauze media increases airflow compared with many factory paper elements, which can help the engine inhale cooler, denser air. At the same time, multi-layer filtration captures dust and debris to shield the MAF sensor and combustion chambers when installed properly.

• Higher flow design reduces intake restriction
• Oiled cotton gauze traps fine particles while allowing volume air movement
• Helps maintain cleaner MAF readings and combustion chamber protection

What maintenance does the LOYALGLORY 24-91064 require?

This element is washable and reusable: clean it with a dedicated filter kit when dirty, allow to dry, then reapply filter oil per the kit directions. Proper maintenance extends service life and avoids the recurring cost of disposables, but be careful not to over-oil when reassembling.

• Use a filter cleaner and rinse gently—do not use solvents
• Air dry fully before re-oiling
• Apply filter oil sparingly and evenly to avoid MAF sensor issues

How straightforward is installation for a DIYer?

Installation is simple when your intake tube has a 5" outer diameter and you have the clearance specified. The filter slides onto the tube and is secured with a hose clamp; ensure it does not contact hot components or moving parts and check for air leaks after starting the engine.

• Loosen old clamp and remove existing filter
• Slide 24-91064 onto a 5" tube and seat evenly
• Tighten clamp, verify no contact with hot/moving parts, test for leaks

Who is this for? The LOYALGLORY 24-91064 is aimed at enthusiasts installing custom cold air intakes, short-ram systems, or replacing worn universal conical filters on lifted trucks, SUVs, and modified cars. It’s ideal for someone who wants improved airflow and a washable, reusable element rather than disposable paper filters, provided their intake accepts a 5" inlet and they understand this is a universal part without vehicle-specific brackets or adapters.
