Luney Inline Fuel Filter 100 Micron — Aluminum Body with 6/8/10AN Adapters & 50mm Bracket

The LUNEY 100 Micron Inline Fuel Filter is a universal, aluminum-bodied inline filter with stainless-steel 100µm mesh and a full adapter kit (6AN, 8AN, 10AN) plus a 50mm mounting bracket for easy installation and reliable particulate protection.

Whether you're building a race car, restoring a street rod, or upgrading a marine or motorcycle fuel system, the LUNEY 100 micron inline fuel filter offers a compact, corrosion-resistant solution to trap contaminants and protect downstream components. This package supplies a forged aluminum filter housing, stainless-steel fold-expanded screen for increased filtering area, six O-rings to ensure leak-resistant seals, and multiple AN adapters so the filter fits many hose and line sizes.

How does the LUNEY filter fit different fuel lines and setups?

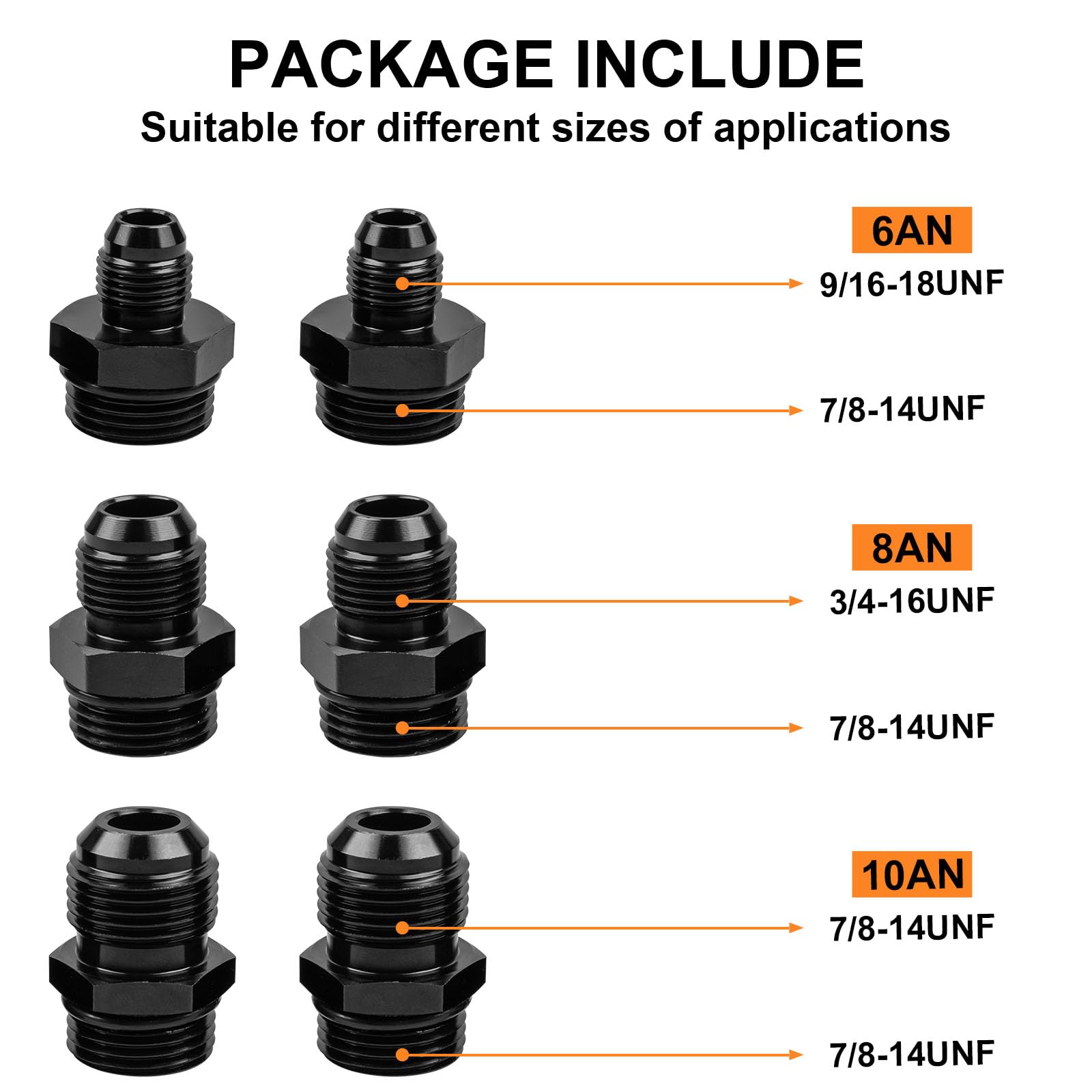

The filter is supplied with two adapters each in 6AN, 8AN, and 10AN sizes so you can match common hose ends and fittings without additional parts. Adapters thread into the filter ends, and the included O-rings create a tight seal to prevent leaks and suppress vibration noise.

• Includes: 2× 6AN, 2× 8AN, 2× 10AN adapters for flexible installation
• O-rings: six O-rings to ensure secure, leak-resistant connections
• Threads: compatible with 1/2 x 28 style end caps and common AN hose fittings

What materials and construction are used to withstand fuel and corrosion?

The LUNEY body is crafted from forged aluminum alloy for a lightweight, corrosion-resistant housing. Internally, the filtration element is stainless-steel mesh formed with a folded (expanded) pattern that increases surface area for improved particulate capture without excessive flow restriction.

• Housing: high-strength forged aluminum alloy, resistant to corrosion and wear
• Element: stainless-steel 100 micron expanded mesh for durability and rust resistance
• Bracket: included 50mm aluminum mounting bracket for secure attachment

How effective is the 100 micron rating and what contaminants will it stop?

The 100 micron rating captures larger particulates, such as rust flakes, scale, paint chips, and coarse dirt that can damage pumps and injectors. It is ideal as a primary inline protector ahead of more-fine filtration stages or fuel system components sensitive to debris.

• Particle capture: removes contaminants 100 microns and larger
• Applications: suitable for gasoline and diesel fuel systems, performance and vintage vehicles
• Maintenance: washable stainless element can be inspected and cleaned for extended use

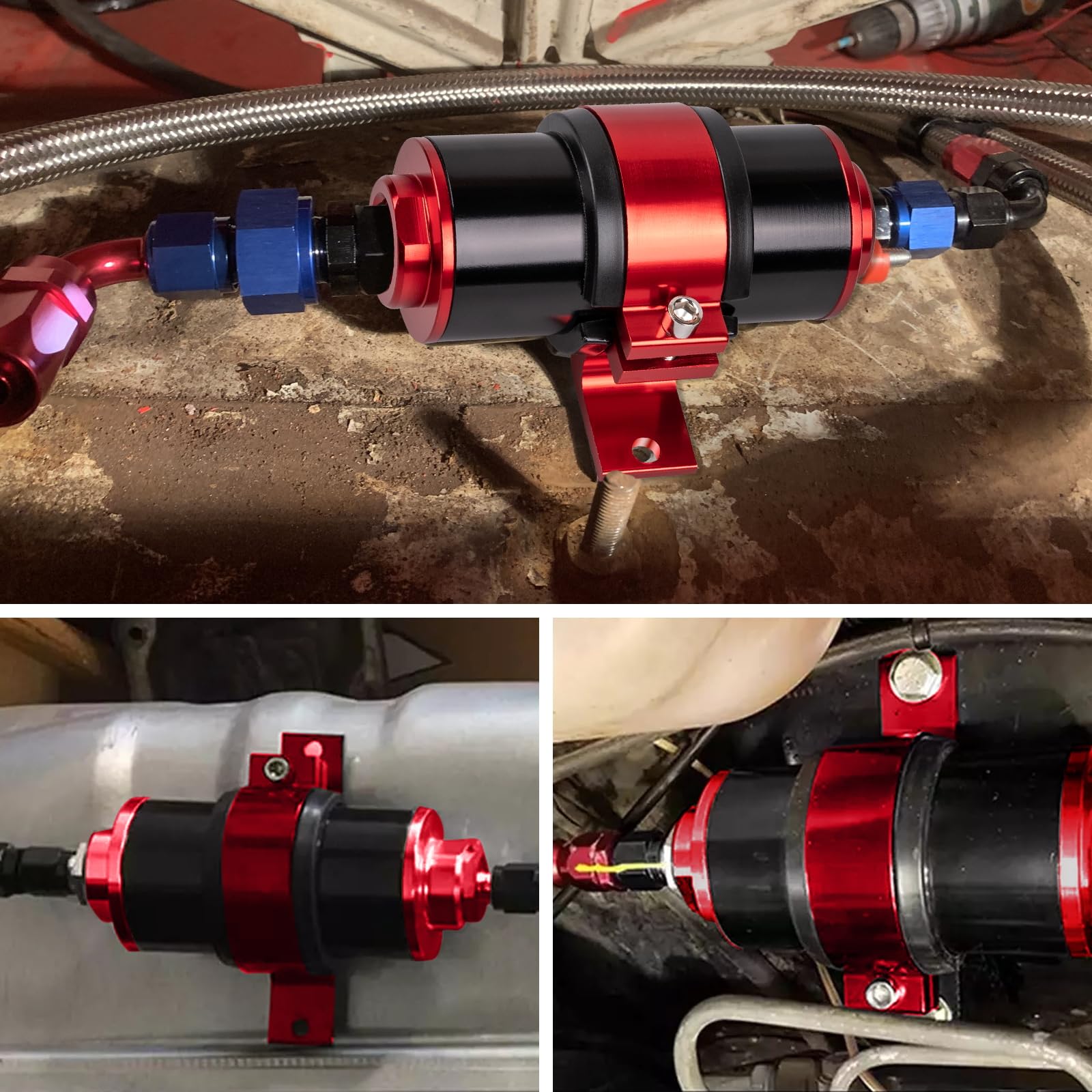

How is the filter mounted and serviced in a typical installation?

The package includes a 50mm mounting bracket and hardware-ready O-rings so the filter can be securely fastened to a chassis, engine bay, or frame rail. Service is straightforward: unthread the end caps, inspect or rinse the stainless mesh element, replace O-rings if needed, and reassemble with proper torque to avoid leaks.

• Mounting: 50mm bracket positions the filter for easy access and secure fastening
• Serviceable: removable end caps allow inspection and cleaning of the stainless mesh element
• Seal care: replace O-rings periodically to maintain tight, noise-suppressed connections

Who is this for? The LUNEY 100 Micron Inline Fuel Filter is aimed at DIY mechanics, performance builders, and restorers who need a durable, adaptable inline filter with a washable stainless element and broad adapter compatibility. It suits projects where corrosion resistance, straightforward serviceability, and flexible fittings matter — from track cars and motorcycles to marine and classic automotive fuel systems.
