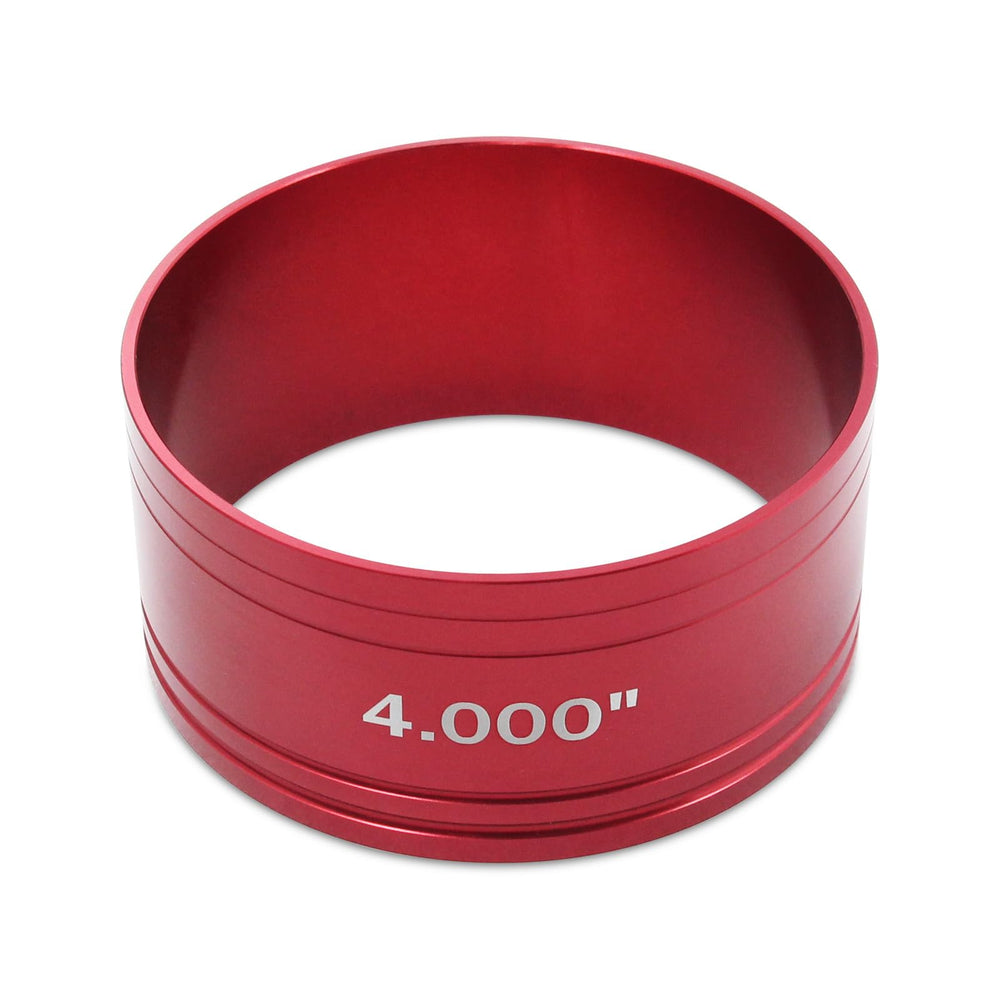

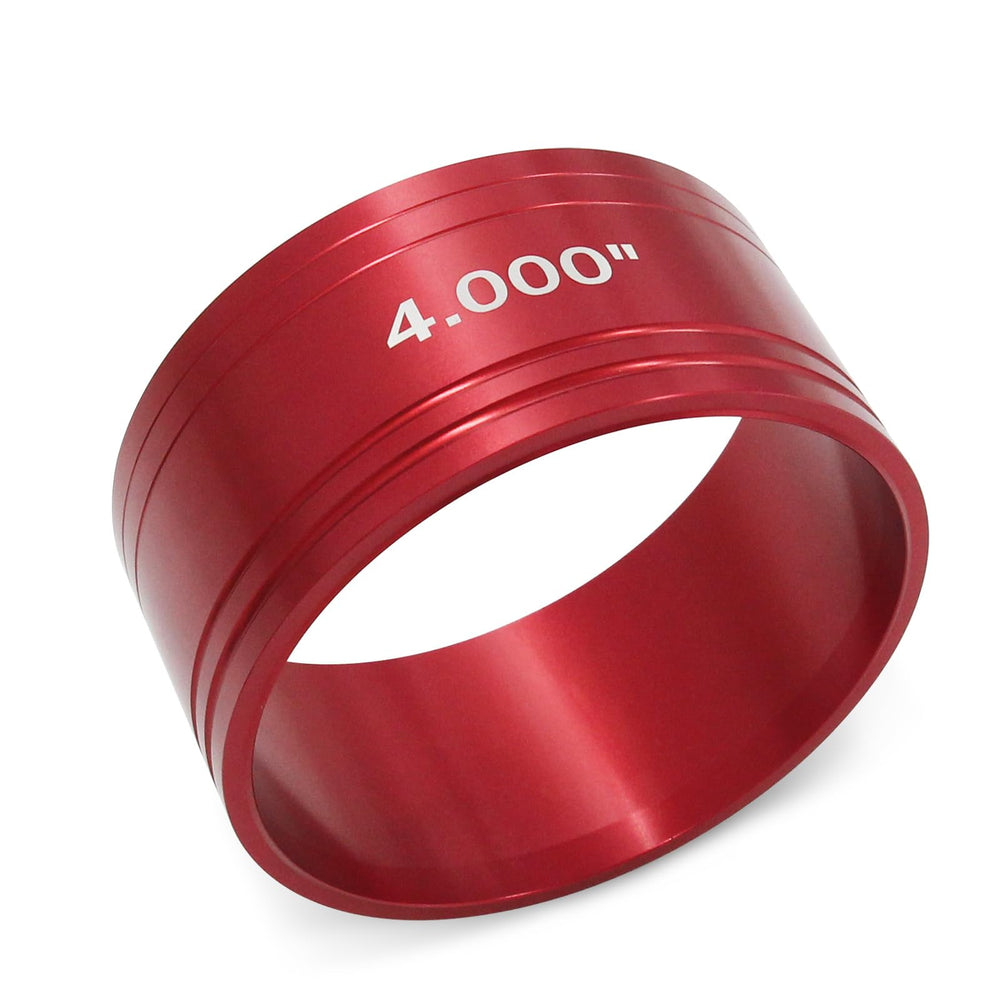

LVOUP 4.000 Inch Piston Ring Compressor for 4.00" Engine Bores — 6061 Aluminum, Red Anodized

LVOUP's 4.000 inch tapered piston ring compressor is a precision red-anodized 6061 aluminum tool designed to compress piston rings reliably for smooth installation into 4.00" engine bores.

When rebuilding or servicing engines with a 4.000 inch bore — including many GM 6.0L LS-series blocks — the correct ring compressor saves time, prevents ring damage, and helps the piston slide into the cylinder squarely. This tool is a single-piece tapered compressor, laser-etched for legibility, with a smooth machined surface and a corrosion-resistant red anodized finish. It’s built to be durable and user-friendly for mechanics, home builders, and automotive hobbyists.

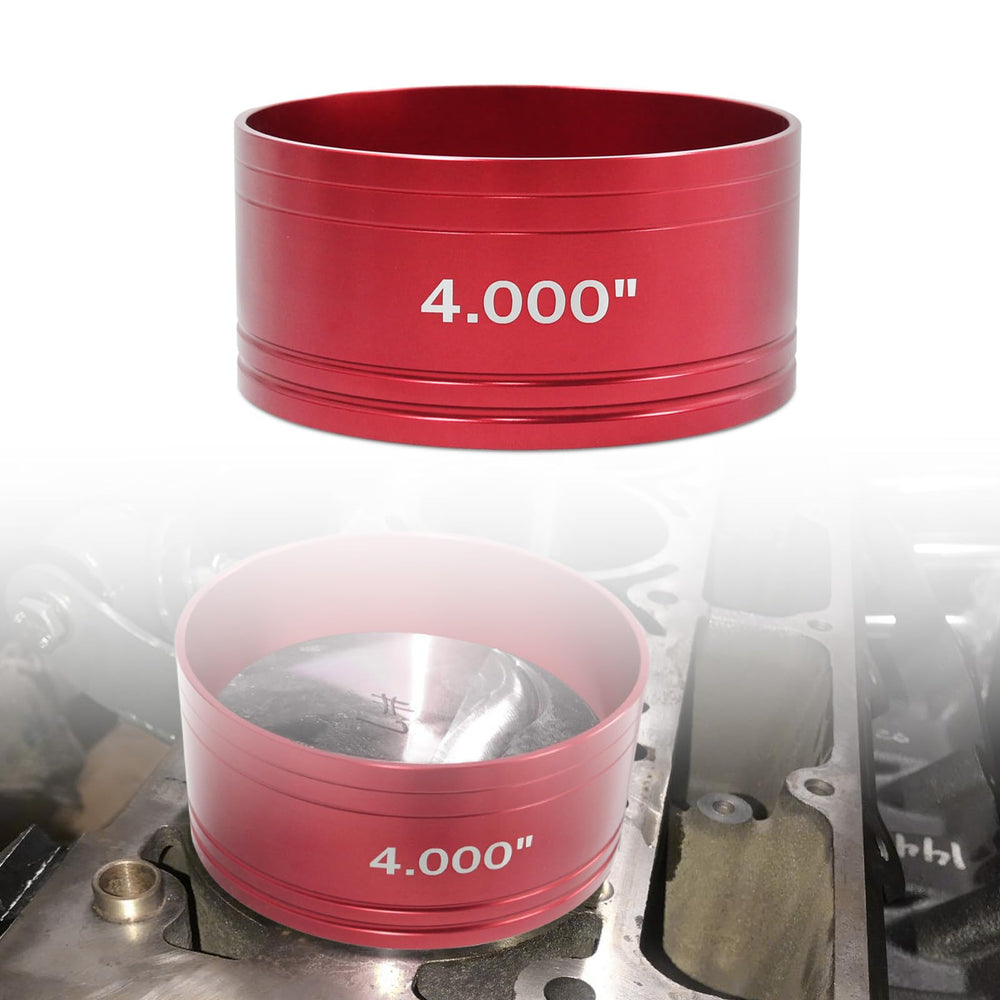

How does this tapered compressor help during piston installation?

The tapered design creates a slight, controlled squeeze on the piston rings so they remain compressed and aligned while you guide the piston into the cylinder. That reduced friction and consistent compression lowers the risk of ring catching or chipping. It’s especially useful when working without additional specialty jigs.

• Provides uniform compression for even ring seating
• Reduces risk of ring snagging on the bore edge
• Smooth machined surface avoids tool-induced ring nicks
• Quick alignment for one-person installations

Which engines and bore sizes is this compatible with?

This LVOUP tool is made for 4.000 inch bores and lists compatibility with many 4.00" engines, including common GM LS-series displacements such as LS2, LQ4, LQ9, L76, L77, L96, and L98. Always verify your engine's exact bore dimension before ordering. The single-size design is optimized for pistons and ring packs sized to a 4.000" cylinder.

• Designed specifically for 4.000" bore cylinders
• Works with many GM 6.0L LS-series engines and similar bore applications
• Not adjustable — check piston/ring pack sizing first
• Ideal for stock and aftermarket pistons sized to 4.000"

What are the construction and finish details that affect durability?

The compressor is machined from 6061 aluminum alloy, chosen for its strength-to-weight balance and resistance to corrosion. A red anodized finish adds protective hardness and visual durability while laser-etched markings remain easy to read over time. The interior is smoothed to prevent tool marks that can damage rings during installation.

• 6061 aluminum body for lightweight strength
• Red anodized finish for corrosion resistance and wear protection
• Laser etching for permanent, legible markings
• Polished internal surface to minimize ring abrasion

How simple is it to use this tool — do I need special skills?

The tapered compressor was made for straightforward, manual use and often eliminates the need for bulky multi-piece compressors. It’s suitable for experienced mechanics and competent DIYers comfortable with engine assembly basics. Professional installation is recommended if you’re unsure about piston orientation, ring gaps, or torque procedures.

• Slip the compressor over the piston and rings and seat into the bore
• No complex assembly; single-piece tapered operation
• Best used with standard engine assembly tools and care
• Consult a professional if unfamiliar with engine rebuilds

Who is this for? The LVOUP 4.000 inch tapered piston ring compressor suits engine builders, auto repair shops, and skilled hobbyists working on 4.00" bore engines who need a durable, easy-to-use tool for accurate piston installations. If you regularly service GM LS-series 6.0L blocks or other 4.000" bore applications and want a precision aluminum compressor with a clean finish and clear markings, this tool provides a reliable one-piece option. Remember to confirm bore compatibility and consider professional assembly if you lack experience with piston and ring installation.
