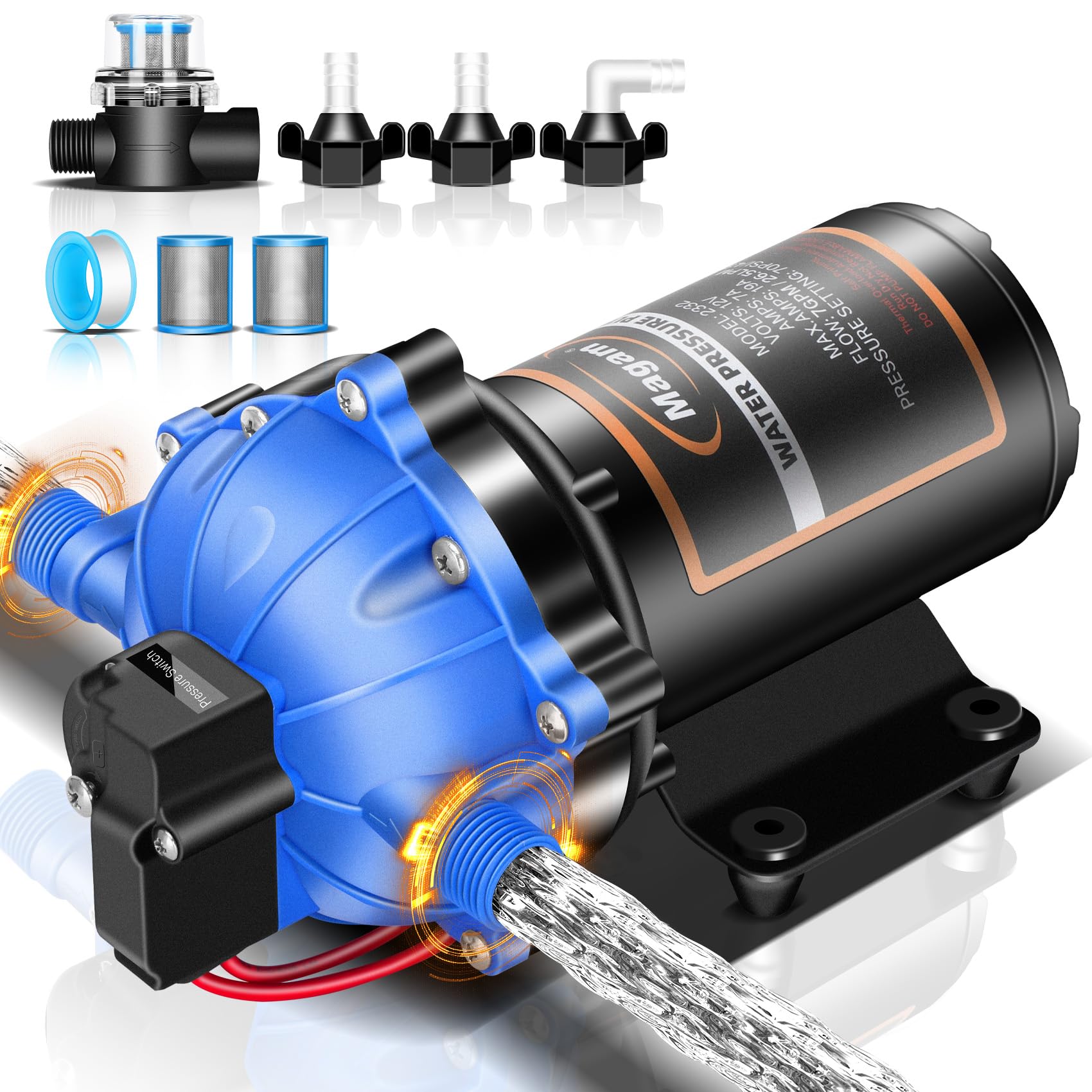

Magam 12V Water Pump 7 GPM 70 PSI — 5-Chamber Self-Priming Diaphragm with Pressure Switch

This compact 12-volt pump is engineered for mobile and marine water systems that need steady pressure, quiet operation, and durable construction. It combines a five-chamber diaphragm, an automatic pressure switch, and heavy-duty materials to supply water for sinks, showers, and onboard appliances without frequent attention.

How much flow and pressure can I expect from this pump?

The Magam pump produces up to 7 gallons per minute with a maximum operating pressure of 70 PSI, giving strong flow for multiple fixtures or higher-pressure showering. Performance stays consistent thanks to the diaphragm pumping design and sealed chambers.

• Peak flow: 7 GPM for quick water delivery
• Max pressure: 70 PSI for steady fixture performance
• Five-chamber diaphragm: maintains consistent output under variable loads
• Self-priming capability: starts reliably after short air exposure

Will it run quietly and efficiently on my 12V battery system?

Yes — this 12V pump is intended for battery-powered environments like RVs, yachts, and campers. NSK double ball bearings and the multi-chamber diaphragm reduce vibration and noise, while electrical design keeps energy use appropriate for mobile systems.

• 12-volt compatibility: works with common RV and marine battery setups
• Quiet operation: NSK bearings and balanced chambers minimize noise
• Energy-conscious: designed for efficient draw; requires a recommended 40A fuse
• Suitable for off-grid use: reliable on battery power during travel or boondocking

How durable and serviceable is the pump for marine and RV environments?

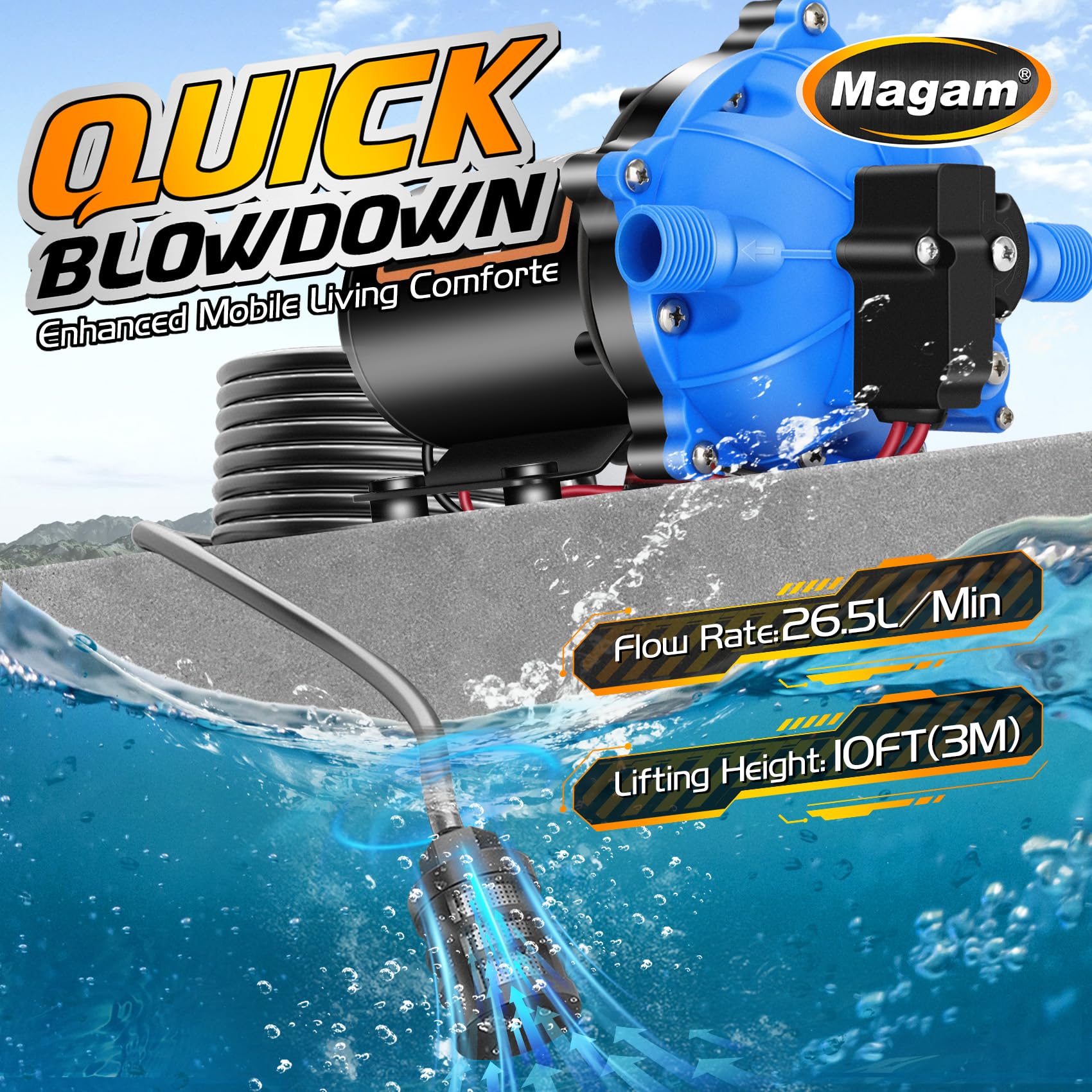

Magam built this unit from corrosion-resistant ABS and stainless steel parts to withstand humid and salty conditions. The design allows easy access to filters and common wear components, and the heavy-duty pressure switch helps protect the motor from unnecessary cycling.

• Materials: ABS housing and stainless components for corrosion resistance
• Pressure control: built-in automatic switch reduces wear from frequent cycling
• Maintenance: accessible strainer and replaceable elements for simple upkeep
• Support: 3-year warranty plus responsive customer service within 12 hours

Is installation complicated and what safety steps should I follow?

Installation is straightforward for someone comfortable with basic RV or marine electrical and plumbing. Follow wiring guidelines in the manual and use a 40A fuse in line with the pump to protect the circuit; ensure correct hose sizes and secure mounting to minimize vibration.

• Electrical: use the recommended 40A fuse and follow wiring diagram in manual
• Plumbing: match hose diameter to inlet/outlet and secure fittings to prevent leaks
• Mounting: fasten to a stable surface and use vibration-damping pads where possible
• Start-up: prime if necessary and check for leaks, correct flow, and pressure cut-in/out

Who is this for: The Magam 12V Upgraded Fresh Water Pump is aimed at RV owners, boaters, vanlifers, and anyone running a small off-grid water system who needs dependable pressure and a robust, low-noise pump. It's particularly well suited to users who want a compact, easy-to-install unit that handles showers and multiple fixtures, resists corrosion in marine environments, and offers straightforward maintenance backed by a multi-year warranty.
