MECMO 4-Way Flat Trailer Wiring Harness T-Connector — Plug-in Direct-Fit for Chevy S-10 / GMC Sonoma & Isuzu Hombre

MECMO's 4-way flat trailer wiring harness is a vehicle-side, plug-and-play T-connector that restores standard 4-pin trailer lighting for 1998–2004 Chevy S‑10, 1998–2004 GMC Sonoma, and 1998–2000 Isuzu Hombre pickups.

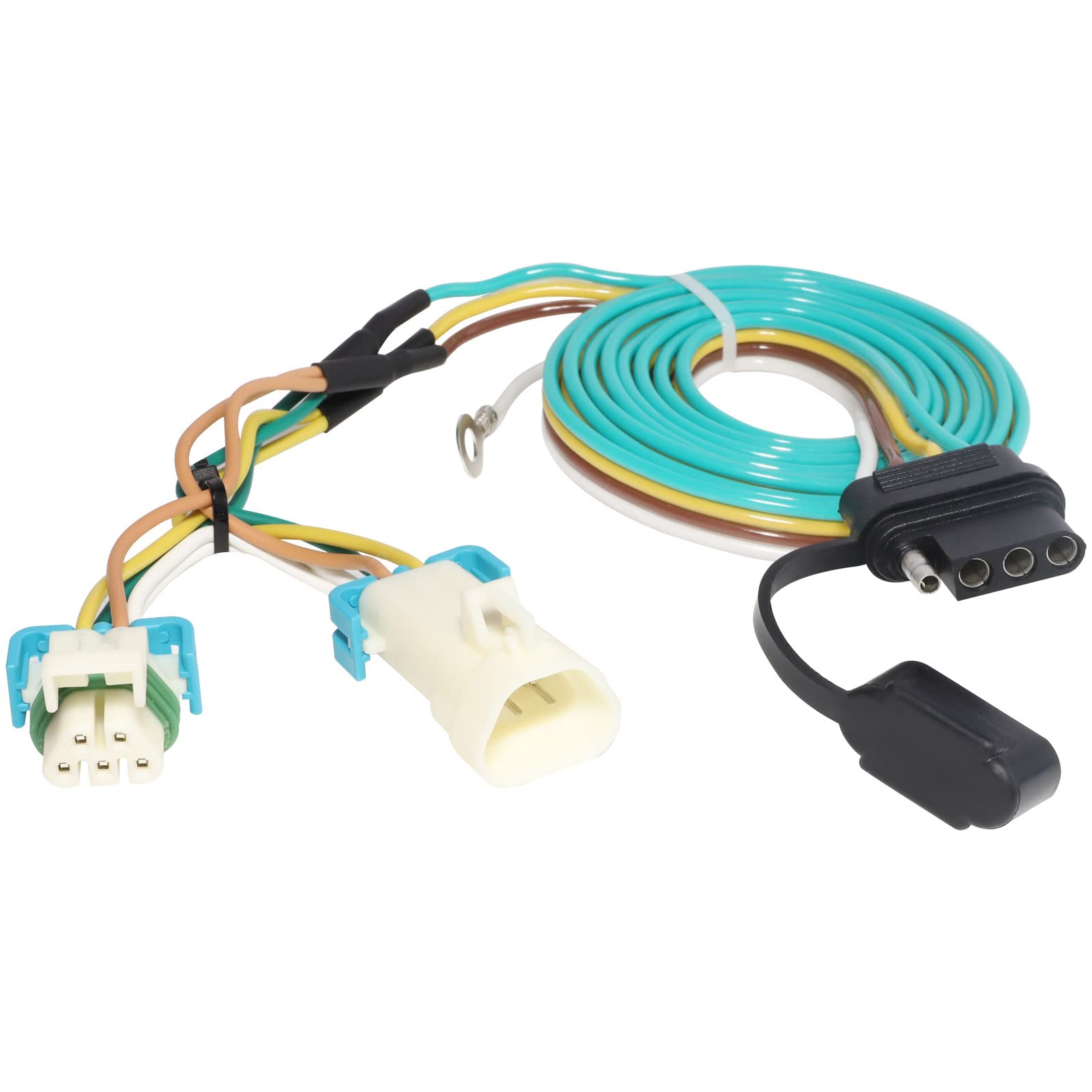

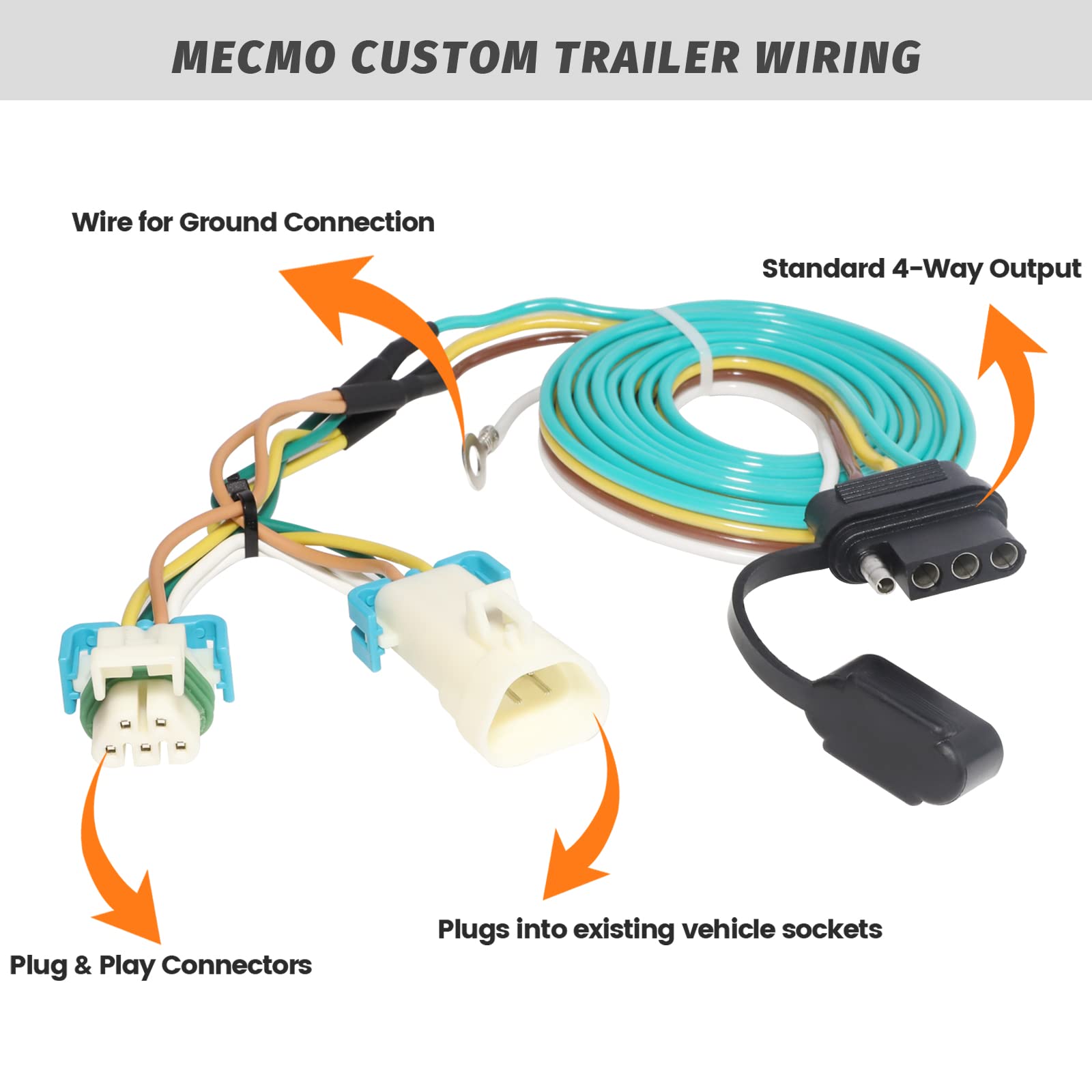

If you need a straightforward way to add or replace a 4‑pin trailer receptacle on a compatible compact pickup, this MECMO harness gives you a direct-fit wiring solution that uses the truck’s factory wiring points. The kit includes a vehicle-side 4-flat connector with a rubber dust cover, a prewired T-connector that plugs into the existing rear lamp harness, and corrosion-resistant conductors sized for dependable signal transmission.

How simple is installing this T-connector on my S‑10, Sonoma, or Hombre?

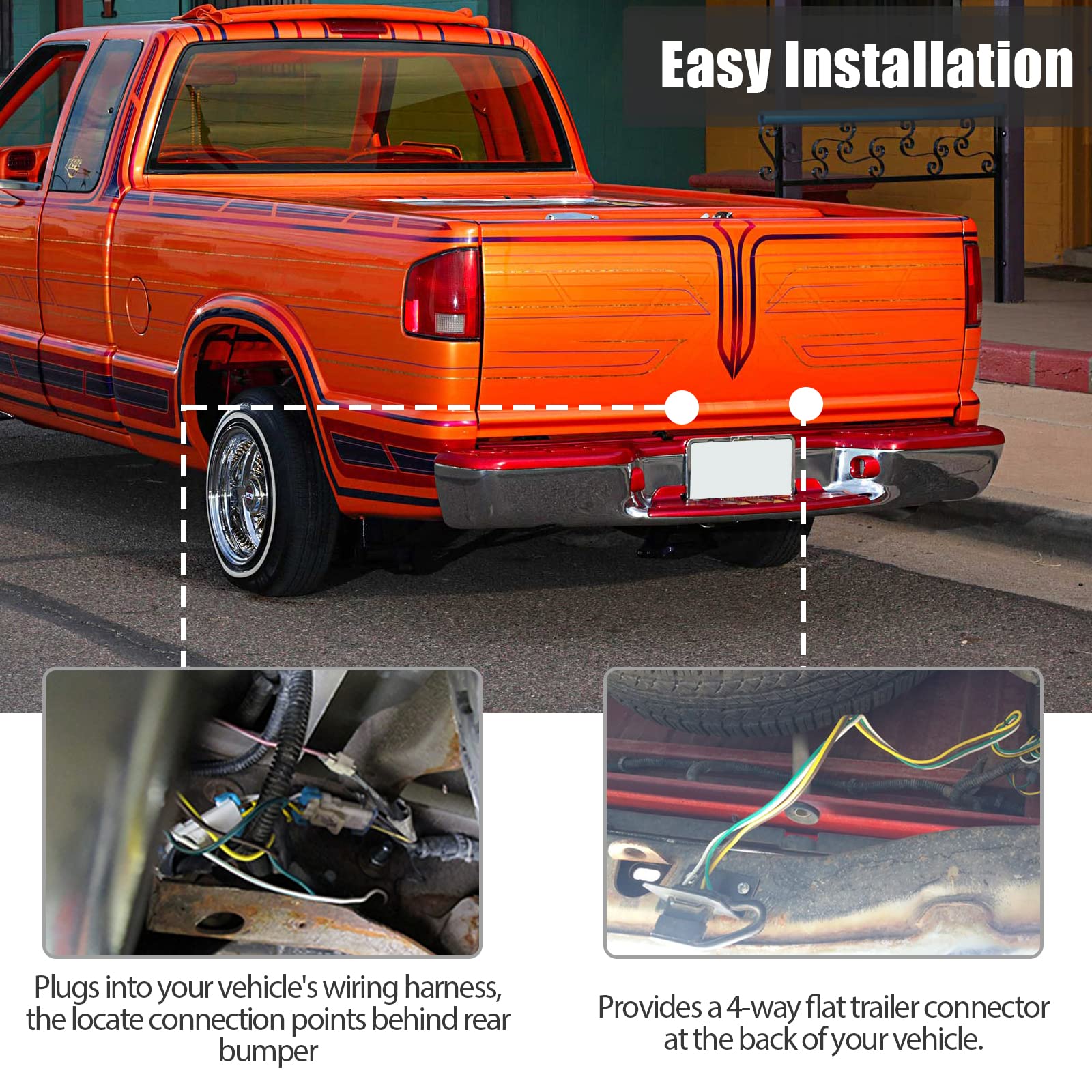

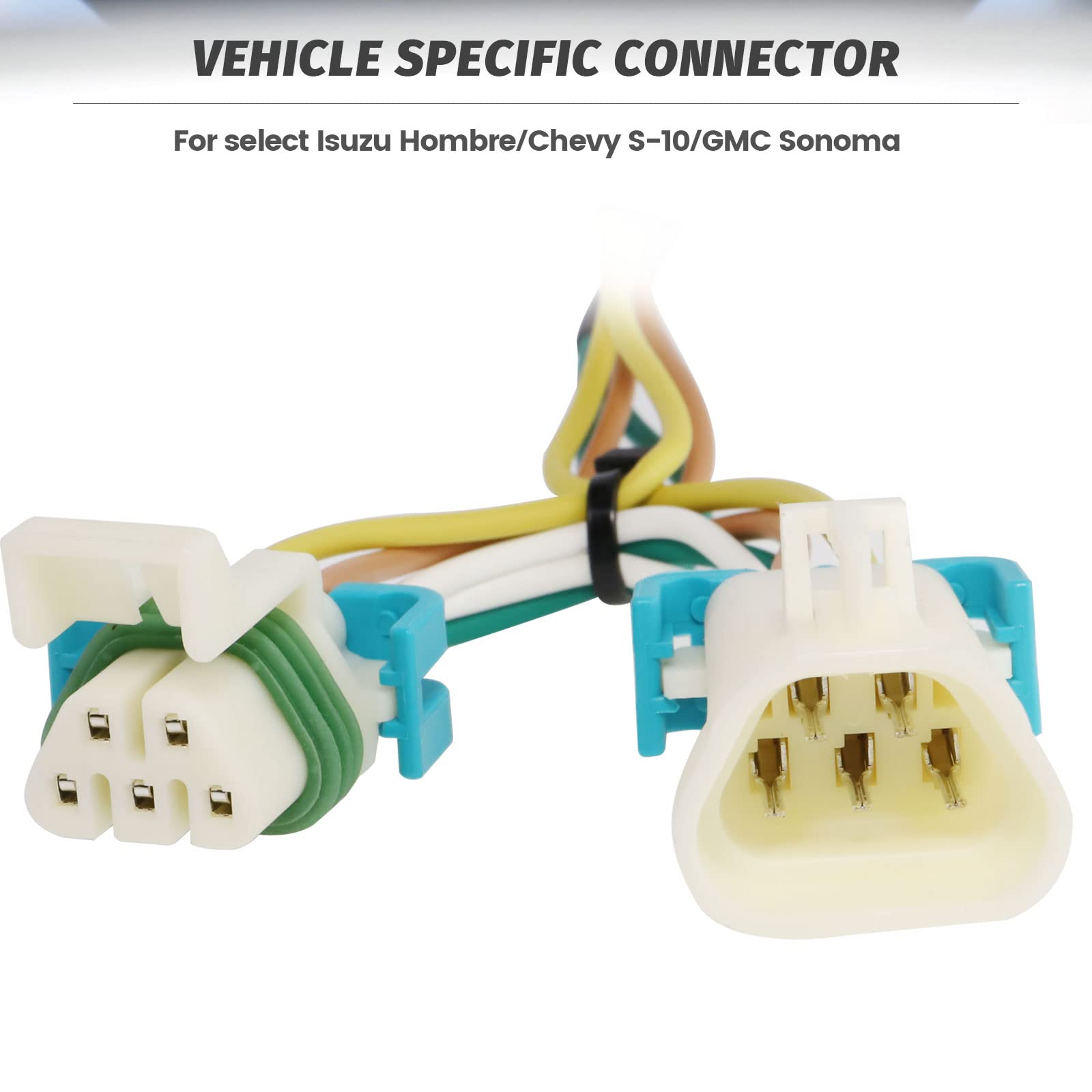

Installation is designed to be fast and tool-minimal because the harness mates to the factory taillamp wiring without cutting or splicing. Locate the existing rear lamp plug behind the bumper, unplug it, and insert the MECMO T-connector in-line; the trailer socket mounts near the hitch area for easy access.

• Plug-and-play: no wire splicing required for supported years
• Locates to factory connector behind rear bumper
• Includes rubber dust cover to protect socket terminals
• Mounts near hitch for convenient trailer hookup

What vehicle lighting functions does this 4-pin harness support?

The four-flat standard supplies the essential lighting signals for most small trailers: running/tail lights, left and right turn signals, and brake lights. It does not carry electric brakes or a 12V power feed — those require a different 5- or 7-pin solution if needed.

• Powers trailer tail/running lights
• Provides left and right turn signals and brake lights
• Standard 4-pin flat configuration compatible with most small trailers
• Not intended for trailer brake or auxiliary 12V power circuits

What materials and durability features come with the MECMO harness?

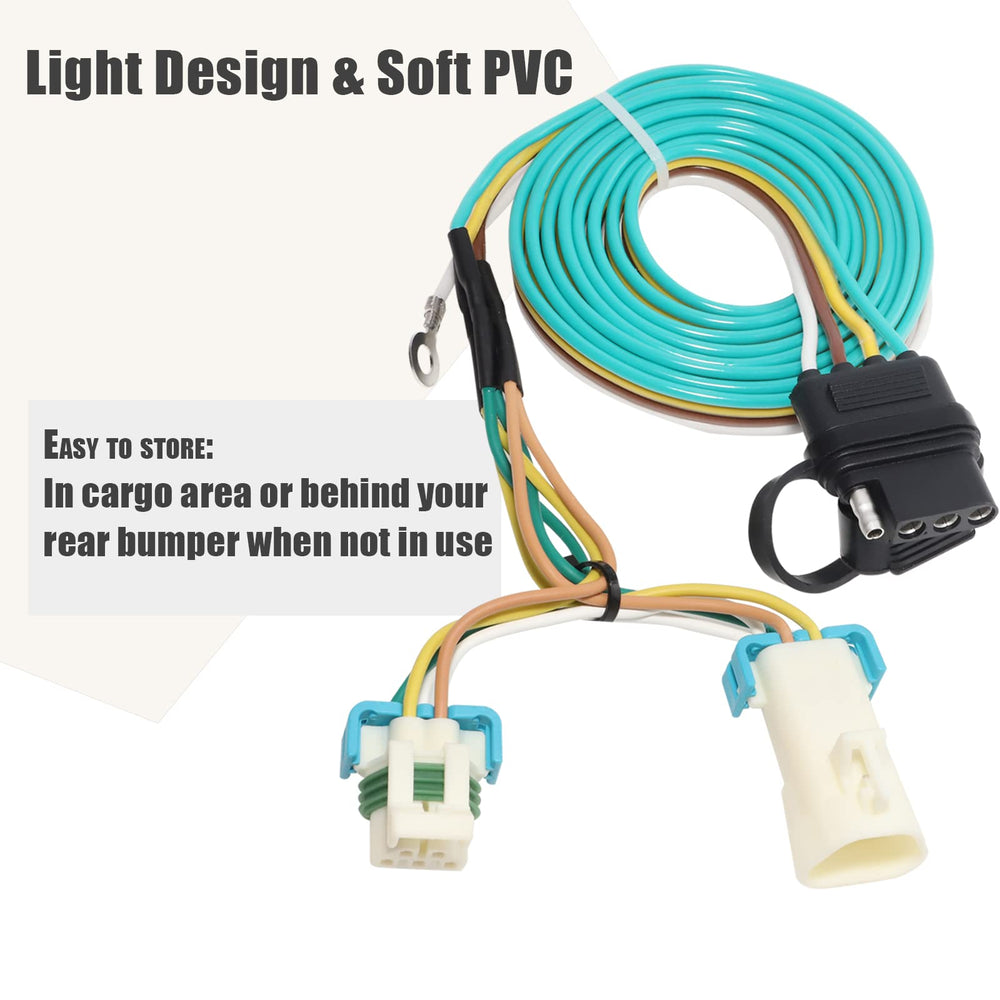

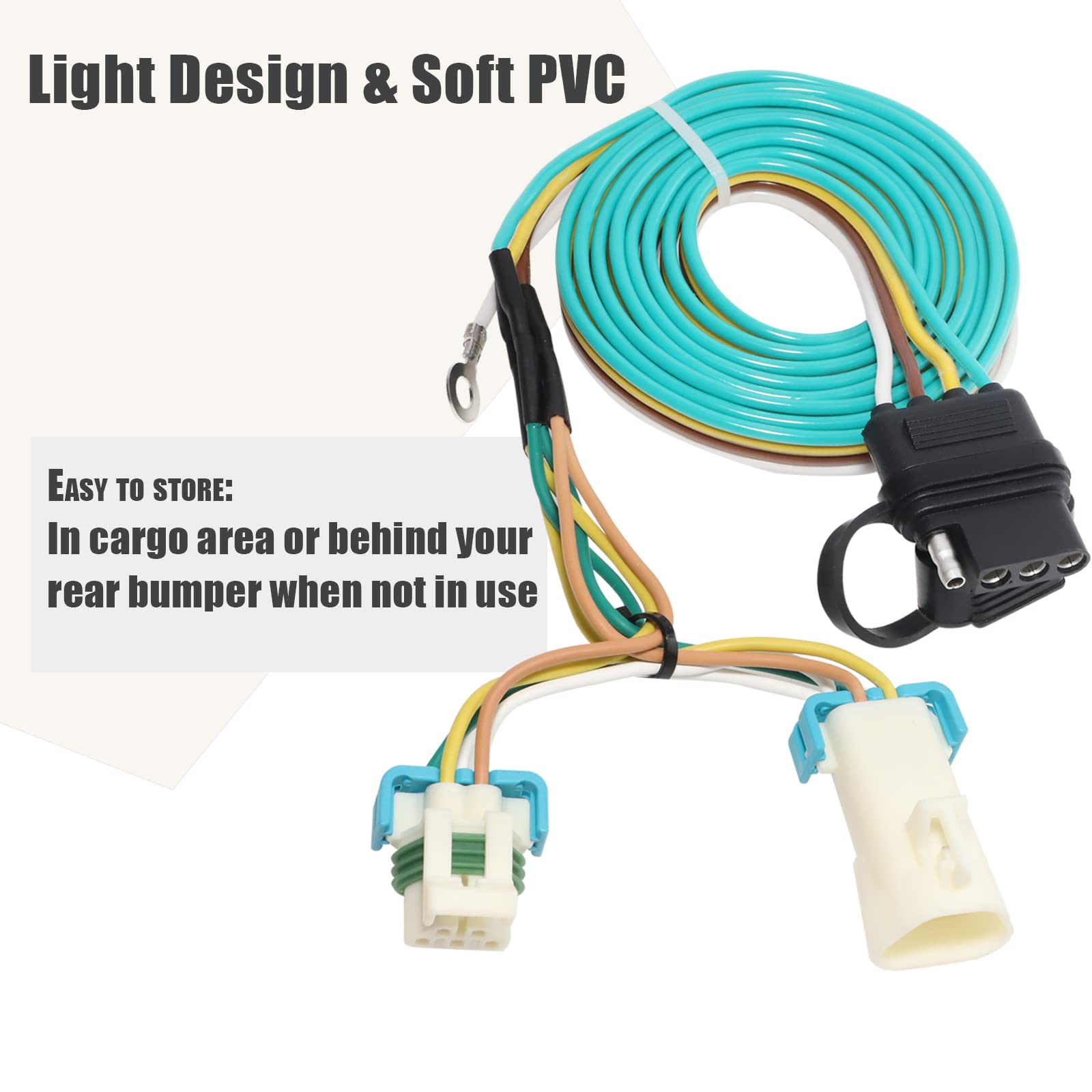

This harness uses 16–18 AWG pure copper conductors that combine good conductivity with resistance to corrosion for reliable signal transmission. The connector housing and rubber dust cap protect terminal contacts from moisture and debris, helping maintain a stable electrical connection over time.

• 16–18 AWG pure copper wiring for consistent conductivity
• Corrosion-resistant contacts to reduce terminal degradation

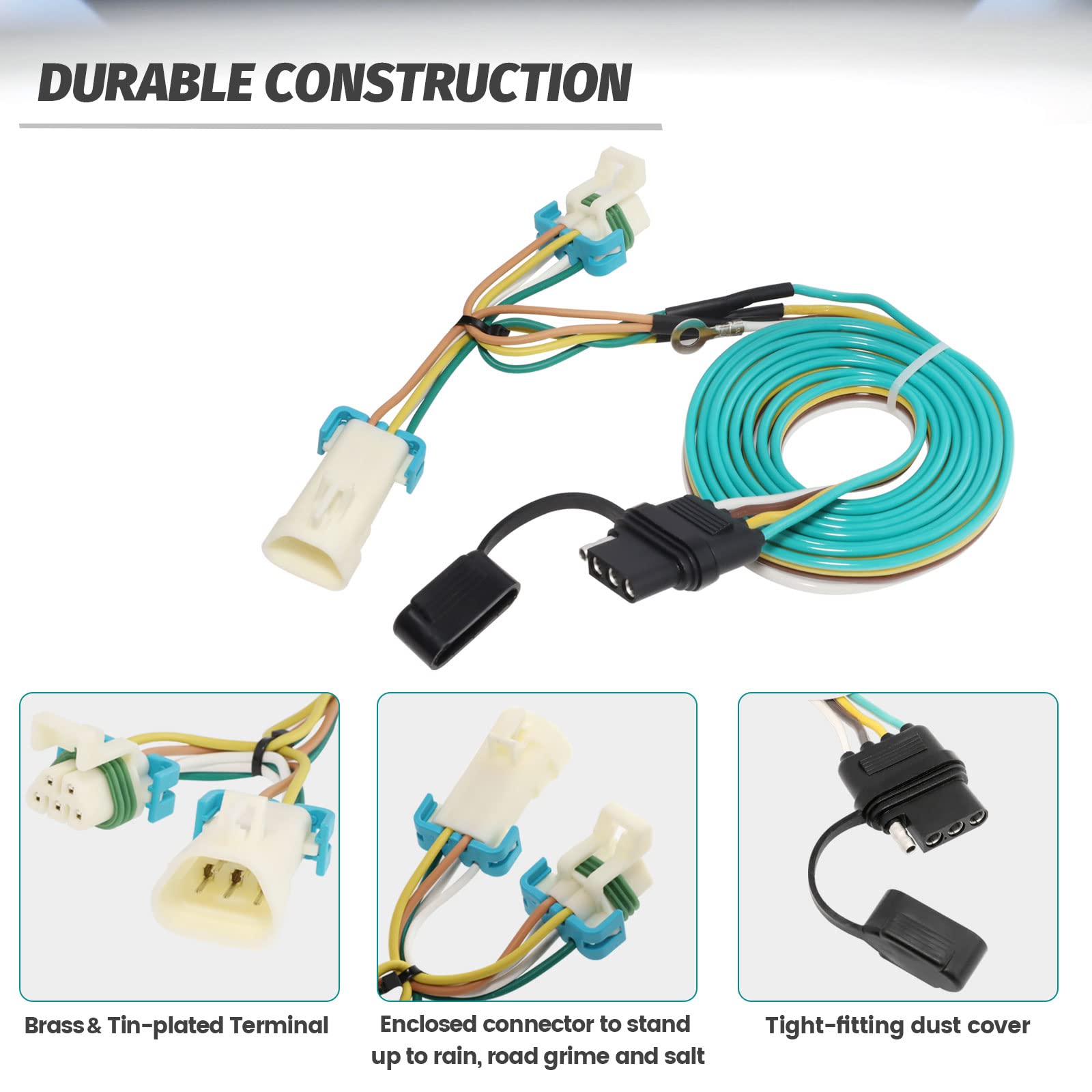

• Snug rubber dust cover to shield the receptacle from water and dirt
• Durable connector housing built for vehicle underbody exposure

Will this harness work with aftermarket or custom bumpers and hitches?

Yes, as long as you can access the factory taillamp harness behind the bumper and mount the 4-flat socket near the hitch, the MECMO T-connector is compatible with most aftermarket bumpers and receiver hitch setups. Some custom installations may require a short bracket or relocation of the socket for best fit and access.

• Works with most aftermarket hitches if factory plug is reachable
• Socket can be relocated or bracketed for custom bumpers
• Ideal when retaining original vehicle wiring integrity is preferred
• May need simple hardware for nonstandard mounting positions

Who is this for: MECMO’s 4-way flat harness is aimed at owners of 1998–2004 Chevy S‑10, 1998–2004 GMC Sonoma, or 1998–2000 Isuzu Hombre trucks who want a no-fuss, factory-style trailer light connection. It benefits DIY installers, fleet managers replacing worn sockets, and anyone who needs a dependable 4‑pin plug for small trailers, cargo carriers, or utility trailers without adding brake or auxiliary power circuits.
