Metra Single-DIN Stereo Installation Kit for Harley-Davidson 1998–2013 — One-Piece, Sealed Fit

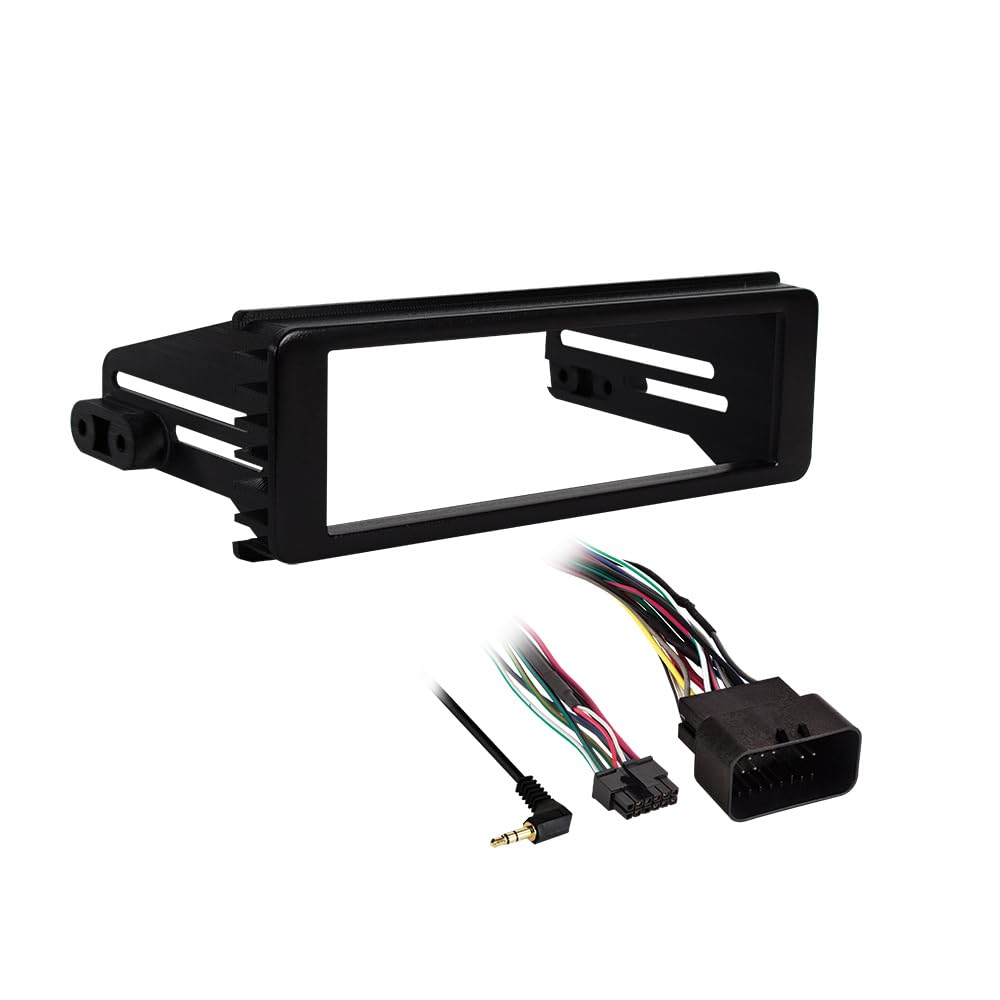

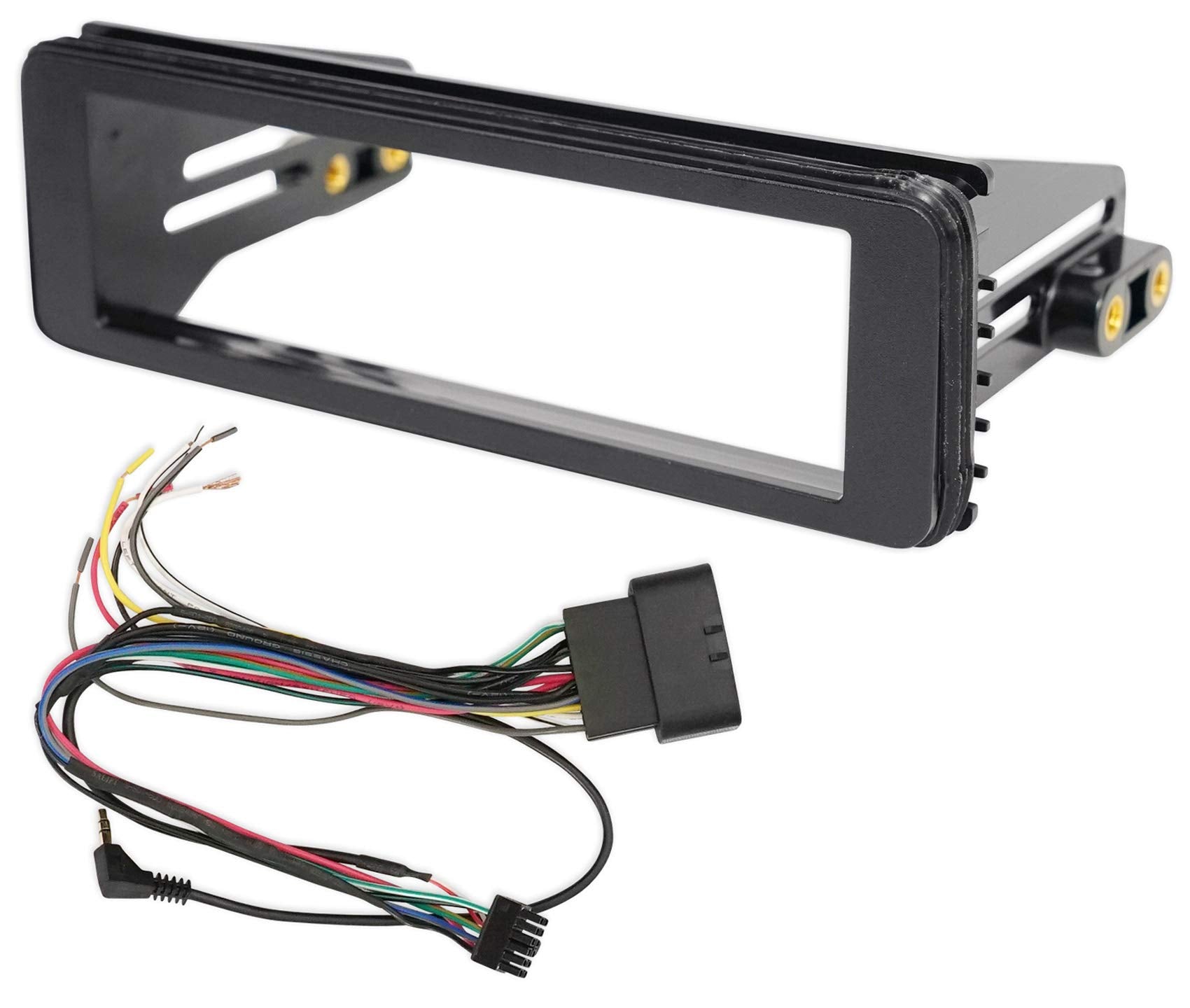

Metra 99-9600 is a one-piece stereo installation kit that lets you fit a standard 2" (Single-DIN) aftermarket radio into the original inner fairing of select 1998–2013 Harley‑Davidson motorcycles with a factory-like look and sealed fit.

This installation kit is engineered to make replacing a factory radio straightforward while preserving the motorcycle's original inner-fairing appearance. It accepts any standard 2" tall aftermarket head unit with ISO provision and includes a rubber gasket, mounting brackets, hardware, and a pre-wired harness for Metra's AXSWC-WR steering control interface (AXSWC-WR sold separately). Built from durable ASA plastic, the 99-9600 matches factory contours, reduces vibration, and helps keep moisture away from electronics.

How does this kit make installing a single‑DIN radio easier?

The Metra 99-9600 consolidates the mounting, sealing, and wiring steps into a single assembly that fits the inner fairing opening. Rather than fabricating trim or cutting the original housing, you use the supplied brackets, gasket, and hardware for a clean install. The included pre-wired harness simplifies connection to Metra's AXSWC-WR, so handlebar audio controls can be retained when that interface is used.

• One-piece faceplate shaped to fit batwing and sharknose inner fairings
• Rubber gasket for moisture and vibration resistance
• Brackets and hardware included—no aftermarket trimming needed
• Pre-wired harness for AXSWC-WR (interface sold separately)

Will this fit my Harley‑Davidson model and year?

This kit is targeted for FLH‑style batwing fairings and Road Glide sharknose fairings produced between 1998 and 2013. Always verify fitment with the Metra Electronics Vehicle Fit Guide before purchase to confirm compatibility with your model and fairing type. If your fairing matches the listed styles and years, the 99-9600 is designed to drop into the OEM opening without permanent modification.

• Compatible with FLH (batwing fairing) 1998–2013
• Compatible with Road Glide (sharknose fairing) 1998–2013
• Check the Metra Vehicle Fit Guide for exact application details

What materials and protections does the kit provide?

Metra constructed the 99-9600 from high-quality ASA plastic to match factory finish and endure outdoor use. The included rubber gasket cushions the radio against vibration and creates a seal that helps limit water intrusion around the head unit. Together these features extend component life and preserve the fairing’s appearance.

• ASA plastic offers UV resistance and factory-like texture
• Rubber gasket reduces vibration and moisture exposure
• Secure mounting hardware keeps the head unit stable at speed

Do I need extra parts to keep handlebar audio controls working?

Yes—retaining handlebar-mounted audio controls requires Metra’s water-resistant AXSWC-WR steering control interface, which is sold separately. The 99-9600 includes a pre-wired harness specifically for that interface to reduce installation time and wiring complexity. Without the AXSWC-WR, handlebar controls will likely not function with the new aftermarket radio.

• AXSWC-WR is required to keep handlebar controls functional
• Pre-wired harness for AXSWC-WR included in the kit
• Tech support available for wiring and configuration questions

Who is this for? The Metra 99-9600 is ideal for Harley-Davidson owners (1998–2013 FLH and Road Glide) who want the improved features of a modern single‑DIN aftermarket radio while keeping a stock appearance. It suits DIY installers and professional shops that prefer a factory-fit solution, and for riders planning to integrate handlebar controls via Metra’s AXSWC-WR interface. If you need a sturdy, sealed mounting solution that reduces modification of the original fairing, this kit provides an all-in-one option.
