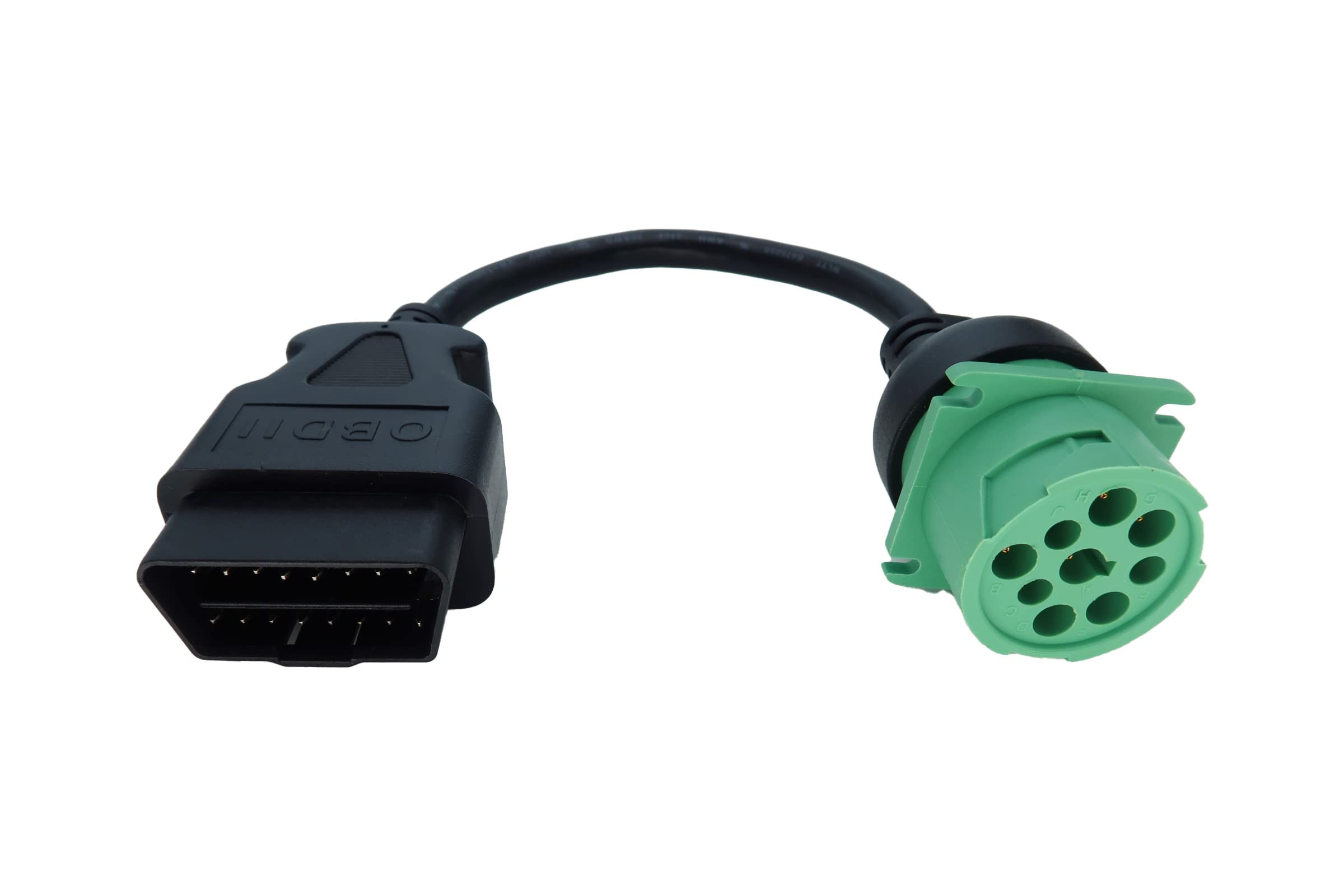

MITOB OBD2 to J1939 9‑Pin Adapter Cable — Green Type‑2 30cm, 20 AWG Durable Overmolded

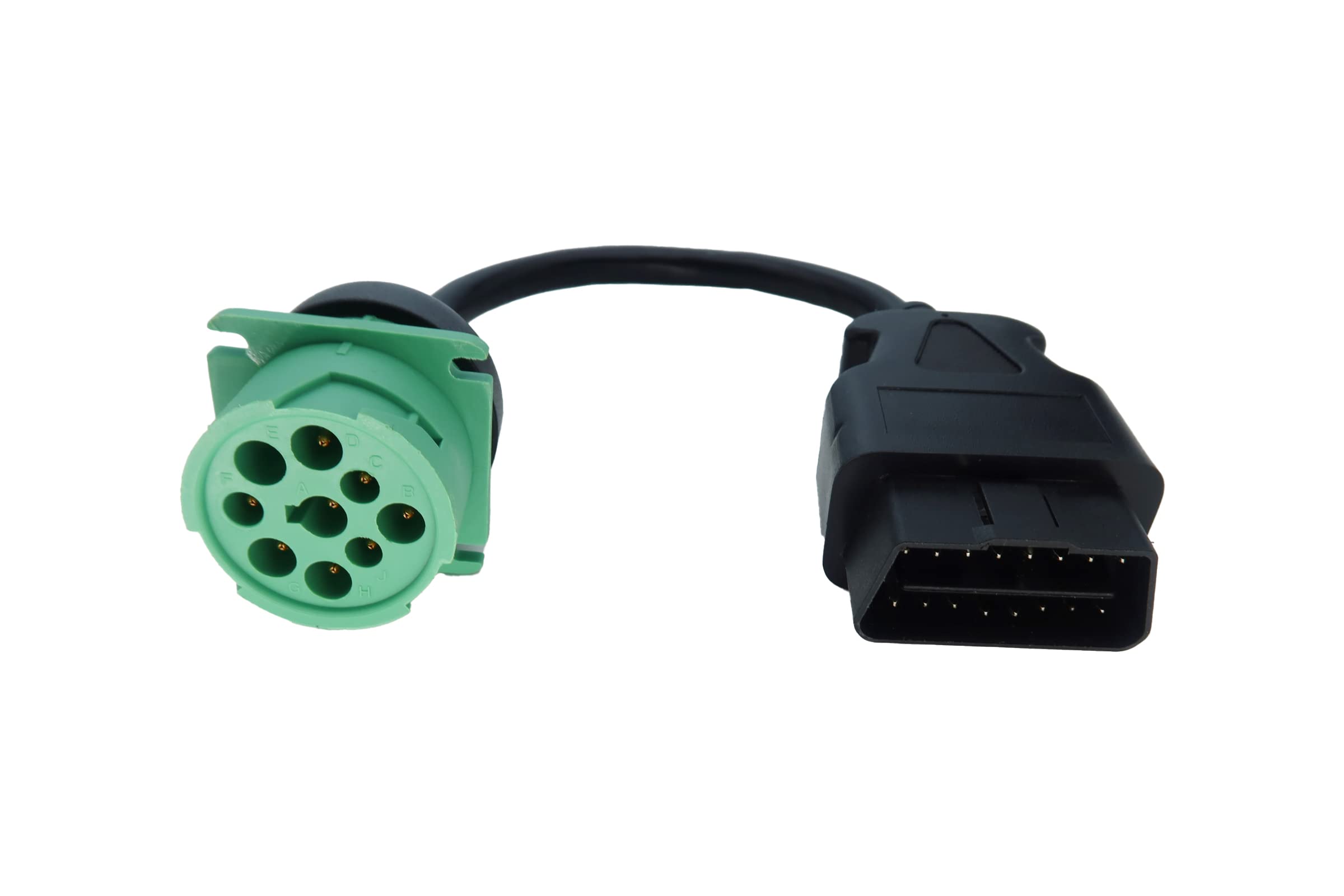

MITOB OBD2 Male to 9‑pin J1939 Female adapter cable converts a standard OBD‑II diagnostic port into a Green Type‑2 J1939 9‑pin connection for trucks and heavy equipment.

This compact 30 cm (1 ft) adapter is built to bridge passenger‑vehicle OBD2 diagnostics and industry J1939 networks used in commercial vehicles. Designed for technicians, fleet mechanics and mobile diagnosticians, the cable uses thick 20 AWG conductors and robust overmolded connectors to withstand workshop use and repeated plug cycles. It’s a simple, short link for reading fault codes, powering adapters, or connecting diagnostic tools that require the green Type‑2 J1939 9‑pin female port.

How does this adapter let me connect consumer OBD2 tools to J1939 systems?

The adapter physically maps the OBD2 male plug pins to the green Type‑2 J1939 9‑pin female socket, creating a direct, short connection suitable for many diagnostic tools that accept straight wiring. It doesn’t alter protocol; it provides the correct physical interface to access J1939 networks from an OBD2 style connector.

• Direct OBD2 male to green Type‑2 J1939 female wiring.
• Pin mapping preserves signal lines required by many J1939 devices.
• Short 1 ft length reduces signal noise and clutter in tight bays.
• Best used with tools that support J1939 messaging and proper grounding.

What build features protect the cable in a workshop environment?

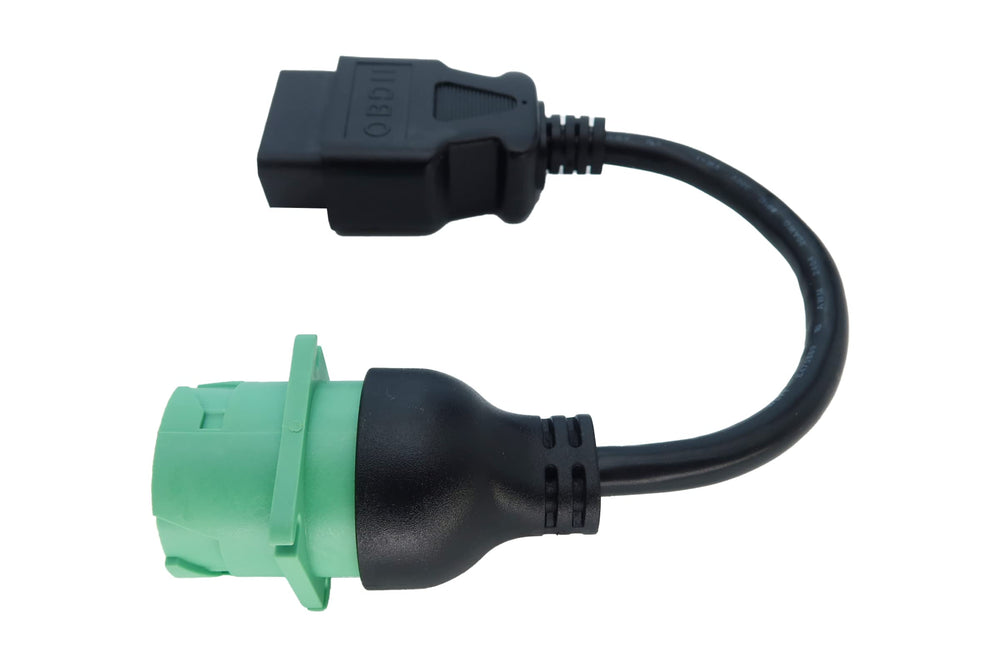

MITOB engineered the adapter with durability in mind: thicker 20 AWG conductors for improved current handling, and overmolded connector housings to resist strain, dust ingress, and frequent plug/unplug cycles. The compact design keeps the assembly neat and minimizes snagging when moving around vehicle cabins or engine compartments.

• 20 AWG cable for robust current and reduced voltage drop.
• Overmolded connectors for strain relief and longer life.
• Short length prevents excess cable slack in confined spaces.
• Green Type‑2 molded socket matches standard J1939 equipment colors.

Which vehicles and tools work with this adapter?

Use this adapter when you need a physical J1939 9‑pin female connection from an OBD2 style lead—common in medium and heavy‑duty truck diagnostics, agricultural machines, and some construction equipment. Confirm your diagnostic tool supports J1939 protocol and that the tool’s pinout aligns with the adapter mapping before use.

• Medium and heavy‑duty trucks that use J1939 networks.
• Diagnostic tools and scanners that accept external J1939 9‑pin connectors.
• Fleet maintenance rigs needing quick adapter hookups.
• Not a protocol converter—ensure tool and vehicle speak J1939.

How should I install and care for this adapter to extend its life?

Installation is plug‑and‑play: connect the OBD2 male to the vehicle or tool and the green 9‑pin female to the J1939 connector. Keep the adapter free of heavy tensile loads, avoid sharp bends near the overmolded joints, and store it coiled loosely when not in use to prevent conductor fatigue.

• Plug securely; avoid twisting while seating connectors.
• Avoid pin damage by keeping connectors clean and dry.
• Store coiled without tight kinks to protect 20 AWG wires.
• Inspect overmold and terminals periodically for wear or corrosion.

Who is this for: The MITOB OBD2 Male to 9‑pin J1939 Female adapter is aimed at professional technicians, fleet maintenance teams, and independent diagnosticians who need a reliable, short‑run physical interface between OBD‑style leads and J1939 devices. It’s ideal when you want a rugged, compact cable that preserves signal integrity without adding protocol conversion—perfect for bench testing, field repairs, and in‑garage troubleshooting where space and durability matter.
