Muzzys A/C Hack Kit for Ram 1500/2500/3500 (2019–2022) — Heater‑Core Bypass with Shut‑Off Valve, Reversible Fix

MUZZYS A/C Hack Kit is a non-invasive heater-core bypass mod that prevents hot coolant from pushing warm air into the HVAC system, cooling factory-warm A/C by roughly 8–15°F.

Many recent Ram 1500/2500/3500 trucks suffer from a factory HVAC routing issue that allows warm heater core air to mix with cooled A/C airflow. MUZZYS designed this kit to reroute the heater supply quickly, stopping the unwanted heat bleed without tearing out your dash or performing permanent modifications. The kit includes a shut-off valve, quality hose and clamps, and straightforward install steps for both gas and diesel engines.

How does this kit cool my truck’s A/C without replacing the dash?

The kit intercepts the heater supply line and installs a shut-off valve and reroute hose so hot coolant no longer feeds the heater core while the A/C is running. That prevents warm air intrusion into the evaporator chamber and lowers vent temperature by several degrees.

• Installs inline on the heater supply hose—no dash removal required.

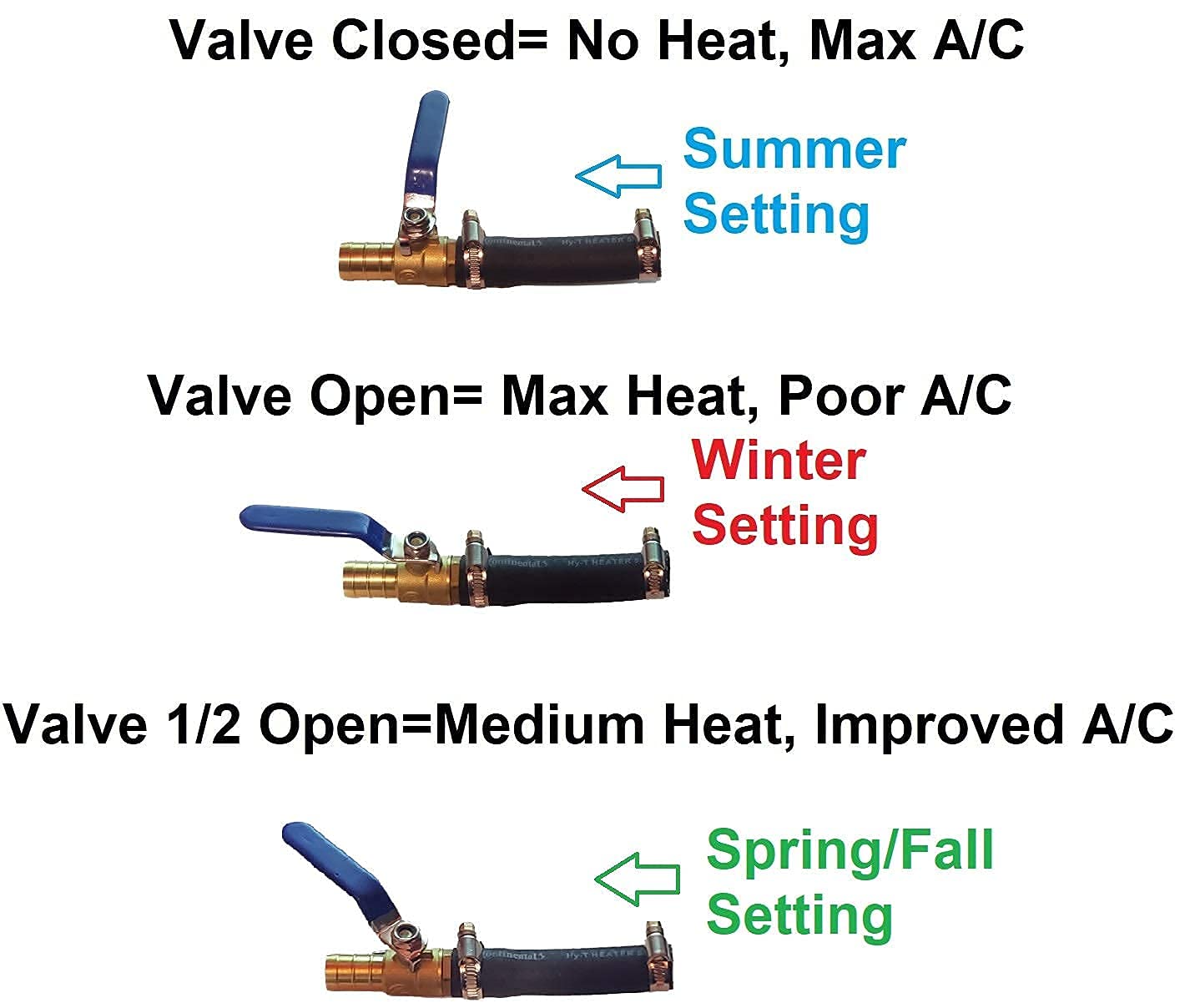

• Uses a manual shut-off valve to isolate the heater core when desired.
• Reversible and does not cut or permanently alter factory plumbing.

Where do I mount the valve on gas and diesel Rams?

Installation location differs by engine: gas engines get the valve at the water pump heater supply, while diesel engines mount it on the supply line above the turbo. Clear photo guidance is provided so you can find the correct hose without guessing.

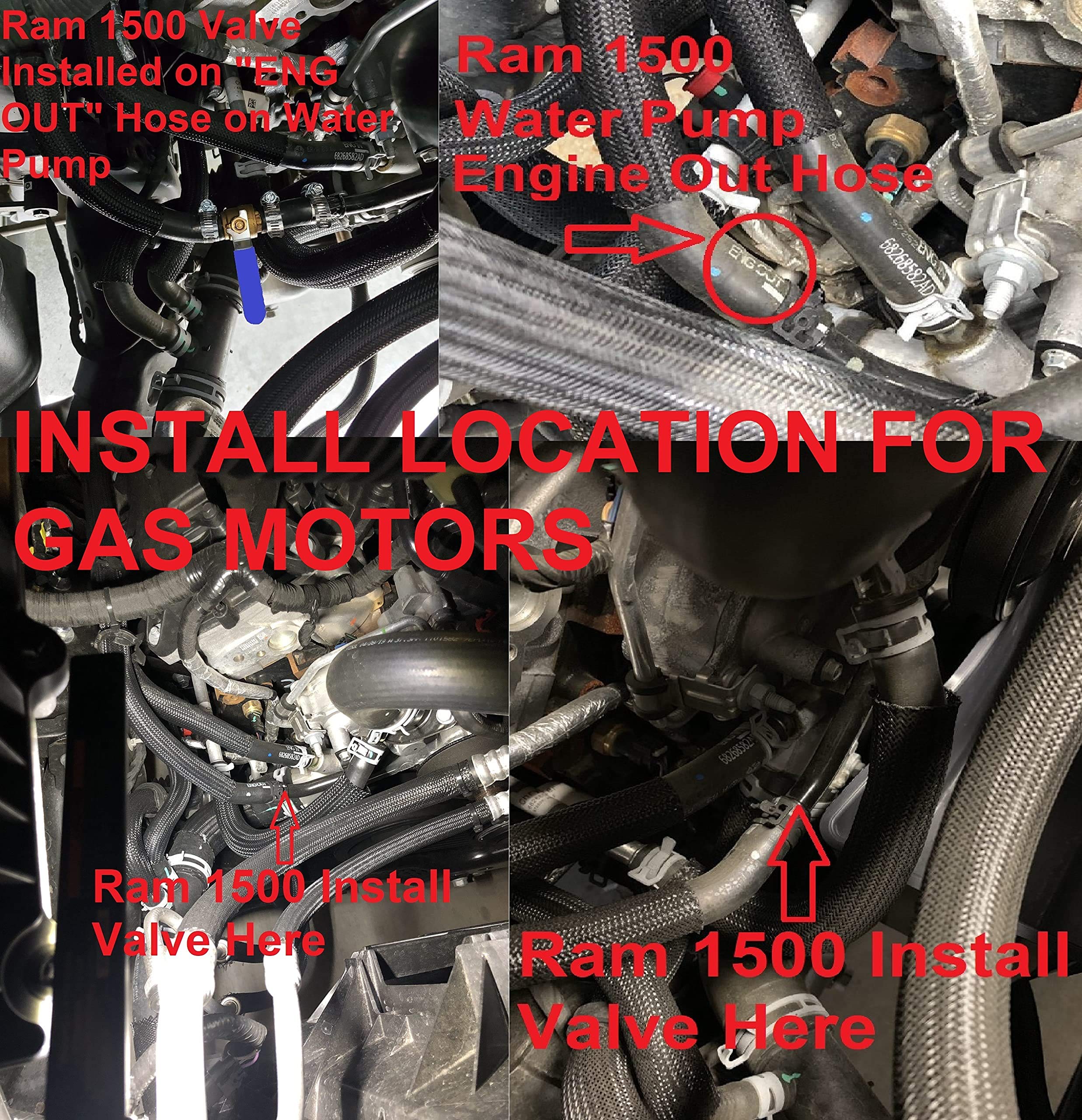

• Gas trucks: valve fits at the front water-pump heater outlet—connect supplied hose to the pump.

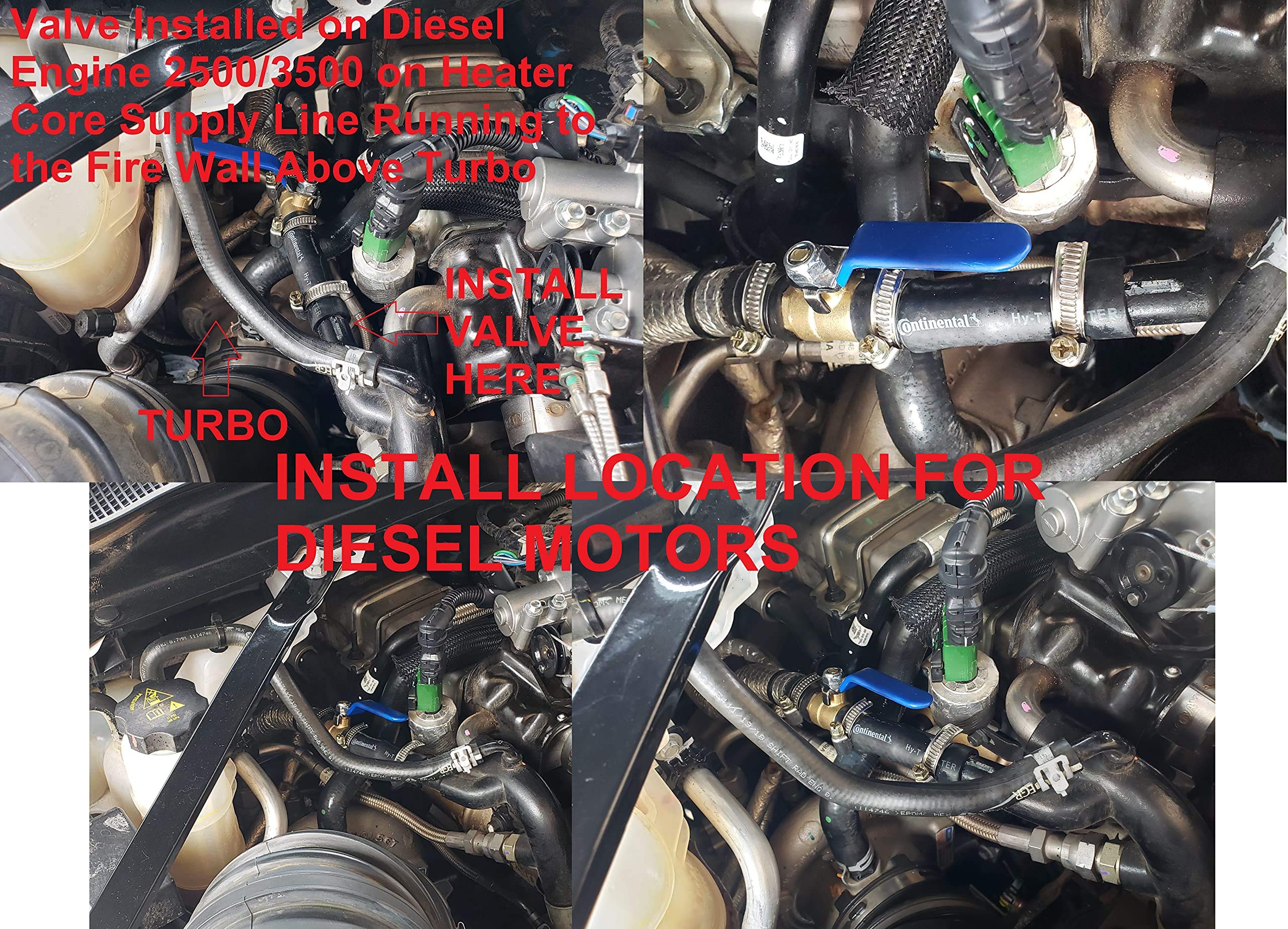

• Diesel trucks: valve installs on the heater supply line near the turbo—replace the removed hose with supplied piece.

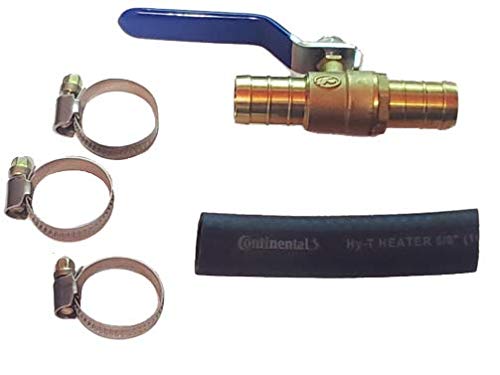

• Includes stainless clamps and hose sized for factory plumbing to ensure leak-free connections.

Will this void warranties or set engine lights?

The MUZZYS kit is designed to be non-destructive and reversible; it does not trigger engine fault codes or require ECU changes. Because the mod does not alter sensors or electronic systems, it avoids the risks associated with dash removal and HVAC system replacement.

• No electronic wiring or sensors are changed.
• Install is mechanical and reversible—restore factory routing anytime.
• Made from durable materials to match OEM performance and avoid failures.

Who is this for: This solution is aimed at Ram owners (2019–2022, 1500/2500/3500; gas and diesel) experiencing warm or weak A/C from the factory who want a quick, reliable fix without dealer-level dash surgery. It suits DIYers and technicians who prefer a reversible, cost-effective remedy that reduces vent temperatures significantly while preserving the truck’s original components.
