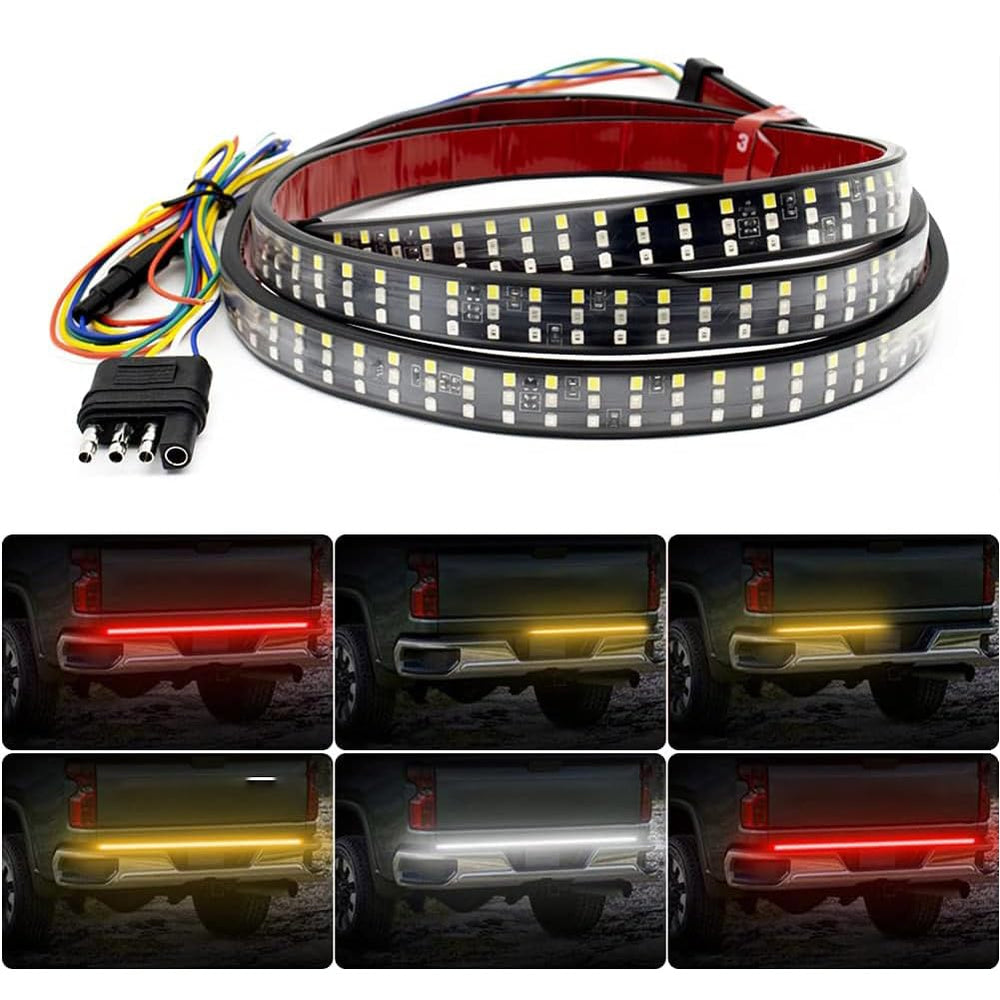

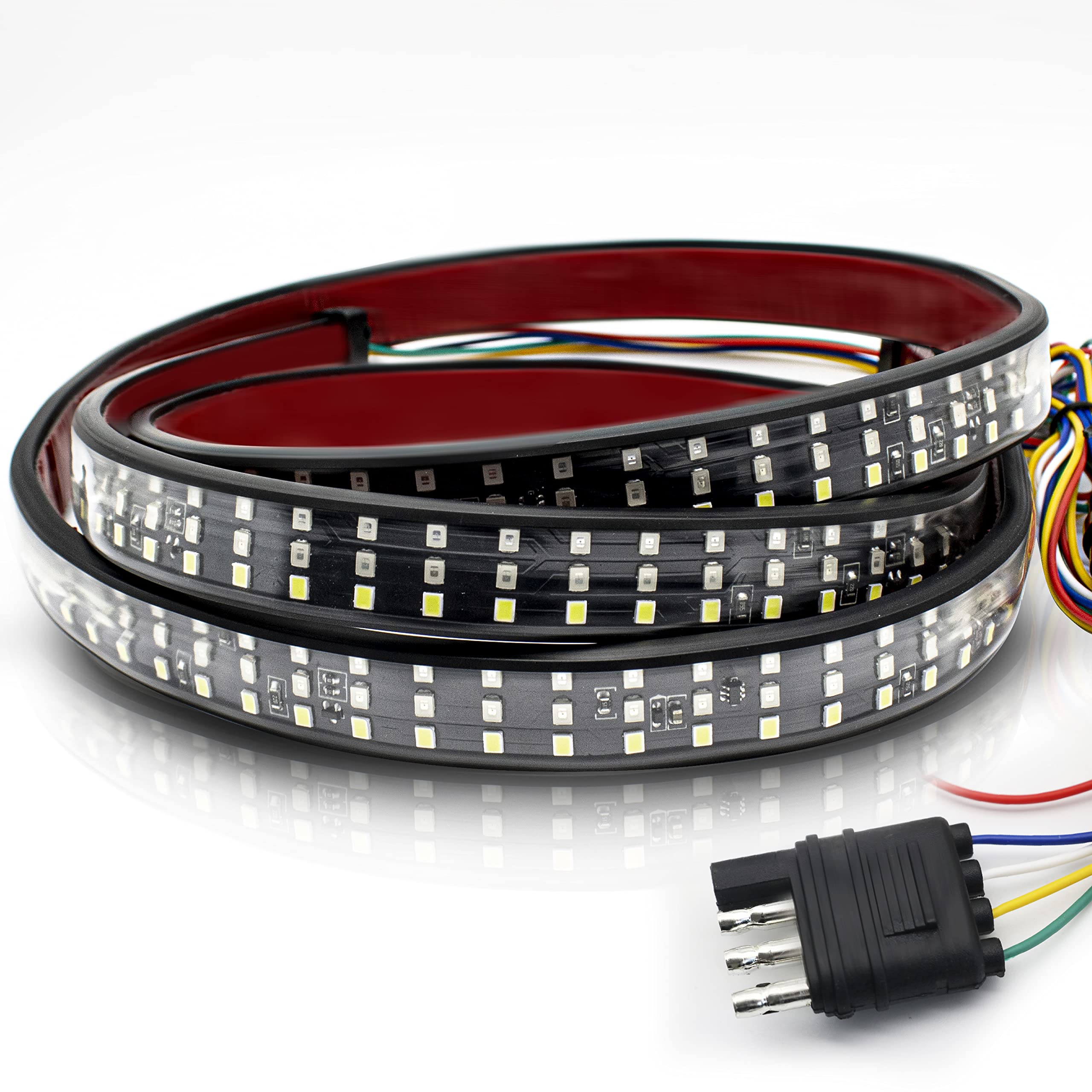

Nanpoku 60" Triple-Row LED Tailgate Light Bar — Full-Function Red Brake, Amber Turn, White Reverse, No-Drill IP67

The Nanpoku 60-inch Triple-Row Tailgate Light Bar is a full-function LED rear light that combines bright running lamps, brake, amber turn signals, reverse white, and an emergency flash into one no-drill unit designed for 12V trucks, trailers, SUVs, RVs and vans.

Upgrade rear visibility with a single, low-profile light strip engineered to span larger tailgates and rear bumpers. This 60" bar uses three rows of LEDs for high lumen output, a sealed IP67 housing for all-weather use, and a standard 4-pin flat plug so installers can connect to most 12V vehicle lighting circuits. It’s built for straightforward surface mounting with strong adhesive tape and is suitable where a long, continuous rear signal is preferred.

How bright is this 60-inch Nanpoku light bar compared with standard LED strips?

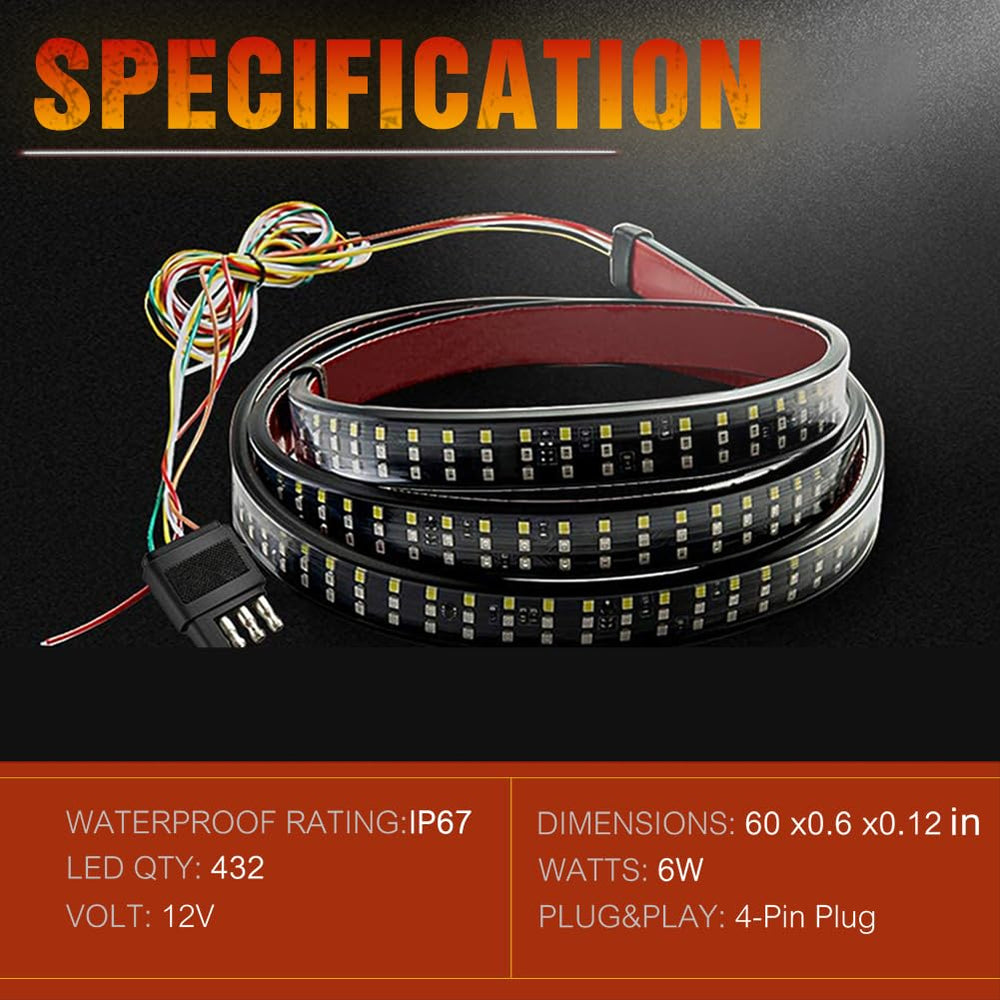

The triple-row layout packs 432 SMD LED chips to deliver significantly more visible light than single- or dual-row bars. That increase in LEDs enhances recognition distance and clarity for drivers behind you in daylight or at night.

• 432 x 3528 SMD LEDs across three rows for improved lumen output
• Distinct colors for running, braking, turning, and reversing to reduce confusion
• Better rear visibility in heavy traffic and low-light conditions

What lighting functions does the bar provide and how do they behave together?

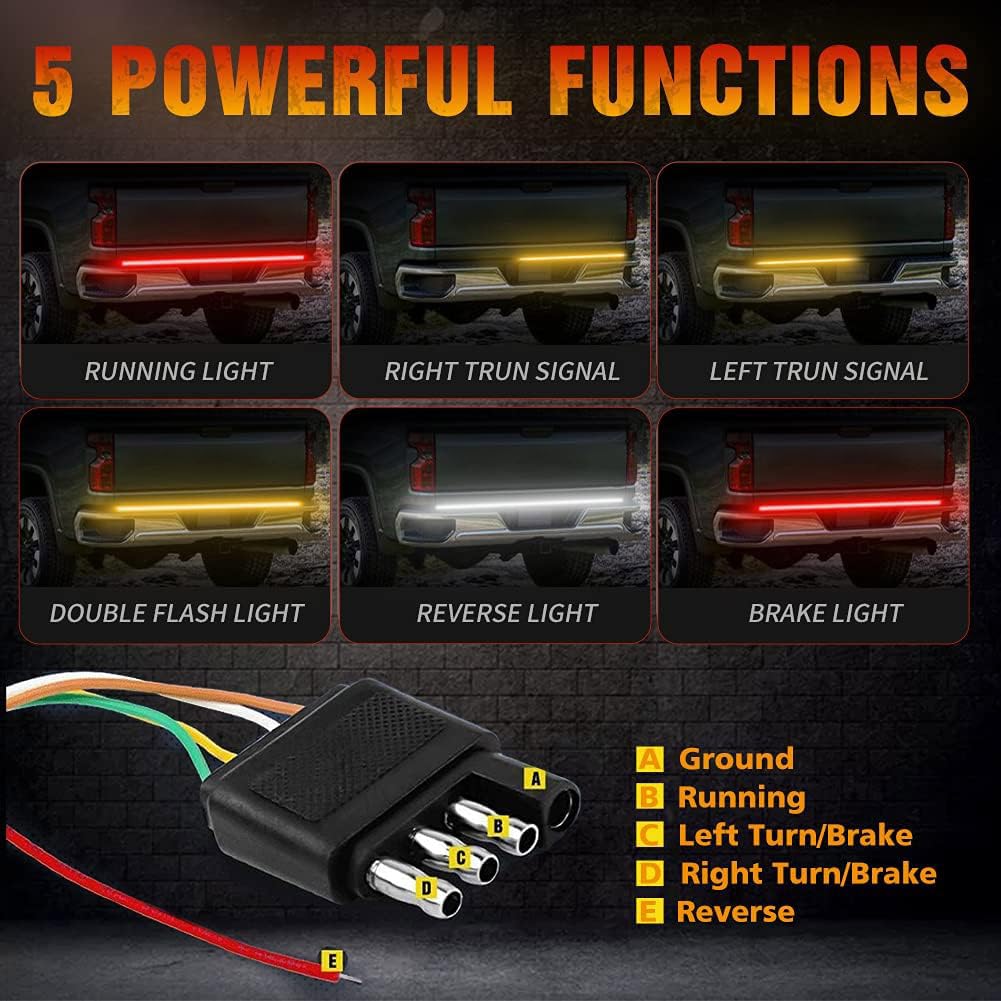

The Nanpoku bar supports low-intensity red running lights, brighter red brake output, amber left and right turn signals, white reverse illumination, and an amber strobe for emergencies. Note that the unit conveys one active message to trailing drivers at a time—for example, brake output will take precedence over a turn signal while depressed.

• Red running and stronger red brake lighting for clear brake indication
• Amber flash for left/right turn signals and emergency strobe
• White reverse lights for backup assistance
• Single-message priority: braking overrides turn signal until released

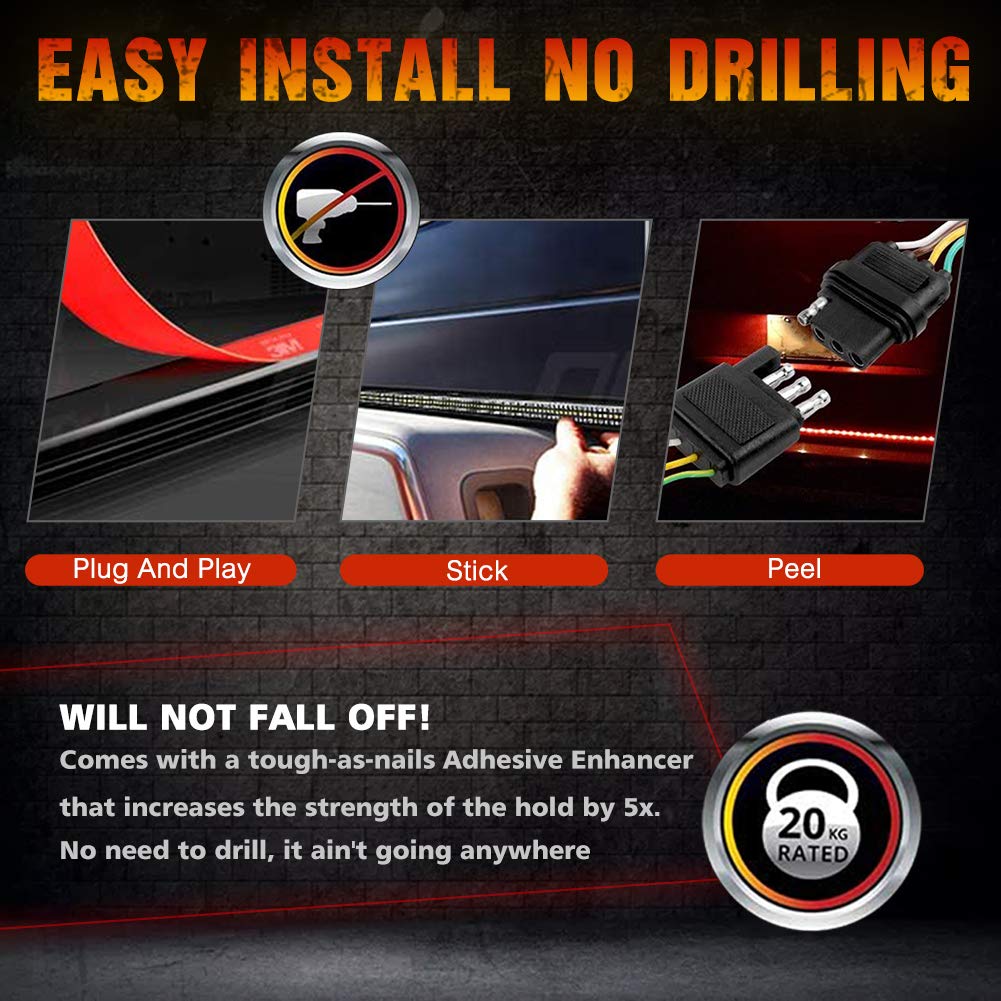

How simple is installation and will it fit my vehicle?

This 60" light bar is designed for 12V systems and installs without drilling on most flat tailgate or bumper surfaces using strong adhesive tape. It comes with a standard 4-pin flat plug to match common trailer and vehicle wiring; some modern vehicles may require decoding or an adapter for normal operation.

• No-drill surface mount using high-bond adhesive tape
• Standard 4-pin flat plug for quick wiring to 12V systems
• May need decoding or wiring adaptation on certain vehicle models
• Manual included; professional shop can help with complex installations

Is this light bar weatherproof and durable for long-term use?

The housing is sealed to achieve an IP67 rating, meaning it resists dust and temporary immersion in water—suitable for rain, snow, and routine road spray. The construction and connector are made for automotive environments, though positioning and occasional inspection help maintain longevity.

• IP67-rated enclosure resists water and dust ingress
• Robust adhesive and corrosion-resistant connector for exterior use
• Works across seasons, from rainy drives to snowy conditions
• Periodic checks recommended to ensure adhesive and seal integrity

Who this is for: Drivers and fleet owners who need a long, continuous rear light for improved signaling and visibility—especially those with wide tailgates or extended bumpers. Ideal for pickup trucks, trailers, RVs, vans, and SUVs that run 12V electrical systems and want a high-output, multi-function rear lighting solution with minimal modification. If your vehicle has advanced lighting control, be prepared to decode or adapt the wiring for full compatibility.
