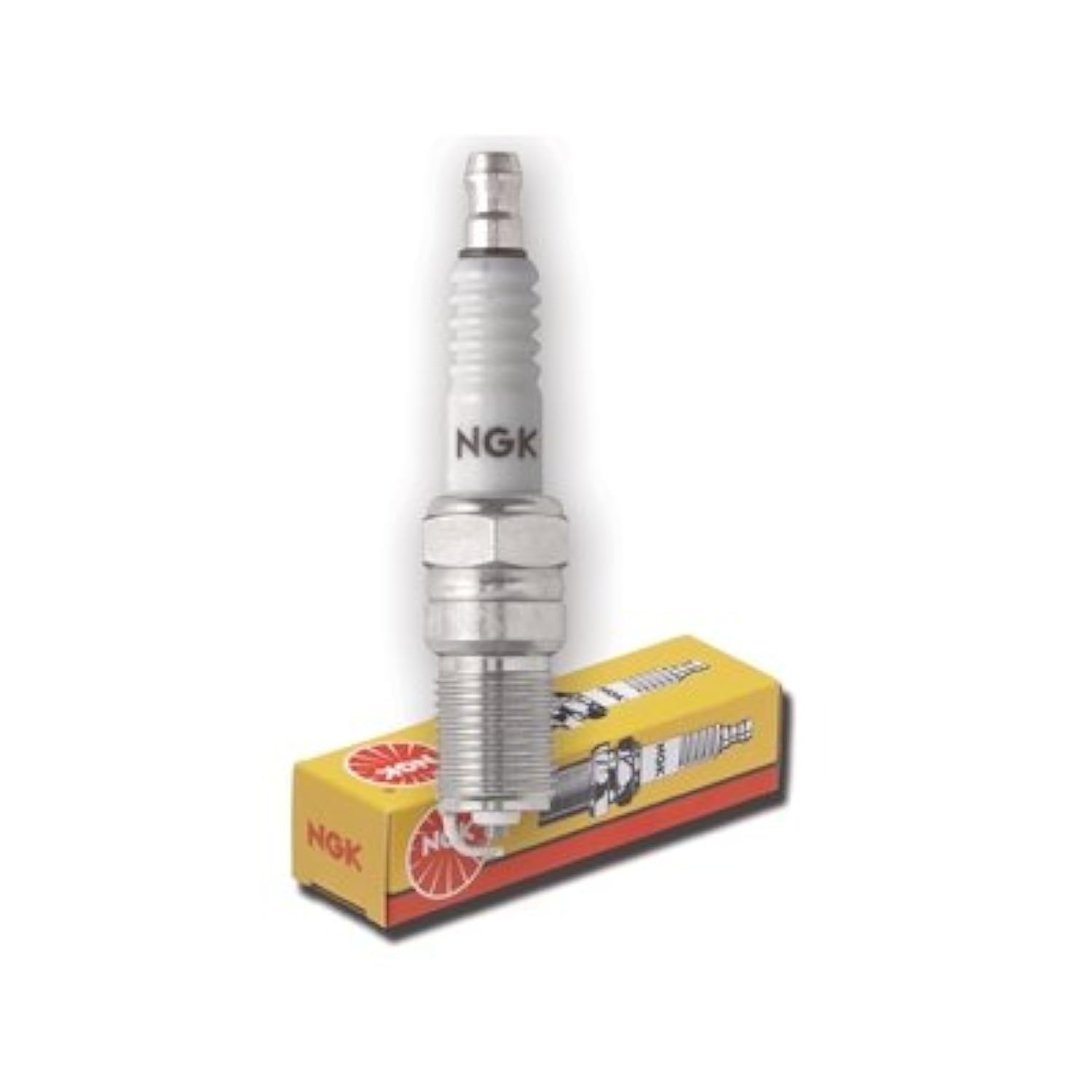

NGK spark plugs LKR6E-9N 4-pack — standard 12mm thread, copper core, trivalent-plated for corrosion resistance

NGK 90410 LKR6E-9N is a four-pack of reliable standard spark plugs engineered for consistent ignition, corrosion resistance, and efficient heat management in compatible engines.

This set of NGK standard spark plugs combines proven materials and thoughtful design to deliver long service life and dependable performance for routine maintenance or replacement. Built with a copper core, high-strength ceramic insulator, trivalent metal plating and corrugated ribbing, these plugs focus on stable spark delivery and ease of installation while minimizing common failure modes like flashover, seizing and leakage.

How do these plugs reduce the risk of corrosion and seizing?

NGK applies a trivalent metal plating that helps protect the threaded shell from rust and chemical attack, reducing the likelihood of the plug becoming stuck in the cylinder head. The plating is selected to be durable in automotive conditions so removal at future service intervals is easier and less likely to damage the head.

• Trivalent metal plating resists corrosion and prevents thread seizing
• 12mm thread size matches many passenger and light-duty engines
• Gasket seat design ensures proper sealing against combustion gases

What engineering features control heat and ensure reliable ignition?

The core and insulator materials are chosen to manage temperature and maintain stable spark performance. A copper core conducts heat away from the firing tip, while a high-purity alumina silicate ceramic insulator offers structural strength and effective heat transfer for consistent thermal behavior.

• Copper core promotes rapid heat removal from the firing area
• Pure alumina silicate ceramic insulator increases strength and thermal conductivity
• 26.5 mm (1.04") reach positions the firing tip at the correct depth for specified engines

How does the design prevent misfires and leakage?

NGK minimizes electrical leakage and misfires using corrugated ribs on the insulator that interrupt potential flashover paths along the plug body. Multiple seals also stop combustion gases and oil from entering places they shouldn’t, preserving ignition reliability under real-world conditions.

• Corrugated ribbing reduces flashover along the insulator surface
• Triple sealing prevents gas and oil ingress that could cause misfires
• Built-in 5 KΩ resistor helps suppress radio-frequency interference while protecting ignition components

What installation and specification details should I check before buying?

Confirm that the plug’s mechanical and electrical specs match your engine’s requirements before installing. This NGK LKR6E-9N has specific thread, hex, and reach dimensions plus a standard plug gap; using the wrong configuration can affect fit, combustion or engine performance.

• Thread size: 12 mm; reach: 26.5 mm (1.04")
• Seat type: gasket; hex size: 5/8" (16 mm) for installation torque and socket fit
• Terminal type: solid; factory gap: 0.035" (0.9 mm); resistor: 5 KΩ

Who is this for: This NGK 90410 LKR6E-9N 4-pack is aimed at vehicle owners, mechanics and fleet technicians seeking a durable, OEM-style replacement spark plug for compatible gasoline engines. It suits anyone who wants straightforward, maintenance-ready plugs with corrosion resistance, effective heat control and built-in EMI suppression for routine tune-ups or scheduled spark plug replacement.
