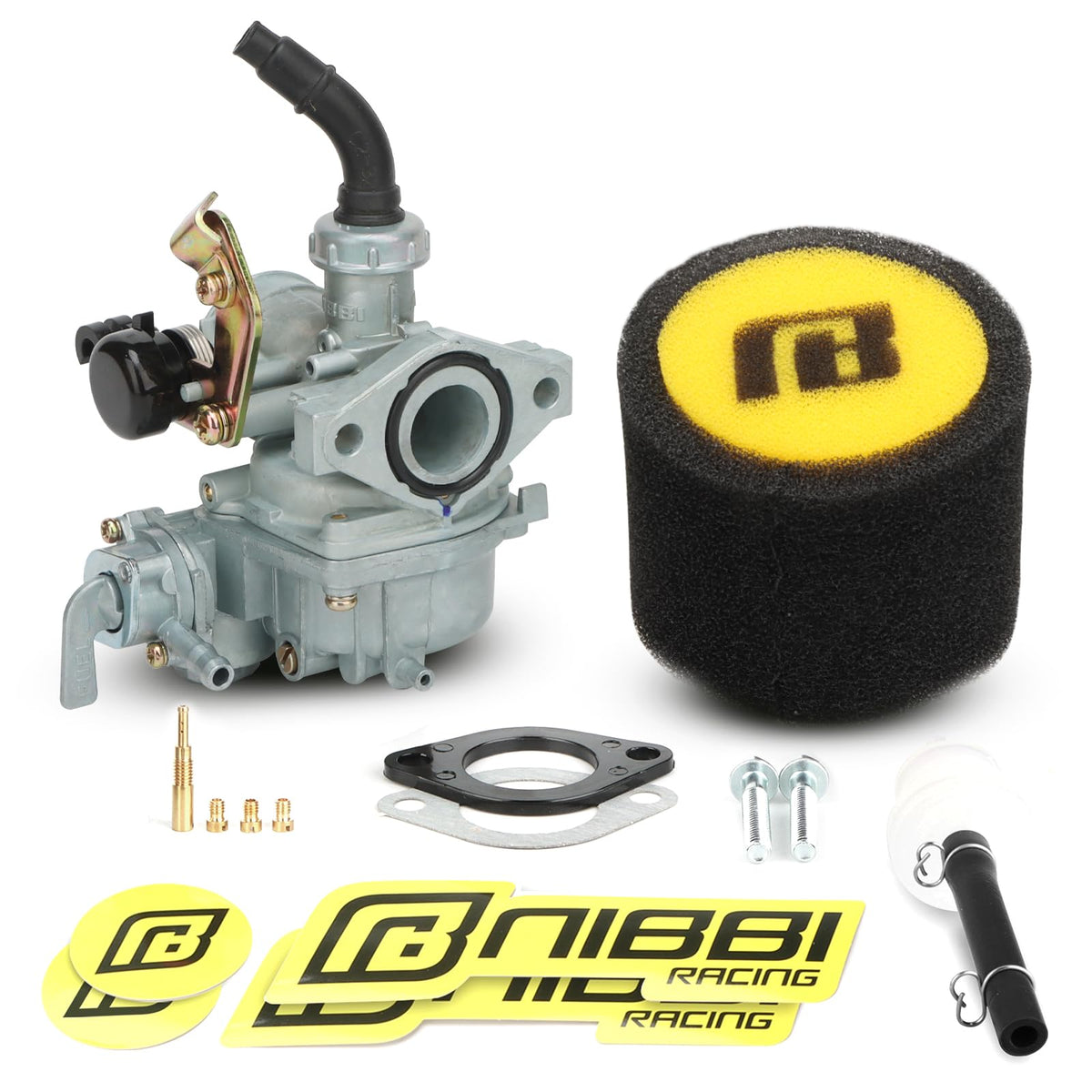

nibbi PZ19 Carburetor Kit with 35mm Double-Foam Air Filter for 50–125cc — Replaceable Jets, Cable Choke

This Nibbi kit combines a PZ19 carburetor and a washable, double-layer foam 35mm air filter to suit a wide range of small-displacement dirt bikes, pit bikes, ATVs, scooters and go-karts. Built with a cable choke, adjustable idle and replaceable jets, the carburetor is aimed at riders who need a straightforward, serviceable part to replace worn or clogged factory units. The kit comes with extra main and pilot jets so you can tune mixture and idle settings for varying altitudes, fuel types, and riding conditions.

How does this carburetor improve engine response?

The PZ19 body and replaceable jets let you fine-tune the air/fuel mixture to recover lost throttle snap and smooth idle. Replacing an old, clogged carb with a properly sized PZ19 often eliminates bogging and hesitation when accelerating.

• PZ19 intake diameter: 19mm (0.75").

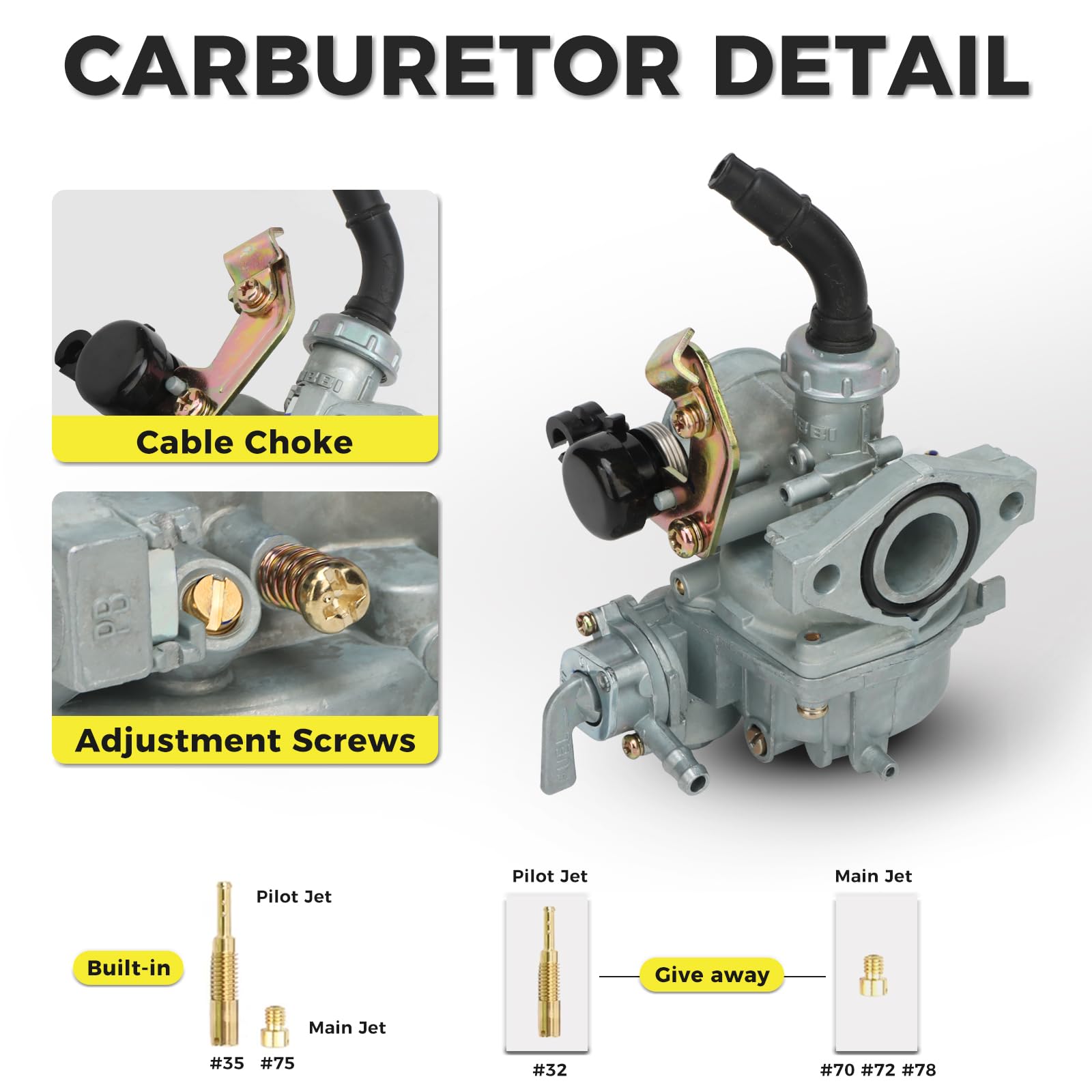

• Main jet shipped: #75; included extras: #70, #72, #78 for tuning.
• Pilot jet supplied: #35 plus extra #32 to refine idle mixture.
• Cable-style choke for simple cold-start operation and adjustments.

Will the 35mm air filter keep dirt out on off-road rides?

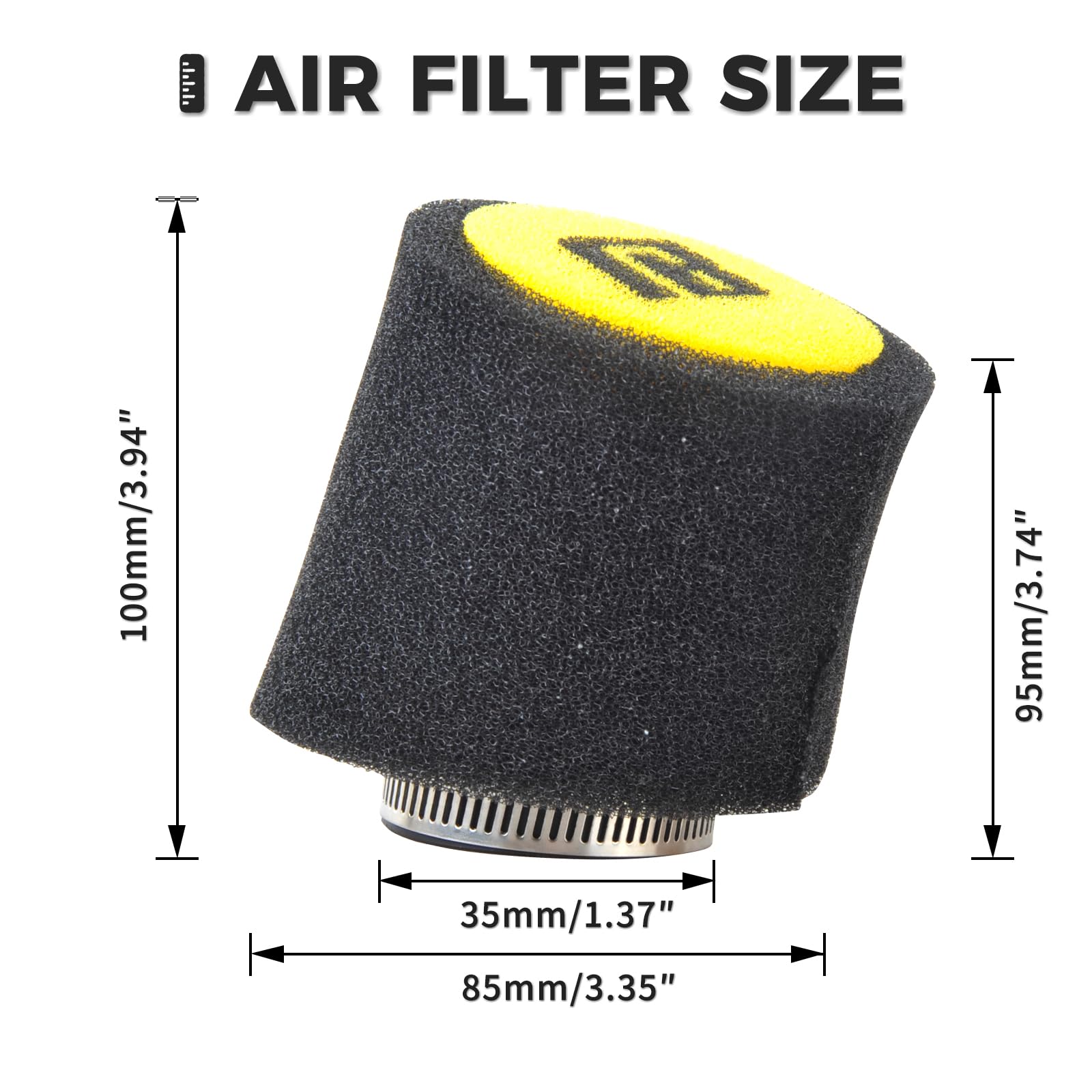

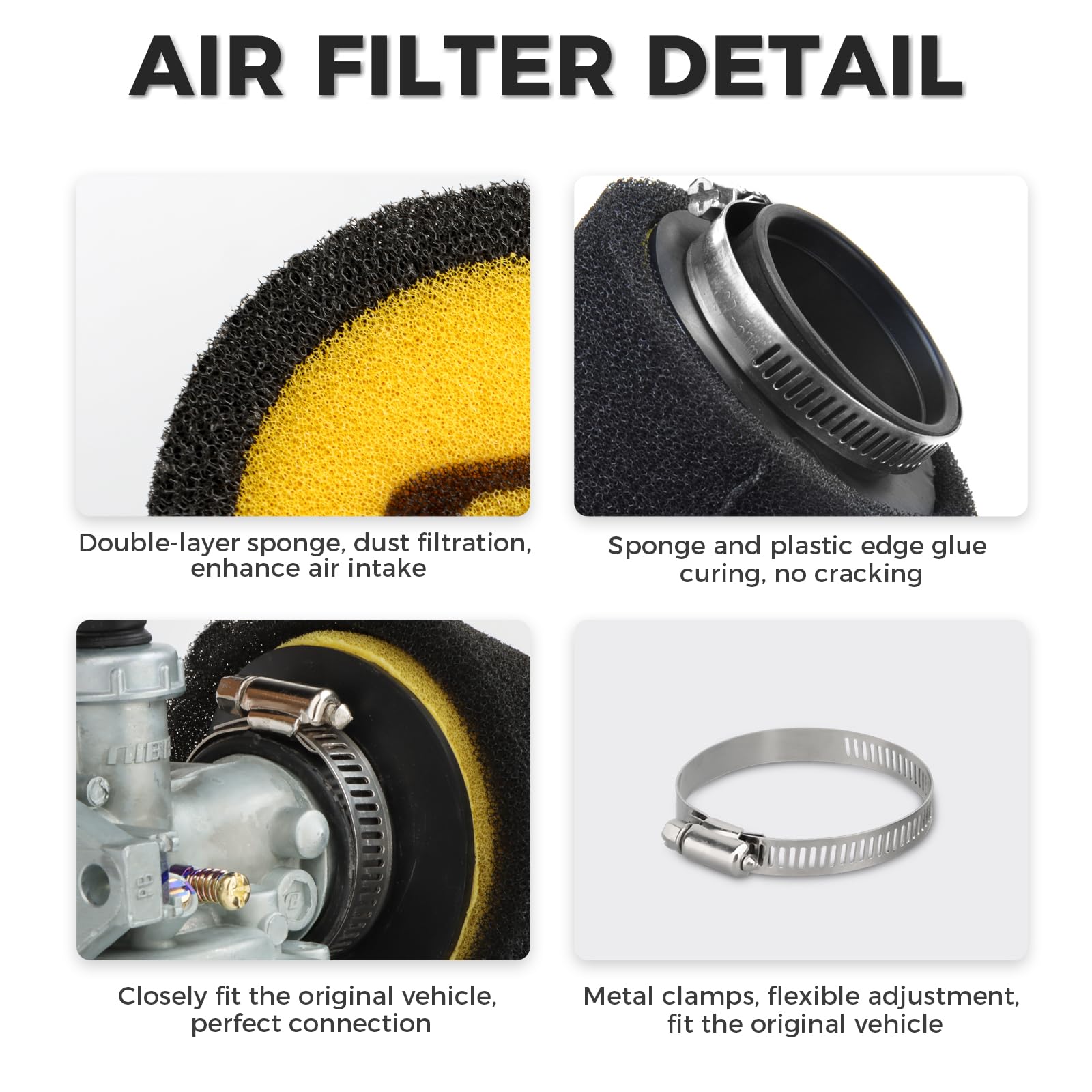

The Nibbi air filter uses a double-layer foam construction that traps larger and finer particles while still allowing adequate airflow. It's washable and reusable, so maintenance is straightforward after dusty or muddy outings.

• Double-foam layers for staged filtration and longer service intervals.
• Washable with soap and water, then re-oil per foam filter practice.
• Designed to match the 35mm intake for correct sealing and airflow balance.
• Helps protect the engine from abrasive particles that accelerate wear.

Which machines and measurements is this carburetor compatible with?

This PZ19 with a 35mm filter is intended for many 49cc–125cc Chinese-engine small vehicles. Confirm bolt spacing and intake diameter before ordering to ensure a correct fit.

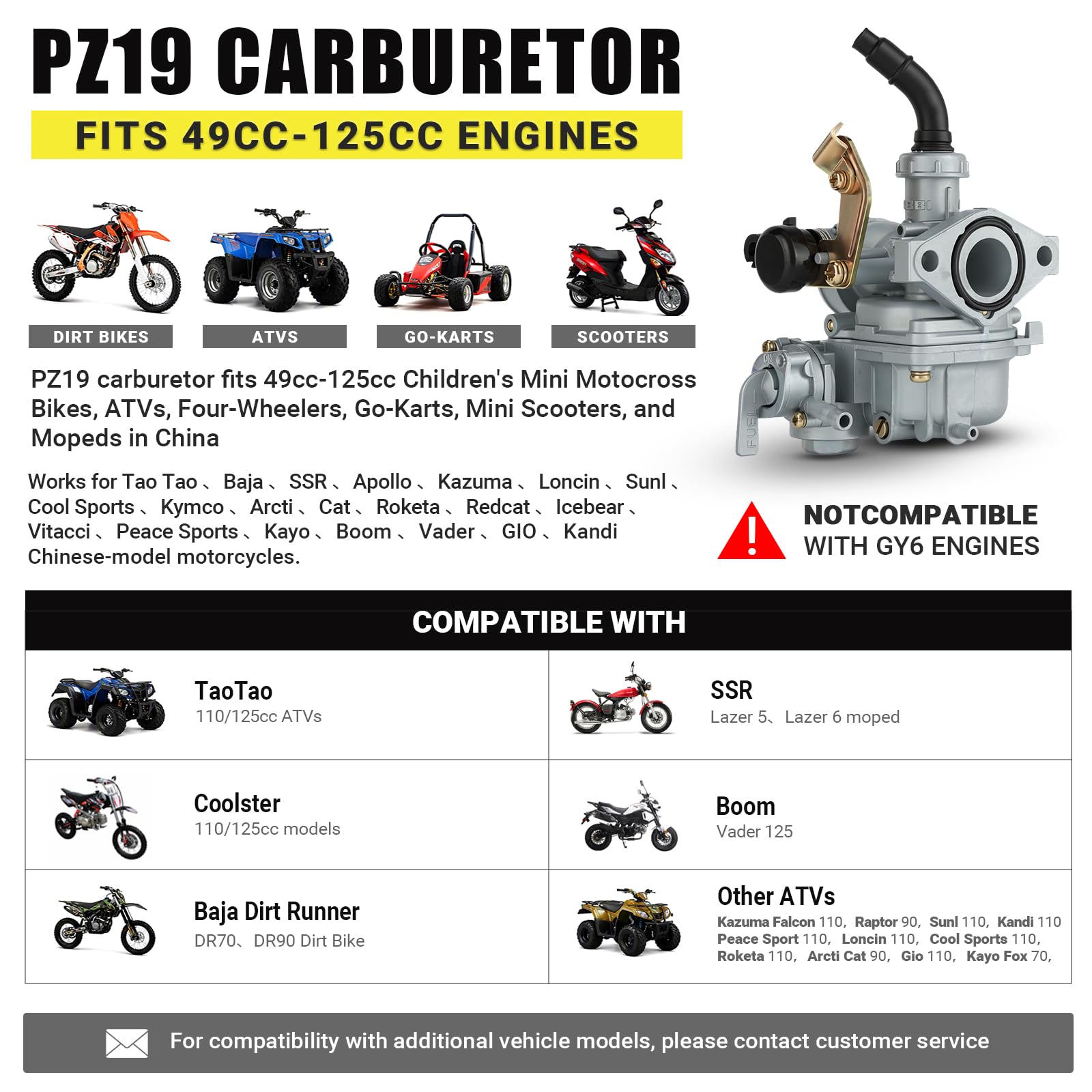

• Fits 49cc, 50cc, 70cc, 90cc, 110cc, 125cc small engines commonly found on Tao Tao, SSR, Coolster, Apollo and similar models.

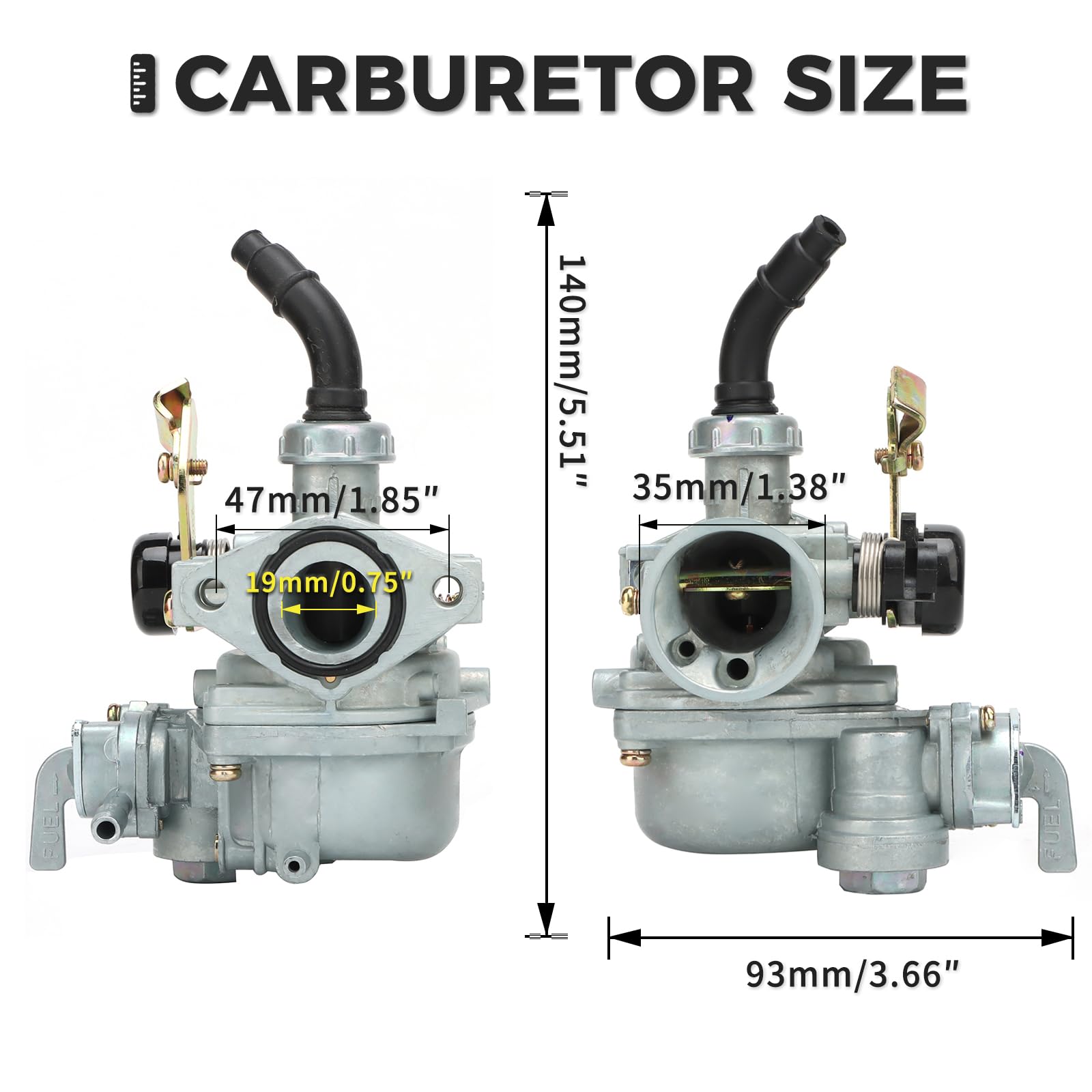

• Bolt hole center-to-center spacing: 47mm (1.85").
• Intake inside diameter: 19mm/0.75".
• Includes multiple jets to accommodate different setups and altitudes.

How easy is installation and routine maintenance?

Installation is straightforward for anyone comfortable with basic carburetor work: remove the old carb, bolt the new unit in place, connect throttle and fuel, and set idle and mixture. Routine upkeep mainly involves cleaning or replacing the foam filter and checking jets for clogs.

• Cable choke and basic adjustments make tuning accessible without special tools.
• Washable air filter reduces repeated part purchases—clean and re-oil as needed.
• Extra jets let you correct mixture rather than buying a different carburetor.
• If unsure, reference engine manual or consult a mechanic for final tuning.

Who is this for: Riders or owners of small-displacement dirt bikes, pit bikes, ATVs, scooters, go-karts and small quads who need a serviceable replacement carburetor and filter. It's particularly useful if your machine suffers from poor idle, hesitation under acceleration, or if the original air filter is clogged or damaged. Before purchasing, verify your engine's intake diameter and bolt spacing match the PZ19 specifications to ensure proper fitment. If you have questions about compatibility or installation, contact the seller with your engine model and measurements.
