Nilight 12V Rocker Switch Wiring Harness Panel — 3-Gang LED, Relay-Protected 540W

Nilight's 12V 3-gang rocker switch wiring harness kit is a ready-to-install electrical solution that lets you control up to three independent lighting circuits safely from a single panel.

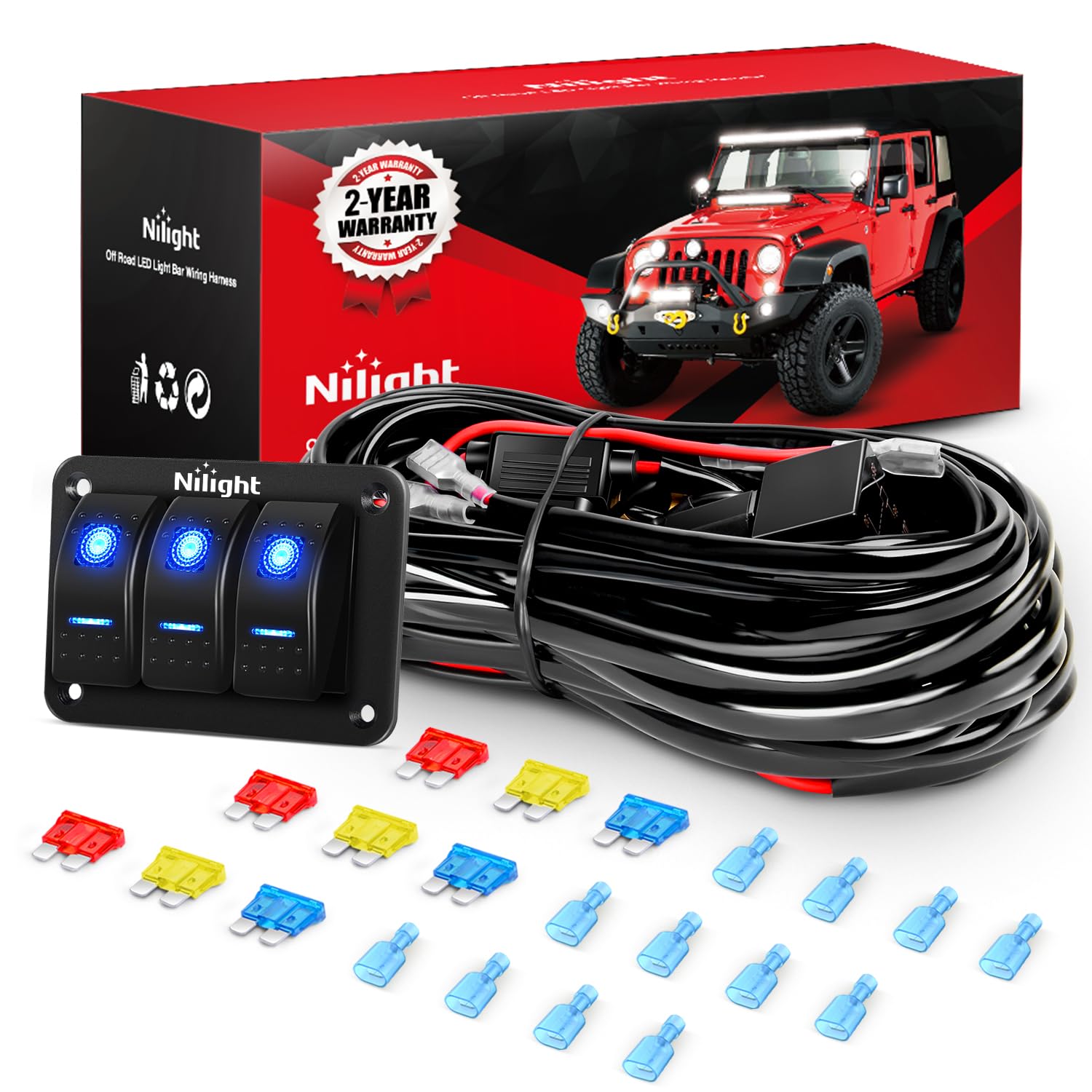

This complete wiring harness package includes a durable 3-gang switch panel with illuminated rockers, a heavy-gauge 16AWG stranded main harness rated for up to 540W total (180W per circuit), inline blade fuses, spade connectors and clear instructions. The kit is built for 12V vehicle environments—cars, trucks, ATVs, UTVs, RVs, boats and trailers—and is sized for practical DIY installs with a 9.8-foot total cable length. Each switch operates a dedicated circuit via a relay-protected feed to reduce load on the vehicle's factory wiring and improve safety during high-current draws.

How does this harness protect my vehicle's electrical system?

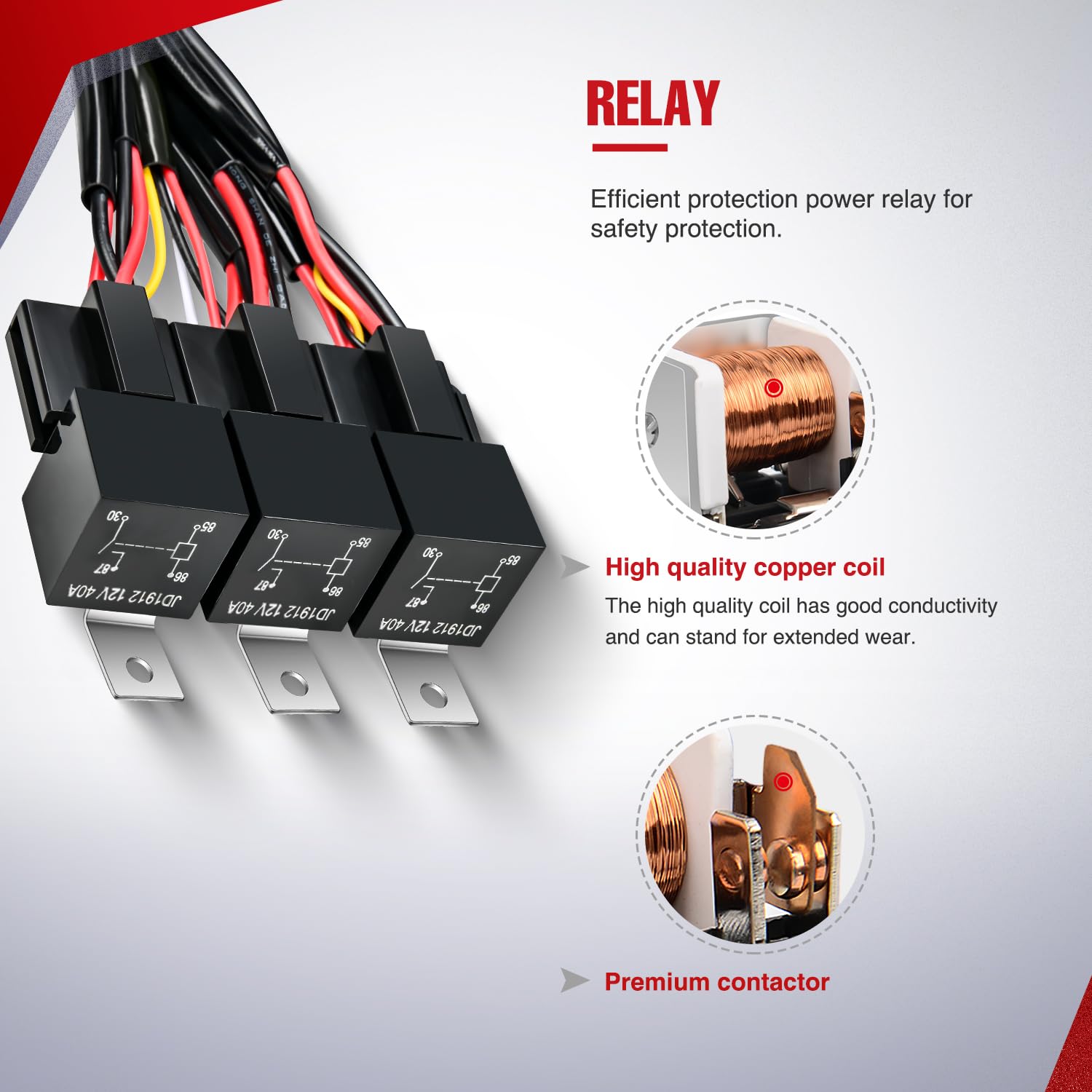

Protection is built into the design: the harness uses a power relay as the primary switching device and an inline blade fuse on the feed to defend against overcurrent and short circuits. Using relays isolates high-current loads from the switch contacts and the vehicle’s factory wiring harness.

• Relay-driven switching reduces heat and wear on dashboard switches.

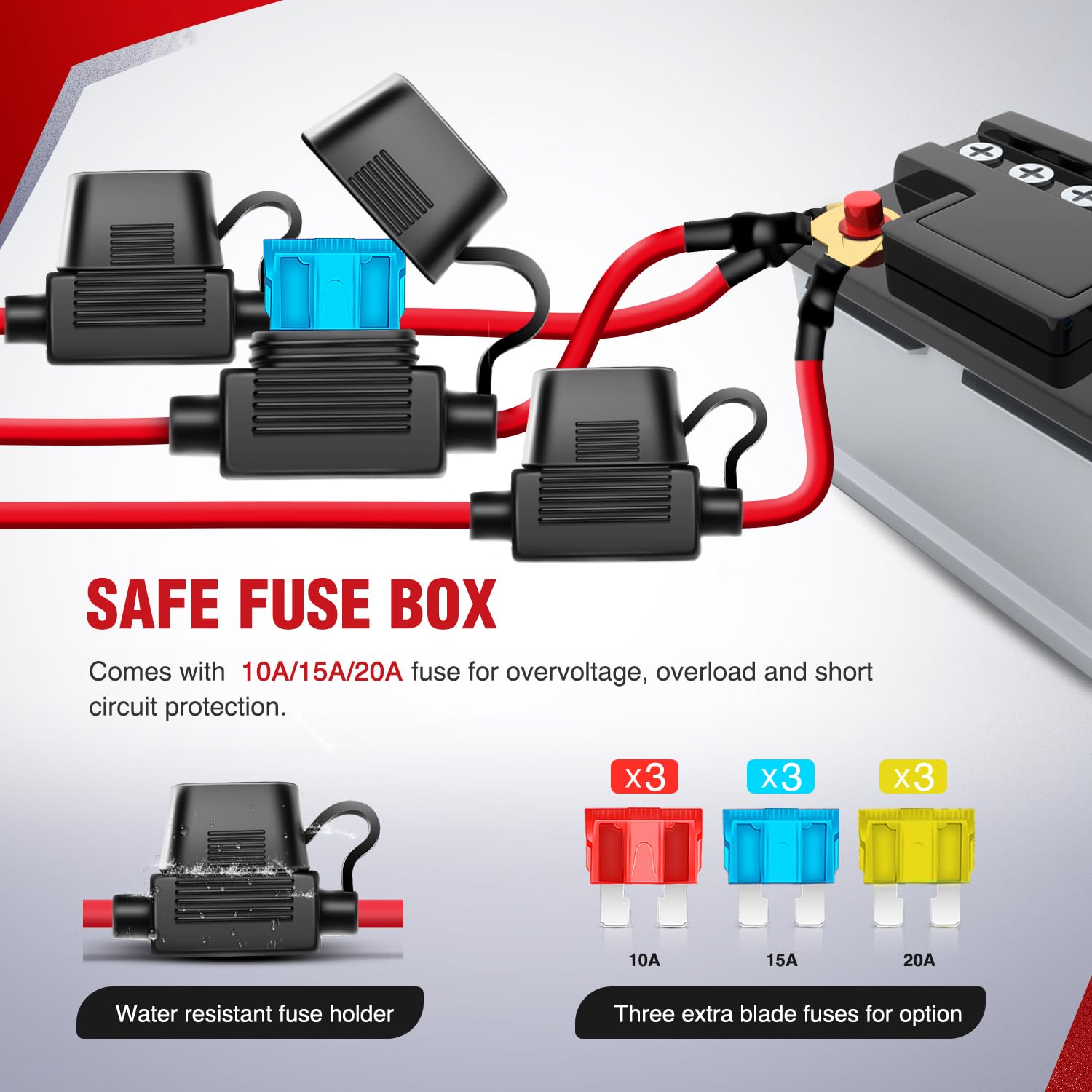

• Inline blade fuse acts as the first line of defense against short circuits.
• 16AWG stranded wiring handles up to 180W per circuit safely.

What can I connect and how many devices does it support?

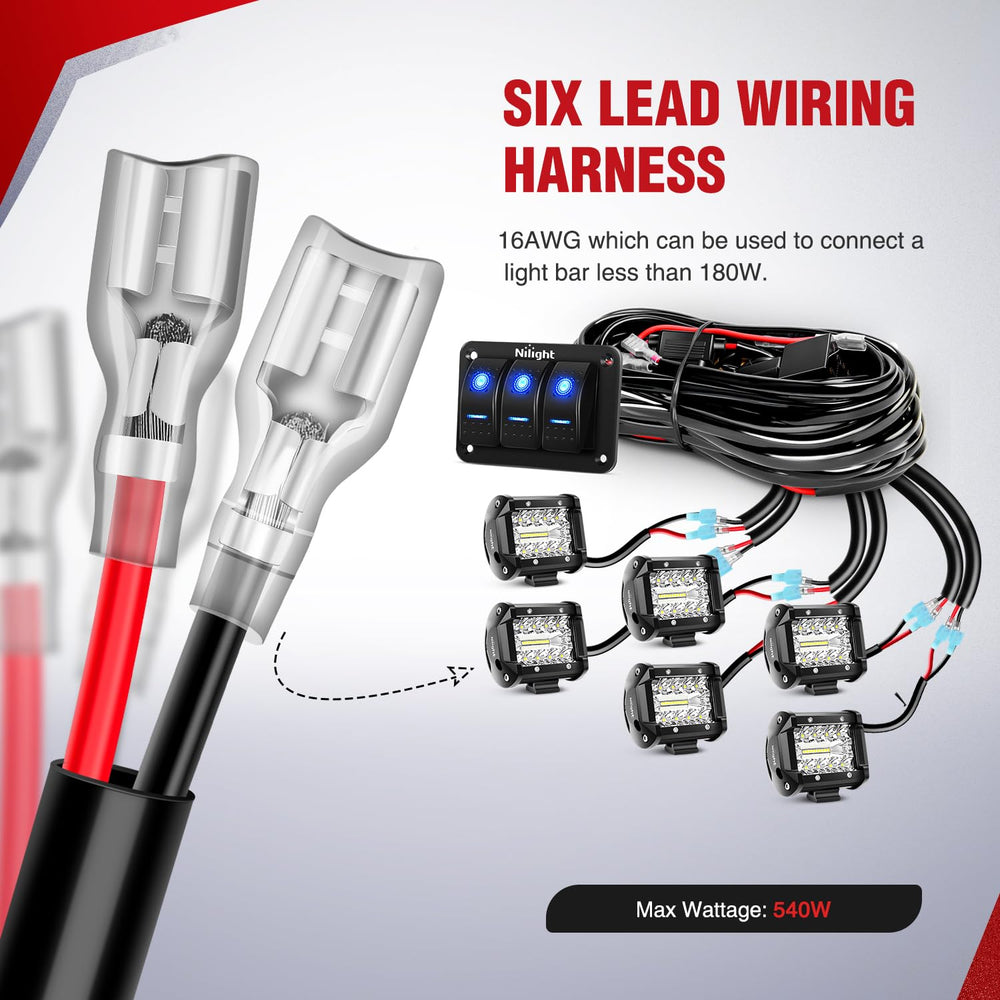

The kit supplies six output leads (two per switch), so each rocker can control one lighting device or a pair of lights wired together. Typical uses include front and rear light bars, interior auxiliary lights, fog lamps, or additional accessory lighting.

• Three independent switch circuits — control up to three separate light groups.
• Six output leads allow direct wiring to six discrete fixtures if desired.
• Total rated load up to 540W across all circuits (180W maximum per circuit).

How easy is installation and customization for my vehicle?

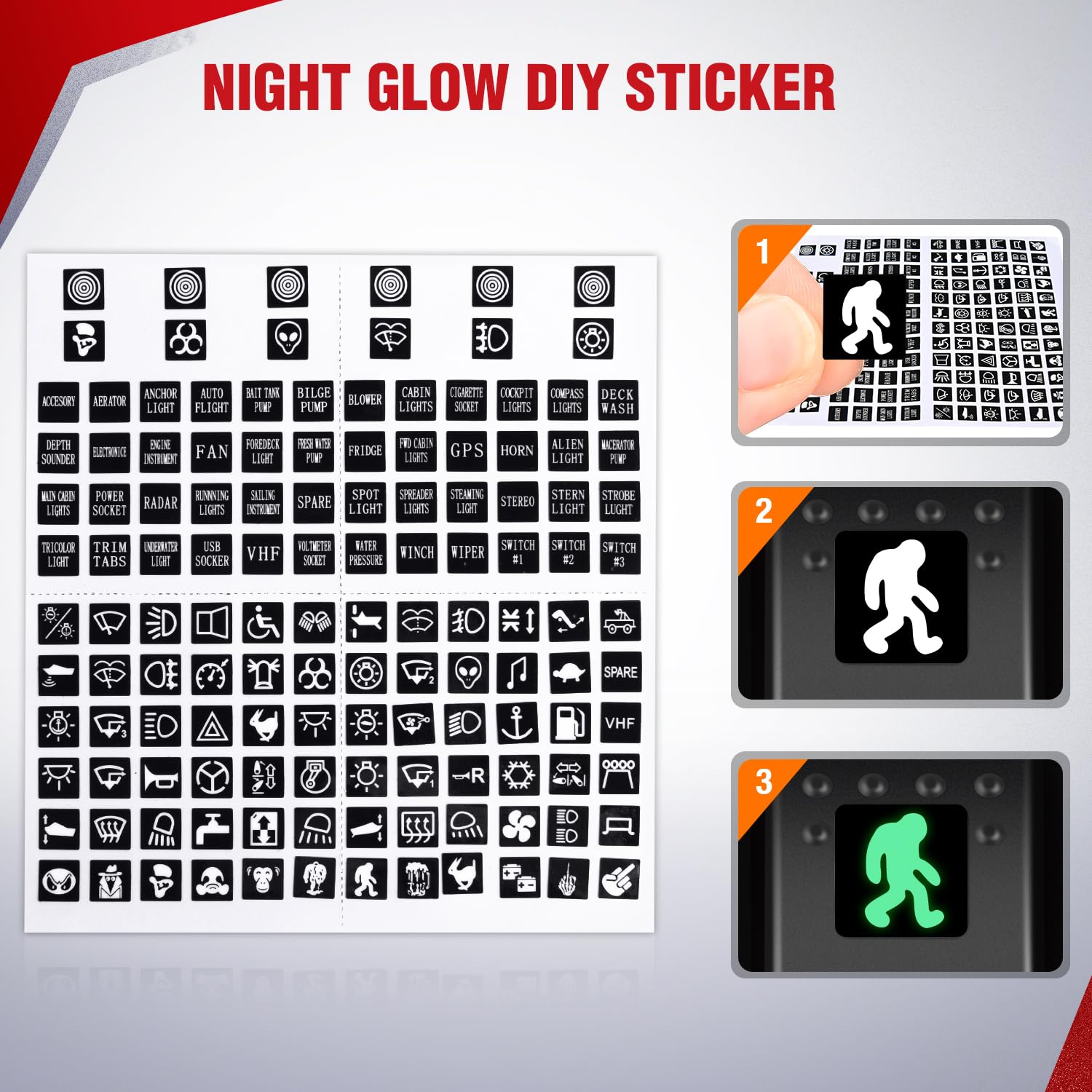

Installation is designed for DIY enthusiasts and professional installers alike: the harness arrives with pre-crimped connectors, blade fuses and instructions to speed up mounting. The rocker switches include removable blank labels so you can mark each switch for its intended function, and the illuminated switches provide a visual indicator when a circuit is active.

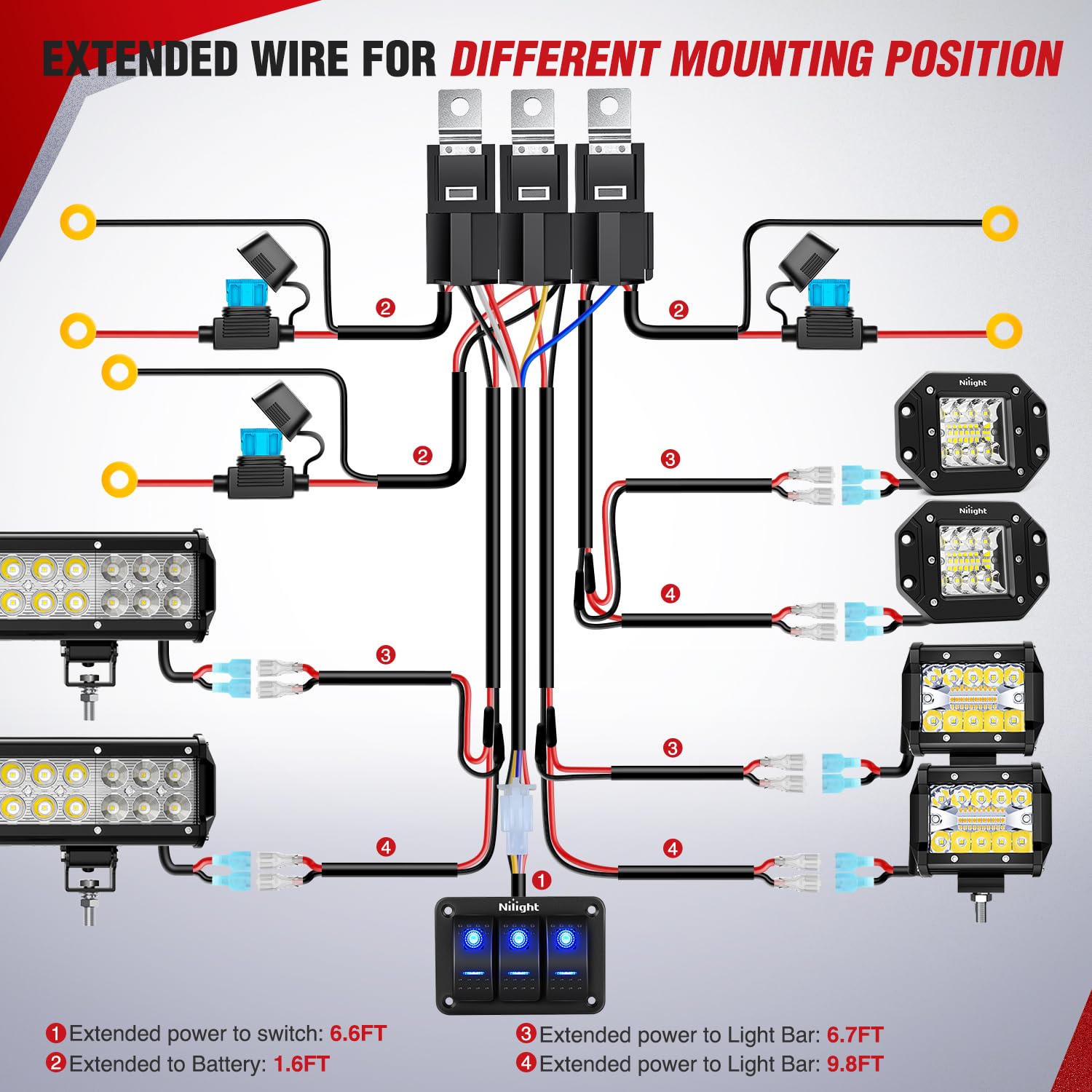

• 9.8-foot total harness length for flexible routing and mounting locations.
• Pre-installed spade connectors and blade fuses for plug-and-play connections.

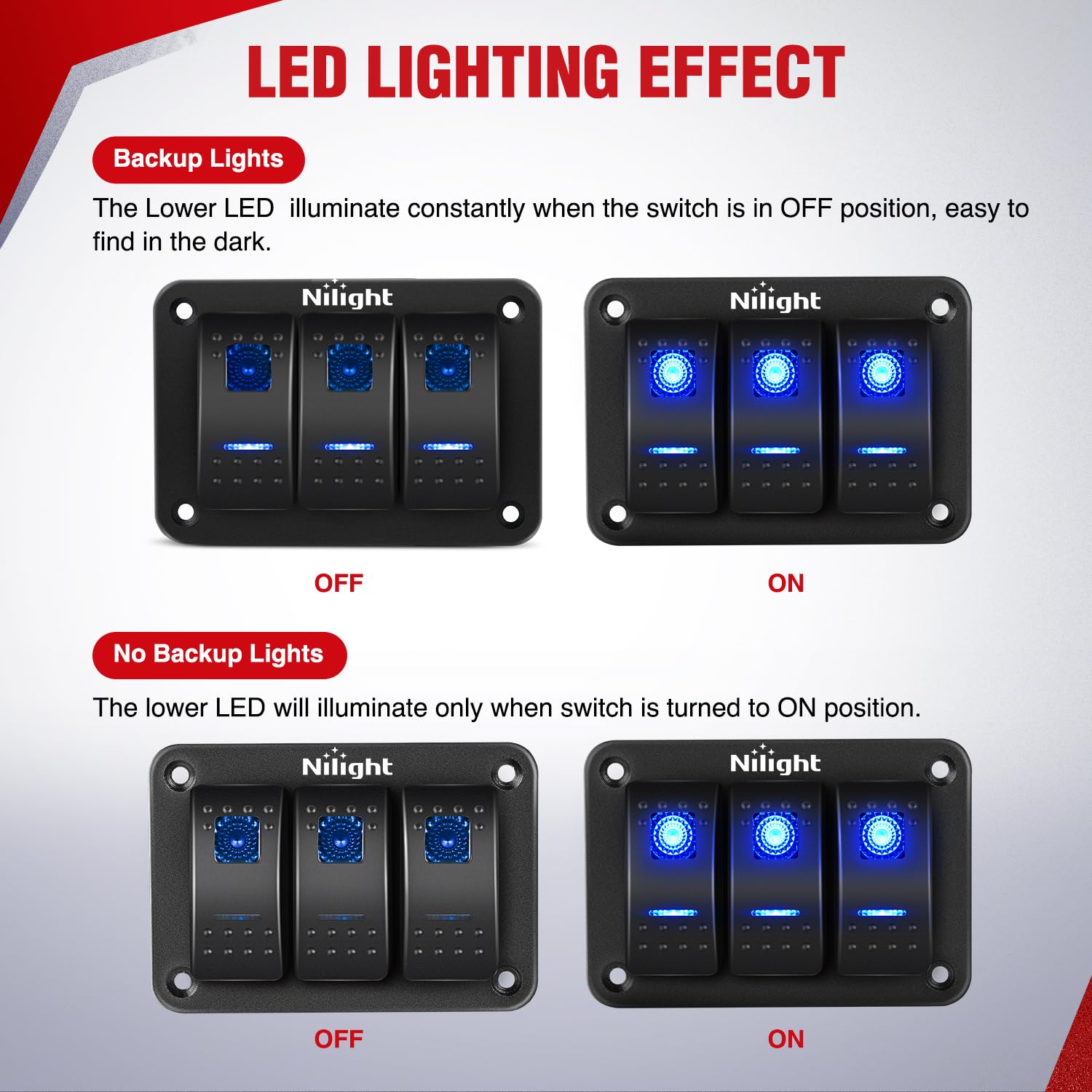

• Switch LEDs show active circuits; labels are user-customizable for clarity.

Will this work on non-12V systems or unusual vehicles?

This harness is engineered for standard 12V battery systems found in most cars, trucks, ATVs, UTVs, campers and boats. If your vehicle runs a 24V electrical system, you must replace the included 12V relay with a compatible 24V relay to avoid damage and ensure proper operation.

• Compatible with 12V automotive, marine and recreational applications.
• 24V systems require swapping to a 24V-rated relay before use.
• Always confirm available cable length and mounting space before purchase.

Who is this for: The Nilight 12V 3-gang rocker switch wiring harness is ideal for vehicle owners, off-road enthusiasts and DIY installers who need a compact, relay-protected solution to add or organize auxiliary lighting. It suits anyone wanting clear on/off control of multiple light circuits without tapping into factory wiring, from weekend modifiers wiring light bars on trucks to boat owners adding deck or utility lights.
