Nilight 50A RV Circuit Tester NEMA 14-50P — LED Diagnostic Lights, ETL-Certified

When you arrive at an RV power pedestal, a quick, reliable check of voltage and wiring can prevent damage to appliances and avoid frustrating outages. The Nilight 50 AMP RV Circuit Tester (NEMA 14-50P) plugs directly into a 50A/125V receptacle and uses a row of diagnostic LEDs plus a reference chart to identify correct wiring, open legs, reversed connections, and ground or neutral faults. Built with a flame-retardant ABS shell and pure-copper conductors, it’s made for repeated outdoor use at campgrounds, marinas, and RV parks.

How does the tester show whether a pedestal is wired correctly?

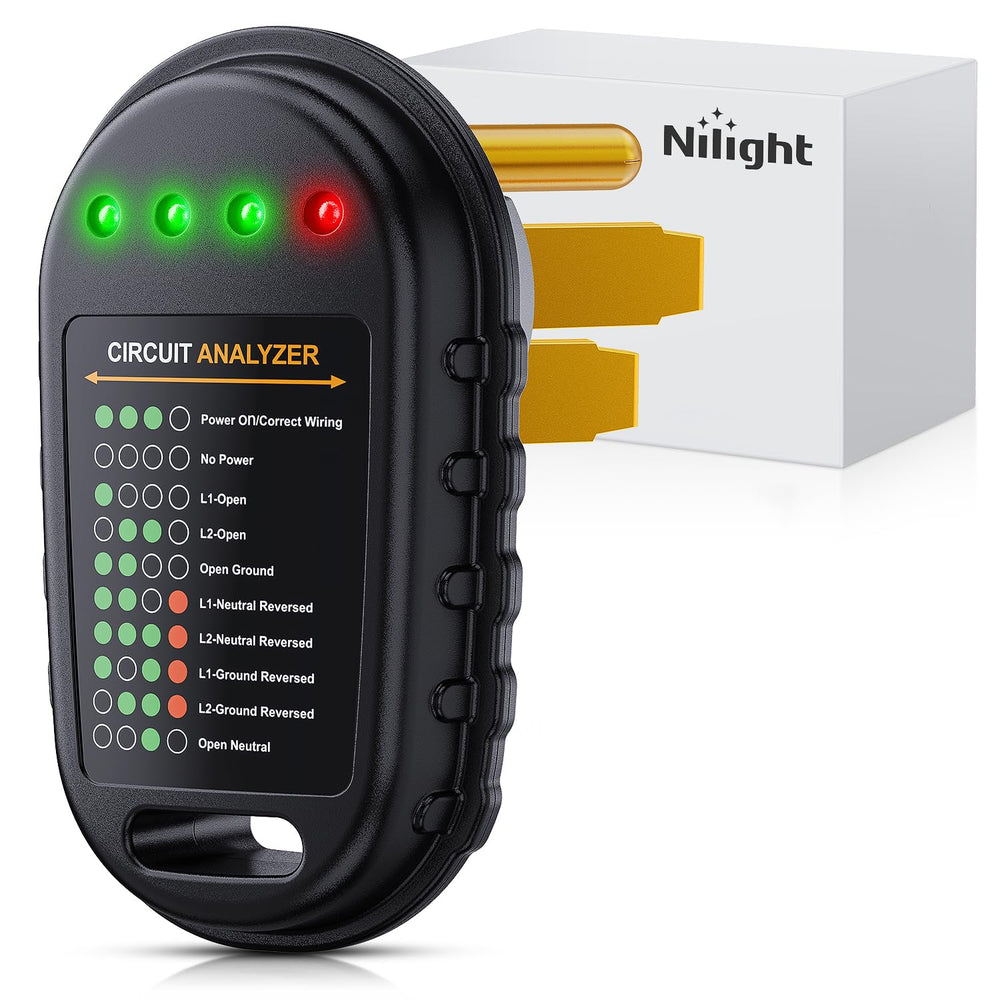

The tester uses a pattern of illuminated LEDs to communicate the condition of the incoming circuit. Each LED pattern corresponds to a specific wiring scenario—correct wiring, no power, open leg, reversed neutral or ground, and other common faults—so you can read the status at a glance and consult the included diagnostic chart.

• LED row clearly indicates specific fault or correct wiring.
• Diagnostic chart on the device matches light patterns to faults.
• Plug-and-read operation requires no setup or additional tools.

What protections and build quality does the Nilight tester offer?

The housing is made from heavy-duty, heat-resistant ABS with flame-retardant properties, and internal wiring uses 100% pure copper for reliable conductivity. The unit is ETL certified, meaning it has been tested to recognized safety standards similar to UL, giving extra confidence when testing campground power.

• Flame-retardant ABS shell resists heat and impact.
• Copper conductors deliver consistent electrical contact and low resistance.
• ETL certification verifies compliance with established safety criteria.

How simple is it to use and what should I do before plugging it in?

Using the Nilight tester is straightforward—slide it into the 50A pedestal, observe the LED pattern, and compare to the device’s chart. For safety, turn the pedestal circuit breakers off before inserting the tester; once the tester is in place you can power the pedestal to run the check without touching terminals.

• Anti-slip grip improves handling when plugging and unplugging.
• Turn breakers off before insertion, then switch on to read LEDs.
• No tools or wiring knowledge required for basic diagnostics.

What wiring issues can it detect and what should I do if it finds one?

The Nilight tester identifies a range of common wiring faults—open legs (L1/L2), open neutral or ground, and reversed connections between hot, neutral, and ground. If the LED pattern indicates a problem, do not use the pedestal; contact campground staff or a qualified electrician to correct the wiring before connecting your RV.

• Detects open L1, open L2, open neutral, and open ground conditions.
• Flags reversed hot-neutral or hot-ground connections for safety.
• Includes instructions recommending park staff or an electrician for repairs.

Who is this for? The Nilight 50 AMP RV Circuit Tester is ideal for RV owners, campground attendants, marina operators, and anyone who frequently plugs into 50A pedestals and needs a fast, dependable way to verify power quality. It’s also useful for service technicians and facilities staff who perform routine checks on shore power pedestals. Compact, ETL-tested, and easy to read, the tester saves time and helps prevent equipment damage by identifying wiring issues before you connect your RV.
