Nilight 7-Way Inline Trailer Plug Wiring Harness 12 ft — 7‑Gang Junction Box, Weather‑Resistant

Nilight's Heavy Duty 7-Way Inline Trailer Plug with 7-Gang Junction Box is a 12-foot, weather-resistant trailer wiring harness that centralizes seven circuit connections for brake, turn, tail, reverse and auxiliary power.

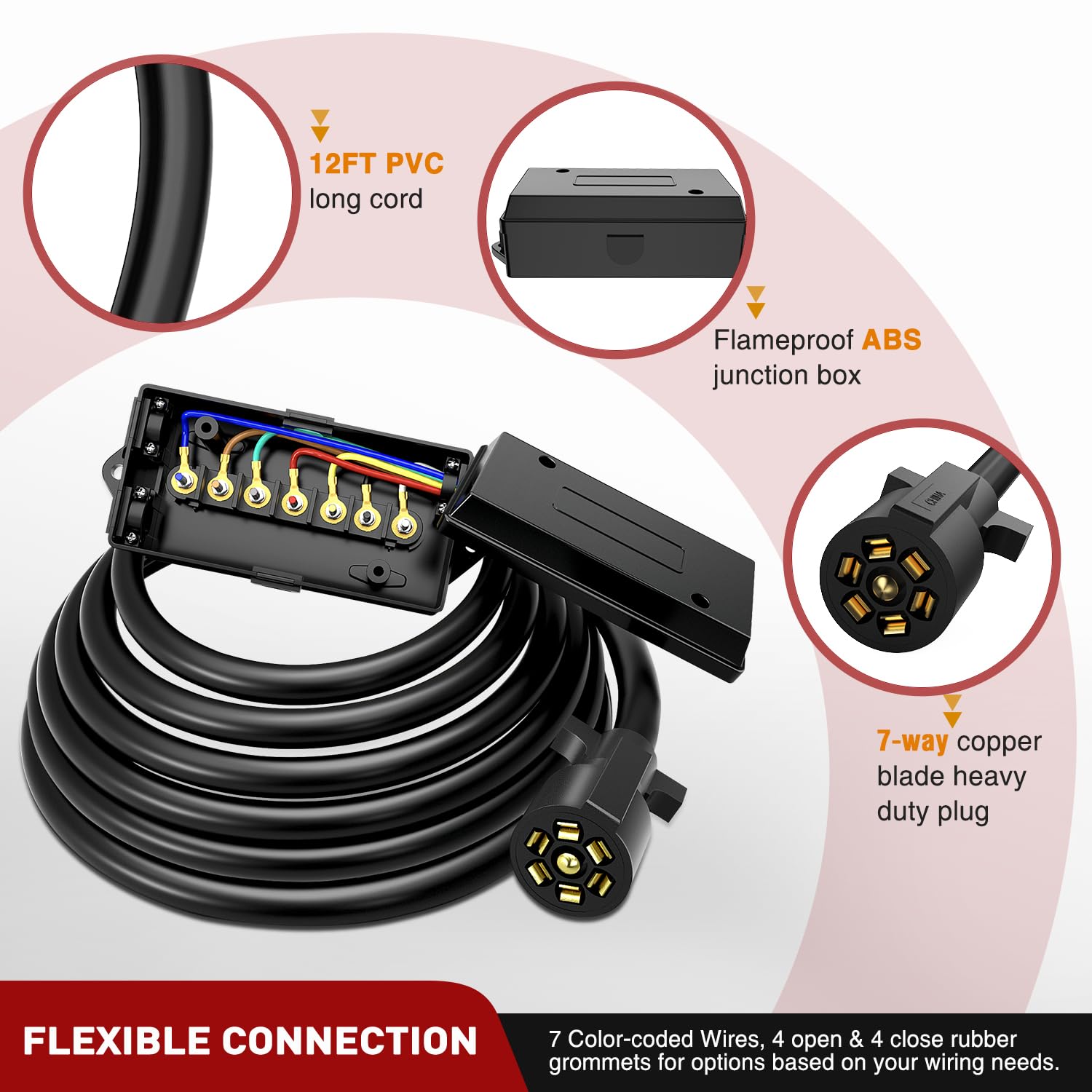

This compact yet robust assembly simplifies trailer-to-tow-vehicle wiring by combining a molded 7-way copper-blade plug with a clearly labeled 7-gang junction box and a 12-foot PVC-jacketed cable. Built for repeat use and outdoor exposure, the harness keeps wires organized and reduces strain during turns, while optional sealed gaskets let you choose a higher level of protection against water, dust and corrosion.

How does the Nilight 7-way harness simplify trailer wiring?

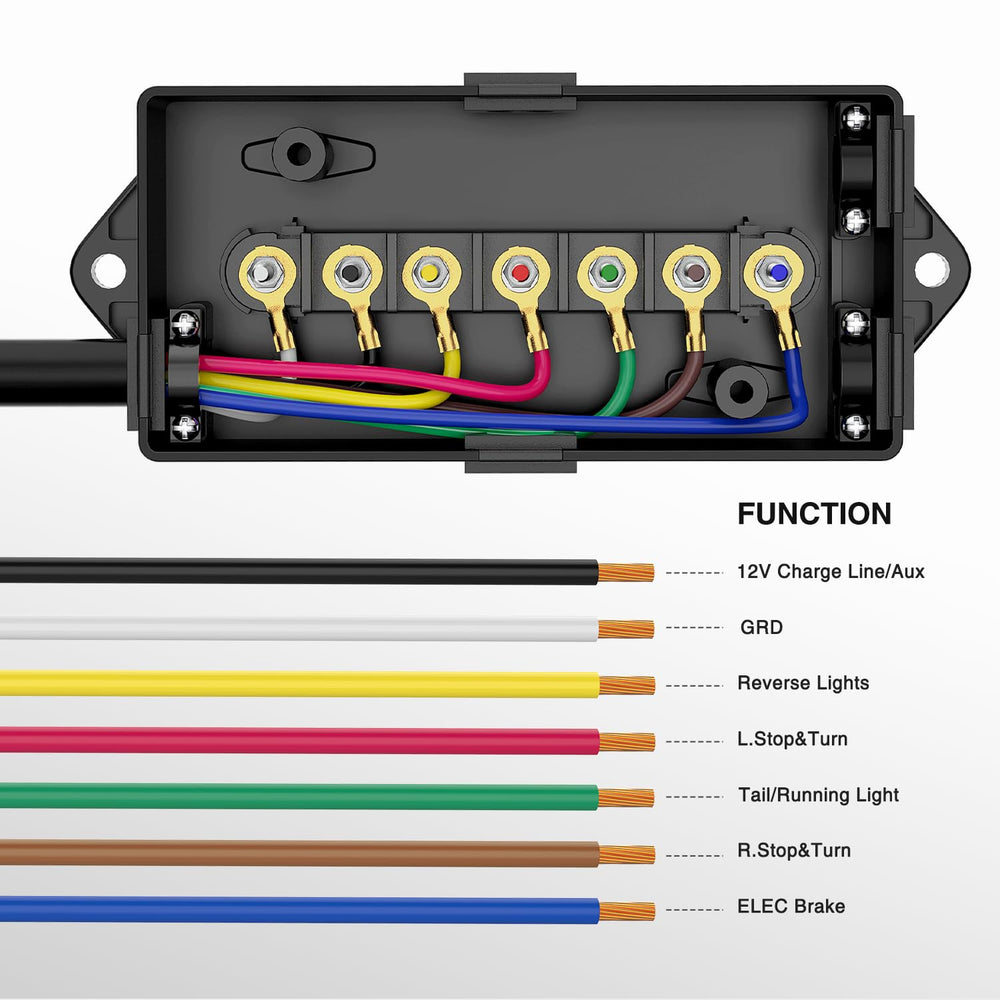

The unit replaces multiple loose connections with one molded 7-way plug and a dedicated junction box so you can organize seven circuits in one place. Color-marked poles make identifying each circuit quick and reduce installation errors.

• Molded copper blade 7-way plug for reliable electrical contact.
• 7-gang junction box with color-coded terminals for easy mapping.
• 12 ft cable length to prevent strain during turns and hookup.
• Includes open and closed rubber gaskets for customized sealing.

What weather protection and durability features are included?

The junction box and cable are designed for outdoor use: the PVC jacket resists abrasion and UV exposure, and rubber gaskets provide dust and water resistance when installed. Corrosion-resistant materials are used on contact points to maintain connectivity in changing conditions.

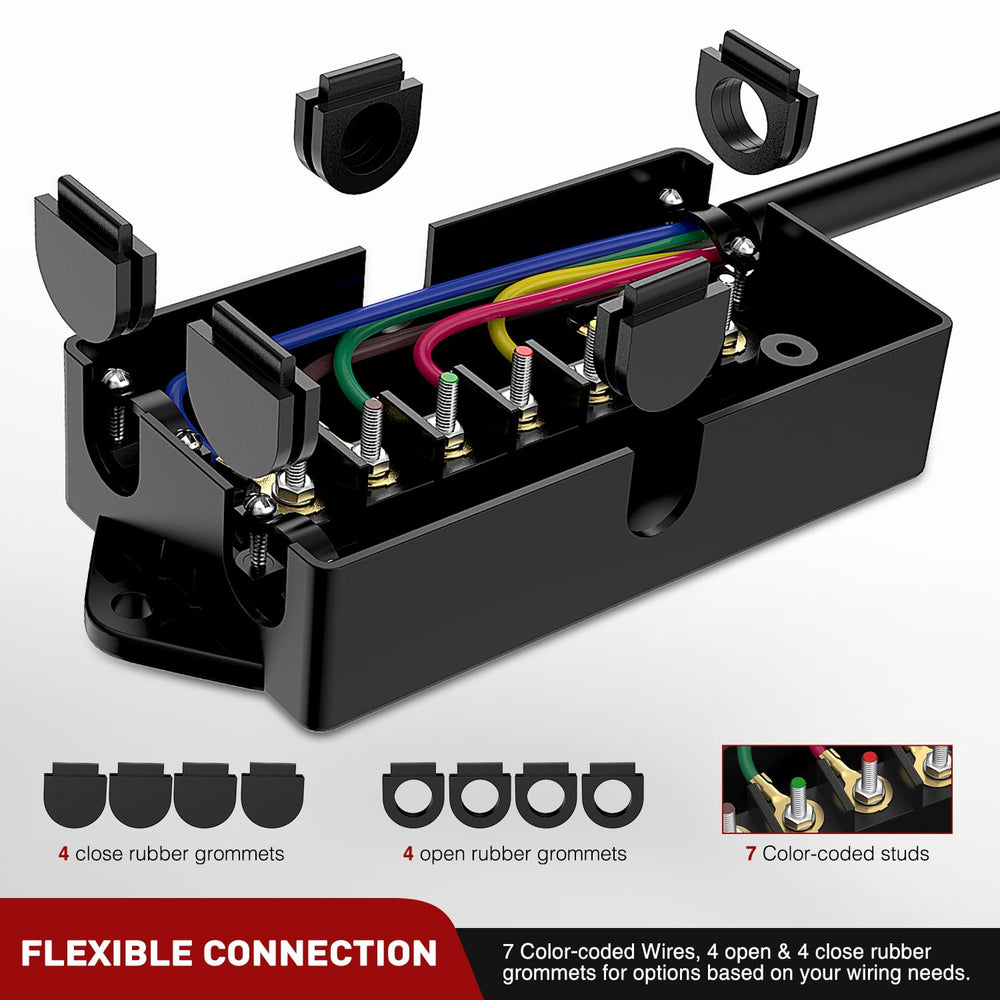

• Selectable sealed gaskets (4 open, 4 close) for waterproofing options.

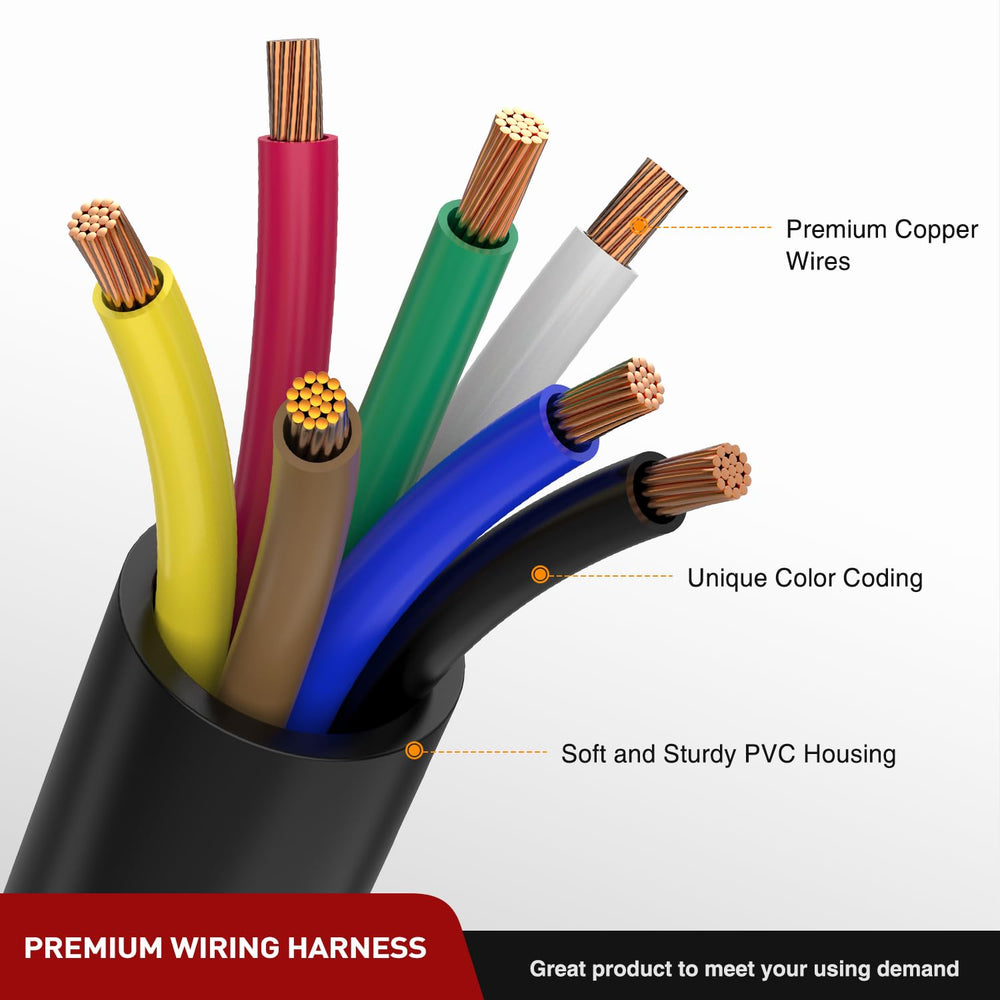

• PVC outer housing on the 12 ft cord resists wear and weathering.
• Corrosion-resistant contacts and molded plug for longer service life.

Will this harness fit my trailer and vehicle wiring setup?

The Nilight harness is designed as a universal 7-way solution compatible with standard 7-blade trailer sockets and common trailer lighting circuits. Because it consolidates commonly used circuits—brake, running, reverse, turns and auxiliary—it fits a wide range of light- and power-equipped trailers.

• Standard 7-way configuration covers brake, turn, tail, reverse, and auxiliary circuits.
• Universal fit type for most trailers and tow vehicles with 7-blade connectors.
• 12-foot cable gives flexibility in vehicle-to-trailer spacing and routing.

How easy is it to install and maintain the junction box?

Installation is straightforward for anyone comfortable with basic trailer wiring: match the color-coded terminals to your existing wires and secure them in the junction box. Maintenance requires minimal attention—periodic inspection of gaskets and contacts keeps the system performing reliably.

• Color-marked poles speed up wire identification and hookup.
• Simple terminal access inside the 7-gang box for tightening or replacing wires.
• Replaceable gaskets let you re-seal the box after servicing.

Who is this for: The Nilight Heavy Duty 7-Way Inline Trailer Plug with 7-Gang Junction Box is intended for boat owners, utility and cargo trailer operators, RV users, and anyone who needs a tidy, durable solution for standard seven-circuit trailer wiring. It suits DIY installers and professional shops that want a weather-resistant, clearly labeled harness with enough cable length to route cleanly and avoid strain.
