Nilight LED Light Bar Wiring Harness Kit — 16AWG 12V with Waterproof Illuminated Switch & Relay

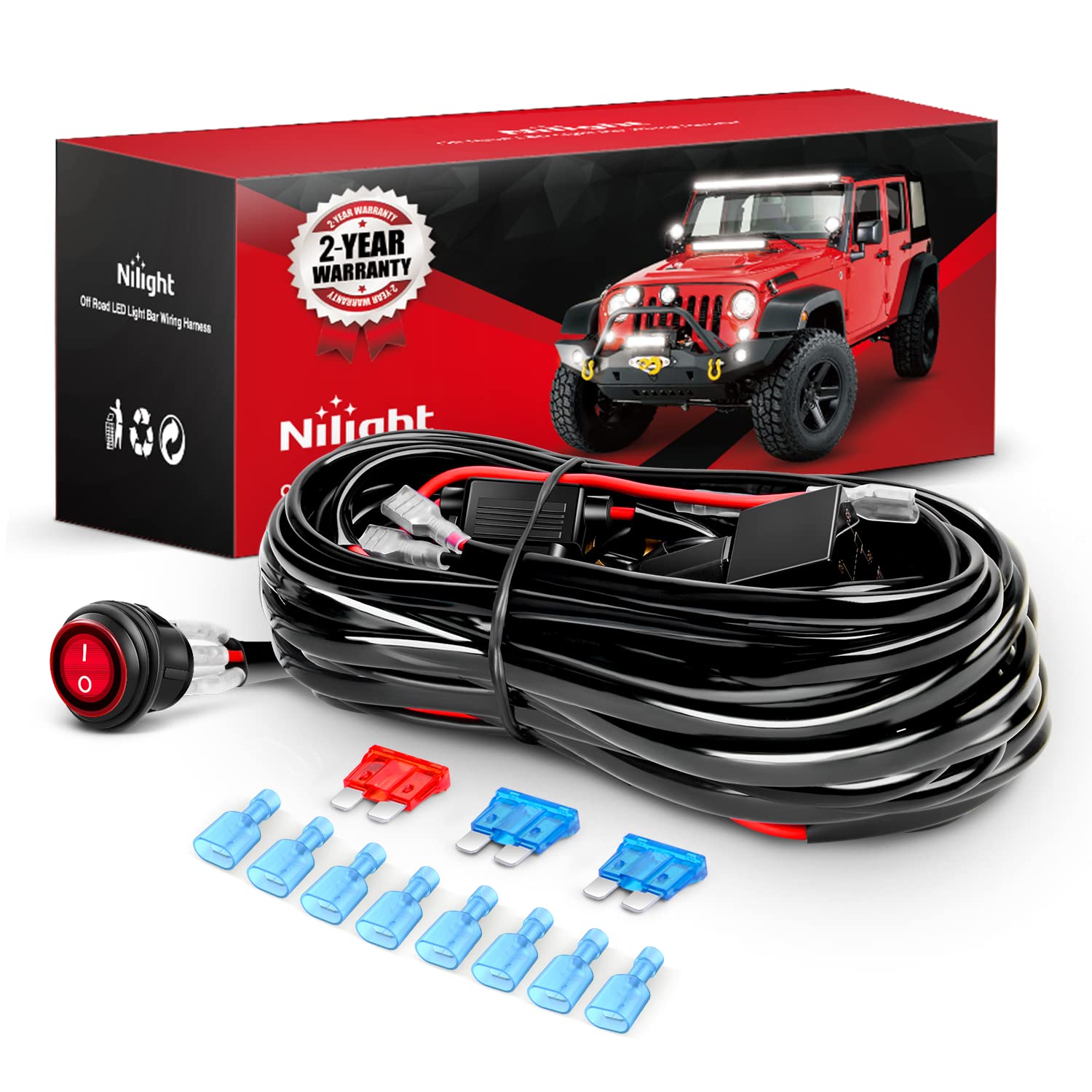

Nilight's 16AWG wiring harness kit provides a ready-to-install 12V relay, blade fuse, and illuminated waterproof on/off switch to safely power LED light bars and similar accessories. This harness bundles the essential electrical components for adding an aftermarket LED light bar or small auxiliary lights to vehicles, boats, ATVs, and other 12V systems. Built with a 16AWG lead, an illuminated 3-pin rocker switch, a power relay for safe current handling, and blade-fuse circuit protection, the kit simplifies wiring while reducing guesswork about appropriate connectors and protection. The harness is designed for universal compatibility with 12V lighting and includes clear instructions to help speed installation.

How does this kit simplify installing an LED light bar?

The kit consolidates the switch, relay, fuse, and pre-terminated leads into one assembly so you can avoid fabricating each connection separately. Pre-made connections reduce installation time and minimize wiring errors, especially for first-time installers.

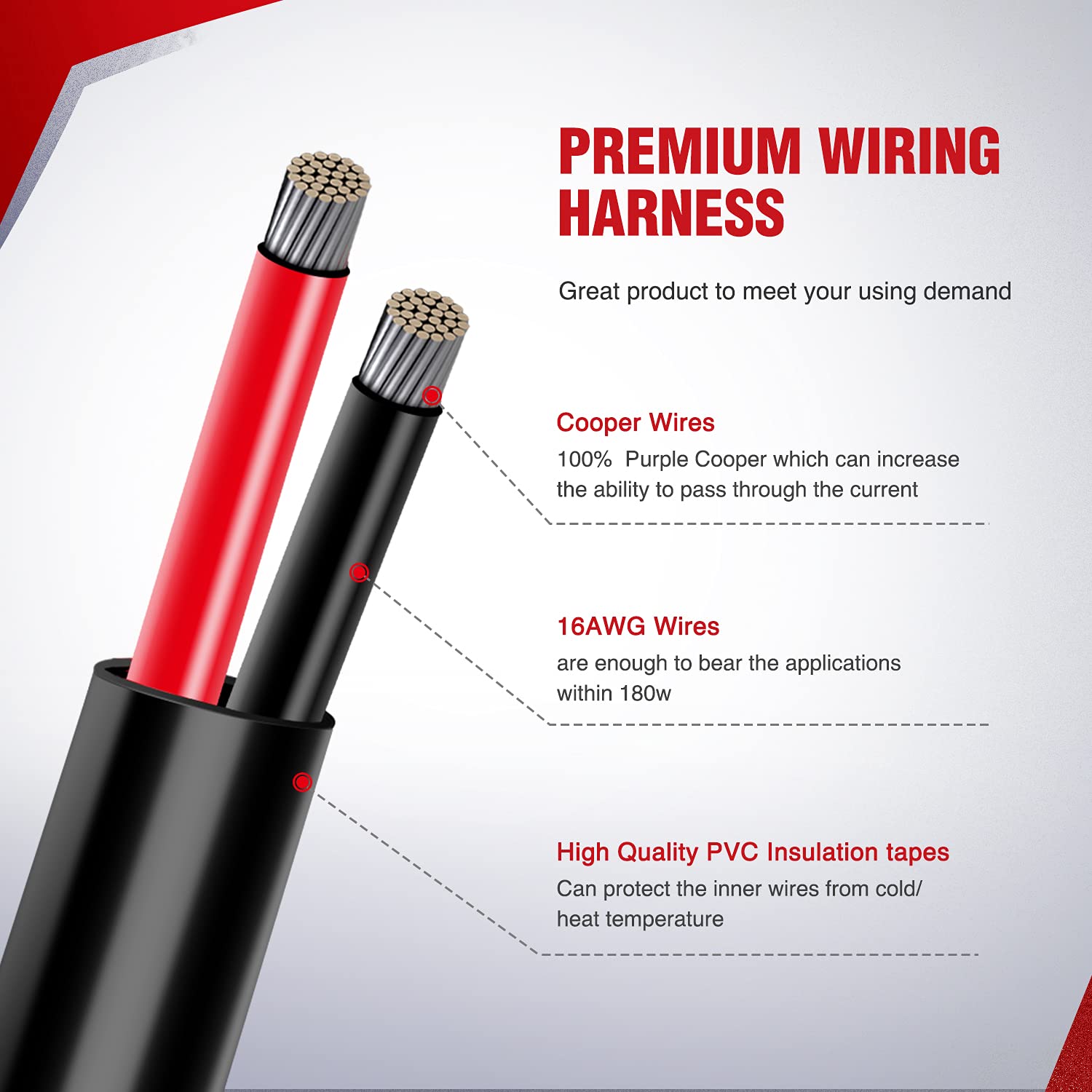

• Pre-wired 16AWG leads sized for typical small light groups
• Illuminated 3-pin rocker switch for convenient control

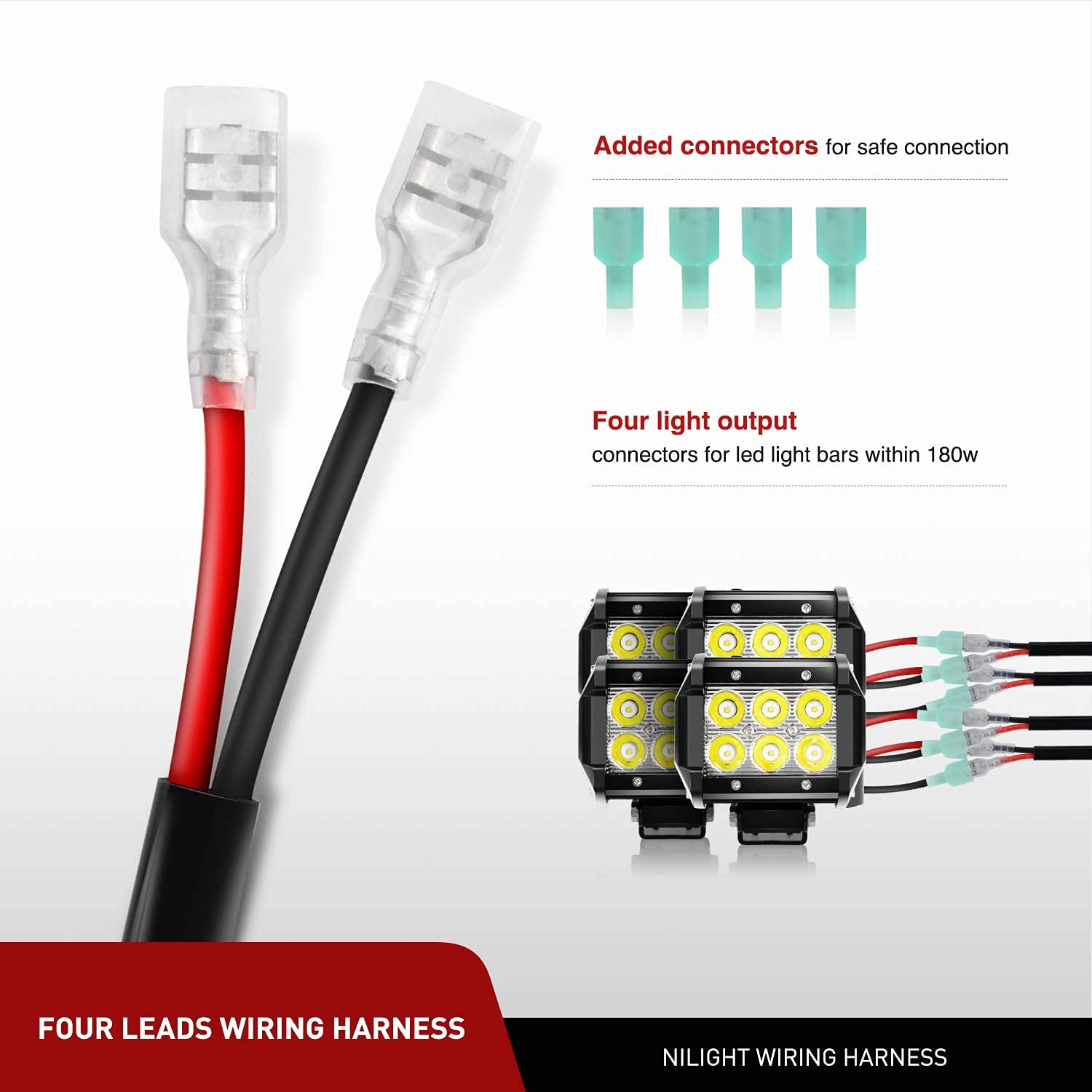

• In-line blade fuse protects against overcurrent and shorts

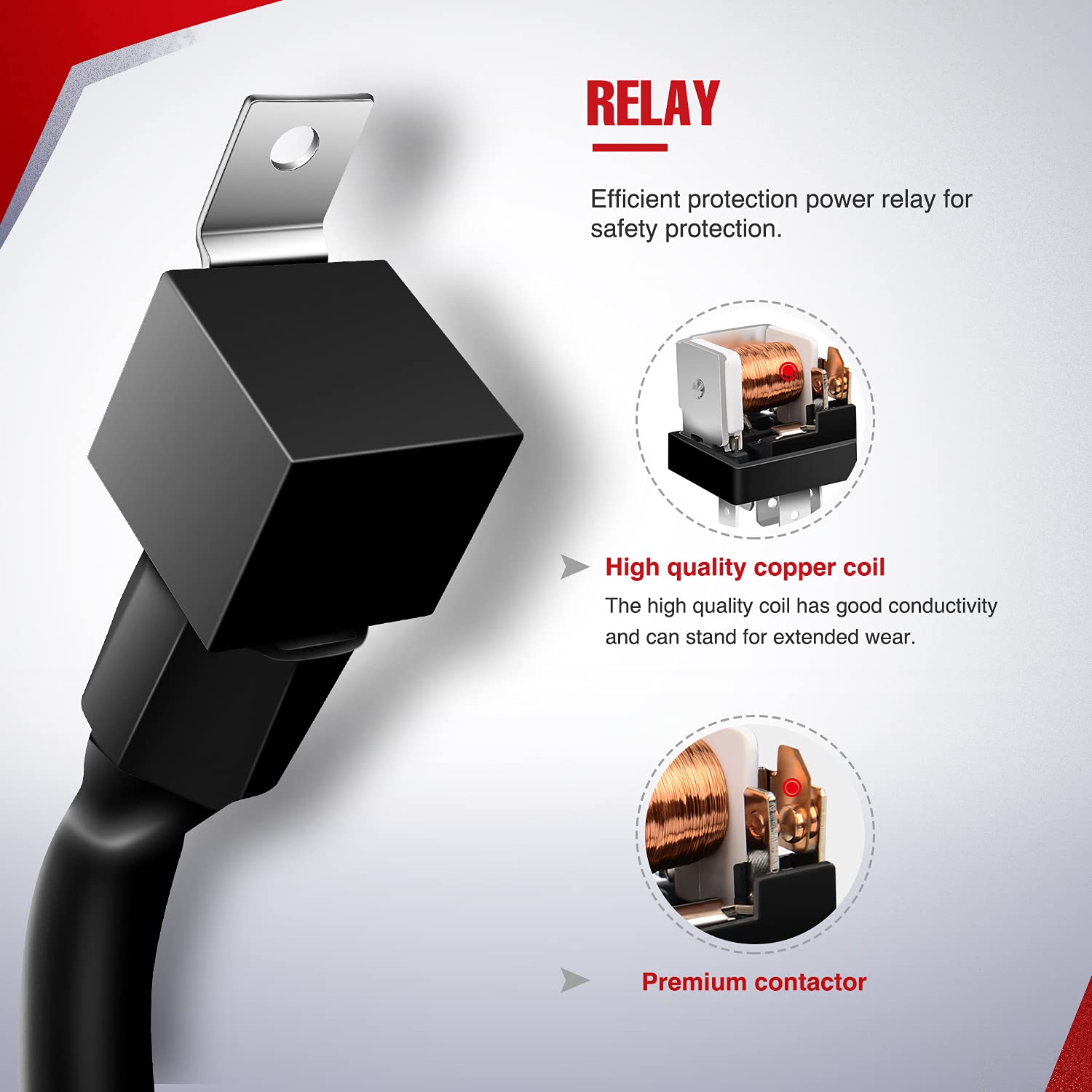

• Power relay handles switching load without running full current through the switch

Is this wiring harness durable and weather-resistant?

The harness includes a waterproof on/off switch and robust connectors intended for outdoor use, making it suitable for automotive and marine environments when properly routed. While the switch and many connectors resist moisture, ensure exposed connections are sealed or positioned to avoid direct water intrusion for longer life.

• Waterproof rocker switch with illuminated indicator
• Durable 16AWG wire for outdoor electrical loads
• Blade fuse holder for replaceable circuit protection
• Relays rated to manage typical LED light bar currents

What electrical protection and safety features are included?

The harness integrates a power relay and a blade fuse to protect both the switch and the vehicle’s wiring from overloads and short circuits. These safety elements lower the risk of overheating and make troubleshooting easier because the fuse is a clear, replaceable safeguard.

• Power relay isolates switch from high current draw
• Blade fuse interrupts the circuit on overcurrent events
• Color-coded wiring simplifies correct connections
• Factory-assembled terminations reduce loose connections

Will this harness work with my light configuration and what are its limits?

The harness is best matched to small to medium LED light groups and single light bars drawing currents within the relay and 16AWG wire ratings. If you add multiple high-power light bars or exceed the recommended load, plan to use a heavier-gauge harness or add extensions and higher-rated relays and fuses.

• Ideal for single small light groups or a single compact LED bar
• Use extension wiring when adding additional lights
• Confirm relay and fuse amperage vs. your light’s draw before installation
• 16AWG suited for typical auxiliary LED loads, not heavy-duty arrays

Who is this for: This Nilight harness suits DIYers, mechanics, and vehicle owners who want a simple, safer way to add a single LED light bar or small auxiliary lights to a 12V system without custom-fabricating each connection. It’s particularly convenient for ATV, UTV, truck, SUV, marine, and off-road vehicle installs where an illuminated, waterproof switch and basic circuit protection are desired. For larger lighting arrays or continuous high-current applications, choose a harness with heavier gauge wiring and higher-rated relays and fuses.

FAQ

Q: Can I use this harness with multiple light bars?

A: It’s optimized for a single small-to-medium LED light bar; multiple bars may need heavier gauge wiring and a higher-rated relay/fuse.

Q: Is the switch truly waterproof for outdoor use?

A: The rocker switch is designed waterproof, but sealing exposed connections and mounting to avoid direct water exposure is recommended.
