NVX 6x9" Silicone Speaker Baffles — 2-Piece Waterproof Foldable Gaskets for Door-Mount 6x9 Speakers (Front & Rear Depth)

NVX XBAF69 2-piece silicone speaker baffles are waterproof, foldable gaskets designed to protect and seal 6x9" speakers inside vehicle doors for long-lasting acoustic performance.

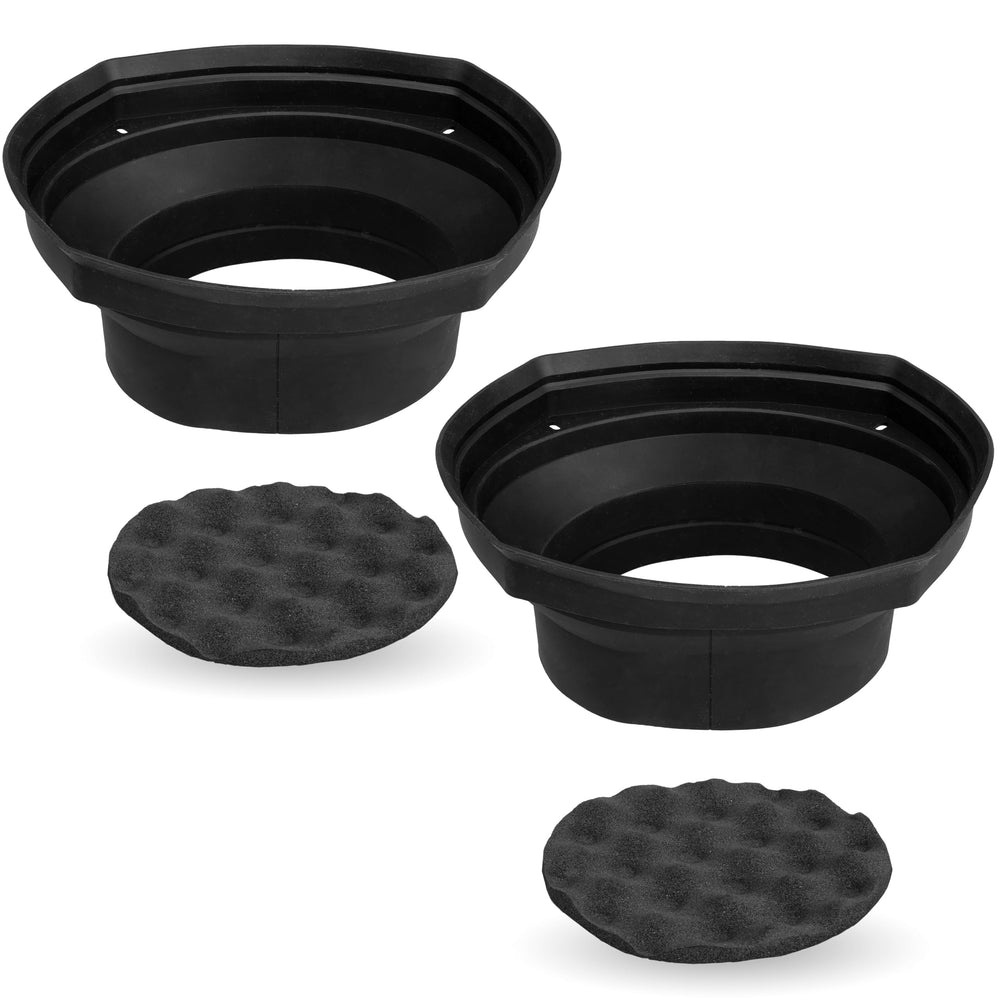

These NVX baffles replace fragile foam rings with a resilient silicone build that resists water, compression, and age-related breakdown. They provide a snug barrier between the speaker and the door cavity so sound is cleaner and moisture won’t reach the speaker cone or magnet. The set includes front and rear depth profiles to fit common 6x9" speaker installations while requiring very little trimming.

How do these baffles protect my speakers from moisture and door exposure?

The silicone construction is inherently water-resistant and does not break down the way conventional foam does when exposed to condensation, road spray, or door moisture. By creating a sealed interface between the speaker and the door panel, the baffles keep water, dirt, and vapors away from sensitive components.

• Made from durable silicone that resists water and rot

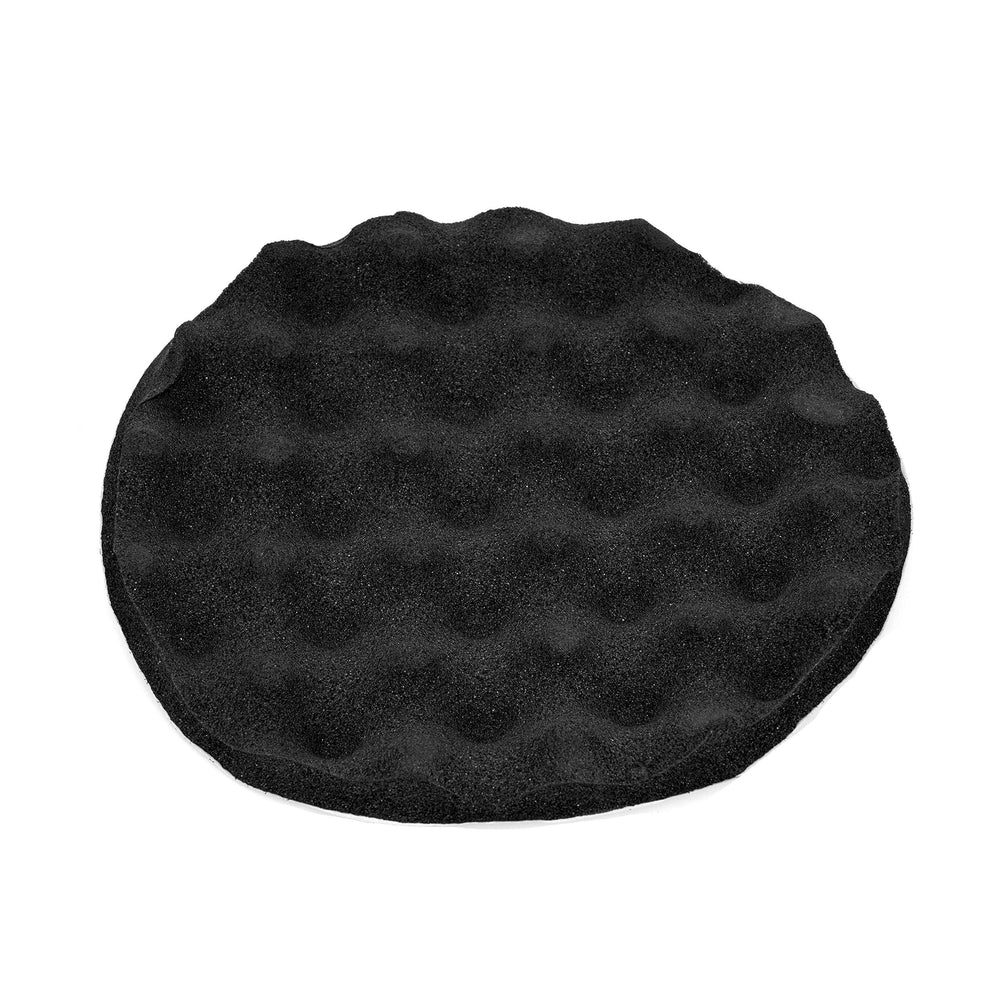

• Egg-crate foam compatibility for additional sealing where needed
• Creates a barrier to prevent moisture from entering the speaker cavity
• Suitable for installations behind door cards and in exposed panels

Will these fit my 6x9" speakers and what installation depth do they support?

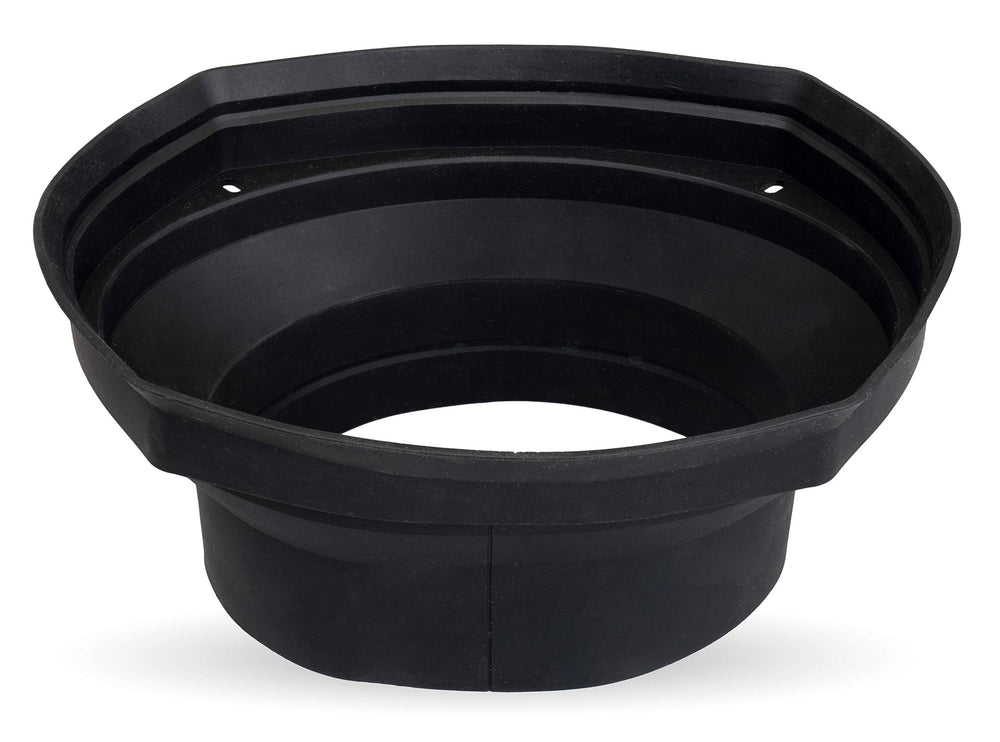

The NVX XBAF69 is engineered to accommodate 6x9" speaker frames while offering two mounting depths to match standard front and rear placements. You will find the front baffle provides a shallow footprint and the rear baffle gives extra depth clearance for deeper speakers or adapters.

• Compatible with standard 6" x 9" speaker dimensions
• Front mounting depth: 1-7/16" for low-profile installs
• Rear mounting depth: 3-3/8" for deeper speaker bodies
• Minimal trimming required for most factory door openings

How easy is installation and do I need special tools or modifications?

Installation is straightforward: the foldable silicone design flexes to fit around speaker baskets and factory holes so heavy cutting or complex adapters are usually unnecessary. Basic tools like a screwdriver, utility knife, and perhaps a trimming tool are typically all you need to route the baffle and secure the speaker.

• Flexible silicone folds for easier routing through door openings
• Requires minimal trimming or cutting in most applications
• Works with egg-crate foam for customized sealing if desired
• Can be mounted with existing factory screws or standard hardware

What tonal or acoustic benefits can I expect from using these baffles?

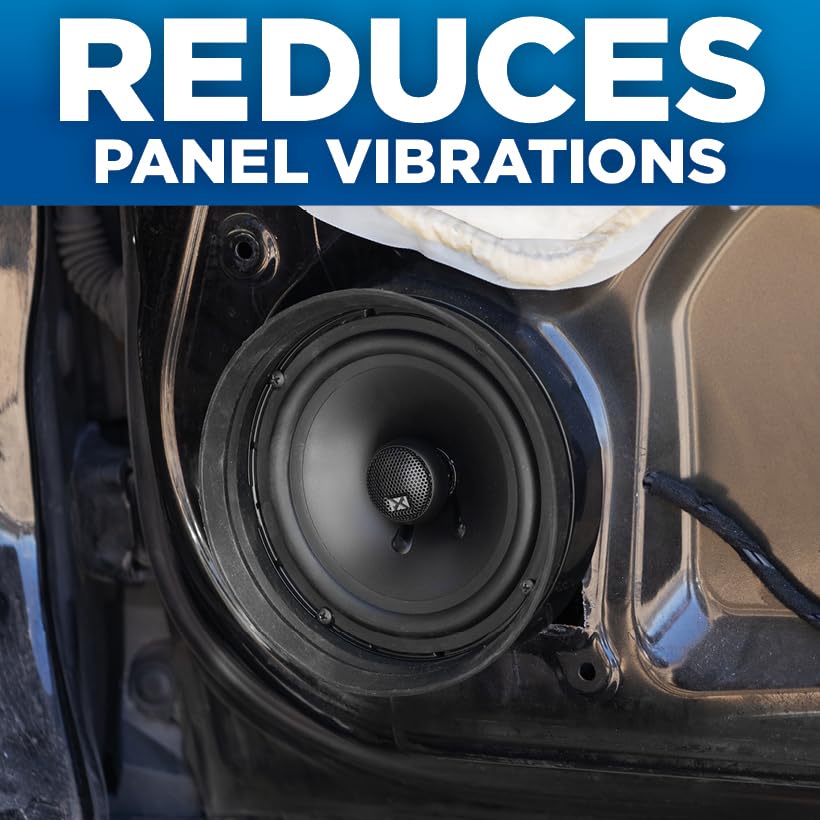

By isolating the speaker from the open door cavity, the baffles reduce sound leakage and unwanted resonance, which helps the speaker deliver tighter midrange and improved imaging. While they don't change speaker voicing, they create more consistent performance by stabilizing the mounting environment.

• Reduces acoustic interference from the door cavity
• Improves midrange clarity and imaging stability
• Helps speakers perform predictably in damp or variable environments
• Maintains long-term performance by preventing moisture damage

Who is this for? The NVX XBAF69 baffle set is aimed at anyone installing 6x9" speakers in vehicle doors who wants a durable, water-resistant seal without major door modifications. Ideal for car audio enthusiasts, installers, and weekend DIYers who need a reliable long-term solution to protect components and maintain sound quality in wet or demanding environments.
