Orion Motor Tech 12V Diesel Transfer Pump, Portable Kit with Nozzle & Hoses — 11.9 GPM

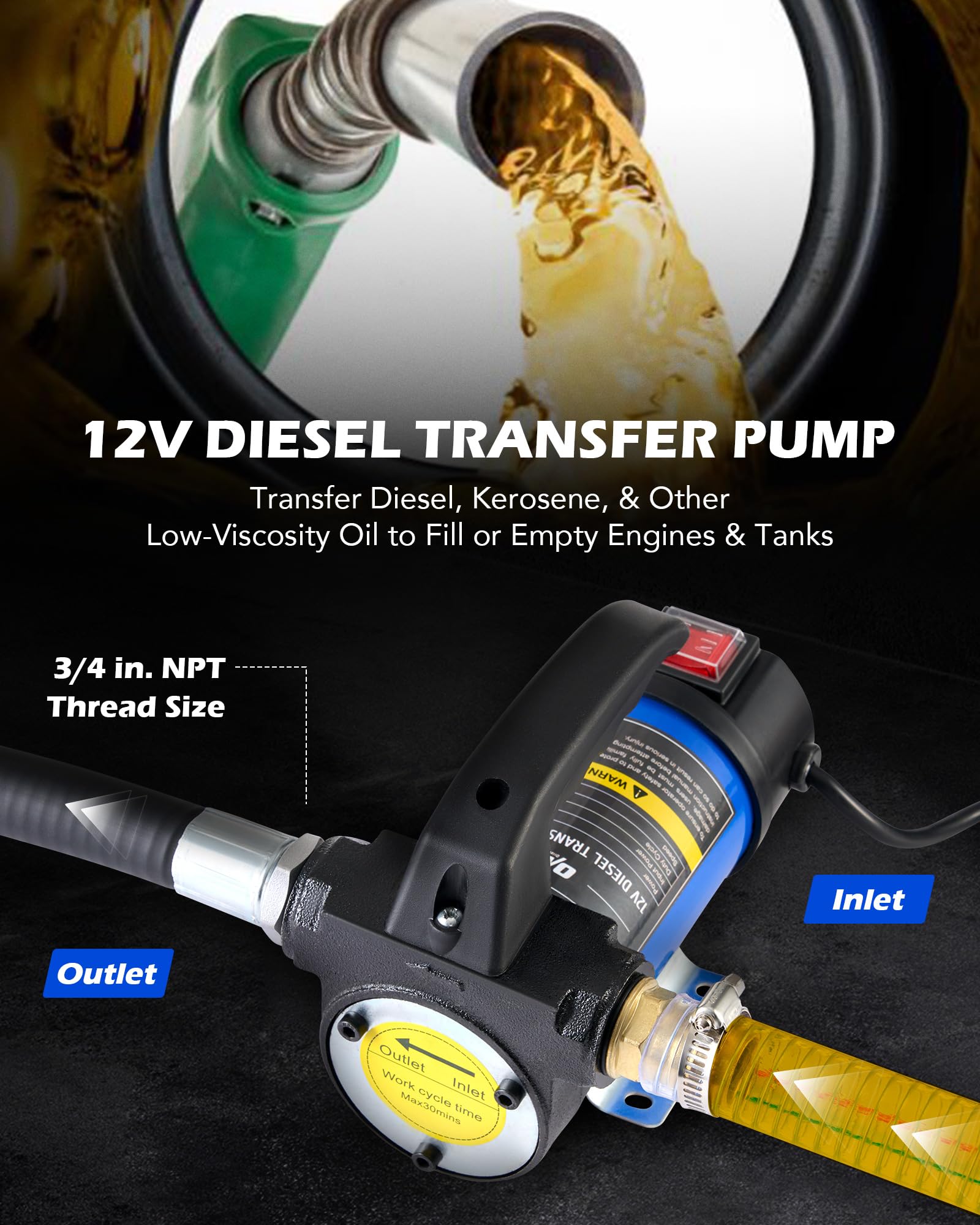

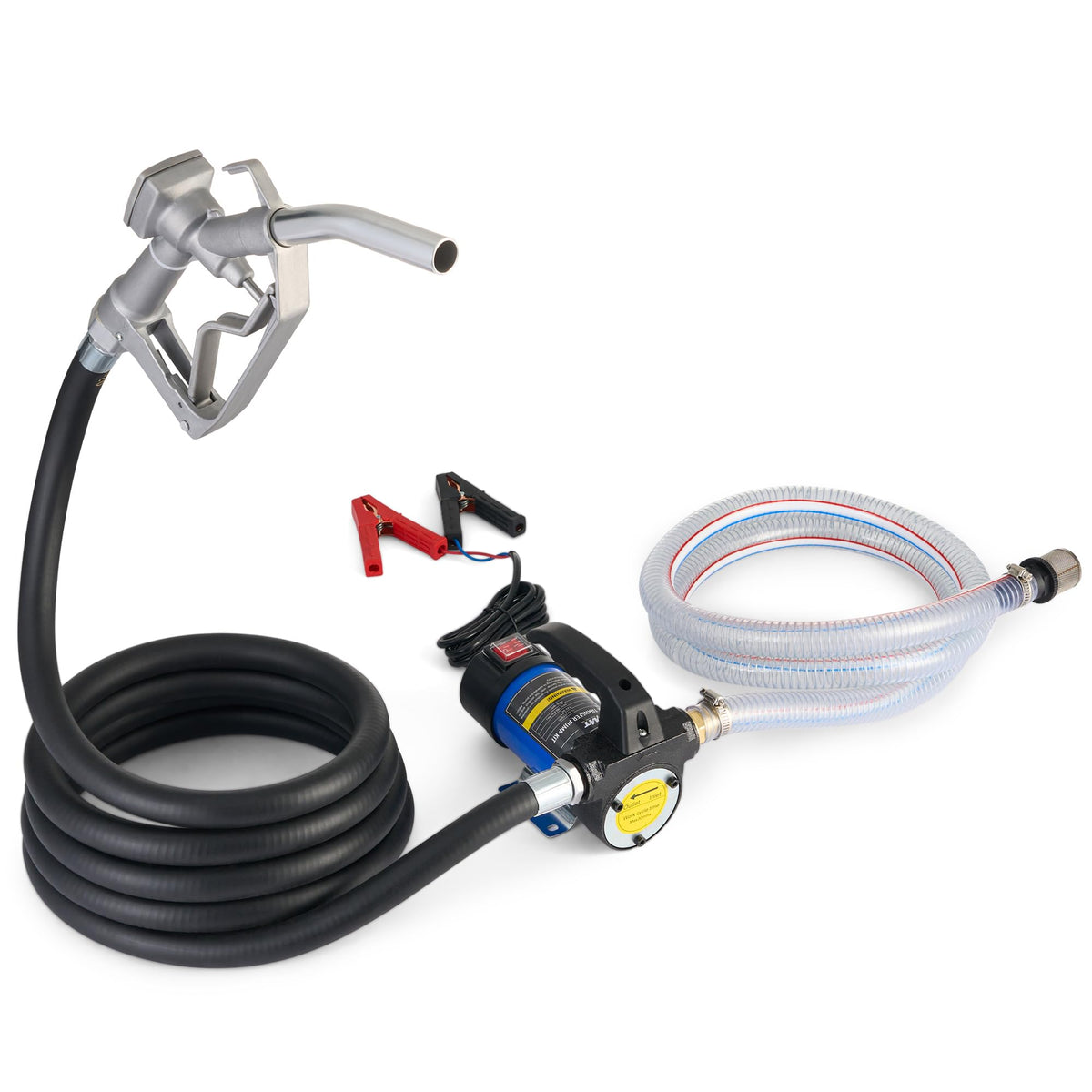

The Orion Motor Tech 12V Diesel Transfer Pump is a portable, self-priming electric pump kit that moves diesel and other light oils up to 11.9 gallons per minute and comes complete with inlet/outlet hoses, a nozzle, and mounting accessories.

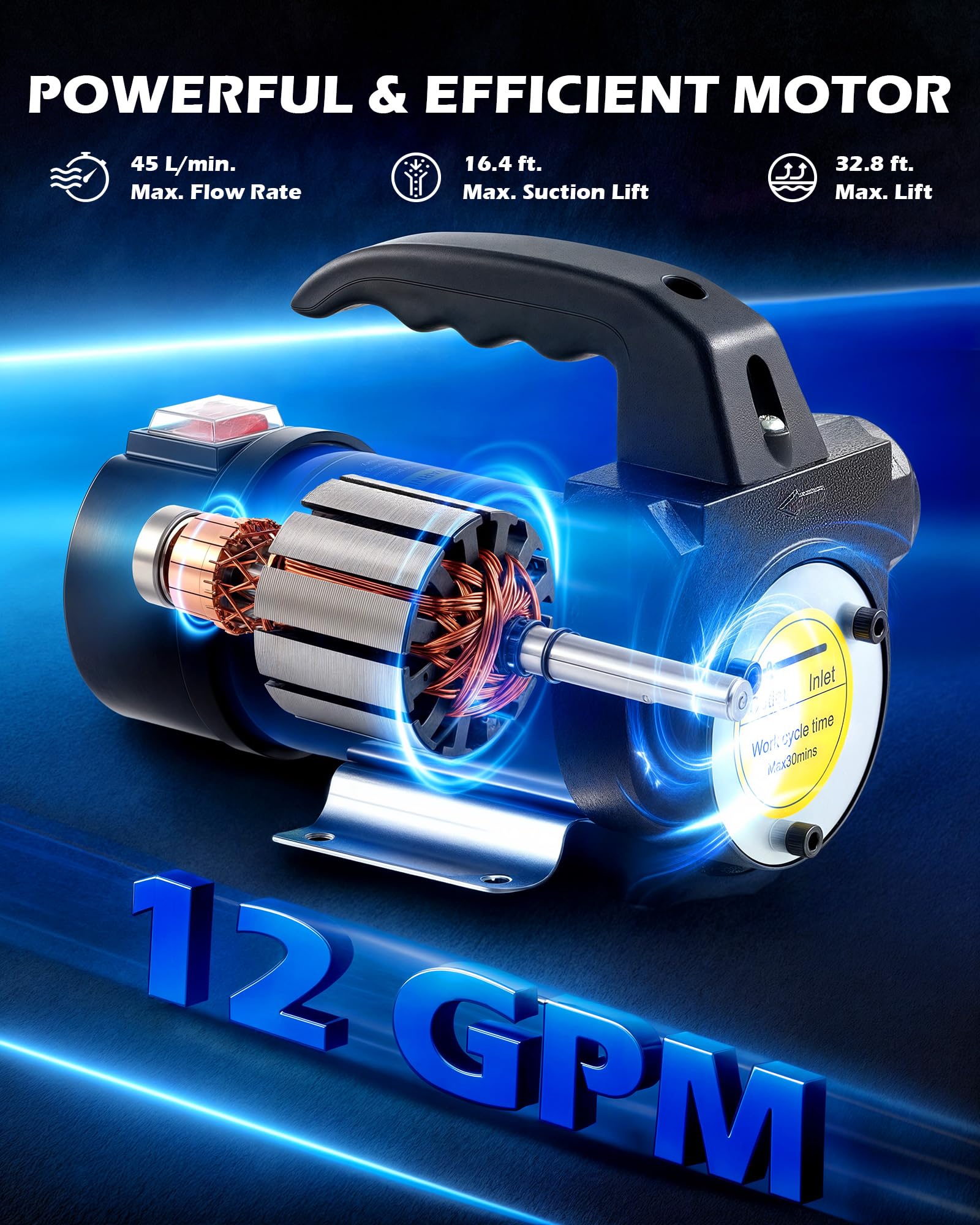

This compact diesel transfer pump is engineered for fast, tidy fluid handling wherever you need it — garages, boats, farms, and job sites. The kit pairs a 0.2 hp (175W) copper motor inside a steel housing with ready-to-use hoses and a spray-style nozzle that supports both trigger control and continuous flow. Safety and reliability are built in via a mesh strainer, bypass valve, mounting base, and thermal-rest guidance for extended use.

How quickly will this pump move diesel on site?

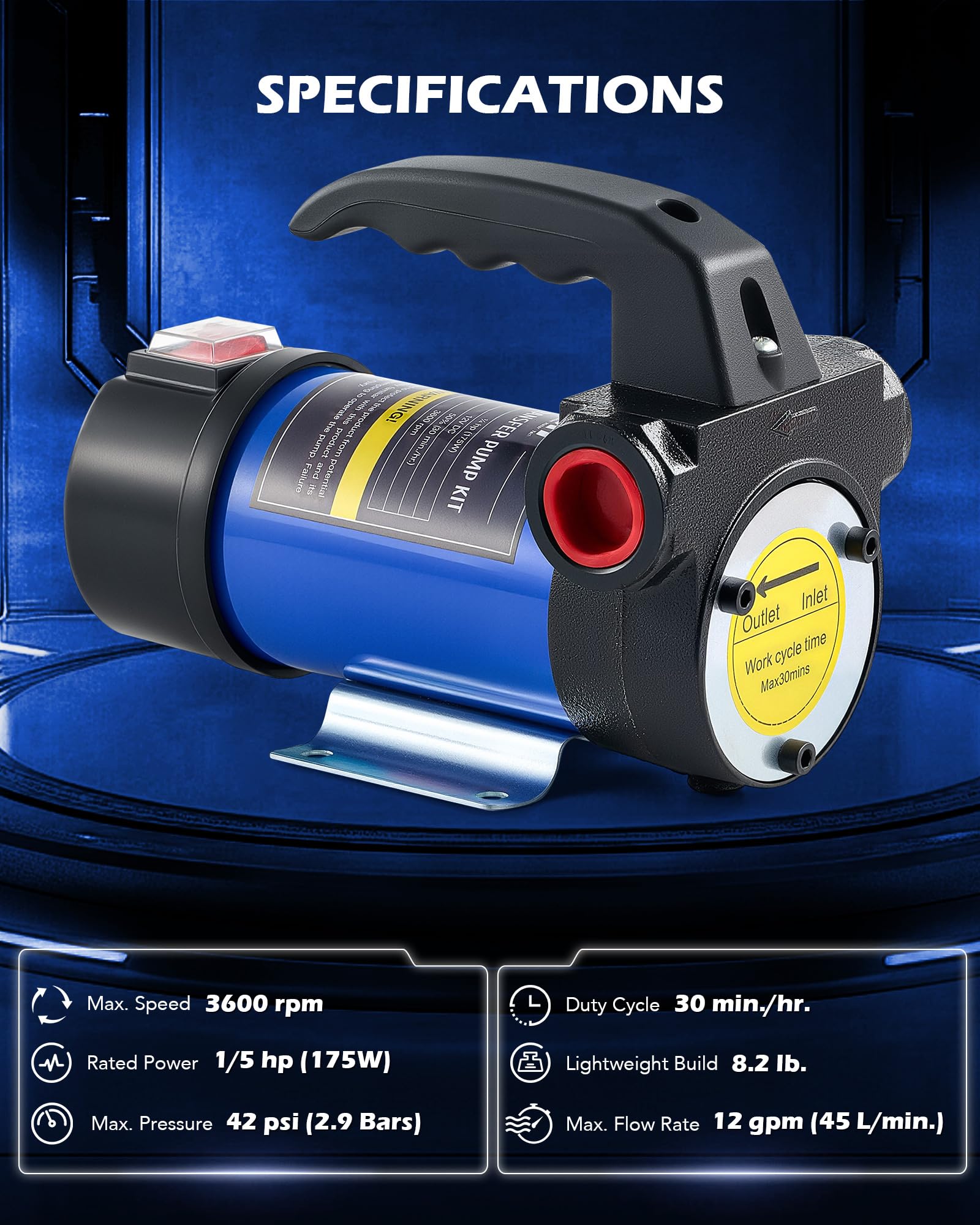

The pump delivers up to 11.9 gallons per minute under normal conditions, making short work of common transfer tasks. It’s self-priming and rated with a 16'5" maximum suction distance and a 32'10" maximum lift, so it can pull from lower tanks or move fuel vertically when needed.

• Top flow rate: 11.9 GPM for rapid transfers
• Max suction: 16'5" (5 meters approx.) for deep draws
• Max lift: 32'10" (10 meters approx.) for elevated discharge

What controls and safety features are included?

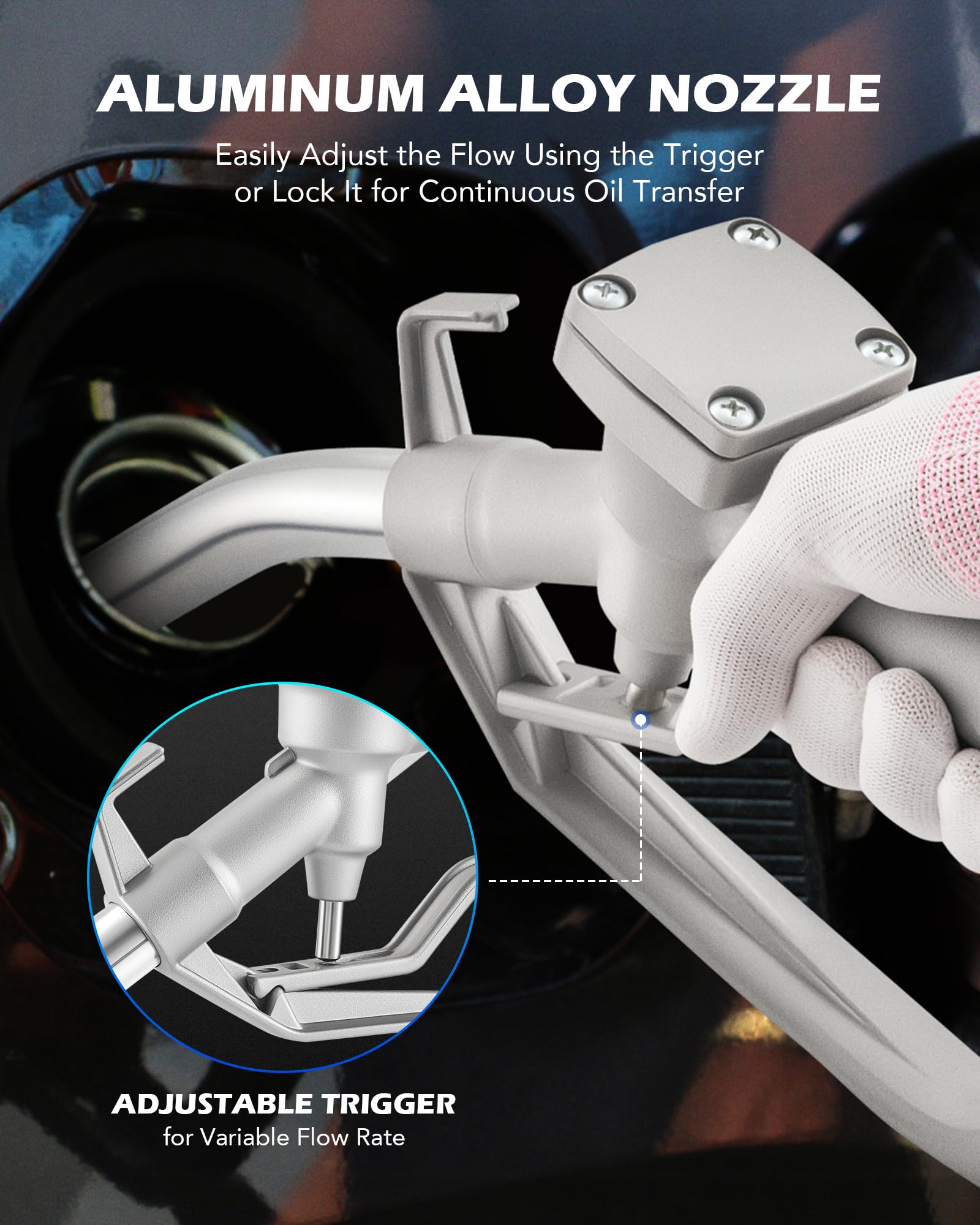

The included nozzle has an adjustable trigger for precise manual flow and a latch for continuous pumping. Built-in safeguards like a mesh inlet strainer and a bypass valve help prevent clogs and overpressure, while the mounting base reduces vibration and secures the unit during operation.

• Adjustable trigger with continuous-flow lock

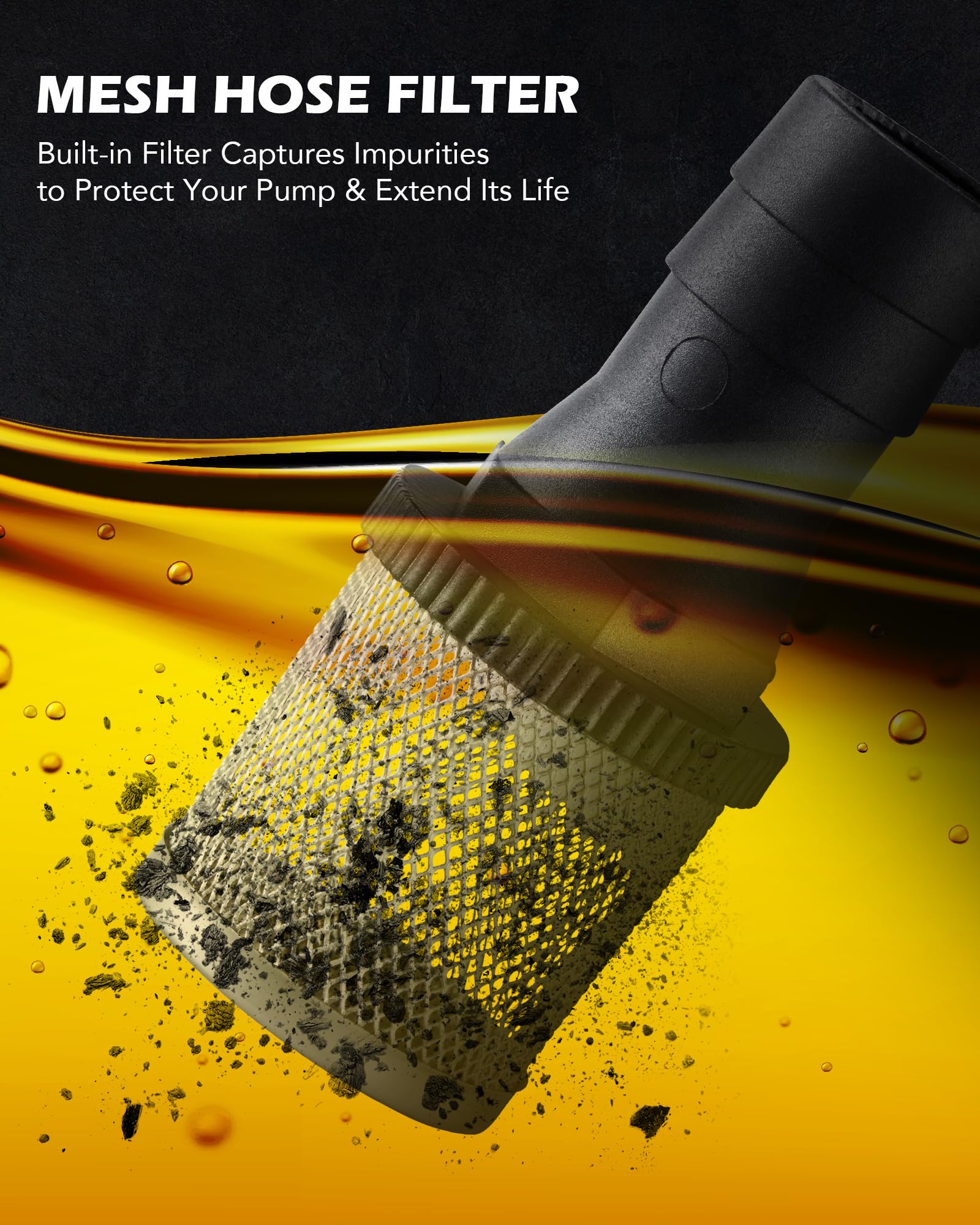

• Mesh strainer to block debris and protect the pump

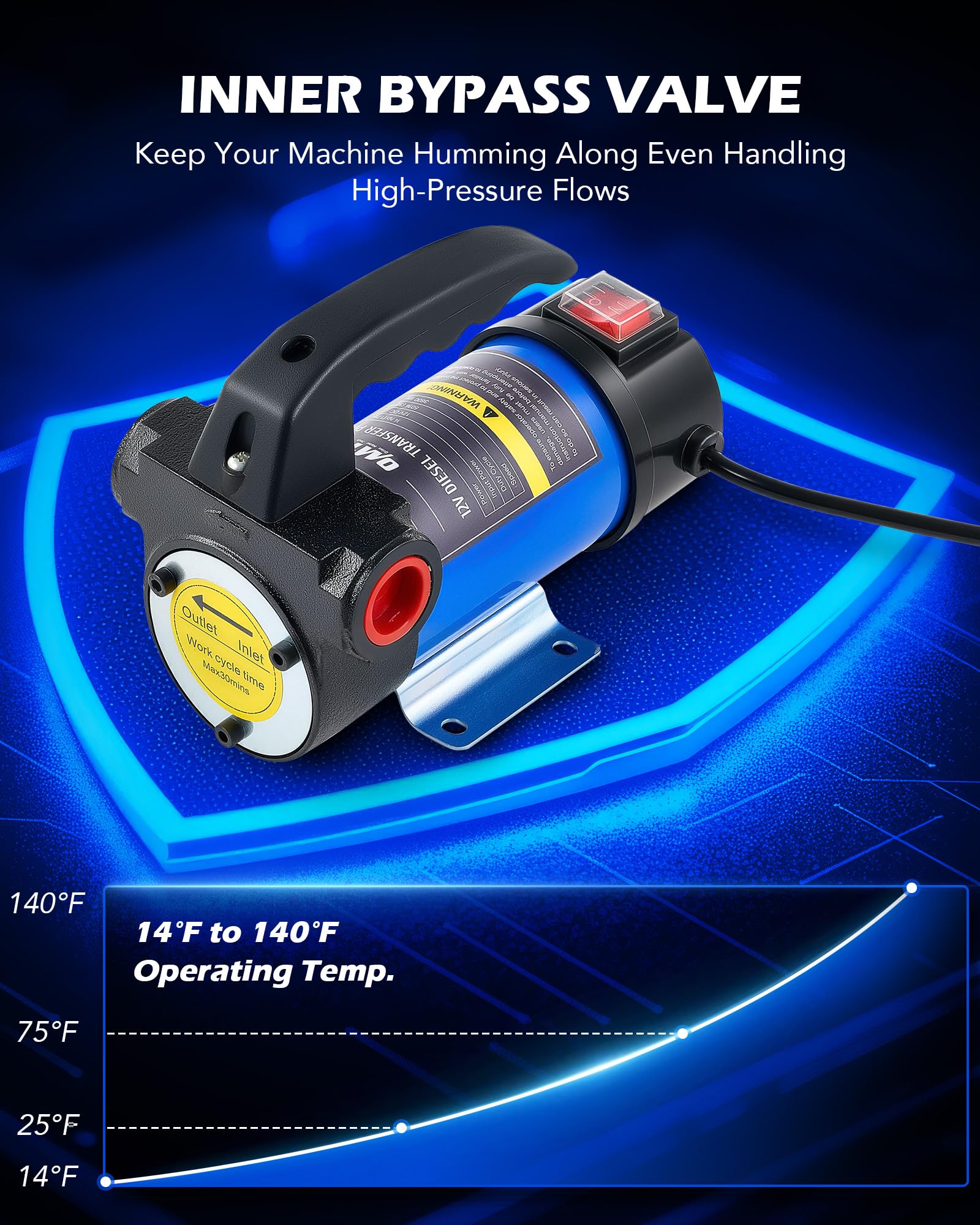

• Bypass valve to avoid pressure build-up

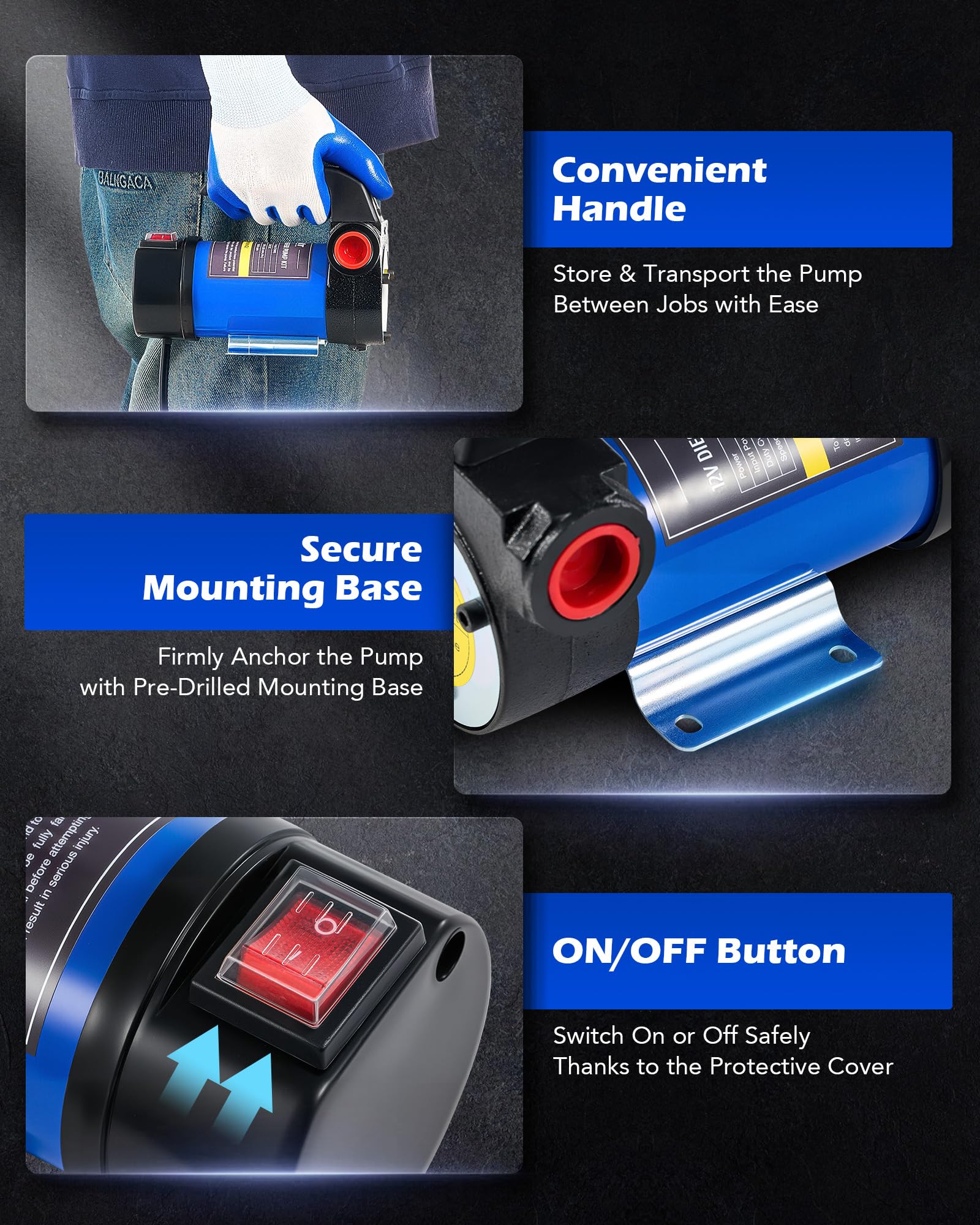

• Mounting base for stable, wobble-free use

What types of fluids and equipment is this compatible with?

This electric pump is designed for low-viscosity fluids such as diesel, kerosene, and similar light oils. It is not intended for high-viscosity liquids (for example heavy motor oils) and should be used only with compatible fuels and lubricants to maintain motor health.

• Works with diesel, kerosene, and light heating oils
• Not recommended for thick motor oils or high-viscosity fluids
• Ideal for cars, boats, mowers, and portable tanks

How should I operate the pump for long-lasting performance?

To protect the motor, follow the recommended duty cycle and cooling guidance: allow a 5-minute rest after each 10 minutes of continuous use when ambient temperatures exceed 45°C (113°F). Avoid running the pump dry and keep the inlet strainer clean to prevent overheating and extend service life.

• Recommended duty cycle: rest 5 minutes after 10 continuous minutes above 45°C
• Avoid pumping high-viscosity fluids or running dry
• Regularly inspect and clean the inlet strainer and hoses

Who is this for? The Orion Motor Tech 12V Diesel Transfer Pump kit is tailored for mechanics, boat owners, landscapers, fleet operators, and DIYers who need a reliable, portable solution for moving diesel and other light oils quickly and cleanly. If you require a compact, electrically powered pump with straightforward controls, solid construction, and a ready-to-use accessory set, this unit delivers practical, job-ready performance without complicated setup.
