Orion Motor Tech Harmonic Balancer & Steering Wheel Puller Kit — 49‑Piece Heavy‑Duty Heat‑Treated Set

Orion Motor Tech's 49-piece OMT Harmonic Balancer Puller and Steering Wheel Puller Tool Kit is a complete, heavy-duty set designed to remove harmonic balancers, crankshaft pulleys, steering wheels and similar press-fit components quickly and safely.

This all-in-one kit groups every commonly needed adapter, bolt and forcing screw into one compact case so professional mechanics and home DIYers can tackle pulley and steering wheel removal without improvising parts. The set combines heat-treated centering adapters, a hardened forcing screw and stepped bolts that fit many late-model GM engines, providing robust performance and corrosion resistance for repeated shop use.

How does this kit simplify harmonic balancer and pulley removal?

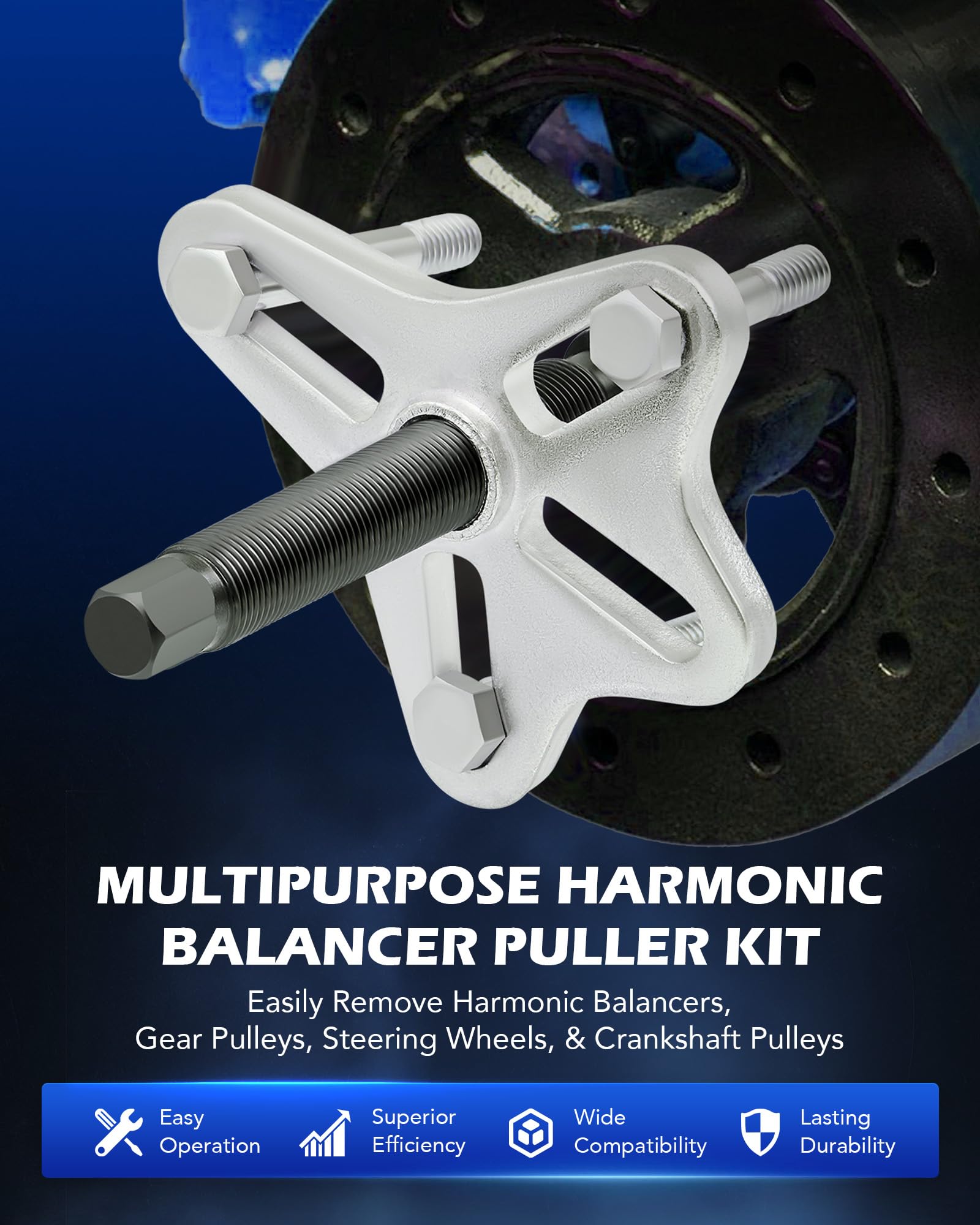

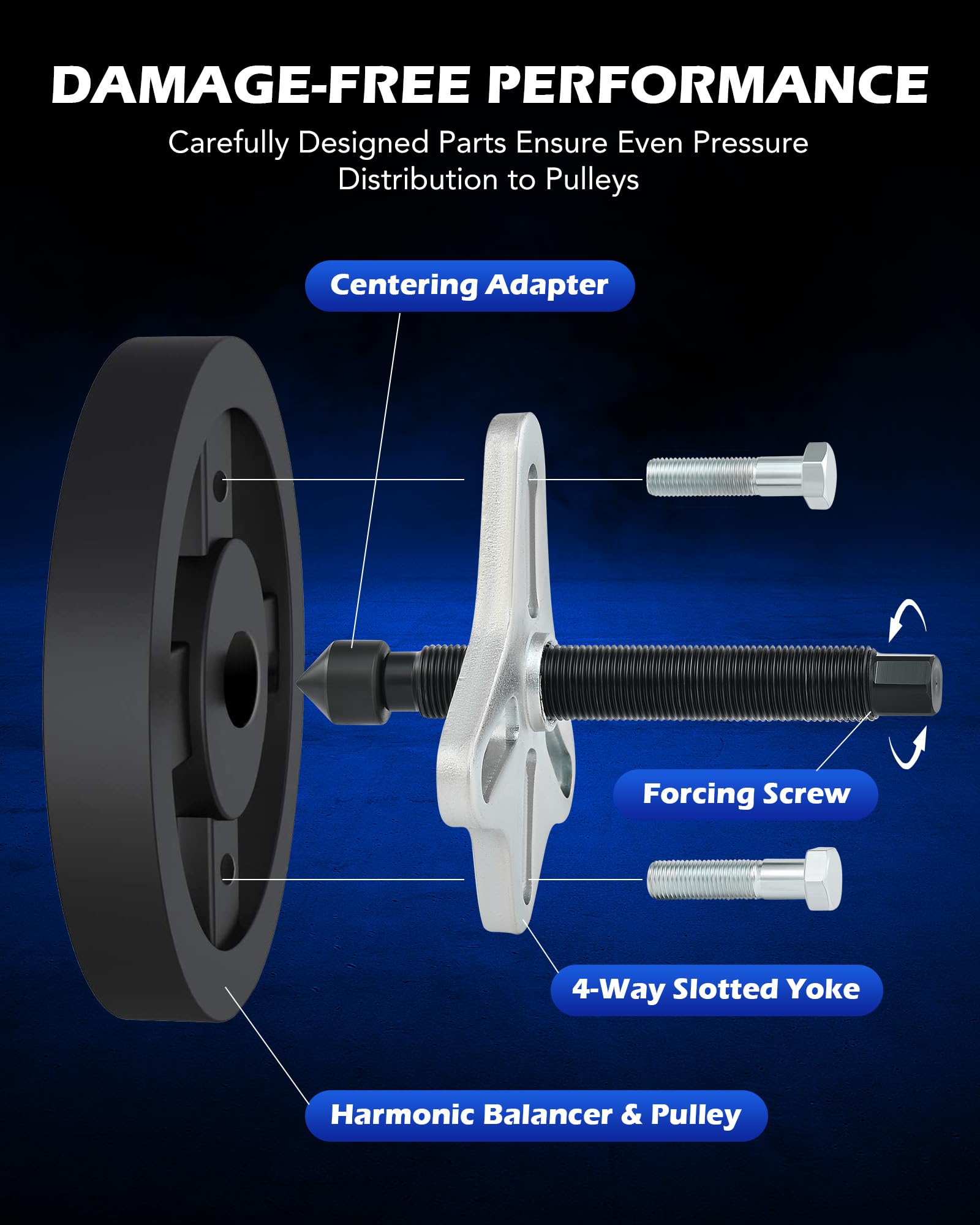

The kit supplies the correct components to mount a puller, center the tool on the crankshaft, and apply steady removal force without damaging the pulley or shaft. Using the steel yoke and pressure screw transfers force evenly so parts separate cleanly.

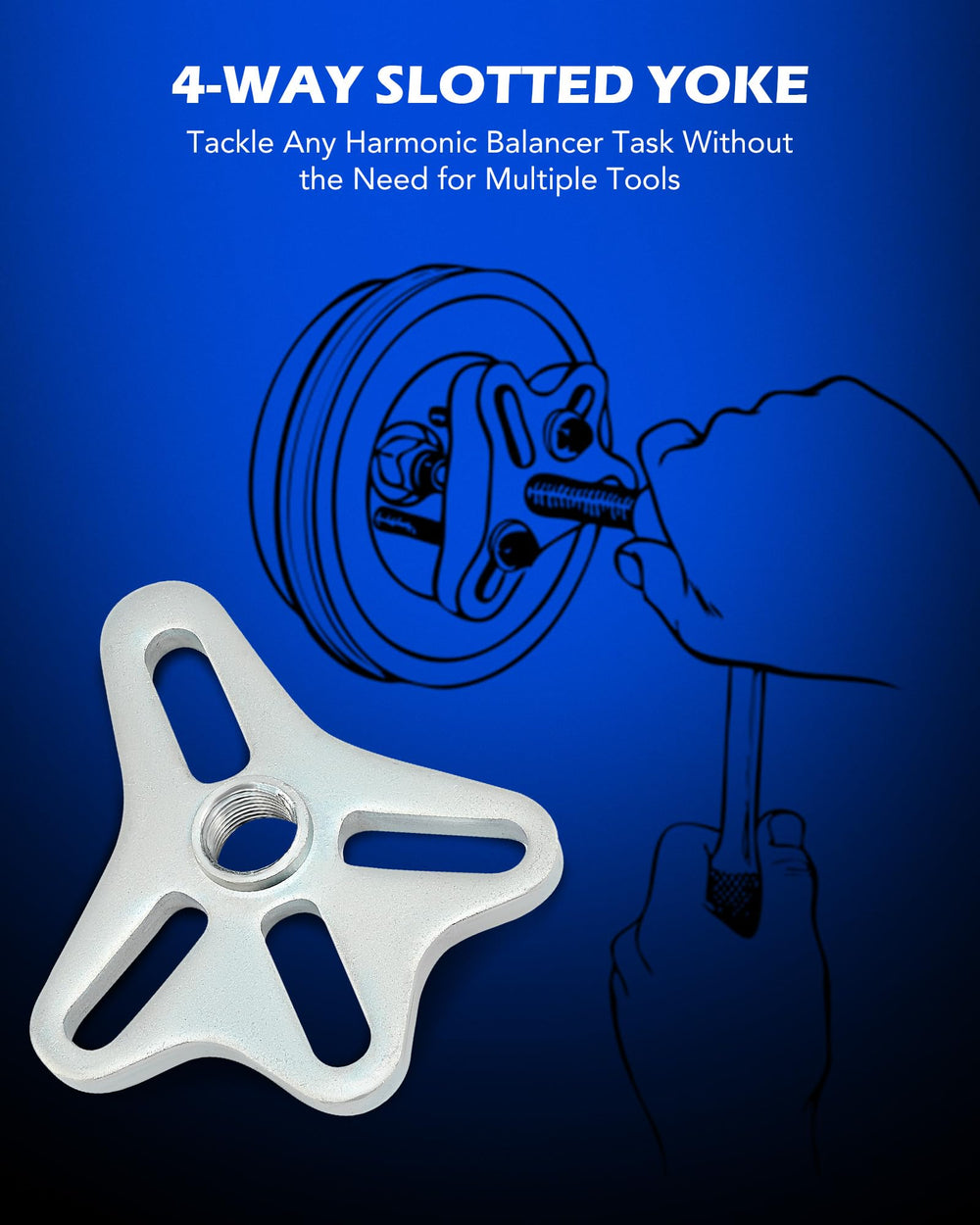

• Includes a steel yoke and hardened pressure screw for controlled extraction
• Two centering adapters keep the puller concentric to the crankshaft

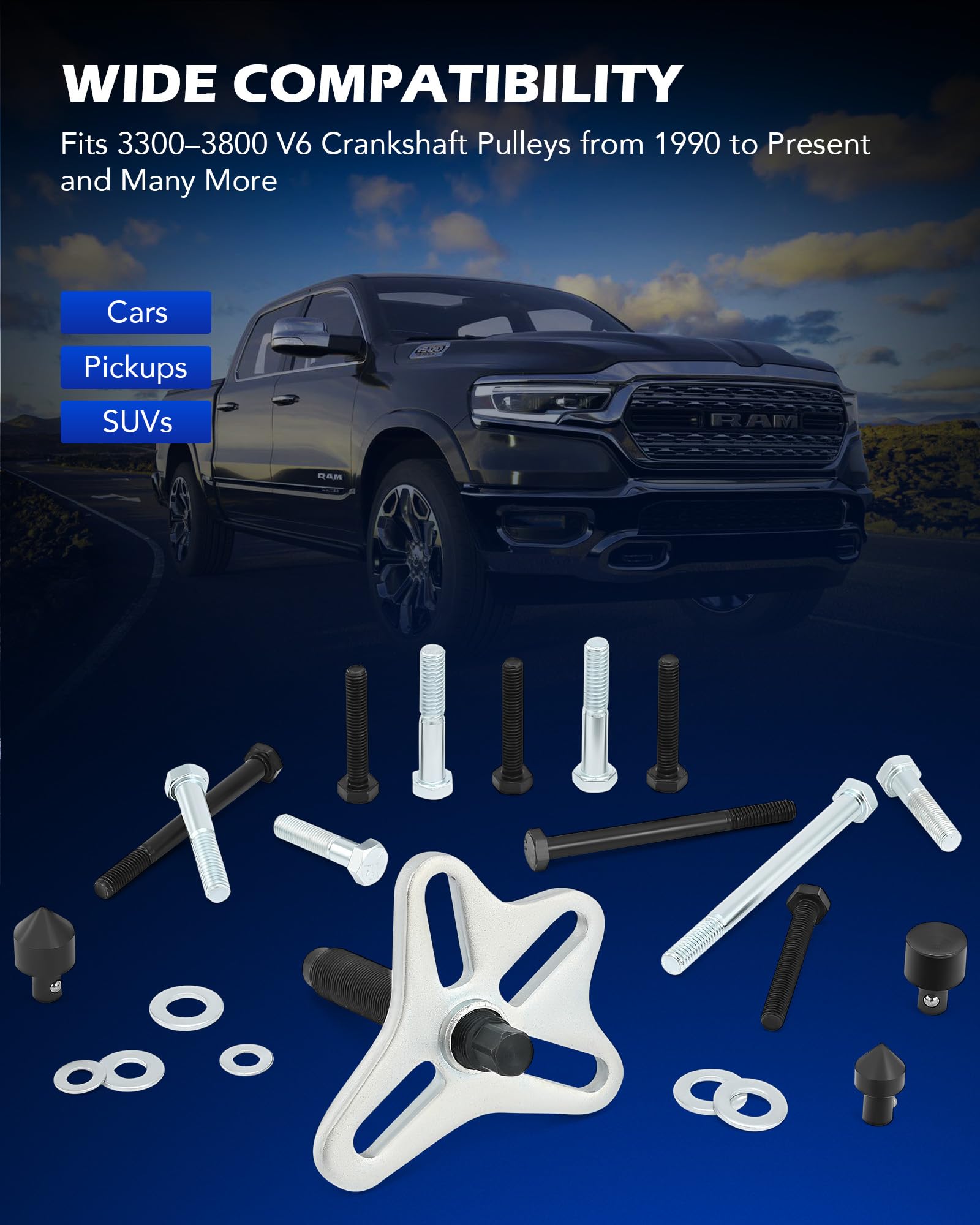

• Stepped bolts cover GM 3300–3800 V6 crank pulleys made since 1990

What components are included and what sizes do they cover?

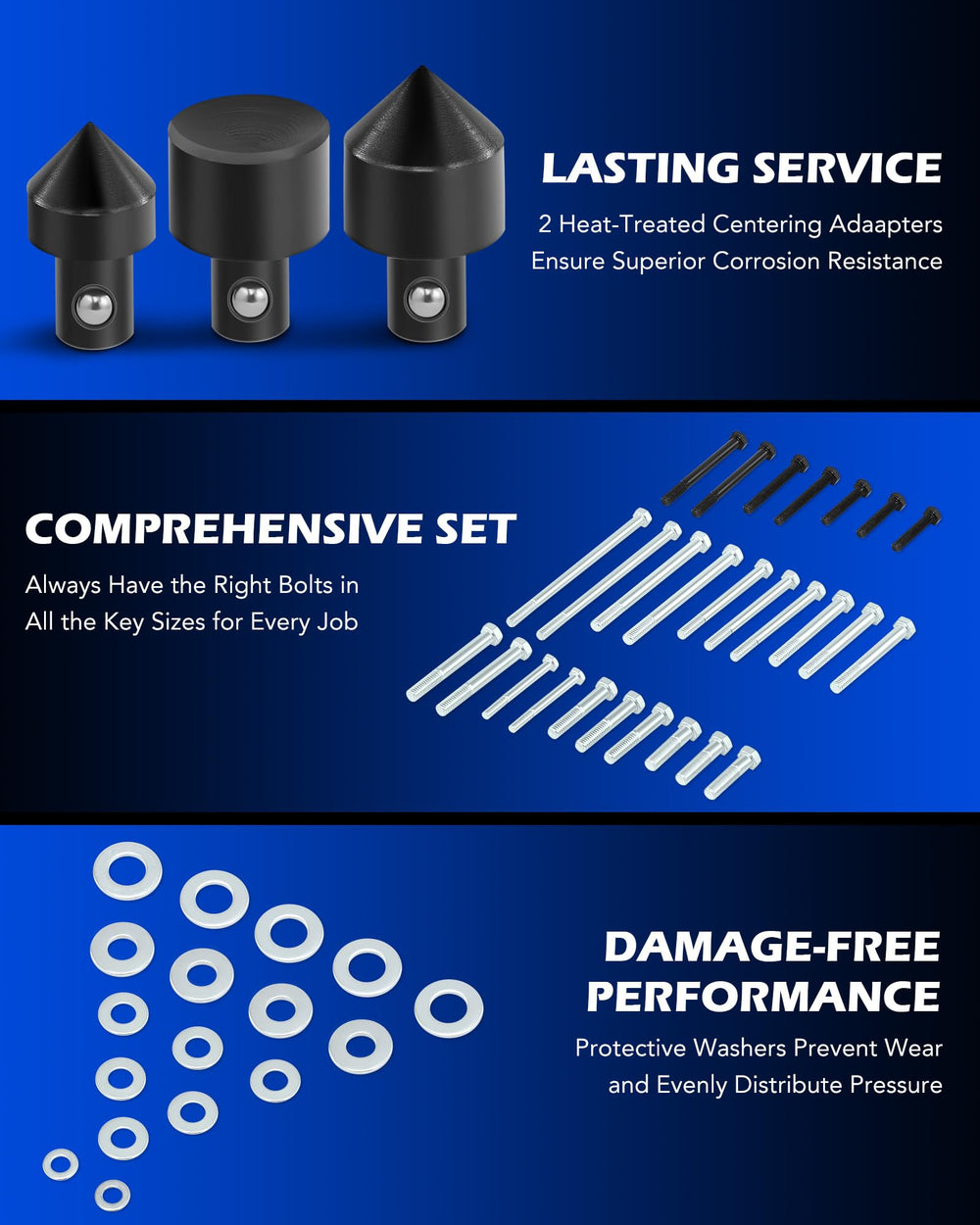

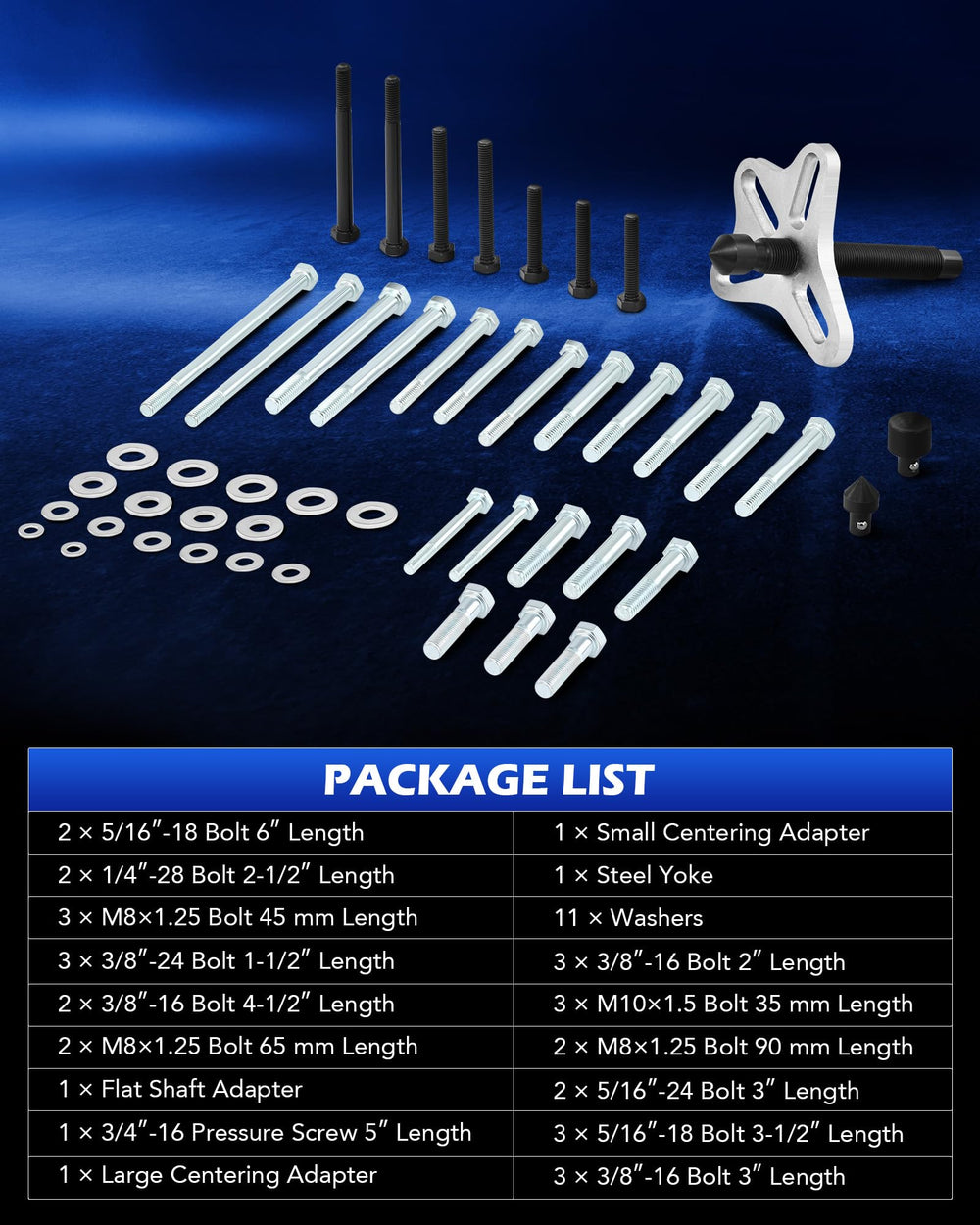

The set contains 49 pieces: a center forcing screw, flat shaft adapter, two centering adapters and 30 common bolt sizes in both SAE and metric threads. That range removes the need to hunt for separate bolts or adapters when switching between vehicles.

• Bolt sizes: 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-24, 3/8"-16, M8x1.25, M10x1.5
• Includes flat shaft adapter for non-threaded hubs and steering wheel use

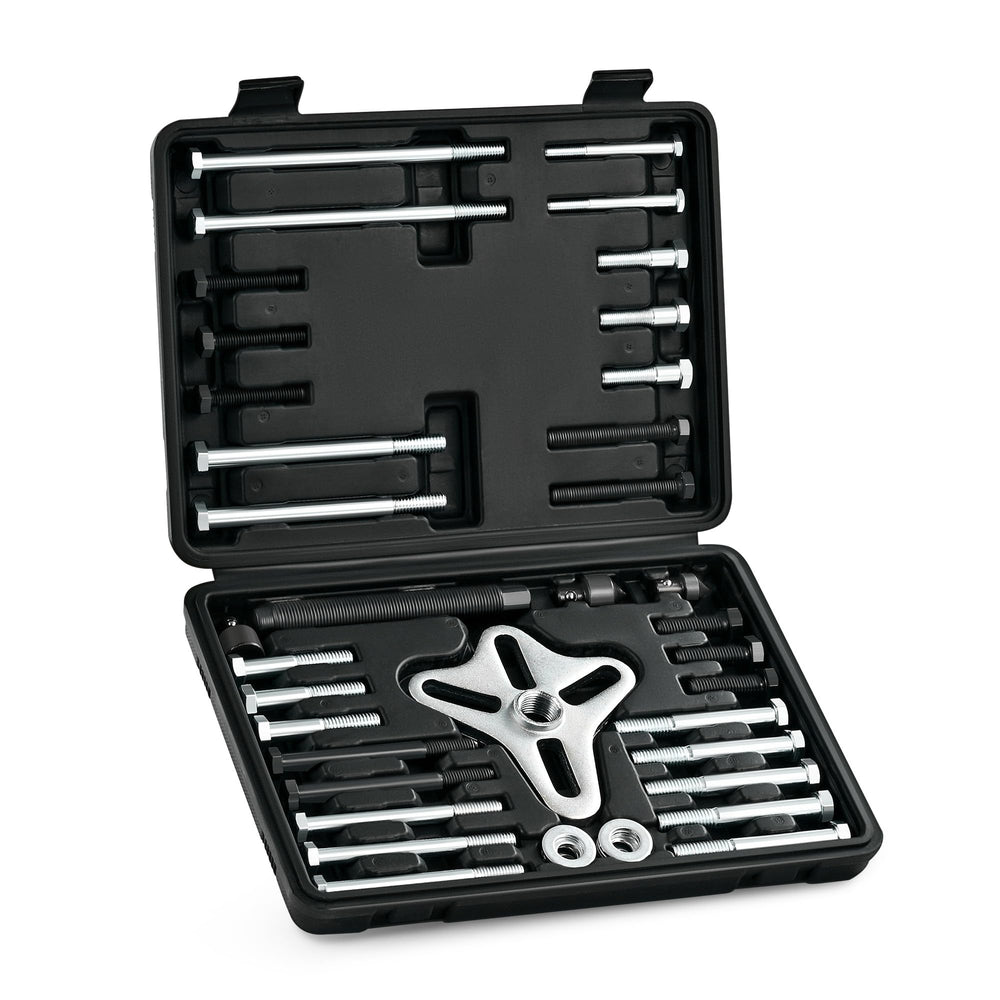

• Packed in an organized case so you can select the right piece quickly

Is the kit durable enough for frequent shop use?

Yes — critical pieces are heat-treated and the forcing screw is hardened to resist wear and deformation under load. The materials and finishes are chosen to resist corrosion and retain function through repeated extractions.

• Heat-treated centering adapters for sustained concentric contact
• Hardened forcing screw resists bending and thread wear
• Corrosion-resistant finishes extend service life in shop environments

How do I use the steering wheel puller with this set?

Locate the threaded holes in the steering wheel hub, select matching bolts from the kit, attach the puller yoke, and turn the center screw to lift the wheel straight off the column. The flat shaft adapter and included bolts make alignment and pressure distribution simple.

• Match bolt thread to hub and install through yoke into wheel
• Use centering adapters to ensure straight extraction on splined shafts
• Rotate center screw gradually to remove the wheel without impact

Who this is for: The Orion Motor Tech OMT 49-piece Harmonic Balancer Puller & Steering Wheel Puller Tool Kit suits professional technicians, small repair shops, and serious DIYers who work on late-model cars, pickups and SUVs. If you frequently remove harmonic balancers, crank pulleys, steering wheels or similar press-fit parts, this kit gathers the necessary adapters and bolts into a single, durable package to speed jobs, reduce part damage and minimize trips to the hardware store.
