Oyviny Trailer Light Circuit Tester — 7-Way Blade & 4-Pin Combo, 6-Function LED Diagnostics, Tin-Plated Contacts

The Oyviny 7-way blade & 4-pin trailer light circuit tester is a handheld diagnostic tool that checks six trailer lighting functions using bright LED indicators for quick wiring verification.

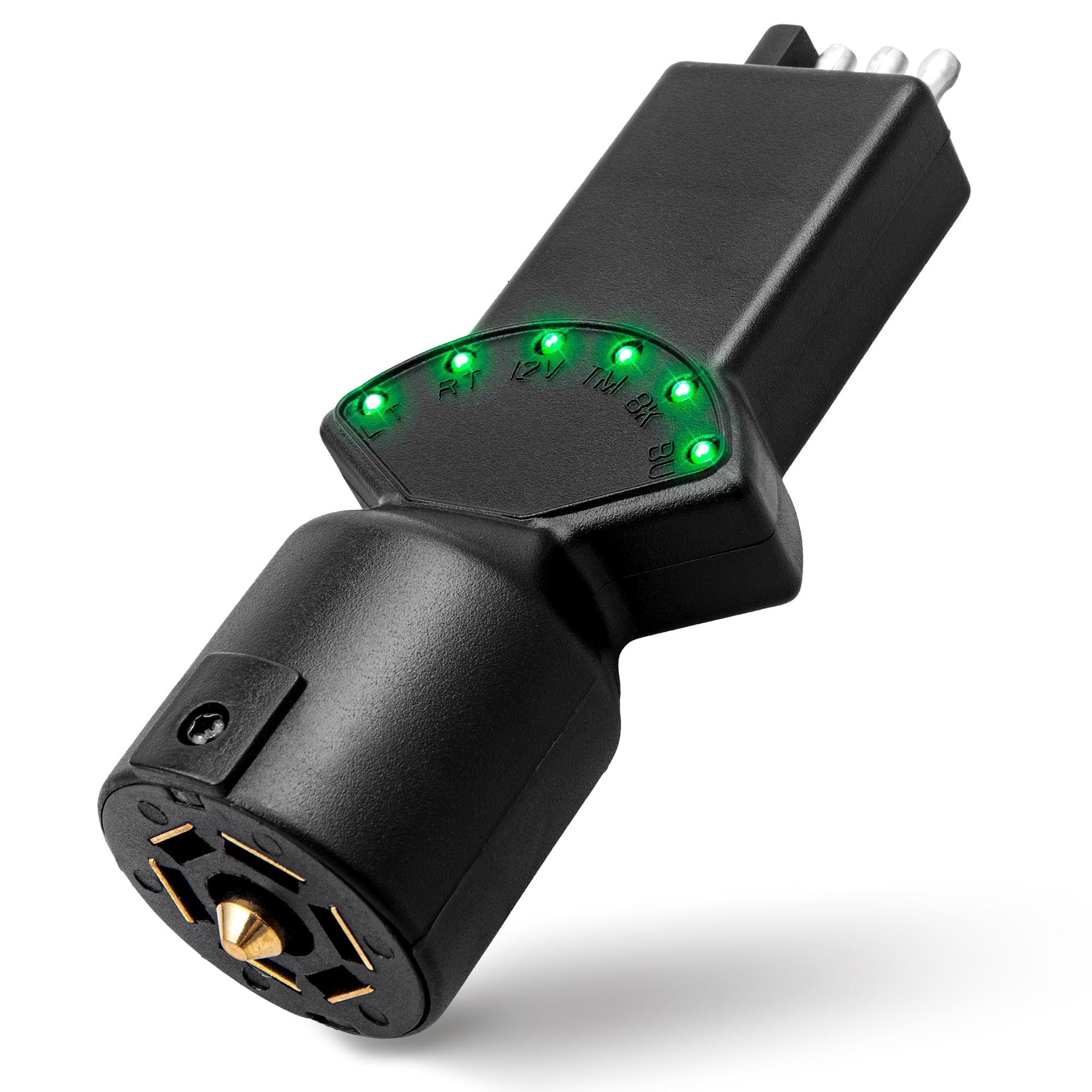

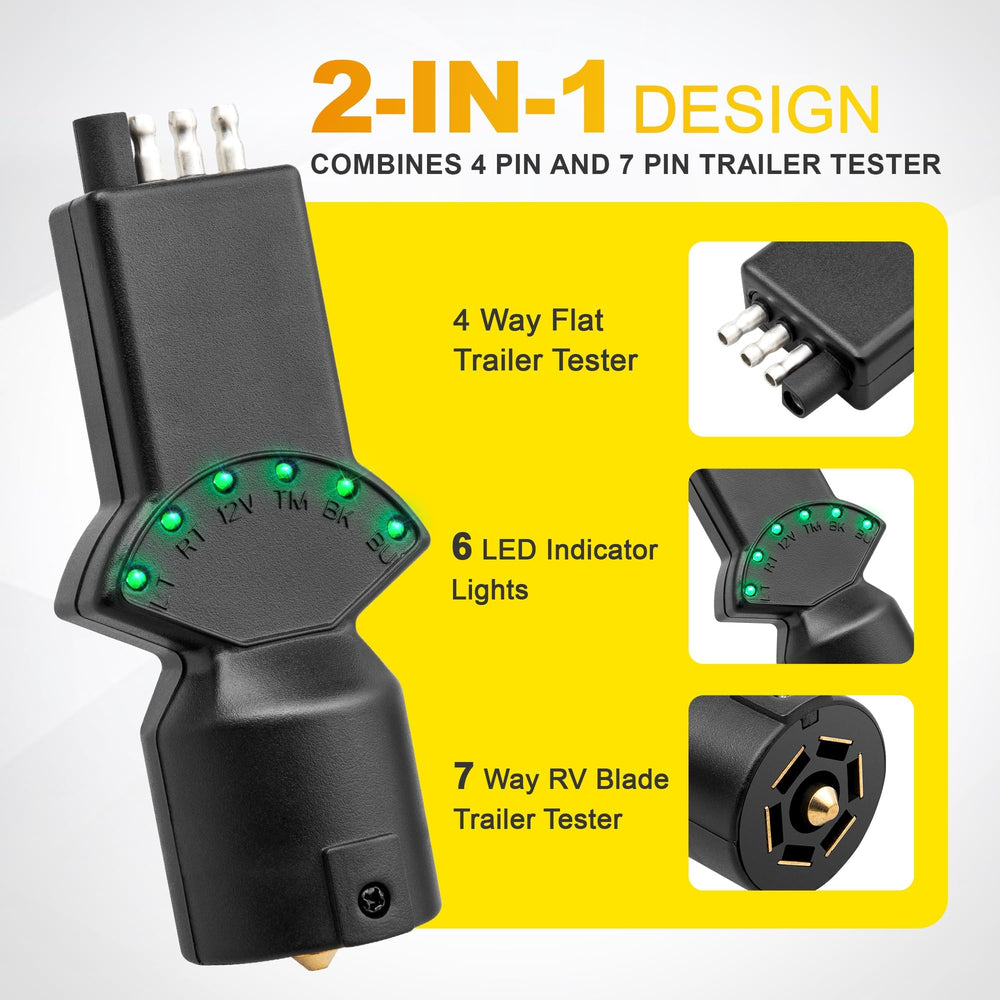

This compact tester combines a 7-blade socket and a 4-pin plug in one rugged ABS housing so you can rapidly inspect trailer and tow-vehicle circuits without tools or batteries. Tin-plated copper contacts deliver reliable conductivity and an ergonomic shape makes plugging and removing the unit straightforward. It’s designed for routine pre-trip checks, workshop troubleshooting, and occasional field use on most trucks, RVs, trailers, caravans and towed equipment.

How do I use the Oyviny tester to find a faulty trailer light?

Plug the appropriate 4-pin or 7-blade connector on the tester into your vehicle or trailer socket. Have a helper activate turn signals, brakes and reverse while you watch the LEDs; each lit LED corresponds to a specific circuit. If an expected LED stays off, that circuit or wiring is likely compromised.

• Plug into vehicle or trailer 4-pin or 7-blade socket — no batteries required.
• Activate lights (brake, turn, reverse, taillight) and observe LEDs.
• Unlit LED indicates open circuit, poor connection, or blown bulb.
• Use tin-plated contacts to inspect socket corrosion or pin damage.

Which functions and lights does this tester check?

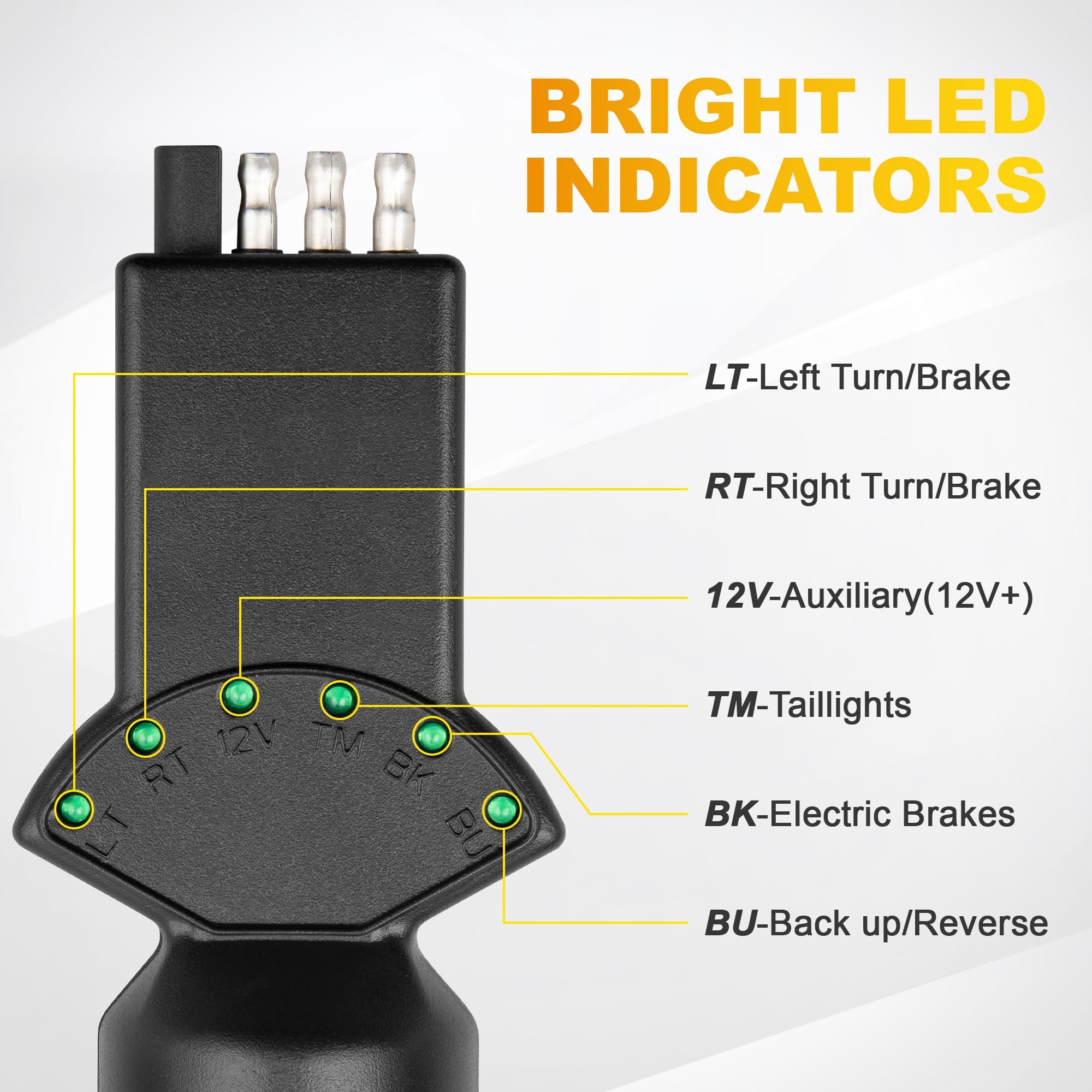

The tester monitors six separate functions: taillight, brake light, left and right turn signals, reverse light and 12V auxiliary power or electric brake feed. Each function has its own bright green LED so you can identify the exact circuit being powered or missing. This makes it straightforward to isolate wiring faults or bad connectors before hitching up.

• Taillights and running lights — continuous circuit check.
• Brake lights — detects proper brake-feed activation.
• Left and right turn signals — verifies directional outputs.
• Reverse and 12V auxiliary/electric brake — power presence check.

Are there limitations or compatibility issues I should know about?

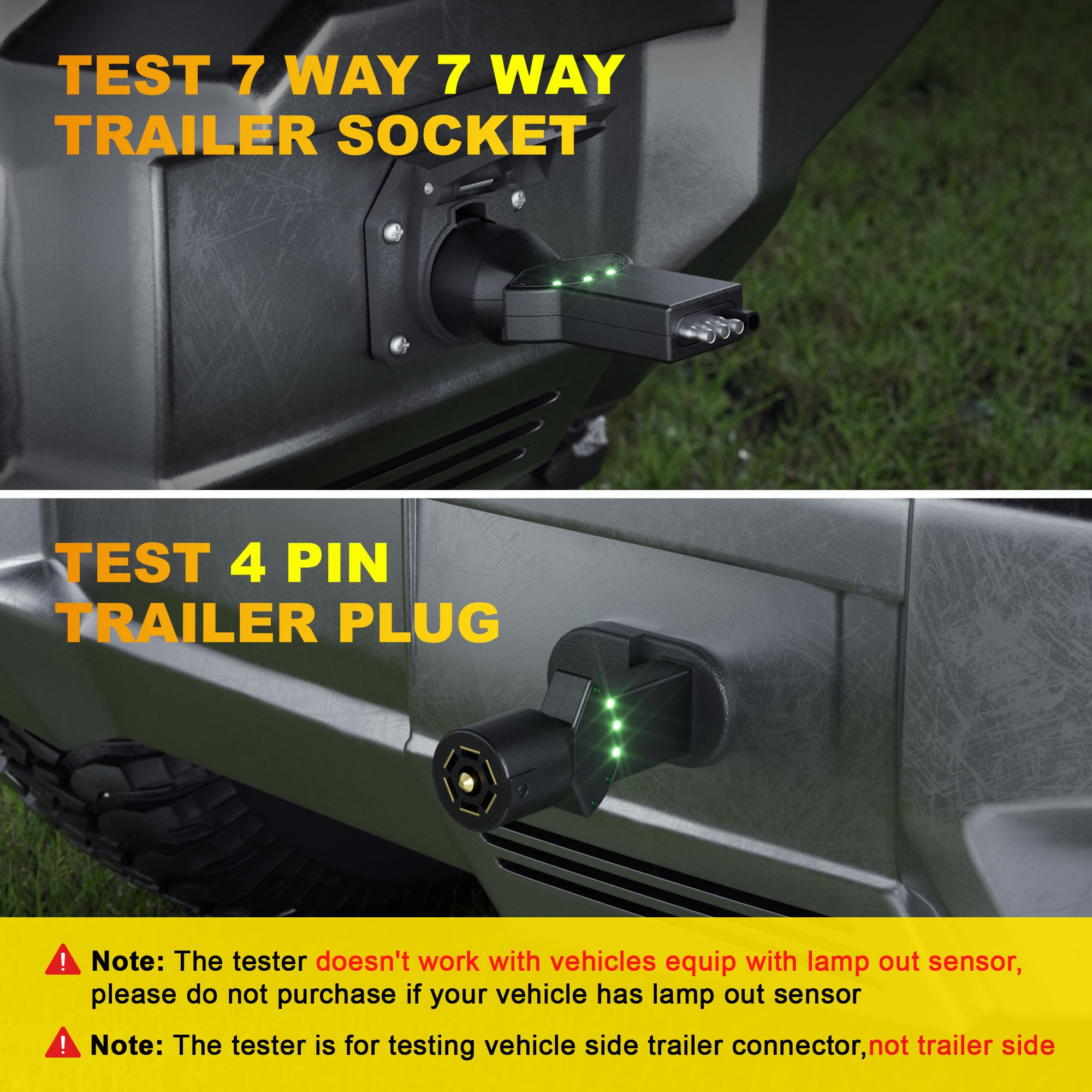

Yes—there are a few important limitations to avoid misdiagnosis. The 7-pin side cannot test trailers that use LED-only lighting patterns the tester does not support. Also, some modern vehicles with lamp-out sensing or polarity/monitoring circuits (certain BMW, VW, Audi, Mercedes-Benz, Porsche models) may show incorrect results. Note that on some 2017-and-newer Ford, GMC, and Chevy vehicles the tester may insert upside down relative to expected pin orientation, so confirm pin mapping if readings look reversed.

• 7-pin side cannot fully test LED-specific trailer lighting systems.
• Not compatible with vehicles that have lamp-out sensing or monitoring circuits.
• Some 2017+ Ford/GMC/Chevy sockets may require orientation check.
• Works best with standard halogen/incandescent trailer bulbs and common towing sockets.

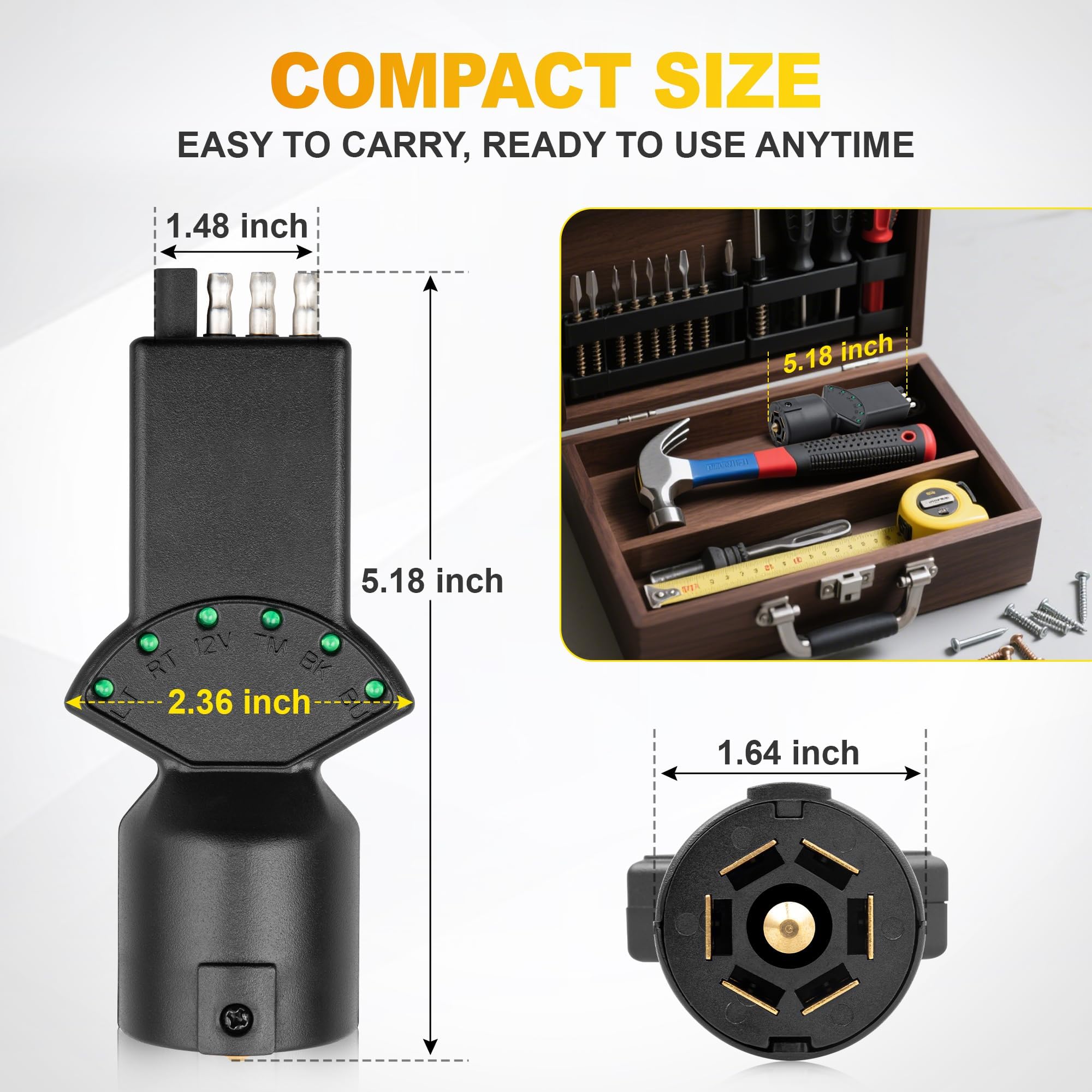

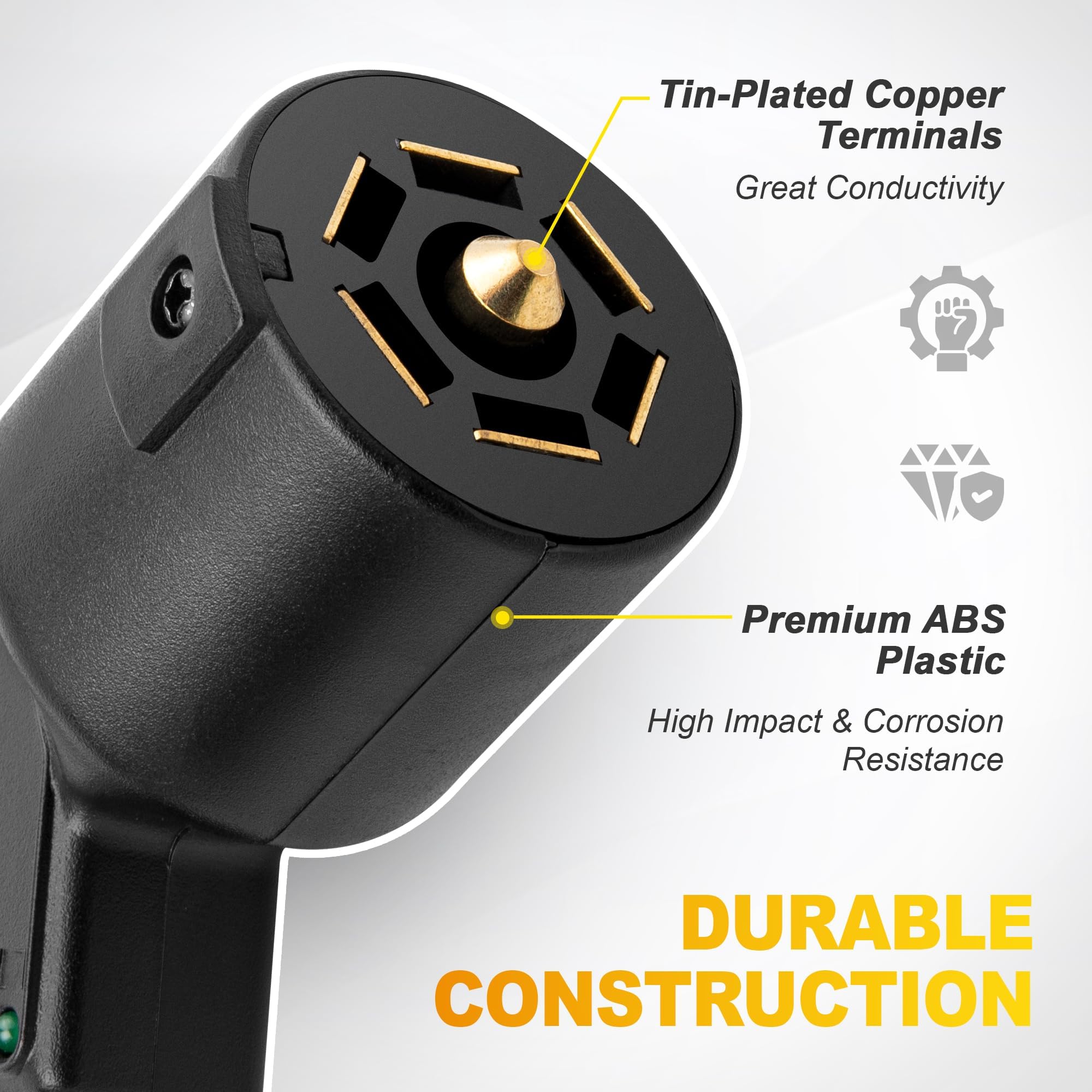

Construction and convenience details: the tester is molded from durable ABS plastic to resist rust and corrosion, with tin-plated copper terminals for good conductivity. No external power is needed, and the compact shape makes it easy to carry in a glovebox or toolbox for quick roadside or shop diagnostics.

Who is this for?

This Oyviny tester is intended for DIYers, fleet managers, RV owners, tow-vehicle drivers and mechanics who need a fast, portable way to verify tow socket wiring and basic trailer light function. It’s ideal for routine pre-trip checks, identifying open circuits or bad sockets on trailers, campers, food vans and boats. If you rely on LED-only trailer lights or drive a vehicle with lamp-out monitoring, pair this tester with manufacturer-specific diagnostic steps to ensure accurate results.
