Pacific Performance Engineering MicroPure XR Duramax Oil Filter — 2001-2019 6.6L, 5‑Micron Magnetic, Extreme-Performance

Pacific Performance Engineering MicroPure XR is an extreme-performance oil filter engineered to deliver 2.5× more filtration area and trap particles down to 5 microns for 2001–2019 GM 6.6L Duramax engines.

Built to outlast and outperform the factory unit, this MicroPure Extreme-Performance filter combines high-capacity synthetic media, a powerful magnetic debris catcher, and upgraded components to protect engine oil and extend service intervals. It replaces the limited-surface OEM filter with a design focused on finer filtration, better oil retention, and structural durability for heavy-duty and high-mileage Duramax applications.

How does this filter improve oil cleanliness compared to the OEM part?

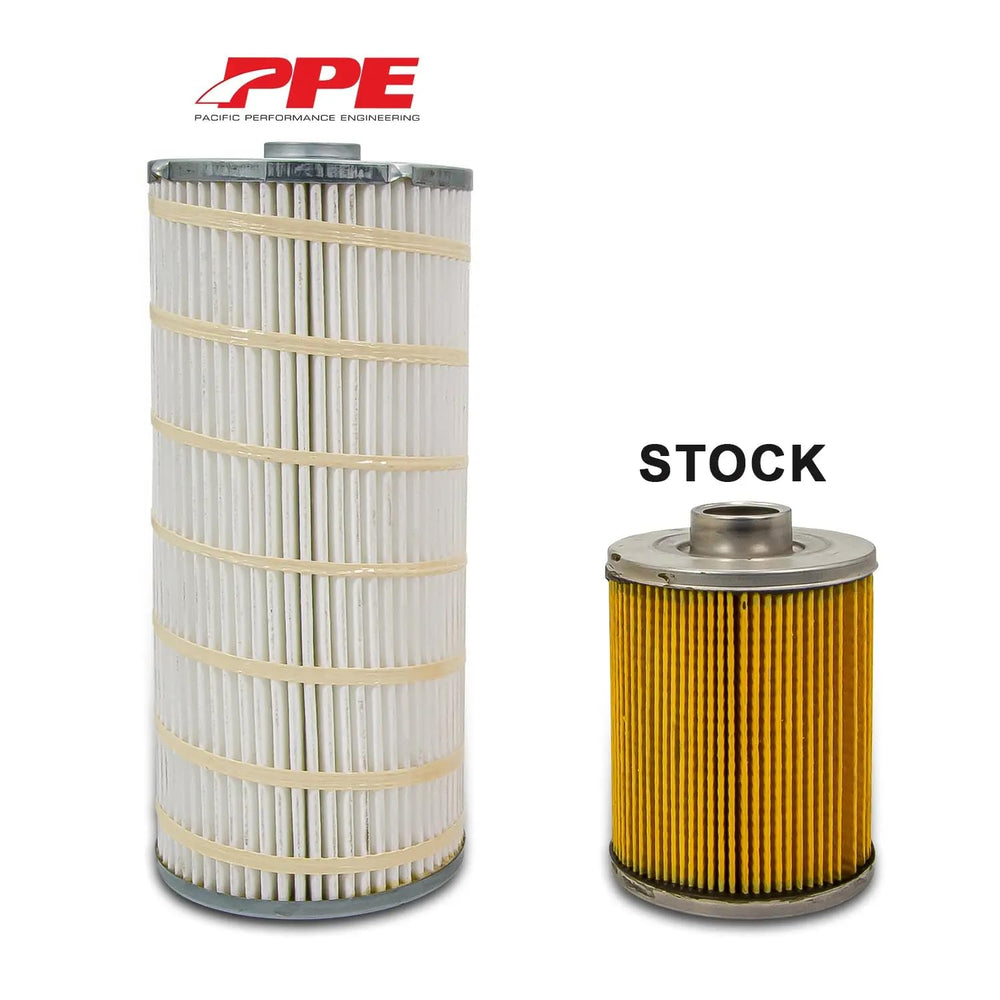

The MicroPure XR uses synthetic filtration media with approximately four times finer fiber density than the stock element, increasing particle capture efficiency down to 5 microns. It also offers 2.5 times the filtration surface area, which lowers flow restriction while holding more contaminants before service is required.

• 2.5× filtration area versus OEM for greater contaminant capacity
• Synthetic media rated to trap particles as small as 5 microns
• Reduced pressure drop under load for consistent oil flow

What special features protect the filter and the engine oil?

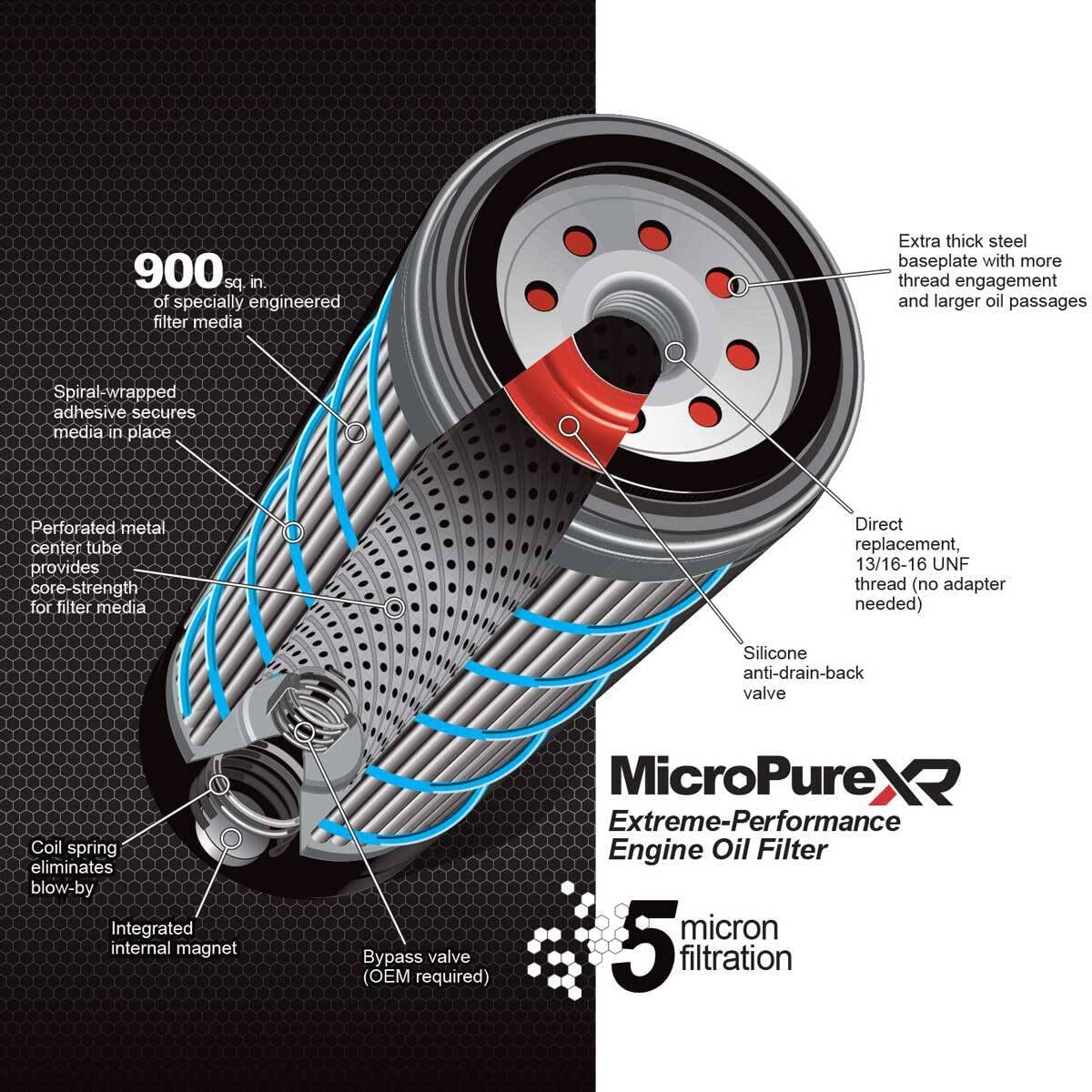

Several reinforced components work together to protect the filter and maintain clean oil between changes. A high-power magnet captures ferrous debris before it lodges in the media, while a heat-resistant silicone anti-drain-back valve keeps oil in the filter during shutdowns for faster lubrication on restart.

• Integrated strong magnet secures metal particles at the filter base
• Silicone anti-drain-back valve prevents dry starts and aids oil retention
• 10 psi stiffer bypass valve reduces dirty-oil bypass risk under extreme conditions
• Thicker canister and base plate material enhance durability

Is installation and compatibility straightforward for Duramax owners?

Yes—the MicroPure XR is made to replace the OEM spin-on filter for 2001–2019 GM 6.6L Duramax engines with direct-fit dimensions and standard thread engagement. Installation follows the same steps as the factory filter, and maintenance intervals can be extended according to driving conditions thanks to the larger media capacity.

• Direct-fit replacement for 2001–2019 GM 6.6L Duramax oil filter housings
• Standard spin-on fitment—no special tools required beyond typical oil-change gear
• Enhanced capacity can allow longer intervals if oil condition and driving demands permit

Why choose MicroPure XR with TorqStop for performance or towing use?

TorqStop integration and robust construction make this filter especially suitable for towing, heavy loads, and performance-tuned engines that generate more contaminants and heat. The combination of finer media, magnetic debris capture, and a stronger bypass valve helps maintain oil integrity under elevated stress.

• TorqStop-design for reliable sealing and simplified removal under torque
• Higher-temperature materials resist degradation during heavy-duty use
• Improved contaminant holding capacity supports severe-duty intervals

Who is this for: Pacific Performance Engineering MicroPure XR with TorqStop is aimed at Duramax owners who demand better-than-stock filtration—owners who tow, haul, drive long distances, or run performance modifications and want longer oil life, cleaner oil, and stronger mechanical protection. It’s also a smart upgrade for anyone replacing an OEM filter who prefers improved filtration efficiency and component durability without changing maintenance habits.
