Partsam Double-Face Round LED Pedestal Lights 2-Pack Clear Lens, 48-LED Dual-Intensity 10–30V

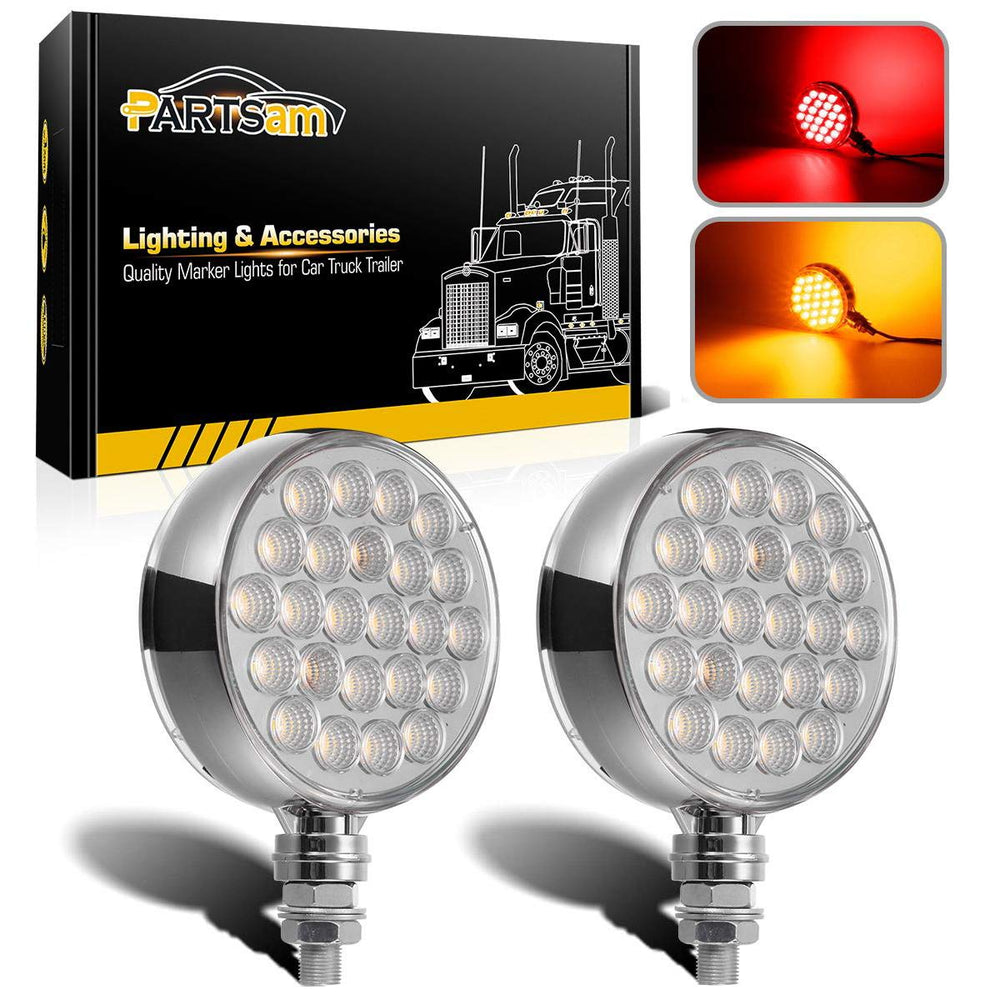

Partsam 2-piece double-face round LED pedestal lights are dual-direction fender lights with 48 LEDs (24 red, 24 amber) that provide stop, turn, and tail functions in a compact post-mount housing.

These pedestal lights combine a chrome die-cast housing with a faceted miro-reflex reflector and a clear lens to deliver brighter, more visible signaling for trailers, trucks, RVs, and other utility vehicles. Each assembly measures about 4.15" in diameter, mounts on a single stud post, and runs on 10–30V DC, making them a versatile replacement for many commercial and recreational applications. The pair includes a right and left unit: the forward-facing side emits amber for parking and front/side turn signaling, while the rear-facing side emits red for stop, tail, and rear turn functions.

How do these lights handle different vehicle voltages and wiring setups?

These LEDs are rated to operate across a wide DC range (10–30V), which covers most 12V and 24V systems commonly found on trailers and commercial vehicles. Wiring is simplified with three plain wires — white for ground, gray for low-brightness function, and red for high-brightness function — enabling integration with existing harnesses.

• Works on 10–30V DC systems for broad compatibility
• Three-wire setup: white = ground, gray = low, red = high
• Low current draw for minimal strain on vehicle electrical systems
• Universal single stud post mount for straightforward replacement

What lighting functions does each face provide?

The two-faced design delivers different signals depending on orientation: the clear lens with amber LEDs faces forward and serves parking plus amber turn indications; the clear lens with red LEDs faces backwards and provides tail, brake (high output), and rear turn functions. The dual-intensity wiring allows you to use low and high settings for tail versus brake brightness.

• Forward-facing amber: parking and front/side turn signals
• Rear-facing red: tail, stop (high intensity), and rear turn signals
• Dual-intensity control using the gray (low) and red (high) wires

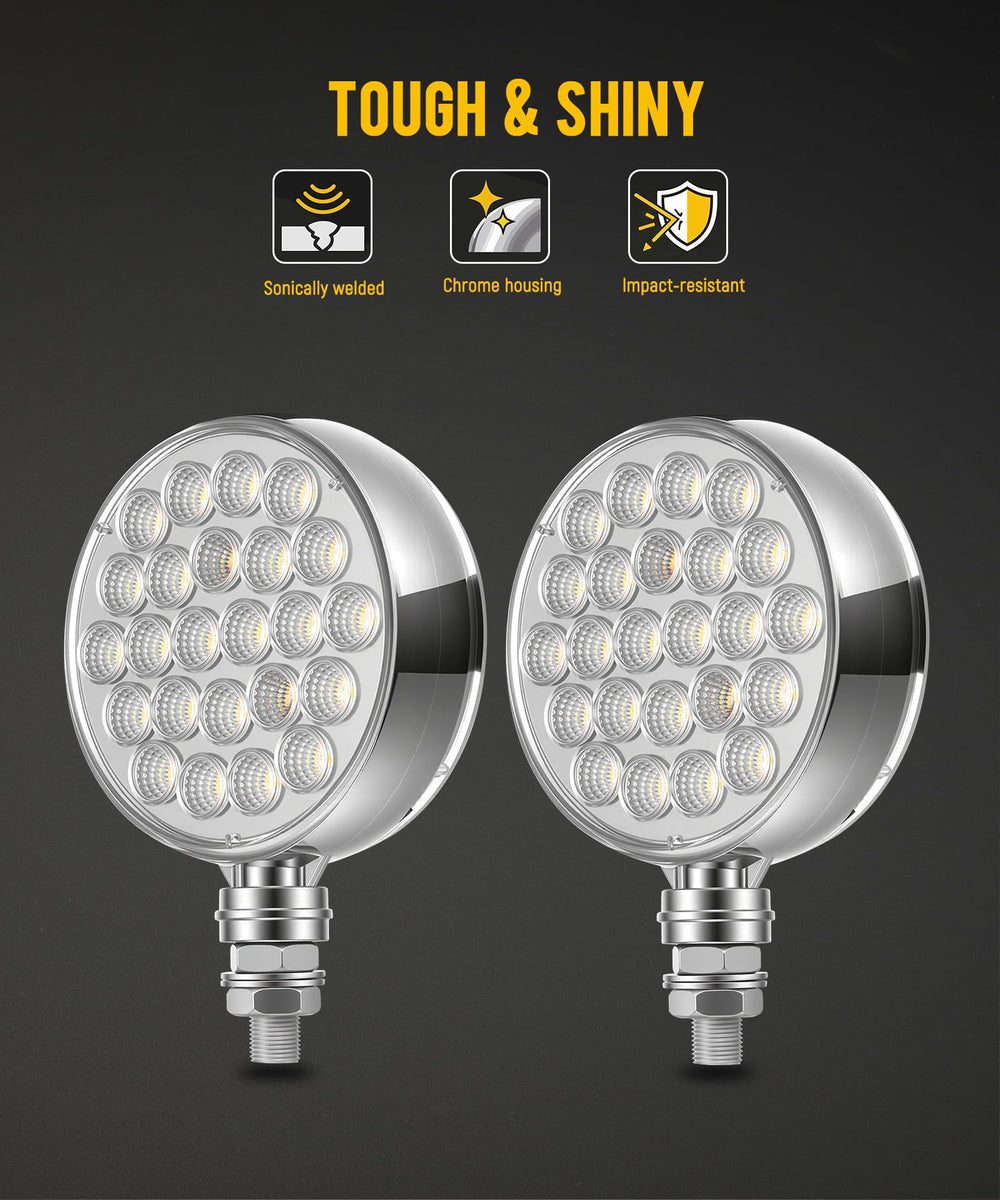

• Faceted reflector increases perceived brightness without bigger housing

Where and how can I mount these lights on my vehicle?

These pedestal lights are designed for fender or bumper mounting on trucks and trailers but are also suitable for mirrors, toolboxes, or any flat surface needing side or rear marker and signal lights. The chrome die-cast body and sealed construction make them durable for exterior use in road and marine environments.

• Single stud post mount fits typical fender and bumper holes
• Sealed assembly resists moisture and road debris
• Chrome housing offers corrosion resistance and a clean look

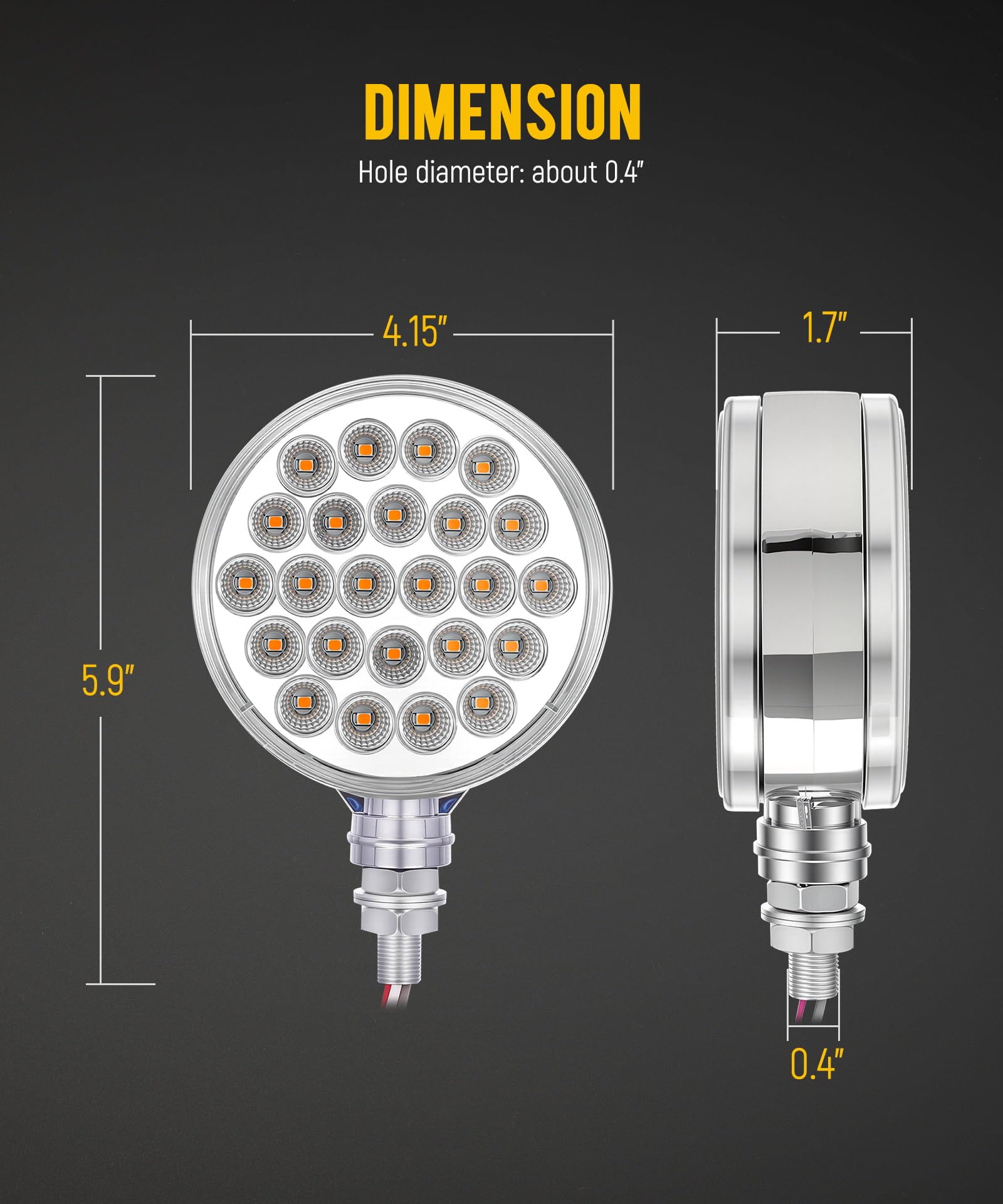

• Compact 4.15" diameter keeps original footprints intact

Who is this for: These Partsam dual-face 48-LED pedestal lights are ideal for owners of trailers, semi-trailer units, work trucks, RVs, and utility vehicles who need reliable, legally visible stop/turn/tail lighting in a compact, easy-to-install package. They suit fleet managers and DIY mechanics replacing worn-out fender lights or upgrading to LED efficiency, as well as recreational users fitting boat trailers and campers who want clear, multi-function signaling without complex rewiring.
