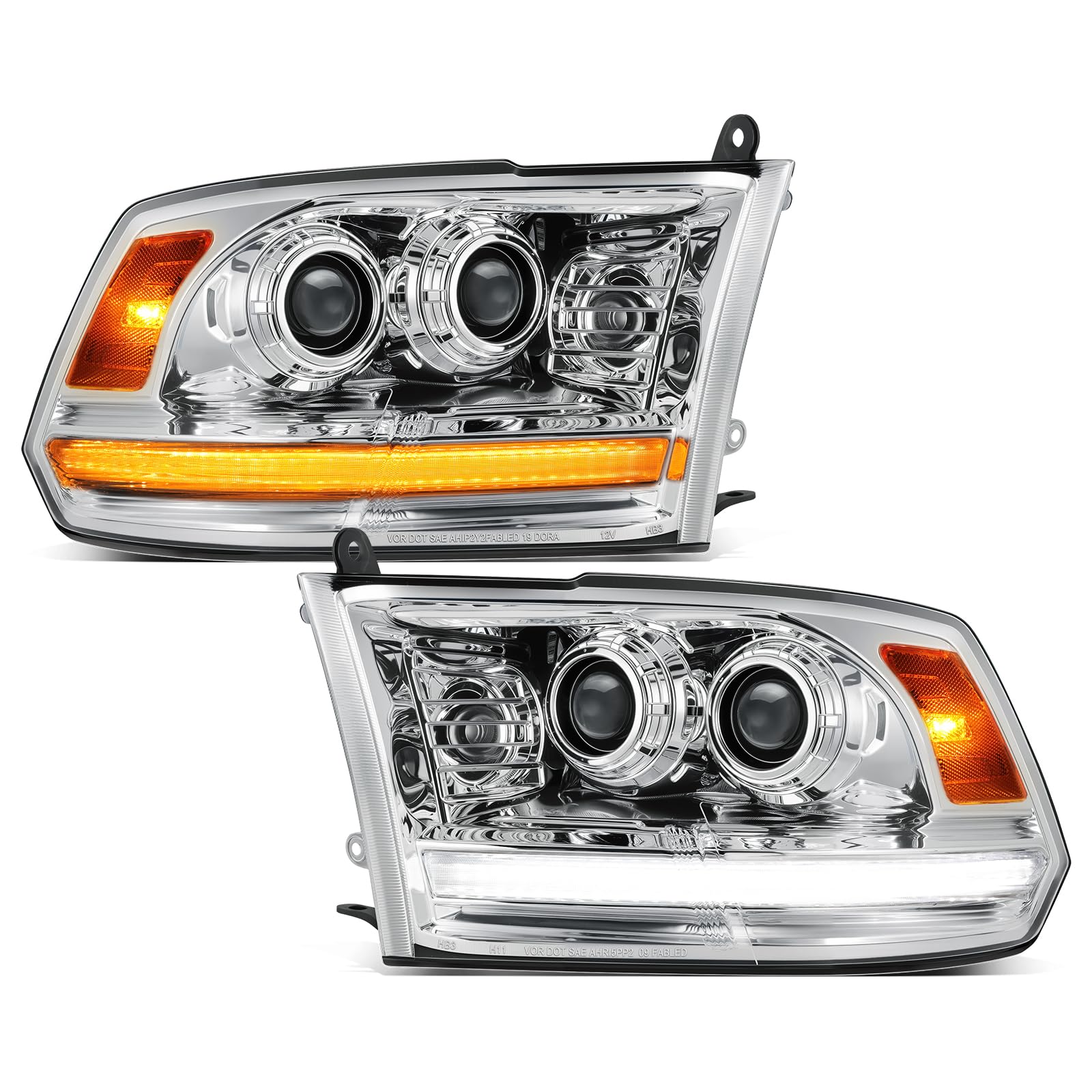

Partsam LED Headlight Assembly for 2009–2018 Ram 1500/2500/3500 — Chrome Dual Projector, Sequential DRL

Partsam full LED chrome headlights are a direct-fit replacement for select Ram pickup models, offering dual projector beams, sequential DRL turn signals, and a fully sealed IP67 design for reliable lighting performance.

These headlights are engineered to match the 2009–2018 Ram 1500 and 2010–2018 Ram 2500/3500 fitments (also compatible with 2019–2023 Ram 1500 Classic), combining focused projector optics with full LED light sources and a chrome housing to preserve factory styling. They are DOT- and SAE-approved, come as a left/right pair, and include instructions for wiring and installation. Below are common buyer questions answered to help you decide if these headlights meet your needs.

How does the lighting perform on dark roads?

The Partsam headlights use dual projector lenses with dedicated LED bulbs for low and high beams, producing focused, consistent illumination and a clean cutoff to reduce glare. The low beam outputs strong center illumination while the high beam delivers an extended throw for highway visibility.

• Low beam: 74,000 candela for clear near-field detail.
• High beam: 118,000 candela for long-range visibility.
• Projector optics produce a sharp, flat top beam pattern to minimize oncoming glare.
• Full LED bulbs eliminate the need to swap out ancillary lamps.

What lighting functions and modes are included?

These assemblies are full-LED units that integrate daytime running lights (DRL), position lights, side lights, dual-color switchback turn signals, and separate low/high beams. The switchback feature runs white DRL light and changes to amber when signaling, plus there’s a start-animation effect on power-up.

• White DRL mode that switches to amber for turn signaling.
• Sequential turn signal animation for modern styling.
• Integrated position and side lights—no extra bulbs required.
• Start-up animation for instant visual feedback at ignition.

Are these headlights durable and weatherproof?

Yes—the housings are fully sealed and rated IP67, protecting internal components from dust and immersion up to specified depths for limited times. That sealing reduces the chance of moisture intrusion and corrosion that commonly shortens headlight life.

• IP67 rating for strong water and dust resistance.
• Fully sealed structure to prevent fogging and ingress.
• Chrome finish resists fading and maintains factory look.

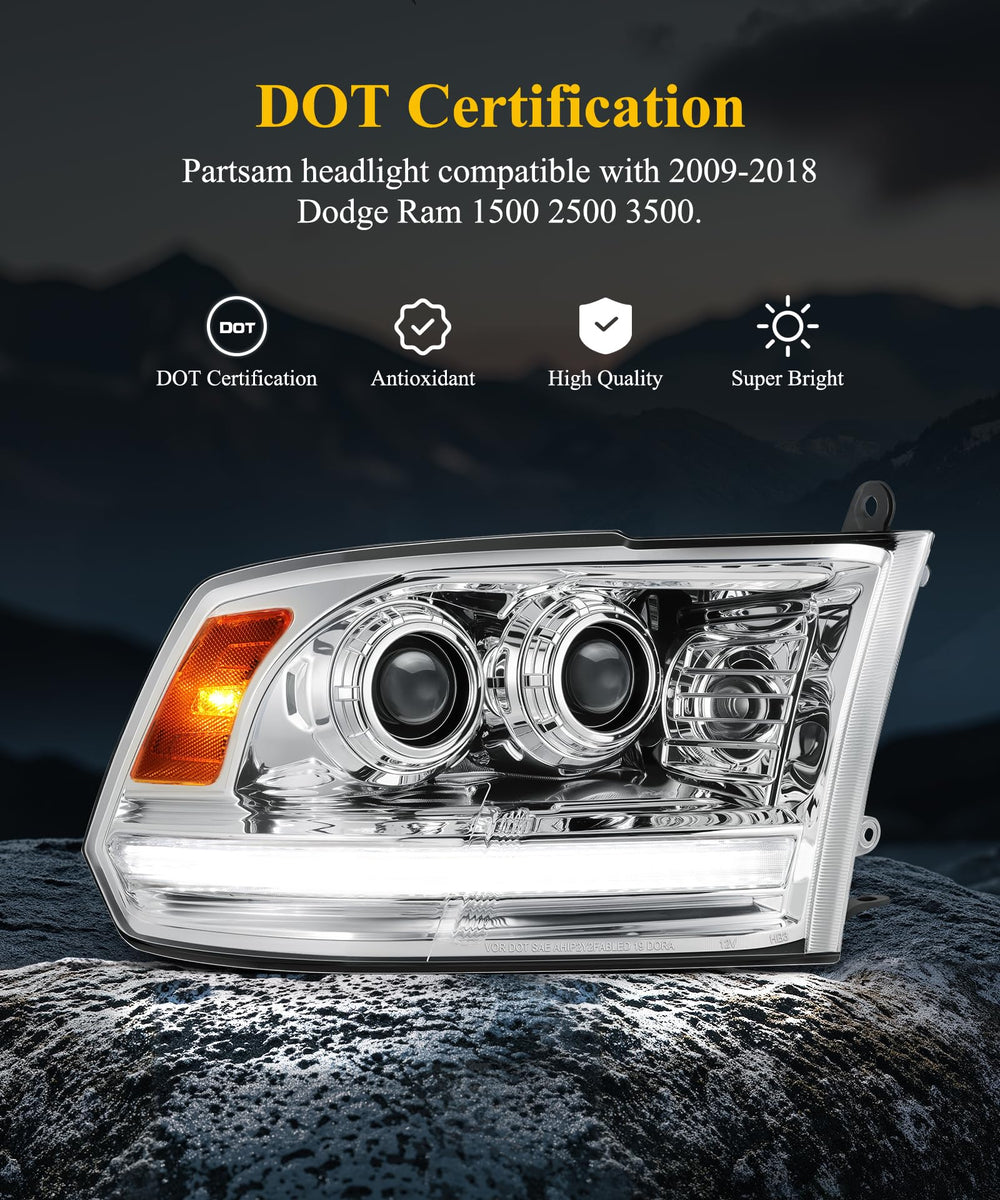

• DOT/SAE approval stamped on the lens for legal compliance.

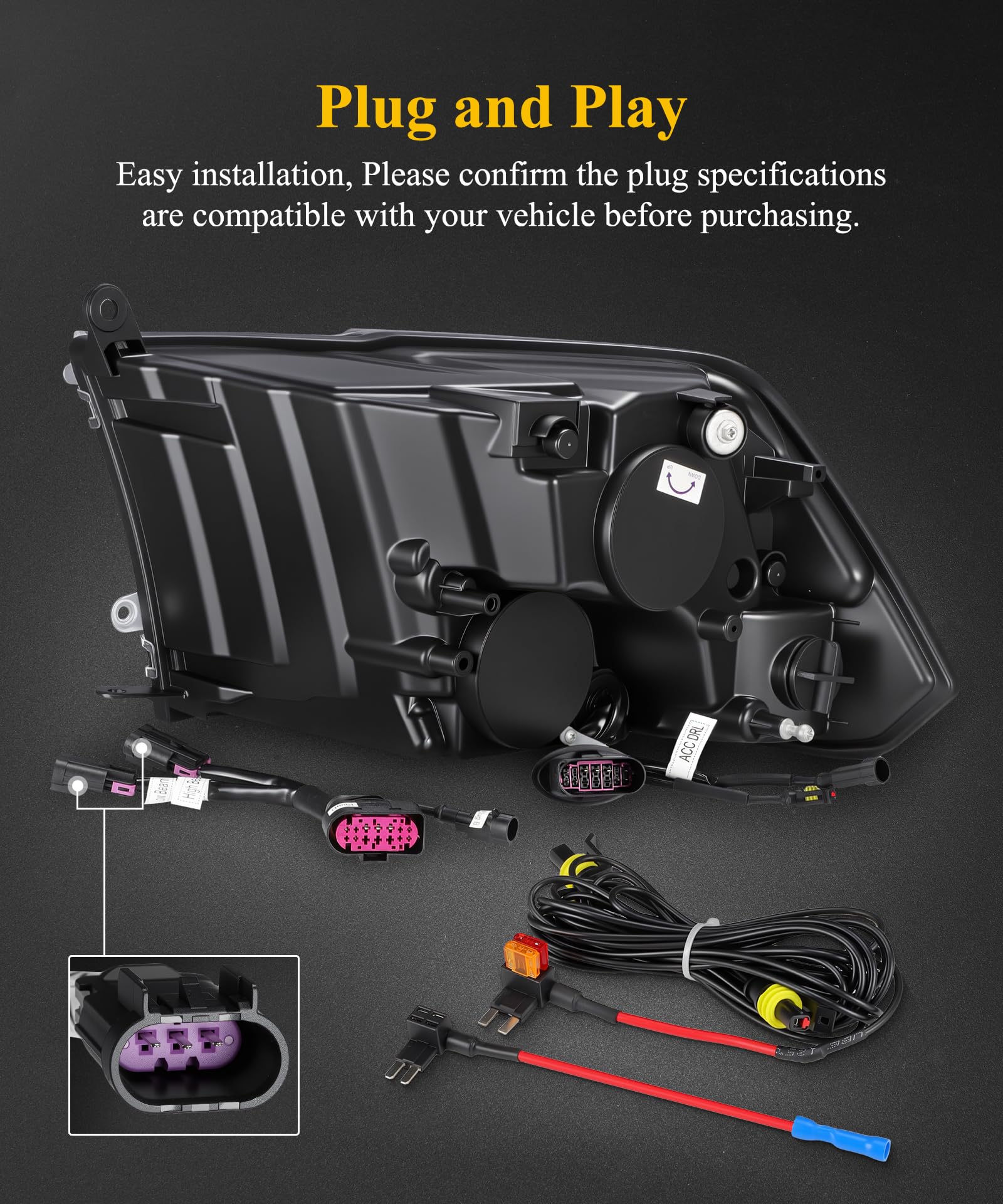

How difficult is installation and what fitments are supported?

The lights are designed as direct-fit replacements for specified Ram models and include an instruction manual covering wiring and installation steps. While many experienced owners can complete the swap with common tools, professional installation is recommended if you aren’t comfortable with vehicle electrical systems.

• Compatible with 2009–2018 Ram 1500, 2010–2018 Ram 2500/3500, and 2019–2023 Ram 1500 Classic.
• Includes both left and right units plus wiring guidance in the manual.
• May require simple connector matching or minor wiring; professional help suggested when unsure.
• DOT engraving confirms compliance with U.S./Canada lighting standards.

Who this is for: These Partsam full LED chrome headlights suit Ram owners who want a direct-fit upgrade from halogen or mixed lighting to a modern, full-LED projector system that preserves a factory appearance while adding sequential signals and durable, weather-resistant construction. Choose these if you prioritize focused beam performance, integrated LED functions without separate bulb swaps, and a plug-and-play replacement for the listed Ram model years.
