Partsam LED Triple Tail Lights for Trailers & RVs, Red/Clear Lens 2-Pack — Dual-Orientation, 8‑Wire Multi‑Function

Partsam 2-piece LED triple tail light set provides versatile stop, turn, tail and backup illumination for trailers, RVs and campers in a compact, dual-orientation housing.

If you need a durable, bright lighting upgrade for towing or camping gear, these Partsam LED taillights combine three red signal zones plus a clear backup lamp in one low-profile unit. Built on a black base and wired for multiple functions, the lamps work horizontally or vertically for flexible installation on trailers, motorhomes and utility vehicles. Stainless hardware and mounting gaskets are included to help create a secure, weather-resistant fit.

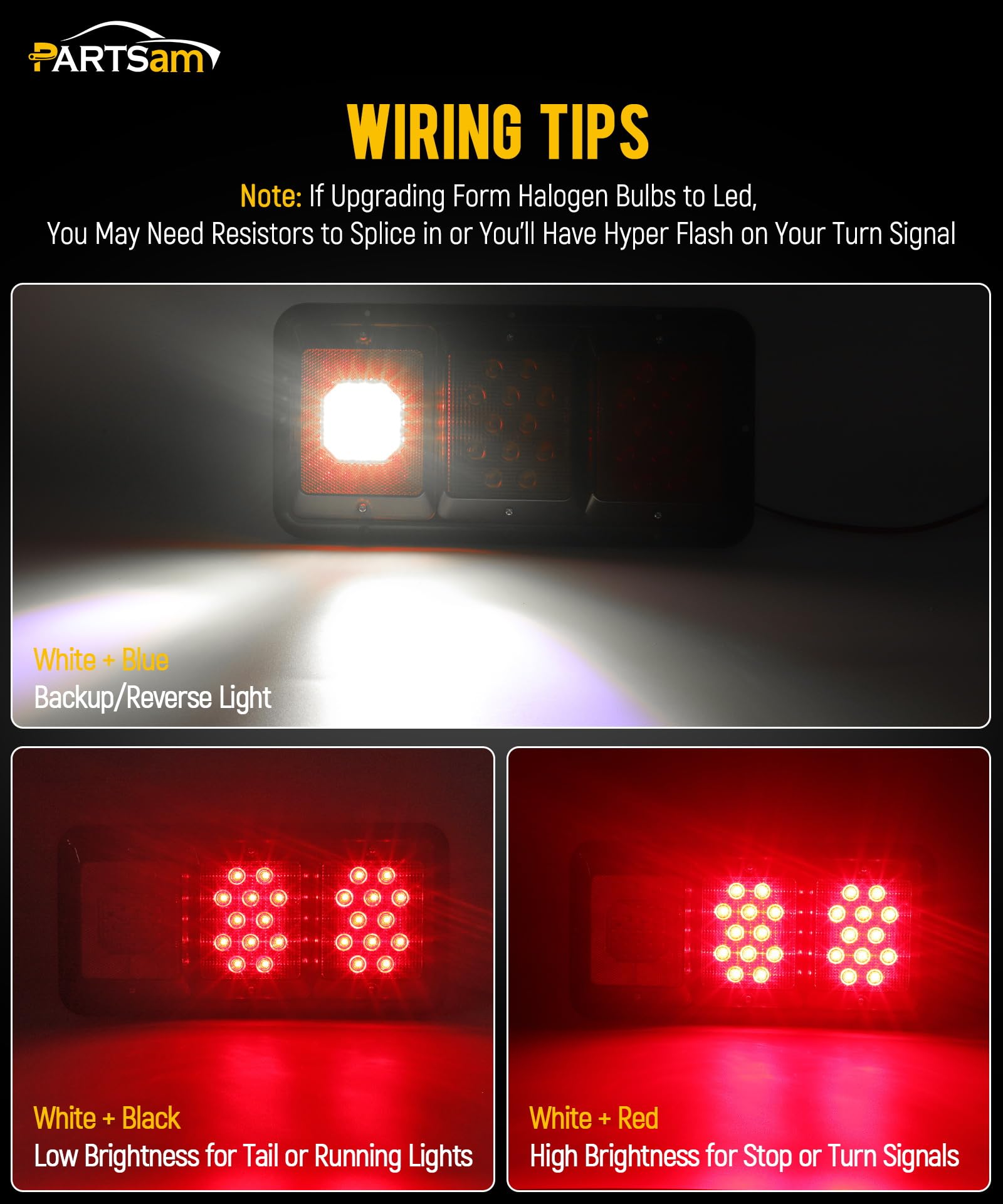

How do these lights handle multiple functions like stop, turn and reverse?

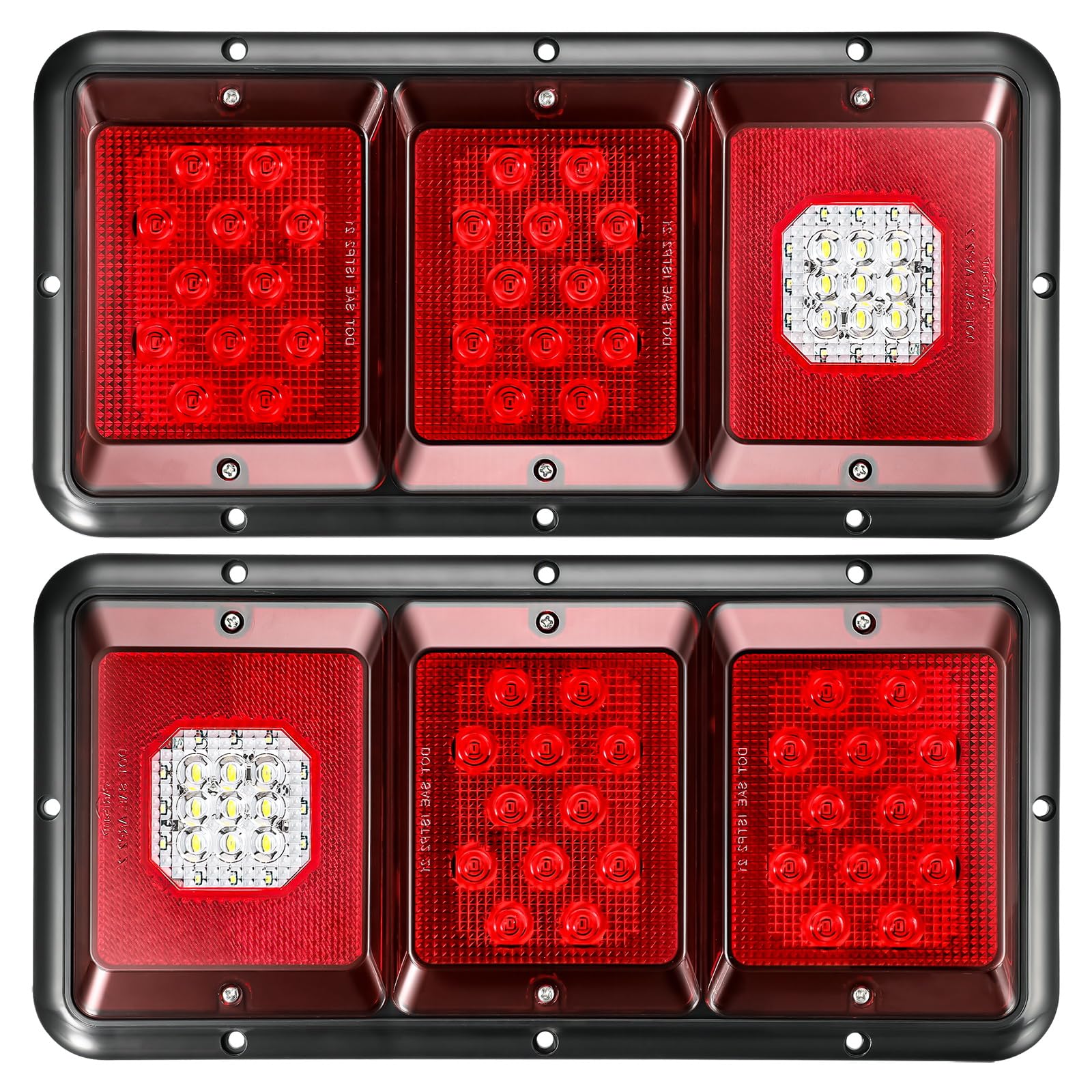

Each lamp contains three red lenses for stop/turn/tail functions and a clear backup lens with integrated white LEDs. The wiring separates high and low modes so the same housing performs all required signaling and reverse illumination.

• Two red LED circuits for stop, tail and turn signals
• Clear lens with built-in white LEDs for reverse lighting
• Dedicated wires: ground, backup, high (stop/turn), low (tail)
• May need resistors when replacing halogen circuits with LEDs

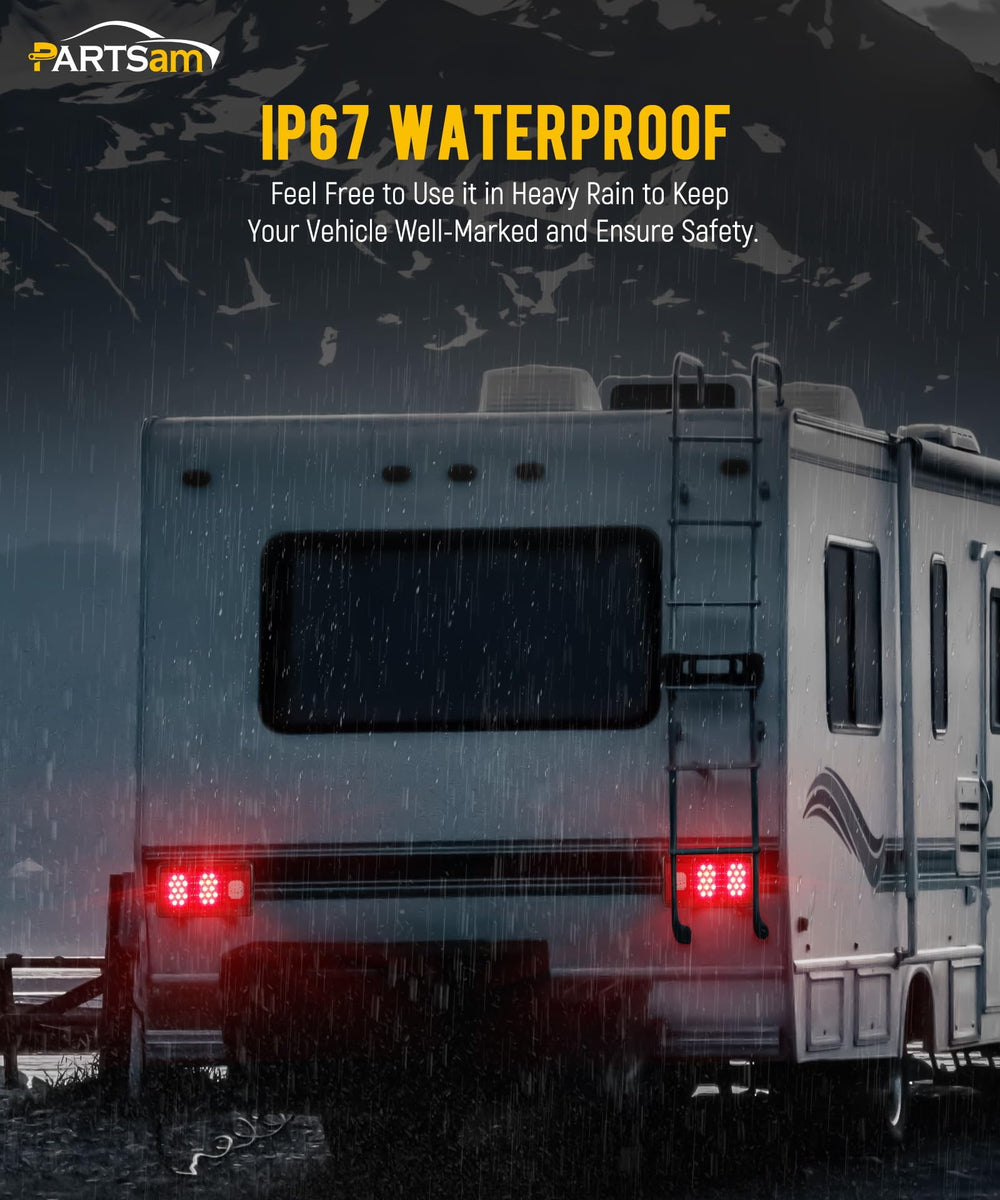

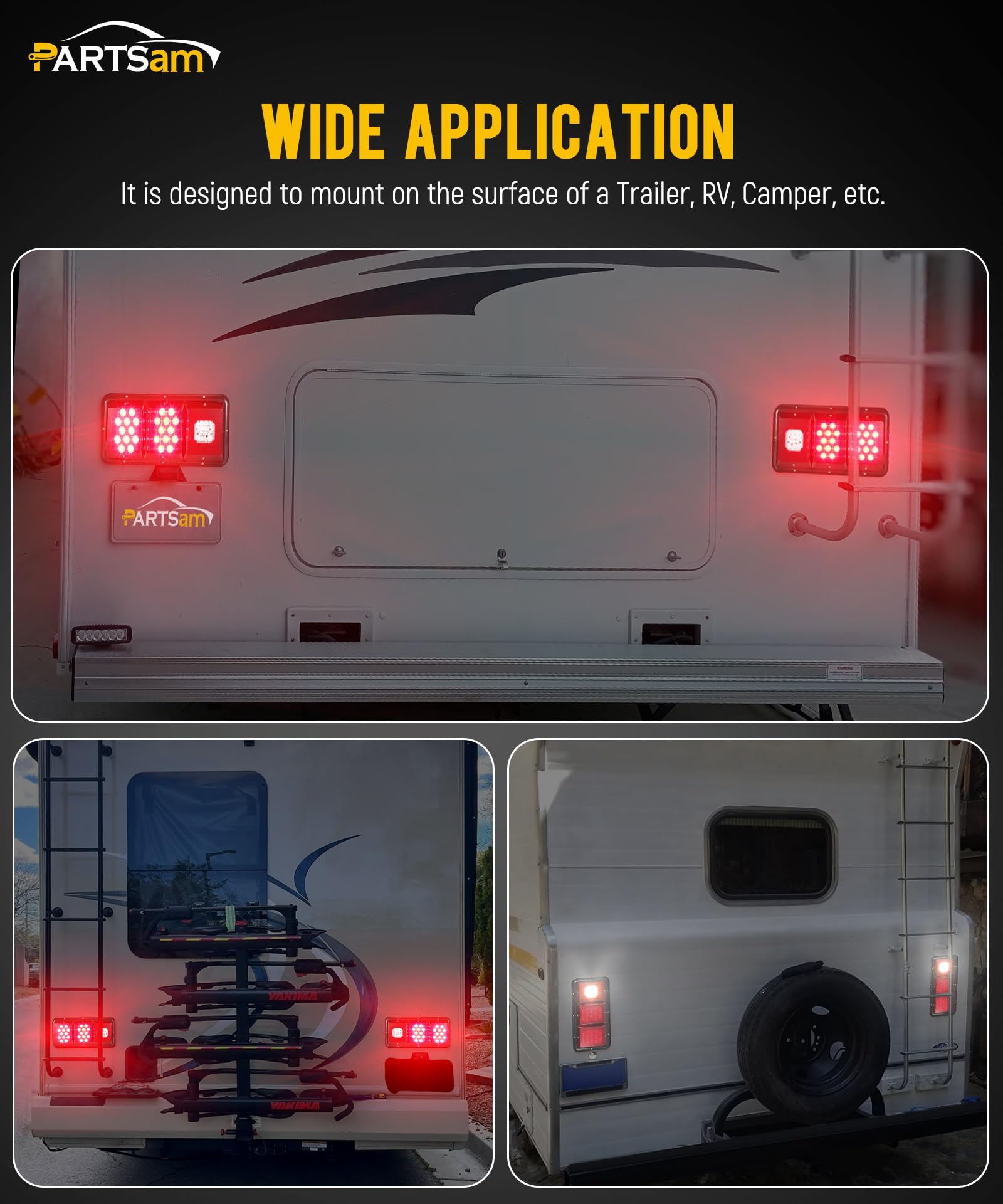

What installation options and mounting details should I expect?

The taillights are designed for either vertical or horizontal installation to match your vehicle’s layout. They fit surface or flush mounting and include stainless screws and gaskets to help seal the attachment points against moisture.

• Eight screw holes for secure attachment and stability
• Includes stainless steel screws and mounting gaskets
• Surface or flat mounting compatible, vertical or horizontal orientation
• Cutout requirement: approximately 13.4 inches long and 6.3 inches center-to-center

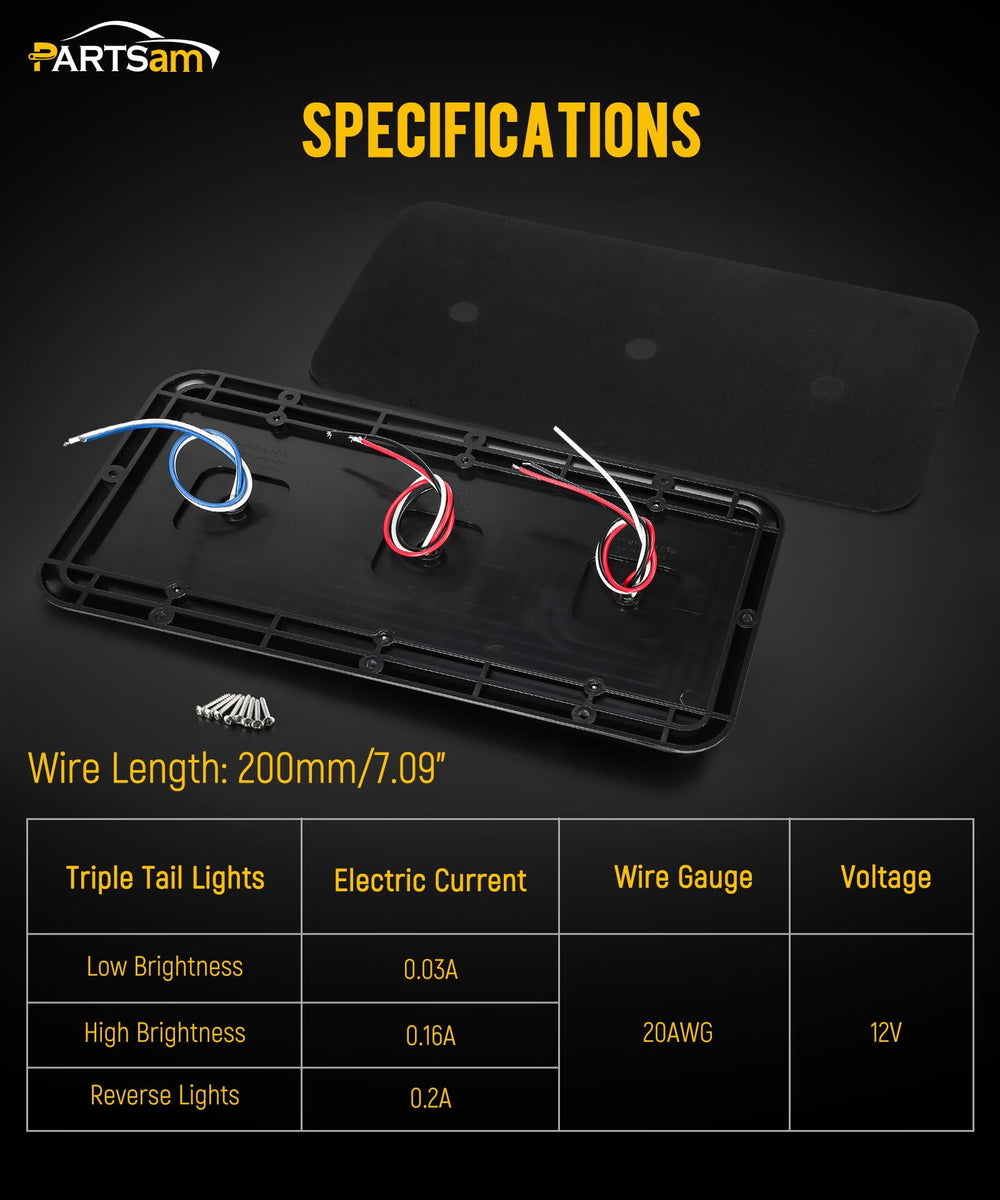

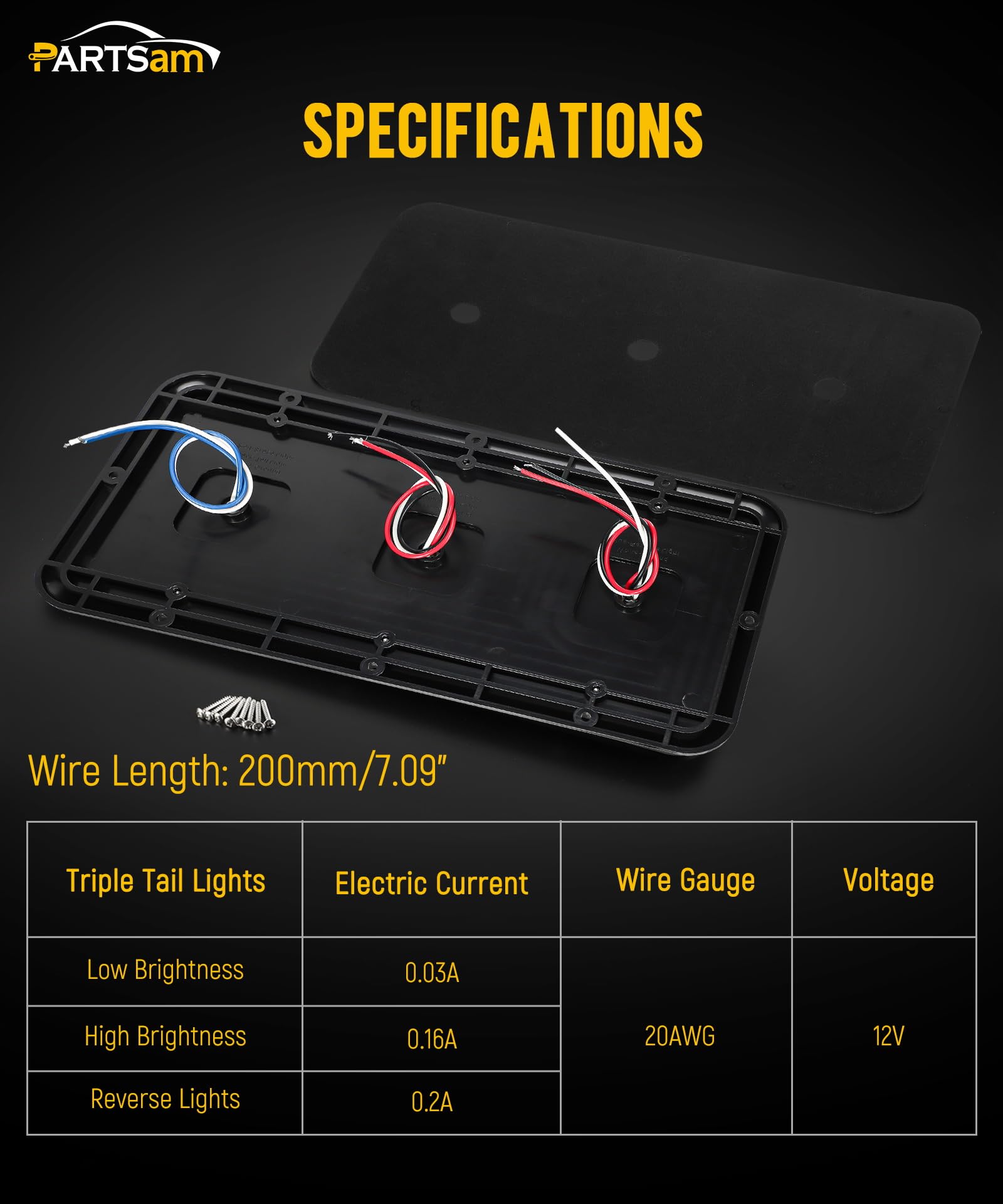

What are the size and wiring specifics I need before buying?

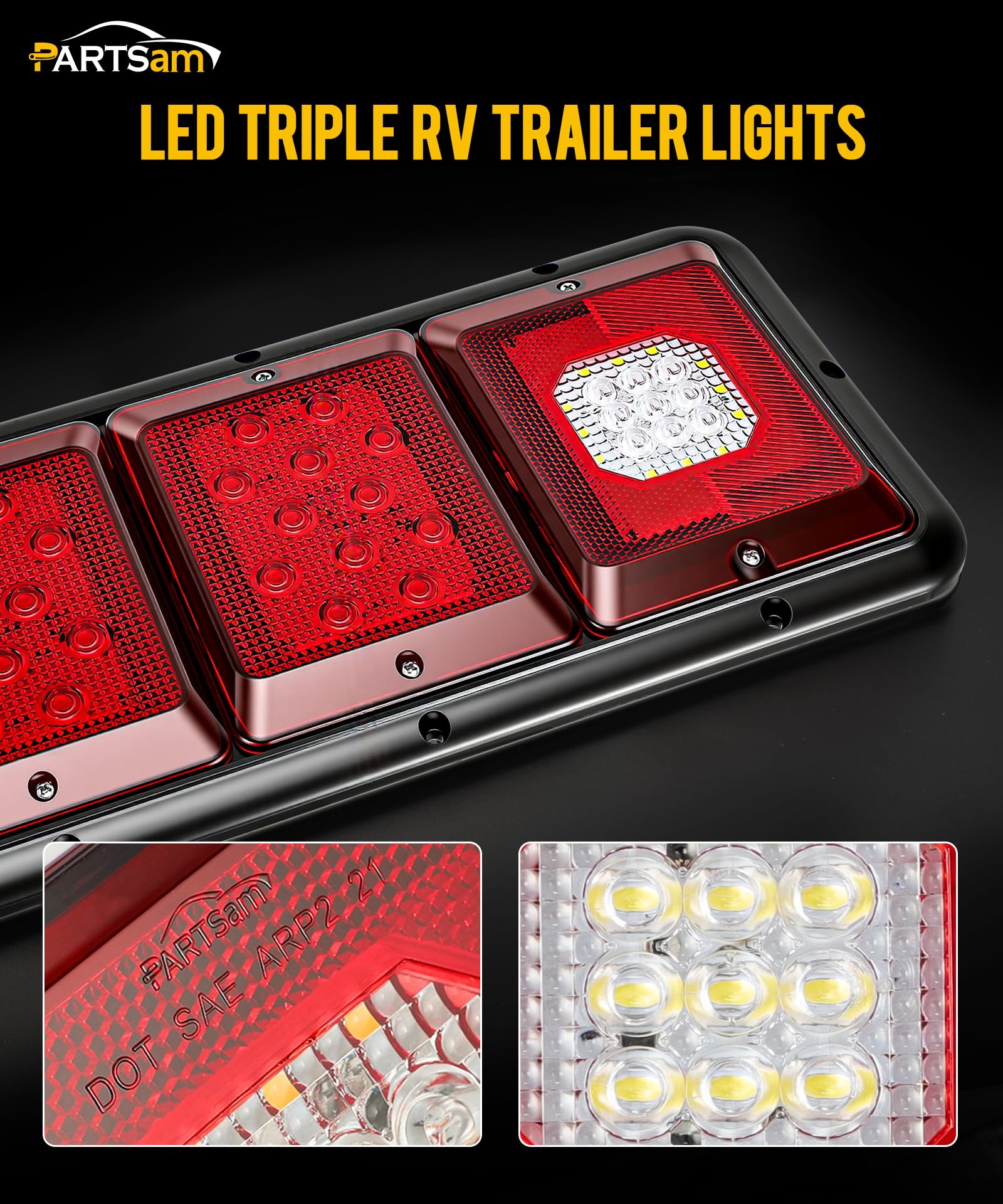

The assembly measures about 14.17 inches long, 7 inches wide and 0.87 inch thick, so verify fitment against your vehicle’s mounting area. The hardwired harness uses eight wires to separate functions and ensure proper electrical connections.

• Overall dimensions: ~14.17" L × 7" W × 0.87" thick
• Required cutout/hole-to-hole: ~13.4" long by 6.3" hole-to-hole
• Eight-wire harness: white ground, blue backup, red high, black low, plus additional wires for function separation
• Compatible with trailers, campers, RVs and motorhomes

Who is this for?

This Partsam LED tail light set is aimed at DIY installers, fleet owners and RV enthusiasts who want a compact, multi-function replacement light that fits a variety of towing and recreational vehicles. Choose these units if you need a weather-resistant, low-profile lamp that can be mounted vertically or horizontally and wired to provide clear stop, turn, tail and reverse lighting. For vehicles converting from halogen to LED, plan for possible resistors or minor wiring adjustments to ensure proper flash rates and function.
