Performance Tool M14-1.25 Spark Plug Thread Repair Kit — Tapered HSS Reamer, 3 Stainless Inserts (5/16"/7/16"/5/8")

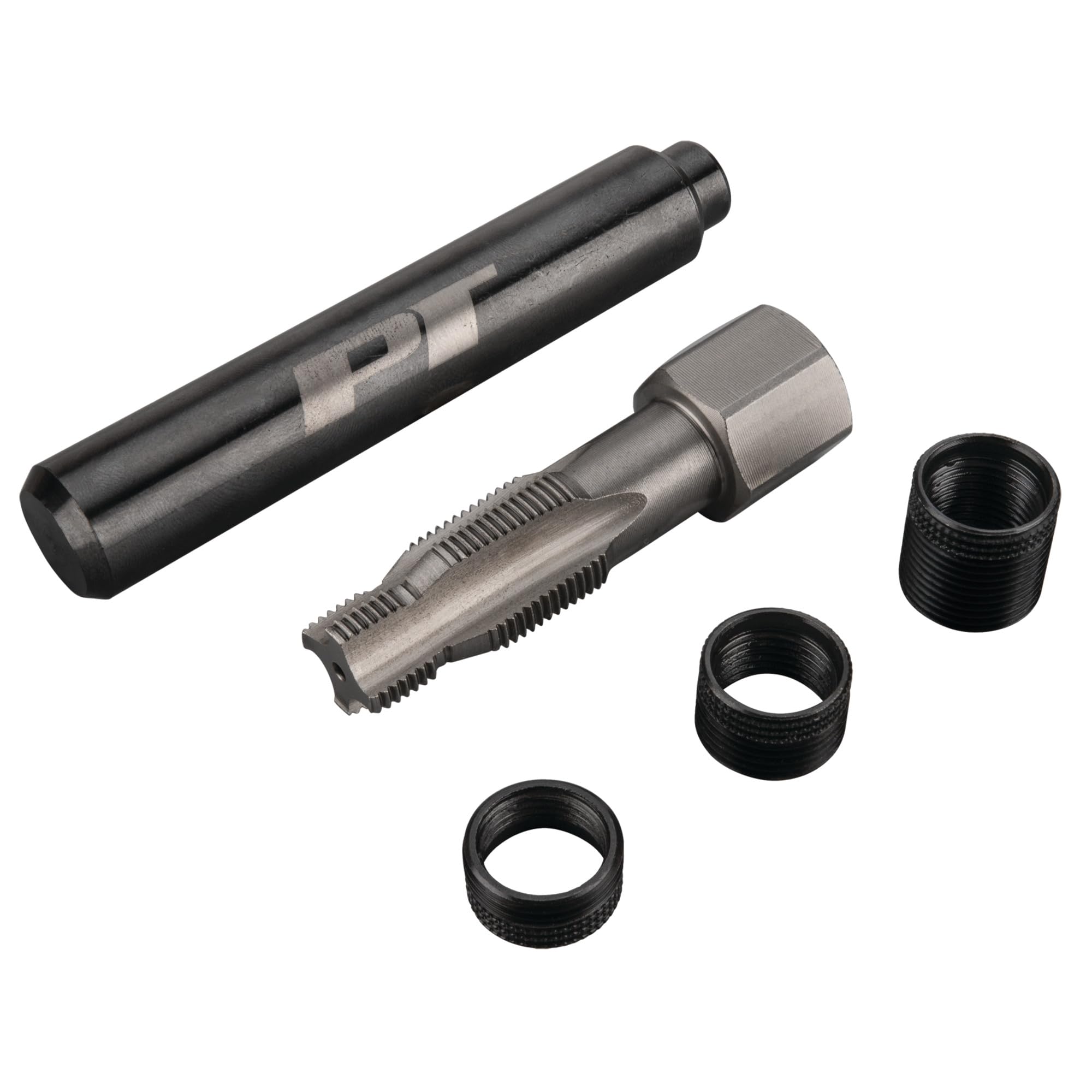

When a spark plug thread is chewed or stripped, repairing the cylinder head correctly avoids costly replacements. This kit targets the common M14-1.25 spark plug size and bundles a high-speed steel tapered reamer, three stainless steel thread inserts in different lengths, and an install/punch tool so you can right-size the threads and seat a durable insert.

How does the tapered reamer make repair easier than traditional methods?

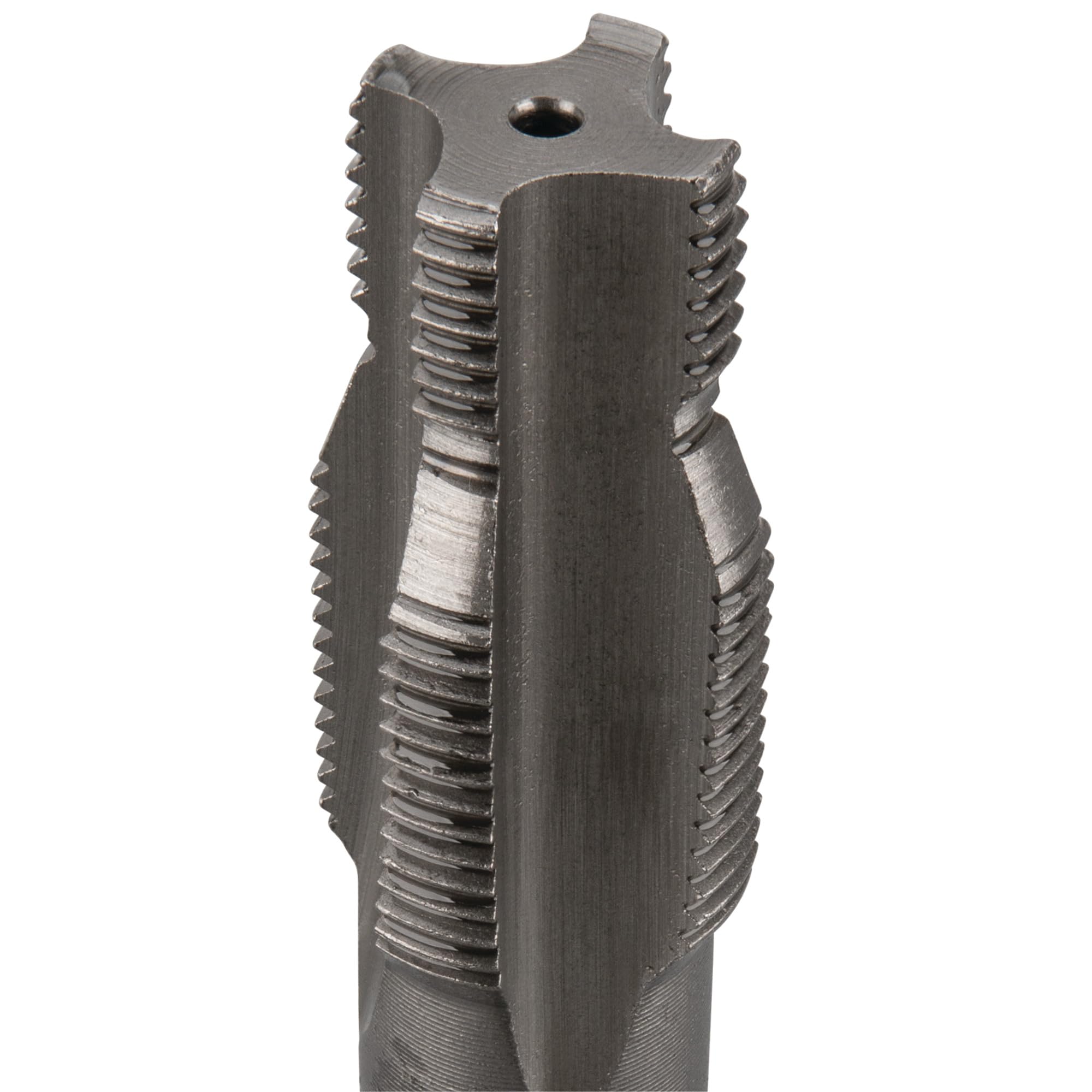

The included 4241 HSS tapered reamer removes the need to first drill the hole to size—its conical cutting profile enlarges and cleans the existing thread gradually. That reduces the number of tools required and improves control when restoring the thread form.

• Tapered geometry enlarges and shapes threads in one pass
• High-speed steel for durability and consistent cutting edges
• Eliminates extra drill bits and simplifies the workflow

Which insert sizes are included and when would you use each?

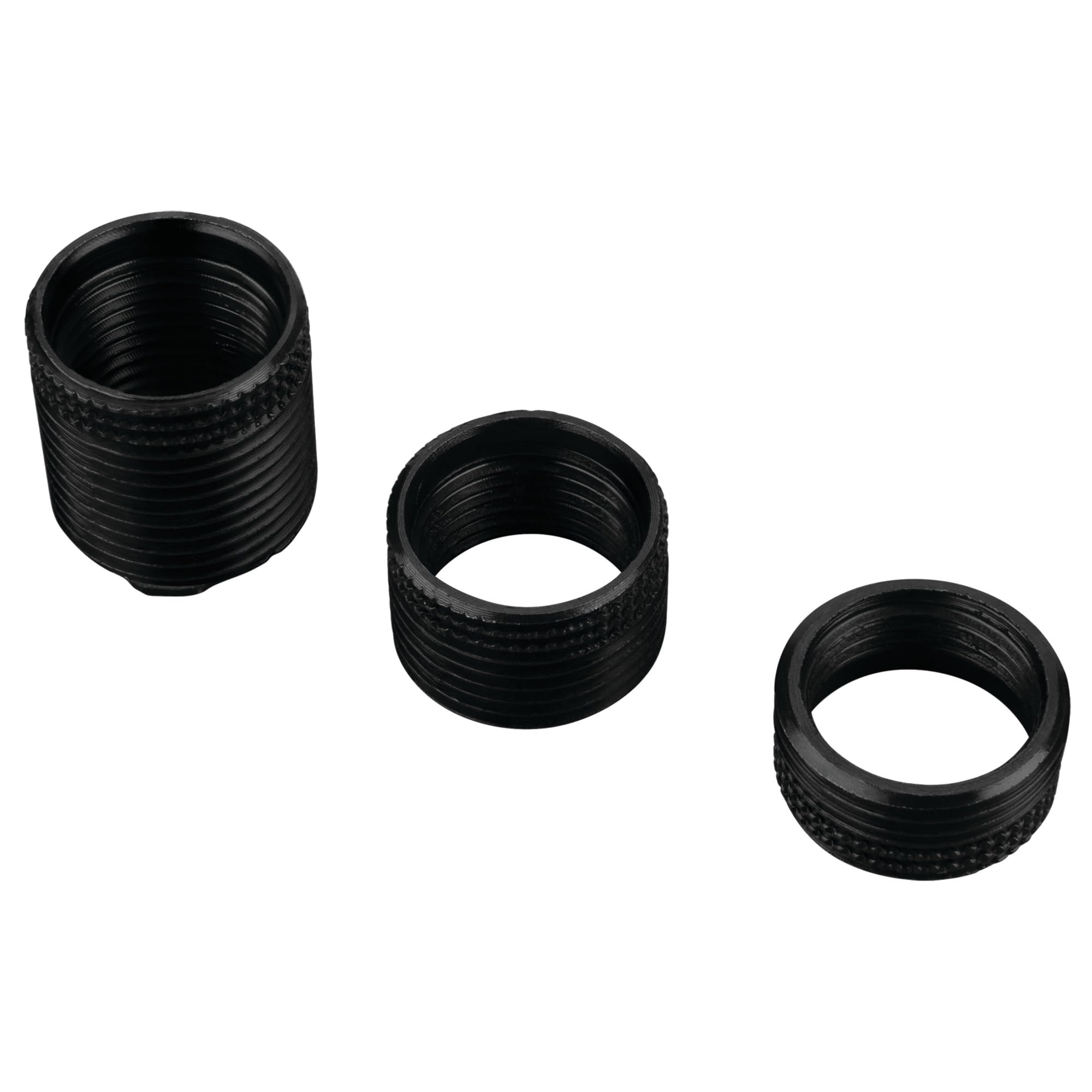

The kit contains three 503 stainless steel inserts in 5/16", 7/16" and 5/8" lengths so you can choose the insert depth that matches the head damage and spark plug reach. Shorter inserts suit shallow repair areas; longer inserts provide extra engagement in deeper or more eroded sockets.

• 5/16" insert for minimal thread damage and tight clearance
• 7/16" insert for moderate repairs and standard engagement
• 5/8" insert when deeper engagement or extensive damage requires extra length

What tools are supplied to install the insert properly?

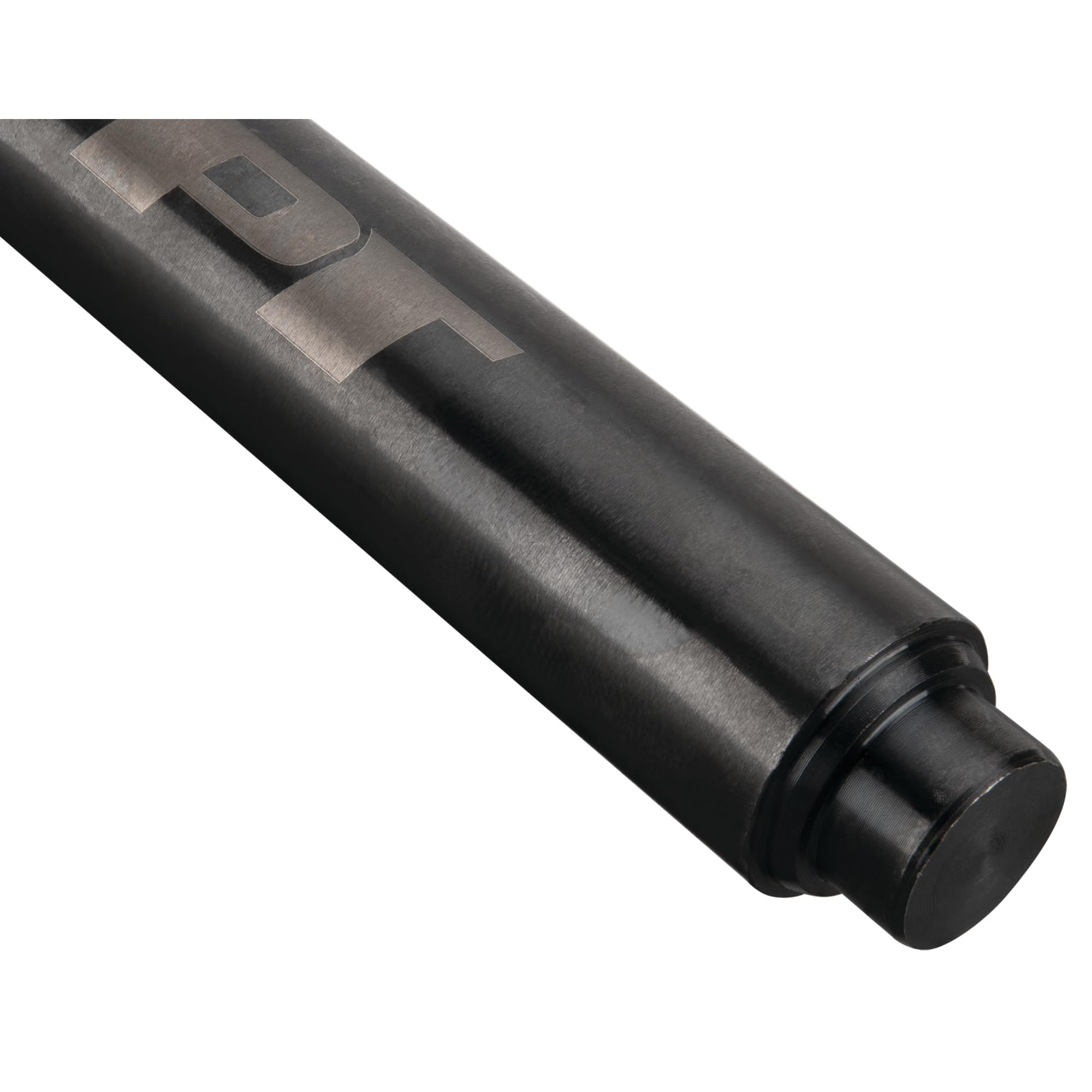

Along with the reamer and inserts, the kit supplies an install/punch tool that seats the insert and breaks the tang cleanly after installation. That creates a properly aligned, flush internal thread ready for the spark plug without additional specialty tools.

• Install/punch tool for controlled seating and tang break-off
• Clear sequence: ream, insert, seat, break tang
• Everything in one kit reduces shop downtime and extra parts ordering

Will this kit restore factory thread dimensions?

The tapered reamer and matched stainless inserts are designed to bring the M14-1.25 socket back to proper internal dimensions and provide a durable mating surface for spark plugs. While performance depends on technique, the components are sized to reproduce correct thread engagement for M14-1.25 plugs.

• Kit targets M14-1.25 thread spec for correct fitment
• Stainless inserts provide corrosion resistance and long-term durability
• Reamer prepares the hole to accept the insert with proper alignment

Who is this for: Automotive technicians, home mechanics, and service shops that frequently repair cylinder head spark plug threads will benefit most from the Performance Tool W86910 kit. It’s a practical, all-in-one solution when an M14-1.25 spark plug hole is damaged and you want a reusable, long-lasting repair without swapping heads or using a large drill set.
