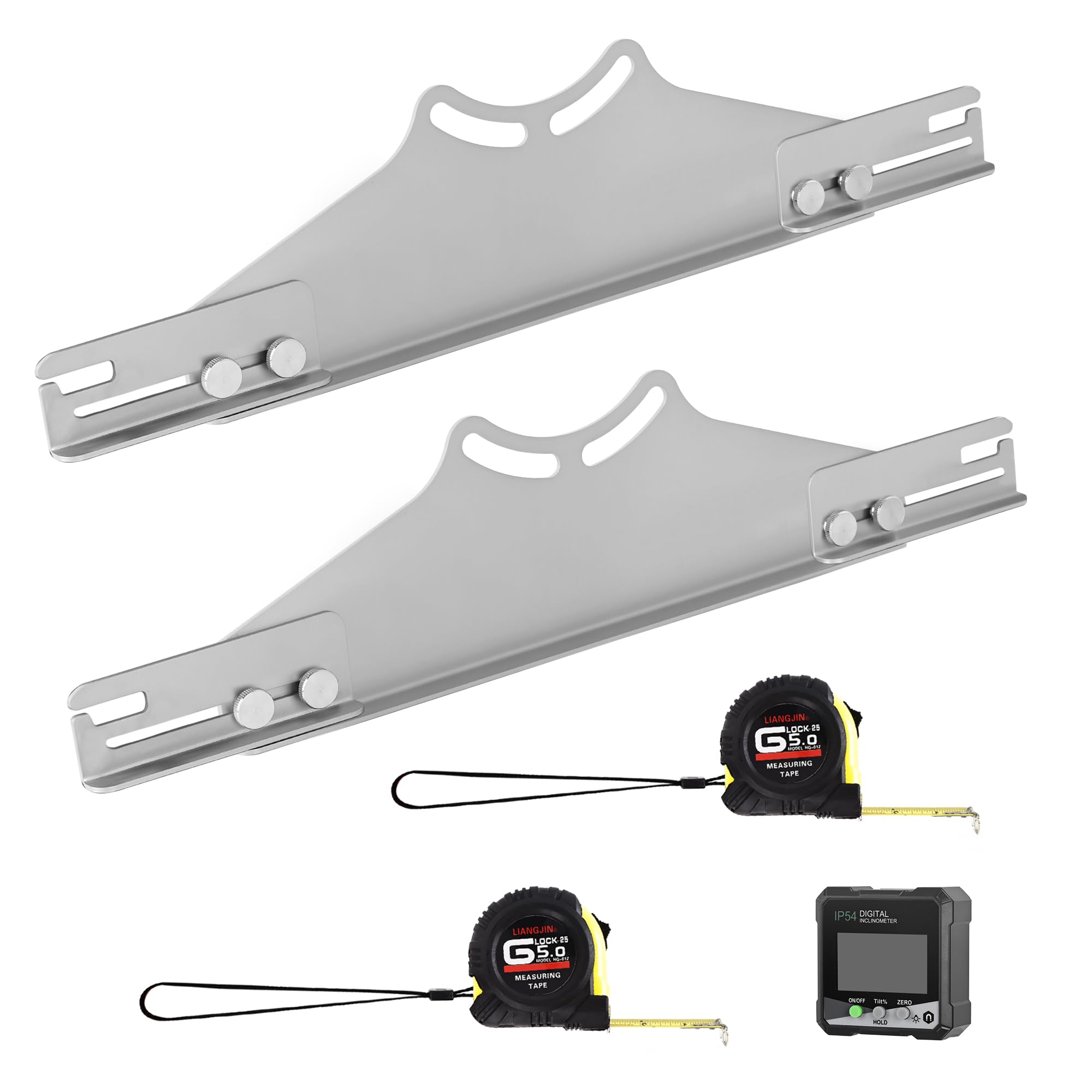

PHATRIP Toe Alignment Tool Kit with 2 Tape Measures & Digital Angle Finder — Steel Toe Plates, M14 Bolt Fit

PHATRIP Toe Alignment Tool Kit is a professional-grade wheel alignment accessory that measures toe and camber quickly using steel toe plates, two tape measures, and a digital angle finder.

Whether you're checking alignment at home or preparing a vehicle for a shop visit, this set gives clear numerical readings of toe-in/toe-out and wheel angles so adjustments are faster and more accurate. Built for cars, SUVs, Jeeps, ATVs, UTVs and golf carts that use M14 wheel bolts, the kit combines robust construction with simple measuring tools to reduce guesswork when aligning coaxial wheels.

How does the PHATRIP kit determine toe alignment?

The toe plates clamp to the wheel hub and act as stable reference points on both sides of the vehicle so you can compare front and rear measurements. Using the included tape measures, you record distances at the front and back edges of the wheels and calculate the difference to find toe-in or toe-out. The digital angle finder can also verify camber by measuring the wheel's tilt relative to a flat surface.

• Clamp-style toe plates attach to M14 wheel bolts for repeatable reference points.
• Two tape measures let you take symmetrical measurements across both sides of the axle.

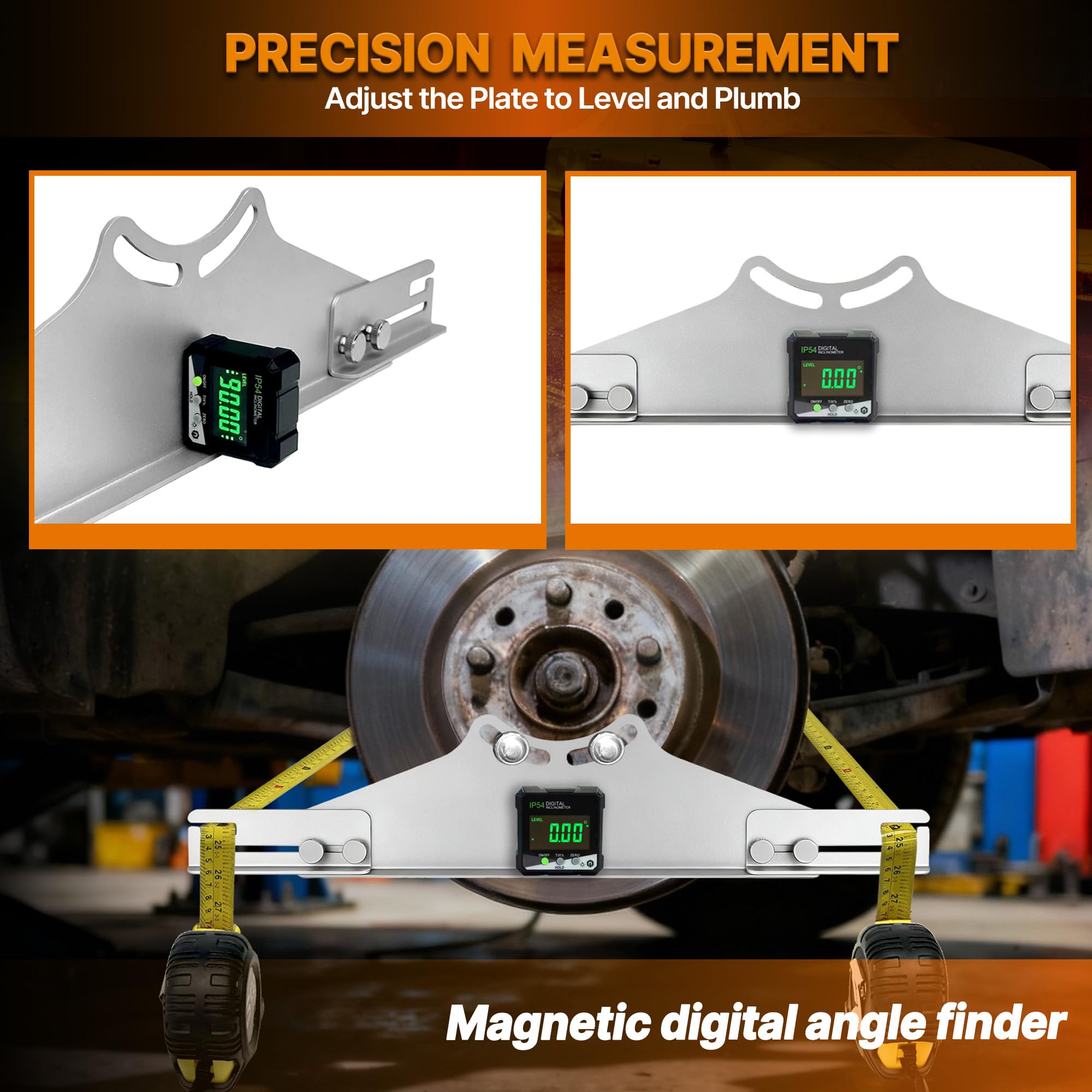

• Digital angle finder (0.2° accuracy) checks camber and helps confirm wheel tilt.
• Distance comparison method yields toe measurement without requiring vehicle lifts.

What vehicles and wheel types will this tool work with?

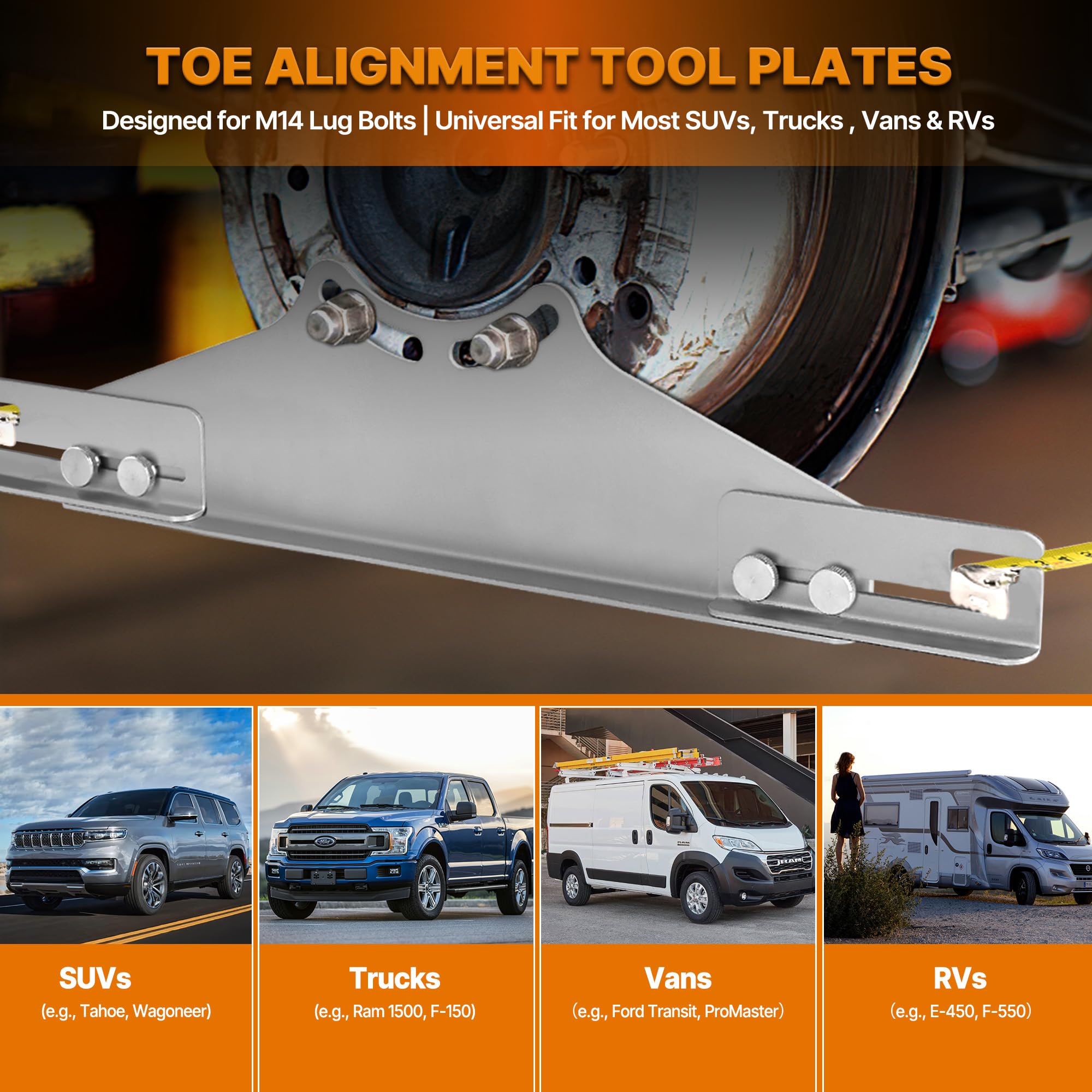

This PHATRIP instrument is designed for vehicles that use M14 wheel bolts, including many passenger cars, SUVs, Jeeps, off-road ATVs/UTVs and golf carts. The low-profile toe plate shape lets the tape extend beneath the vehicle so common wheel sizes and offsets remain compatible. Extremely oversized or nonstandard hub configurations may need adapters or different mounting hardware.

• Compatible with most M14-bolt wheels found on cars and light trucks.
• Useful for SUVs, Jeeps, ATVs, UTVs and golf carts with standard hubs.
• Low-profile toe plates allow tape measures to reach under the vehicle.
• May require alternate bolts/adapters for rare or custom hub patterns.

How accurate and durable are the components?

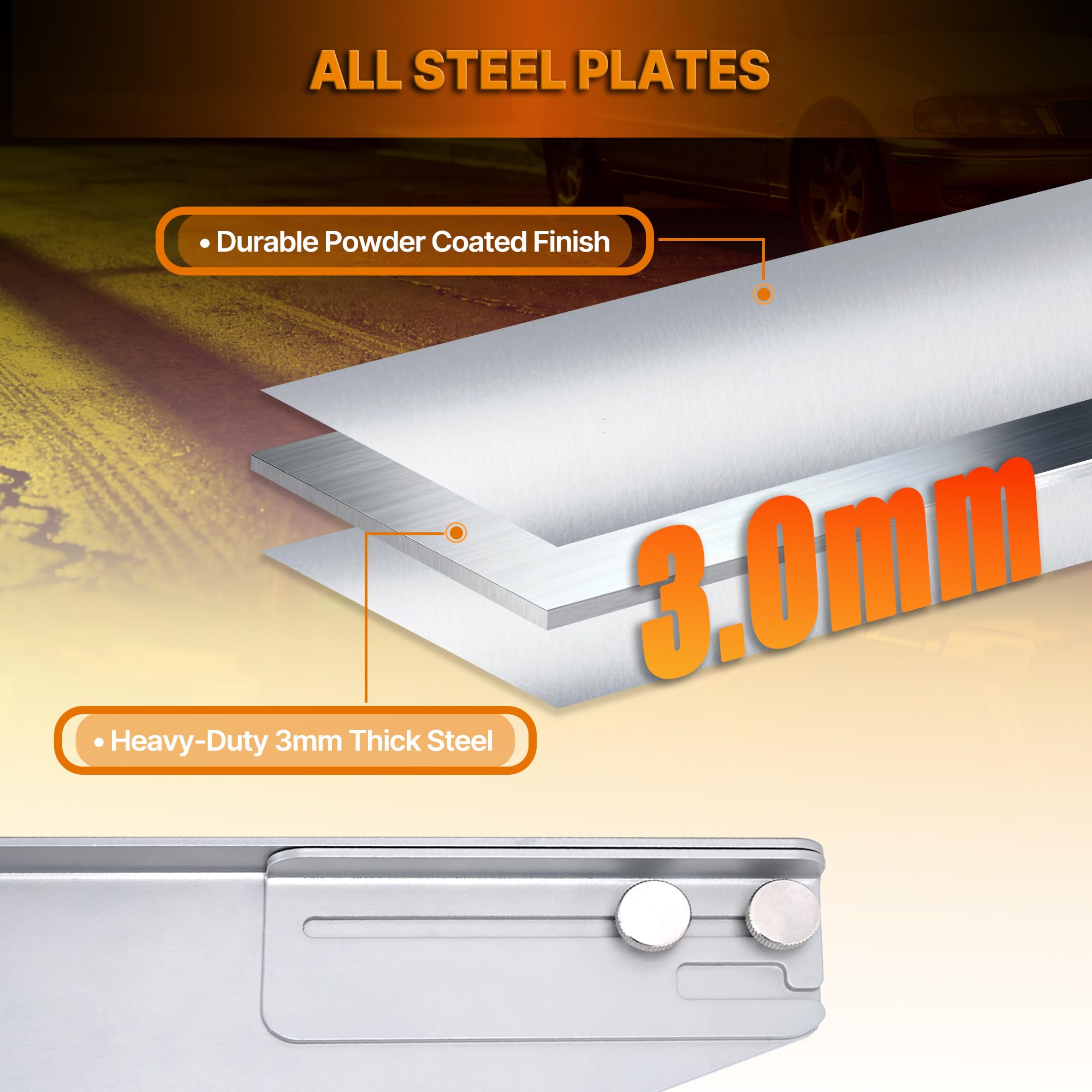

PHATRIP builds the toe plates from heavy-duty steel with a powder-coated finish for wear and corrosion resistance, so they hold up to repeated shop use. The digital angle finder included has high sensitivity and lists an accuracy of ±0.2°, making it suitable for precise camber checks. Practical durability and reliable measurement tools make the kit a cost-effective choice for do-it-yourself alignment tasks.

• Steel construction with powder coating resists rust and abrasion.
• Digital angle finder rated to 0.2° accuracy for fine adjustments.
• Sturdy tape measures supplied for stable distance readings.
• Design minimizes flex or movement during measurement for consistency.

What is the basic workflow to measure and adjust alignment?

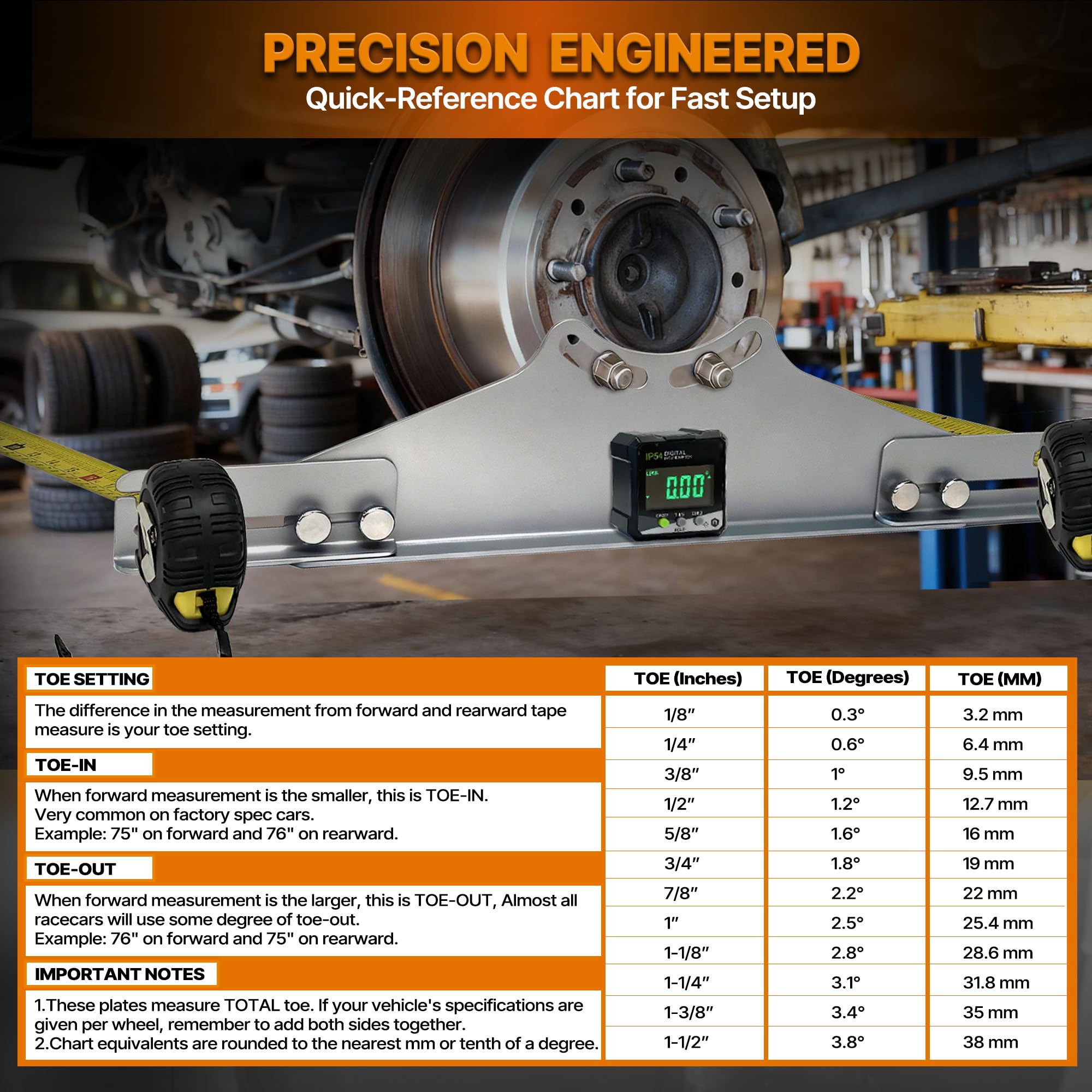

Begin by removing the wheels to access the hub area, then attach a toe plate to each side of the axle. Run the tape measures to fixed points and record the front and rear distances; the difference gives toe value. Use the digital angle finder on the wheel or strut to check camber, then make steering or suspension adjustments as needed and re-measure until readings are within specification.

• Remove wheels and mount toe plates to the hub studs or bolts.

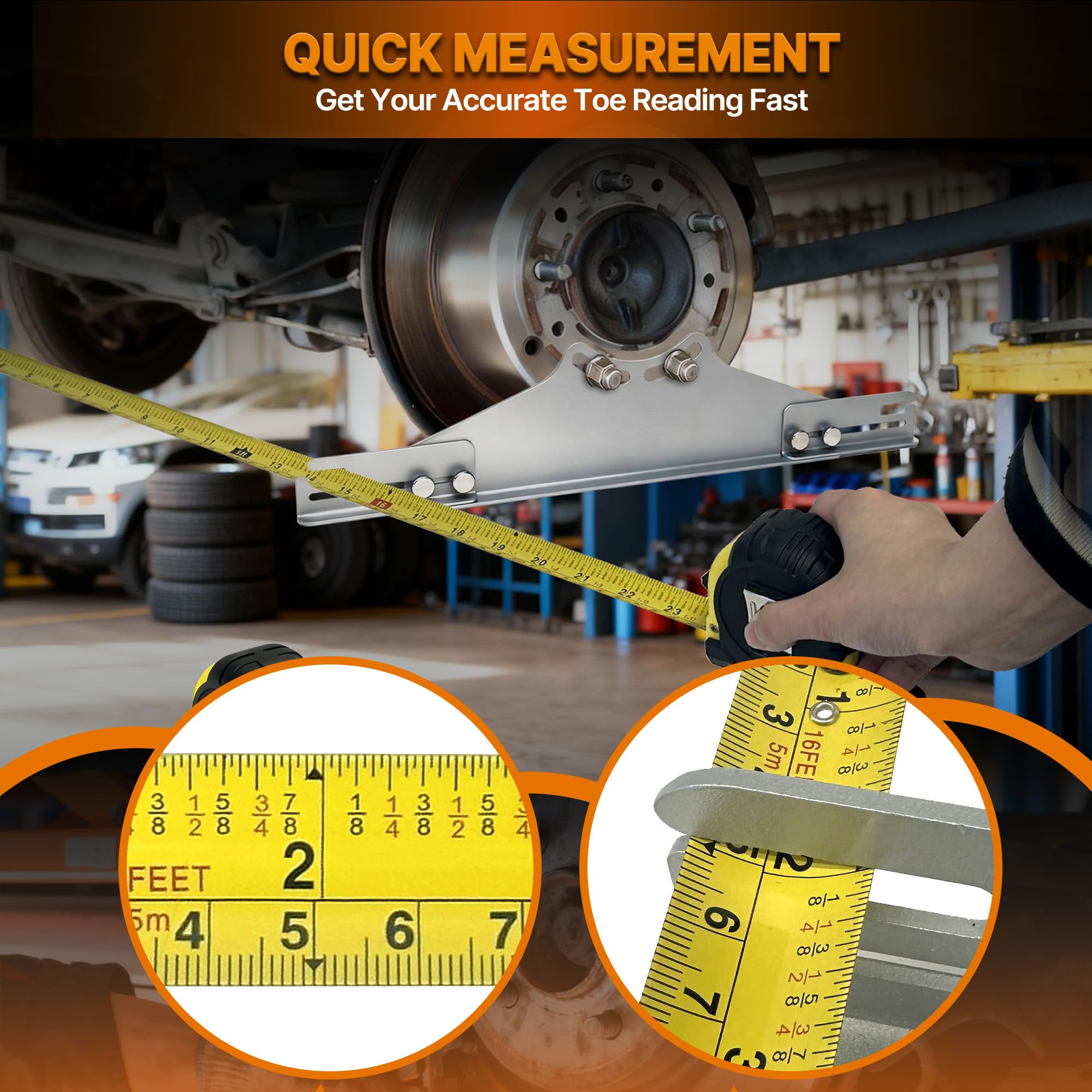

• Extend both tape measures to consistent reference points and note values.
• Calculate toe from front and rear distance differences; adjust tie rods or steering arms.
• Use the digital angle finder to confirm camber and fine-tune alignment.

Who is this for? Vehicle owners, hobbyist mechanics and small-shop technicians who want a straightforward, durable alignment aid will benefit most from the PHATRIP Toe Alignment Tool Kit. It’s aimed at people who prefer hands-on alignment checks, need a portable solution for multiple vehicles, or want a reliable measuring set to prepare vehicles before professional alignment. This kit reduces trial-and-error and supplies repeatable data so you can correct toe and camber with confidence.
