Podavelle 45° AN10 Male-to-Female Swivel Adapter — Black Anodized Aluminum, Full-Flow 37° Seal

Podavelle’s 45° AN10 male-to-female swivel adapter is a full-flow, black-anodized aluminum fitting designed to create a reliable, leak-resistant connection in high-performance fuel and fluid systems.

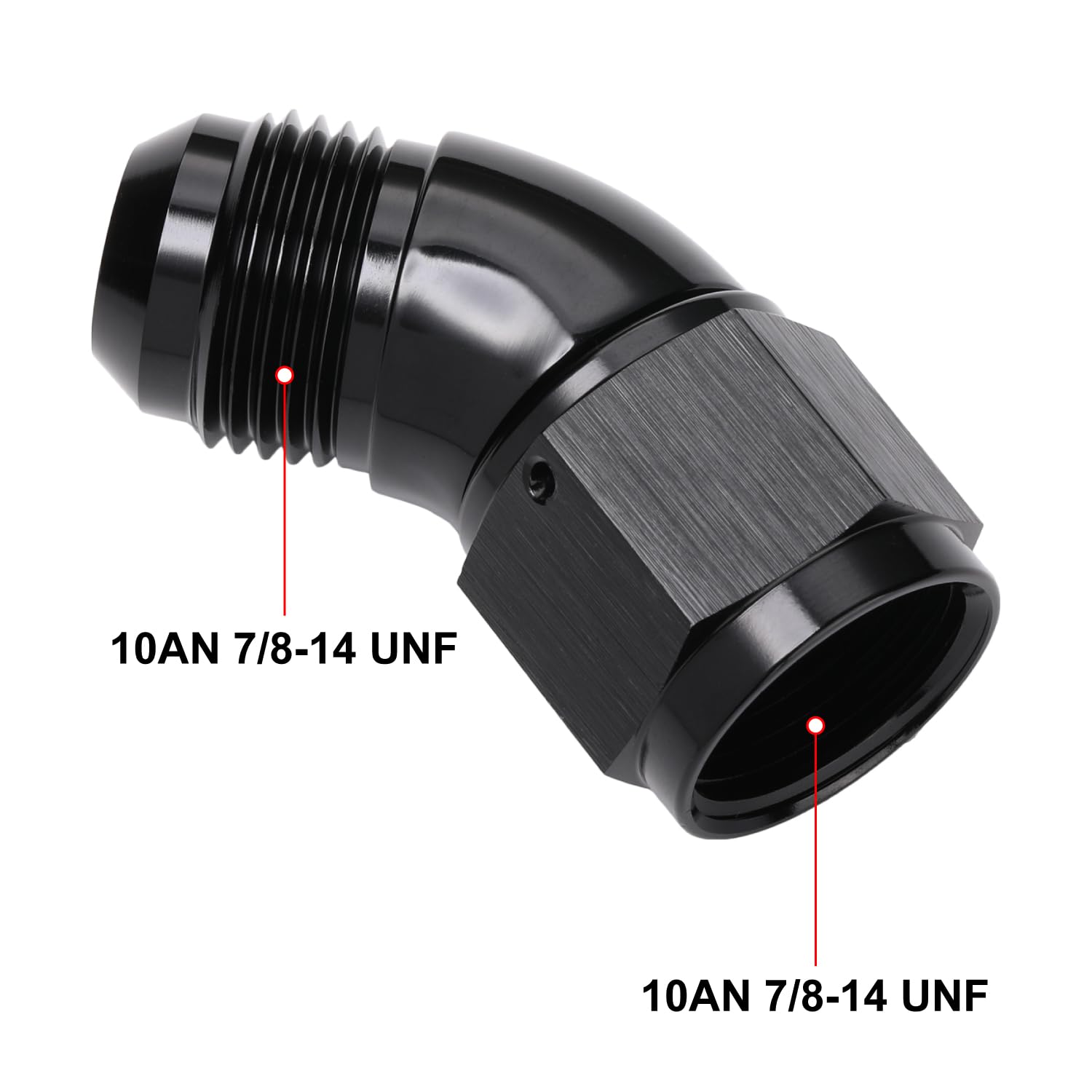

This precision-machined adapter converts a 10AN (7/8-14 UNF) female swivel into a 10AN male at a 45° angle while maintaining an unobstructed flow path. Machined from 6061-T6 billet aluminum and finished with a durable anodized coating, it’s built to resist corrosion and stand up to demanding operating conditions in automotive, marine, or motorsport plumbing. The 37° sealing angle and forged full-flow body deliver a secure seal and consistent performance with gasoline, alcohol blends, diesel, oil, or water lines.

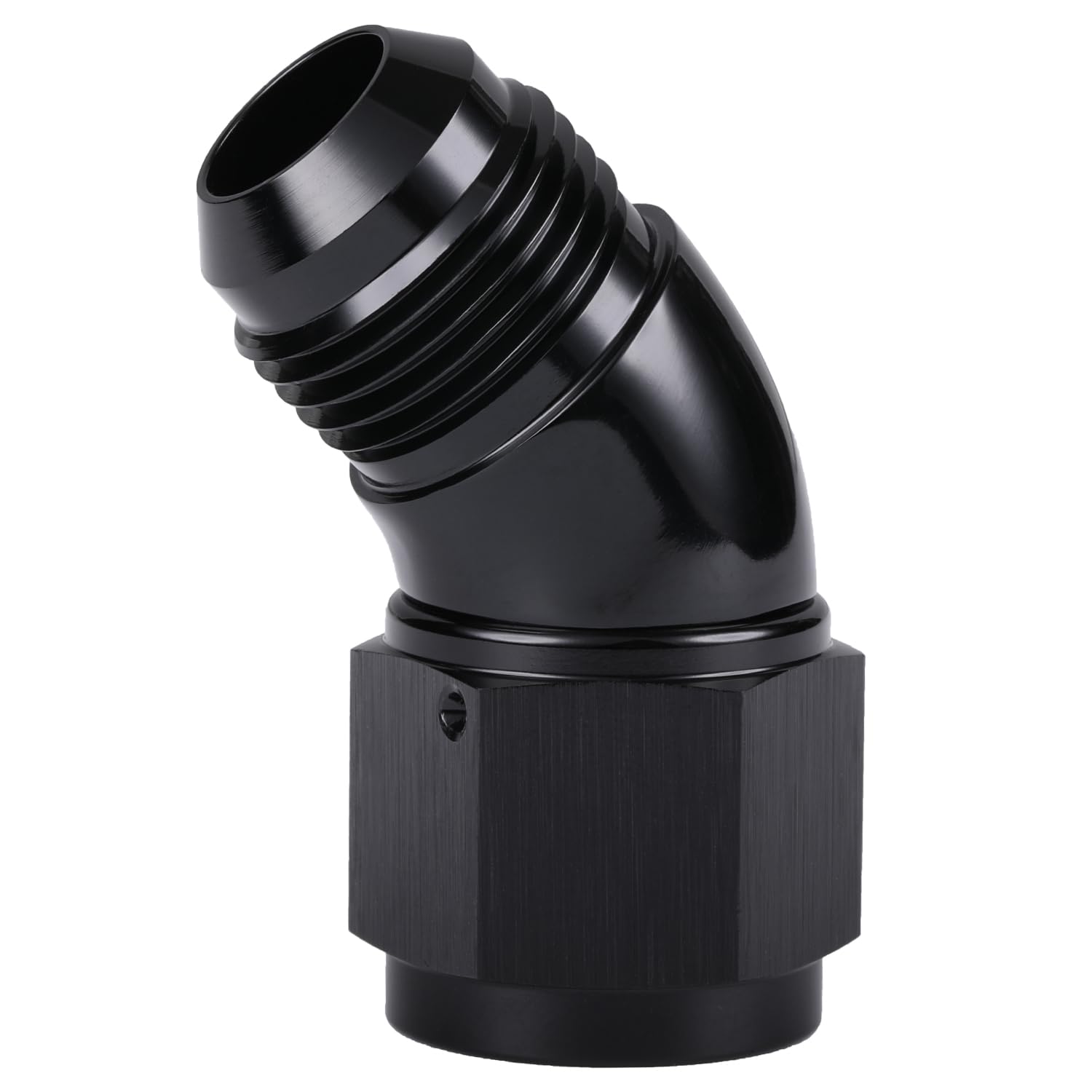

How does the 45° angle improve hose routing?

The pre-set 45° bend allows hoses to clear nearby components and reduces sharp kinks that can restrict flow or stress fittings. Using a fixed-angle adapter simplifies routing in tight engine bays and helps maintain smooth, efficient fluid delivery.

• Simplifies tight-radius routing around brackets and sensors
• Reduces hose stress and potential for kinks
• Improves clearance compared with straight fittings

Will this adapter hold up under high pressure and repeated use?

Yes — the forging and 6061-T6 billet construction provide thicker walls and robust mechanical strength suited to high-pressure applications. The 37° seat design ensures a positive seal under pressure, while the anodized surface increases wear and corrosion resistance for longer service life.

• Forged full-flow body for superior wall thickness
• 37° sealing angle for dependable pressure sealing
• Anodized finish protects against corrosion and abrasion

Is this fitting compatible with my fuel or fluid type?

Podavelle fittings are engineered for compatibility with a wide range of automotive and marine fluids, including gasoline, alcohol-based fuels, diesel, oil, and coolant/water lines. Verify thread size and system requirements before installation to ensure proper compatibility and safe operation.

• Compatible with gasoline and alcohol fuels
• Suitable for diesel, oil, and water systems
• Intended for AN10 (7/8-14 UNF) connections

How do I install and use this adapter safely?

Installation should be performed by a technician or a competent DIYer familiar with AN fittings and fluid-system torque practices. Clean mating surfaces, inspect the swivel and sealing seat, and hand-start threads to avoid cross-threading; tighten to recommended torque values and pressure-test the system after installation.

• Hand-start threads to prevent cross-threading
• Use proper torque and leak-check after installation
• Professional installation is recommended for critical systems

Who is this for: This Podavelle AN10 45° male-to-female swivel adapter is for performance and maintenance professionals, motorsport builders, and automotive enthusiasts who need a rugged, compact routing solution for fuel, oil, or coolant lines. It suits applications where space is limited, leak-free sealing is essential, and uninterrupted flow is critical — from race cars and street performance builds to marine installations and custom plumbing projects.
