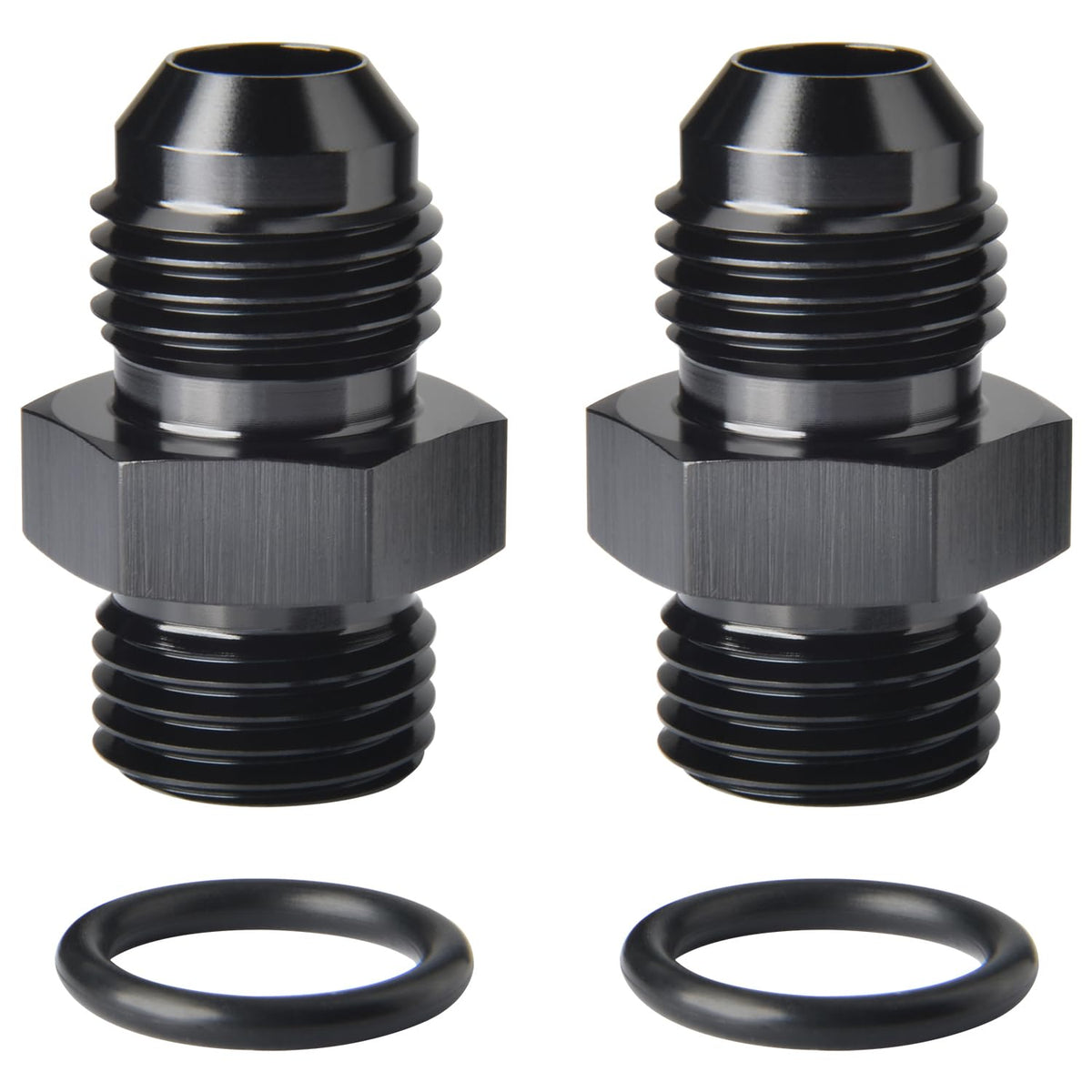

Podavelle -6 AN to -6 ORB Adapter, Black Pack of 2 — 6061-T6 Anodized Aluminum, Leak-Resistant

This adapter lets you link different fluid systems cleanly and reliably without custom plumbing. Machined from aerospace-grade 6061-T6 aluminum and finished in black anodize, the pair offers corrosion resistance and light weight for automotive, motorsport, and industrial applications. It is compatible with fuels, oils, coolants, air and other non-corrosive media, and is intended for use where a -6 AN male flare must mate with a -6 ORB threaded O-ring boss port.

How does this adapter create a leak-resistant connection?

The adapter converts the mechanical seal of a -6 AN male flare to an O-ring seal for an ORB boss. Properly torqued and combined with the correct O-ring, it establishes a positive seal that isolates fluid under pressure while allowing quick connection between fittings that would otherwise be incompatible.

• -6 AN male flare end mates to standard -6 flare fittings
• -6 ORB side accepts a seated O-ring for pressure sealing
• Anodized aluminum resists corrosion and preserves the mating surfaces
• Sold as a pair to outfit both supply and return lines or a dual-system setup

What materials and finishes are used, and why do they matter?

The adapter is machined from 6061-T6 aluminum, chosen for its strength-to-weight ratio and machinability. A black anodized coating adds sacrificial surface protection that helps prevent galling, corrosion, and unsightly wear where fittings are handled or exposed to fluids.

• 6061-T6 aluminum construction keeps weight low while maintaining structural integrity
• Hard anodized finish improves abrasion and corrosion resistance
• Material compatibility supports gasoline and alcohol fuels as well as oils and coolants
• Precision threads and sealing surfaces reduce chance of cross-threading and leaks

Will this adapter work with my fuel, oil or coolant lines?

Yes — the adapter is rated for use with fuel, oil, coolant, air and similar fluids when paired with appropriate hoses, clamps, and O-rings. It is compatible with gasoline and alcohol-based fuels, but installation should follow manufacturer torque specs and use compatible sealing hardware to ensure safe operation.

• Compatible with gasoline and alcohol-based fuels
• Suitable for oil, coolant, air and many non-corrosive gases
• Use OEM-style O-rings and proper assembly practices for pressurized lines
• Professional installation is recommended for fuel systems

How do I choose and fit this adapter in my system?

Confirm that one side of your system has a -6 AN flare fitting and the mating component accepts a -6 ORB O-ring boss. Install the adapter using a correctly sized O-ring, thread it into the ORB port without cross-threading, and torque to the receiving component’s specifications. Inspect for leaks before full operation.

• Verify thread types: -6 AN male flare and -6 ORB boss
• Select an O-ring compatible with the fluid and temperature range
• Hand-start threads, then tighten with appropriate tools to spec
• Pressure-test the connection after installation

Who is this for? The Podavelle -6AN to -6 ORB adapter is aimed at mechanics, fabricators, motorsport teams, and DIY enthusiasts who need a reliable, lightweight way to join AN-flare lines to ORB boss ports. It suits anyone retrofitting or adapting fuel, oil, coolant, or air systems where compatibility between different fittings is required. Note: no installation instructions are included; professional installation is recommended for critical systems.
