prime&swift 50SM21-1-221B Washer Shift Actuator replacement for Whirlpool/Maytag (Black ABS, AC120V 3 RPM)

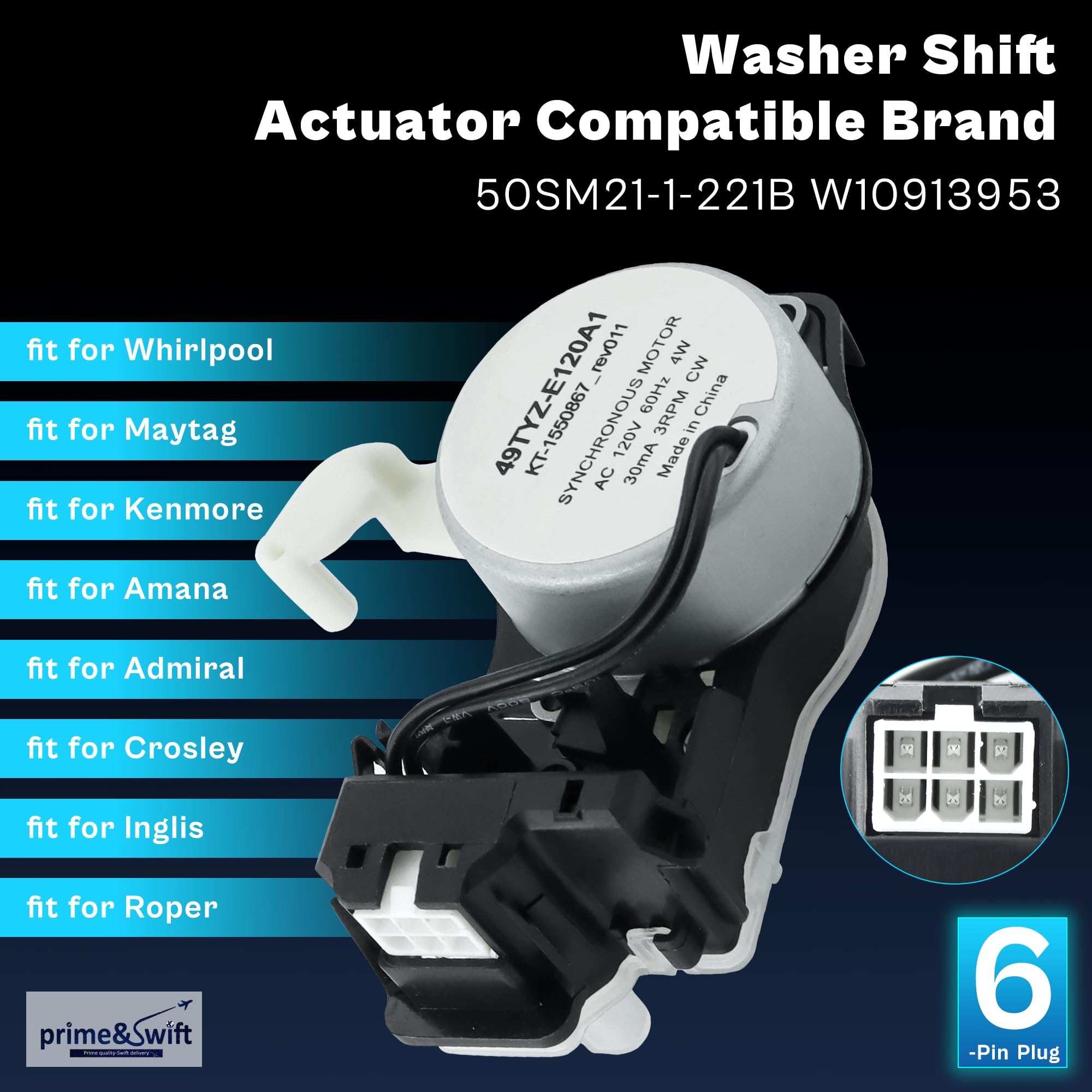

The prime&swift 50SM21-1-221B shift actuator is a direct-replacement synchronous motor assembly designed to restore gear-select and spin/agitate function on compatible Whirlpool, Maytag, Amana and Kenmore top-load washers.

This compact shift actuator (also referenced as W10913953, W10815026, W10597177 and equivalents) replaces worn or damaged drive selectors that cause a washer to stay in spin, fail to agitate, or show error codes such as F7 E1/F7E1. Built from impact-resistant ABS with an AC120V, 3 RPM synchronous motor, this unit is intended for homeowners and repair technicians who need a durable, OEM-form-fitting part for a range of model numbers listed below.

How will this actuator help when my washer won’t advance through cycles?

If the washer remains stuck on a single stage (for example, it stays on spin or won’t move from agitate to spin), the shift actuator can restore correct mechanical selection. The synchronous motor rotates the internal cam to engage the appropriate gear train so the tub can switch modes. Installing a fresh actuator eliminates worn cams, stripped gears, or stalled motors that prevent cycle advancement.

• Replaces common part numbers W10913953, W10815026, W10597177 and equivalents.
• AC120V, 60Hz motor rated 4W, 30mA, 3 RPM, clockwise rotation.
• Fits many Whirlpool/Maytag/Amana/Kenmore models listed in the product details.

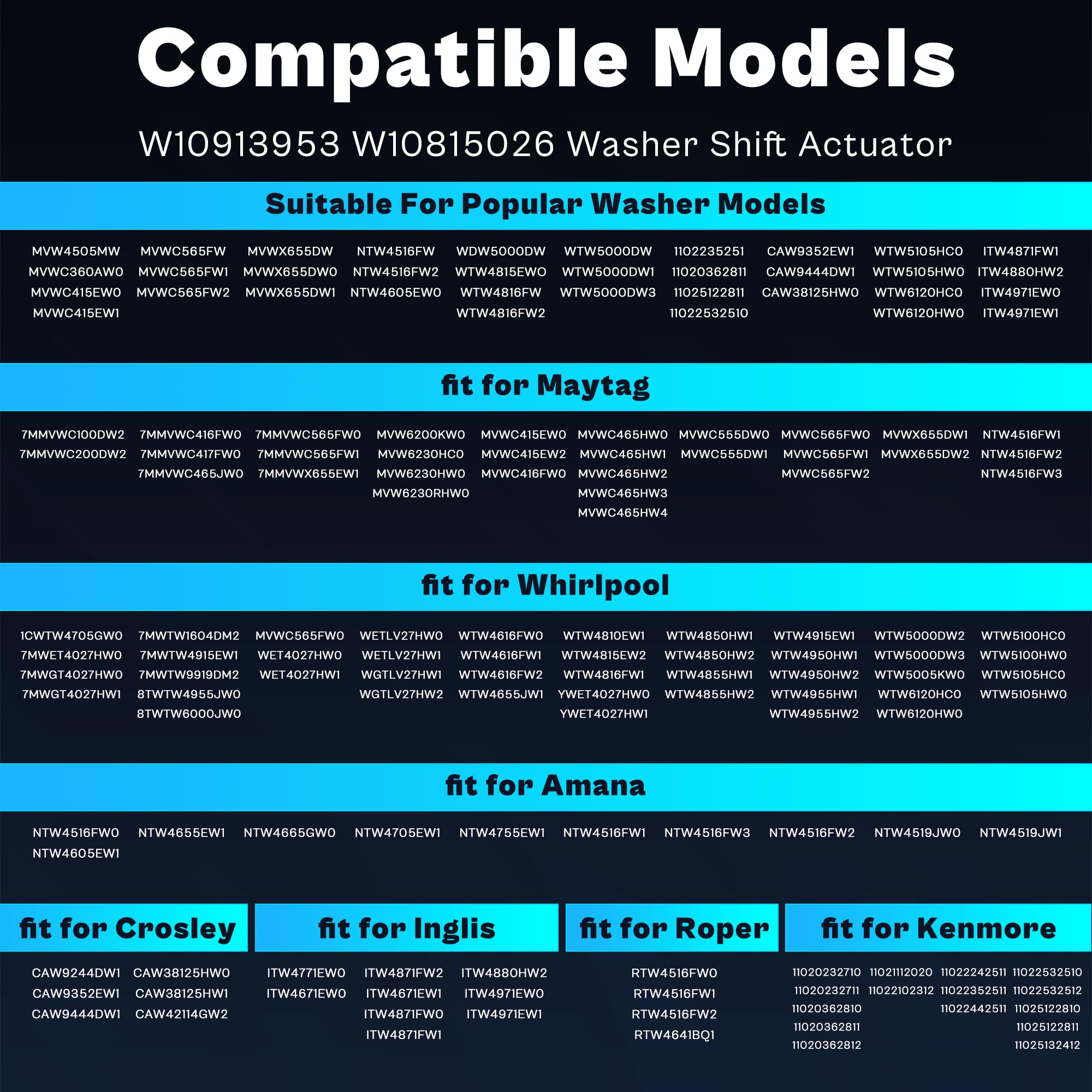

Which washer models are compatible with this 50SM21-1-221B unit?

This actuator fits a range of top-load models from Whirlpool, Maytag, Amana and Kenmore families. Compatibility covers several model prefixes used in common machines built with a bottom-located shift assembly. Always verify the existing part number or compare the shape and connector style before ordering.

• Examples include MVW4505MW, MVWC360AW0, MVWC415EW0, MVWX655DW and NTW4516FW variants.
• Also compatible with WTW and WDW series machines such as WTW4816FW and WDW5000DW.

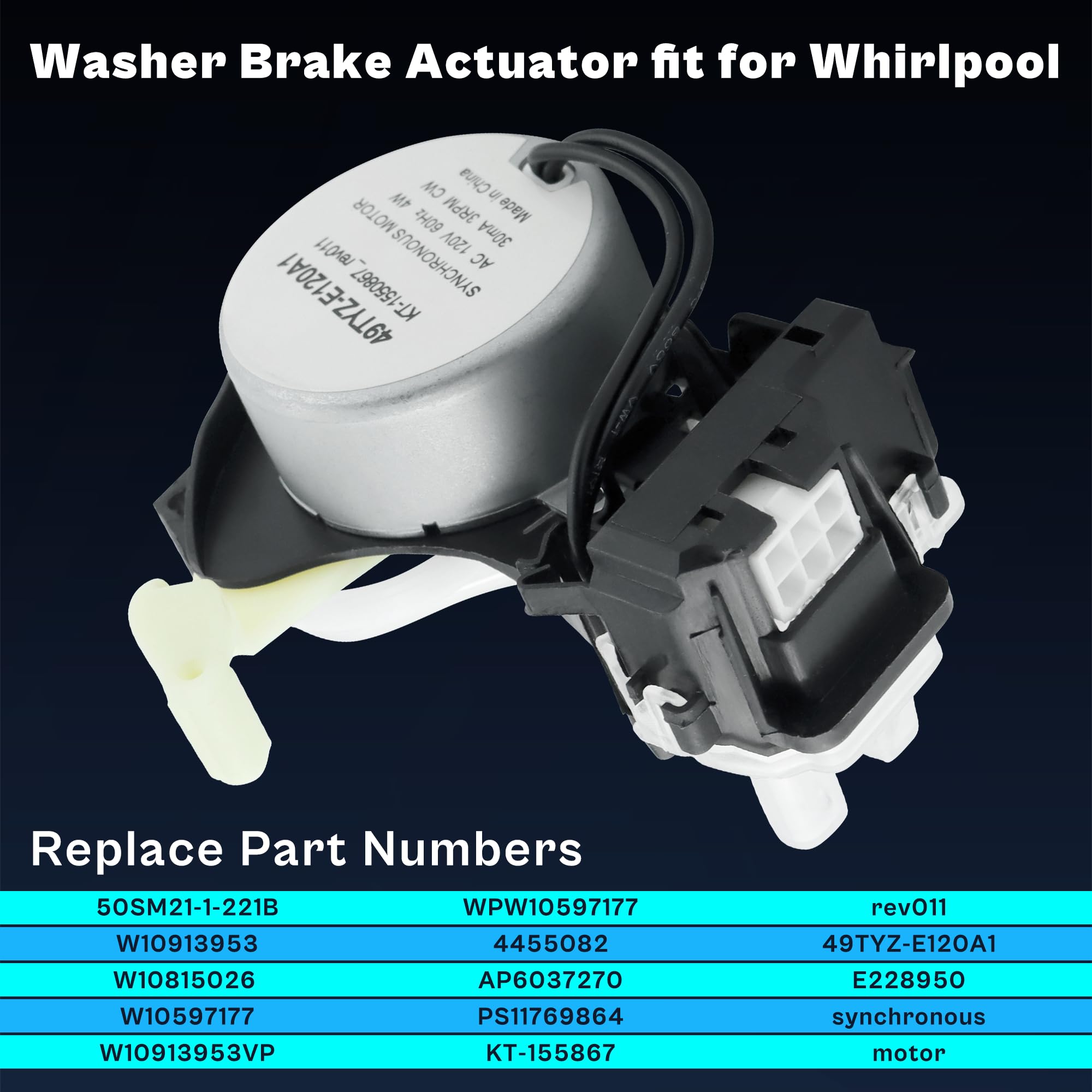

• Cross-references include 4455082, AP6037270, PS11769864 and KT-155867_rev011.

What are the construction and performance details of this replacement actuator?

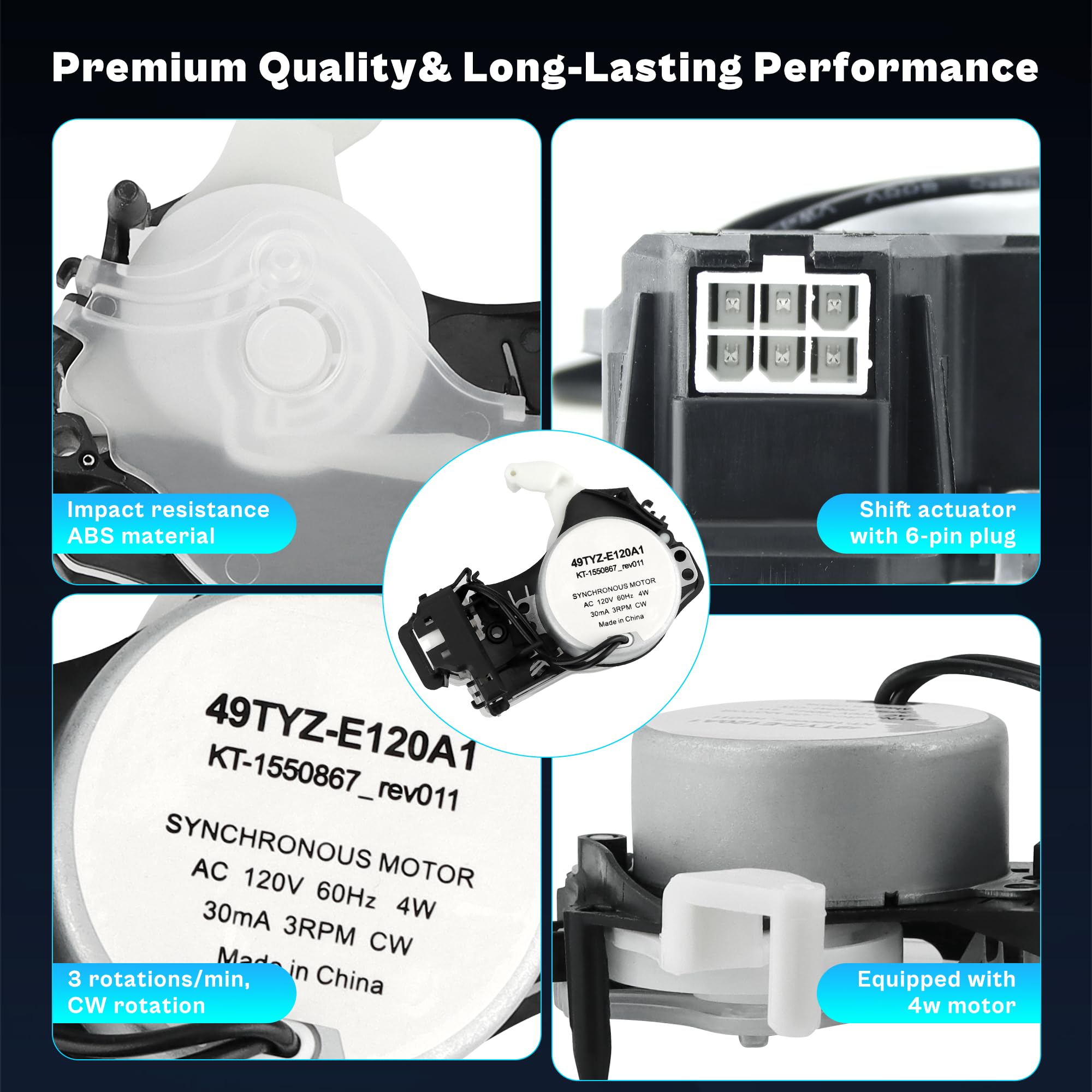

The housing and load-bearing components are molded from premium ABS for improved impact resistance and long-term durability versus standard engineering plastics. The synchronous motor provides steady, low-speed rotation to position the shift cam accurately under load. That combination reduces the chance of premature wear and helps the part survive repeated cycle changes.

• Impact-resistant ABS body for stronger mechanical resilience.

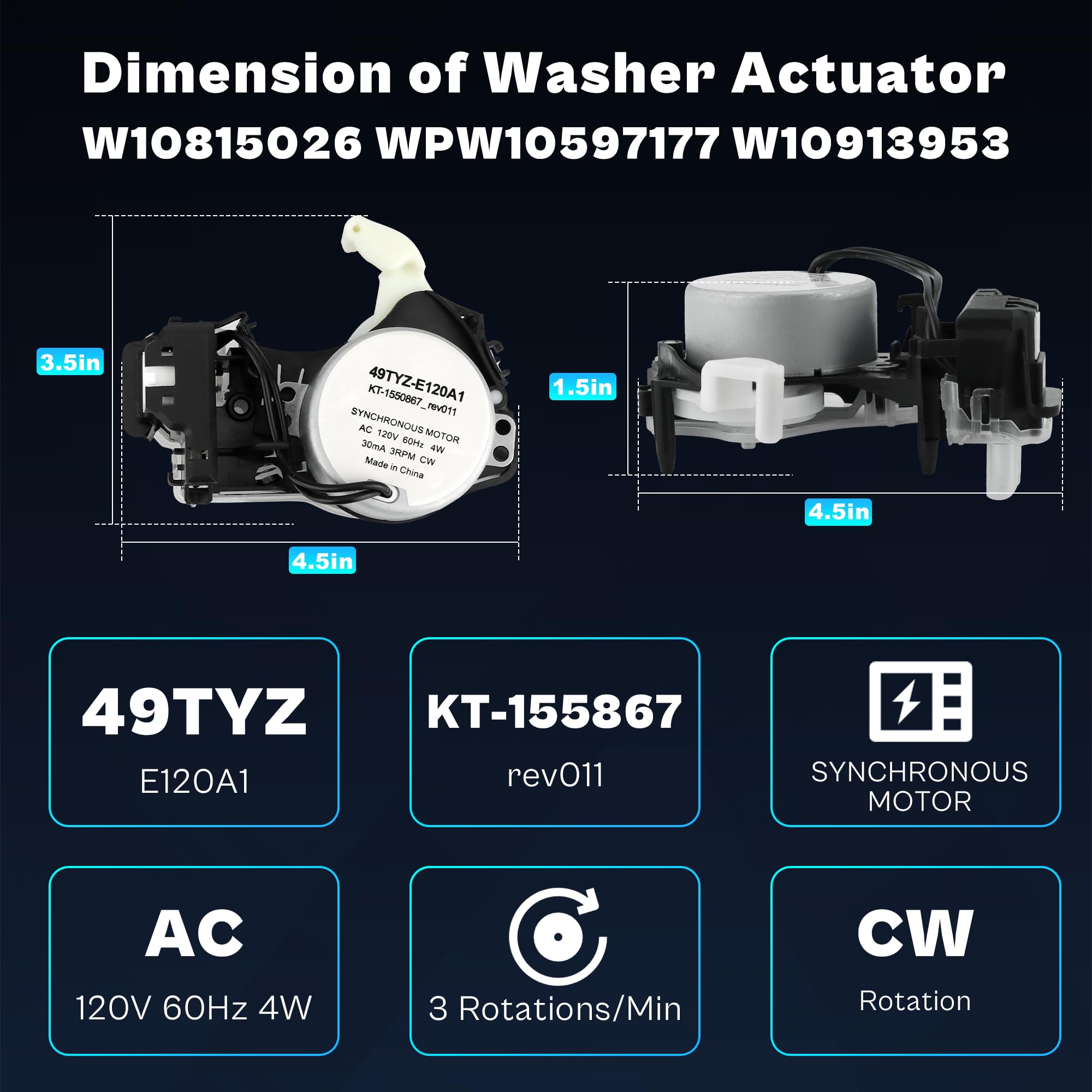

• Synchronous motor specs: AC120V, 60Hz, 4W, 30mA, 3 RPM, CW rotation.

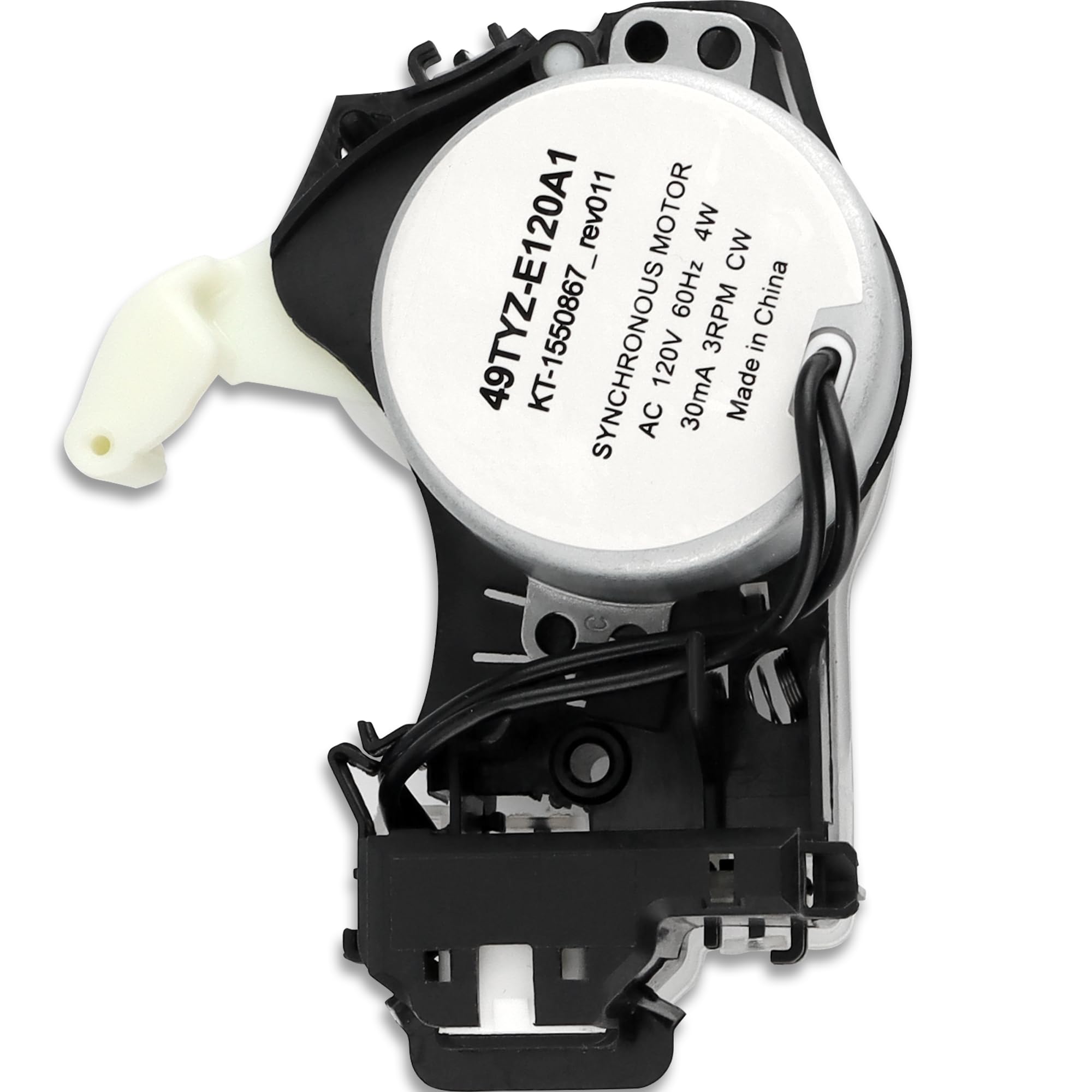

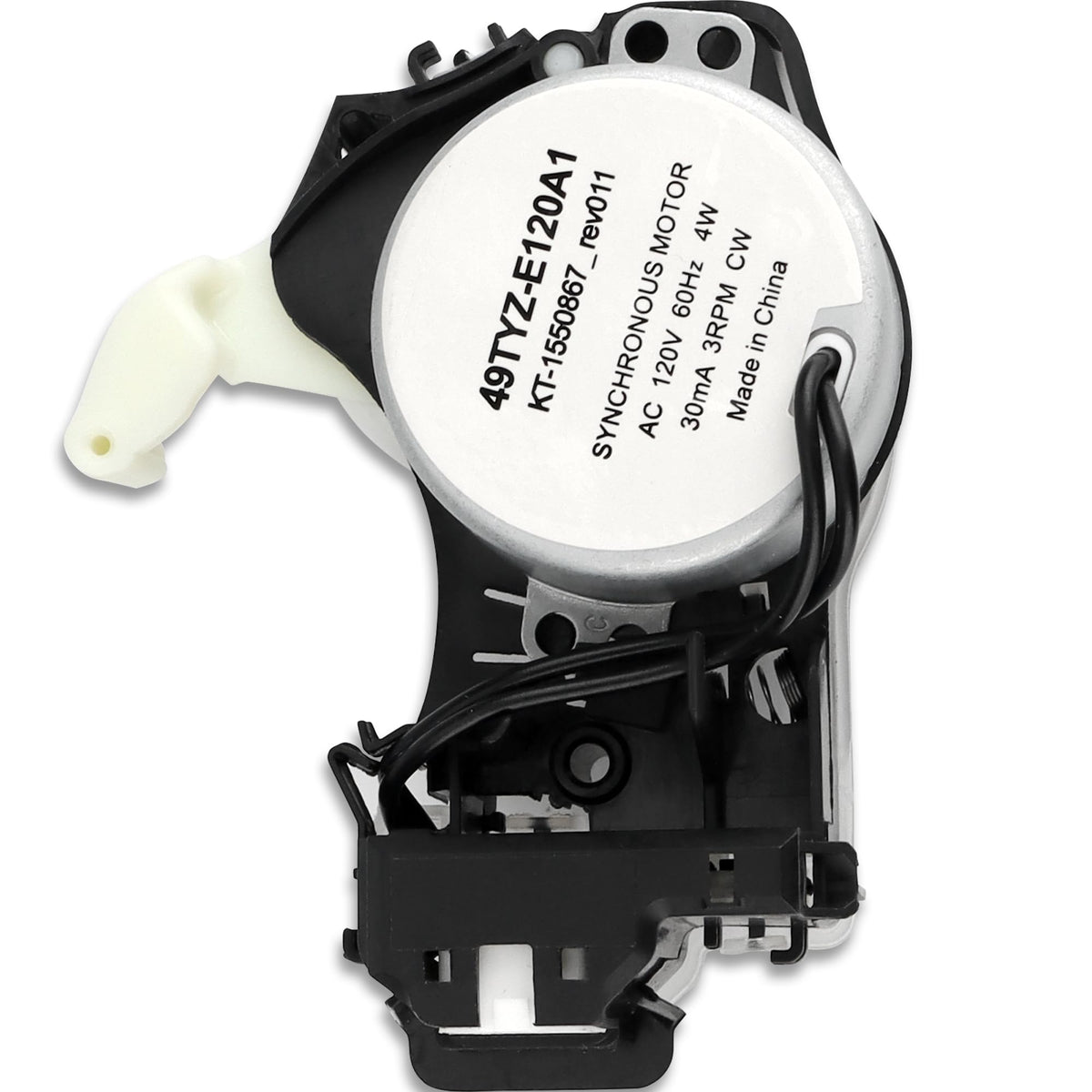

• Engineered to match OEM mounting points and electrical connector layout.

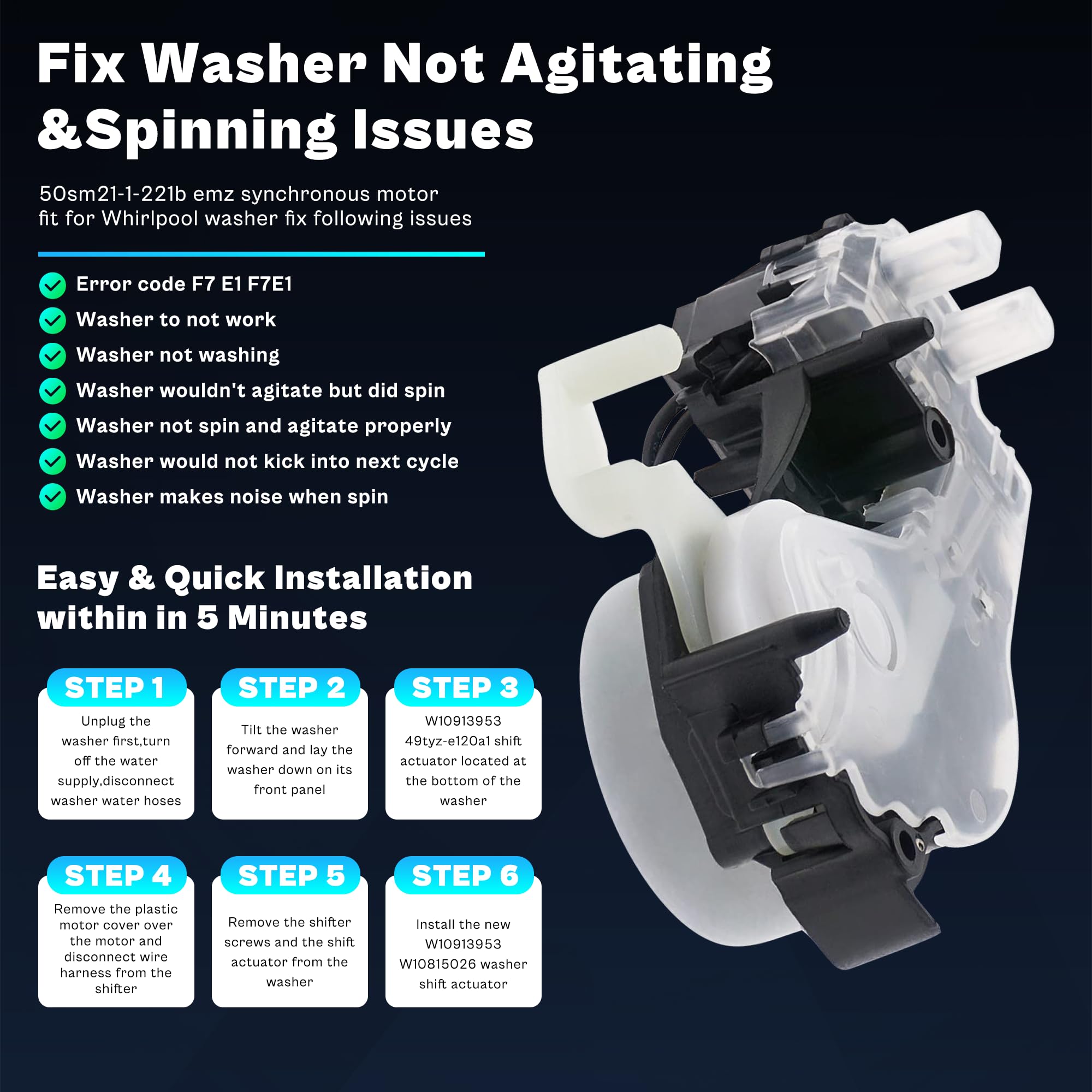

How difficult is it to install the 50SM21-1-221B actuator?

Replacement is straightforward for anyone comfortable with basic appliance repairs and safety steps. You’ll unplug the washer, turn off water supply, and tilt or lay the machine forward to access the bottom shift assembly. Remove the access cover, disconnect the harness and fasteners, swap the actuator, then reconnect and test the machine.

• Power off and water off before beginning work—safety first.
• Remove bottom plastic cover and unscrew mounting hardware to access the actuator.
• Reconnect the wiring harness and fasteners in the same orientation; test a short cycle after reinstalling.

Who is this for: This replacement shift actuator is aimed at homeowners, independent repair technicians and small appliance shops needing an affordable, OEM-compatible fix for top-load washers that fail to shift between agitate and spin. If your machine displays shift-related error codes, stalls in one cycle stage, or if the original part number matches any of the cross-references, this prime&swift 50SM21-1-221B offers a robust, straightforward replacement to restore normal operation.
