Pro Chaser DC-DC Converter for Golf Carts & RVs 48V/36V to 12V 30A — 360W Regulated Output, Built‑In Protection

The Pro Chaser DC-DC converter reliably steps 36 V or 48 V golf-cart/RV battery packs down to a stable 12 V/30 A output for lights, radios, accessories and solar loads.

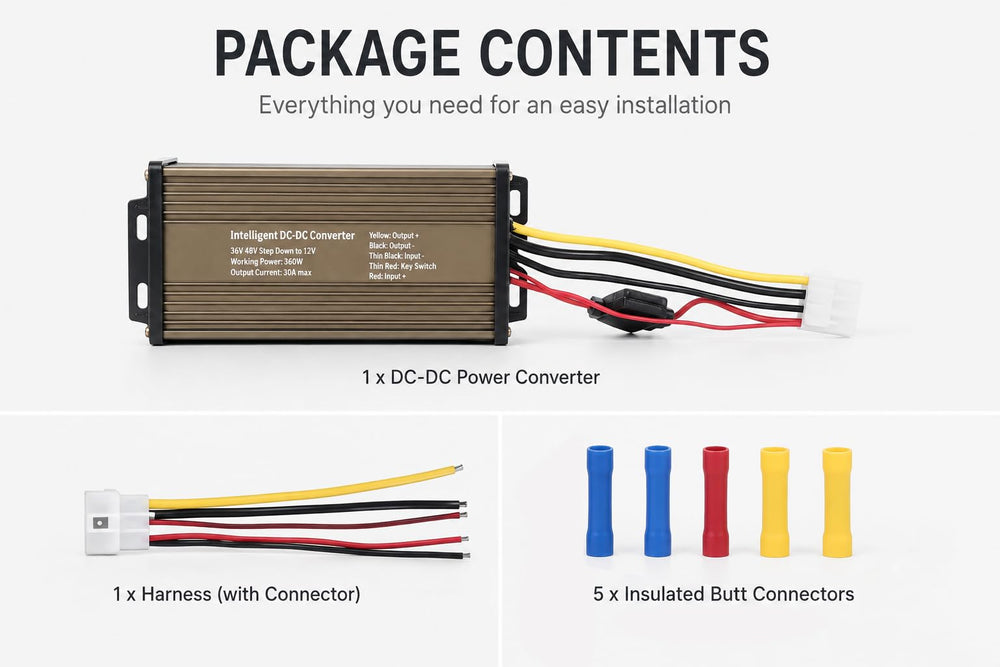

Designed for utility vehicles, golf carts and small RV systems, this compact 360 W DC–DC regulator turns multi-battery packs (six 6 V or six 8 V batteries) into dependable 12 V power without the need for engine-run alternators or complicated rewiring. The unit arrives with a color-coded harness and an easy-to-follow manual built around a single-line wiring convention, plus built-in protections and factory burn-in testing to improve in-field reliability.

How does the converter protect my 12 V accessories from battery voltage spikes?

The Pro Chaser converter provides regulated output and internal overload protection to prevent over-current damage to downstream devices. It limits continuous power to 360 W and tolerates brief surges up to 400 W, automatically tripping on sustained overloads.

• Continuous output: 12 V at 30 A (360 W) with thermal and current limiting.
• Peak surge tolerance: up to 400 W for short durations.
• Overload response: trips and requires load removal for ~60 seconds before restart.
• Factory-tested with burn-in and surge simulations to verify protection behavior.

What does the wiring and installation process look like?

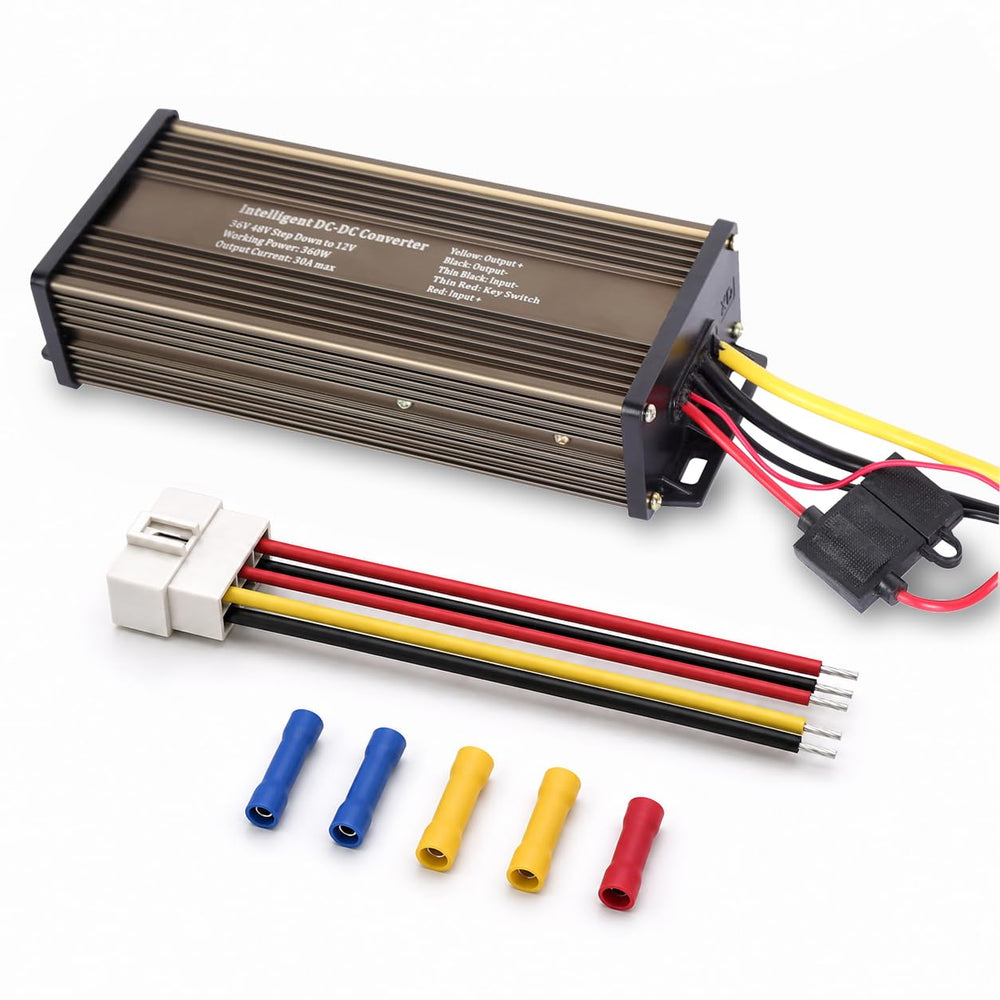

Installation follows a simple, color-coded wiring scheme and a clear manual to minimize guesswork. Terminals are labeled and the harness uses matched connectors and butt-connectors for straightforward assembly; a probe or multimeter can verify the switched key terminal if needed.

• Thin black → battery negative (–).
• Thick red → battery positive (+).
• Thick black → accessory negative (–); yellow → accessory positive (+).
• Thin red → key-switch “switched” terminal for ignition-controlled output testing.

Where should I mount the converter and what environment does it need?

Mount the aluminum-bodied converter where it has free airflow around its vents and where wiring stays protected from abrasion. The recommended ambient range is 0 °C–50 °C with relative humidity below 85%; secure the unit and harness under the vehicle or in a ventilated compartment to prevent chafing and heat build-up.

• Install in ventilated space, free of direct moisture or debris intrusion.
• Tighten all terminal fasteners to 4–6 N·m (to reduce arcing risks).
• Route and secure wires with clips to avoid rubbing on chassis edges.
• Avoid locations with persistent water spray or extreme heat exposure.

How do I size this converter for my accessories and solar setup?

Match the converter to the combined continuous wattage of your 12 V loads and allow margin for startup surges. Keep total continuous draw at or below 360 W and account for temporary inrushes from motors, pumps or cooling fans that may approach the 400 W peak tolerance.

• Sum continuous wattage of lights, radios, electronics; ensure ≤ 360 W total.
• Consider inrush currents: choose devices with lower motor/pump startup draws or add staggered starts.
• When pairing with solar, ensure charging and load-sharing configurations match the converter’s 12 V output behavior.
• Consult the included wiring diagram (final gallery image) for detailed connections.

Who this product is for: technicians, fleet managers and DIY owners of electric golf carts, utility vehicles and small RVs who need a compact, factory-tested solution to generate stable 12 V power from 36 V or 48 V battery packs. It suits users who want an easy-to-wire, color-coded harness and controlled output for lighting, radios, accessories and off-grid electronics without modifying the main battery pack configuration.
