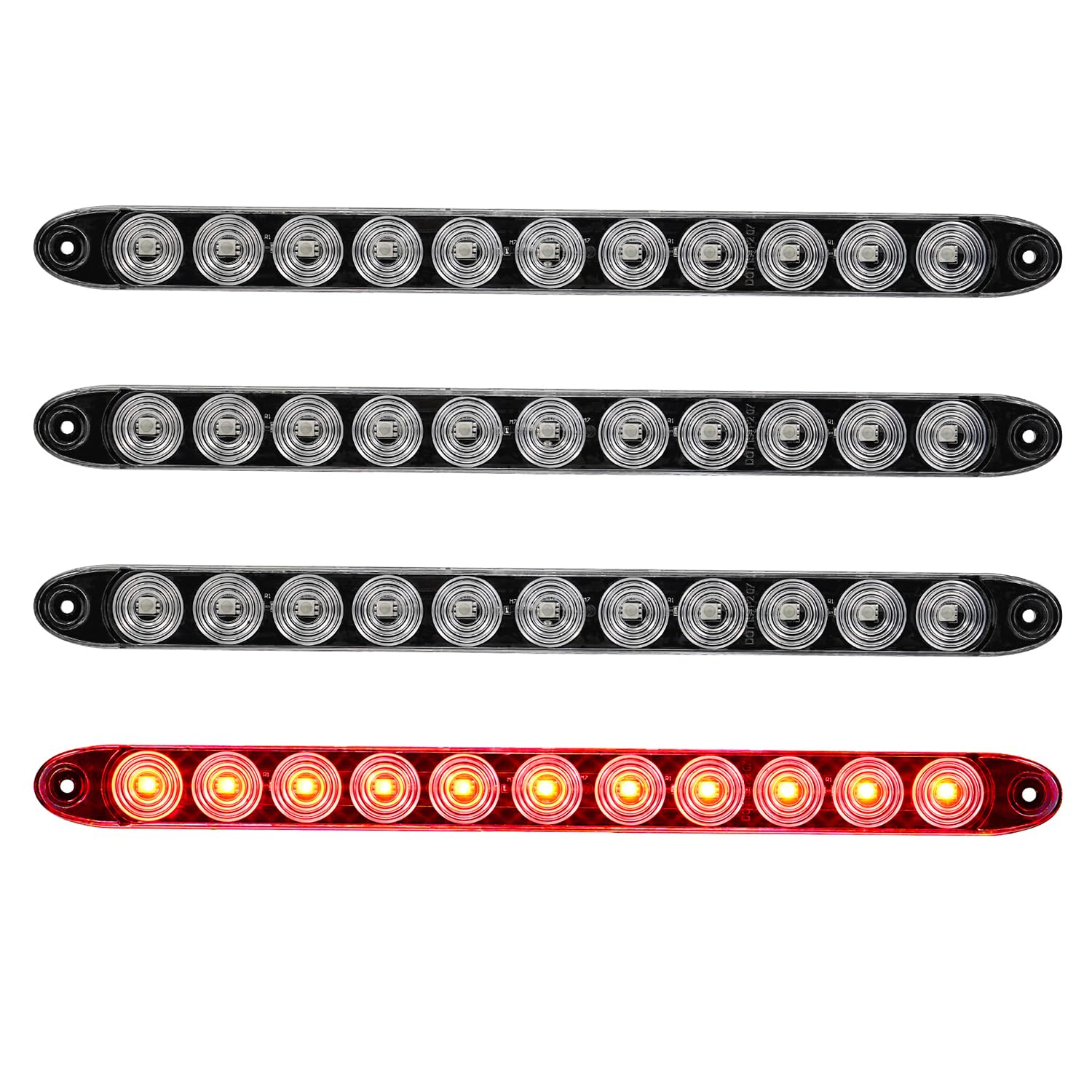

PVerandio 15.5" Red LED Stop Turn Tail Light Bars — 4-Pack, IP67 Sealed, 11-LED High-Visibility

PVerandio 4 PCS 15.5" red LED stop, turn, tail and brake light bars are sealed, IP67-rated 11-LED units designed to serve as bright center or marker lights for trailers and heavy-duty vehicles.

These slim 15.5-inch LED light bars combine stop, turn and running/tail functions in a compact, durable housing built for exposed vehicle applications. Each bar contains 11 high-visibility red LEDs behind a clear lens; the unit is constructed from impact-resistant hard plastic and sealed against dust and water. With a low profile and clear wiring colors, these modules are straightforward to mount and wire for multiple lighting roles on trailers, trucks and commercial equipment.

How do these LED bars perform in real-world conditions?

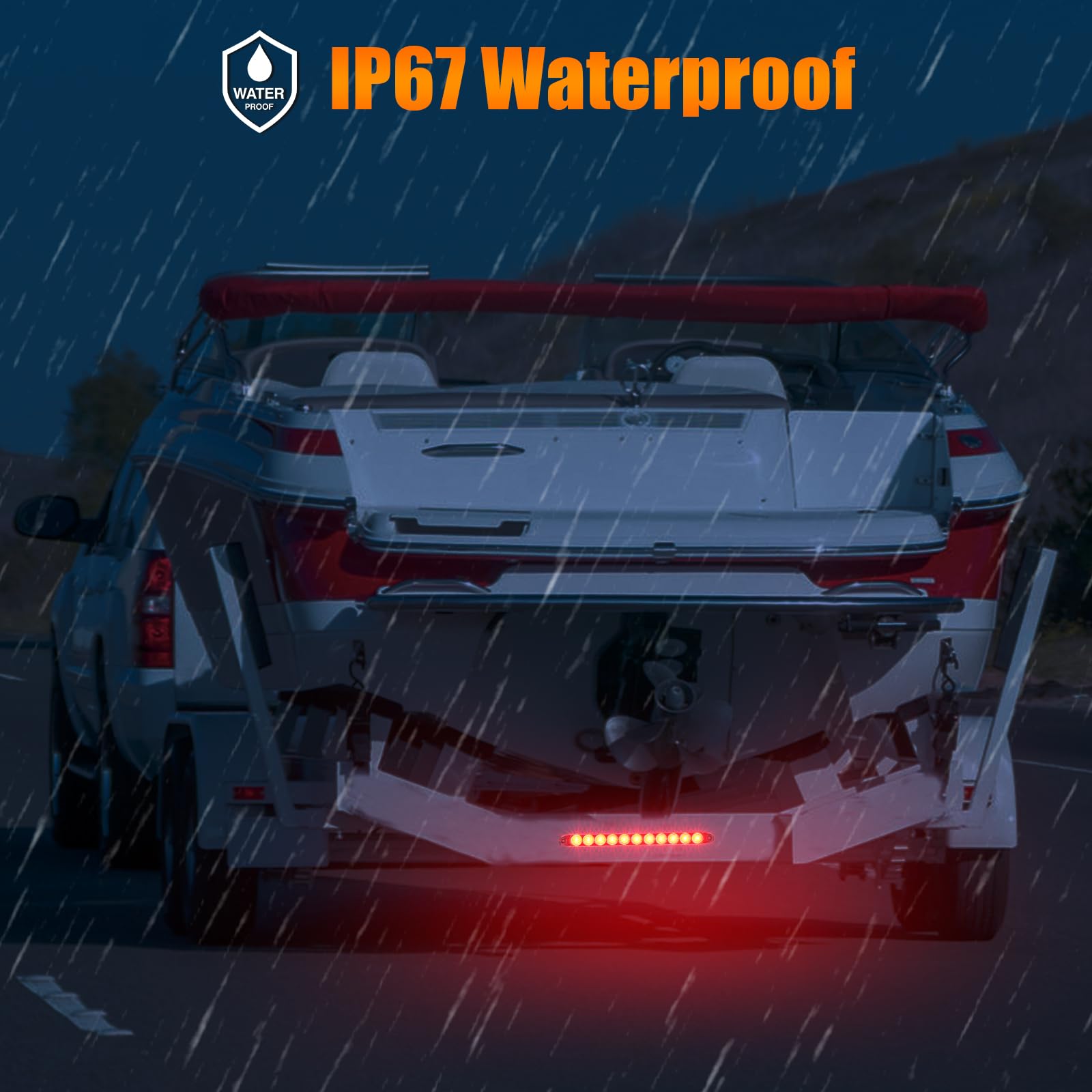

The light bars are IP67 waterproof and fully sealed to resist rain, splash and dust, making them suitable for roadside and marine use. The 11-LED array delivers a vivid red output for brake and turn signals while a separate low-brightness circuit provides running/tail illumination.

• IP67-rated seal for wet, dusty environments
• 11 red LEDs per bar for clear signaling
• Durable hard plastic housing resists impact
• Clear lens maximizes visibility and light dispersion

What are the dimensions and installation considerations?

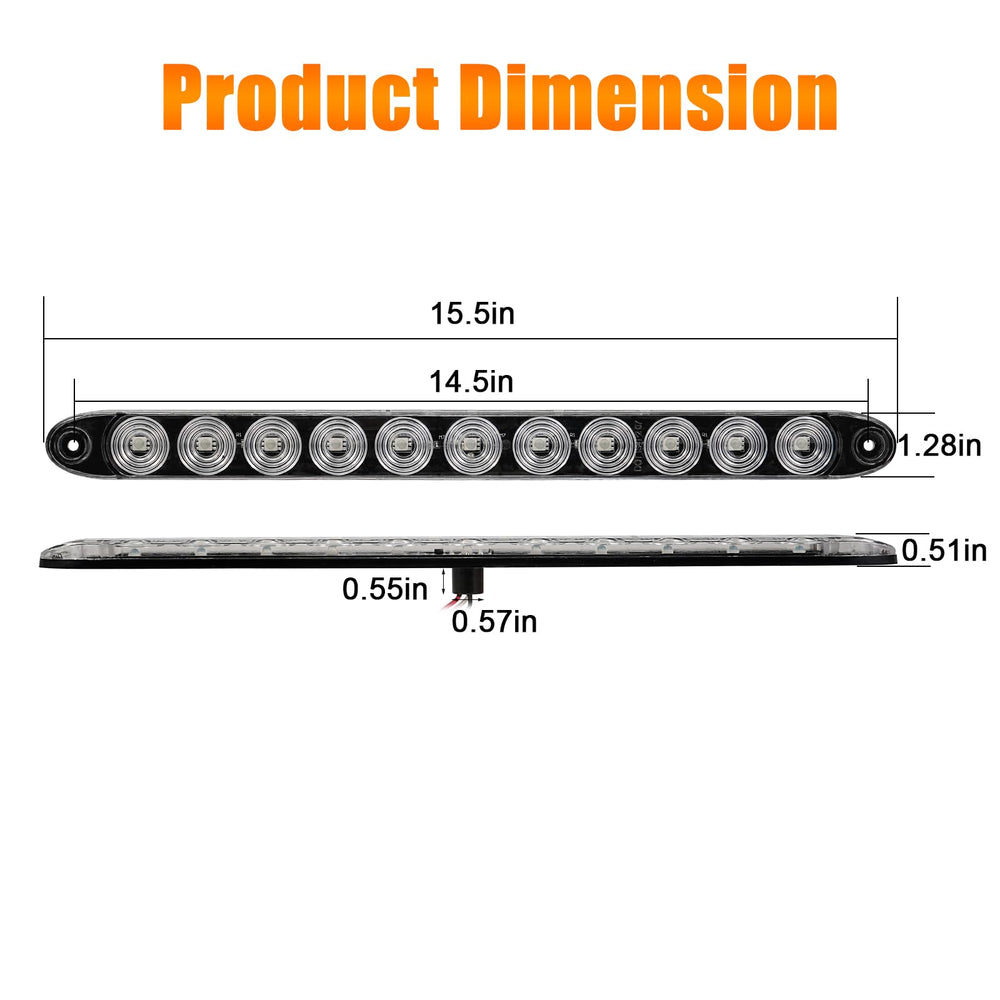

Each bar measures approximately 15.5" x 1.25" x 0.5" with a hole center-to-center of about 14.5", giving you a low-profile option that fits on flat or slightly curved surfaces. Note the small wire-knob exit described in the product details — it is about 0.59" diameter and may require a small hole or recess in some mounting locations.

• Overall size: 15.5" long, 1.25" wide, ~0.5" thick
• Mounting hole spacing ~14.5" center-to-center
• Small wire outlet knob ~0.59" diameter may need a drilled hole
• Works on flat or even mounting surfaces with standard fasteners

How should I wire these lights for stop, turn and tail functions?

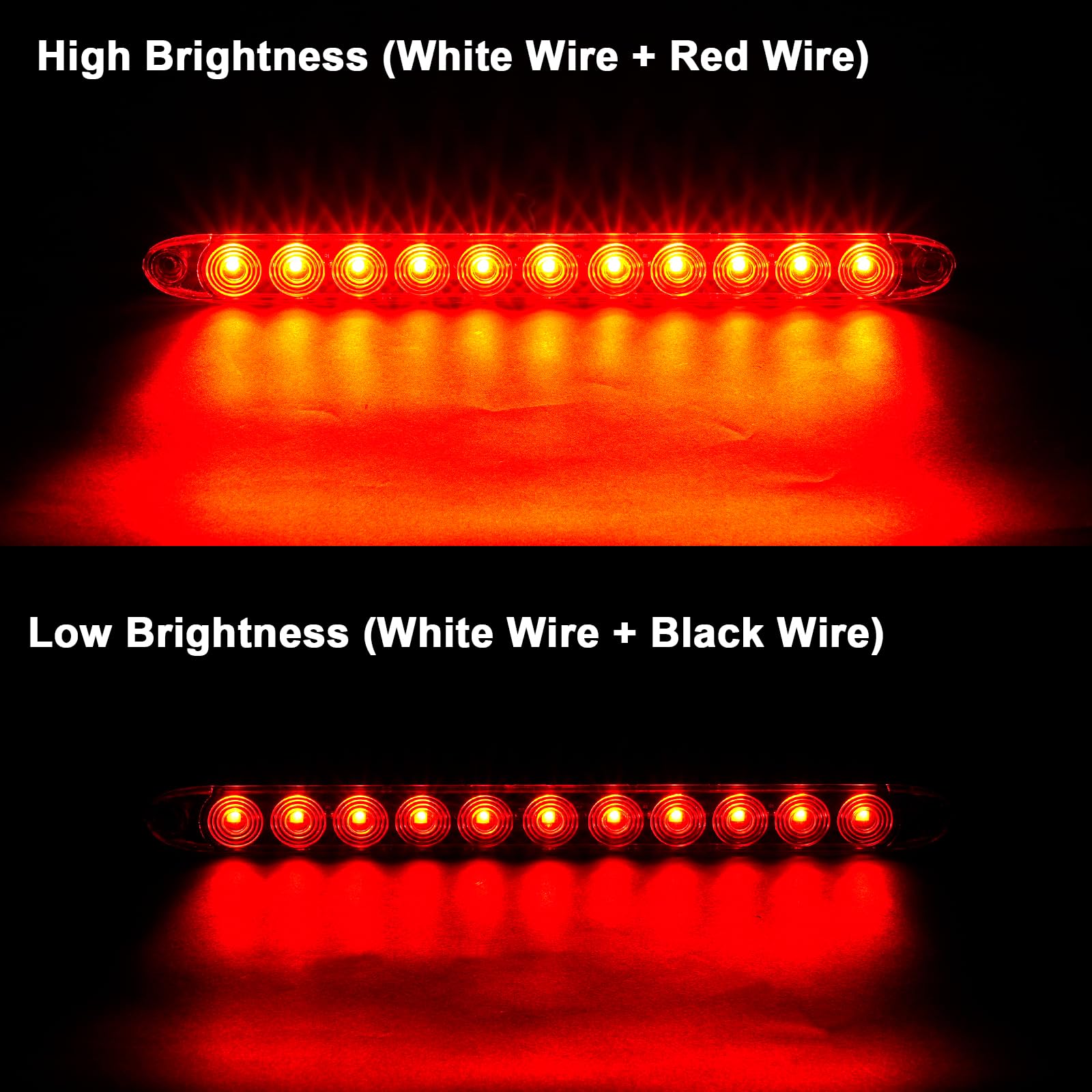

Wiring uses three clearly marked conductors to separate functions: a white wire for ground, a red wire for high-brightness stop/turn/brake output and a black wire for low-brightness tail/running light. Confirm vehicle wiring polarity and use appropriate connectors or sealed butt splices to maintain the IP67 protection at the termination points.

• White = ground/negative
• Red = high-brightness stop/turn/brake
• Black = low-brightness tail/running light
• Use sealed connectors and test signals after installation

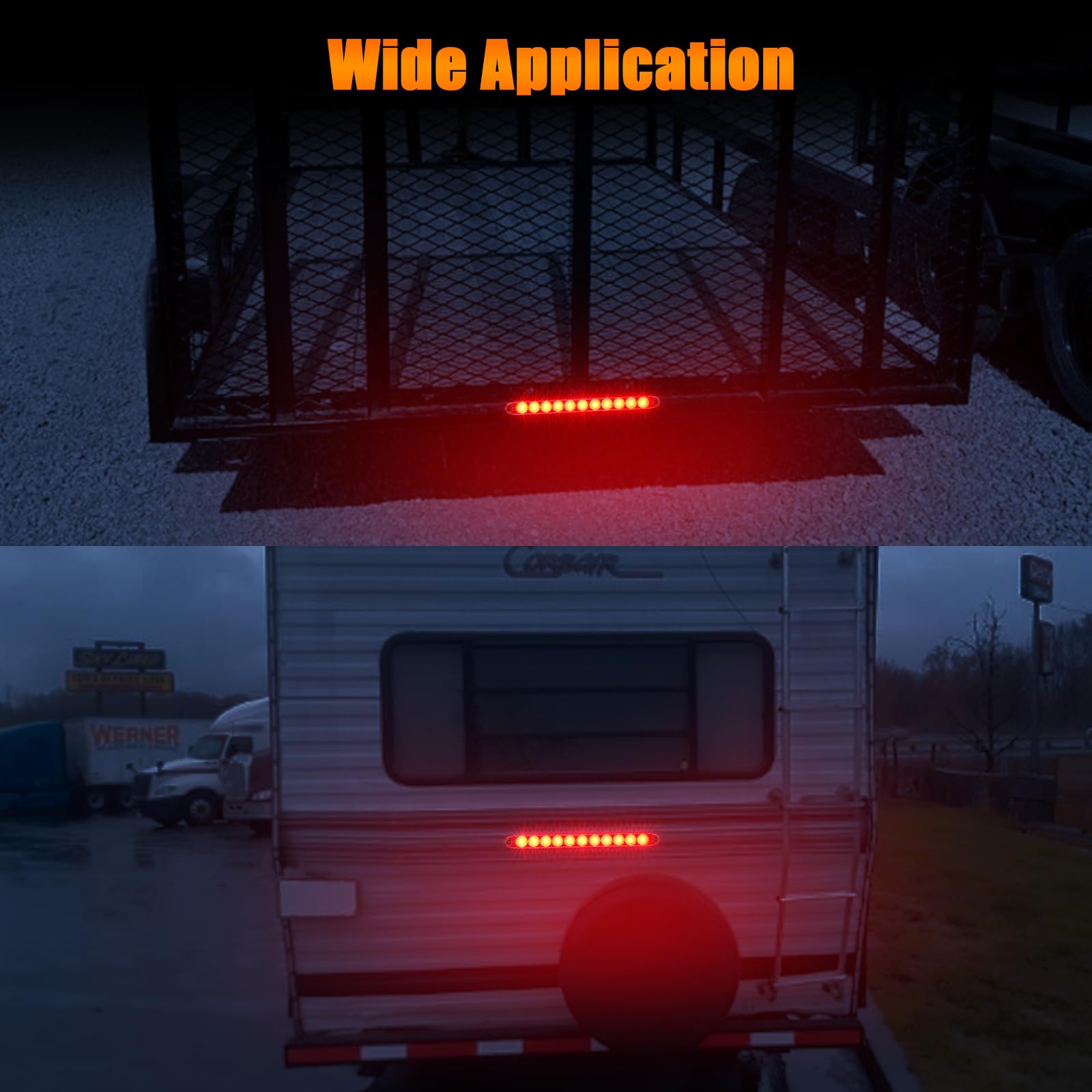

Who is this for? These PVerandio 15.5" LED bars are intended for owners and operators of trailers, semi-trailers, cargo haulers, boat trailers and heavy trucks who need a compact, multi-function lighting solution. They fit vehicles and equipment where a slim, DOT-style signal bar is required—especially on wide trailers (over 80"), center-mount third brake applications, clearance/marker positions or as auxiliary identification lights. Installers, fleet managers and DIY vehicle modifiers will appreciate the rugged housing, clear wiring scheme and the bright LED functionality for improved visibility in demanding conditions.
