QPKING BT10 EPB Emergency Release Tool — 10–14V DC, fuse-protected with reverse-polarity protection and status LED

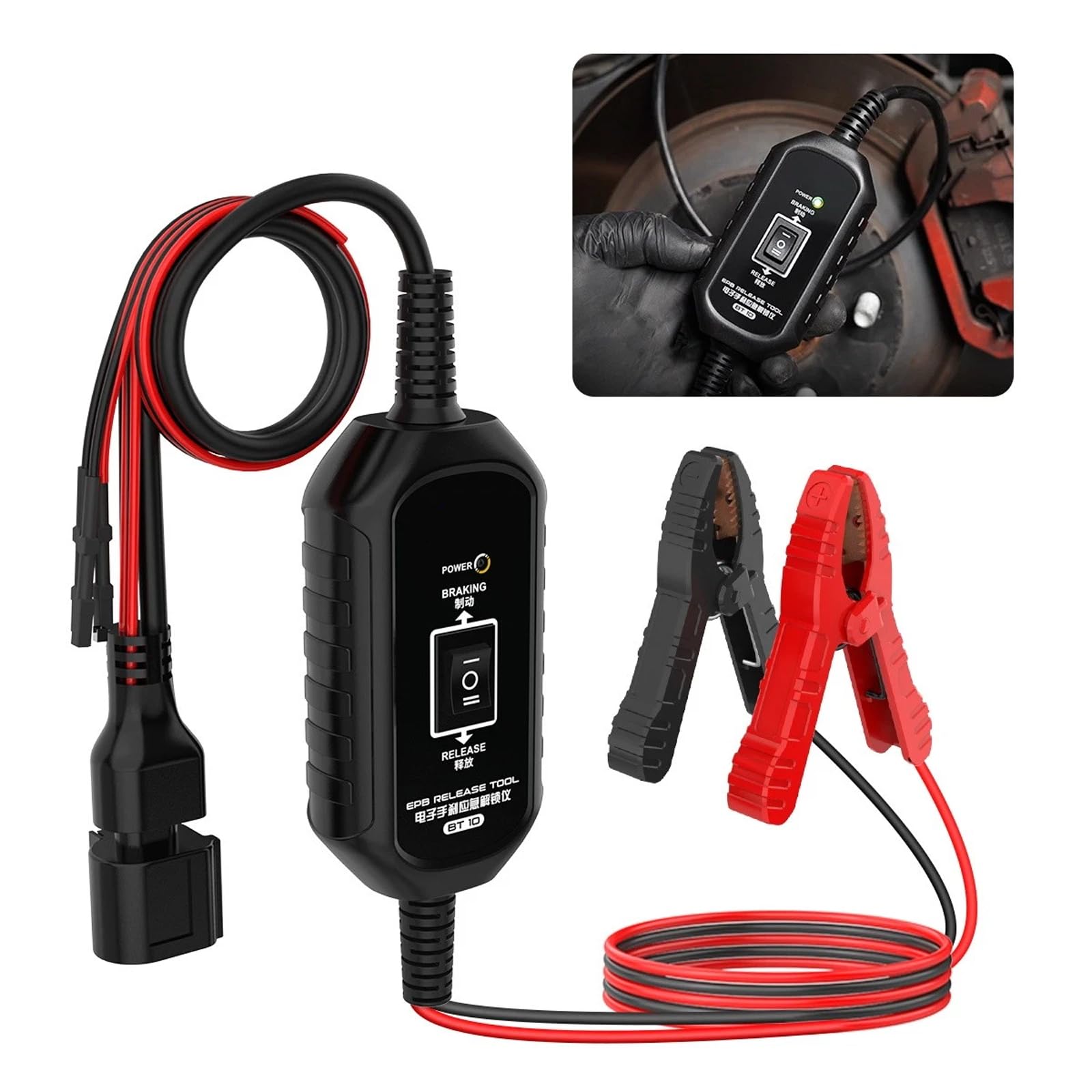

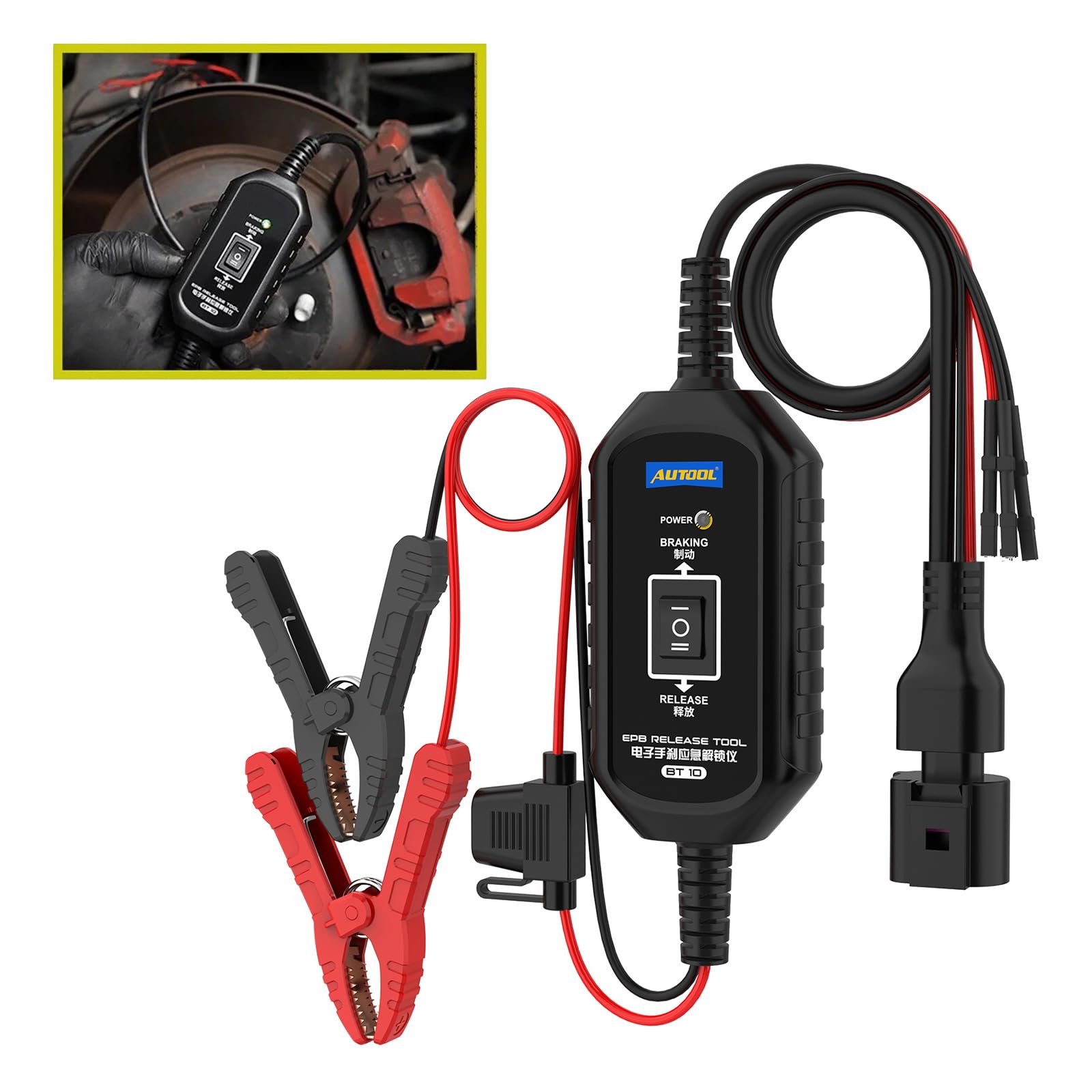

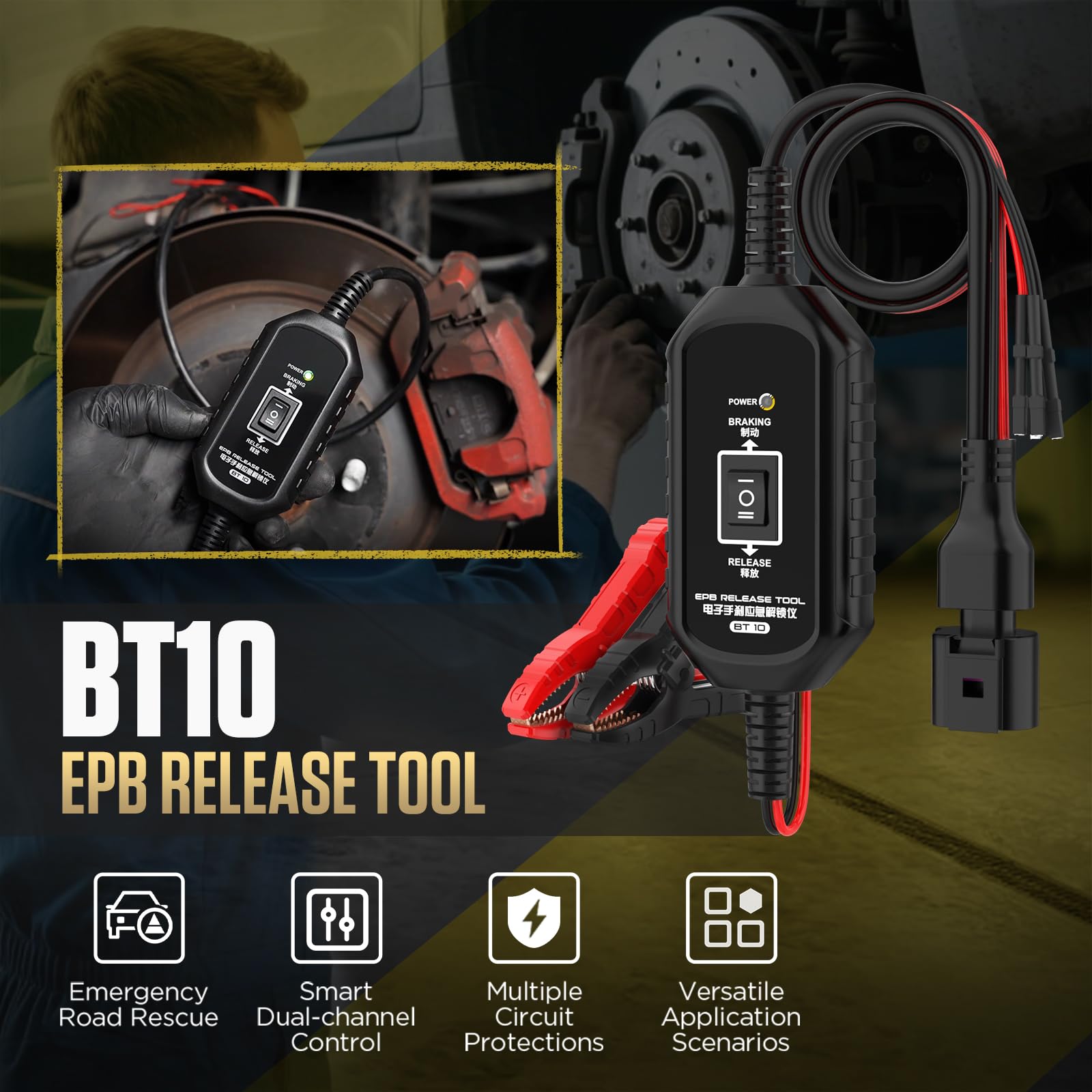

The QPKING BT10 is a handheld emergency release tool that provides direct, temporary motor control of compatible electronic parking brake (EPB) actuators for safe rear brake service, towing, or flatbed loading.

The BT10 lets technicians and experienced DIYers apply controlled power to an EPB actuator so the parking brake can be released or engaged when normal vehicle systems are unavailable. Designed for use only with compatible 10–14 V DC EPB motors and when manufacturer procedures permit external motor control, it combines simple hookups with built-in electrical protection to reduce risk during short service operations.

How does the BT10 let me release an electronic parking brake safely?

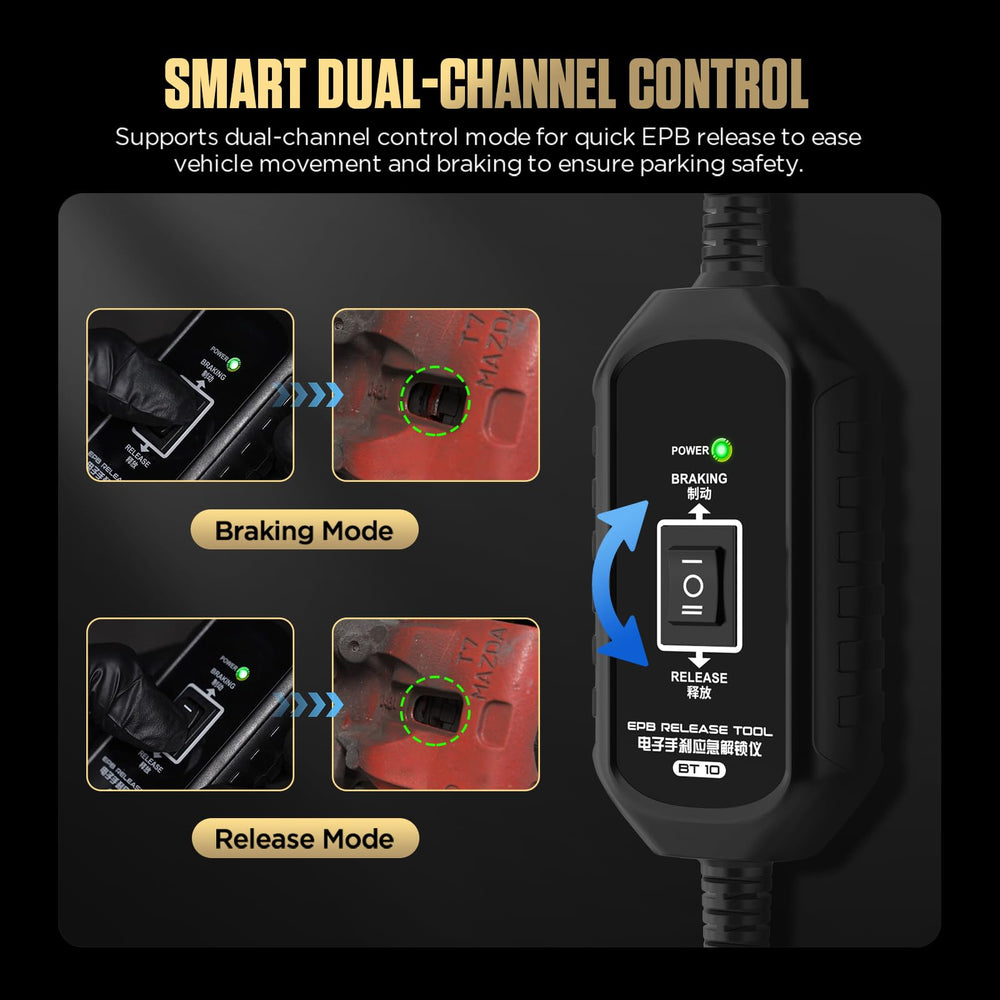

The tool sends controlled polarity and current to the EPB motor to rotate the actuator in the desired direction for temporary release or engagement. It includes reverse-polarity protection, a visible power-status LED, and a fast-blow 5 A fuse to guard against common electrical faults during brief use.

• Direct motor output for temporary actuator control (no ECU coding).

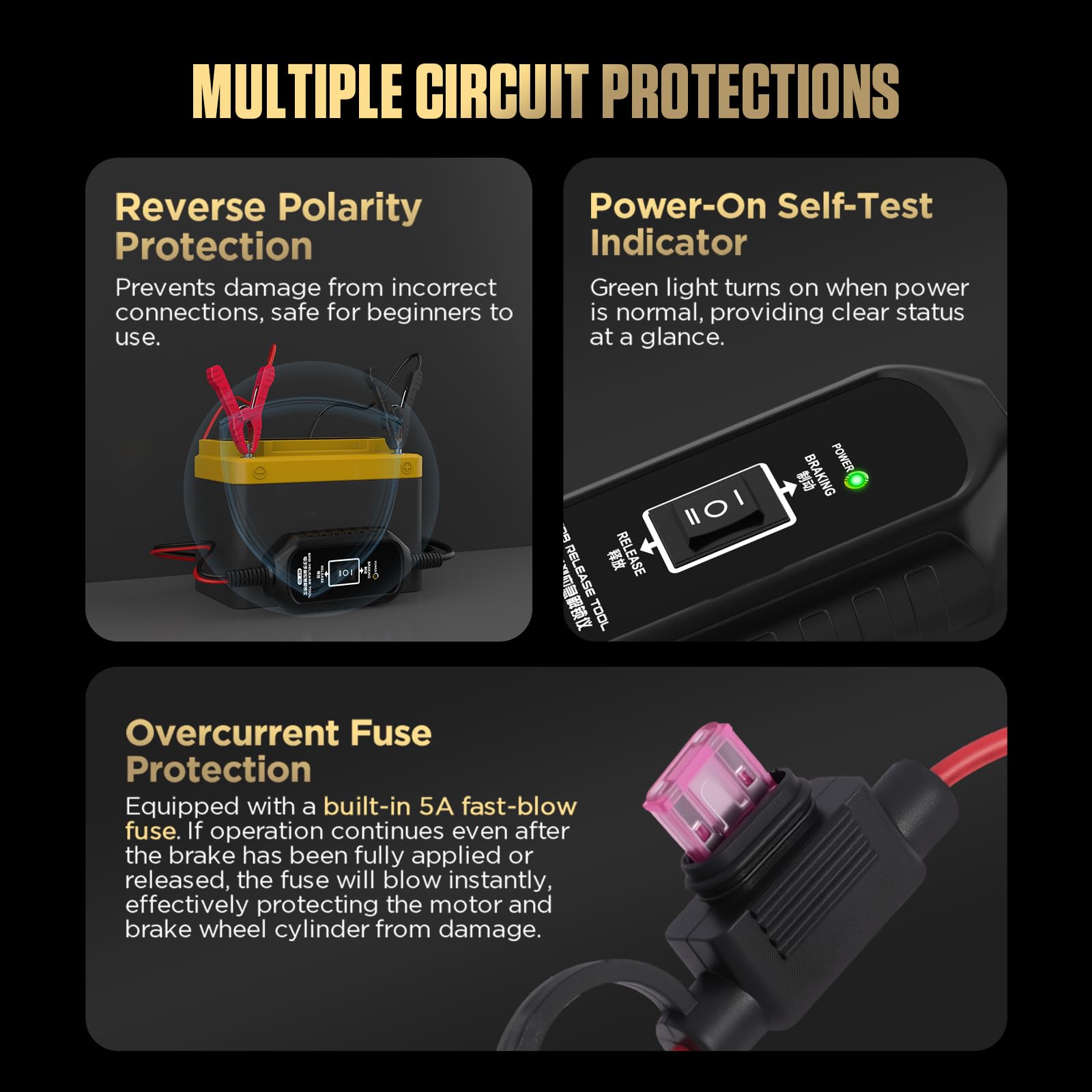

• Reverse-polarity protection and green power LED for status feedback.

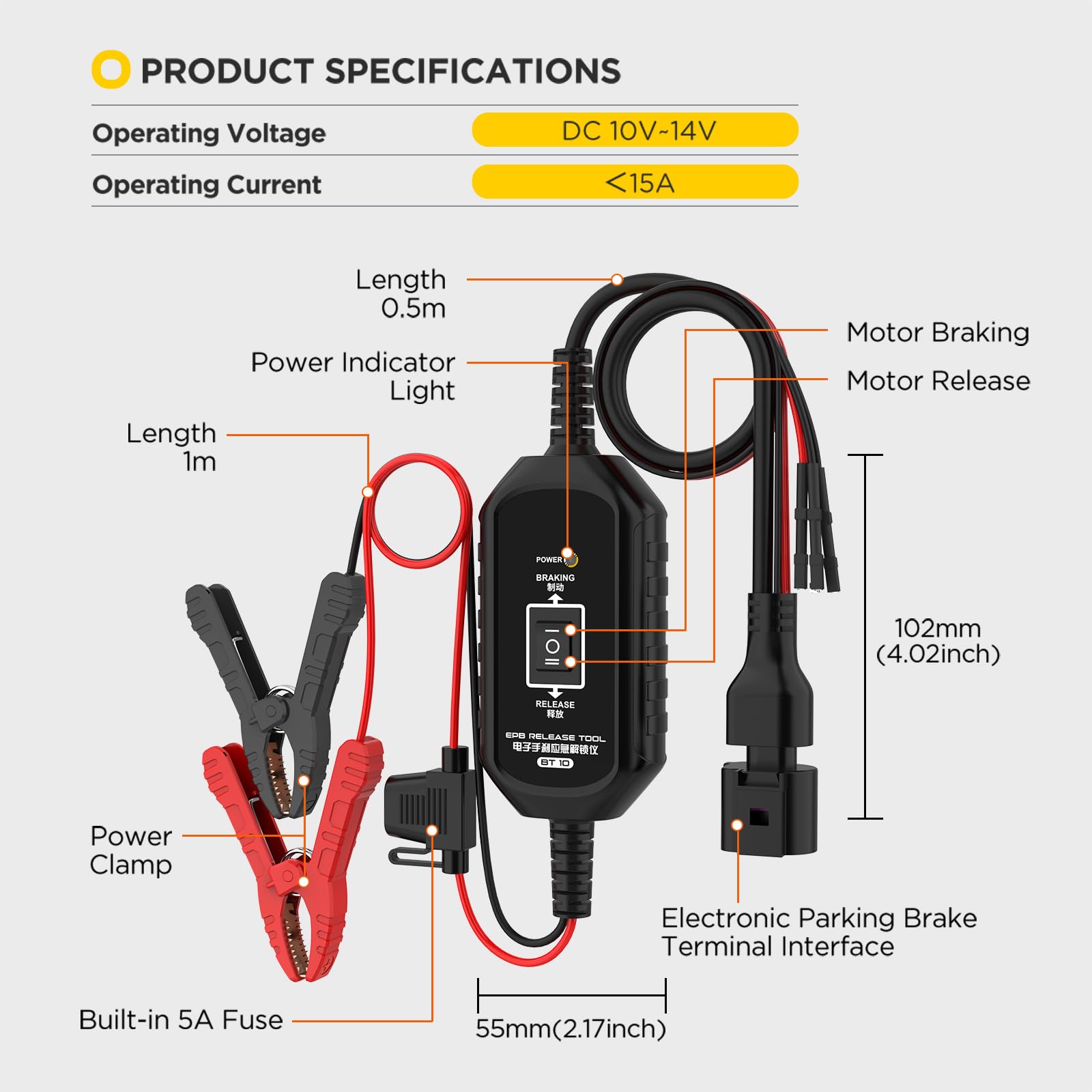

• Internal 5 A fast-blow fuse and rated operation under 15 A peak current.
• Intended for short-term service tasks, not for permanent vehicle modification.

Which vehicles and systems are compatible with the BT10?

Compatibility depends on the vehicle’s EPB motor voltage, connector/pin arrangement, and whether the manufacturer allows external motor control during service. Only use the BT10 with 10–14 V DC EPB actuators and after confirming connector shape, terminal layout, and polarity.

• Supports EPB motors that accept external 10–14 V DC control.

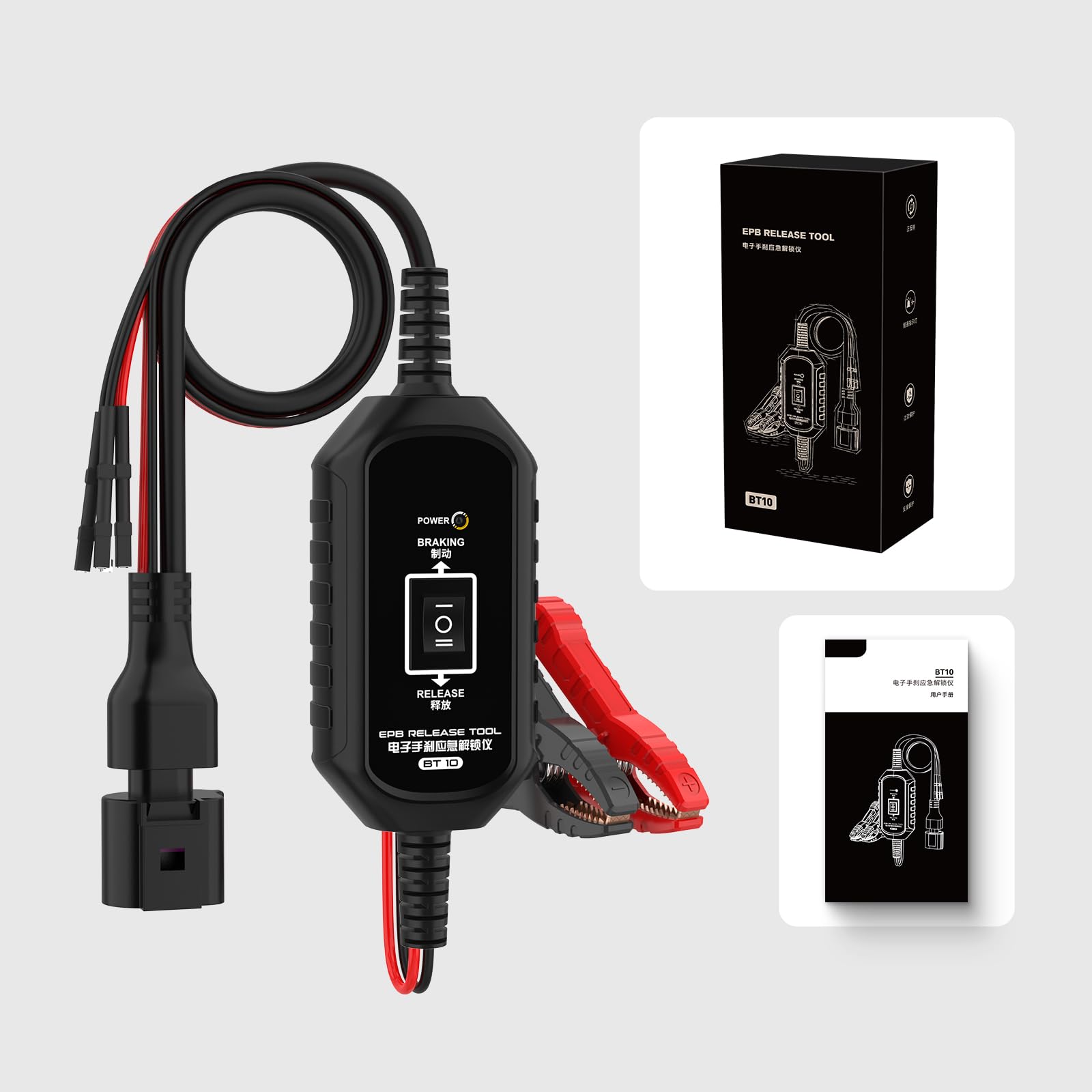

• Verify connector shape and pinout before connecting the supplied lead.
• Option to use motor pin leads if connector does not match—confirm terminals first.
• Not a substitute for OEM diagnostic or programming tools.

What procedures and limits should I know before using the BT10?

The BT10 is for temporary mechanical control during approved service tasks like rear brake maintenance, controlled vehicle movement in a workshop, or preparing a vehicle for flatbed loading. It does not read or clear fault codes, perform calibration, or replace diagnostic functions of OEM scan tools.

• Do not use for ECU programming, coding, or long-term actuation.
• User must supply an external 10–14 V DC power source (not included).
• Follow vehicle-maker instructions and safety precautions for EPB service.
• Only trained personnel should access motor terminals or bypass connectors.

How do I connect and operate the BT10 in the workshop?

Start by confirming compatibility and correct polarity; then connect either the supplied EPB connector (if it matches) or the motor pin leads after verifying terminals. Power the tool with a stable 10–14 V DC supply, observe the green LED to confirm power, and operate only for the short durations required to move the actuator.

• Check vehicle manual for allowed external motor control procedures first.
• Attach correct connector or clamp to identified motor pins—never force a connector.
• Use a regulated 10–14 V DC supply; input current typically stays below 15 A.
• Disconnect immediately if abnormal noise, heat, or warning lights appear.

Who is this for: The QPKING BT10 is built for professional mechanics, experienced technicians, and advanced DIYers who service rear brakes, tow or recover vehicles, or need controlled EPB actuator access during shop procedures. It’s intended as a purpose-specific tool for temporary motor control—buyers should have the know-how to confirm vehicle compatibility and to follow EPB service safety steps. The BT10 ships with the tool and user manual; an appropriate external 10–14 V DC power source is required but not included.
