Razor 24V 4‑Wire Twist Grip Throttle — Replacement for E100/E125/E200/E300/Pocket Mod (W13113601043) — OEM fit, single‑speed

Factory-original Razor 24V 4-wire twist-grip throttle (part #W13113601043) — a direct-fit replacement for select Razor E100, E125, E200, E300 and Pocket Mod versions that restores throttle control and reliability.

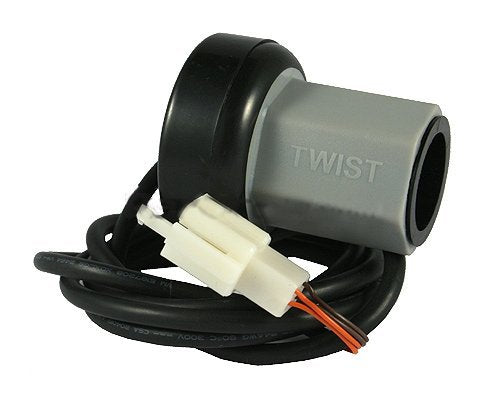

This replacement twist grip throttle is the OEM control module designed to plug into compatible Razor scooters using the male 4-pin connector. It replaces worn or non‑responsive throttles on later-version E100 and E125 scooters, specified E200 and E300 revisions, and newer Pocket Mod models. Installing the correct version is crucial: appearance alone can be misleading because older scooter revisions use a different throttle assembly.

How do I confirm this throttle fits my Razor scooter?

Match the part to your scooter by checking the serial number printed on the barcode label. The scooter version is the two-digit number between the dashes in the 8-digit serial (for example, "-10-" means version 10). If your serial shows a version equal to or greater than the model-specific minimum listed, this throttle is compatible.

• Find the barcode on the battery cover or underside of the frame.
• Read the two-digit version code between the dashes in the serial number.
• Confirm your scooter is E100/E125 version 10+, E200 version 24+, E300 version 20+, or Pocket Mod version 13+.

What electrical and connector specifications should I expect?

This unit is a 24-volt, single-speed twist grip throttle with a four-wire interface and a male 4-pin connector that mates to the scooter’s wiring harness. It provides the same electrical layout as the factory part so it integrates without additional adapters when your scooter version matches.

• 24V single-speed throttle design for standard Razor electric scooters.
• Male 4-pin connector to match the OEM harness.
• Designed to replace the original part number W13113601043.

How do I install the replacement twist throttle safely?

Installation generally requires removing the handlebar cover or grip, unplugging the old 4-pin connector, and securing the new throttle in place. Always disconnect the battery before working on electrical components, and verify the connector orientation before pressing it together to avoid reversed wiring or damage.

• Power off and remove the battery or disconnect power first.
• Remove handlebar housing or grip to access the throttle mounting point.
• Unplug the old 4-pin connector, plug in the new throttle, and reassemble the housing.

What should I check if the new throttle doesn't work after installation?

If the scooter remains unresponsive, re-check the serial/version match and the connector seating. Confirm there’s no corrosion or bent pins on the 4-pin connector and ensure battery charge and fuses are in working order. If the wiring harness differs from the connector, the part is likely incompatible due to scooter revision differences.

• Verify the scooter version number against the required minimum versions.
• Inspect connector pins for damage or corrosion and clean if needed.
• Confirm the battery is charged and any inline fuses are intact.

Who is this for: This OEM Razor twist grip throttle is intended for owners or technicians maintaining later-version Razor E100/E125/E200/E300 and newer Pocket Mod scooters who need a direct-fit electrical and mechanical replacement. It's ideal for riders restoring original performance, shops performing routine repairs, and anyone who has confirmed their scooter’s serial-version falls within the supported ranges. Do not buy if your scooter is an earlier revision — check the serial version first to avoid fitment issues.
