RED WOLF Battery Quick Connector SB175 4-Pack Grey — 175A 1/0 AWG Flame‑Retardant

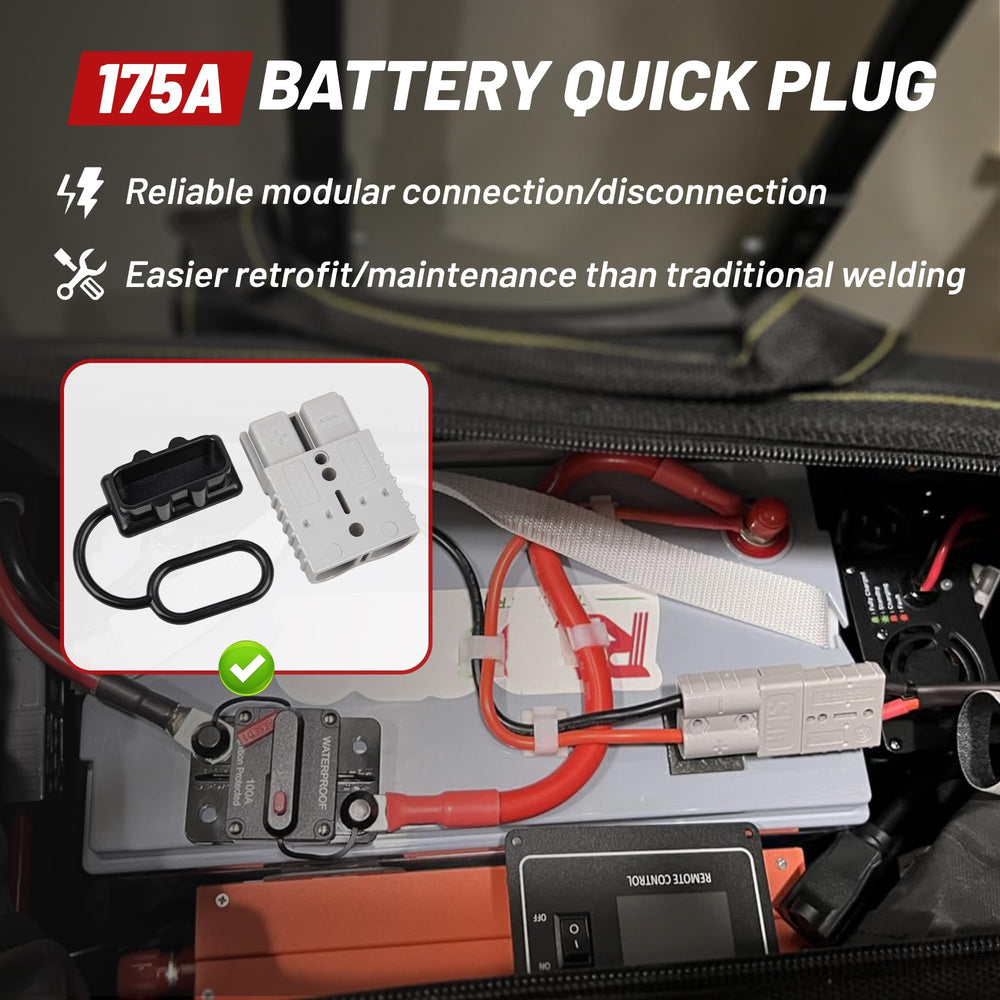

RED WOLF 175A Battery Quick Connector is a flame‑retardant Anderson‑style SB175 plug kit that lets you quickly connect and disconnect 1/0 AWG battery cables for outdoor and vehicle power systems.

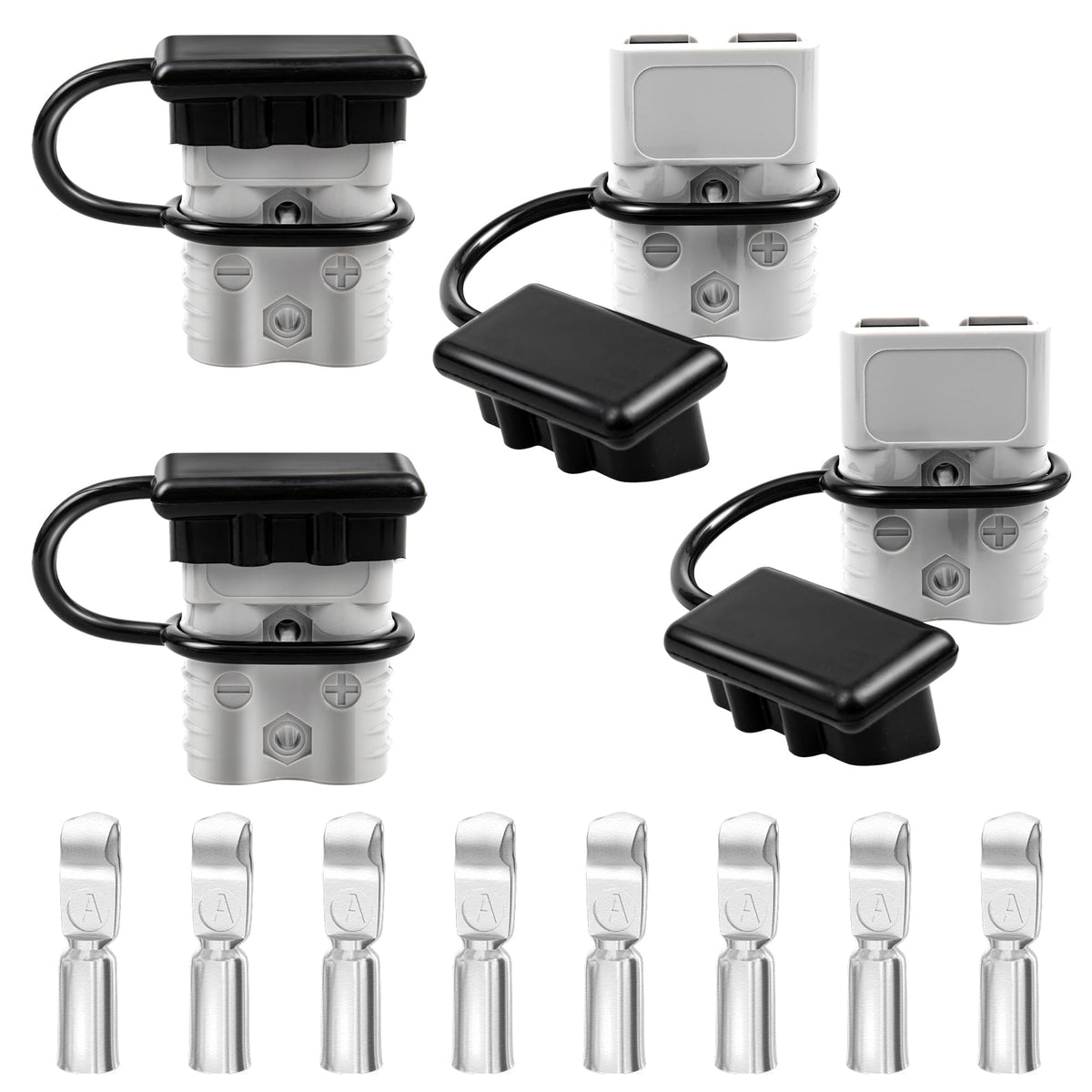

This four‑piece RED WOLF kit replaces permanent welded lugs with a modular plug system for cleaner, faster service and safer field swaps. Built for 12–36V systems, the SB175-style plugs combine a flame‑resistant polycarbonate housing, silver‑plated copper terminals, and a polarized locking design so you can link batteries, winches, RVs, forklifts, and marine equipment without specialized tools.

How does the RED WOLF SB175 make battery hookups faster?

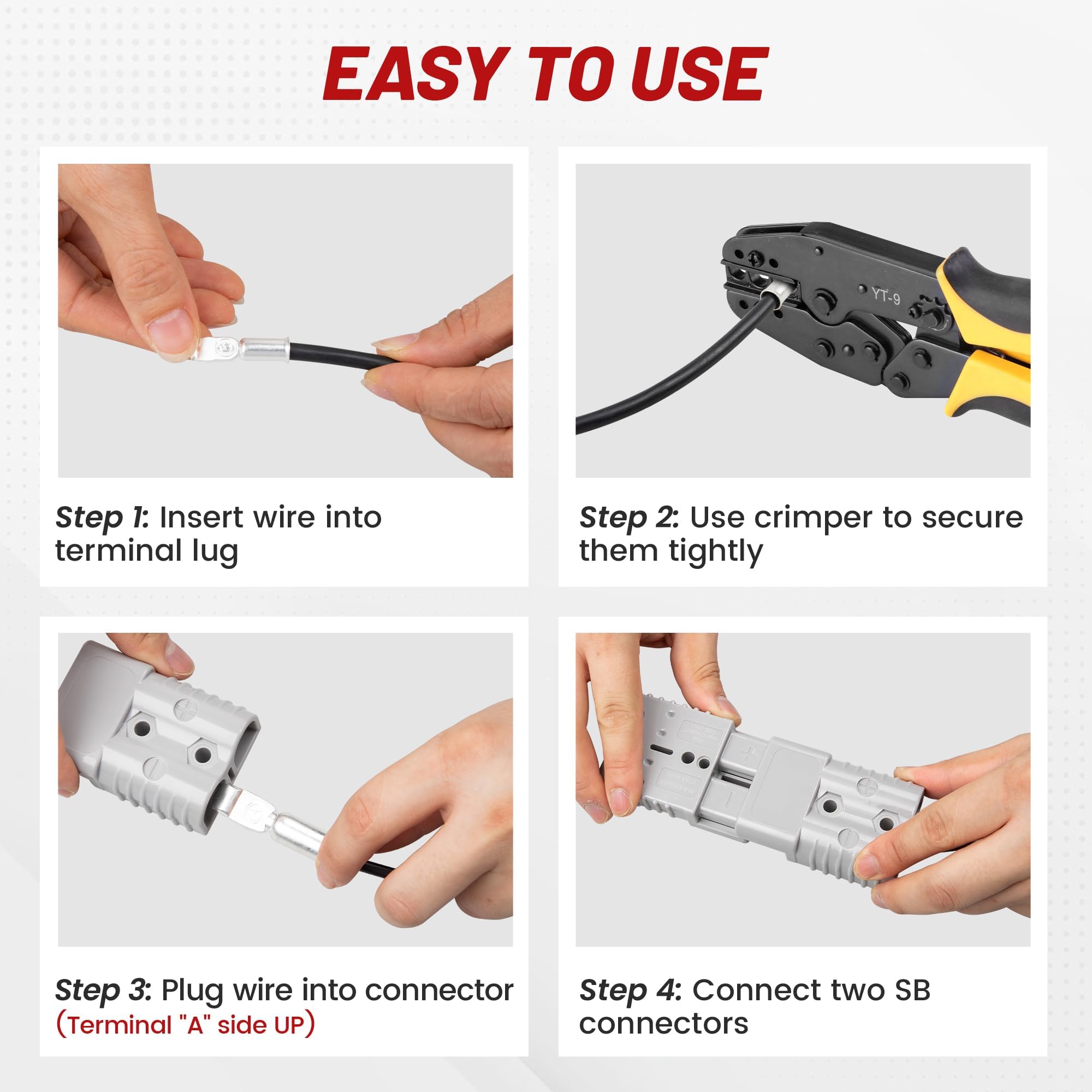

The SB175 quick connector is designed for tool‑free, snap‑in installation so you avoid cutting and welding every time a component moves or needs replacement. Wires are crimped into the terminal lugs and then pushed into the housing until an audible click locks them in place, reducing bench time and field downtime.

• One‑click snap‑fit installation — no screws or soldering required
• Crimp copper lug accepts 1/0 AWG cable for high current flow
• Audible lock ensures a secure connection without tools
• Reversible kit allows quick swapping of battery or accessory modules

Is this connector safe for outdoor and harsh environments?

Yes — the RED WOLF housing is made from flame‑retardant polycarbonate and includes a dust‑proof rubber cover to protect unused connectors from moisture and dirt. Internal components are chosen to resist corrosion and maintain contact integrity across temperature extremes.

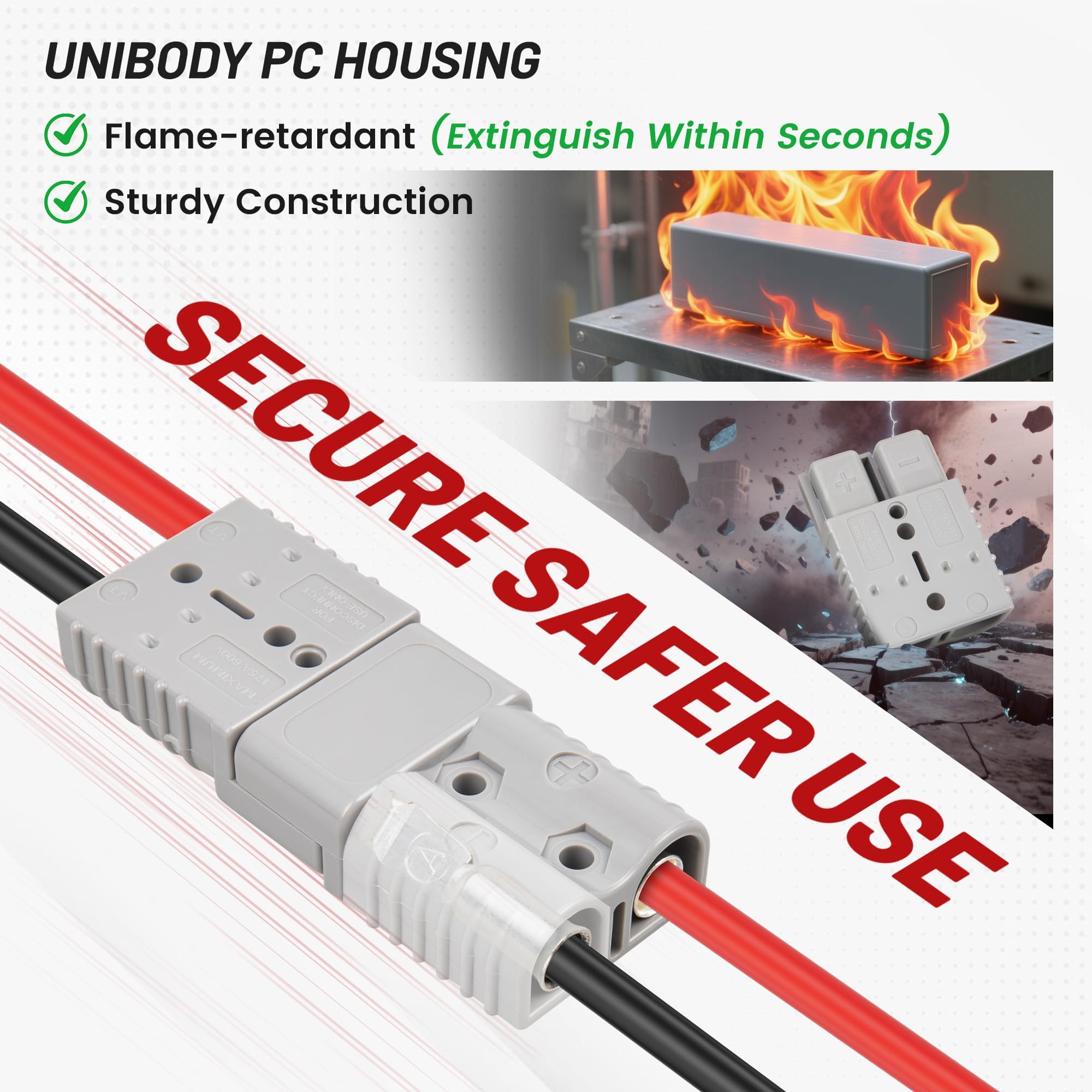

• Flame‑retardant PC housing reduces fire risk in high‑load conditions
• Mn‑steel locking spring tab resists rust and preserves contact tension

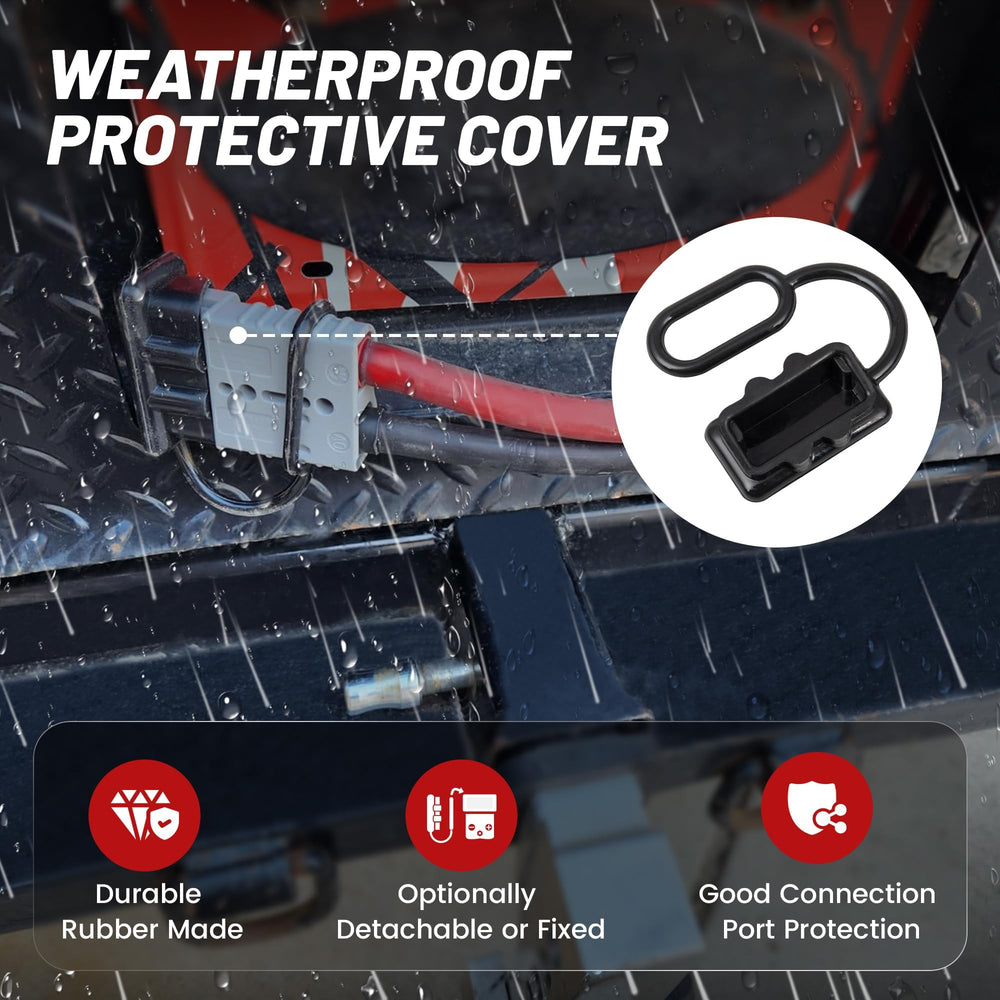

• Rubber dust cover blocks rain and debris when not in use

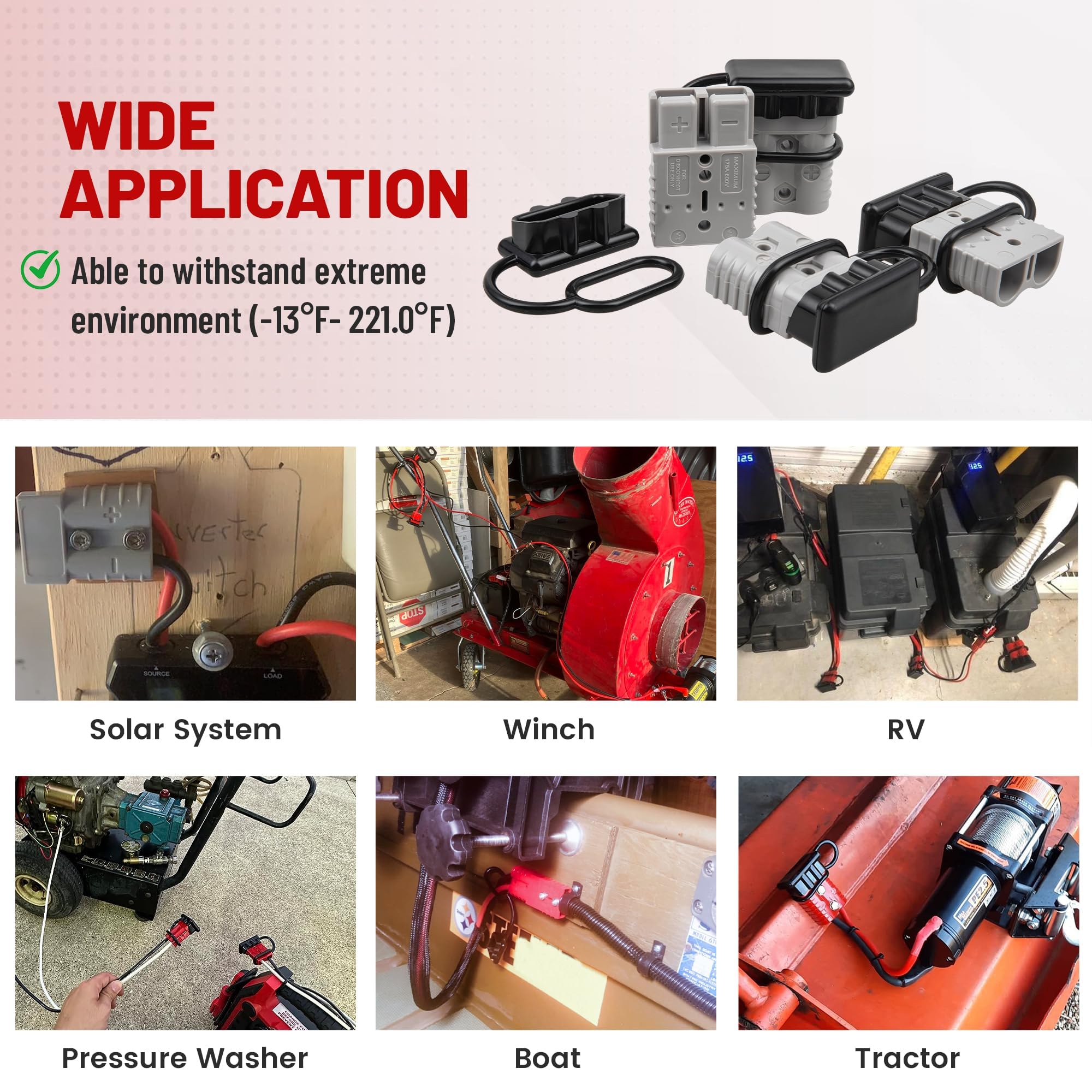

• Rated for -13°F to 221°F suitable for automotive, marine, and outdoor use

What electrical specs and compatibility should I expect?

The RED WOLF SB175 connector is built for 175A continuous current with 12–36V systems and accepts 1/0 AWG copper wire. Silver‑plated copper terminals improve conductivity and reduce heat under load, while a polarized housing prevents reverse mating and potential short circuits.

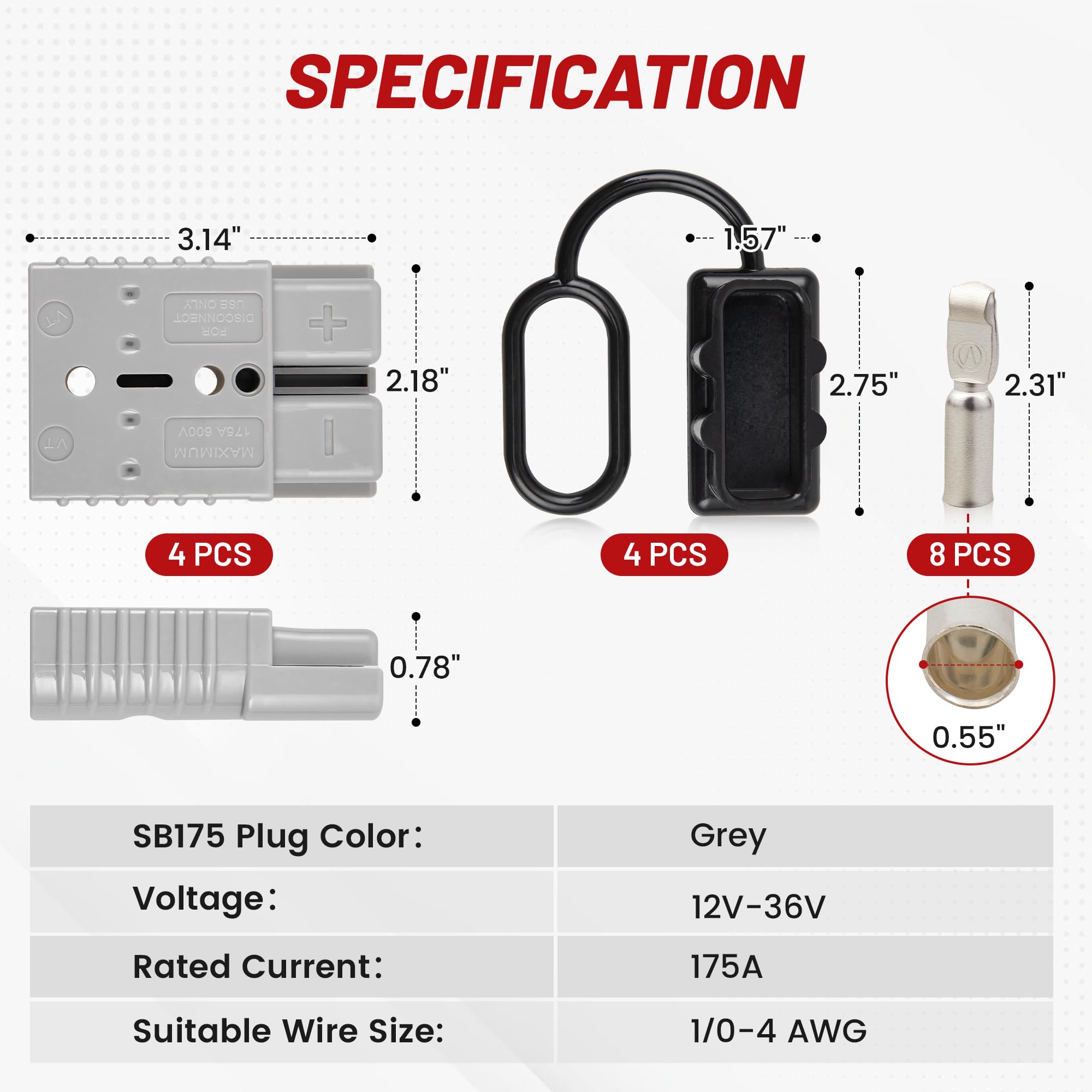

• Current rating: 175A; voltage range: 12–36V
• Wire compatibility: 1/0 AWG copper via crimp lug
• Silver‑plated terminals for better conductivity and corrosion resistance

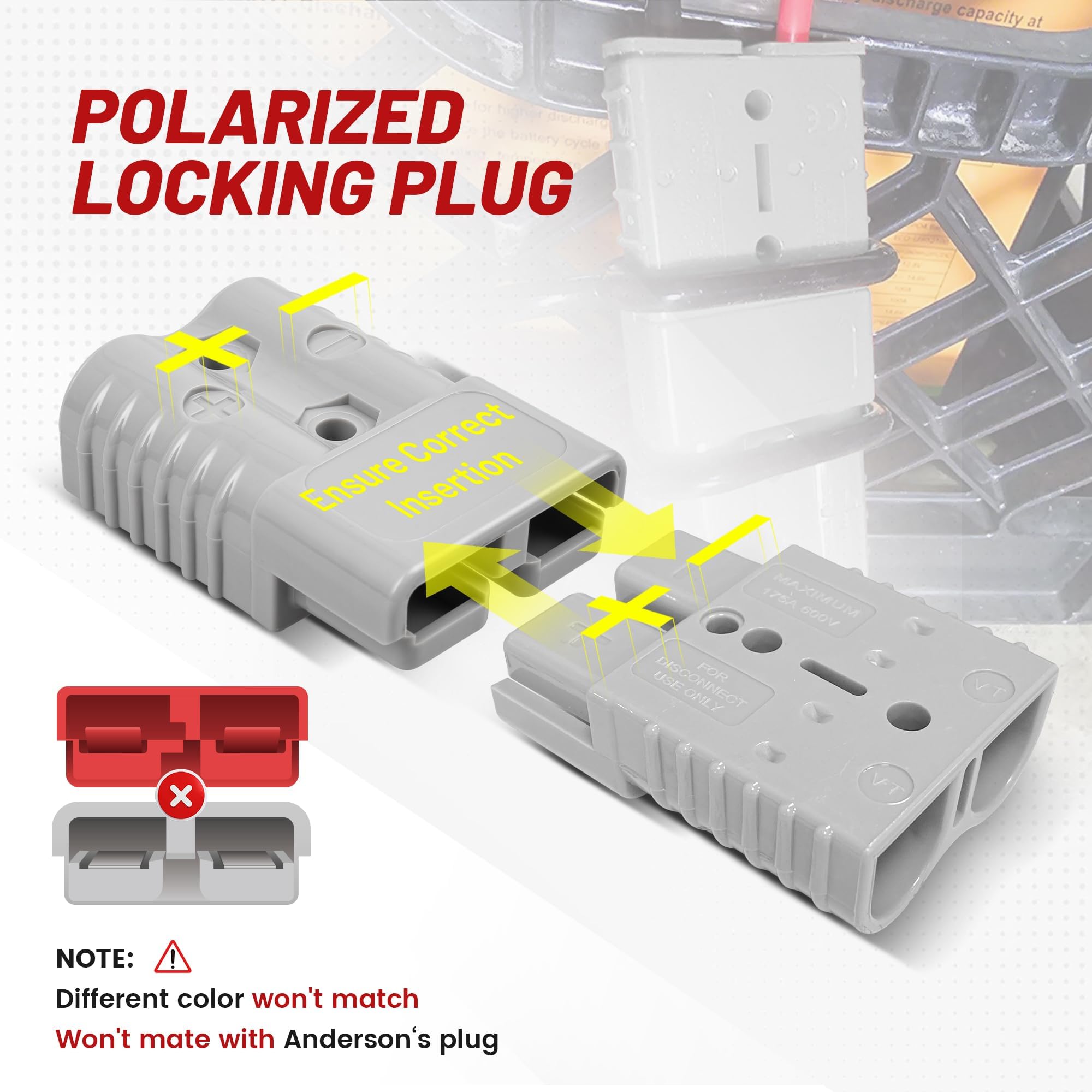

• Asymmetrical polarization to prevent incorrect insertion

How durable is this connector for repeated use?

Durability is engineered into both materials and design: the single‑piece PC shell resists cracking and flame, the plated copper lug handles high currents without excessive heating, and the Mn‑steel spring retainer keeps a reliable mechanical lock through many connect/disconnect cycles.

• Unibody flame‑retardant housing minimizes mechanical failure points
• Silver‑plated copper lug reduces wear and thermal buildup
• Mn‑steel locking tab resists deformation and rust
• Rated for repeated outdoor cycling across wide temperature range

Who is this for: Technicians, fleet owners, boaters, RV enthusiasts, and DIYers who need a dependable, service‑friendly way to manage high‑current battery and accessory connections. Choose the RED WOLF SB175 4‑pack when you want a robust, polarized, and flame‑retardant plug solution that simplifies maintenance and reduces the need for permanent soldered or welded joints in 12–36V systems.
