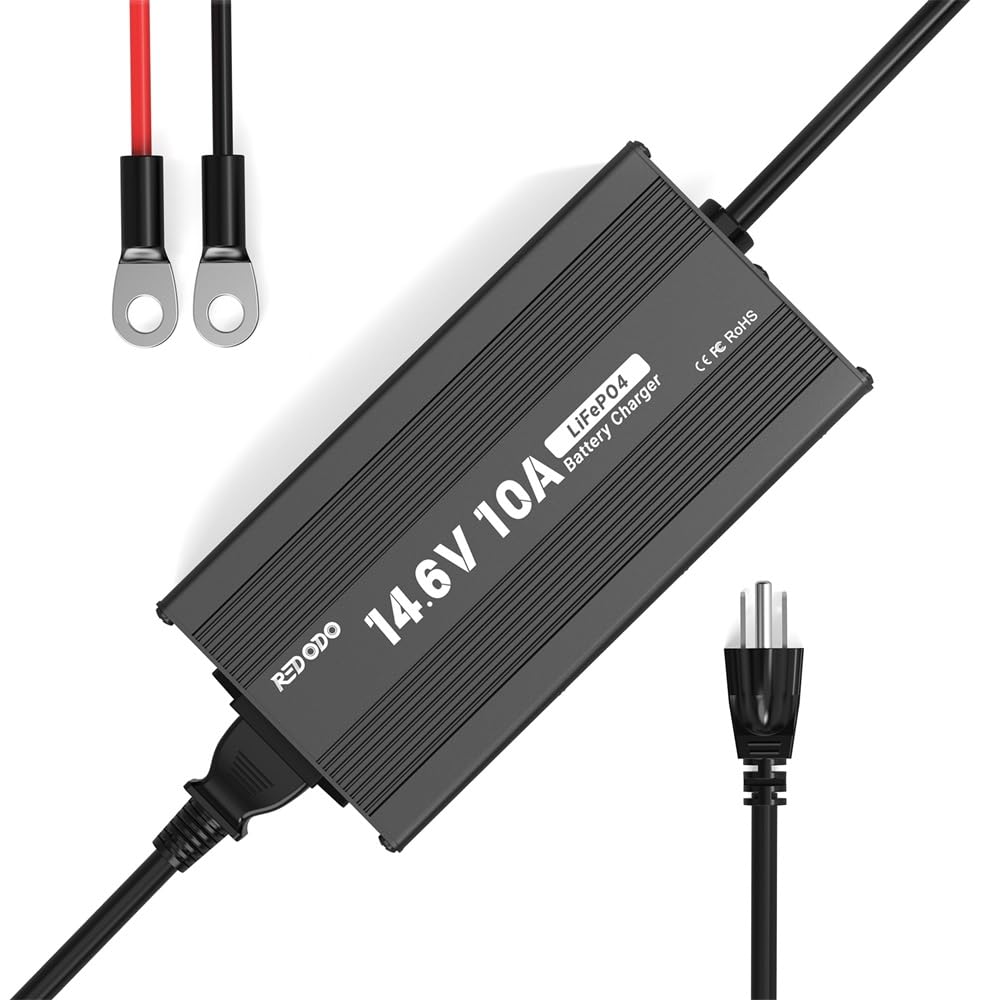

Redodo 12V 10A LiFePO4 Battery Charger — 14.6V Output, 0V Activation, Fast CC/CV Charging

Redodo 12V 10A Lithium Battery Charger is a dedicated 14.6V AC-DC charger built to fast-charge and revive 12V LiFePO4 batteries, including activation from 0V.

This compact aluminum-cased charger delivers up to 10A of current and uses a two-stage CC/CV algorithm tuned for 12.8V LiFePO4 chemistry. It combines a high charging speed with protections such as reverse polarity, short-circuit, overvoltage, and battery isolation, plus CE and RoHS approvals. Two LED indicators provide simple status feedback while the unit safely transitions through constant-current, constant-voltage, and cutoff stages.

How quickly will this charger recharge my 12V LiFePO4 battery?

The charger’s 10A maximum current and 14.6V charging voltage enable much faster fills than typical 5A chargers. For example, a 12V 50Ah LiFePO4 battery can reach roughly 50% state of charge in about 2.5 hours under ideal conditions. Real-world times vary with battery condition, temperature, and starting voltage.

• Maximum output: 14.6V DC at up to 10A
• Approximately 50% charge of 50Ah LiFePO4 in ~2.5 hours
• Two-stage CC/CV charging tailored for LiFePO4 chemistry
• Charging time depends on battery age and ambient temperature

Can this unit bring a dead LiFePO4 battery back to life?

Yes — the Redodo charger is designed to activate and charge LiFePO4 batteries that have dropped to 0V. A controlled startup routine safely attempts to recondition deeply discharged cells before applying full charge current. However, success depends on the battery’s internal condition and prior damage.

• 0V activation mode for deeply discharged batteries
• Automatic, gentle voltage ramp-up before full charging
• Not a guaranteed solution for physically damaged or sulfated cells
• Follow battery manufacturer guidance if available

What safety features protect my battery and equipment?

The charger incorporates multiple protections to minimize risk to the battery and connected devices. Hardware and firmware protections prevent reverse connection, output shorts, overvoltage events, and isolate the battery from unstable conditions during charge. CE and RoHS certifications indicate compliance with common safety and environmental standards.

• Reverse polarity protection to prevent damage from incorrect wiring
• Output short-circuit and overvoltage safeguards
• Battery isolation protection during the charging cycle
• Aluminum case for thermal dissipation and durability

How easy is it to use and monitor the charger?

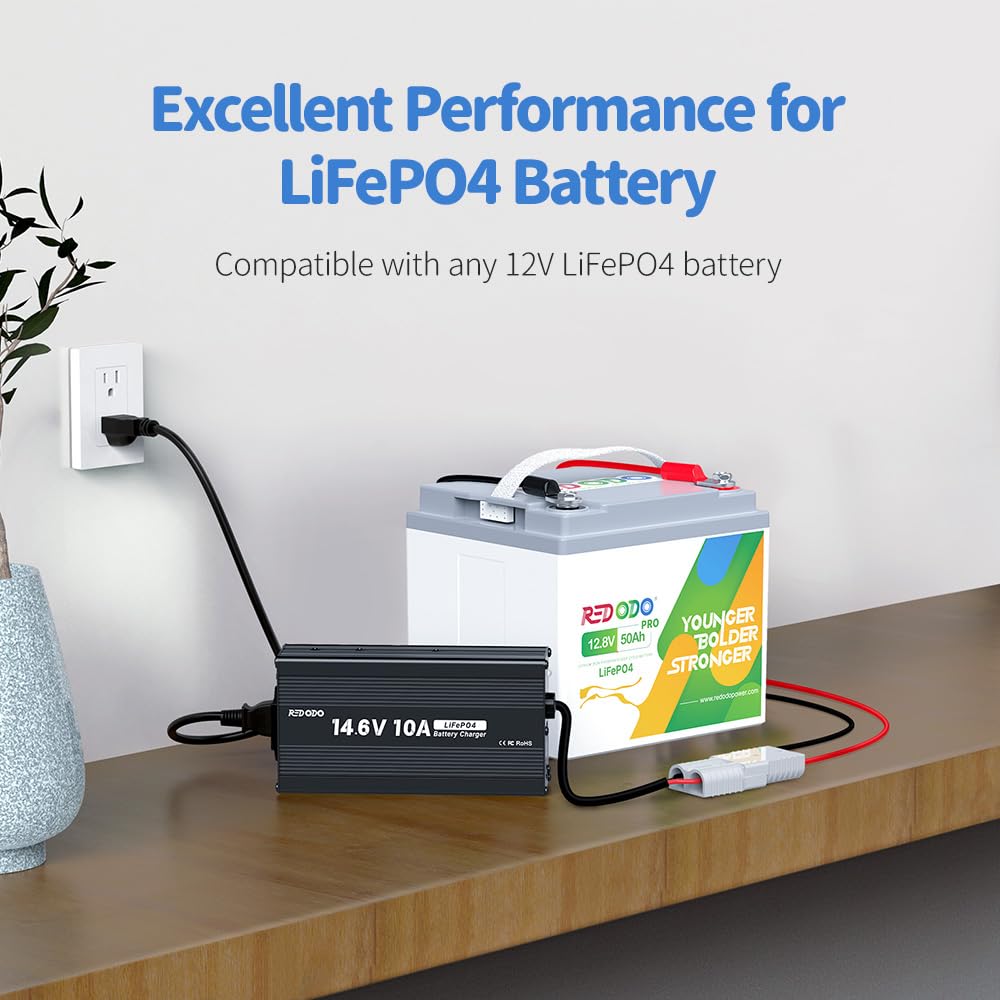

Operation is straightforward: plug into AC, connect to the battery with the correct polarity, and the charger begins its automated CC/CV routine. Two LED indicators show basic status (charging, charged, or fault), so you can glance to confirm progress without complex menus. The unit is engineered for plug-and-play use with hobby, marine, RV, solar, and backup battery systems using 12V LiFePO4 batteries.

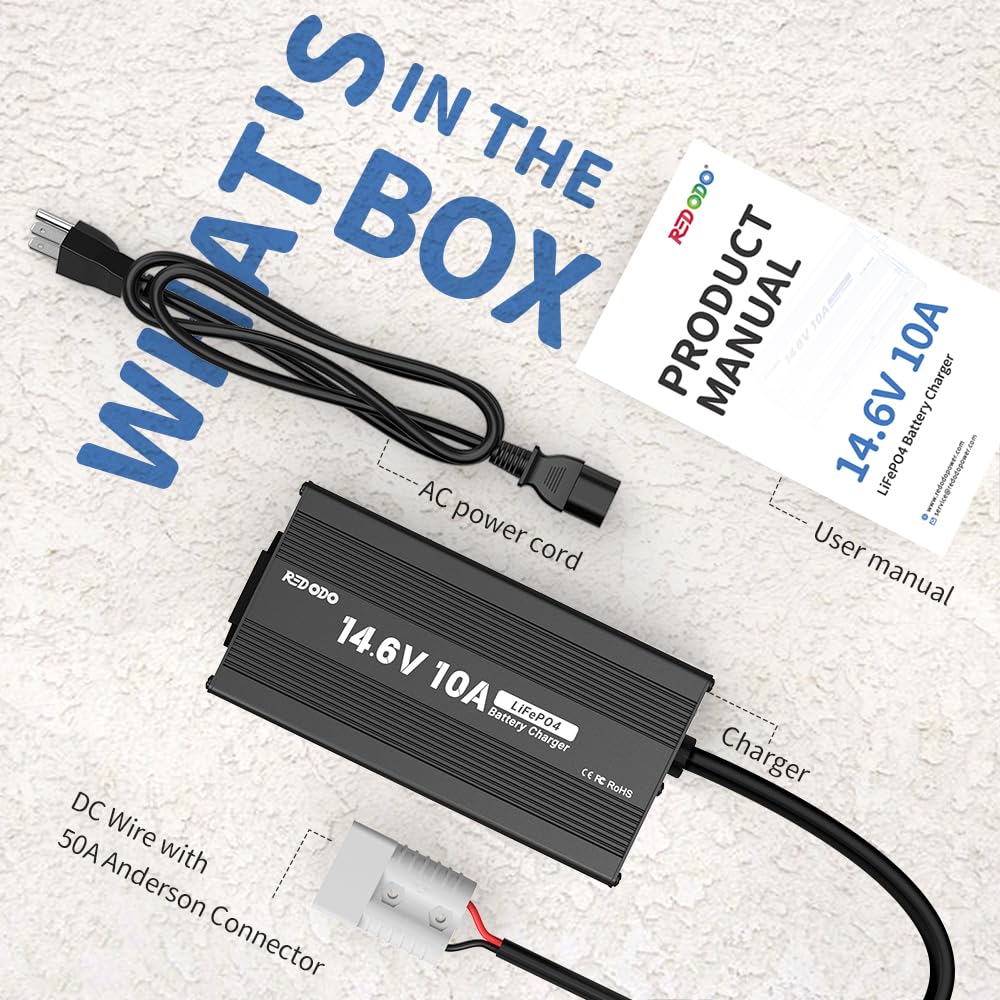

• Simple plug-in AC input with battery clamp or connector output

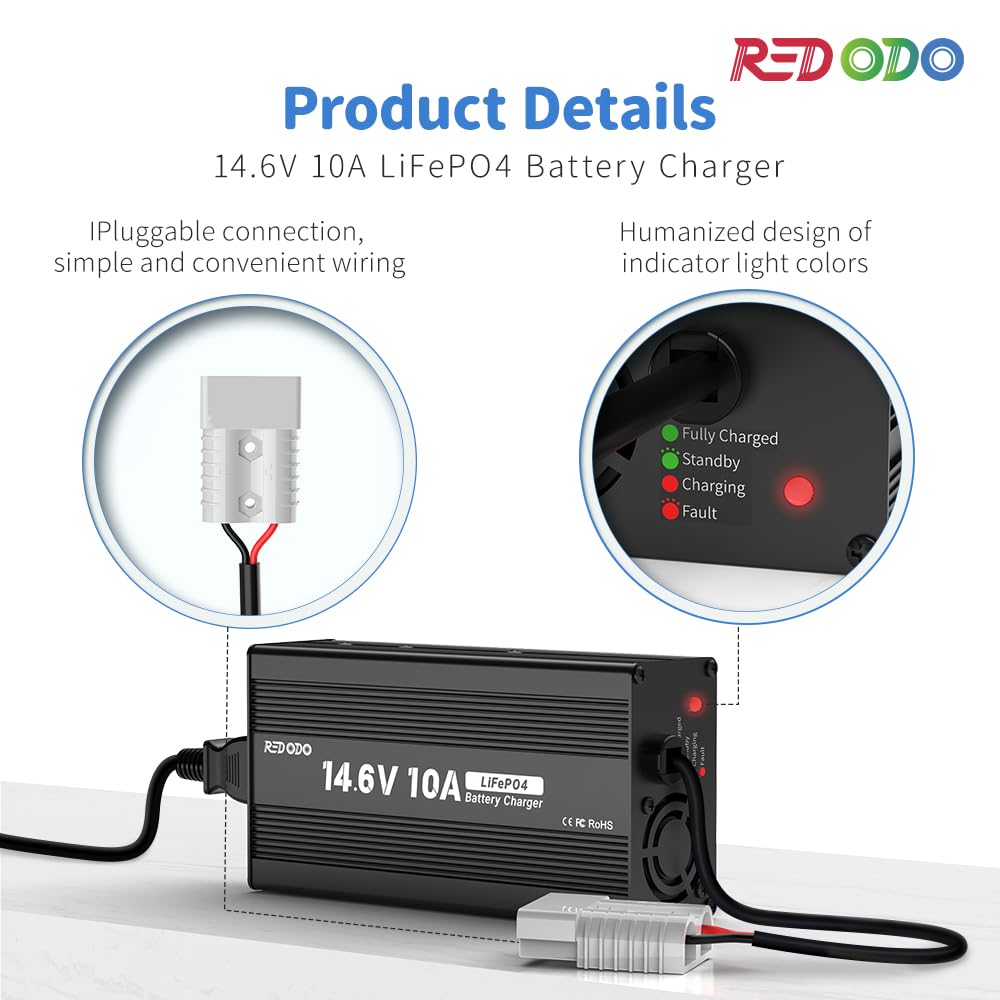

• Two LEDs for charge status and fault indication
• Automatic end-of-charge cutoff to avoid overcharging
• Compact aluminum housing for easy installation and cooling

Who is this for? The Redodo 12V 10A LiFePO4 charger is aimed at owners of 12.8V LiFePO4 battery systems who want faster charging and safe reactivation of deeply discharged cells. It suits boaters, RV users, off-grid solar setups, EV conversion hobbyists, and anyone replacing older lead-acid chargers with a lithium-specific 14.6V CC/CV solution. If you need a robust, certified charger that balances speed with protection and clear status feedback, this model is a practical choice.
