RVBOATPAT 175A Battery Quick Disconnect Connector 1/0 AWG 4-Pack - 12V Heavy-Duty, Silver-Plated Copper Pins

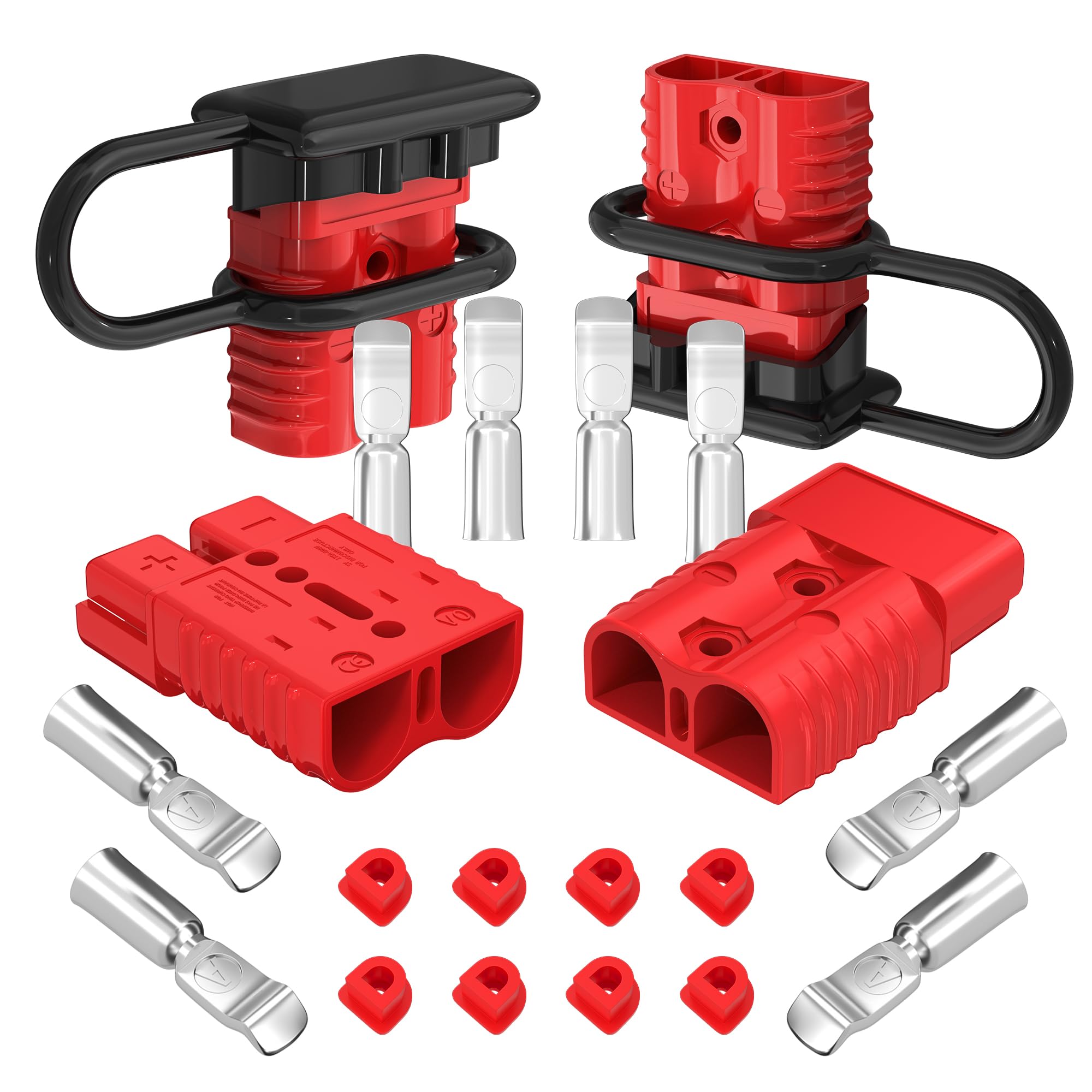

If you need a reliable, reusable way to join and remove thick battery leads on vehicles and equipment, these quick-disconnects are built for that purpose. Each kit includes four housings, protective covers, and multiple plated terminals and seals so you can terminate 4 AWG through 1/0 AWG conductors and handle up to 175 amps. The housing is flame-retardant PC and the pins are silver-plated copper for improved conductivity and corrosion resistance.

How does this connector simplify battery and winch wiring?

Instead of unbolting and resplicing heavy battery cables when servicing or storing equipment, the quick-disconnect provides a fast, tool-assisted separation point. That speeds maintenance and reduces risk of contact with live posts.

• Push-fit housings lock terminals into place for a repeatable connection.

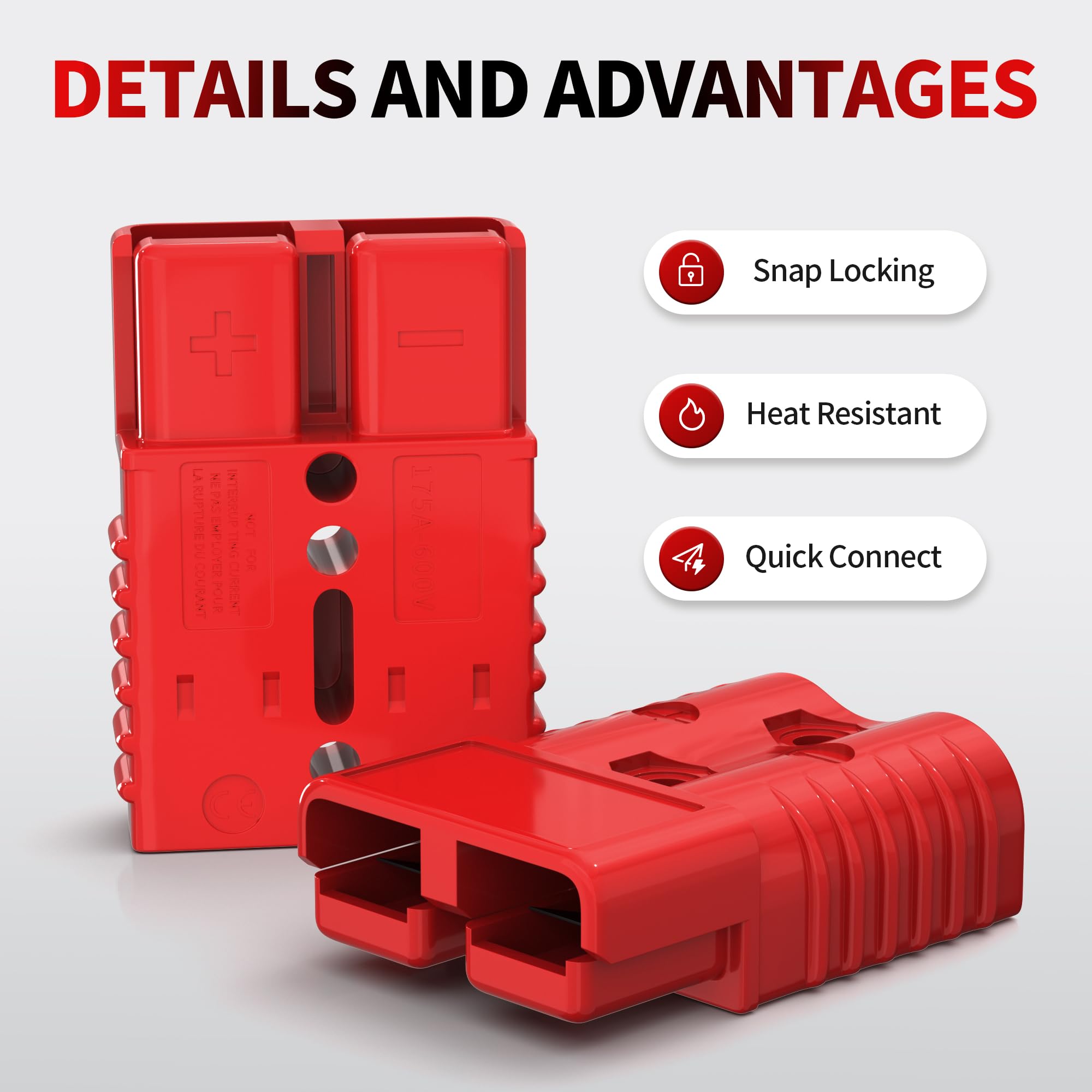

• Protective rubber seals and caps keep moisture and dirt out.
• Handles up to 175 A at 12 V, suitable for winches, starters, and high-drain accessories.

What sizes and materials are used for durability and current capacity?

The kit accepts a range of thick cable sizes—4 AWG, 2 AWG and 1/0 AWG—so it covers most automotive and marine battery lead needs. Terminals are copper with silver plating for lower resistance and better corrosion resistance than plain copper.

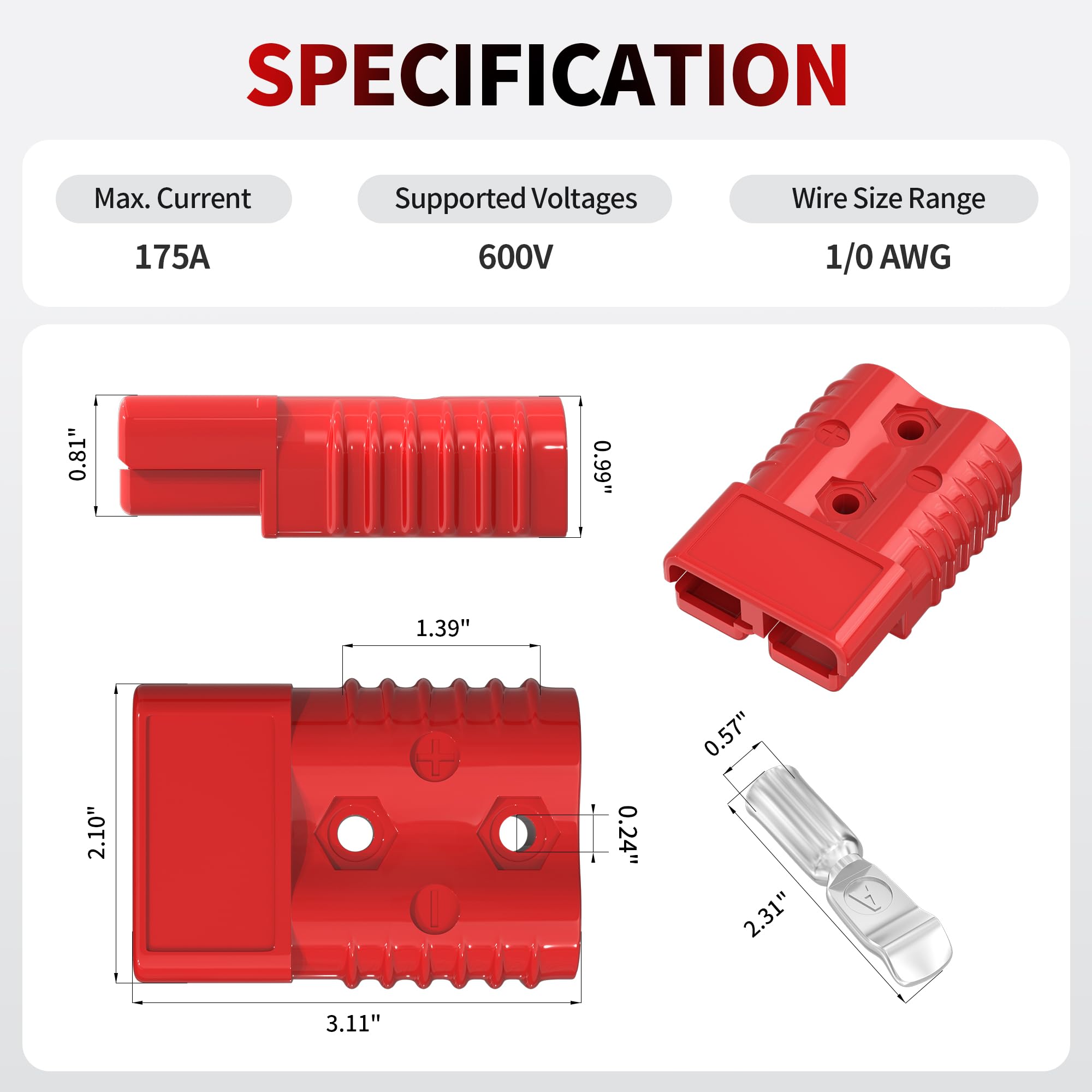

• Rated maximum voltage: 600 V, typical use at 12 V systems.
• Plated copper pins for stable voltage and improved conduction.
• Housing made from flame-retardant polycarbonate to resist heat and wear.

How do you install and secure the connector for long-term use?

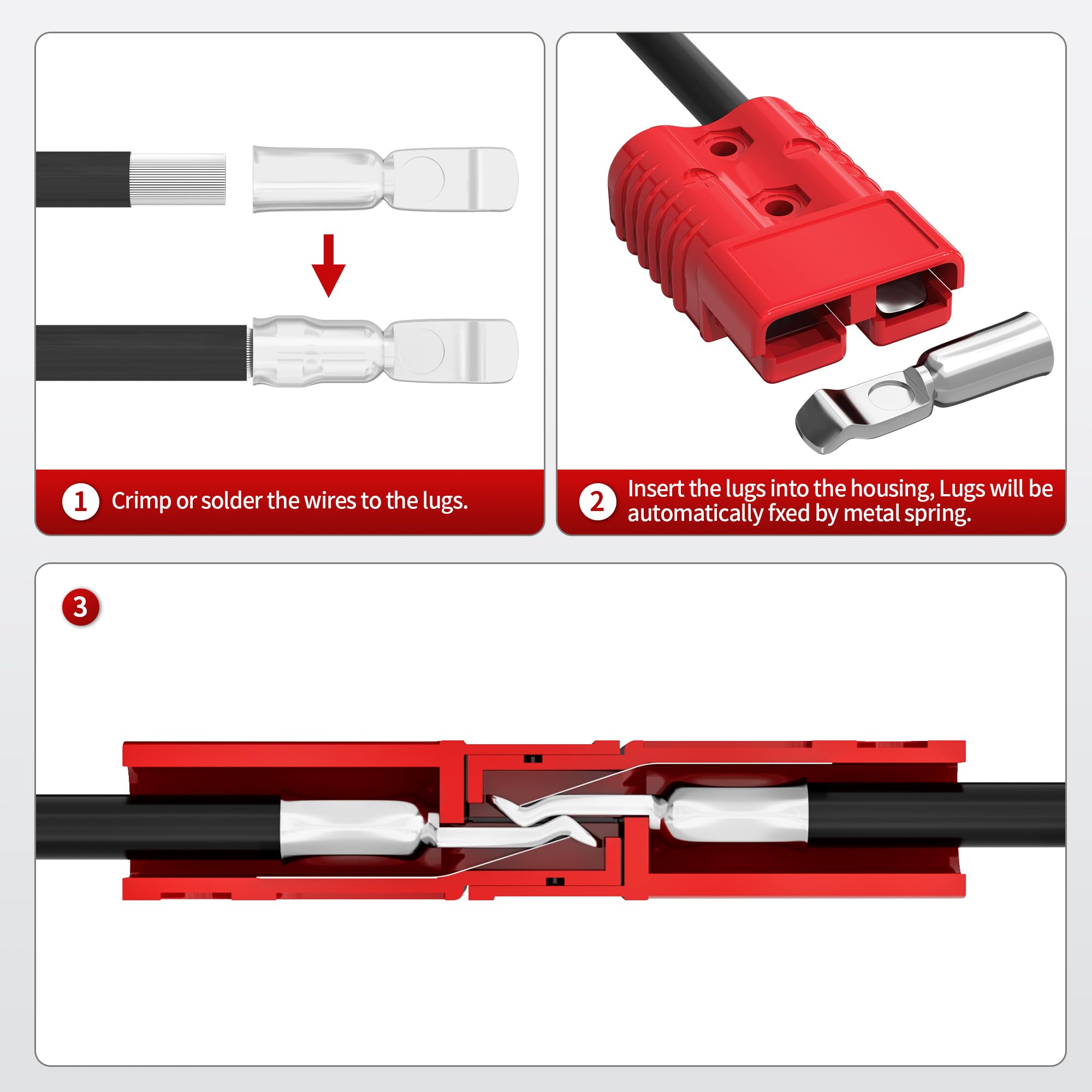

Installation is straightforward: strip the cable, insert the conductor into a terminal, then solder or crimp the connection. Once the terminal is seated, snap it into the housing and add the rubber seal and protective cap for weatherproofing.

• Crimp or solder the wire to the included terminals for mechanical and electrical security.
• Push terminals into the housing until they lock; seals prevent ingress.
• Use the protective cover when disconnected to prevent shorting and contamination.

Which applications are these connectors best suited for?

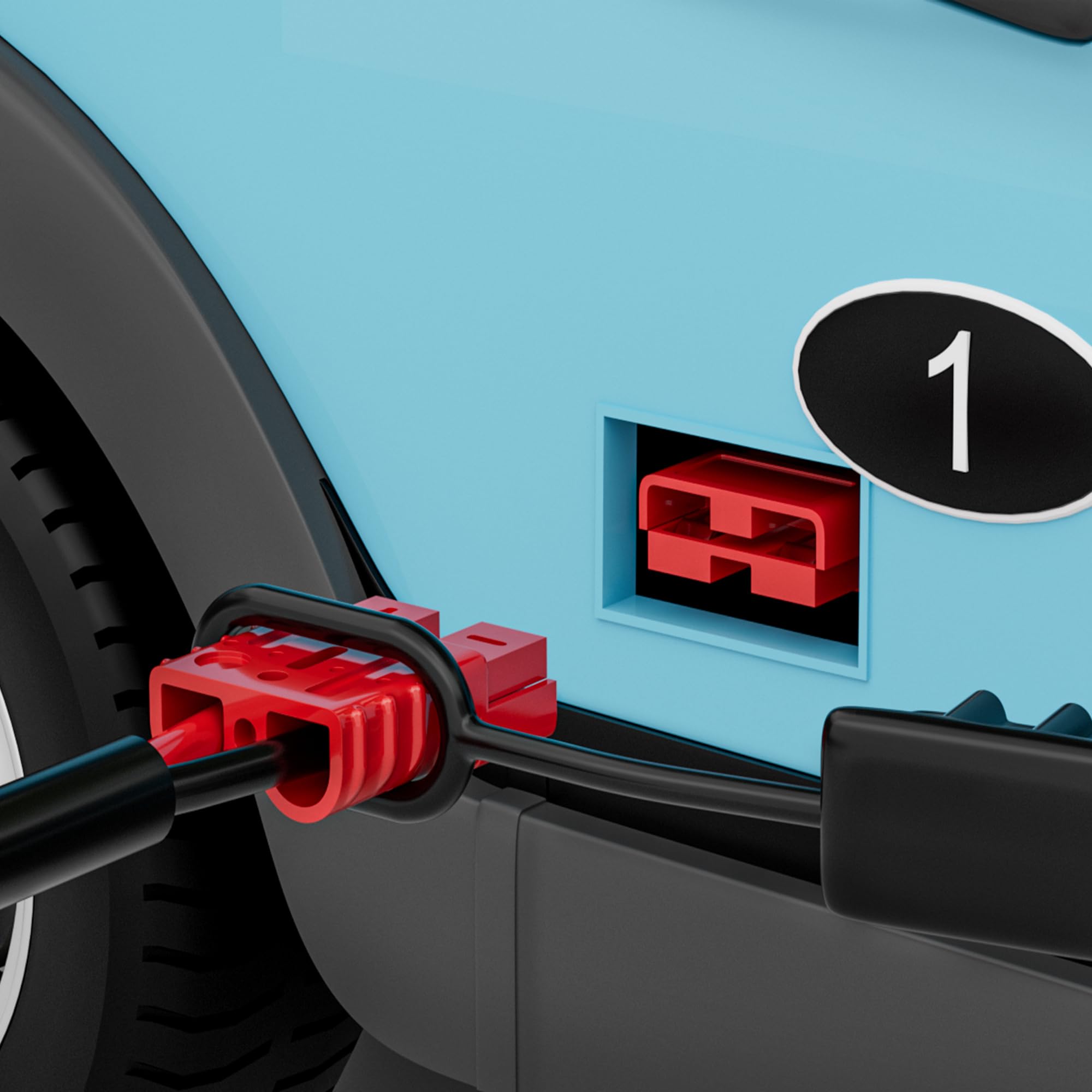

They’re designed for demanding vehicle and equipment environments where quick, repeatable high-current connections are needed. Typical uses include winches, RV battery banks, boat power, forklifts and other heavy-duty DC systems.

• Winches, trailers, boats and RVs for quick battery isolation.
• ATVs, trucks and industrial equipment where service access is frequent.
• Temporary power setups that require repeatable, high-current mating.

Who is this for: Installers, DIYers and fleet technicians who work with heavy-gauge battery cables and want a durable, service-friendly disconnect point. The 4-pack lets you create matched pairs or spare connectors for multiple batteries or accessories, and the included seals and caps help protect connections in marine and outdoor environments. Follow proper crimping or soldering practices and match cable size to terminal for safe, low-resistance performance.
