SEAFLO 300A 4-Position Marine Battery Disconnect Switch — 12/24/48V Waterproof IP66, 300A Continuous

SEAFLO's 300A 4-position battery disconnect switch is a heavy-duty, waterproof selector that isolates or combines battery banks for marine, RV, automotive, and off-grid power systems.

This compact selector switch (Model SFCBS-300-402) gives you flexible battery control for 12V, 24V, and 48V DC installations. Built for harsh environments, it uses tin-plated copper studs and a one-piece terminal design to keep electrical resistance low and connections secure under vibration. With an IP66 waterproof rating and compliance to ABYC, UL 1500, and SAE J1171 standards, it’s built to last on boats, recreational vehicles, and industrial vehicles where dependable high-current switching matters.

How does this switch improve battery management on a boat or RV?

The 4-position selector provides clear, manual control over which battery banks feed the loads. You can isolate one bank for charging, select a second bank, combine both for extra cranking power, or turn power off entirely—making maintenance and emergency starts easier and safer.

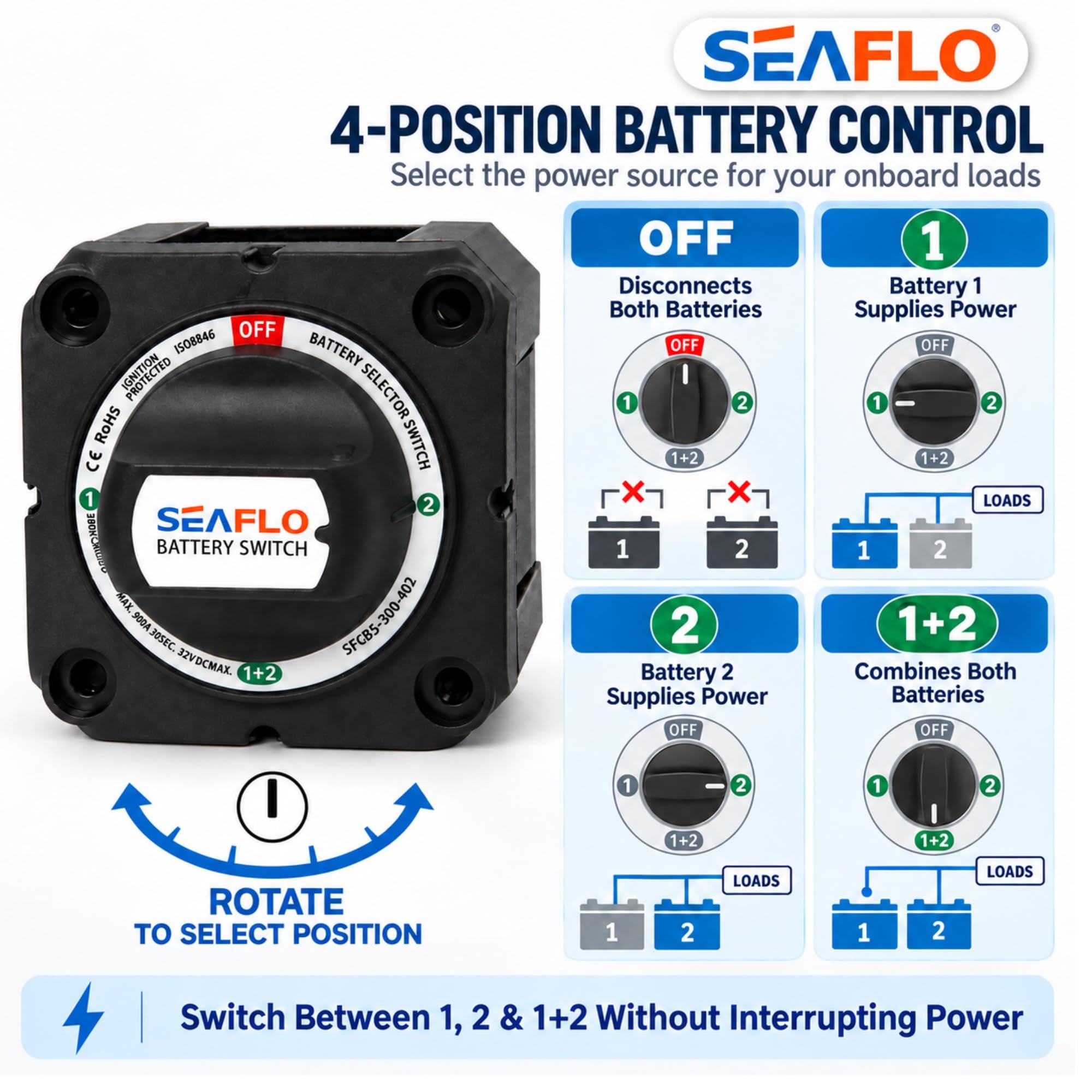

• Positions: OFF / 1 / 2 / 1+2 for flexible routing
• Continuous 300A rating with 500A intermittent support (5 min)
• Cranking capacity up to 900A for heavy-start demands
• Works with 12V, 24V, and 48V systems for multi-application use

What makes the SEAFLO switch durable in marine or off-road conditions?

Materials and construction are chosen to resist corrosion and mechanical stress. Tin-plated copper studs improve conductivity while resisting salt and moisture corrosion, and the one-piece stud design prevents loosening under vibration.

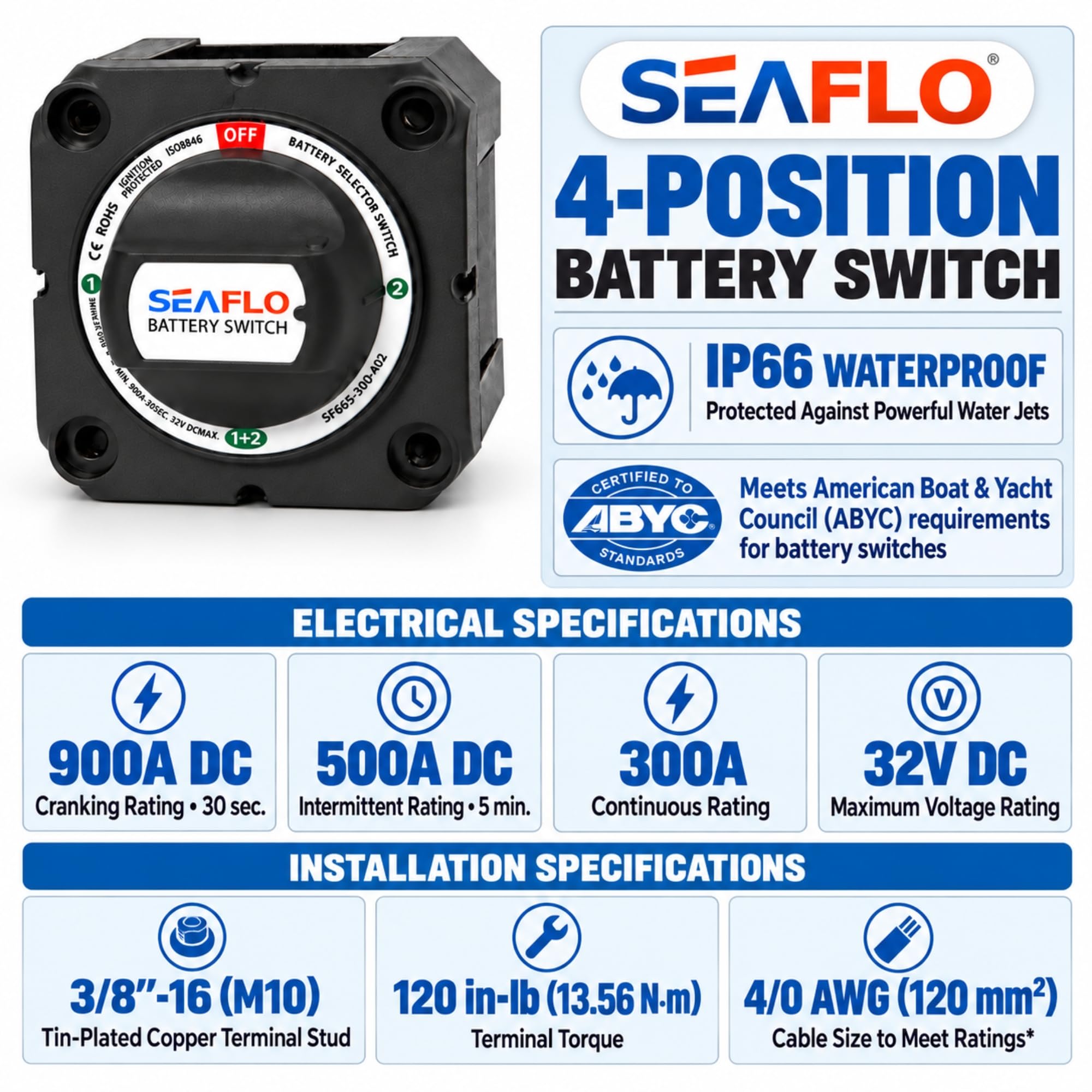

• IP66 enclosure resists powerful water jets and splashing
• Tinned copper terminals reduce oxidation and energy loss
• Robust mounting and vibration-resistant terminal layout
• Meets ABYC, UL 1500, and SAE J1171 safety and ignition protection standards

How easy is it to install and wire this battery selector?

Installation is straightforward for anyone familiar with DC battery systems: mount the switch, connect the battery cables to the clearly labeled studs, and secure using the specified 3/8" - 16 (M10) hardware. The single-piece studs simplify termination and reduce points of failure.

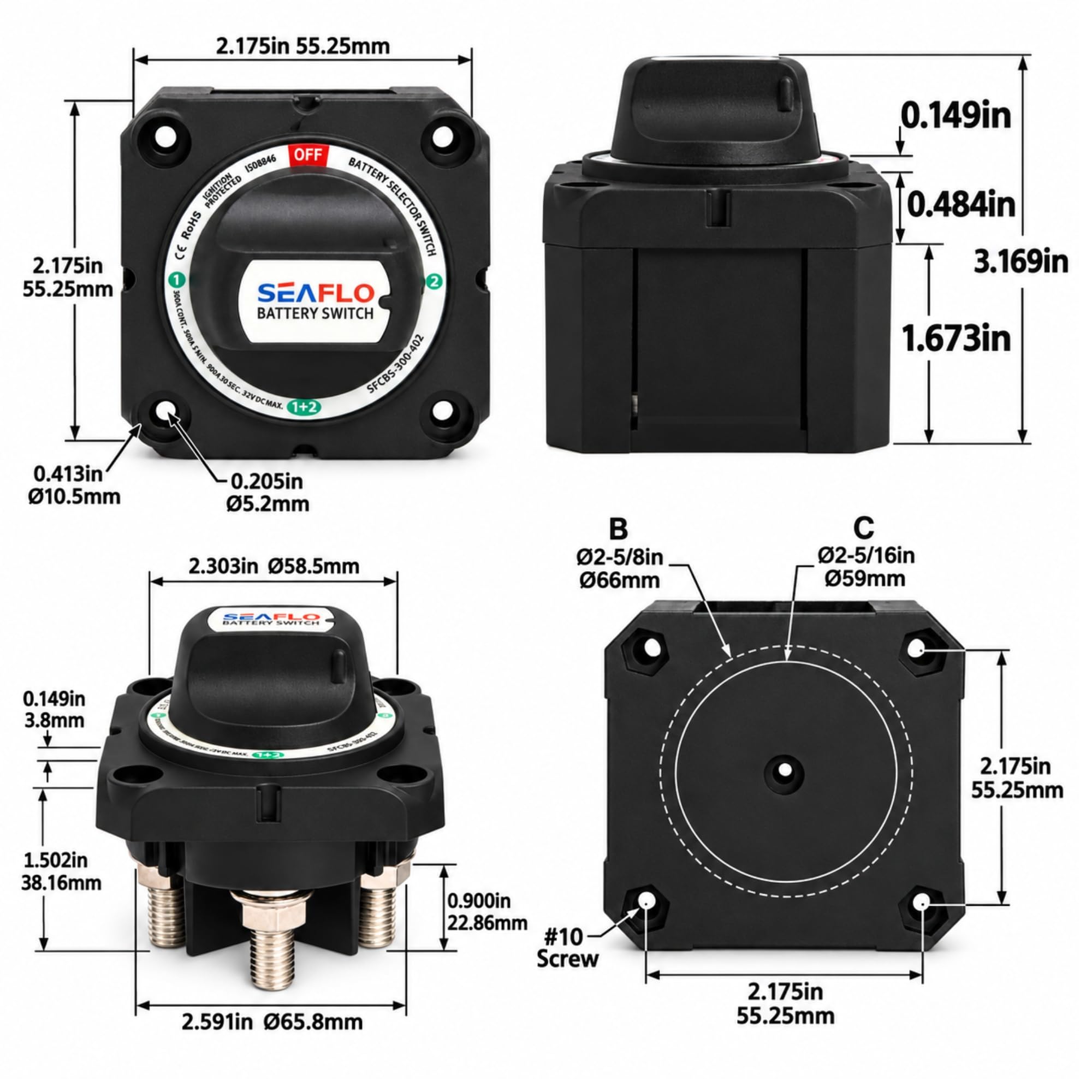

• Terminal stud: 3/8" - 16 (M10) for common cable lugs

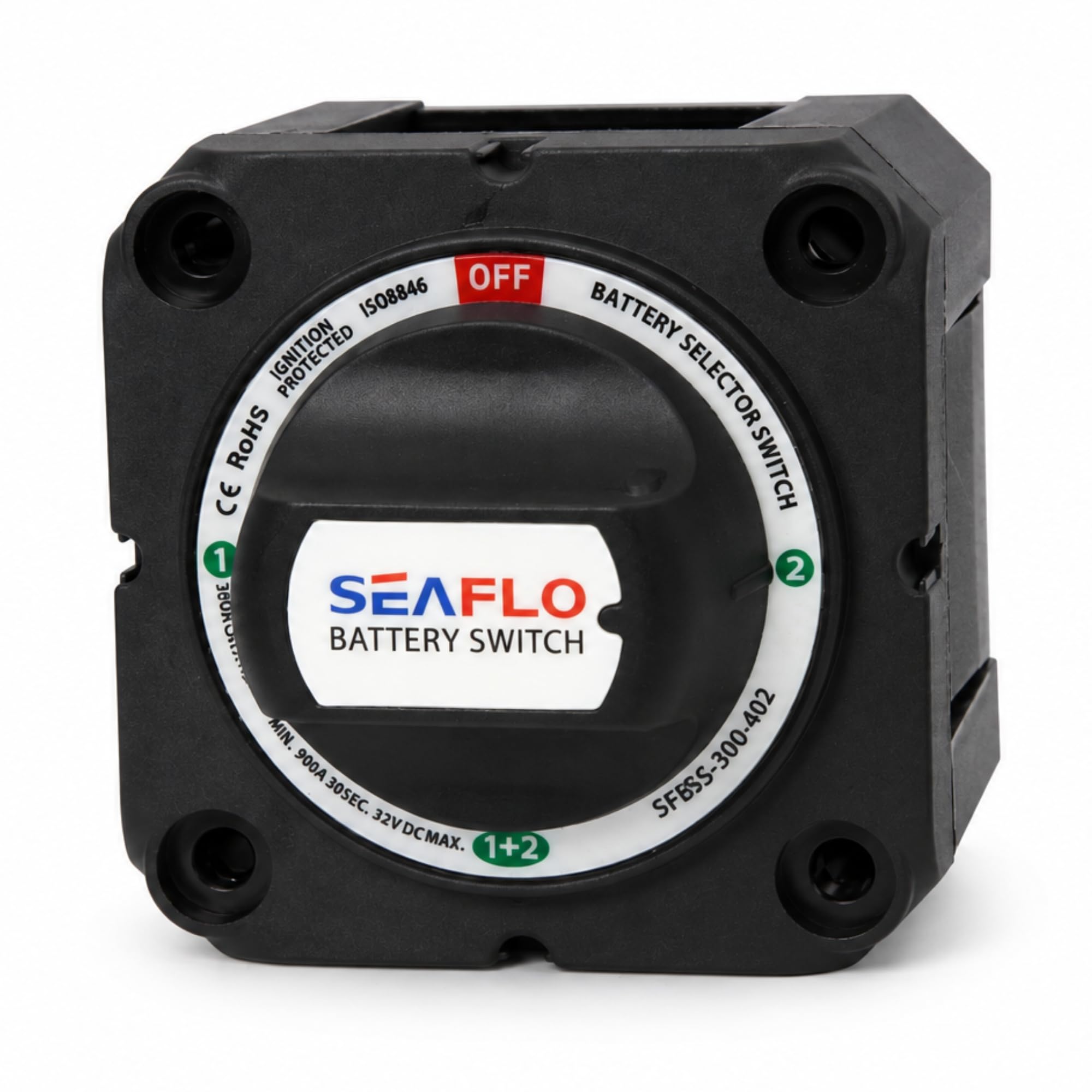

• Clear 4-position selector knob for intuitive operation
• Panel-mountable form factor for neat integration
• Compatible with common battery cable sizes used in marine/RV systems

Which electrical ratings ensure this switch handles high-current demands?

The SEAFLO selector is rated for continuous heavy loads and short-term peak currents, letting it tolerate routine loads and the surge demands of engine cranking or inrush currents from inverters and chargers.

• Continuous current rating: 300A
• Intermittent rating: 500A for 5 minutes
• Cranking rating: 900A for 30 seconds
• Designed for 12V, 24V, and 48V DC applications

Who is this for: This SEAFLO battery disconnect switch is aimed at boat owners, RV enthusiasts, fleet operators, and off-grid system installers who need a rugged, easy-to-operate solution for isolating or combining battery banks. Choose it if you require a high-current, vibration-resistant selector with proven marine safety compliance and waterproof protection for demanding environments.
