SKCOAUTO Pneumatic CV Joint Boot Installation Tool with CV Boot — 26–34mm Expander, 45# Steel, 1/4" BSP

A pneumatic expander kit that quickly stretches CV boots onto 26–34mm shafts, saving time and protecting joints during installation.

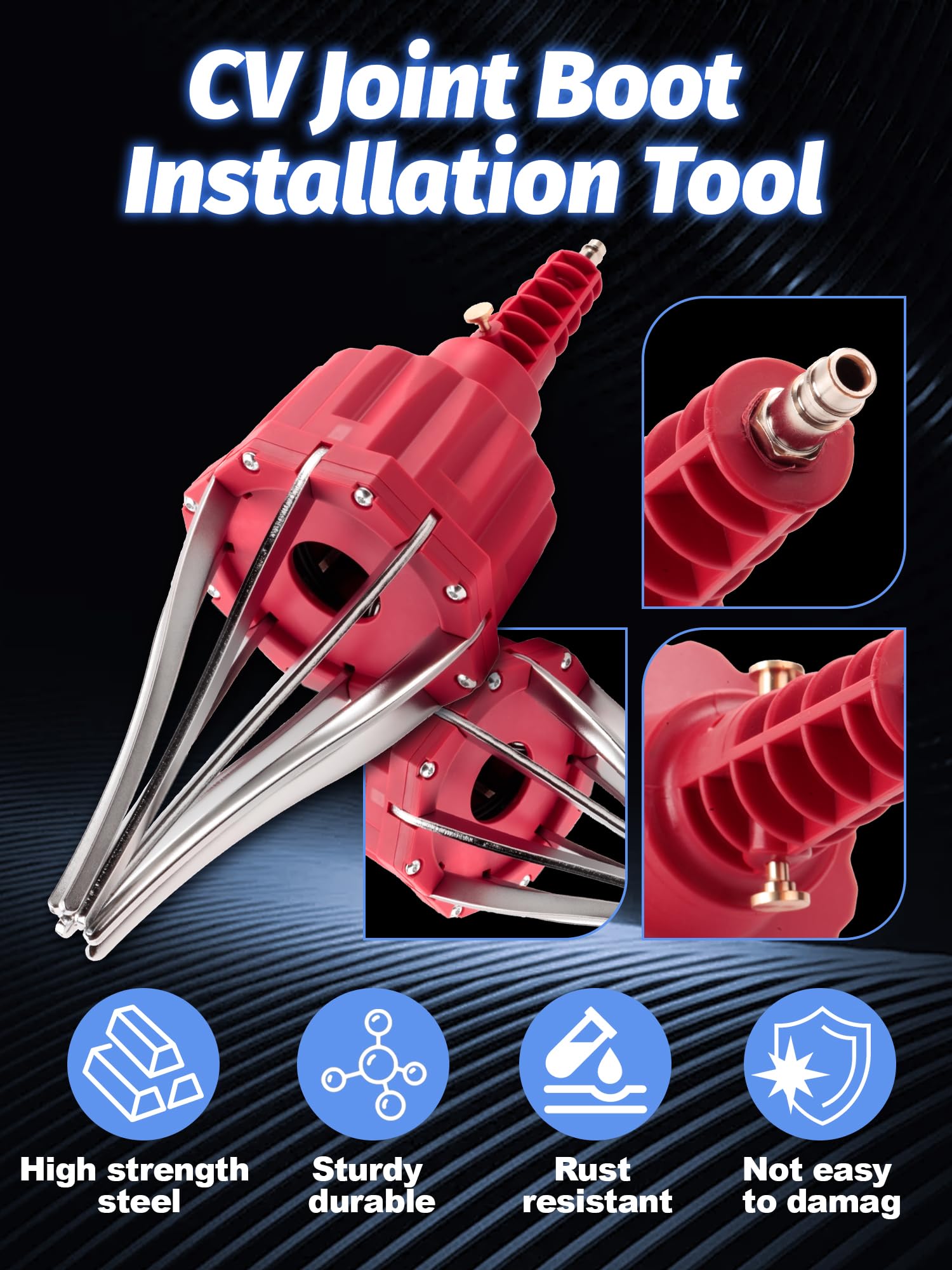

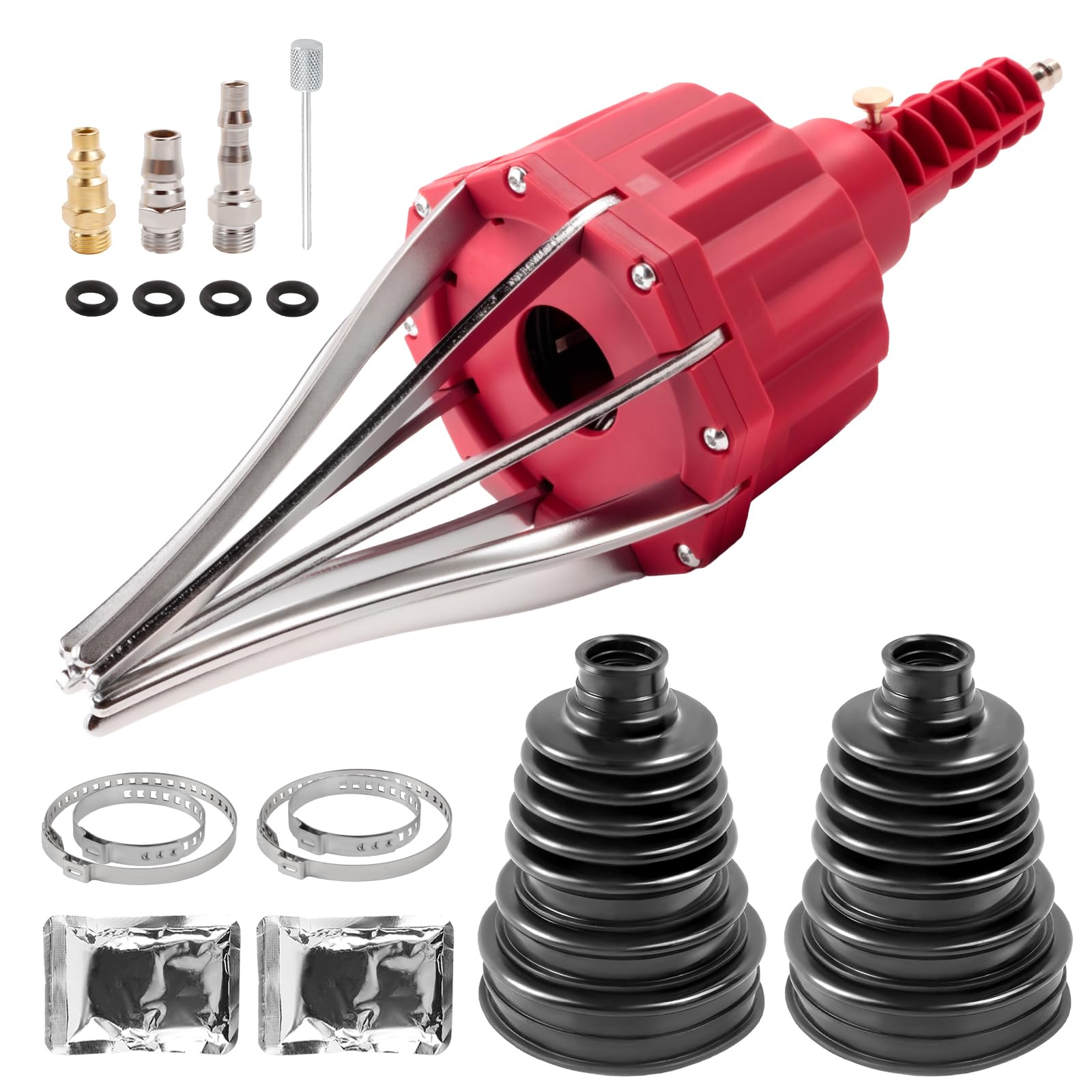

This SKCOAUTO Pneumatic CV Joint Boot Installation Tool pairs a durable expander with a compatible CV boot so you can fit replacement boots fast and cleanly. Built from 45# steel and rubber-composite parts, the tool resists corrosion and stays stable under repeated shop use. It connects to standard air lines via a 1/4-inch BSP thread and inflates the finger assembly to expand the boot over the CV joint in seconds, eliminating manual prying and reducing damage risk.

How does the pneumatic expander speed up CV boot replacements?

The air-powered fingers expand uniformly, letting a single operator slip a new boot into place without stretching it by hand. Inflation takes seconds, which cuts installation time compared with manual methods and lowers the chance of tearing the boot lip.

• Rapid expansion with a single air valve activation
• Consistent, even spread of boot material for safer fit
• Works with 26–34mm shafts to cover common axle sizes

Is this tool compatible with different vehicles and hoses?

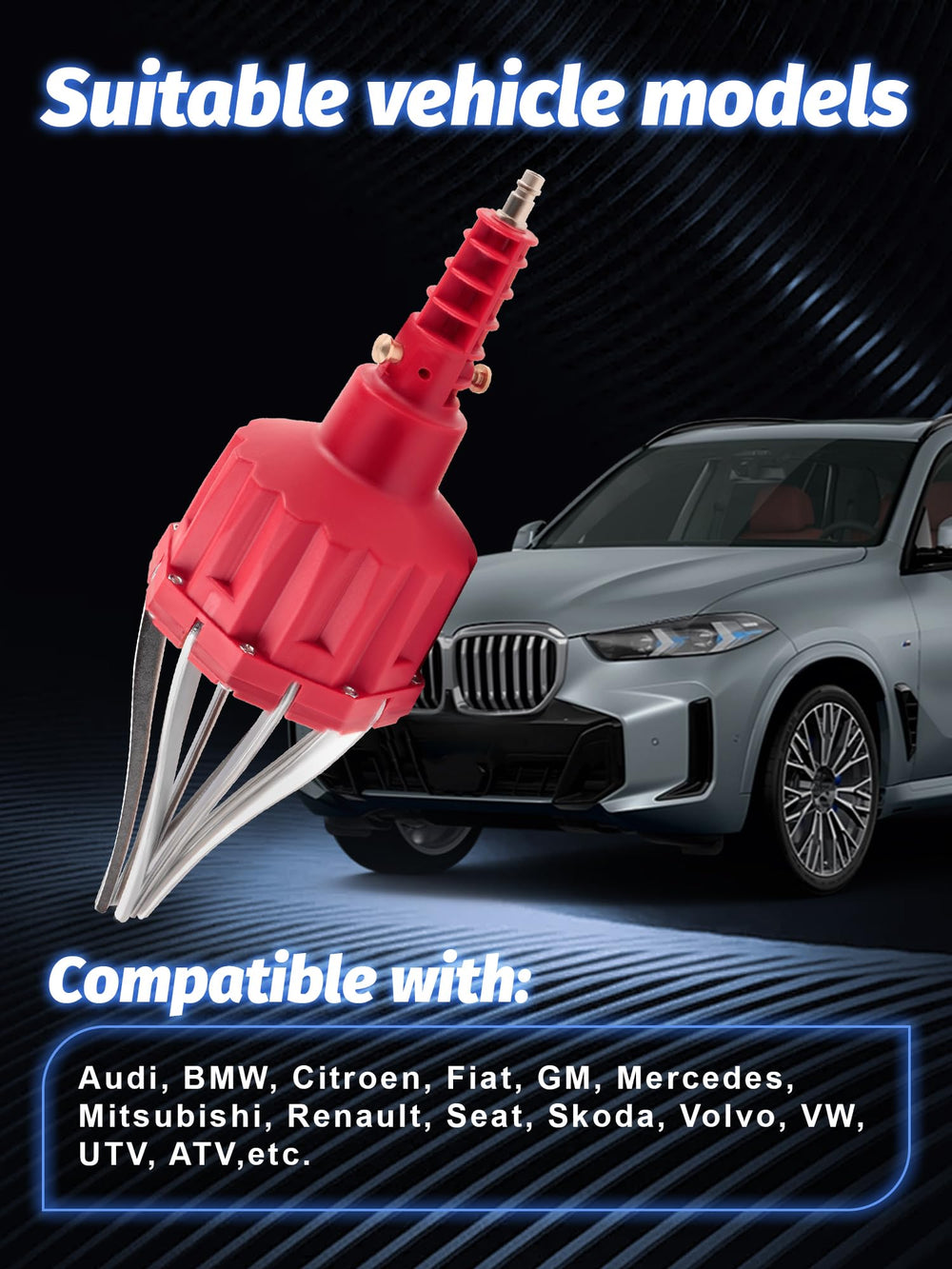

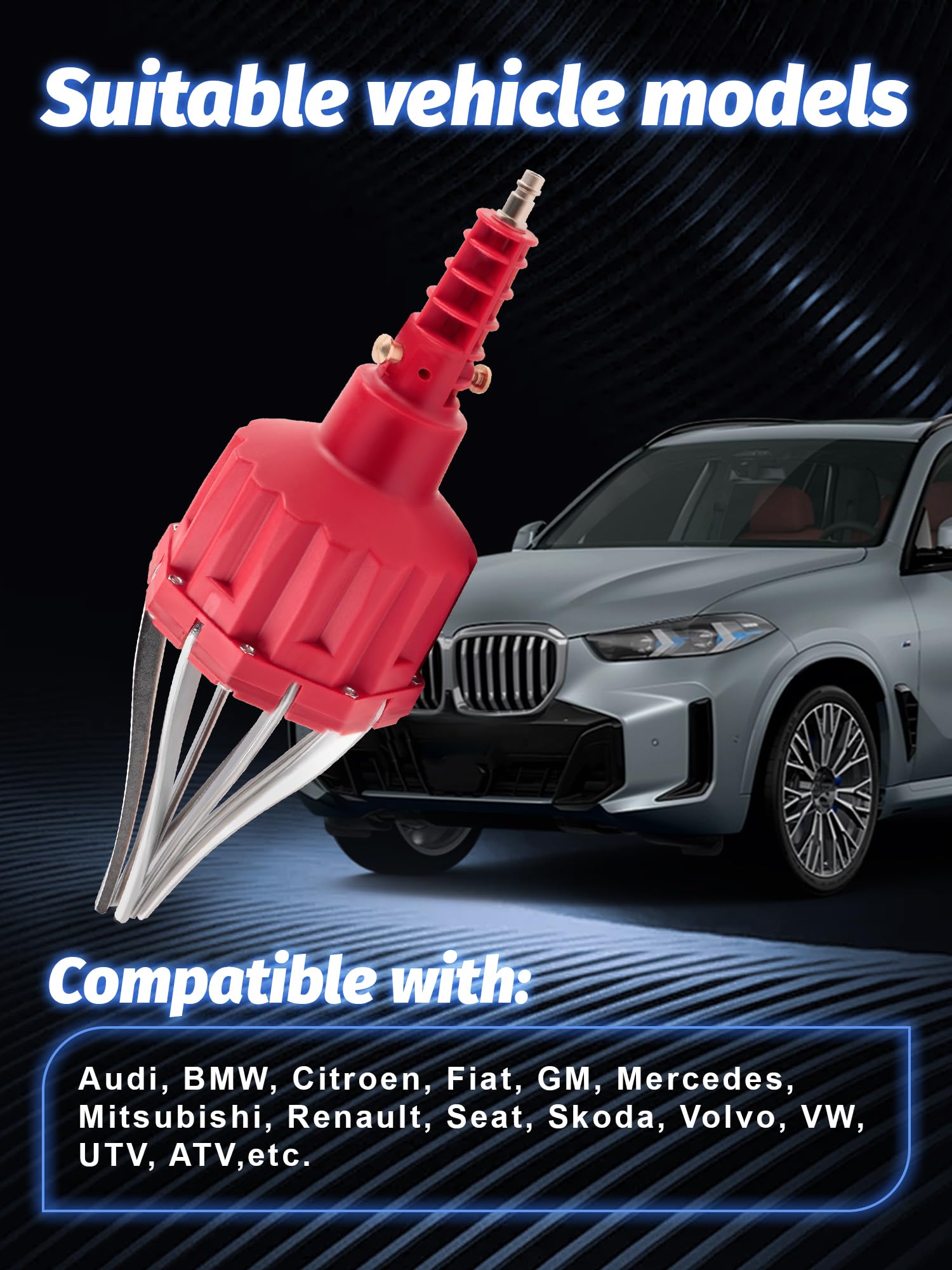

Yes — the expander is suitable for most cars, trucks and ATVs, and it’s also useful for some cooling hoses and pipe clamps. The 1/4-inch BSP thread and replaceable air adapter improve compatibility with workshop fittings.

• Fits shaft diameters from 26mm to 34mm
• One tool handles CV boots, cooling hoses and pipe clamp tasks

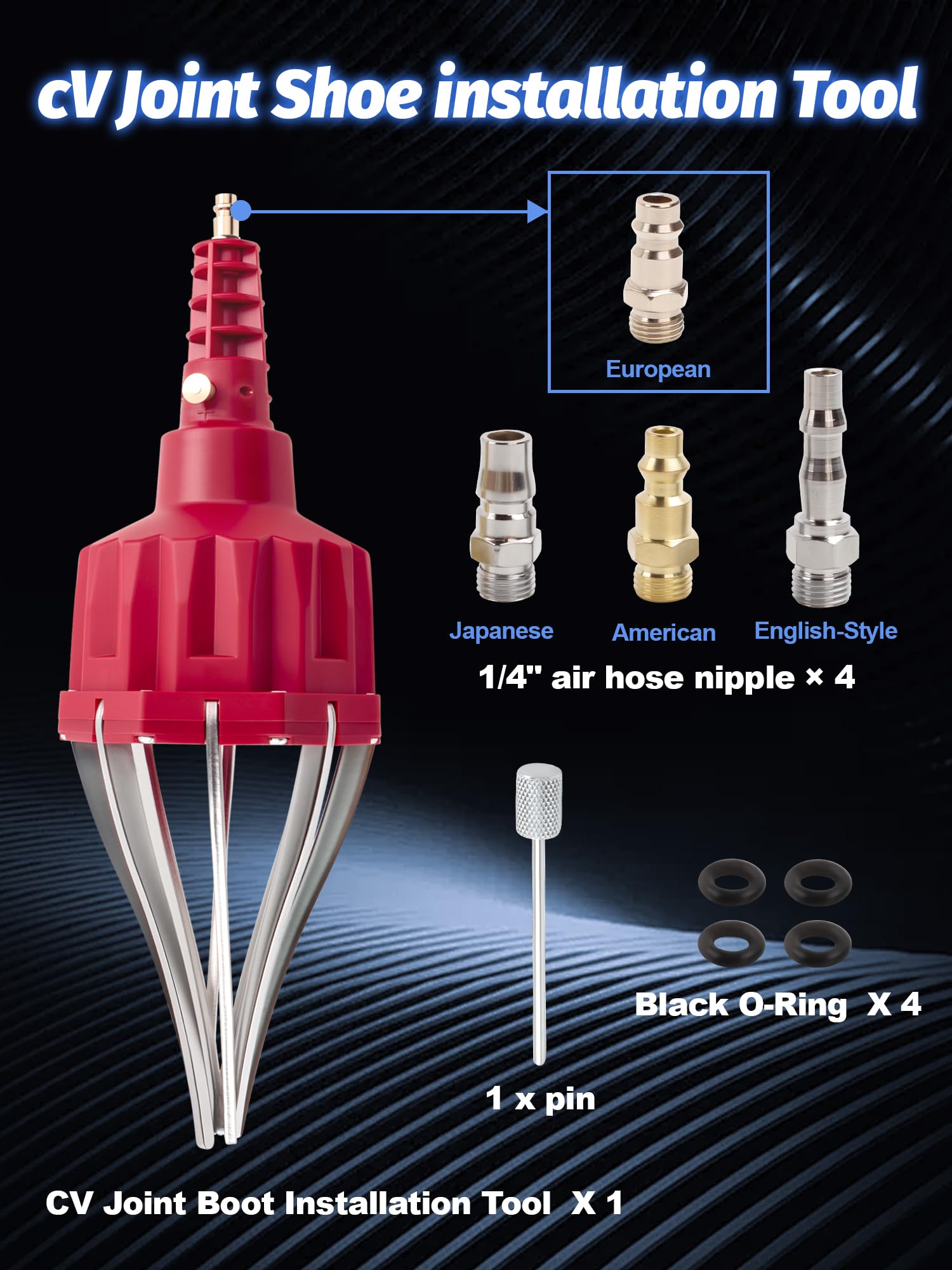

• Interchangeable air adapter and standard BSP thread for common compressors

What safety and durability features should I expect?

The SKCOAUTO tool uses hardened 45# steel and robust rubber composites, chosen to resist rust and maintain shape under repeated use. Follow the included guidance on cap-screw tightness and do not exceed the 130 psi maximum to prevent unsafe pressure conditions.

• 45# steel construction for wear resistance and stability
• Rubber composite components to protect boots and provide seal resilience

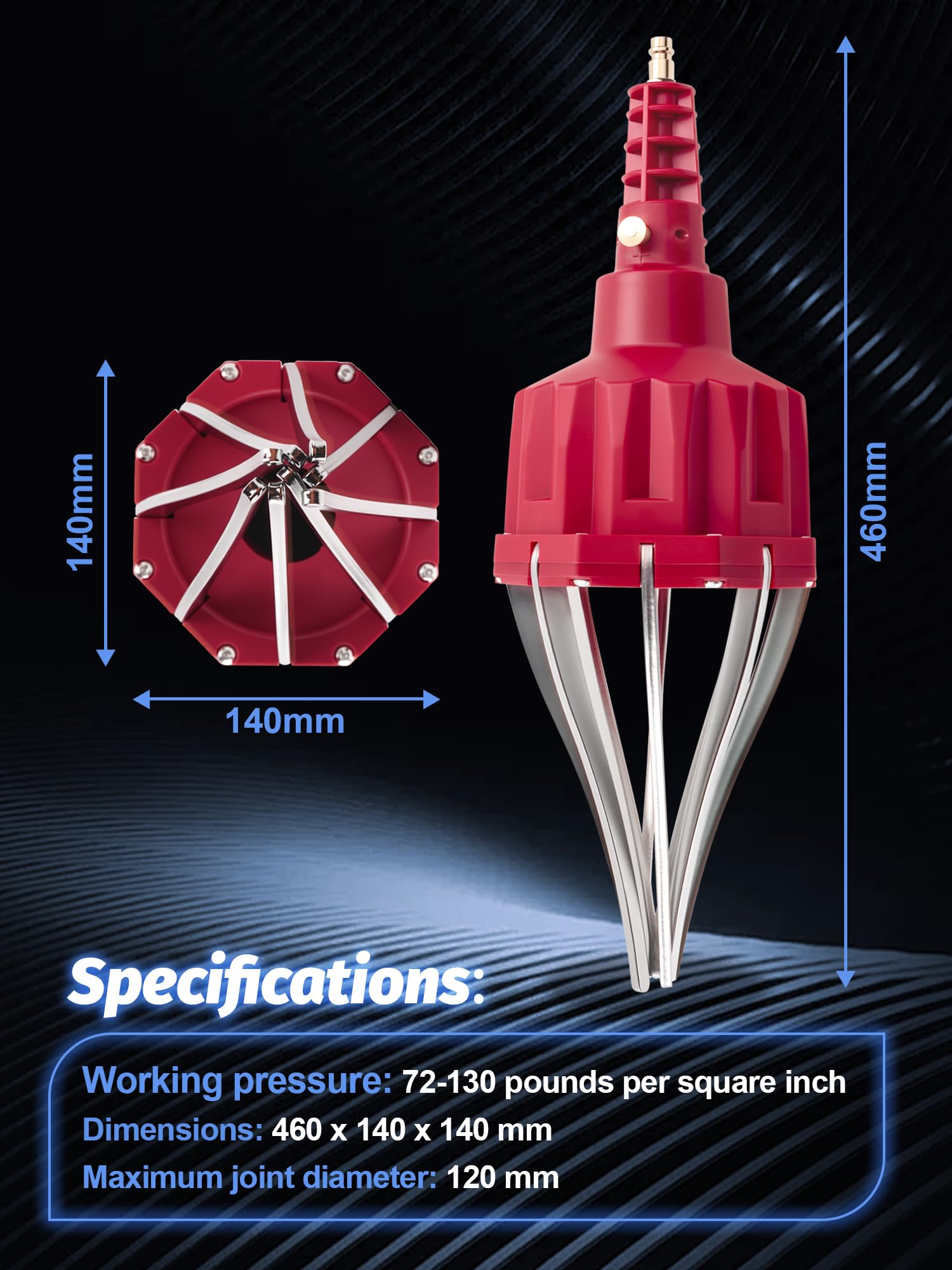

• Maximum recommended operating pressure: 130 psi; check cap-retaining screws before use

How simple is the setup and operation for a typical shop tech?

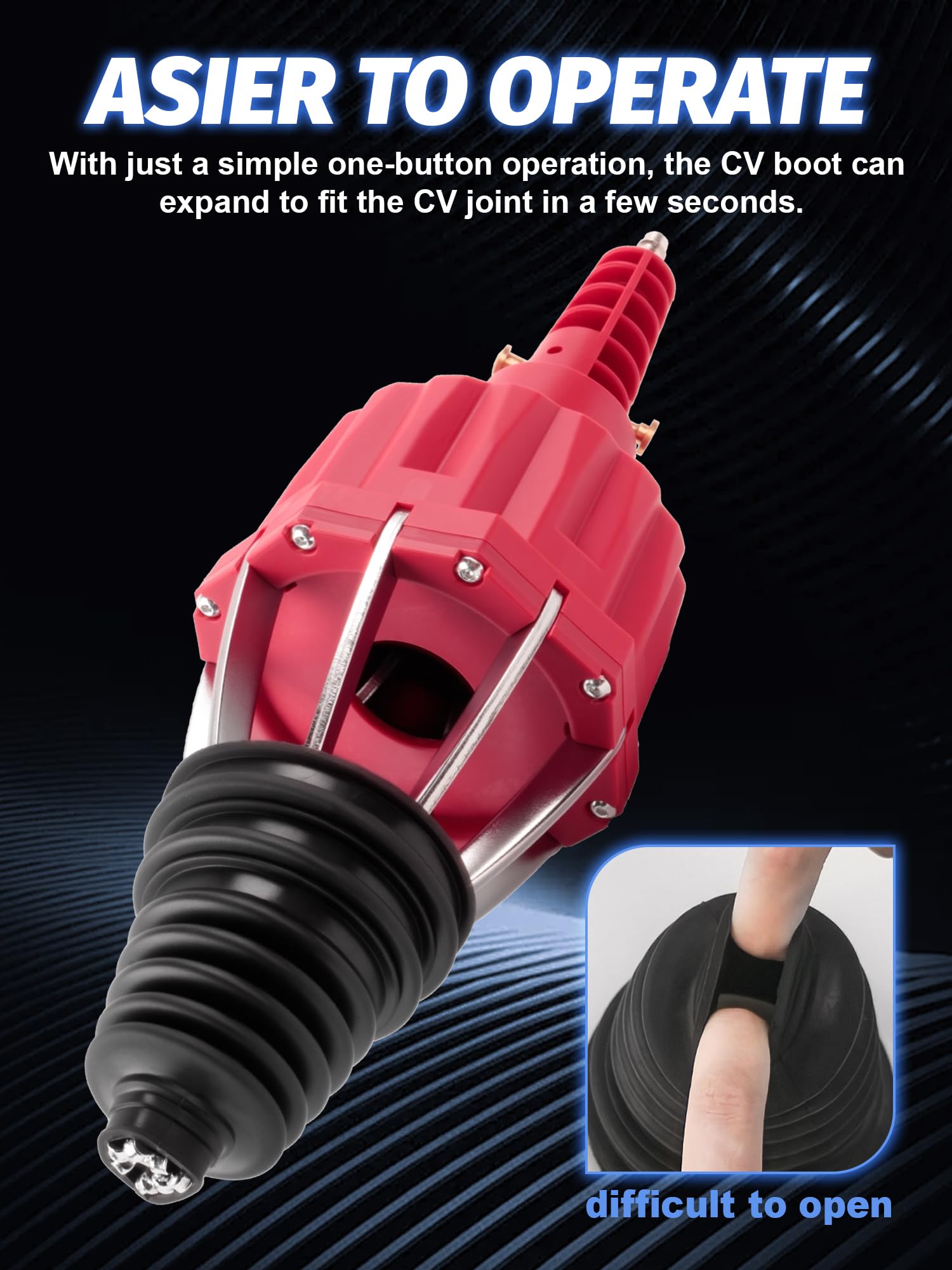

The unit requires no complex assembly — attach the air line to the BSP-thread inlet, position the boot over the expander fingers, open the valve to expand, then slide the boot into place and release. Basic checks like ensuring screw tightness and correct air pressure are the only prep steps.

• Out-of-the-box ready with minimal setup
• Quick operation: place boot, expand, fit, release
• Tool maintenance is limited to occasional inspection and adapter updates

Who is this for? The SKCOAUTO Pneumatic CV Joint Boot Installation Tool is aimed at professional mechanics, small repair shops, and serious DIYers who perform frequent axle or CV boot work and want a reliable, time-saving method. It’s especially useful when you need repeatable, damage-free installations across multiple vehicle types and when workshop compressors are already in use. If you value consistent fittings, less manual strain and a tool built to resist corrosion and wear, this kit provides a practical solution without complicated assembly.
