T Tocas E9 50A Marine Circuit Breaker Switchable 12V–72V IP67 Waterproof UL Ignition-Protected

The T Tocas E9 is a switchable, resettable 50 amp marine circuit breaker designed to protect and isolate 12V–72V DC systems with UL-rated ignition protection and IP67 waterproofing.

Built for boats, RVs, trucks and off-grid power setups, the E9 combines a manual reset breaker with an integrated switch button and heavy-duty 1/4"-28 threaded studs. Its compact surface-mount form and UL 94V0 thermoplastic housing deliver a durable, ignition-protected disconnect that replaces a traditional 50A fuse while adding reset capability and a visible on/off control.

How does this breaker improve safety for marine and vehicle electrical systems?

The E9 cuts power automatically when a fault or overload occurs, then allows you to reset the circuit without replacing fuses. It meets SAE and UL standards for ignition protection, reducing spark risk in flammable environments and ensuring safer operation near fuel systems.

• Auto-trip under overload conditions to prevent wiring and device damage
• SAE J1625, J1171 and UL1500 certifications for ignition-protected use
• Thermoplastic UL 94V0 housing that resists heat and flame

What voltages and applications is the E9 compatible with?

This breaker works across a broad DC voltage range so it fits many mobile and stationary uses. From 12V recreational boats and 24V utility vehicles to 48V or 72V battery banks, the E9 functions as a general-purpose 50A disconnect and protection device.

• Rated for 12V–72V DC systems
• Typical uses: marine, trolling motors, RVs, trucks, buses, DC audio and battery chargers
• Serves as a panel-mounted switch and resettable fuse replacement

How is the E9 installed and connected?

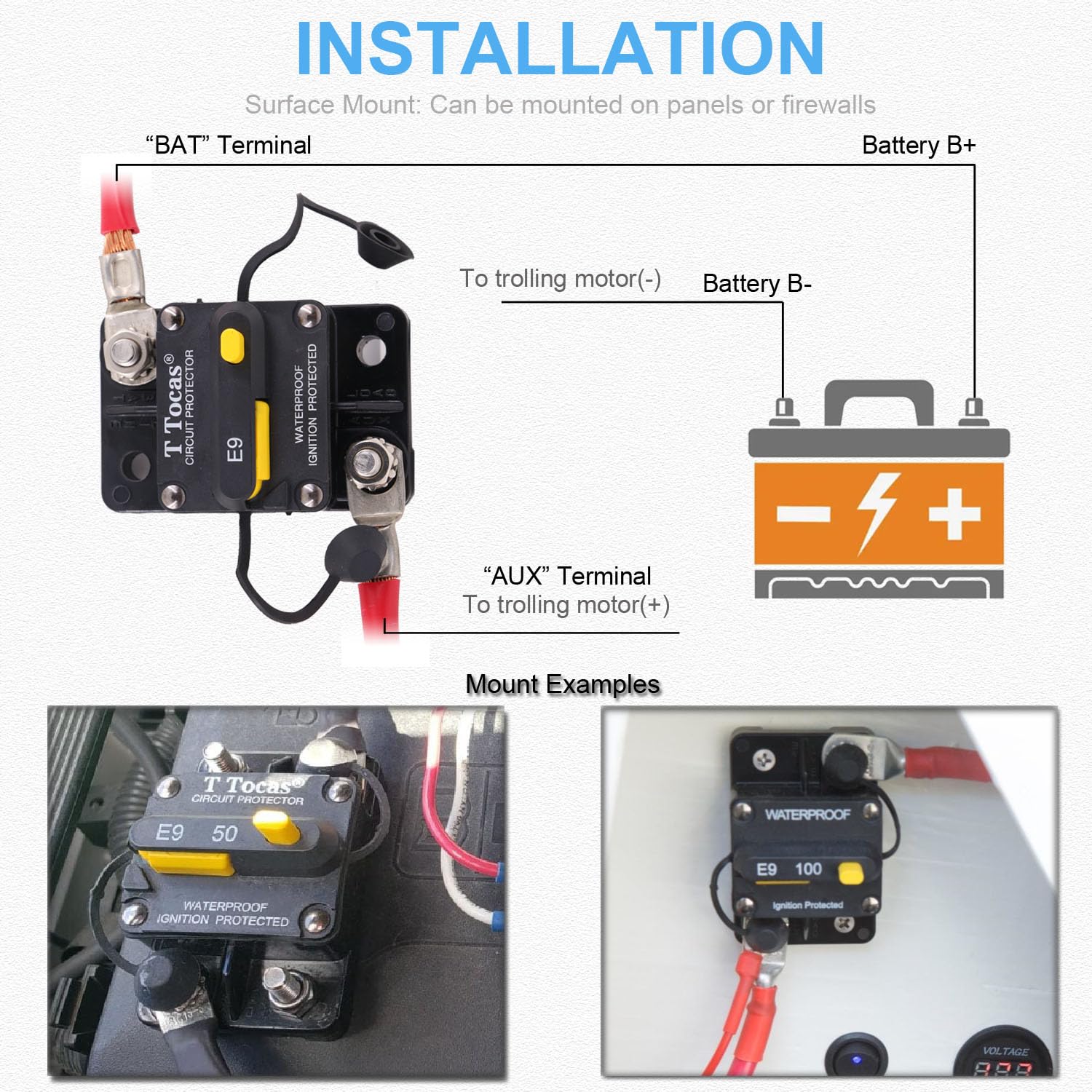

Installation is straightforward: surface-mount the unit, secure wiring to the 1/4"-28 threaded studs, and use the switch button for manual isolation. The compact design reduces panel clutter while the extended studs and durable terminals accept common ring lugs for reliable connection.

• Surface-mount footprint with extended studs for easy wiring

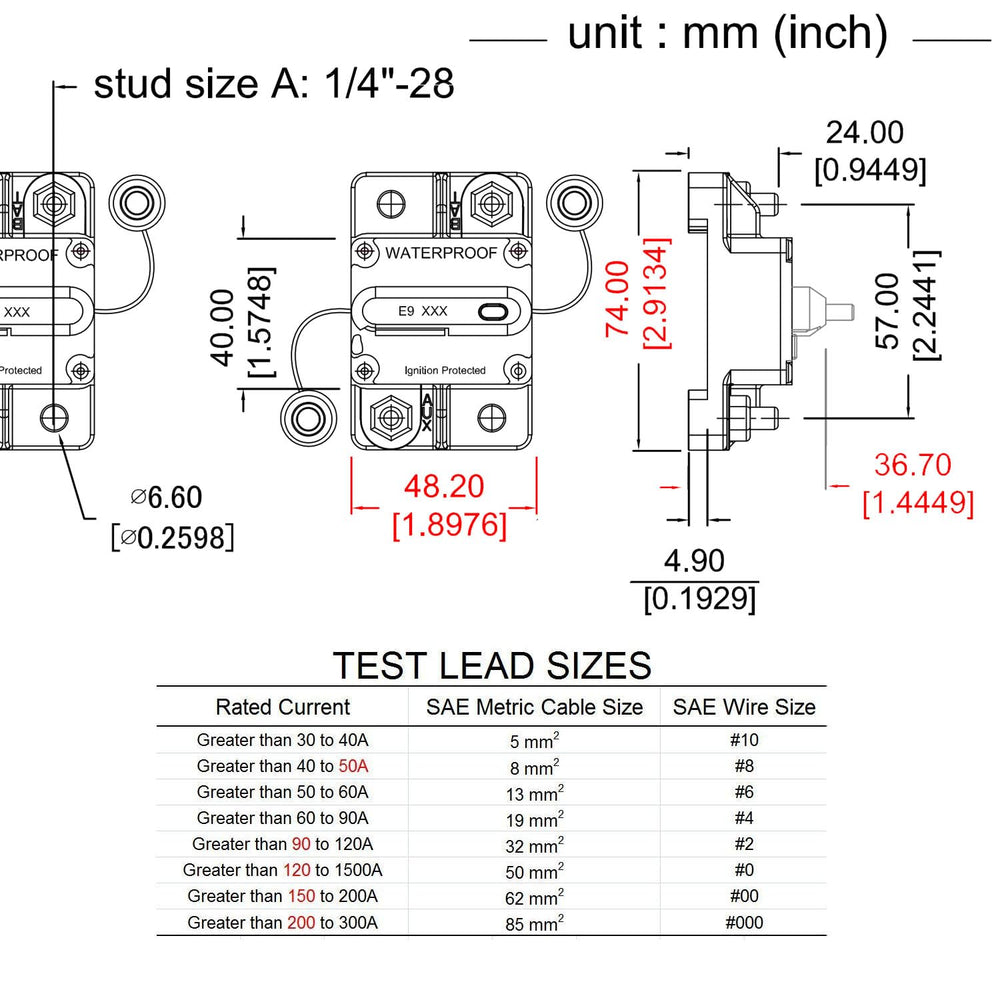

• 1/4"-28 threaded studs accept standard battery terminal hardware

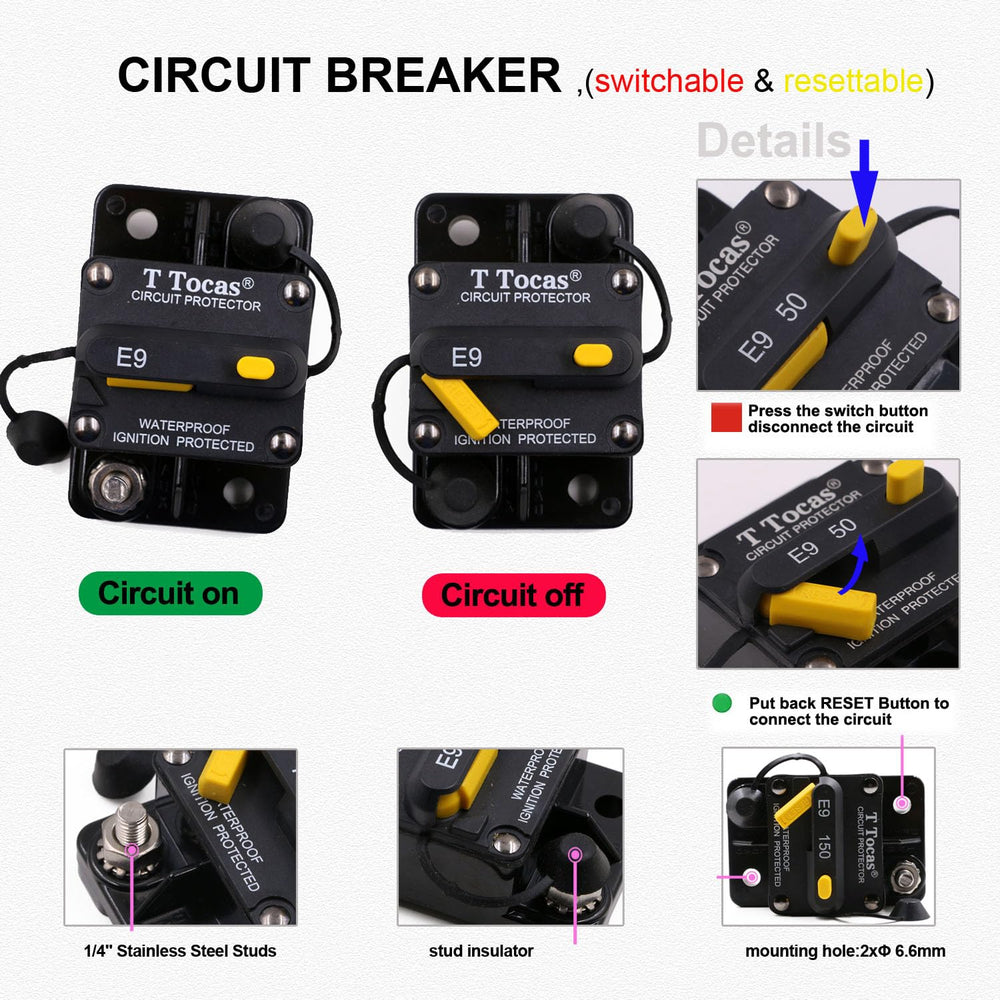

• Manual reset button provides clear on/off status without fuse changes

What environmental protection and durability features does it offer?

The E9 is engineered to handle wet and rough environments. IP67 waterproofing keeps moisture out, and the robust thermoplastic housing resists impact and flame, so the breaker remains serviceable in harsh marine and mobile settings.

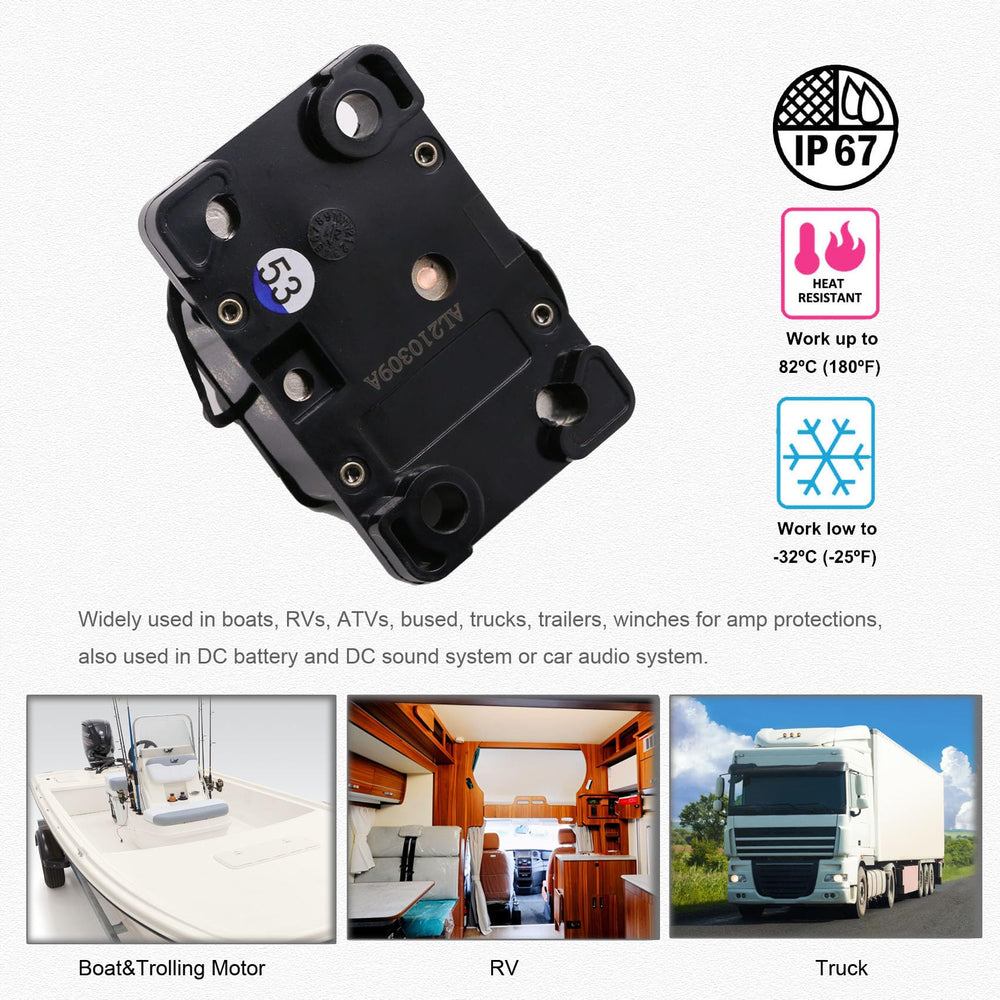

• IP67 rated for dust-tight and temporary water immersion protection
• UL 94V0 thermoplastic enclosure resists flame and heat
• Resettable design reduces downtime and spare-part needs

Who is this for? The T Tocas E9 50A breaker suits boat owners, RV and truck operators, electricians working on DC audio or charging systems, and anyone needing a compact, resettable 50 amp disconnect that complies with ignition-protection and waterproofing standards. Choose the E9 when you need a reliable inline protection device with a manual switch for quick isolation and easy resetting without fuse replacement.
