TAINECTC Remote Battery Disconnect Switch 140A 12V/24V with LED Voltage Display — Auto‑Disconnect, Remote & Manual Control

TAINECTC Remote Battery Disconnect Switch 12V/24V is a 140A-rated kill switch with remote control and an integrated LED voltage readout for reliable battery isolation and protection.

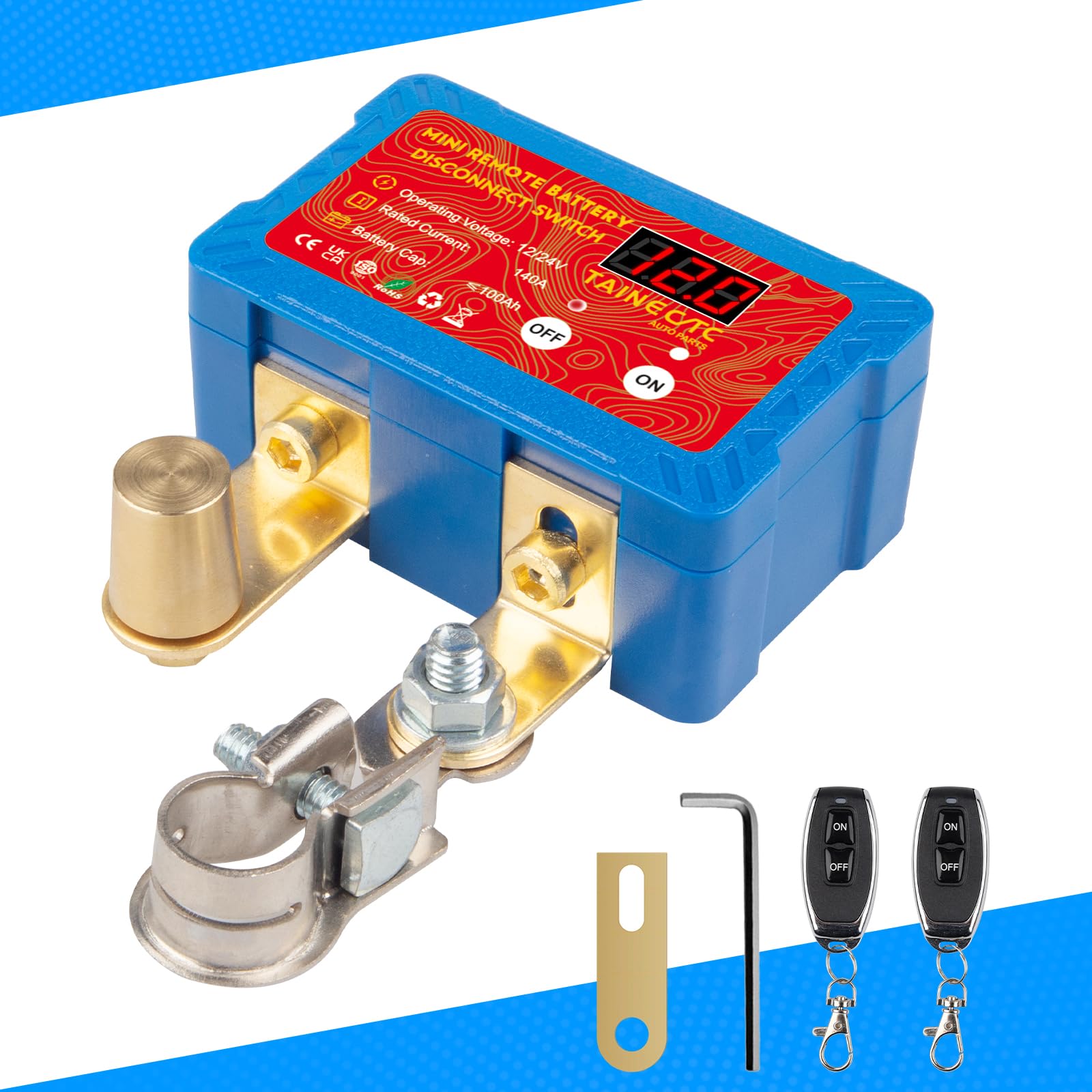

This compact battery disconnect combines a heavy-duty latching relay with low standby draw and an easy-to-read LED voltage indicator so you can isolate batteries remotely, prevent parasitic drain during long storage, and monitor system voltage at a glance. Designed for 8V–30V lead-acid systems (50–100Ah recommended) and compatible with many vehicles and equipment, the unit prioritizes simple installation and automated safeguards to reduce accidental deep discharge.

How does this switch protect my battery during long storage?

The TAINECTC disconnect isolates the negative terminal to cut parasitic loads and prevent gradual self-discharge. It also includes voltage-triggered auto-disconnect logic that opens the circuit when voltage falls below safe thresholds to avoid excessive depletion.

• Auto-disconnect when battery voltage drops under 11.8V (prevents deep discharge)
• Timed disconnect (300 seconds) after detecting out-of-range voltages
• Manual control with remote and onboard buttons for override
• Ultra-low standby consumption to preserve battery while inactive

Will this work with my car, boat, or off-road vehicle?

Yes—if your system is a non-lithium, non-valve-regulated lead-acid battery between 8V and 30V and roughly 50–100Ah capacity, the TAINECTC switch is suitable. It handles continuous currents up to 140A and fits a wide range of vehicles and equipment.

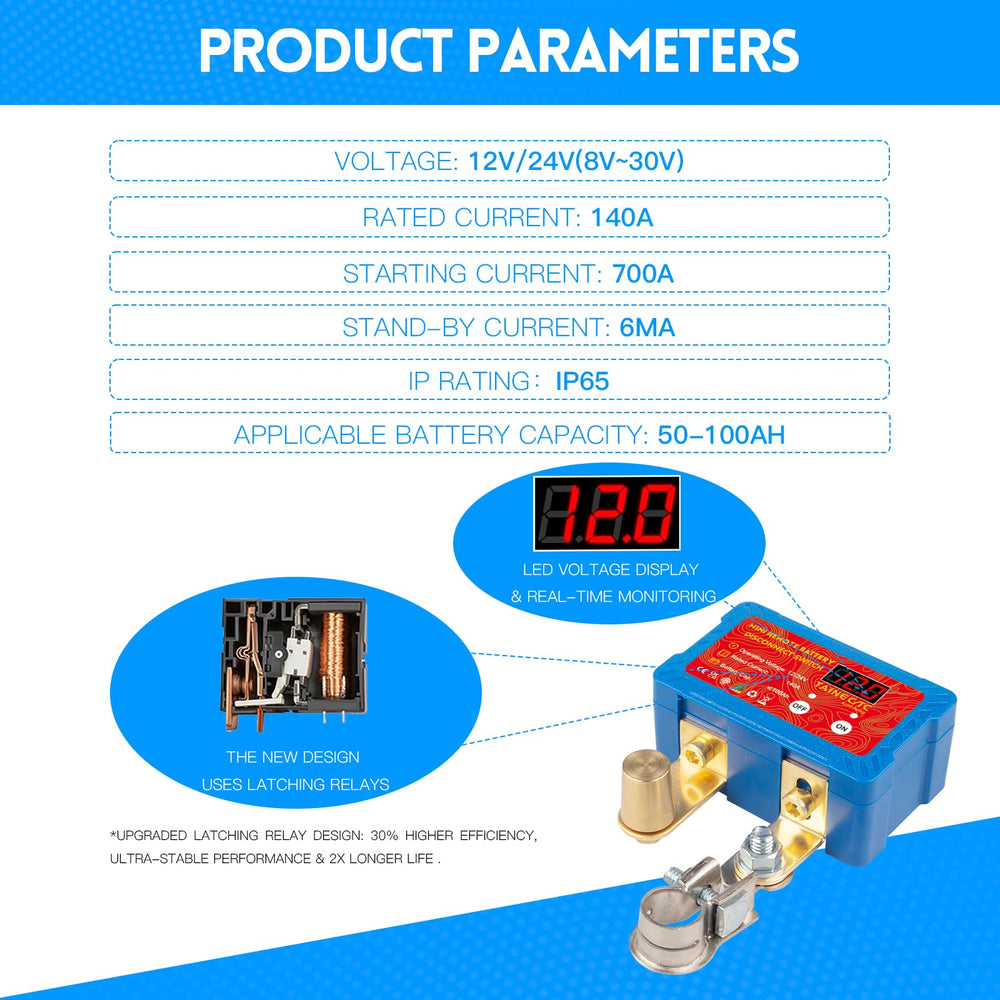

• Rated for 12V/24V systems and 140A continuous current
• Compatible with cars, trucks, RVs, trailers, boats, ATVs, UTVs, tractors, and forklifts
• Not compatible with lithium or VRLA batteries—check battery chemistry first
• Recommended for 50–100Ah lead-acid battery capacities

How easy is installation and operation?

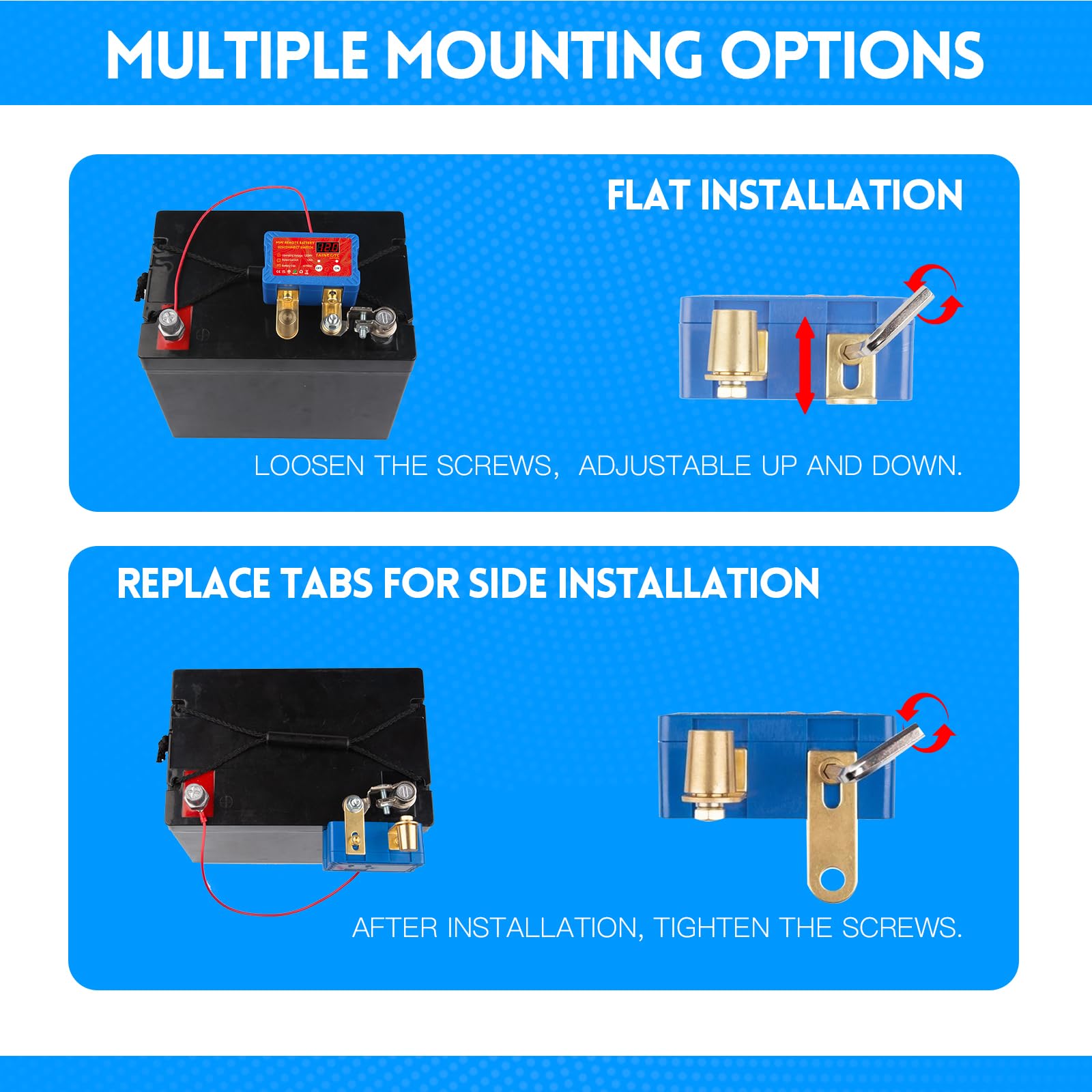

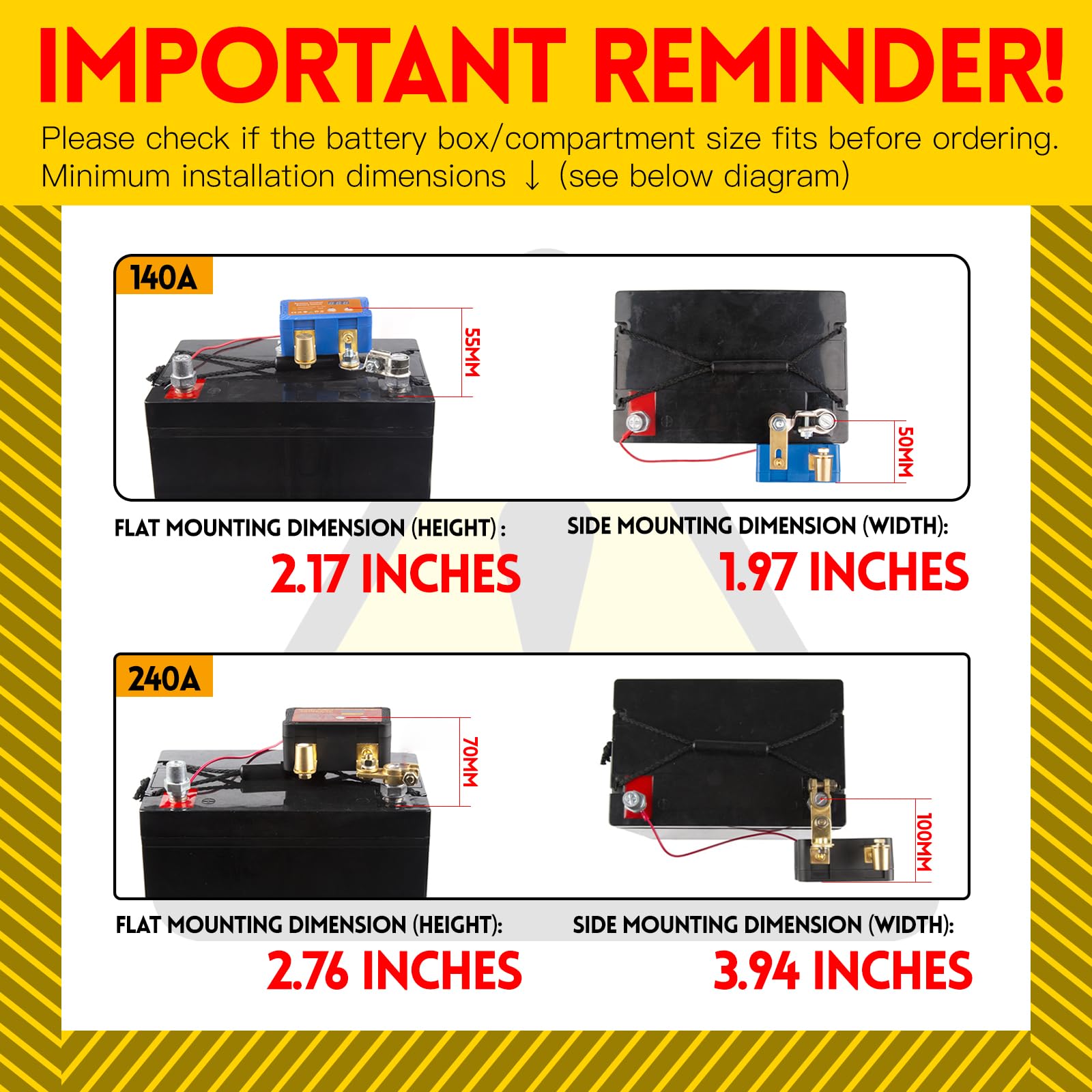

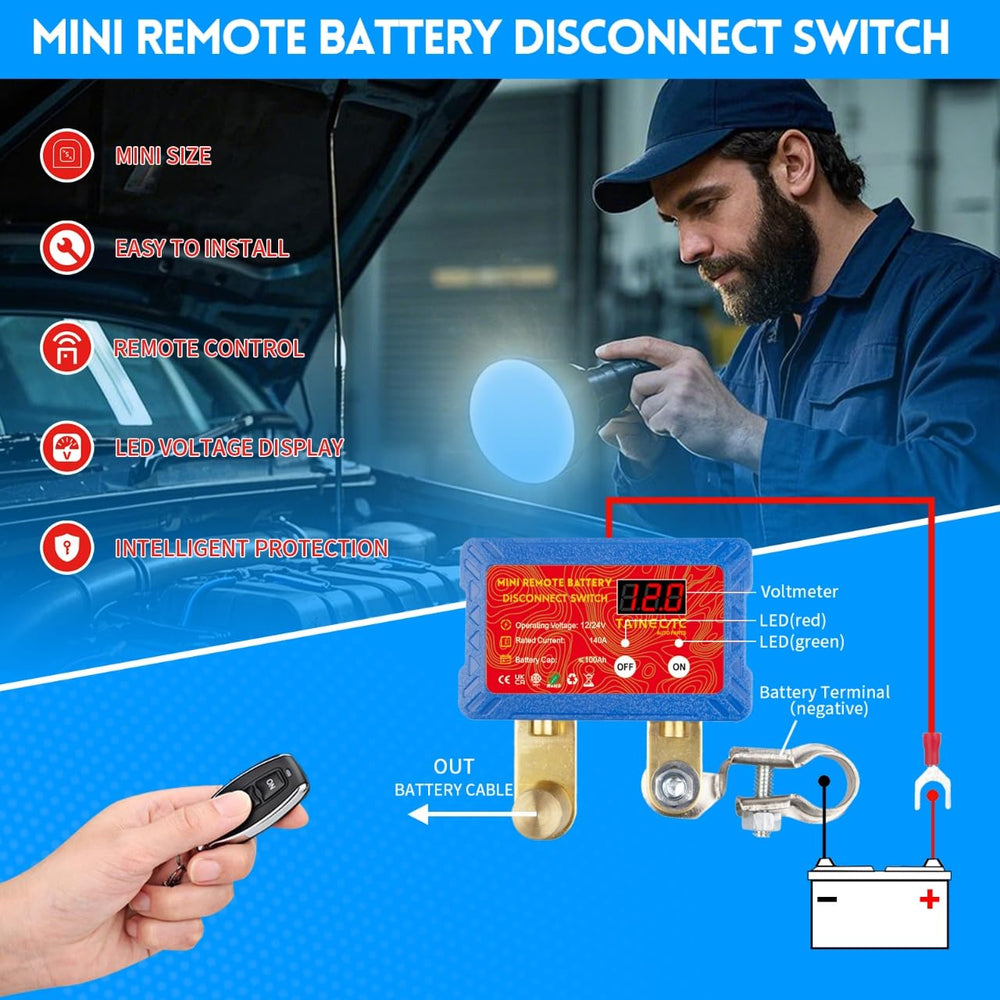

The switch mounts to the battery negative terminal and offers side-mount shims and slotted tabs for flexible positioning in tight engine bays. Operation is remote with a killswitch function and manual buttons; charging states alter responsiveness to avoid unsafe on-road switching.

• Connects to the negative terminal with shims for side-mount or flat mounting
• Slotted connection tabs allow vertical height adjustment for fitment
• Manual buttons always available; remote control for convenient isolation
• During charging (13.6–17V or 27.2–30V) remote is disabled to prevent unintended switching

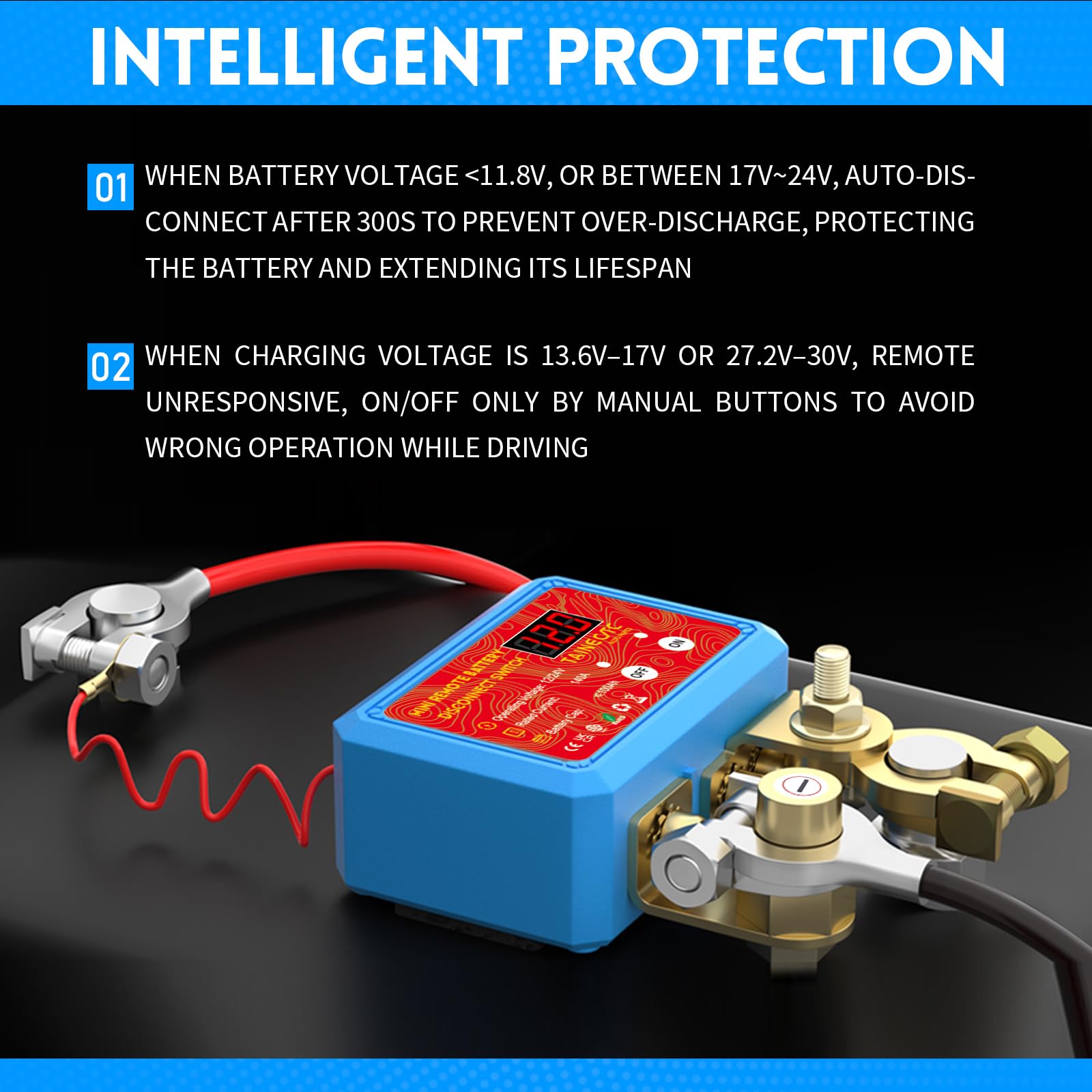

What safety features and automatic behaviors are included?

The device uses smart thresholds to guard against both over-discharge and incorrect operation while charging. It will automatically disconnect in defined voltage ranges and restrict remote control when voltages indicate the alternator or charger is active.

• Auto-disconnect when voltage reads below 11.8V or in 17–24V range after 300s
• Remote control disabled while charging voltages are present (13.6–17V or 27.2–30V)
• Latching relay design for stable connection and low idle current draw
• LED voltage display for quick visual monitoring of battery condition

Who is this for? Vehicle owners, boaters, and fleet managers who need a dependable, easy-to-install battery isolation solution for lead-acid systems will find the TAINECTC Remote Battery Disconnect Switch useful. It is geared toward anyone who needs to prevent parasitic drain during long storage, protect batteries from deep-discharge, or safely cut power for maintenance and anti-theft purposes. Verify your battery chemistry and system voltage before purchase, and consult a technician if you are unsure about compatibility or wiring.
